USER MANUAL KA 1805 ADE

Icon of a person using a laptop inside a circle (no text or symbols)

Technical diagram of a multi-cylinder oven with labeled parts including top, front, side, and internal components.

Line drawing of a mechanical device with a piston and housing, showing internal components (no text or symbols)

Technical line drawing of a mechanical component with a circular top and side hole, showing internal flow direction (no text or symbols)

22143 Hamburg, Germany

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. The wealth of experience of the ADE brand ensures a high technical standard and proven quality for more freshness in your kitchen.

We wish you much pleasure and enjoyment!

Your ADE Team

General information

About this operating manual

This operating manual describes how to operate and maintain your product safely. Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well.

Failure to observe this operating manual may result in injuries or damage to your product.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Table of Contents

General information....12

Intended use 14

Safety 14

Scope of delivery 16

Overview 17

Before first use....17

Grinding, chopping or pureeing....18

Cleaning....19

Storage and transport....20

Fault/Remedy....20

Technical data....20

Warranty 21

Declaration of Conformity....21

Disposal....21

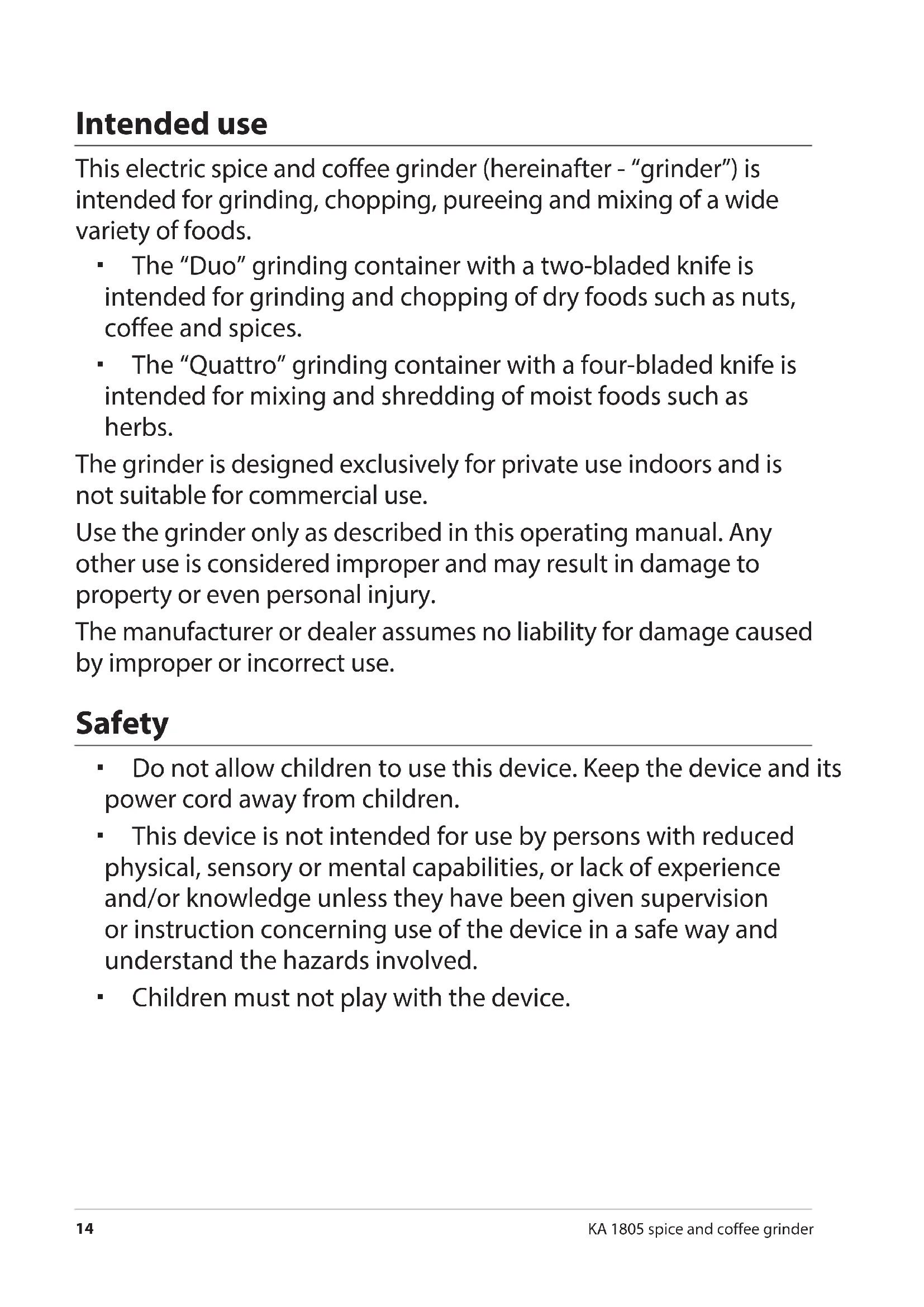

This electric spice and coffee grinder (hereinafter - “grinder”) is intended for grinding, chopping, pureeing and mixing of a wide variety of foods.

• The “Duo” grinding container with a two-bladed knife is intended for grinding and chopping of dry foods such as nuts, coffee and spices.
• The “Quattro” grinding container with a four-bladed knife is intended for mixing and shredding of moist foods such as herbs.

The grinder is designed exclusively for private use indoors and is not suitable for commercial use.

Use the grinder only as described in this operating manual. Any other use is considered improper and may result in damage to property or even personal injury.

The manufacturer or dealer assumes no liability for damage caused by improper or incorrect use.

Safety

• Do not allow children to use this device. Keep the device and its power cord away from children.
• This device is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
• Children must not play with the device.

- Keep wrapping and packaging material away from children. There is a choking hazard! Also pay attention that children do not pull the packaging material over their heads.

- If the power cord of this device is damaged, it must be replaced by the manufacturer or its after-sales or customer service to avoid hazards.

Danger from electricity

• Do not immerse the grinder, power cord or power plug in water or other liquids.
• Place the grinder in such a way that no liquids can spill over the device plug connection.

- Do not operate the device with wet hands.

- Do not operate the device outdoors.

• Connect the device to a correctly installed socket that has a voltage corresponding to that described under "Technical Data".
• Make sure that the mains outlet is readily accessible so that you can quickly unplug the power cord, if necessary.

- Do not use the device:

-if the device itself or its parts are damaged,
-if the power cord or plug is damaged,
-if the device has fallen down.

- Before each use, pull the power cord out of the cable compartment as far as necessary. Make sure that the power cord is not damaged by sharp edges or hot objects.

- Unplug the power cord from the mains outlet:

-if you do not use the grinder,
-after each use,
-before cleaning or putting away the device,
-if, during operation, there appears to be interference,
-during a storm.
-To unplug, always grasp the power plug; do not pull on the cable.

- Do not modify the device or power cord. Have repairs carried out only by a specialist workshop as improperly repaired devices endanger the user.

- Do not use an extension cable.

WARNING of risk of injury

• While working, put up long hair, tie it up backwards or cover it under a cap.
• Do not touch moving parts of the device and do not attempt to stop them by hand or using other objects.
• Do not use the grinder if the knives in the grinding containers are damaged.
• The knives are sharp. Therefore, be careful when inserting, cleaning, and changing. Do not touch the knives with bare hands.

BEWARE of material damage

• Do not operate the grinder for more than 1 minute at a time. After that, allow the grinder to cool down for approx. 2 minutes.
• Never operate the grinder without ingredients, as this could cause the motor to overheat.
• Never place the grinder on or near hot surfaces (for example, hot plates, etc.).

- Avoid contact of the power cord with hot parts.

• Never expose the grinder to a high temperature (heating, etc.) or adverse weather conditions (rain, etc.).
• Place the grinder on a robust, smooth, and easy-to-clean worktop. When processing foods, occasional splashes are unavoidable.
• The grinder has feet on the underside. Since surfaces are made from various materials and are treated with diverse care products, it cannot be completely excluded that some of these substances contain ingredients that attack and soften the feet of the device. Place a non-slip pad under the grinder, if necessary.
• Use only original accessories.

Scope of delivery

• Spice and coffee grinder
• 2 grinding containers
• Seal cover
• Operating Manual

Technical diagram of a multi-cylinder engine with labeled parts including stator, rotor, and power outlet

1 "Quattro" grinding container: grinding and shredding of moist foods such as herbs
2 "Duo" grinding container: grinding and shredding of dry foods such as nuts, coffee, spices
3 Base station with power cord and plug as well as cord rewind on the bottom
4 Power button
5 Seal cover

Before first use

Unpacking and checking

1. Carefully unpack the grinder and remove all packaging material.
2. Check that the delivery is complete.
3. Check whether the grinder or its individual parts have any damage. If this is the case, do not use the grinder. In this case, contact the dealer where you bought the device.
4. Before first use, clean all parts as described in chapter "Cleaning".

NOTE on material damage

- The device is designed for a short-time operation of 1 minute. After that, allow the device to cool down for 2 minutes before resuming operation.

Line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

1. Place the grinder on a clean and flat surface.

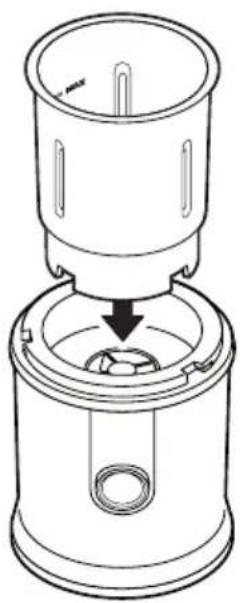

2. Place the desired grinding container on the base station.

-Grinding and chopping of dry foods such as nuts, coffee and spices: Take the "Duo" grinding container with the two-bladed knife.

-Mixing and shredding of moist foods such as herbs: Take the "Quattro" grinding container with the four-bladed knife.

1. Fill the grinding container with the food to be processed. Note the markings in the container: do not overfill it!

Technical line drawing of a mechanical component with a circular top and central hole, showing internal features and an arrow indicating direction (no text or symbols)

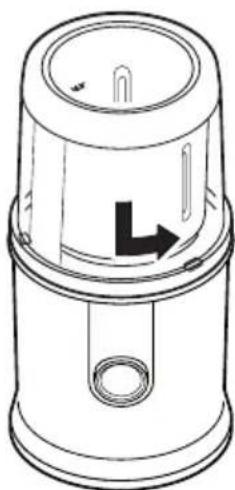

1. Replace the seal cover on the base station. Note the position of guide pins on the seal cover and recesses on the base station.

2. Turn the seal cover counter-clockwise until it stops. The device is ready to work only if the seal cover is in this position.

3. Plug the power cord into the mains outlet.

4. Press and hold down the power button until the food in the grinding container has reached the desired degree of grinding or is pureed. As soon as you release the button, the motor will stop.

- The degree of grinding depends on the duration of the grinding process.

-Observe the short-time operation of 1 minute.

- The desired result can also be achieved by multiple power on and off cycles depending on the nature of the ingredients.

When food processing is finished:

1. Release the power button.
2. Turn the seal cover clockwise until it stops and remove it.
3. Remove the grinding container from the base station.

After use

1. Unplug the power cord from the mains outlet.
2. Clean the grinder and the parts used after each use.

Cleaning

Electrical shock HAZARD

-Do not immerse the base station in water or other liquids.
-Unplug the power cord from the mains outlet before cleaning the device.

WARNING against injury

- The knives are very sharp. Be careful when inserting, cleaning, and changing.

NOTE on material damage

-Do not clean the base station and accessories in the dishwasher.

Strongly colouring foods such as carrots discolour the plastic drinking bottle during prolonged use. However, this does not affect the function.

Housing

- Wipe the base station with a slightly damp cloth, if necessary. Then, wipe it dry thoroughly.

Accessories

1. Thoroughly clean the accessories in hot dishwashing water.
2. Wipe all parts dry thoroughly.
3. Finally, check that all parts are really thoroughly cleaned and free of any stuck leftovers.

Storage and transport

1. Slide the power cord into the integrated cord rewind.
2. Store the clean and dry grinder and accessories in a dry, frost-free place out of the reach of children.
3. To transport the grinder safely, wrap it in bubble wrap and place it in its original packaging.

Fault/Remedy

Fault Possible cause
No function.	· Check if the power cord is plugged.· The device is ready to work only if the seal cover has been properly replaced and turned counter-clockwise up to the stop.
Poor mixing result. · Check...	... if the food is suitable,... if you have used the right grinding container.

Technical data

Model: KA 1805 spice and coffee grinder

Power supply: 220-240 V\~, 50/60 Hz

Power: Nominal: 300 W

Protection class:

Weight: approx. 1.3 kg

Short-time operation: max. 1 minute, then the device must be allowed to cool down for 2 minutes

Distributor

Waagen-Schmitt GmbH

(no service address):

Neuer Höltigbaum 15

22143 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Warranty

Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the KA 1805 spice and coffee grinder complies with EU directives 2014/30/EU, 2014/35/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our consent.

Hamburg, march 2021

Waagen-Schmitt GmbH

Disposal

Disposing of the packaging

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.
