USER MANUAL Emilia Springlane

Capacity of water tank: 1,5 liters

Size (W/D/L): 30 × 21 × 31 ~cm

Weight: 5,4kg

Material: Stainless steel, plastic

Equipment: Cup warmer, steam nozzle with milk frother, detachable water tank, pump pressure 15-bar, overheat protection

Accessories: Portafilter, 2-in-1 coffee spoon and tamper

Subject to changes and potential errors concerning equipment features, technology, colors and design.

SYMBOL EXPLANATION

This symbol warns of possible danger which may cause damage to the device or injury to the operator.

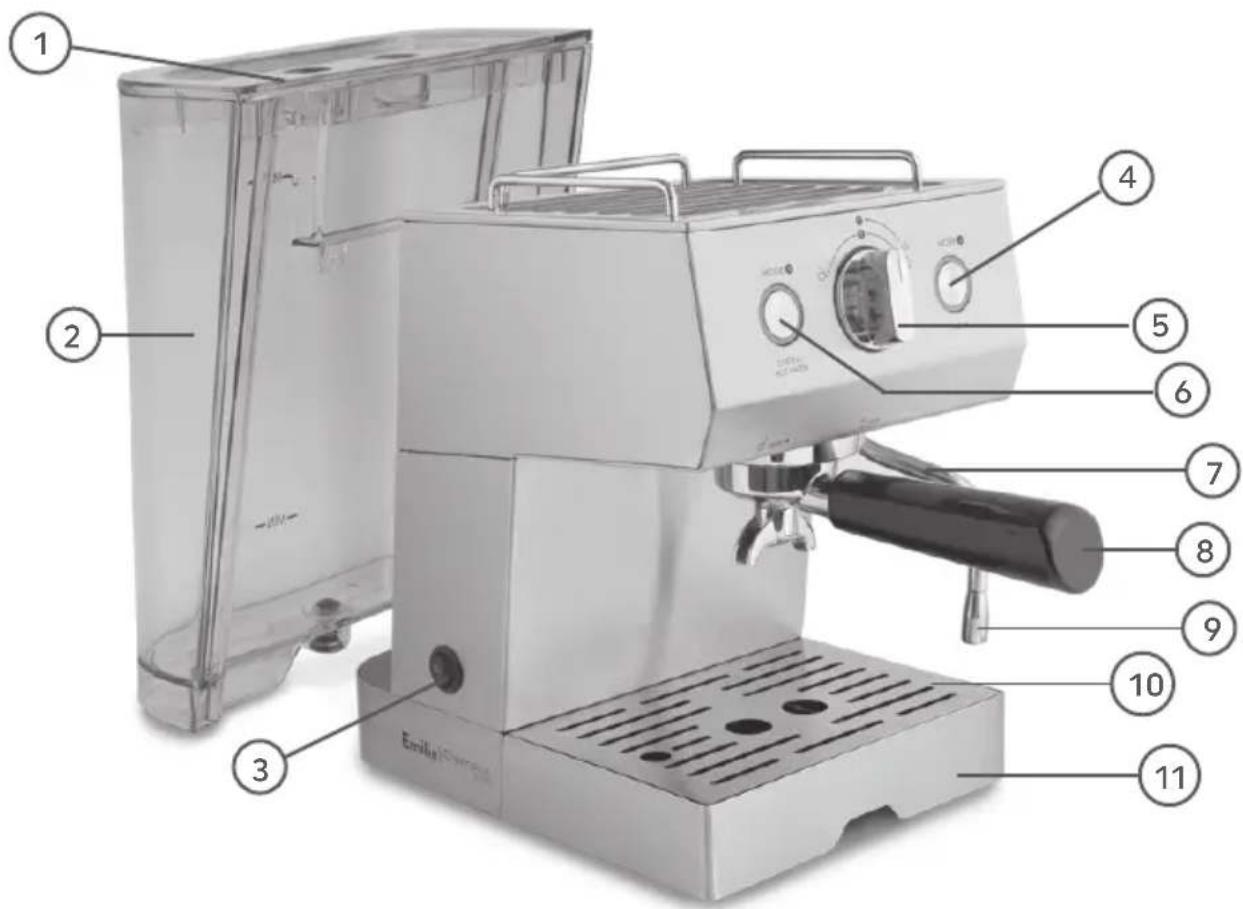

1. Water tank lid
2. Detachable water tank
3. ON/OFF switch
4. Steam switch
5. Control knob
6. Coffee/hot water switch
7. Steam tube

8.Portafilter
9. Milk froth nozzle
10. Removable cup shelf
11. Drip tray

INTENDED USE

The espresso machine Emilia is suitable for brewing coffee, espresso, cappuccino and latte macchiato and for preparing hot beverages with water or milk as well.

Before first use, please read the instruction manual carefully and keep it in a safe place.

• This device can be operated by children age 8 or older and by individuals with reduced physical, sensory and mental abilities or lack of experience and/or knowledge if they are supervised or have been given instruction concerning proper use of the appliance and understand possible dangers.
• This device is not a toy. Cleaning and maintenance of the device must only be performed by children age 8 or older when they are supervised.
  Children must not play with the device.
  The device and its connection cable must be kept out of reach of children under the age of 8.
• Before removing or plugging in the power plug, turn all switches of the espresso machine to "OFF".
• Do not touch any hot surfaces of the espresso machine such as

steam tube or portafilter while the machine is running. Always use knobs and switches.

• Never leave the espresso machine unattended while it is switched on, especially when children or individuals with reduced physical, sensory or mental abilities are around.

You need to make sure that your power supply complies with the details listed on the espresso machine's type plate.

• Only connect the power plug to a grounded outlet.
• Remove the power plug from the socket if you are not using the espresso machine. Do not pull the power cord because it could get damaged.

• Let the espresso machine cool down completely before cleaning or attaching accessory parts.

• Do not use the espresso machine, accessory parts or the power plug if they are damaged. In such case, please contact customer service.

• Ensure that the espresso machine is placed on a flat, non-heated surface and that there are no open flames in near proximity.
• Make sure that the power cord does not hang loosely over the edges of a table or the worktop. Moreover, the power cord must never be close to or in contact with hot machine parts or other sources of heat.
• Do not operate the expresso machine if the power cord or power plug are damaged. Have them replaced by a certified repair service.
• Never operate the espresso machine with an empty water tank.
• Do not remove the portafilter while the machine is running.
• Do not use any accessory parts which are not recommended by the manufacturer of the espresso machine.

• The ambient temperature for operating and storing the espresso machine must be higher than 0^ because the water contained could otherwise freeze and thus damage the device.

• Do not operate the espresso machine outside.
  The espresso machine is only intended for use within the household or for similar purposes, e.g.

• in office kitchens for employees of stores, offices and other commercial areas;

• in agricultural holdings;
• for guests to use in accommodation facilities (hotels, motels), bed and breakfasts or holiday homes.

In case of failure to comply with the instructions on proper use or if used incorrectly, Springlane GmbH does not assume liability.

Before first use, rinse the espresso machine thoroughly with warm water.

1. Fill the water tank with water. The water level should not exceed the maximum filling capacity marked with "MAX". Now cover the water tank with the lid.
2. Insert the portafilter into the holder without adding ground coffee. Insert the portafilter in a way that the handle faces the "INSERT" position. Turn the portafilter counterclockwise until it sits tightly in "LOCK" position.
3. Place a cup onto the cup shelf. Make sure that the control knob is in its default position.
4. Plug the power plug into the socket and turn the ON/OFF switch to the "I" position. The blue coffee display is going to start flashing. The espresso machine is going to heat up now.
5. As soon as the coffee display shines steadily, turn the control knob to so that water starts pouring.
6. After one minute, turn the control knob back into its default position and pour away the water. Now, the brewing process can be started. Note: At the initial start-up, there might be a detectable noise during the pumping of the water for 20 seconds because the espresso machine releases air. After about 20 seconds, the noise disappears.

USING ESPRESSO MACHINE EMILIA

PREHEATING

In order to make a cup of espresso, you should preheat the machine including the holder, portafilter and cup prior to preparation. This way, the flavor of the coffee is not going to be affected by cold parts.

1. Fill the water tank with water. The water level should not exceed the maximum filling capacity marked with "MAX". Now cover the water tank with the lid.

2. Insert the portafilter into the holder without adding ground coffee. Insert the portafilter in a way that the handle faces the "INSERT" position. Turn the portafilter counterclockwise until it sits tightly in "LOCK" position.

3. Place a cup onto the cup shelf.

4. Plug the power plug into the socket. Make sure that the control knob is in its default position.
5. Turn the ON/OFF switch to the "I" position. The blue coffee display is going to start flashing. The espresso machine is going to heat up.
6. As soon as the coffee display turns steadily bright, preheating is completed.

PREPARATION OF ESPRESSO

1. Detach the portafilter by turning it counterclockwise. Fill the portafilter with ground coffee and insert it back into the holder. One spoon of ground coffee is needed for one cup of espresso.
2. Firmly press the ground coffee in place with the tamper. Insert the portafilter into the machine in a way that the handle faces the "INSERT" position. Turn the portafilter counterclockwise until it sits tightly in "LOCK" position.
3. Place a cup into the cup shelf
4. As soon as the blue coffee display shines steadily, turn the control knob to the position. To preheat your cup, hot water will now pour into it. Empty the cup before preparing the espresso.
5. Turn the control knob to the position to prepare espresso.
6. As soon as the desired quantity of coffee has been obtained, turn the control knob back to its default position. Turn the ON/OFF switch to the "O" position to switch off the machine. Note: Never leave the espresso machine unattended while preparing coffee as some steps must be operated manually.
7. Turn the portafilter counterclockwise to detach it after coffee has been prepared. Remove residues of ground coffee from the portafilter.
8. Let all parts cool down completely before cleaning them with water.

PREPARATION OF CAPPUCCINO

To make a cappuccino, one cup of espresso is combined with the same or a higher amount of hot milk and milk froth. Note: During steam generation, the portafilter must be in the "LOCK" position.

1. First prepare a cup of espresso. Make sure that the control knob is back in its default position afterwards.
2. Press the steam switch. The blue indicator display starts flashing.
3. For each cup of cappuccino that you want to prepare, fill 100ml of milk into a heat-resistant container. Chilled whole milk is best suited for frothing (no hot milk!).

Note: The container needs to be sufficient in size as the frothing process can more than double the amount of milk.

1. Hold the container in a way that the milk froth nozzle reaches ca. 2cm into the milk and turn the control knob to the position. Froth the milk with the released steam by moving the container downwards in a circular motion.
2. After frothing, turn back the control knob to its default position. Note: Immediately after frothing, clean the steam tube with a damp cloth. Be careful not to burn yourself!
3. Pour the frothed milk onto the previously made espresso.
4. Turn the ON/OFF switch to the "O" position to switch off the machine.

Note: Let the espresso machine cool down for a minimum of 2 minutes before preparing another coffee.

HEATING UP LIQUIDS OR BEVERAGES WITH STEAM

The steam tube can be used for preparing hot beverages such as hot chocolate, water or tea.

1. Fill the water tank with water. The water level should not exceed the maximum filling capacity marked with "MAX". Now, cover the water tank with the lid.
2. Plug the power plug into the socket and turn the ON/OFF switch to the "l" position. The blue coffee display starts flashing.
3. Press the steam switch to activate the steam function. As soon as the blue indicator display shines steadily, preheating is completed.

4. Without the frother nozzle, put the steam tube into the liquid. Turn the control knob to the position.

5. As soon as the desired temperature has been obtained, turn the operation knob to its default position.

6. Turn the ON/OFF switch to the "O" position to switch off the machine.

SPECIAL FUNCTIONS

1. When the machine is set to the steam function and the control knob is turned to the position, both the coffee and the steam indicator displays will be flashing.
2. After using the steam function, the temperature of the brewing kettle is very high. If during this stage, the coffee switch is pressed, it flashes rapidly. The brewing kettle needs to cool down before next use.
3. The maximum brewing time for coffee is 90 seconds. If after preparation of coffee, the control knob is not turned back to its default position, the machine will stop running after 90 seconds. The coffee and steam indicating displays will be flashing as a signal.
4. If the machine is not operated within the next 25 seconds, the machine shuts down automatically. To start the machine again, first turn the ON/OFF switch to the "O" position and then back to the "I" position.

CLEANING AND CARE

The espresso machine should be cleaned regularly, following the instructions below. Lacking or improper cleaning of the device might affect the espresso machine's functionality.

1. Before cleaning, always remove the power plug from the socket and let the espresso machine cool down completely.
2. Do not use any solvents or detergents containing alcohol.
3. Never dip the device into water. Wipe the outside with a damp cloth and clean the water tank, drip tray and cup shelf with water and a mild detergent on a regular basis. Dry all parts with a soft towel.

4. Remove all residues of ground coffee from the inside of the portafilter and clean it with some detergent. Then, rinse with clear water.

5. Clean all accessory parts with water and dry them with a soft towel.

HOW TO REMOVE MINERAL RESIDUES

In order to guarantee excellent coffee flavor and to maintain high machine performance, mineral residues should be removed every 2-3 months.

1. Fill the water tank with water and descending agent up to maximum level (MAX). Water and descending agent should be at a ratio of 4:1. Use a common household descending agent.
2. Insert the portafilter into the machine (without ground coffee) and place a container underneath the steam tube. Heat up water as described in the section "Preheating".
3. As soon as the coffee display shines steadily, the machine is preheated. Turn the control knob to the position and prepare two cups of coffee. Afterwards, turn the control knob back to its default position.
4. Press the steam switch and wait until the display turns steadily bright. Turn the control knob to the position and generate steam for 2 minutes. Turn the control knob back to its default position to turn off the steam function. Turn the ON/OFF switch to the "O" position to switch off the machine. Note: Allow the descending agent to work for a minimum of 15 minutes.
5. Switch on the espresso machine and repeat steps 3 to 5 at least three times.
6. Then, brew coffee (without ground coffee). The blue coffee display starts flashing. The espresso machine heats up.
7. As soon as the blue coffee display turns steadily bright, turn the control switch to the position. Repeat the brewing process and prepare coffee until the water tank is empty.

Please follow the steps below if the machine does not function properly:

Problem Cause Solution
Water escapes from the coffee machine's bottom.	There is too much water in the drip tray. There is a fault with the coffeemachine.	Empty the drip tray.Contact the customer service for repair.
The espresso is sour in taste.	The mineral residues have not been removed properly. The ground coffee has been stored in a warm, humid place for an extended period and has gone bad.	Clean the coffee machine several times as describes in the section “Before first use”. Use fresh ground coffe and tightly close the container after each use.When not in use, store it in a cool, dry place (fridge).
The coffee machine does not start.	The power plug is not plugged into the socket properly.	Plug in the power plug properly. If the machine does still not start, contact the customer service for repair.
The steam does not froth the milk.	The steam indicator dis-play is not flashing.	As soon as the steam indicator display turns steadily bright, the steam can be used to froth milk.
	The container is too large or does not fit.	Use a high and slim container.
	Skimmed milk was used.	Use whole milk.

If the cause of the failure cannot be found, do not disassemble the machine on your own, but contact the customer service.

CUSTOMER SERVICE

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

For questions concerning handling and functionality of our products, please contact our customer-service:

Telephone number: [phone]

Our products are manufactured with the highest degree of care and are designed for a long durability. Regular maintenance and cleaning help to prolong durability. If the device is defective and cannot be repaired, it must not be disposed at home.

You must dispose the device at a respective place for recycling of electronic devices. With correct disposal and recycling you contribute to preserving the environment.

This appliance complies with the WEEE-Directive 2002/96/EC on the disposal of electrical and electronic equipment (WEEE).

DECLARATION OF CONFORMITY

This appliance complies with:

• European Directives for electromagnetic compatibility (EMC) 2014/30/EU
  Low Voltage Directive (LVD) 2014/35/EU
  RoHS 2011/65/EU

This appliance complies with: LFGB 2005, §30+31

Potenza: 960-1140 W
