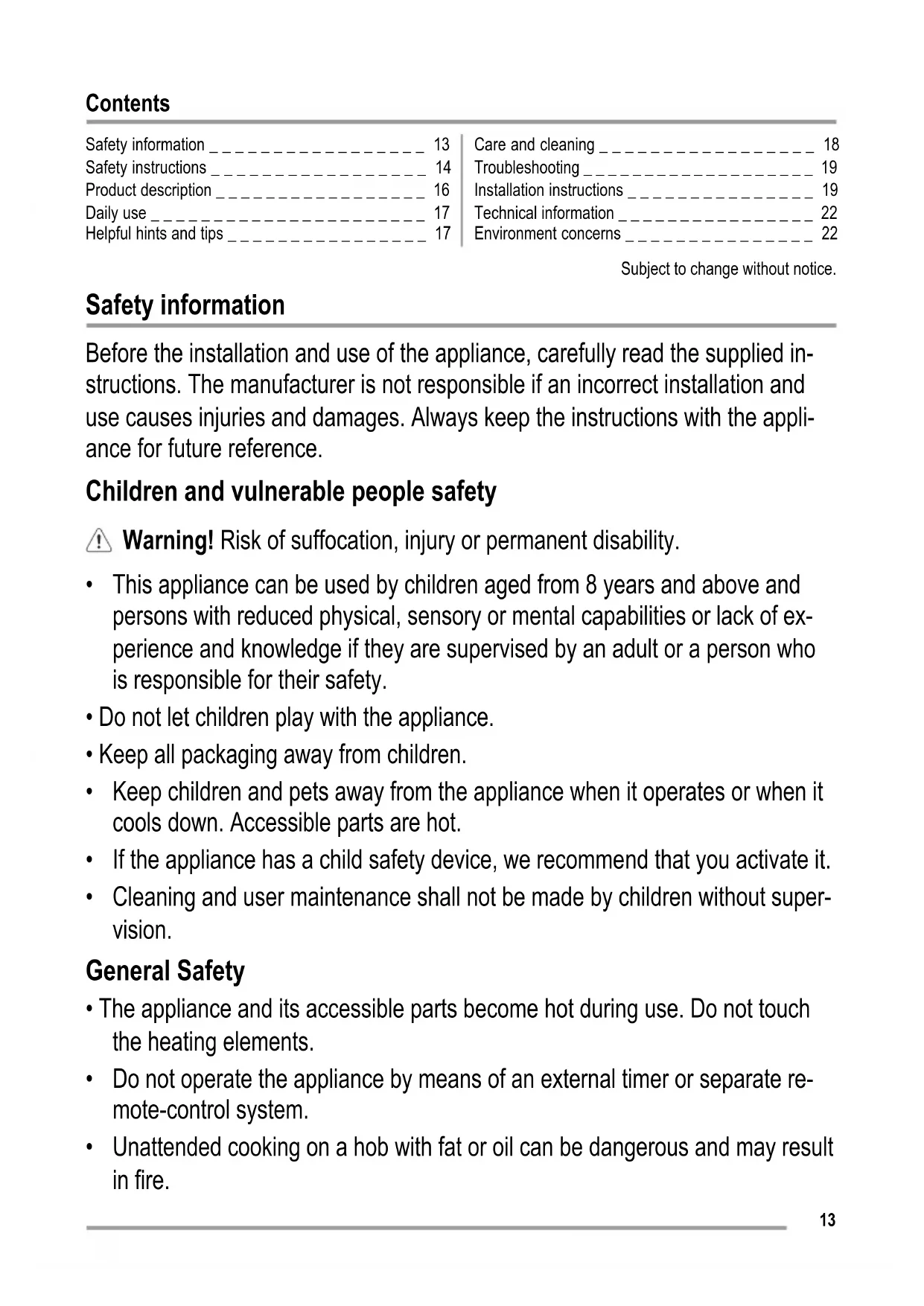

USER MANUAL ZKM3110X ZANKER

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of ex- perience and knowledge if they are supervised by an adult or a person who is responsible for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.

• If the appliance has a child safety device, we recommend that you activate it.

• Cleaning and user maintenance shall not be made by children without super- vision. General Safety

• The appliance and its accessible parts become hot during use. Do not touch the heating elements.

• Do not operate the appliance by means of an external timer or separate re- mote-control system.

• Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. 13• Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

• Do not store items on the cooking surfaces.

• Do not use a steam cleaner to clean the appliance.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• If the glass ceramic surface is cracked, switch off the appliance to avoid the possibility of electric shock. Safety instructions Installation Warning! Only a qualified person must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Obey the installation instruction supplied with the ap- pliance.

• Keep the minimum distance from the other applian- ces and units.

• Always be careful when you move the appliance be- cause it is heavy. Always wear safety gloves.

• Seal the cut surfaces with a sealant to prevent mois- ture to cause swelling.

• Protect the bottom of the appliance from steam and moisture.

• Do not install the appliance adjacent to a door or un- der a window. This prevents hot cookware to fall from the appliance when the door or the window is opened.

• If the appliance is installed above drawers make sure that the space, between the bottom of the appli- ance and the upper drawer, is sufficient for air circu- lation.

• The bottom of the appliance can get hot. We recom- mend to install a non-combustile separation panel under the appliance to prevent access to the bottom. Electrical connection Warning! Risk of fire and electrical shock.

• All electrical connections must be made by a quali- fied electrician.

• The appliance must be earthed.

• Before carrying out any operation make sure that the appliance is disconnected from the power supply.

• Make sure the mains cable or plug (if applicable) does not touch the hot appliance or hot cookware, when you connect the appliance to the near sockets

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable or plug (if appli- cable) can make the terminal become too hot.

• Make sure that a shock protection is installed.

• Use the strain relief clamp on cable.

• Make sure not to cause damage to the mains plug (if applicable) or to the mains cable. Contact the Serv- ice or an electrician to change a damaged mains ca- ble.

• The electrical installation must have an isolation de- vice which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors. Use Warning! Risk of injury, burns or electric shock.

• Use this appliance in a household environment.

• Do not change the specification of this appliance. 14• Do not use an external timer or a separate remote- control system to operate the appliance.

• Do not let the appliance stay unattended during op- eration.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not put cutlery or saucepan lids on the cooking zones. They become hot.

• Set the cooking zone to “off” after use.

• Do not use the appliance as a work surface or as a storage surface.

• If the surface of the appliance is cracked, disconnect immediately the appliance from the power supply. This to prevent an electrical shock. Warning! Risk of fire or explosion.

• Fats and oil when heated can release flammable va- pours. Keep flames or heated objects away from fats and oils when you cook with them.

• The vapours that very hot oil releases can cause spontaneous combustion.

• Used oil, that can contain food remnants, can cause fire at a lower temperature than oil used for the first time.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not try to extinguish a fire with water. Disconnect the appliance and cover the flame with a lid or a fire blanket. Warning! Risk of damage to the appliance.

• Do not keep hot cookware on the control panel.

• Do not let cookware to boil dry.

• Be careful not to let objects or cookware fall on the appliance. The surface can be damaged.

• Do not activate the cooking zones with empty cook- ware or without cookware.

• Do not put aluminium foil on the appliance.

• Cookware made of cast iron, aluminium or with a damaged bottom can cause scratches on the glass ceramic. Always lift these objects up when you have to move them on the cooking surface. Care and Cleaning Warning! Risk of damage to the appliance.

• Clean regularly the appliance to prevent the deterio- ration of the surface material.

• Do not use water spray and steam to clean the appli- ance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. Disposal Warning! Risk of injury or suffocation.

• Contact your municipal authority for information on how to discard the appliance correctly.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it. 15Product description

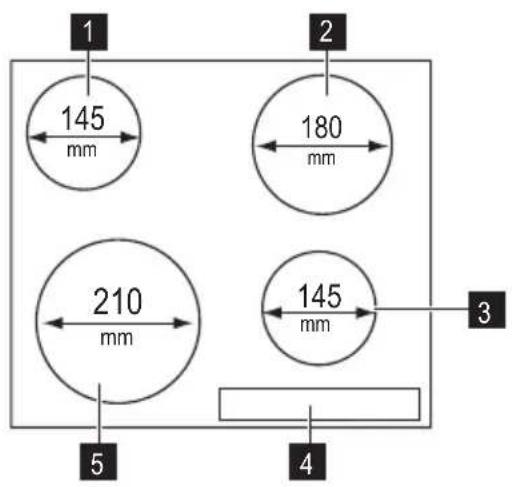

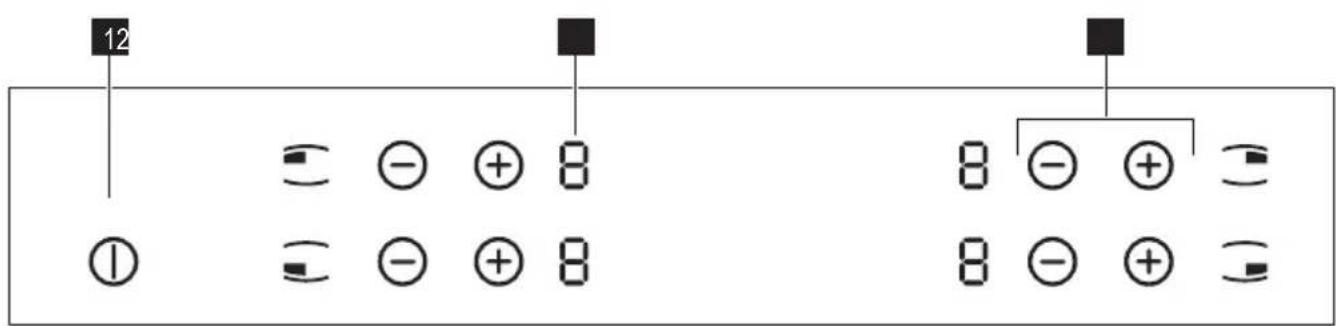

Cooking zone Control panel layout Use the sensor fields to operate the appliance. The displays and indicators tell which functions operate. sensor field function

To activate and deactivate the appliance.

Heat setting display To show the heat setting.

To increase or decrease the heat setting. Heat setting displays Display Description The cooking zone is deactivated.

The cooking zone operates. There is a malfunction. 16Display Description A cooking zone is still hot (residual heat). Lock / The Child Safety Device operates. The Automatic Switch Off operates. Residual heat indicator Warning! The risk of burns from residual heat! Daily use Activation and deactivation Touch for 1 second to activate or deactivate the ap- pliance. Automatic Switch Off The function deactivates the appliance automatically if:

All cooking zones are deactivated (

• You do not set the heat setting after you activate the appliance.

• You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth, etc.). Remove the object or clean the control panel.

• You do not deactivate a cooking zone or change the heat setting. After some time comes on and the appliance deactivates. See below.

• The relation between heat setting and times of the Automatic Switch Off function:

- — 1.5 hours The heat setting Touch to increase the heat setting. Touch to de- crease the heat setting. The display shows the heat setting. Touch and at the same time to deacti- vate the cooking zone. The Child Safety Device This function prevents an accidental operation of the appliance. To activate The Child Safety Device

Activate the appliance with . Do not set the heat settings.

Touch of the two front cooking zones for 4 sec- onds. The symbol comes on.

Deactivate the appliance with

To deactivate The Child Safety Device

Activate the appliance with . Do not set the heat settings. Touch of the two front cooking zones for 4 seconds. The symbol comes on.

Deactivate the appliance with

To override The Child Safety Device for only one cooking time

Activate the appliance with . The symbol comes on.

Touch of the two front cooking zones for 4 sec- onds. Set the heat setting in 10 seconds. You can operate the appliance.

When you deactivate the appliance with , The Child Safety Device operates again. Helpful hints and tips Cookware Information about the cookware

• The bottom of the cookware must be as thick and flat as possible. 17• Cookware made of enamelled steel and with alumini- um or copper bottoms can cause the colour change on the glass-ceramic surface. Energy saving How to save energy

• If it is possible, always put the lids on the cookware.

• Put cookware on a cooking zone before you start it.

• Stop the cooking zones before the end of the cook- ing time to use residual heat.

• The bottom of pans and cooking zones must have the same dimension. The Examples of cooking applications The data in the table is for guidance only. Heat setting Use to: Time Hints 1 Keep warm the food you cooked as re- quired Put a lid on a cookware 1-2 Hollandaise sauce, melt: butter, chocolate, gelatine 5-25 min Mix from time to time 1-2 Solidify: fluffy omelettes, baked eggs 10-40 min Cook with a lid on 2-3 Simmer rice and milkbased dishes, heating up ready-cooked meals 25-50 min Add the minimum twice as much liquid as rice, mix milk dishes part procedure through 3-4 Steam vegetables, fish, meat 20-45 min Add some tablespoons of liquid 4-5 Steam potatoes 20-60 min Use max. ¼ l water for 750 g of potatoes 4-5 Cook larger quantities of food, stews and soups 60-150 min Up to 3 l liquid plus ingredients 6-7 Gentle fry: escalope, veal cordon bleu, cut- lets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts as neces- sary Turn halfway through 7-8 Heavy fry, hash browns, loin steaks, steaks 5-15 min Turn halfway through 9 Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep-fry chips Information on acrylamides Important! According to the newest scientific knowledge, if you brown food (specially the one which contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much. Care and cleaning Clean the appliance after each use. Always use cookware with clean bottom. Scratches or dark stains on the glass-ceramic cause no effect on how the appliance operates. To remove the dirt:

• –Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the appliance. – Remove after the appliance is sufficiently cool: limescale rings , water rings, fat stains, shi- ny metallic discolorations. Use a special cleaning agent for glass ceramic. 18• The surface of the hob has horizontal grooves. Clean the appliance with a moist cloth and some de- tergent with a smooth movement from left to right.

• At the end rub the appliance dry with a clean cloth. Troubleshooting Problem Possible cause Remedy You cannot activate the appliance or operate it. The appliance is not connected to an electrical supply or it is connec- ted incorrectly. Check if the appliance is correctly connected to the electrical supply (refer to connection diagram). Activate the appliance again and set the heat setting in less than 10 seconds. You touched 2 or more sensor fields at the same time. Touch only one sensor field. There is water or fat stains on the control panel. Clean the control panel. The appliance deactivates. You put something on the sensor field

Remove the object from the sensor field. The residual heat indicator does not come on. The cooking zone is not hot be- cause it operated only for a short time. If the cooking zone operated suffi- ciently long to be hot, speak to the service centre. The sensor fields become hot. The cookware is too large or you put it too near to the controls. Put large cookware on the rear cooking zones if necessary. comes on. The Automatic Switch Off operates. Deactivate the appliance and acti- vate it again. comes on. The Child Safety Device function operates. Refer to the chapter “Daily Use”. and a number come on. There is an error in the appliance. Disconnect the appliance from the electrical supply for some time. Dis- connect the fuse from the electrical system of the house. Connect it again. If comes on again, speak to the service centre. If you tried the above solutions and cannot repair the problem, speak to your dealer or the customer service. Give the data from the rating plate, three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on. Make sure, you operated the appliance correctly. If not the servicing by a customer service technician or dealer will not be free of charge, also during the warranty peri- od. The instructions about the customer service and conditions of guarantee are in the guarantee booklet. Installation instructions Warning! Refer to "Safety information" chapter. Before the installation 19Before the installation of the appliance, record the infor- mation below from the rating plate. The rating plate is on the bottom of the appliance casing.

• Only use the built-in appliances after you assemble the appliance into correct built-in units and work sur- faces that align to the standards. Connection cable

• Use the correct mains cable of type H05BB-F Tmax 90°C (or higher) for a single phase or two phase connection.

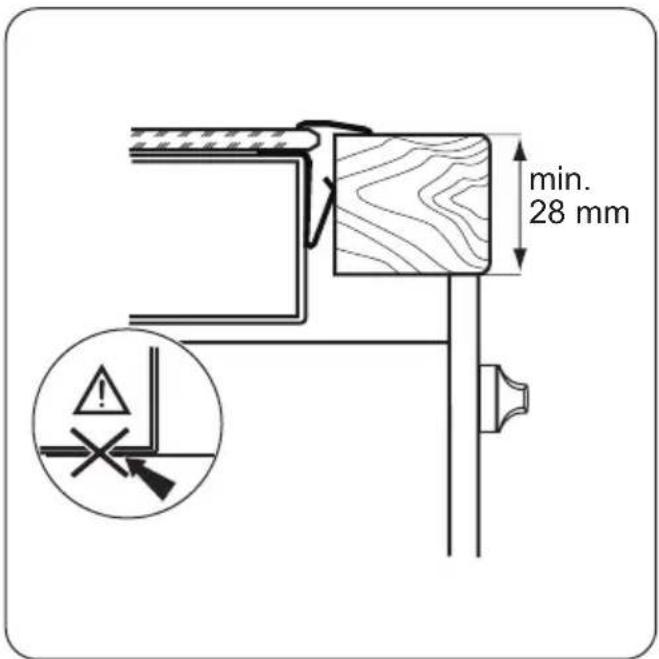

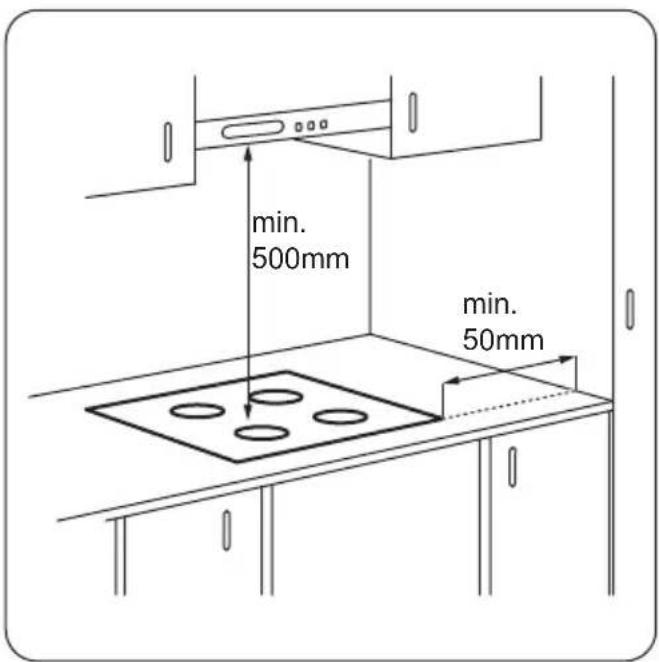

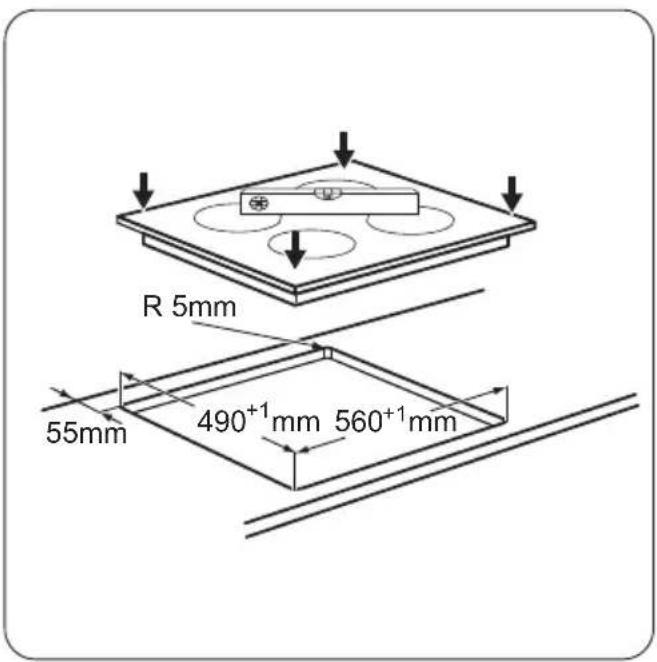

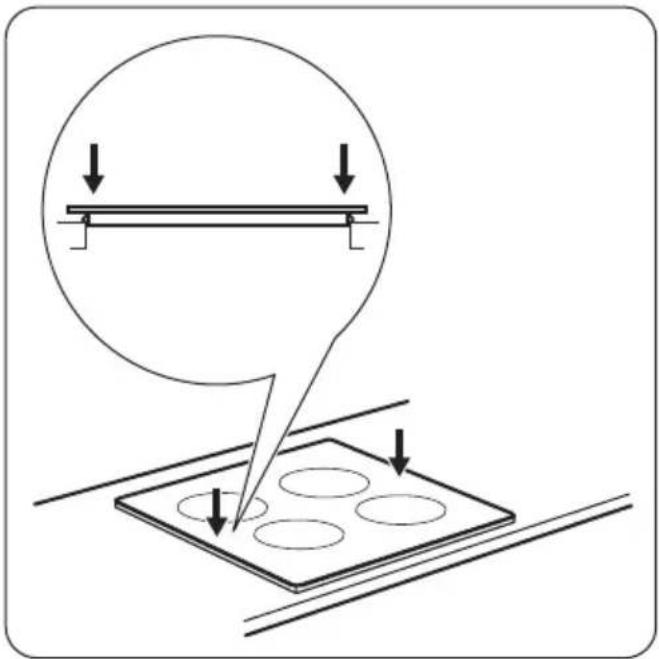

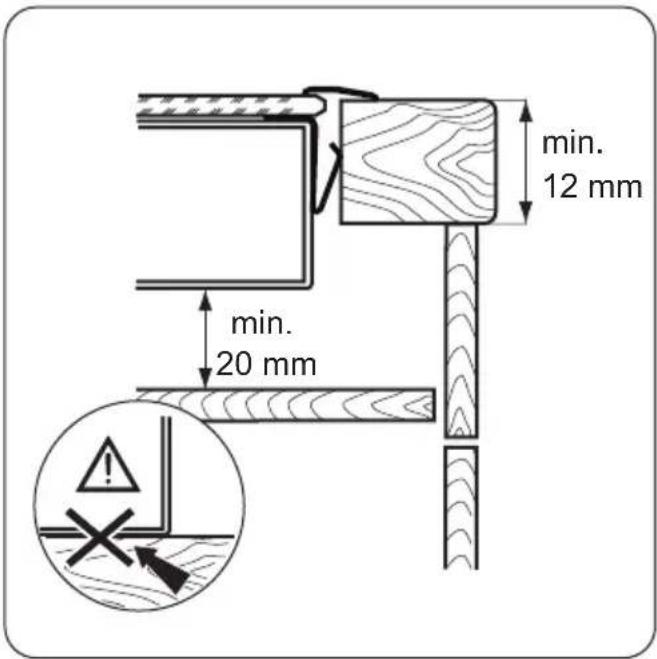

• Replace the damaged mains cable with a special ca- ble (type H05BB-F Tmax 90°C or higher). Speak to your local Service Centre. Assembly min. 50mm min. 500mm

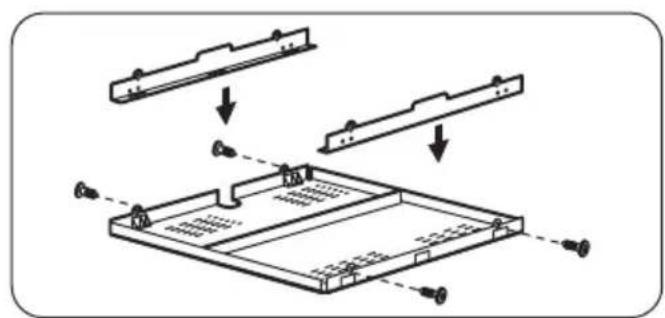

21If you use a protection box (an additional accessory

1) The protection box accessory may not be available in some countries. Please contact your local supplier.
