USER MANUAL VCC 61602 AD BEKO

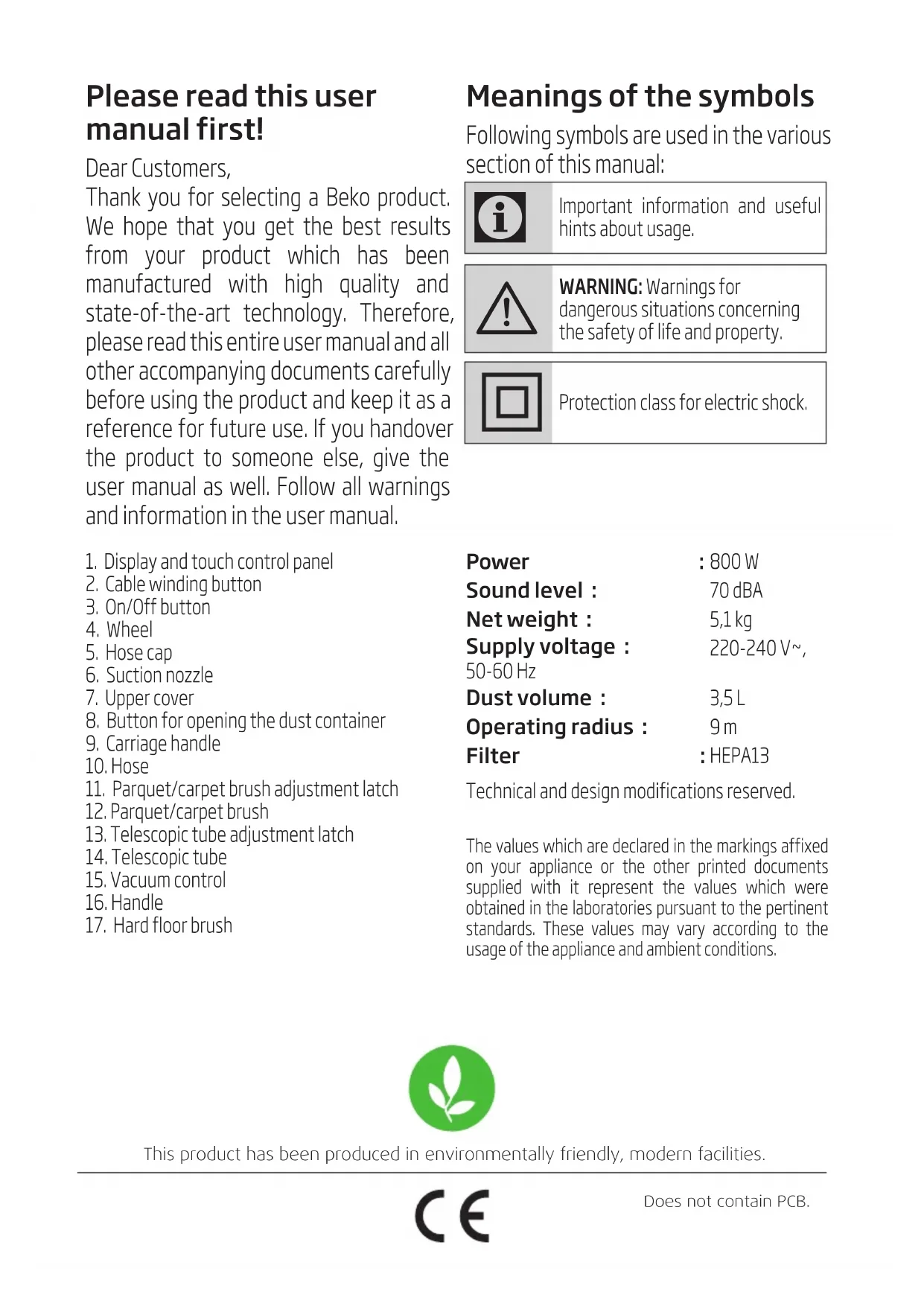

РАБОТА ЧИСТЕЊЕ И ОДРЖУВАЊЕPlease read this user manual first! Dear Customers, Thank you for selecting a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Meanings of the symbols Following symbols are used in the various section of this manual:

Important nformaton and useful hnts about usage.

WARNING: Warnngs for

dangerous stuatons concernng the safety of lfe and property. Protection class for electric shock.

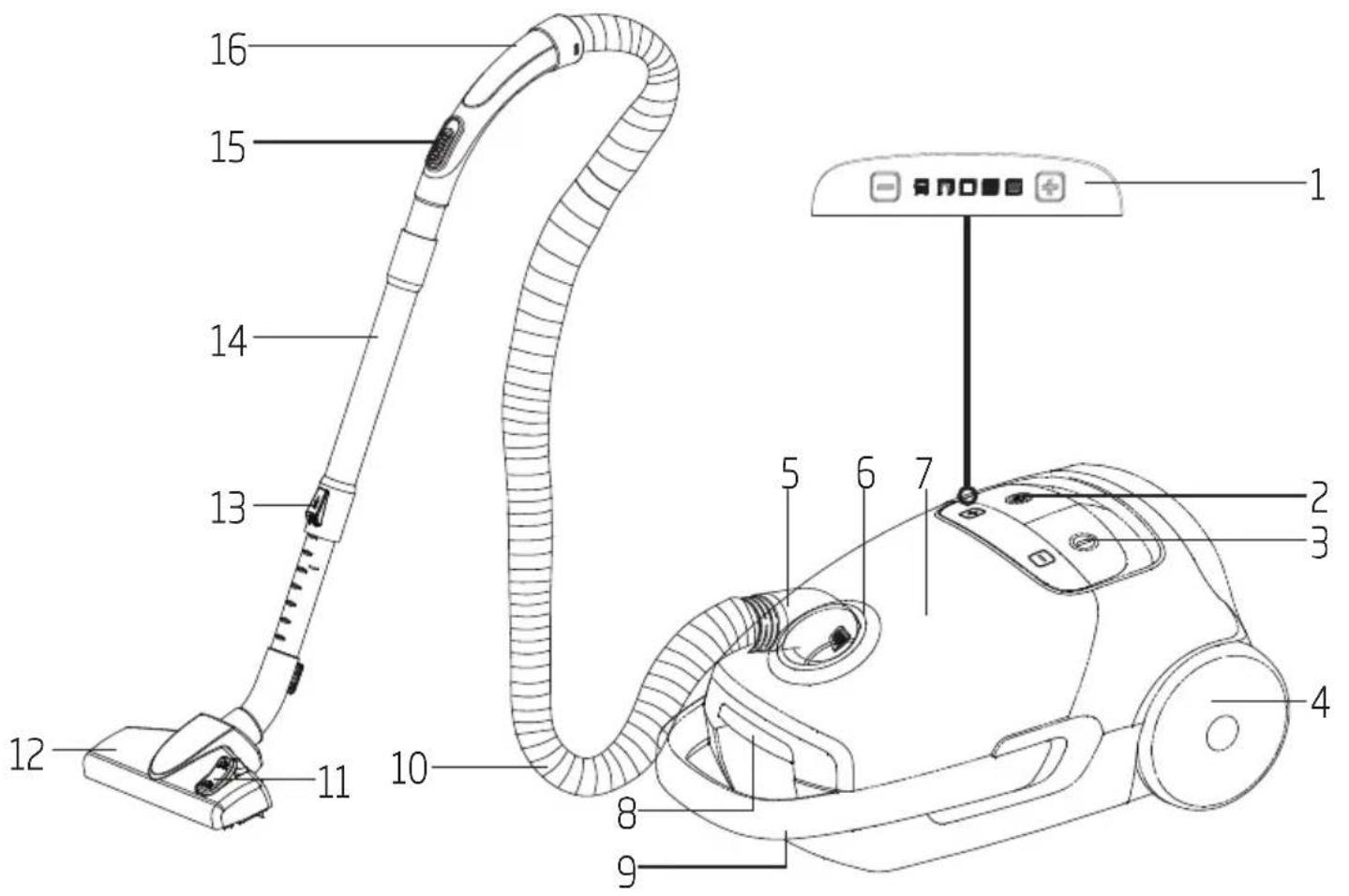

1. Dsplay and touch control panel

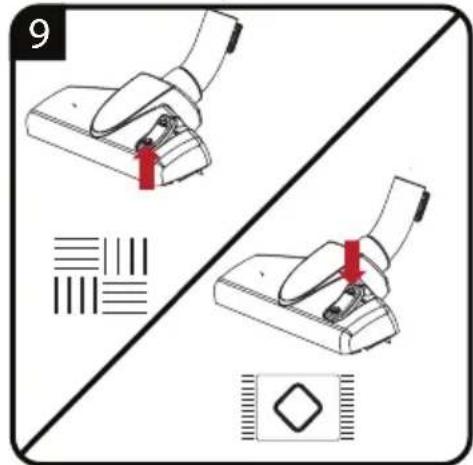

11. Parquet/carpet brush adjustment latch

12. Parquet/carpet brush

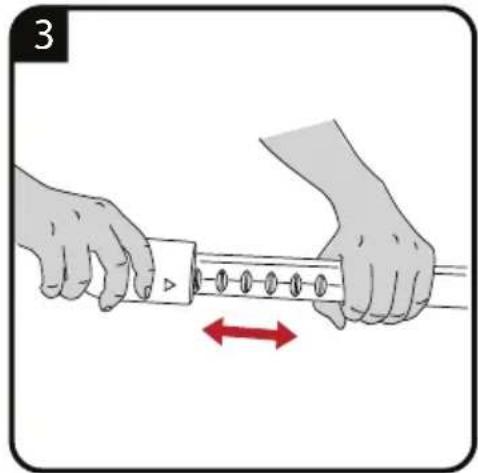

13. Telescopc tube adjustment latch

Power : 800 W Sound level : 70 dBA Net weight : 5,1 kg Supply voltage : 220-240 V~, 50-60 Hz Dust volume : 3,5 L Operating radius : 9 m Filter : HEPA13 Techncal and desgn modfcatons reserved. The values whch are declared n the markngs affxed on your applance or the other prnted documents suppled wth t represent the values whch were obtaned n the laboratores pursuant to the pertnent standards. These values may vary accordng to the usage of the applance and ambent condtons.This product has been produced in environmentally friendly, modern facilities.Does not contain PCB.8 / EN Vacuum Cleaner / User Manual This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

• This appliance complies with the international security standards.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

• Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• The mains supply of the appliance must be secured with a minimum 16 A fuse.

• Do not use the appliance with an extension cord.

• In order to prevent the power cable from getting damaged, make sure that it doesn’t get stuck, twisted or rub against sharp surfaces.

• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.

• Do not pull the power cable when unplugging the appliance.

• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.

• Do not vacuum water or other liquid materials.

• Protect the appliance from rain, humidity and heat sources. 1 Important safety and environmental instructionsVacuum Cleaner / User Manual 9 / EN

• Never use the appliance in or near to combustible or inflammable places and materials.

• Unplug the appliance before cleaning and maintenance.

• Do not dip the appliance or its cable in water to clean it.

• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

• Do not attempt to dismantle the appliance.

• Only use the original parts or parts recommended by the manufacturer.

• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

• Do not use the appliance without filters; otherwise it can get damaged.

• When vacuuming the stairs, the appliance should be located below the user.

• If your store the package material, keep it out of the reach of children.

1.2 Compliance with the WEEE

Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/ EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. 1 Important safety and environmental instructions10 / EN Vacuum Cleaner / User Manual 2 Informaton

The appliance was designed for household use and is not suitable for industrial use.

2.2 Adjustng the sucton power

You can adjust the suction power using the + / - keys of the touch control panel (1) found on the vacuum cleaner.1 2 3 4 51. Use your appliance at level to clean sofas.2. Use your appliance at level to clean curtains and table cloths.3. Use your appliance at level to clean carpets.4. Use your appliance at level to clean rugs.5. Use your appliance at level to clean hard surfaces.

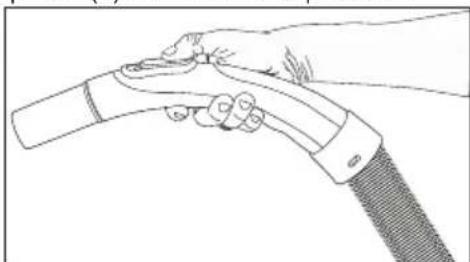

2.3 Sucton power adjustment

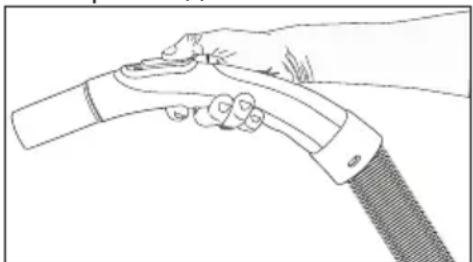

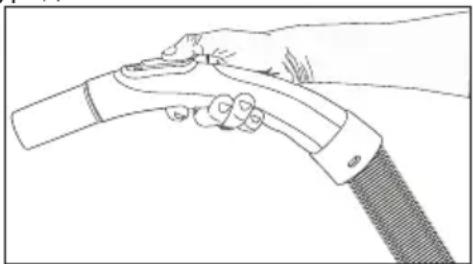

control You can lower the suction power of the parquet/carpet brush at a certain level by pulling backward the suction power adjustment control (15) located on the handle (16) without the need to use the control panel (1) found on the product.

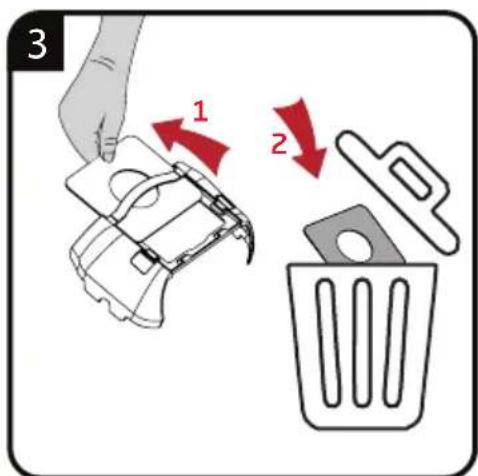

When your dust bag is full, all icons on the display and on the touch control panel (1) will start to flash simultaneously. Replace the dust bag.

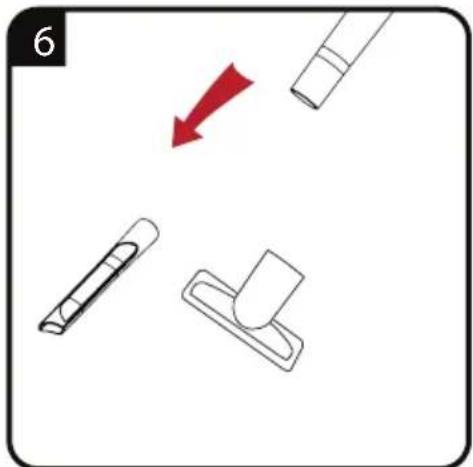

Crevice tool Suitable for cleaning “hard-to-reach” areas including spaces bet-ween chairs and furniture. Upholstery tool Suitable for floors, cleaning stairways, automobiles, sofas and chairs etc.

WARNING: Do not use it by holding the outer end of the handle (16).

2.6 Hard floor brush

The hard floor brush (17) was developed for use on hard floors such as tile, ceramic, parquet, wooden floors etc.It prevents potential scratches while cleaning hard floors thanks to its specially-developed soft hair. Vertical parking Attach the hook of the parquet/carpet brush to the parking slot under the appliance. Horizontal parking Attach the hook of the parquet/carpet brush to the parking slot behind the appliance.Vacuum Cleaner / User Manual 11 / EN 2 Information Before cleaning your appliance, turn off and unplug.

Never use gasoline, solvent, corrosives, metal objects or hard brushes for cleaning your appliance.

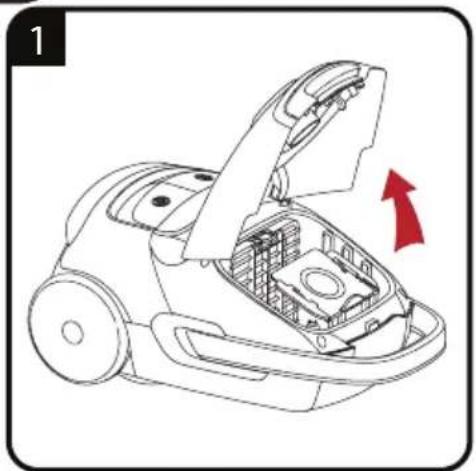

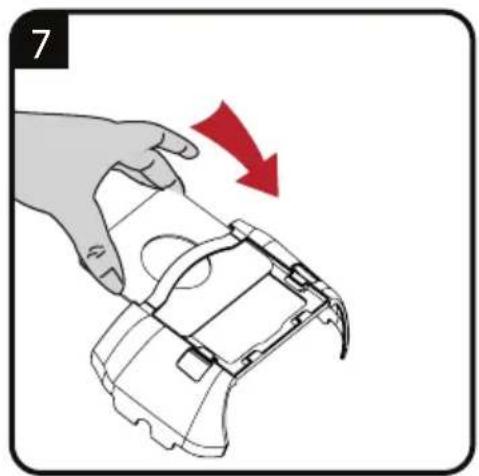

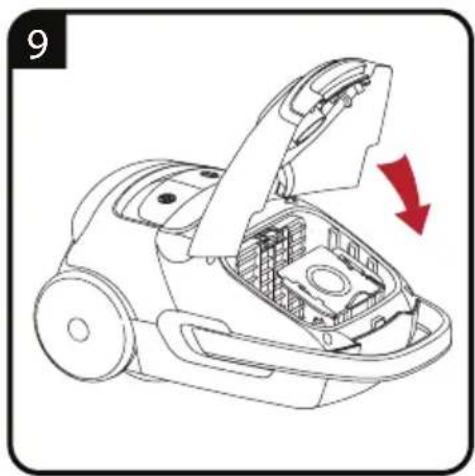

Do not force the upper cover (7) to close it, otherwise the plastic parts can be damaged.

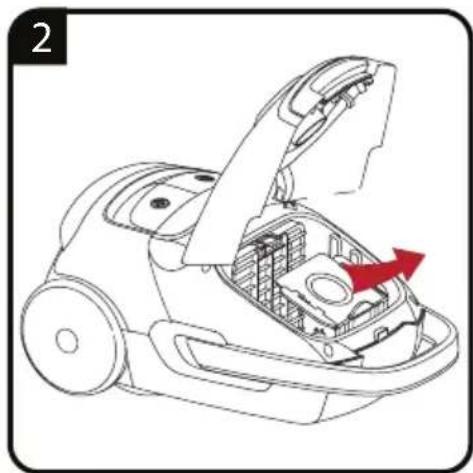

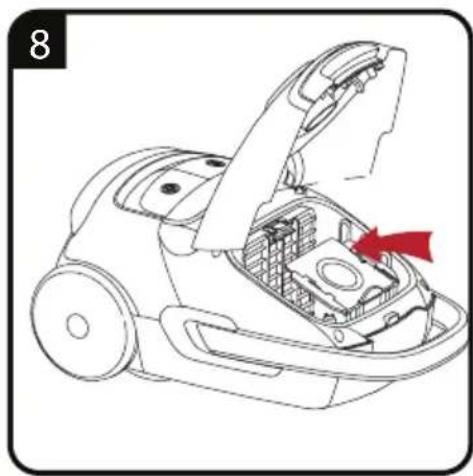

Dust bags not purchased from authorized dealers or services are not original. Such dust bags have a lesser quality and they become torn in a shorter period and render your appliance inoperable. Faults caused by using unauthentic dust bags are not covered by the scope of the warranty.

Do not wash a dust bag.

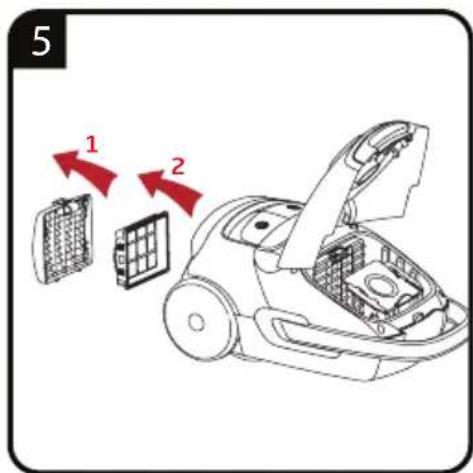

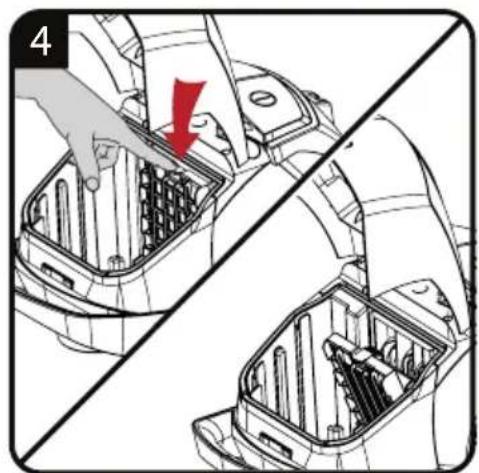

2.7 Cleaning the filters

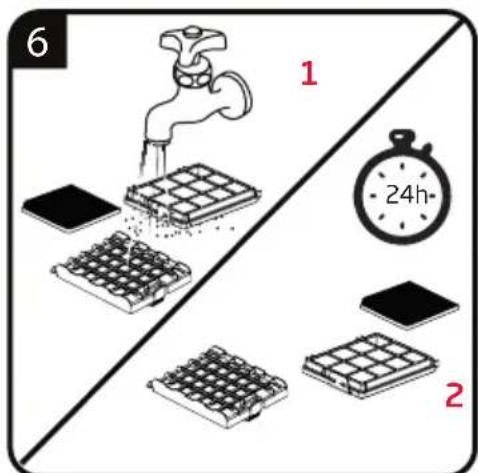

For drying filters, do not use appliances such as hairdryers, stoves or other sources of hot air.

Do not mount back the filters before they are dried properly; otherwise a smell of humidity may disseminate on the air, water may splash from the rear part or filters may get damaged.

Put the filters back to their original place when they are dry.

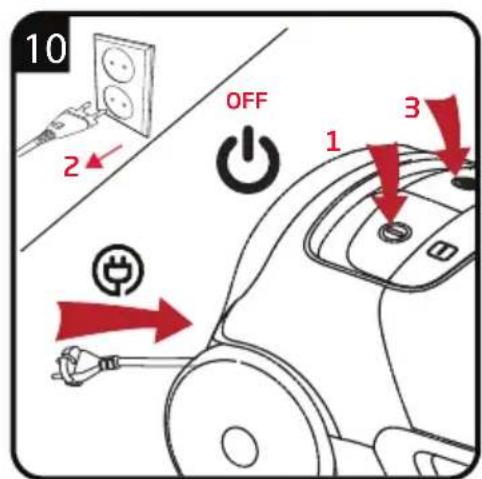

• Store the appliance carefully when you do no want to use it for a long time.

• Plug out the appliance.
