Product Type	LED TV
Brand	Changhong
Model	LED32D2080T2
Screen Size (diagonal)	32 inches (81 cm)
Resolution	1366 x 768 pixels
Aspect Ratio	16:9
TV Systems	PAL B/G, I, D/K; SECAM B/G, D/K, L, L'; DVB-T, DVB-C
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	45 W (standby ≤ 0.5 W)
Audio Power	2 x 8 W
Connectivity	2 x HDMI, 1 x VGA, 1 x USB, 1 x Composite Video Input, 1 x YPbPr, 1 x SCART, 1 x CI, 1 x Headphone Output, 1 x Coaxial Output, 1 x PC Audio Input, 1 x RF Antenna
Main Functions	USB Media Player (photo, music, video, text), EPG, Teletext, Parental Control, PVR, Favorites List
Included Accessories	Infrared Remote Control, AAA batteries (x2), User Guide, Stand and Screws
Dimensions (approx.)	73 x 44 x 8 cm (without stand)
Weight (approx.)	5 kg
Care and Cleaning	Clean with a soft, dry cloth. Do not use liquid or abrasive products.
Safety	Do not expose to rain or moisture. Unplug during thunderstorms. Do not block ventilation openings. Keep out of reach of children.
Spare Parts and Repairability	Use only identical replacement parts. Call a qualified technician for any repairs.

Frequently Asked Questions - LED32D2080T2 CHANGHONG

How to assemble the TV stand?

Place the TV face down on a flat, protected surface. Align the stand with the screw holes on the back and secure it with the four provided screws (4×26PWM).

How to perform automatic channel search?

Press MENU, select the CHANNEL menu, then choose Auto Tuning. Select DVB-T or DVB-C, the search type (ATV, DTV or DTV+ATV), the country, then confirm with OK.

What to do if the picture is snowy or noisy?

Check the antenna position, direction, and connection. Ensure the antenna cable is firmly inserted and the antenna is properly oriented.

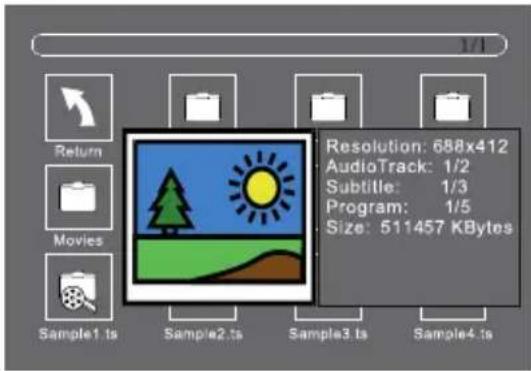

How to use the USB function to play multimedia files?

Insert a USB drive into the USB port. Press SOURCE, select USB. Choose the media type (Photo, Music, Movie, Text) then the file to play. Use control keys for playback.

What file formats are supported by the USB player?

Photos: JPEG, BMP, PNG. Audio: MP3. Video: TS (MPEG2, H.264). Text: TXT.

How to set the picture mode (Home Mode / Shop Mode)?

During initial setup, select Home Mode for normal economical use, or Shop Mode for brighter in-store display.

What to do if the TV does not turn on?

Check that the power cord is plugged in and the outlet is working. Press the STANDBY button on the remote or the power button on the TV.

How to lock channels with parental control?

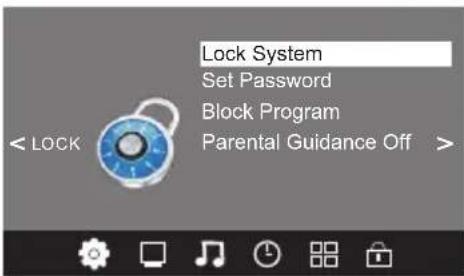

Access the LOCK menu (MENU > LOCK). Enter the default password 6666. Enable system lock, then select programs to lock with the green button.

How to use the Electronic Program Guide (EPG)?

Press the GUIDE button on the remote. Use directional keys to navigate. Press INFO for program details. You can schedule recording or reminders.

What are the important safety precautions?

Do not expose the TV to water or moisture. Do not block ventilation openings. Do not place naked flame sources (candles) on the device. Unplug during thunderstorms or long periods of non-use.

USER MANUAL LED32D2080T2 CHANGHONG

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in accordance with the instructions.
8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug this apparatus during lighting storms or when unused for long periods of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles, should be placed on the apparatus.
17) Attention should be drawn to the environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
20) To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit.

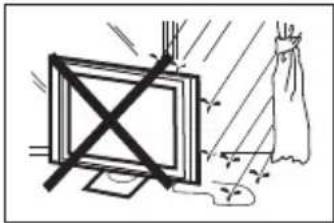

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING:

• The excessive sound pressure from earphones and headphones can cause hearing loss.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Do not trap the power supply cord under the television receiver.

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it falls.

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television.

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Main features

Accessories

① Used as Television, display terminal, PC display;
Infrared Remote Controller. 1
② High luminance, wide viewing angle;
Battery(AAA). 2
③ HDMIinterface;
User's Manual. 1
④ Multi-Media player (USB);

Main parameter

Viewing Picture Size (Diagonal)	32"
Resolution	1366 x 768
Aspect Ratio	16:9
TV System	PAL-B/G, I, D/K SECAM-B/G, D/K, L, L' DVB-T, DVB-C
Storage channel number	1500(DTV); 100(ATV)
Video Signal System	PAL/SECAM/MPEG2/MPEG4/H.264
Input Power Voltage	AC 100-240V 50/60Hz
Power consumption	45W
Standby Power consumption	≤5W
Audio Output Power (THD 2%)	2x8W
Signal Input	Analog RGB(VGA) x 1 High-Definition Multimedia Interface (HDMI) x 2 Composite Video Input x 1 Audio Input x 1 PC Audio x 1 YCb (Pb)Cr (P r) x 1 USB x 1 RF x 1 CI x 1 SCART x 1
Signal Output	Headphone x 1 COAXIAL x 1
Horizontal definition (TV line)	Composite Video input >=350 YCb(Pb) Cr(Pr) >=400

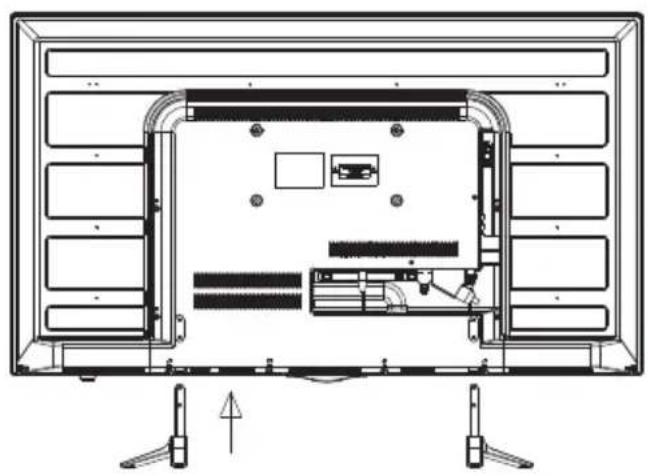

Base Stand Assembly Instruction

Prepare to place the TV with the display side down on a flat surface. Due to the size and weight of this TV, the use of 2 people is recommended when moving it. Ensure the table or desk you use provides a flat, totally clean surface, and use a soft cloth between the face of the TV and the table to protect the TV's screen.

1. Place the TV with the display side down on a flat surface. Use a cloth to protect the display. Align the back surface of the base pillar base with the TV reserved screw holes.

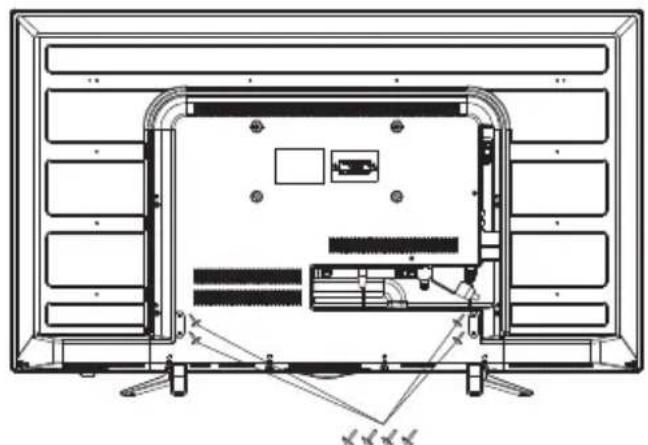

1. Install and tighten the four holes at the bottom of the back of the TV with four screws, complete the whole installation.

Screws(4x26PWM)x4

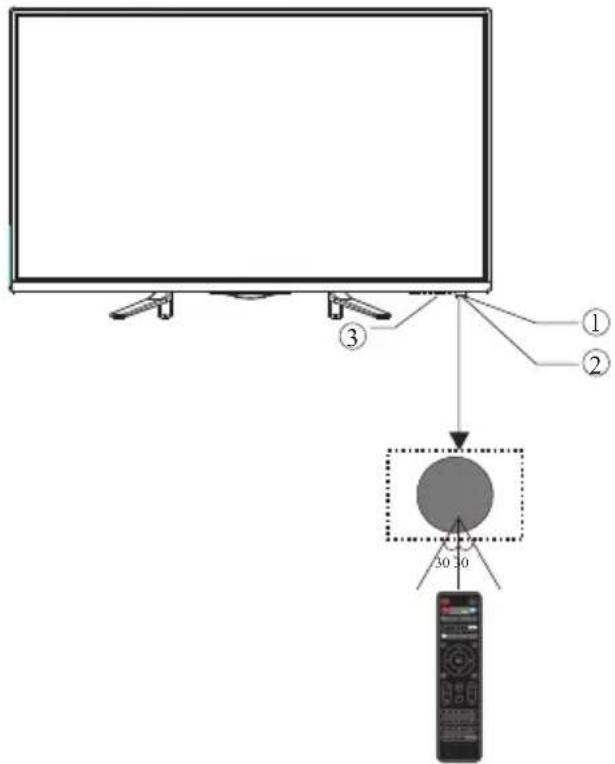

Front panel

1. Remote control sensor
2. Indicator LED: RED
3. Key board

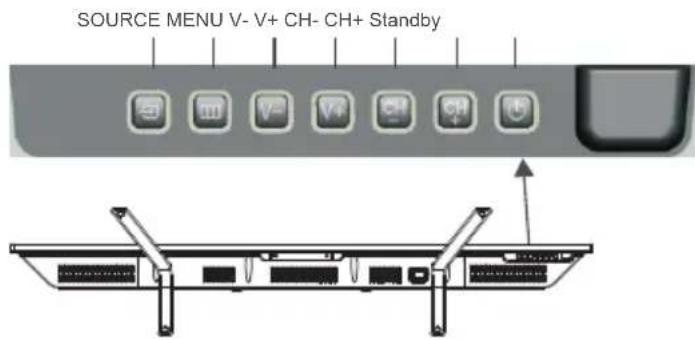

KEYBOARD

1. SOURCE:

Display the input source menu.

1. MENU:

Display main MENU.

1. V-/V+

Adjust sound level.

In MENU mode, press "V+ or "V- to adjust the item that you selected.

1. CH + / CH-

In TV mode, press "CH+ or "CH- to change the channel up and down.

In MENU mode, press "CH+ or "CH- to select items.

1. STANDBY

Press this button to turn the unit ON from STANDBY mode.

Press it again to turn the set back to STANDBY.

REAR AV Connections

All the terminals are(from left to right):

AC Power Socket,VIDEO INPUT,AUDIO INPUT,COAXIAL OUTPUT,SCART INPUT.

REAR AV Connections(SIDE)

All the terminals are(from left to right):

USB, HDMI2, VGA, HDMI1, HEADPHONE, CI, YPbPr, PC AUDIO, RF.

Note: When HDMI port get DVI signal, the audio signal receives from the PC Audio channel.

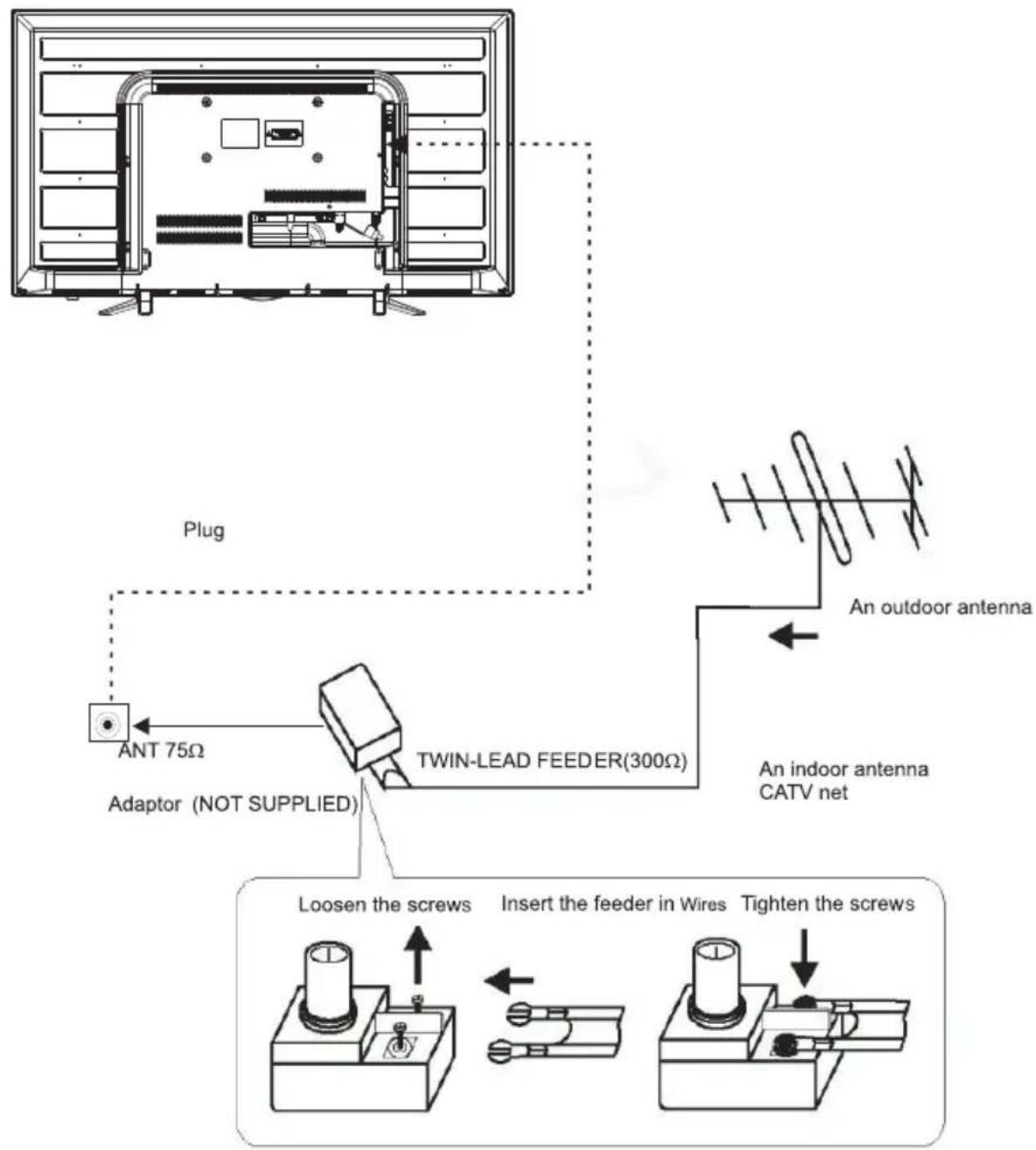

ANTENNA

Note:

Aerial connections:IEC(female).

Input impendance:75 unbalanced.

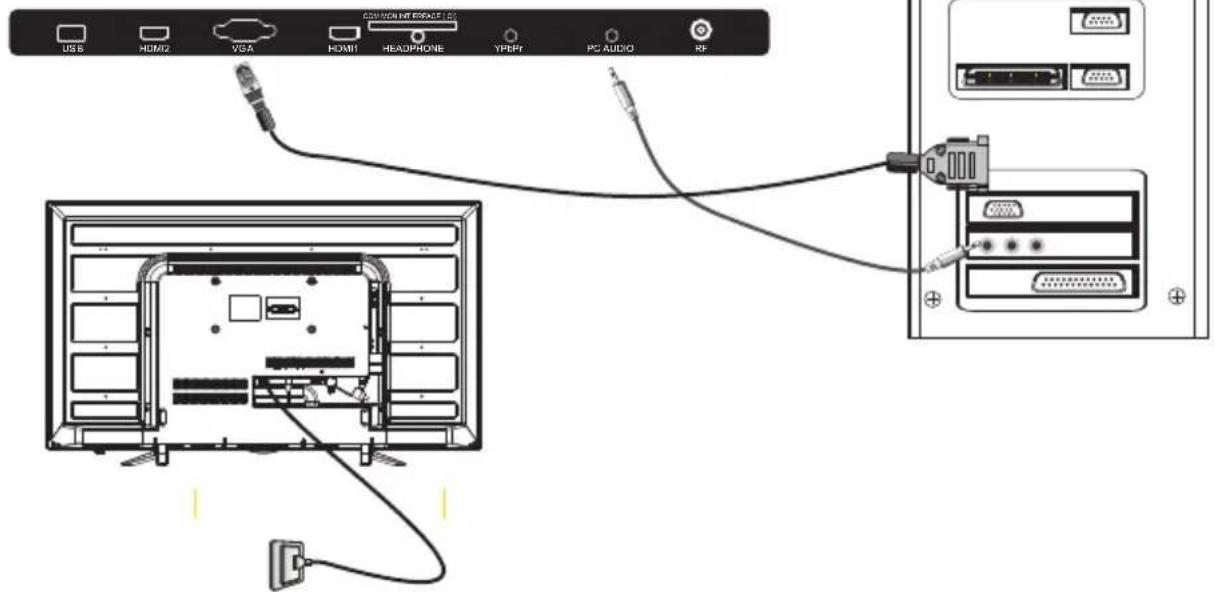

PC

STEPS:

Be sure both the TV and computer are Power off.

1. Connect VGA and audio cable
2. Connect power cord
   3.Power on the TV, switch to PC mode
   4.Power on the PC

This sequence is very important.

PRESET MODE (PC)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1366*768	60	47.7

NOTE: PC V.Freq.(Hz) not more than 60Hz.

PRESET MODE (HDMI)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5

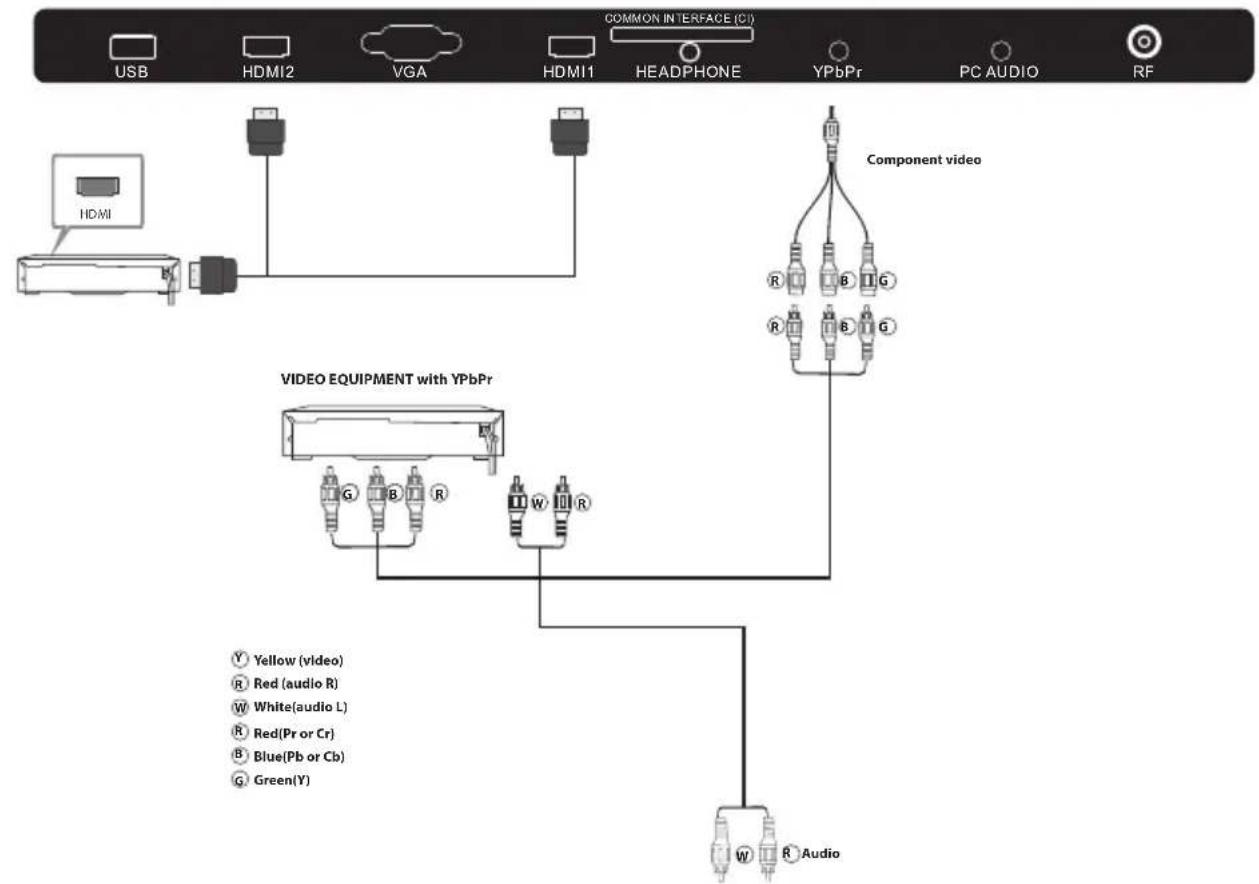

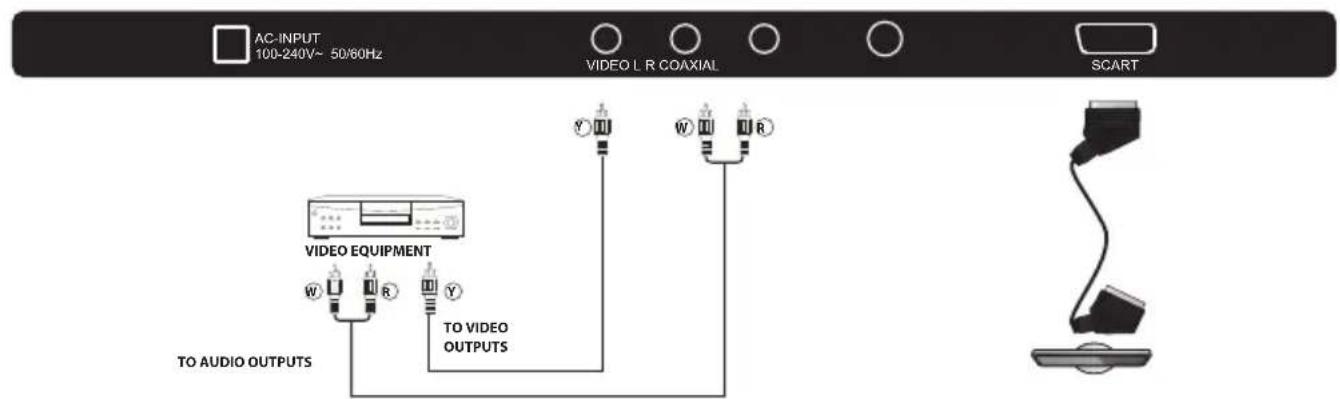

AV EQUIPMENT

This TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVD or other video equipment. Please refer to the owner's manual of the equipment to be connected as well.

You can use the input terminals on TV set rear as follows.

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc... YPbPr can support these video formats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p.

Note: 1. WIDE&PbPr share one audio channel.
2.When HDMI port get DVI signal, the "PC Audio" channel is changed to receive the audio for HDMI port.
3. Sometimes it will not support in different device because the device supply's nonstandard signal.

REMOTE CONTROL

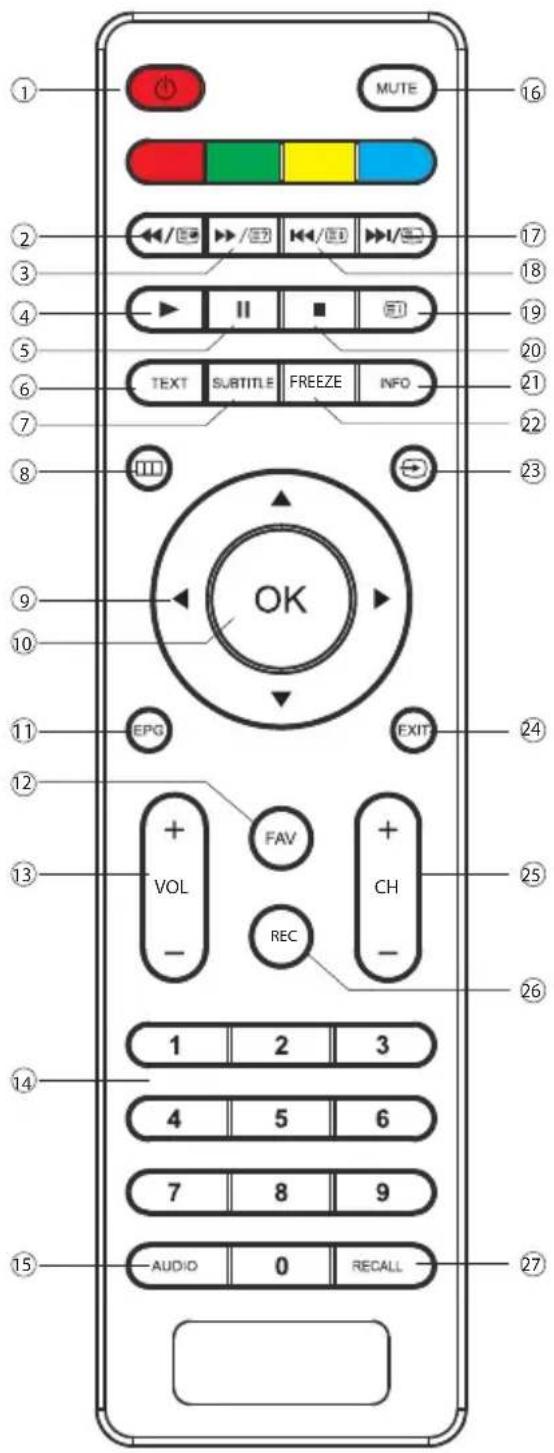

1. POWER:To set the TV to standby or power on.

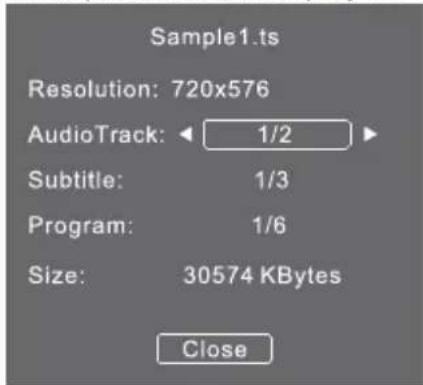

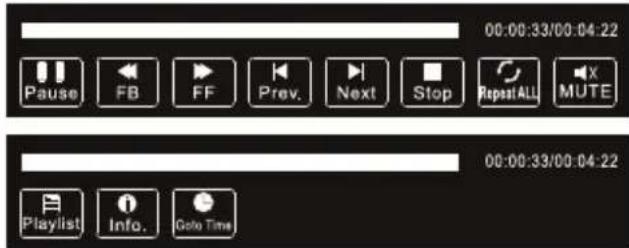

2. In USB mode, used as reverse key, in teletext mode used as subpage key.
3. / 圆 : In USB mode, used as forword key, in teletext mode used as reveal key.
4. :Press in USB Mode to begin or continue playback.
5. :Press in USB Playback Mode to pause playback.
6. TEXT:To enter or TELETEXT.
7. SUBTITLE: To turn on subtitles press the subtitle button in DTV mode.
8. : Displays the main on-screen menu.
9. CURSOR: To move within the menu.
10. OK: Confirms selection.

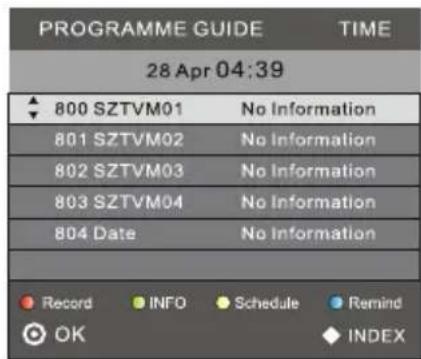

11. EPG: To display information about the program being viewed and what's on next in DTV mode.
12. FAV: To access your favourite channels list in TV or DTV mode.
13. VOL + / - : To adjust sound level.
14. NUMERIC KEY: For direct access to channels.
15. AUDIO: To select the available audio language of TV programs.
16. MUTE: To disable or enable the sound output.
17. : In USB mode, used as next key, in teletext mode used as list key. In TV mode, used as channel list key.
18. In USB mode, used as previous key, in teletext mode used as hold key.
19. [E]In teletext mode used as index.
20. :Press to stop play in USB mode.
21. INFO: To display the program information of the show you are watching, press the info button.
22. FREEZE: Press to freeze the picture you are watching.
23. : Press to display and select the available video sources.
24. EXIT: To return to the previous menu or exit menu.
25. CH + / CH - : To access the next or previous channels.

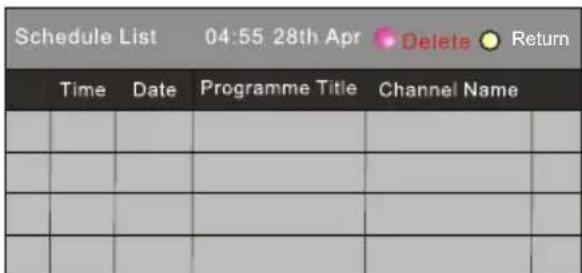

26. REC: Press to record the TV program you are watching in DTV Mode.
27. RECALL: DTV Mode: RECALL: Jumps to last channel viewed.

TELETEXT

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.)

Press :	You will obtain :
TEXT	This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number. If the channel selected does not broadcast teletext, theindication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).
SELECTING A PAGE	Enter the number of the page required using the 0 to 9 up/down. Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number.
DIRECT ACCESS TO THE ITEMS	Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. The coloured areas flash when the item or the page is not yet available.
INDEX	This returns to the contents page (usually page 100).
SUB PAGE	Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub-page acquisition. The indication appears top left.
HOLD	To freeze the page.
REVEAL	To display or hide the concealed information (games solutions).
LIST	The user can set four favorite pages to be directly linked to the four color keys. While list mode is activated, it is not possibility to use TOP or FLOF navigation with the color keys. The favorite page numbers should be stored and restored to/from nonvolatile memory for each channel by the system software.

Installation Guide

1). Press the buttons to navigate the menu and change the settings. Press the OK button to confirm.

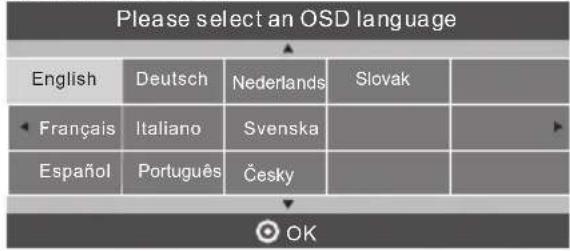

Select your desired language to be displayed on the menu.

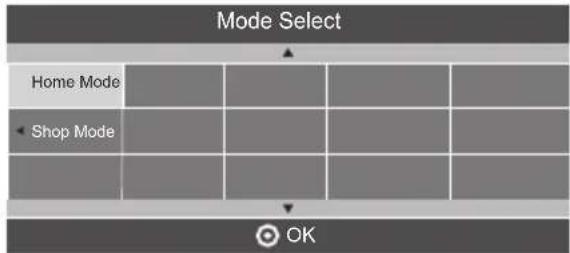

2).Press the buttons to select Home Mode or shop Mode press the OK button to confirm.

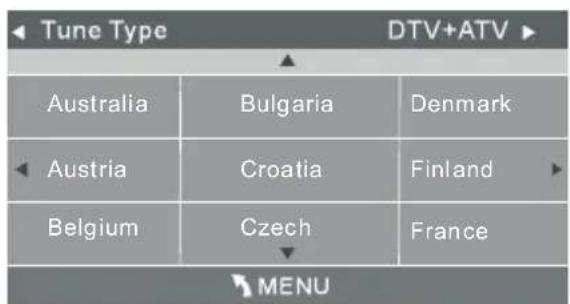

HOME or SHOP modes

1. Home Mode is an energy-saving Mode. Home Mode is recommended for normal viewing setting and is set as default during manufacturer.
2. Shop Mode is an option for retailers for Advertising or product presentation. Shop Mode has a brighter image than Home Mode.
   3). Press the buttons to select DVB-T/DVB-C and then press the OK button to confirm.

a. If you select DVB-T to next step is select the Tune and country the press the OK button to start tuning.

b. If you select DVB-C, the next step is to config the DVB-C system like (scan type /Frequency/Network ID/Sy mbol(KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T, select the tune type (DTV/ATV). Choose the right country, press OK button to start tuning.

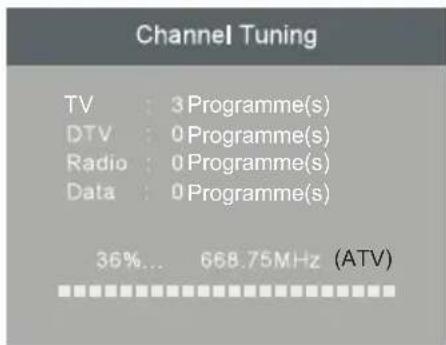

4). Channel tuning will commence. This operation may take up to several minutes. The display will show the progress of the tuning and the number of channels found.
5). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
6). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.

1.CHANNEL MENU

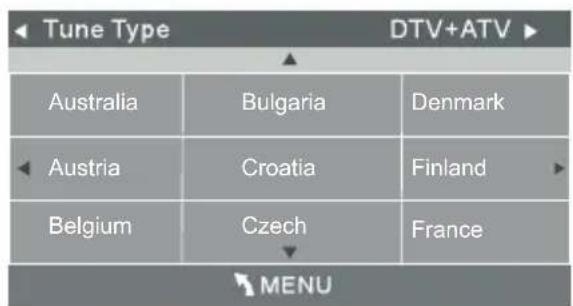

1.1 Auto Tuning (DVB-T)

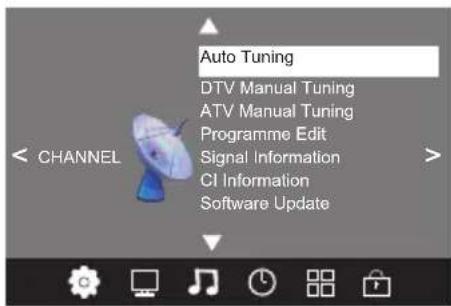

1). Press the MENU button and then press the buttons to select the CHANNEL menu.
2). Press the buttons to select Auto Tuning and then press the OK button.

UK

TV OPERATION

3). Press the buttons to select DVB-T/DVB-C Press select DVB-T and then press the OK button to confirm.

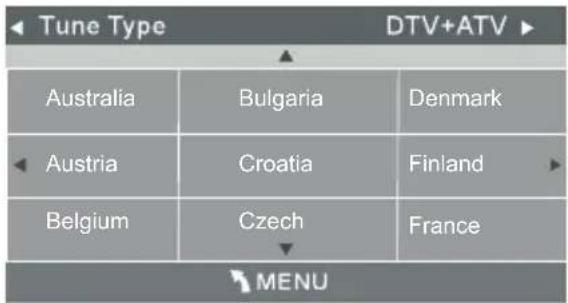

4). In the Tune Type menu, press the buttons to select ATV/DTV/DTV+ATV. Press the button and then press the buttons to select the country where you will operate the TV. Press the OK button to confirm.

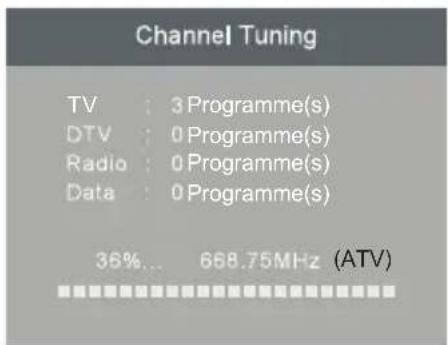

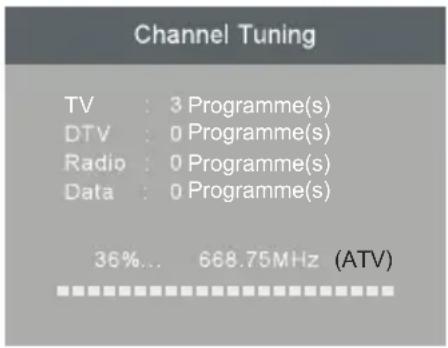

5). Channel tuning will commence. This operation may take up to several minutes. The display will show the progress of the tuning and the number of channels found.
6). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning.
7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

1.2 Auto Tuning (DVB-C)

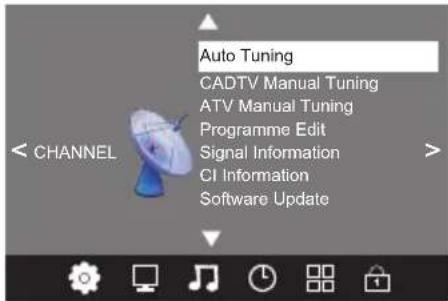

1). Press the MENU button and then press the buttons to select the CHANNEL menu.
2). Press the buttons to select Auto Tuning and then press the OK button.

3). Press the buttons to select DVB-T/DVB-C Press select DVB-C and then press the OK button to confirm.

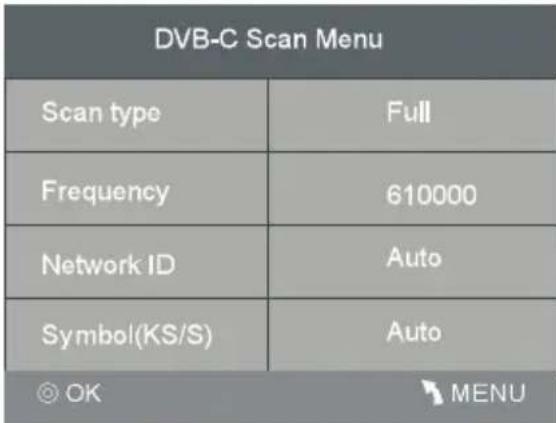

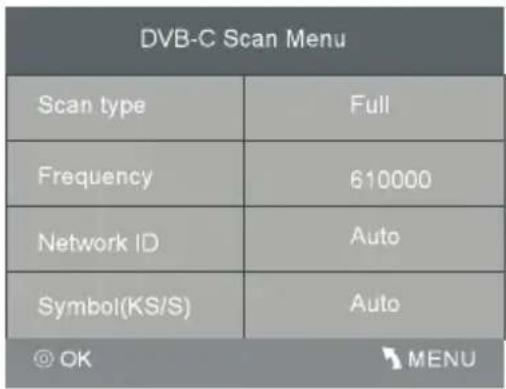

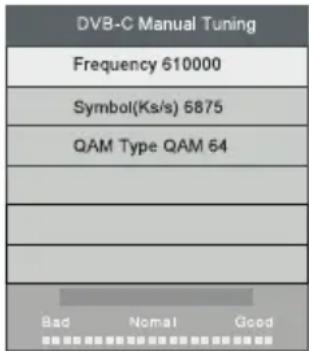

4). Press buttons to select Scan type/Symbol(Ks/S) press the OK button to confirm.

5). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the button and then press the buttons to select the country where you will operate the TV. Press the OK button to confirm.

6). Channel tuning will commence. This operation may take up to several minutes. The display will show the progress of the tuning and the number of channels found.
7). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning.
8). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

NOTE:

All the channels including ATV, DTV and Radio can be tuning by one time, if the Tune Type is DTV+ATV.

All the stored channels will be disappear after auto tuning.

After auto tuning, the channel will skip to the first DTV channel.

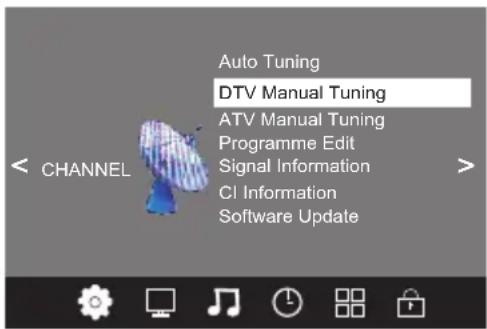

2.1 DTV Manual Tuning (DVB-T)

1). Press the MENU button and then press the buttons to select the CHANNEL menu.
2). Press the buttons to select DTV Manual Tuning and then press the OK button.

3). The DTV Manual Tuning screen will pop up. Press the buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

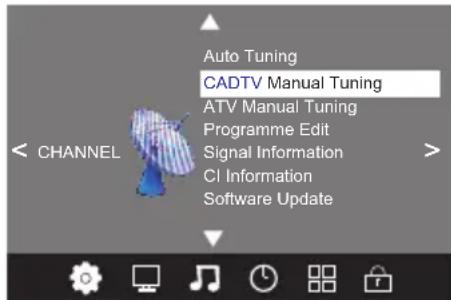

2. 2 DTV Manual Tuning (DVB-C)

1). Press the MENU button and then press the buttons to select the CHANNEL menu.

2). Press the buttons to select CADTV Manual Tuning and then press the OK button.

3). The CADTV Manual Tuning screen will pop up. Press the buttons to select(Frequency /Symbol (ks/s/QAM Type QAM) press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

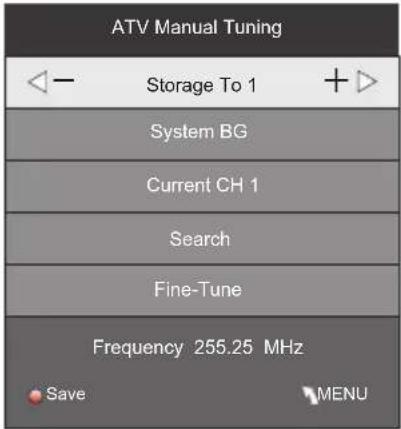

3.1 ATV Manual tuning :

You can change the sound system to search the analog TV channels and fine tune the channels, then storage the channels you selected.

NOTE:

Press teletext red button to storage to channels after manual tuning.

4.1 Program edit:

You can Delete ,Rename ,Move, Skip , FAV any programs.

Delete

Press teletext red button, the program in cursor will delete.

Rename:

Only can rename ATV programs

Move the cursor to the program, press teletext green button to rename the program.

Press to choose the character. Press move the cursor.

Press MENU button to exit edit, Press EXIT to exit the menu.

Note: ATV programs name only can be 5 character.

Move

Use the Arrow Buttons to select the channel you wish to move. Then press the Yellow Button to select Move function. Once active use the Arrow Buttons to move and then press OK to confirm.

Skip

Press to choose the program, press teletext blue button to skip this program, The will show on the right side of the program. Choose the skipped program, press blue button again, you can cancel the skip, The will disappear.

Favourite

Press ▲ to choose the program, press FAV button, it will show on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV, the will disappear.

Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.

5.1 CI information: (optional)

This menu can display the CI card's information.

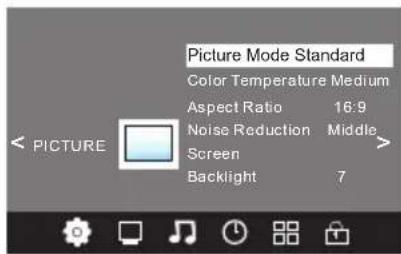

2.PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc.

Press to move, press OK to adjust.

NOTE:

1).Tint is available in NTSC system only.
2).There are four colors temperature modes can be selected medium, warm, cool, user
3).Screen is available in PC mode only which, can adjust Horizontal position, vertical position, size and phase.

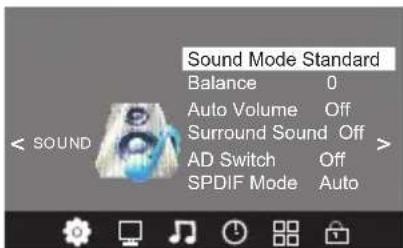

3.SOUND MENU

The third item of the MENU is the SOUND MENU. You can adjust the sound effect here such as treble, bass, balance etc.

Press to move, press OK to adjust.

Note:

Auto volume: only available when the input signal volume is too large or distortion.

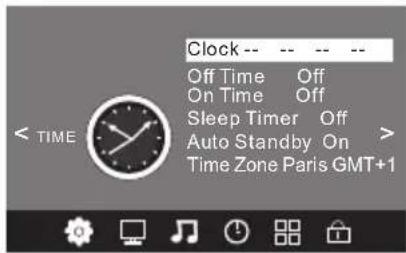

4.TIME MENU

The fourth item of the menu is the TIME MENU You can adjust the clock, power on/off time, sleep time etc Press to move, press OK to adjust.

NOTE:

Within 15 minutes there is no signal, the TV will auto sleep.

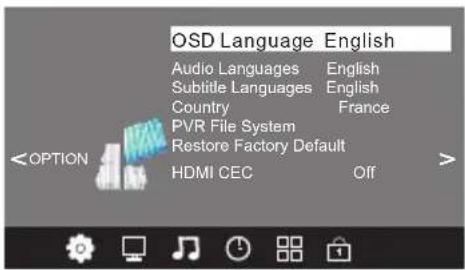

5.OPTION MENU

The fifth item of the MENU is the OPTION MENU. You can adjust the Menu language, Audio language, Subtitle language etc.

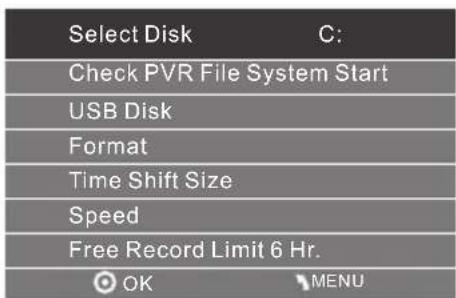

In PVR File system menu you can set up USB disk for PVR.

NOTE:

Restore factory default will clear all the programs and password.

6. LOCK MENU

The sixth item of the menu is the LOCK MENU You can lock system, set password, block program and set parental guidance. Once you set the lock system on, you can not search the channels.

NOTE:

The default pass word is 6666.

Block program: Press to choose the program, press teletext green button to block the program. If you want unblock the program, pls enter the main menu, input the password, then press green button again. Parental guidance: Press to choose rating.

7. USB

Press the source button and then select USB item to enter the USB menu.

Please make sure that the USB device have plugged in the slot. There are four type media item can be selected, such as photo, music, Movie, and text. Select the type media item by pressing press OK button to enter the disk selection menu.

Press the to select the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

Select the media file by pressing or , then the preview frame will pop up. Press the button to play the media file in full screen. When the media file (photo, music, Movie, or text type) is playing, press the OK or Info button can display the control bar.

Press to select the function icon, press OK button to confirm the function.

Press or EXIT button to exit the control bar. NOTE:

You can adjust the audio track, or program in the Info menu while Playing the video file. Choose the Info icon and press OK can display the Info MENU.

USB playback is supported for the following photo file formats:

—JPEG(JPEG format, files with the extension".jpg",

-BMP (files with the extension ".bmp")

-PNG (files with the extension ".png")

USB playback is supported for the following music file formats:

MP3 (files with the extension ".mp3")

USB playback is supported for the following text file formats:

-TXT (files with the extension ".txt")

USB playback is supported for the following movie file formats:

—TS (MPEG2 & H.264)

8.EPG Menu(Electronic Program Guide).

The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the EPG button, the following menu will be displayed:

1. INFO

Use to choose the programs, Press INFO key, you can display the highlight program's information.

2. Schedule

Press the teletext yellow key, it can list all the reminder schedule, press to choose the list, press red key DELETE to delete the schedule list, Press YELLOW to return to EPG menu.

3. Record

Press the red key, it can set the program to be recorded.

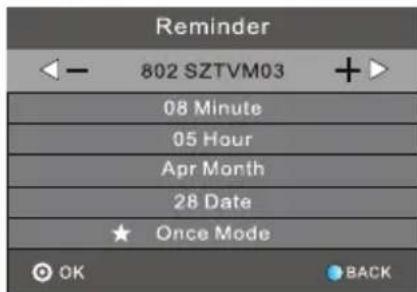

4. Remind

Press the blue key to choose one program and set up one reminder time, the TV screen will skip to the chosen program in the reminder time automatically.

Trouble phenomenon Symptom		Inspection Check
Picture Audio
Snow Noise	Normal audio	antenna position, direction or connection
Ghost	Noise	antenna position, direction or connection
Interference	Noise	electronic equipment,car/motorcycle,fluorescent light
Normal Picture	Mute	Volume(check if mute is activated or if the audio system connections are not correct)
? No picture Mute		Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote control for inspecting
No colour Normal audio colour control
Picture breaking up	Normal audio or weak	retune channel
No colour	Noise	TVsystem
There is black bar on top and bottom	Normal audio	Change aspect to zoom

FR

Sommaire

or product presentation. Shop Mode has a brighter image than Home Mode.

NOTE: PC V.Freq.(Hz) not more than 60Hz.

PRESET MODE (HDMI)

	ROZLIŞENİ	V. frekv. (Hz) H. frekv. (Khz)
1	800*600	60	37.88
2	1024*768	60	48.36
3	1360*768	60	47.7
4	1280*768	60	47.3
5	1920*1080	60	67.5

AV ZARIZENI

Mode Select
Home Mode
Shop Mode
OK

Tune Type DTV + ATV
Australia	Bulgaria	Denmark
Austria	Croatia	Finland
Belgium	Czech	France
MENU

Argentinská 286/38, 170 00 Praha 7, Czech Republic

Tel: [phone]

Fax:[phone]

Service E-mail: [e-mail]

Http://www.changhong.eu
