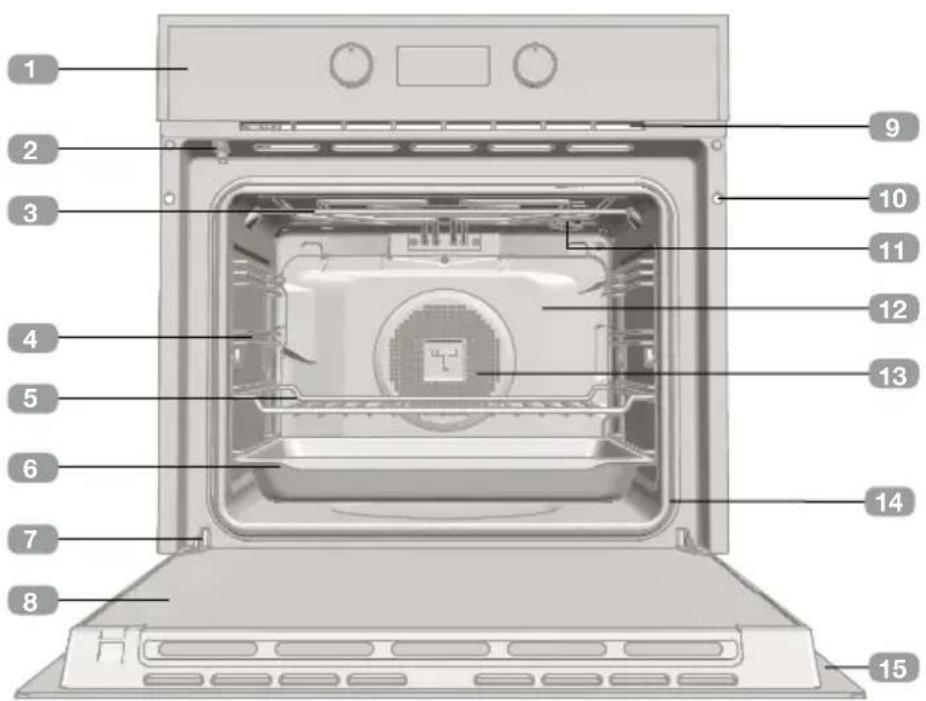

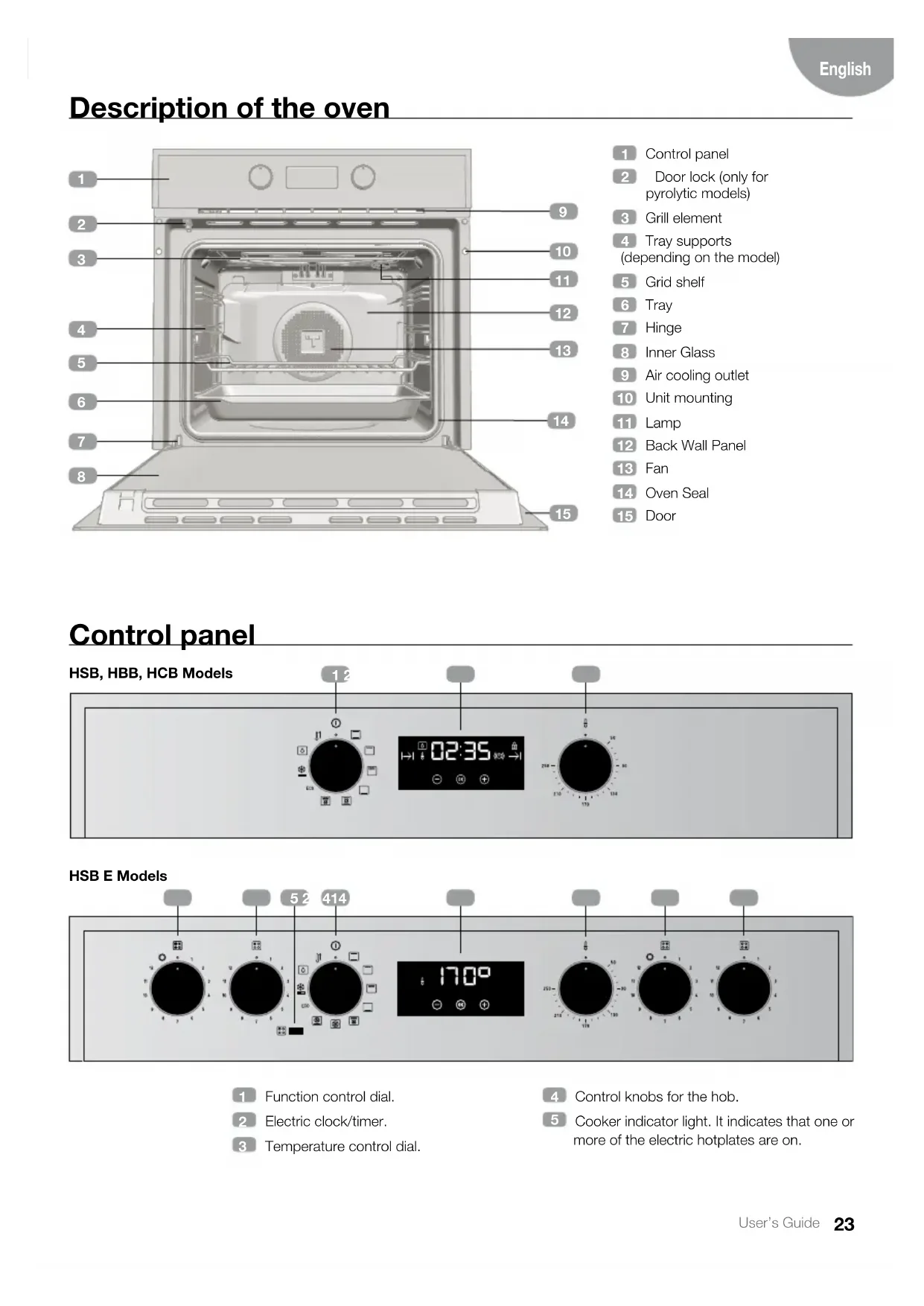

Description of the oven

1 Control panel
2 Door lock (only for pyrolytic models)
3 Grill element
4 Tray supports (depending on the model)
5 Grid shelf
6 Tray
7 Hinge
8 Inner Glass
9 Air cooling outlet
10 Unit mounting
11 Lamp
12 Back Wall Panel
13 Fan
14 Oven Seal
15 Door

Control panel

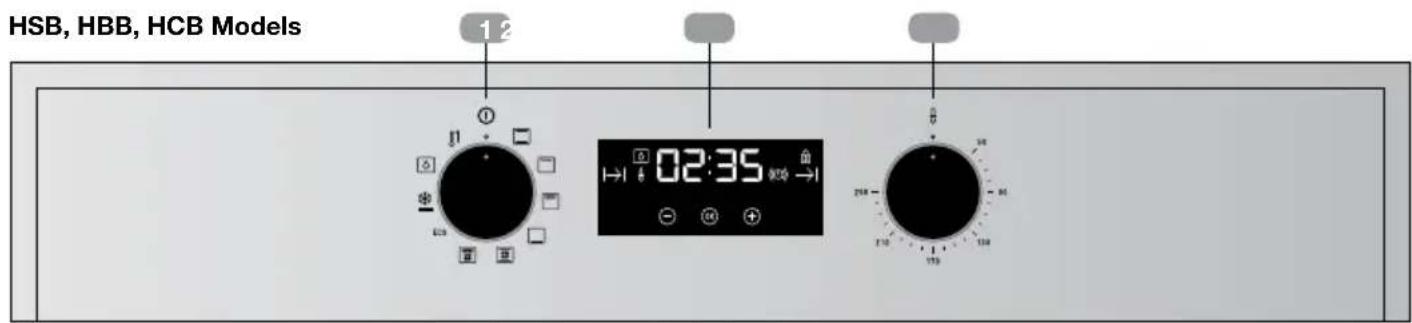

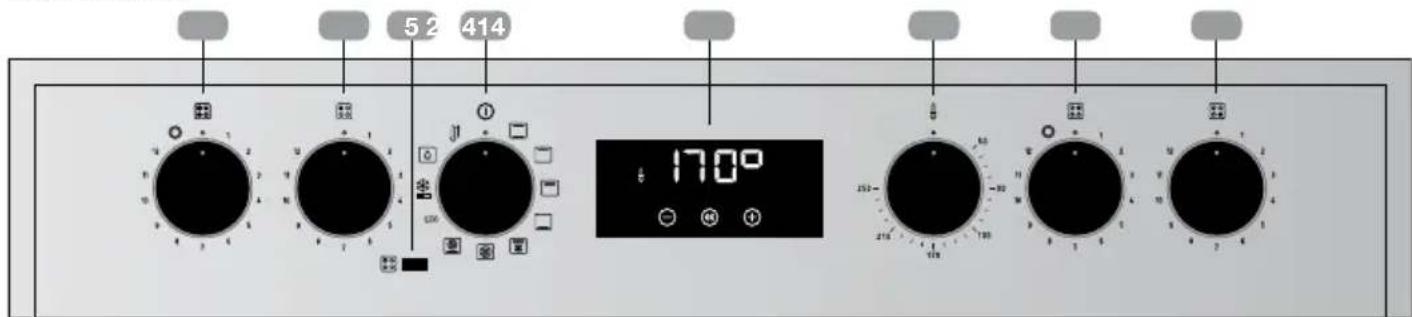

HSB E Models

1 Function control dial.
2 Electric clock/timer.
3 Temperature control dial.

4 Control knobs for the hob.
5 Cooker indicator light. It indicates that one or more of the electric hotplates are on.

1 Function control dial.
2 Electric clock/timer / Selected temperature.
3 Temperature control dial.

Function selector symbols

HSB 630, HSB 635, HBB 635, HCB 6435 Models

HSB 645, HSB 644, HSB 640, HSB 645 E Models

HSB 625 P, HSB 620 P, HSB 635 P, HSB 630 P, HCB 6435 P Models

HSB 638 Models

Oven functions

FORMATION

For a description of how to use each of the features, see the cooking guide that comes with your oven.

CONVENTIONAL WITH FAN

0

OVEN SWITCH-OFF

CONVENTIONAL

GRILL

MAXIGRILL

LOWER ELEMENT

MAXIGRILL WITH FAN

ECO

ECO

DEFROSTING

HYDROLEAN

PYROLYSIS

FAST PREHEATING

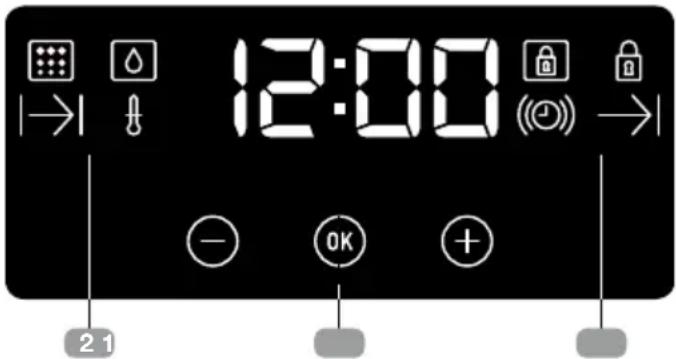

Electronic clock/timer description

1 KEYS

and : Enable you to programme the electronic clock/timer functions.
: For models with electronic temperature control, press this button to see the temperature during cooking.

2 SYMBOLS

Clock Settings

AVISADOR: Lights up when the clock/ timer is selected. Generates an acoustic signal when the time is up. The oven does not turn off at the end of the timer period. This function can also be used while the oven is cooking.

and PROGRAMMING: Light up to indicate that the oven is programmed (cooking time, stop time or total).

Cooking Time: This function allows you to programme the cooking time, after which the oven will turn off automatically.
Cooking Stop Time: This setting allows you to programme the time for cooking to stop, after which the oven will turn off automatically.

and Cooking Time and Cooking

Stop Time: This setting allows you to programme the cooking time and cooking stop time. The oven switches on automatically at the set time and operates for the selected cooking time (Cooking Time). It then switches off automatically at the indicated time (Cooking Stop Time).

CLOCK/TIMER LOCK: Indicates that the touch keys for the clock/timer are locked, preventing modifications by small children.

Other functions

HEATING: Indicates that the oven is transmitting heat to the food.

HYDROCLEAN: Lights up while the Teka Hydroclean® function is in progress.
PYROLYSIS: For pyrolytic models only. Lights up while the Pyrolytic function is in progress.
DOOR LOCK: For pyrolytic models only. Indicates that the door is locked, either manually or automatically while the pyrolytic function is in progress.

WARNING

The sensitivity of the touch keys adapts continually to environmental conditions. Make sure the surface of the control panel is clean and free of obstacles when plugging in the oven.

If the clock does not respond correctly when you touch the keys, unplug the oven for a few seconds and then plug it in again. Doing this causes the sensors to adjust automatically so that they will react once more to fingertip control.

SETTING THE TIME

To set the time on the oven, the function and temperature dials must be in the 0 position.

When you plug in the oven, you will see the clock flashing 12:00.

Touch or to adjust the hours and then the minutes. You will hear a double beep confirming the time is set.

If you wish to modify the time, touch ④ until the time starts flashing. Touch OK and and follow the instructions in the previous point.

The clock light has a night mode so the display light will dim between 00:00 and 6:00 hours.

In the event of a power failure, your electronic clock/timer settings will be erased.

If this happens, turn the function and temperature dials to the 0 position.

The indication 12:00 will show, and you will then be able to set the time as described above.

If the oven door was locked before the power cut, the locked symbol will show until it is unlocked.

This may take several minutes, depending on the temperature inside the oven, and during this time you cannot reset the time.

Once the door is unlocked, you can set the time as described above

oven use

MaNUal opERaTloN

After setting the clock, the oven is ready for use. Select a cooking function and temperature.

In models with an electronic temperature control, when the selector switch is turned, the clock display will show the temperature.

After selecting the temperature, the clock display will automatically reappear.

To see the temperature again during cooking, press the OK button and turn the temperature dial if you want to change it.

You will notice that the symbol lights up during cooking to indicate that heat is being transmitted to the food. This symbol disappears when the selected temperature has been reached.

Set the controls to 0 to turn off the oven.

When you start cooking, your oven will show the time the oven has been cooking

Programming the Buzzer

1. Touch or until the symbol on the display starts flashing, then press OK. The indication '00:00' will appear on the display.
2. Select the time after which you want the alarm to sound by pressing or You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The symbol will flash slowly.
3. Once the time has expired, an acoustic signal will sound for 90 seconds and the symbol will flash quickly.

目 NOTE

With the Buzzer function, the oven will not turn off when the time expires.

1. Touch any key to stop the alarm. The symbol will then disappear.

If you wish to modify the time on the buzzer, repeat the steps shown. Upon entering the timer control, the time currently remaining will appear, which you will be able to adjust.

目NOTE

With the Buzzer function, the remaining time will show permanently on the display. With this programmed function, it is not possible to view the time or the total programmed cooking time.

Programming Cooking Time

1. Touch or until the symbol on the display starts flashing, then press OK. The indication '00:00' will appear on the display.
2. Select the time after which you want the alarm to sound by pressing or + You will hear 2 beeps to confirm that the time has been set and the clock will start counting

down from the selected time. The || symbol will flash slowly.

1. Select a function and a cooking temperature using the oven commands.
2. Once the cooking time is up, the oven will turn off, an alarm will sound and the | | symbol will flash quickly.
3. Touch any key to stop the alarm and turn off the symbol. The oven will switch on again.
4. Set the controls to the o position to turn off the oven.

You can change the remaining cooking time at any time by touching or until the 1 1 symbol starts to flash quickly. Now press to change the time.

NOTE

With the Cooking Time function, the remaining time will show permanently on the display. You cannot see the current time on the display when this function is set.

Programming the Cooking Stop Time

1. Touch or until the symbol on the display starts to flash and press OK You will see the current time on the timer display.
2. Select the time after which you want the alarm to sound by pressing or + You will hear 2 beeps to confirm that the time has been set and the clock will start counting down from the selected time. The symbol will flash slowly.
3. Select a cooking function and temperature.
4. When the cycle is finished, the oven will turn itself off, a buzzer will sound and symbol will flash quickly.
5. Touch any sensor to stop the alarm and to turn off the symbol. The oven will switch on again.
6. Set the controls to the o position to turn off the oven.

You can change the remaining cooking time at any time by touching or until the symbol starts to flash quickly. Now press OK to change the time.

Programming Cooking Time and Cooking Stop Time

1. Touch or until the symbol on the display starts flashing, then press OK. The indication '00:00' will appear on the display.
2. Select the cooking time by touching or ④ . Next, a double beep will sound, the remaining time will appear on the display and the || symbol will flash slowly.
3. Touch or until the symbol on the display starts flashing, then press OK. You will see the expected completion time on the timer display.

4. Adjust cooking completion time by touching or Next, a double beep will sound and the current time will be displayed on the display.

5. Select a cooking function and temperature. The oven will remain disconnected with the and symbols lit up. The oven is now programmed.

6. When it is time to start cooking, the oven will turn on and will operate for the programmed cooking time.
7. While cooking, the cooking time remaining will be displayed and the | | symbol will flash slowly.
8. When the cooking time is up, the oven will turn off, a buzzer will sound, and the symbol will flash quickly.
9. Touch any sensor to stop the buzzer and turn off the symbol. The oven will switch on again.
10. Set the controls to the position to turn off the oven.

You can change the remaining cooking time at any time by touching or until the || symbol starts to flash quickly. Now press 0K to change the time.

Safety instructions

SAFETY CHILD LOCK

This function can be selected at any time while using the oven.

To activate the function, touch and hold OK key for several seconds until you hear a beep and the symbol appears on the display. The clock/timer is locked.

If the oven is off and you activate the child safety function, the oven will not work even if a cooking function is selected.

If this function is activated while you are cooking, it will only lock the electronic clock/timer settings.

To disable the function, press OK key for several seconds until you hear a beep.

MANUAL DOOR LOCK

Available in pyrolytic models only.

This function allows the oven door to be locked.

同名

This function can only be selected when the oven command functions are set to the rest position .

Once the door has been locked, you can start cooking normally.

To activate/deactivate the door lock, follow these steps:

1. Touch or until the symbol on the display starts flashing.

The current door lock status will be displayed: "On" if it is active and "Off" if deactivated.

1. Press OK You will then hear a beep and the block will start to activate if it was "Off", or deactivate if it was "On".

WARNING

Before locking, ensure that the oven door is properly closed. If not, it will not lock and an alarm will sound.

If this happens, switch off the alarm by pressing any clock button, close the door properly and lock again as per the instructions above.

1. Once the door has been fully locked/unlocked, the display will show the new door status.

In the event that the locking system is active, the symbol will appear constantly lit on the display.

目

To unlock the door during cooking, turn the function dial to standby and unlock the door as described above.

Once the door is unlocked, turn the function dial back to its former position to continue cooking.

Teka Hydroclean® function

This function makes it easy to remove grease and other food debris that may have stuck to the sides of the oven.

For easier cleaning, do not allow dirt to accumulate. Clean the oven frequently.

PROGRAMMING THE TEKA HYDROLEAN® FUNCTION®

WARNING

Do not pour water into a hot oven as this can damage the enamel of the oven.

Always run the cycle on a cold oven. The result could be affected and the varnish damaged if it is run when the oven is too hot.

First remove the trays and all accessories from the oven interior, including the tray supports and telescopic guide rails. To do this, follow the instructions in the installation and maintenance guide accompanying the oven.

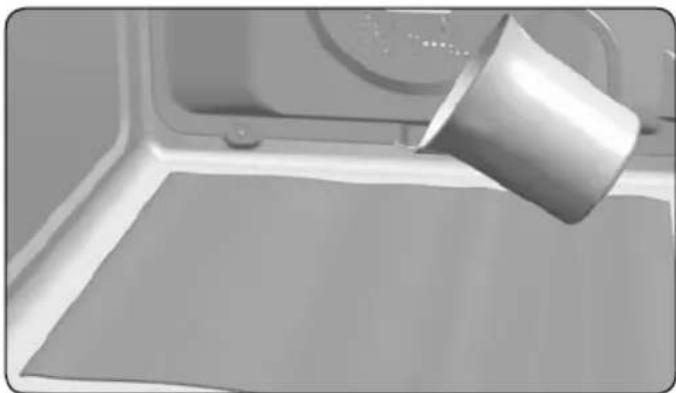

1. With the oven cold, spread a cloth out on the bottom of the oven.

1. Gently pour 200ml of water into the bottom of the oven cavity.

INFORMATION

For best results, add a teaspoon of mild washing up detergent to the glass of water before pouring onto the cloth.

1. Turn the control dial to the position.
2. You will hear a beep indicating that the Teka Hydroclean® cycle has started. The symbol will flash slowly and the time remaining to complete the cycle will appear on the display.

IMPORTANT

The duration of this cycle cannot be changed. To stop the cycle before it is finished, turn the control dial to the 0 position.

1. When the cycle is finished, the oven will turn itself off, an alarm will sound and the symbol will flash quickly.

IMPORTANT

Do not open the oven door until the Hydroclean® function is complete.

The cooling cycle is necessary for the function to work properly.

1. Touch any sensor with your fingertip to stop the alarm and turn off the symbol.
2. Turn the control dial to the o position.
3. Any traces of dirt and excess water can now be removed from the oven with the damp cloth.

The Hydroclean® function takes place at a low temperature. However, cooling times can vary depending on the room temperature.

WARNING

Before touching the inside surface of the oven, make sure that it has cooled properly.

If a deeper clean is required after using the Hydroclean® function, use neutral detergents and non-abrasive sponges.

Pyrolytic self-cleaning function

Function available in pyrolytic models HSB P.

WARNING

Before setting the pyrolytic cleaning cycle, carefully read the safety instructions, which

you will find at the start of the Installation and Maintenance guide.

This function allows you to carry out a pyrolytic cleaning cycle during which, due to the high

temperatures reached inside the oven, accumulated grease undergoes a carbonisation process.

The general recommendation is to perform a pyrolytic cycle every 4-5 uses, using the most suitable programme according to the level of stains present in the oven. The more stained the oven, the longer the duration of the programme.

During the pyrolytic cycle the light inside the oven will remain off.

pRoGRaMMING THE pYRoiYTIC FUNCItoN

IMpoRTaNT

Before carrying out the pyrolysis, you must remove all accessories and dishes from the oven, including the shelves and/or telescopic guide rails. To do this, follow the instructions in the installation and maintenance guide accompanying the oven.

WaRNING

Clean any spillages or excess dirt from the inside, as these could ignite during the pyrolysis and create a fire hazard.

WaRNING

Before running the pyrolytic function, ensure that the oven is properly closed.

1. Turn the cooking control dial to the Pyrolysis position
2. TAfter a few seconds, the symbol will light up on the clock display, reading 'P2' (Pyrolysis programme 2.
3. You can now change the pyrolysis programme to P1, P2 or P3 by pressing the or keys:

p1: Light pyrolysis. Lasts 1 hour.

p2: Regular pyrolysis. Lasts 1 hour 30 min.
p3: Intensive pyrolysis. Lasts 2 hours.

1. Once the desired programme has been selected, press OK. The automatic door lock will be activated immediately.

WaRnING

If the door is not properly closed, it will not lock and an alarm will sound.

If this happens, switch off the alarm by pressing any clock button, close the door properly, turn the function dial to the 0 position and re-select the pyrolytic programme as described above.

1. Once the door is locked, the symbol will light up on the clock display and the time remaining before the end of the pyrolysis will appear.

IMpoRTaNT

At this point, the oven is programmed and the pyrolytic cleaning cycle is under way. During the cycle, none of the oven timer functions may be chosen (except the child lock).

Do not try to open the oven door as this may interrupt the cleaning process.

1. When the pyrolytic cleaning cycle has finished, an alarm will sound, the symbol will flash and you will see the time '0:00' on the clock display.
2. Press any of the timer's keys to disable the alarm.
3. Turn the control dial to the 0 position.
4. The oven's heating process has finished. However, the oven is extremely hot and cannot be used.

The cooling process will continue to operate and the symbol will remain lit until the oven cools down.

IMPORTANT

As a result of the high temperatures inside the oven, the cooling process may vary depending on the room temperature.

1. Once the oven has cooled down, the symbol will turn off.
2. Open the oven door and wipe the inside with a damp cloth, removing the ash from the cleaning cycle. Hard-to-reach areas in the oven will need to be cleaned with a non-metallic fibre scourer.
3. Once the oven is clean, do not forget to replace the supports and accessories.
4. The oven is now ready to be used.

IMPORTANT

If any incident is detected in the programming or use of this function, consult the installation and maintenance guide included with your oven.

CANCELLING THE PYROLYTIC FUNCTION

Pyrolysis is an automatic function and therefore it can only be activated from the timer programme. To cancel a pyrolysis in progress it is necessary to reset the oven, following the instructions below:

1. Set the control dial to the o position.

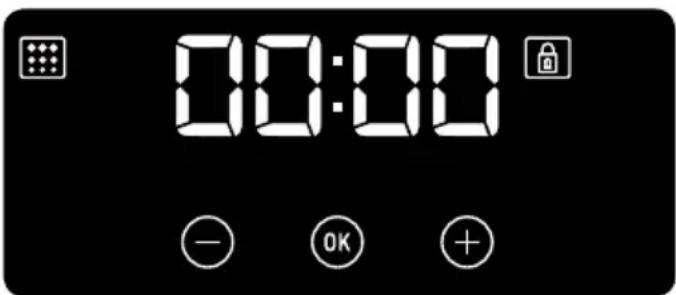

The timer display will appear as follows

1. Depending on the internal temperature of the oven, either of the two following situations could arise:

a) Dangerous internal temperature: In this case, the door will remain locked until the temperature reaches safe levels.
b) Safe internal temperature: If the temperature inside the oven is safe, the door will be unlocked immediately.

1. Once the door has been unlocked and can be opened, the time will show once again on the timer display.

Description du four

FONCTIONNEMENT MANUEL

PROGRAMMER LA FONCTION TEKA HYDROCLEAN

MISE EN GARDE

Modelle HSB 625 P, HSB 620 P, HSB 635 P, HSB 630 P, HCB 6435 P

Modelle HSB 638

Backofenkunften

Modellen HSB 625 P, HSB 620 P, HSB 635 P, HSB 630 P, HCB 6435 P

Modellen HSB 638

Aetoupye c tou pooyiou
