13281 - Glue gun Erba - Free user manual and instructions
Find the device manual for free 13281 Erba in PDF.
| Product type | Hot glue gun |
| Brand | Erba |
| Model | 13281 |
| Power supply | 220-240 V ~ 50/60 Hz |
| Rated power | 60 W |
| Glue stick diameter | 11 mm |
| Heating temperature | Approximately 190 °C |
| Glue type | Hot melt glue sticks |
| Heating time | A few minutes (not specified) |
| Use | Bonding various parts on different materials |
| Safety | Do not use liquid glue; risk of burns; do not leave unattended; keep out of reach of children |
| Spare parts | Only original Erba parts |
| Warranty | Statutory warranties |
| Disposal | Recycling in accordance with local regulations |
| Operating environment | Domestic, non-industrial |
| Nozzle | Metal nozzle for precise application |
| Trigger | Feed trigger for the glue stick |
| Stand | Integrated stand for upright position |
| Window | Glue level viewing window |
Frequently Asked Questions - 13281 Erba
User questions about 13281 Erba
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Glue gun in PDF format for free! Find your manual 13281 - Erba and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 13281 by Erba.
USER MANUAL 13281 Erba
- Safety instructions 10
2.Product description 11 - Designated use 11
- Restrictions of use 11
- Technical data 11
- Noise emission values 11
- Important information for initial operation 11
- Operation instructions 12
- Service and replacement parts 13
- Warranty 13
- Disposal 13
- Legal information 13
13.Declaration of conformity 14

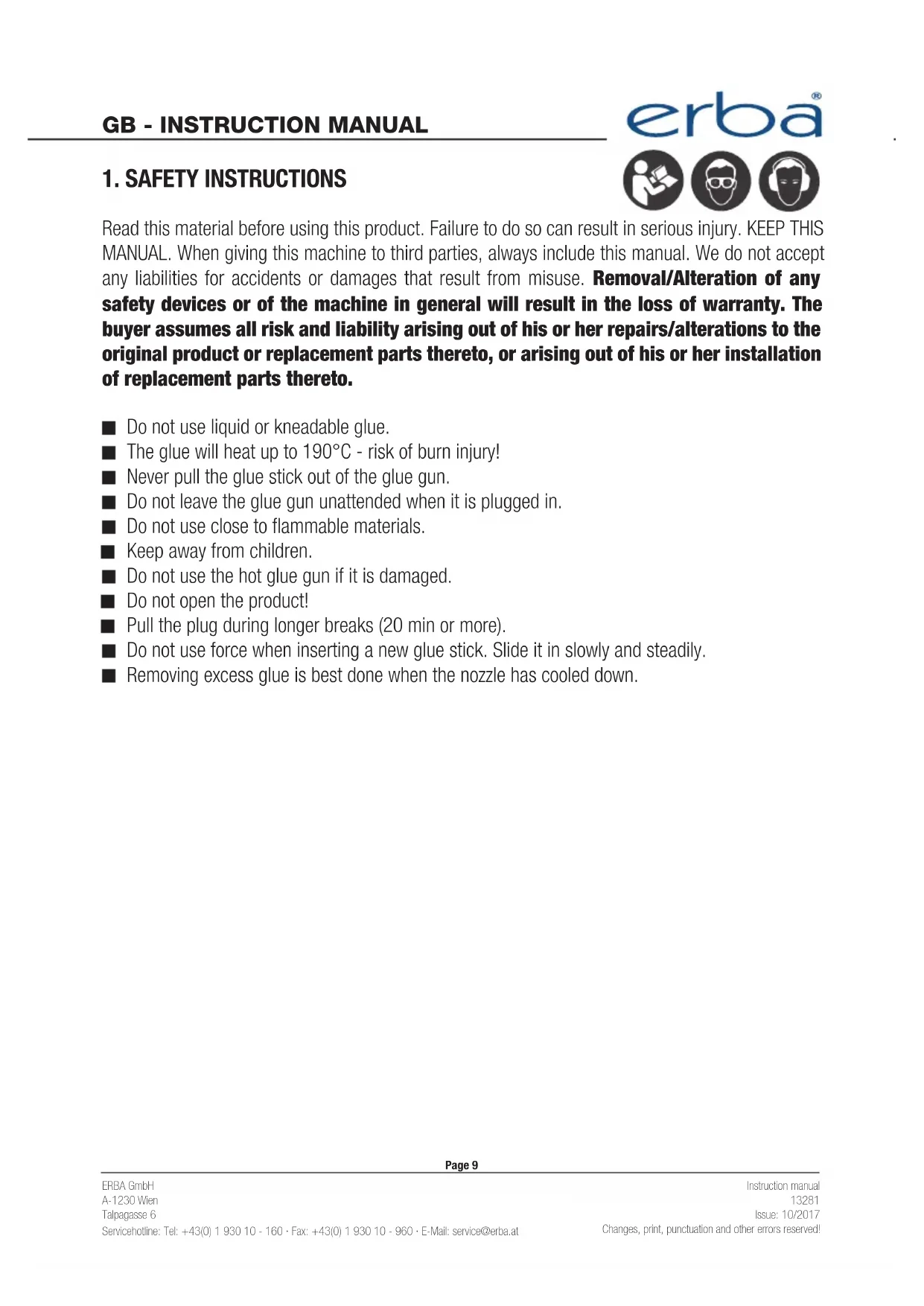

1. SAFETY INSTRUCTIONS
Read this material before using this product. Failure to do so can result in serious injury. KEEP THIS MANUAL. When giving this machine to third parties, always include this manual. We do not accept any liabilities for accidents or damages that result from misuse. Removal/Alteration of any safety devices or of the machine in general will result in the loss of warranty. The buyer assumes all risk and liability arising out of his or her repairs/alterations to the original product or replacement parts thereto, or arising out of his or her installation of replacement parts thereto.
Do not use liquid or kneadable glue.
The glue will heat up to 190^ - risk of burn injury!
Never pull the glue stick out of the glue gun.
Do not leave the glue gun unattended when it is plugged in.
- Do not use close to flammable materials.
Keep away from children.
- Do not use the hot glue gun if it is damaged.
■ Do not open the product!
Pull the plug during longer breaks (20 min or more).
Do not use force when inserting a new glue stick. Slide it in slowly and steadily.
- Removing excess glue is best done when the nozzle has cooled down.
2.PRODUCT DESCRIPTION
1 - Nozzle
2 - Glue stick feed
3-Window
4 - Feed trigger
5 - Stand
3. DESIGNATED USE
The hot glue gun has been designed to apply suitable hotglue to various workpieces. Any other use is prohibited. The buyer accepts all liabilities, legal and otherwise, for any damage or injury resulting from improper use of the product (i.e. any other use than the above stated designated use).
4. RESTRICTIONS
Please note, that this product is not designed for commercial or industrial use. We accept no liability or warranty claims should the product be used in industrial and/or commercial operations.
5. TECHNICAL DATA
| Power supply: | 220/240V ~50/60Hz |
| Rated power: | 11 mm |
| Ø Glue sticks: | 60W |
| Temperature: | ca. 190 °C |
6. NOISE EMISSION VALUES
See technical data - use of ear protection is recommended.
7. IMPORTANT INFORMATION FOR INITIAL OPERATION
See operation instructions.
8. OPERATION INSTRUCTIONS
- Attach the stand (5) to the body of the hot glue gun.
Insert a glue stick into the glue stick feed (2) and push the feed trigger (4) to move the glue stick forward.
Plug the hot glue gun in, place it on a stable an non-flammable surface and wait a few minutes for it to reach working temperature. The hot glue gun heats up to about 190^ so be careful not to tuch the nozzle of the hot glue gun.
Clean your workpiece and apply the hot glue.
Press the two pieces together firmly and let it cool (3-5 minutes are usually enough).
You can use the hot glue gun on almost any material.
9. SERVICE AND REPLACEMENT PARTS
Use original spare parts only.
10. WARRANTY
Legal warranty regulations apply.
11. DISPOSAL
Our products are packed in order to prevent damage during transport. Packing materials are valuable resources and therefore can and should be recycled. The product itself consists of various materials (metals, oils, plastic, etc.) and should be disposed with care and in accordance with your federal and local disposal regulations.
12. LEGAL INFORMATION
All rights reserved. This manual is copyrighted. Reproduction in and form (digital, print, etc.) is strictly prohibited without the written permission of ERBA GmbH.
DECLARATION OF CONFORMITY
Models: 13281 Hot glue gun
ERBA GmbH, Talgagasse 6, 1230 Wien, hereby states, that the mentioned model meet the following CE/RoHS quality standards, approvals and relevant safety requirements:
EMC Directive: 2014/30/EU
- EN 60335-2-45:2002+A1
- EN 60335-1:2002+A1+A11+A12+A13+A14+A15
- EN 62233:2008
For and on behalf of ERBA GmbH (authorized signature)
Dominik Schilling
Technical coordinator
ERBA GmbH, Talpagasse 6, 1230 Wien, Austria
