USER MANUAL Hotcano Klarstein

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Labeled diagram of a portable water heater with numbered parts for identification

Bedienfeld

000 000 Lock Temp. Volume Confirm

Reset-Loch Schlüssel

Line drawing of a multi-tiered industrial appliance with a side panel and a circular component, showing no text or symbols.

Filter austauschen

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 10

Declaration of Conformity 10

Safety Instructions 11

Hints on Disposal 11

Product Description and Keys 12

Use and Operation 13

Care and Cleaning 16

TECHNICAL DATA

Item number 10031879
Power supply 220-240 V ~ 50-60 Hz
Volume 4 L

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Please observe the following general safety notices with regard to the safe handling of the device. Read all instructions before using.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Unplug the unit when not in use and before cleaning. Allow unit to cool before cleaning.
• Inspect the unit, its power cord and plug for any damage before using. If there appears to be any damage or if the unit shows signs of malfunctioning, do not use the appliance.
• Return the appliance to the nearest authorized service facility for inspection and repair.
• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
• Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
• Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
• Do not use accessory attachments that have not been recommended by the manufacturer.
• Do not use outdoors.
• Do not allow cord to touch hot surfaces or hang over sharp edges such as those on countertops.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

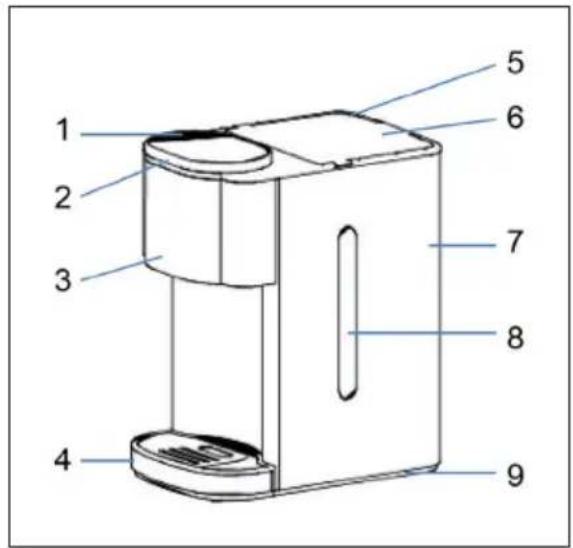

PRODUCT DESCRIPTION AND KEYS

Product

1 Front cover
2 Decorative ring
3 Front body
4 Tray
5 Top cover
6 Tank cover
7 Tank
8 Water guide
9 Base

Labeled diagram of a portable water heater with numbered parts for identification

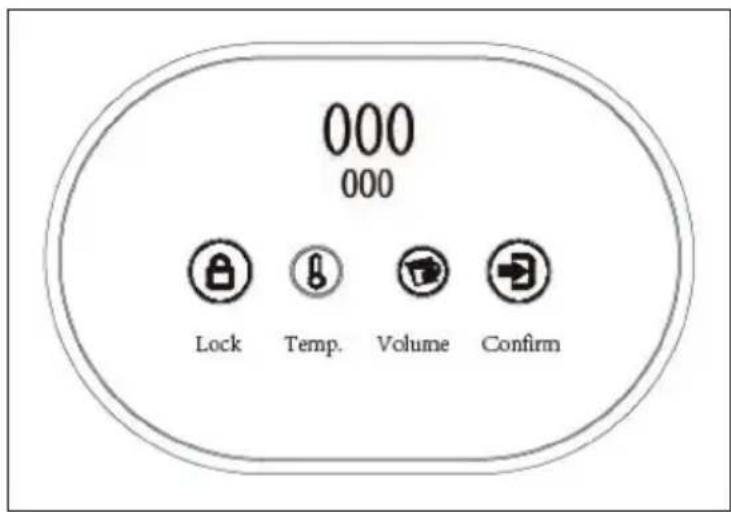

Control Panel

000 000 Lock Temp. Volume Confirm

• LOCK button: press it about 3 seconds to unlock, locked without any act within 10 seconds, you can lock the screen free by press ON/OFF button
  • TEMP button: Set the desired temperature according to 55,65,75,85,100,000(normal temperature water)
• VOL. button: Set the water volume according to 100ml,200ml,300ml,000(flow water continuously)
  • COMFIRM button: Start and stop function setting.

USE AND OPERATION

If use the appliance for first time, please clean up the water tank before use. Always unplug from the plug socket and allow to cool down before cleaning. The surface of the water tank is wiped over with damp cloth and polished with a soft dry cloth, And fill in the clean water to clean, repeat the same steps for several times, then refill the proper clean water to be ready for operation.

Quick Start Guide

1 Press the Lock button about 3 to 5 second to release by finger
2 Press Temp button to choose 100 degree setting
3 Press Vol. button to choose 000 volume setting
4 Operate the appliance 1 minute or so.

Fill in water

Open the lid, fill the water tank with the desired amount of water, and then close the lid. Note: the water level must be less the Max level.

Obtain desired water

1 Make sure the plug is connected to the proper wall outlet, and fill in the water with desired amount.
2 Place your cup on the removable water tray, make sure it aligns with the spout.
3 First press the LOCK button about 3-5 seconds to open by finger, TEMP and VOL. setting indicator lights up, and press the TEMP button to choose your desired temperature and press the VOL. button to set right water volume, Last press the ON button to operate the appliance
4 About 5-10s, the desired water will flow out continuously from water spout, when you obtain desired water, press the OFF button, the appliance stop work at once, if you want to obtain water again, only repeat the above procedure.

Important Hints on Operation

CAUTION

Risk of burns! Do not touch the boiled water and steam in order to protest against the scald by the boiled water and hot steam.

• If the appliance stop to operate with beep sound and the PCB panel show [E7] symbols, show the water is lack, need pour the cool water in the water tank immediately
• The appliance can memorize the last operation method anytime without disconnecting the plug
• As the appliance has memory function when connecting to plug, please use about 60 second first in order to obtain desired temperature water, but it's memory will be lost after unplug.

Reset hole Key

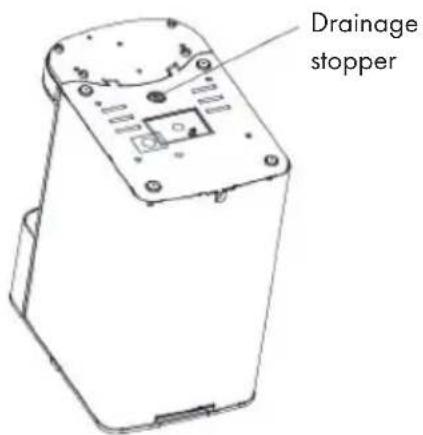

Drainage stopper

The appliance have manual thermostat to recover the heating function for unexpected operation, you can reset the thermostat by a reset key easily.

After cleaning the appliance, please open the drainage stopper in order to clean up wastewater. Note: tighten the drainage stopper after opening it.

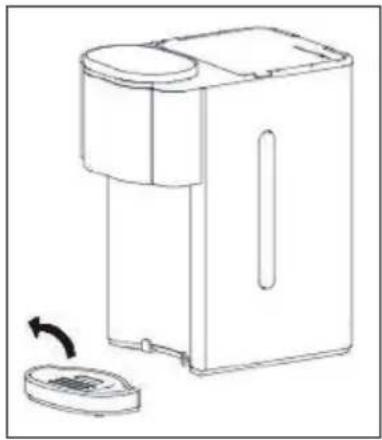

Water disposal from the water tray

When the water tray is full, to grasp and stabilize the appliance by one hand, use another hand to lift up the water tray slightly to remove it, empty the water tray and insert it into the original place with proper force.

Line drawing of a portable kitchen appliance with a side panel and a scroll wheel (no text or symbols)

Replace the filter

Open the tank cover, and take out the filter box with filter, go off with the old filter. Use the new filter instead of it.

Tank cover Filter box Filter

CARE AND CLEANING

• Always switch off and unplug your water dispenser and allow it to cool completely before cleaning.
• Do not immerse the appliance into any liquid to avoid the damage.
• Do not use any chemical, metal, wood or abrasive detergent to clean the appliance housing, always use a damp cloth.
• Always handle the appliance gently, do not place it near the edge of the table and the counter, to protect against the deform or function damage in case it fall down from the table accidentally.

Storage

If do not use the appliance for long, unplug and clean it, then put back into the original packing box to avoid the electrical components are humidified or damaged.
