BLT01 - Kettle BIALETTI - Free user manual and instructions
Find the device manual for free BLT01 BIALETTI in PDF.
User questions about BLT01 BIALETTI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual BLT01 - BIALETTI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BLT01 by BIALETTI.
USER MANUAL BLT01 BIALETTI
IT Istruzioni per l'uso EN Instructions for use FR Instructions d'emploi
DE Gebrauchsanleitung ES Instructiones de uso
IT Istruzioni originali 3
EN Translation of original instructions ..... 17
FR Traduction des instructions d'origine .... 31
DE Übersetzung der Originalanleitung 45
ES Traducción de las instrucciones originales ..... 59
1. Introduzione
Gentile cliente,
Close-up of hands opening a metallic kettle with a lid, showing a black arrow indicating the handle (no text or symbols visible)


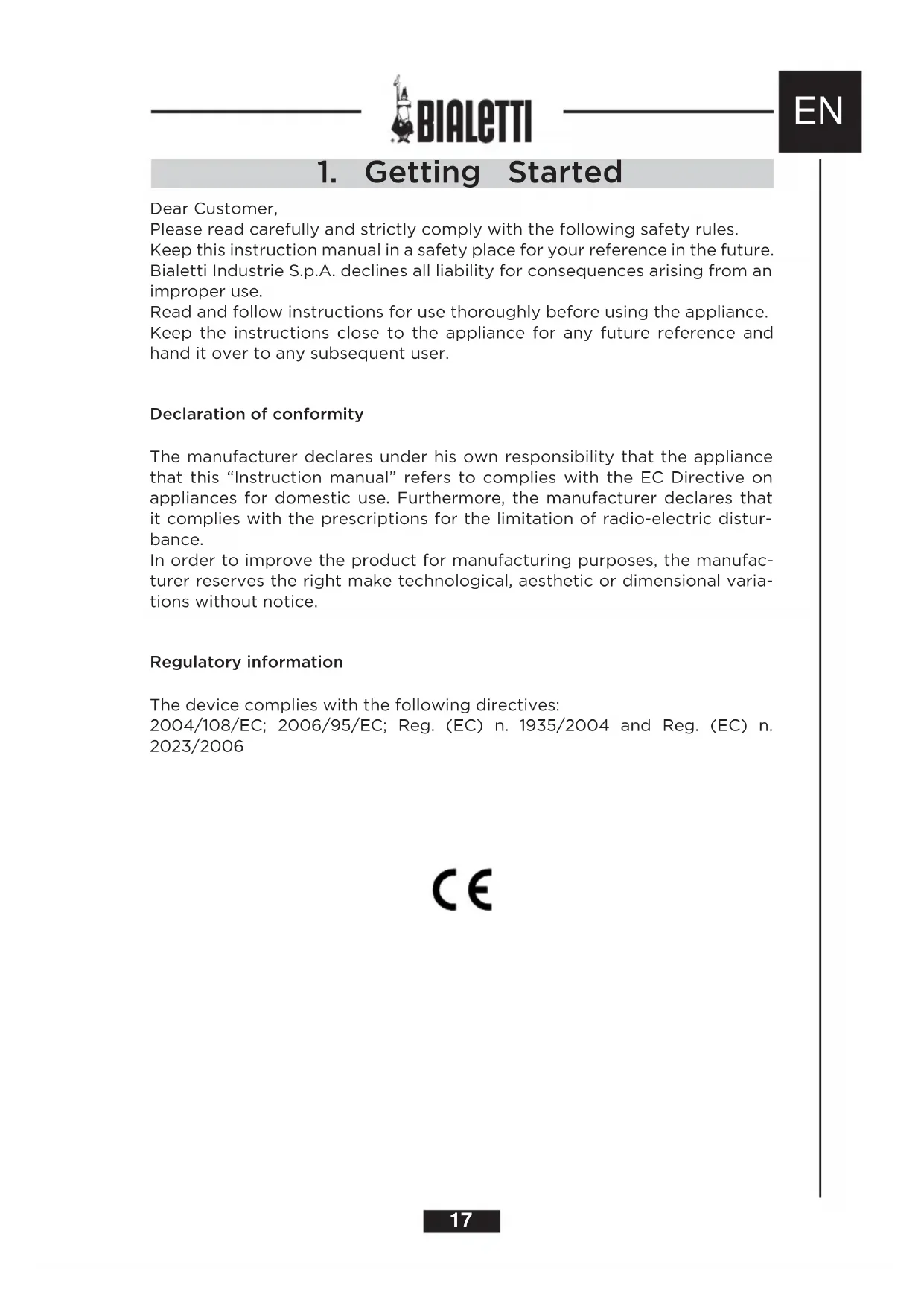

1. Getting Started
Dear Customer,
Please read carefully and strictly comply with the following safety rules.
Keep this instruction manual in a safety place for your reference in the future.
Bialetti Industrie S.p.A. declines all liability for consequences arising from an improper use.
Read and follow instructions for use thoroughly before using the appliance.
Keep the instructions close to the appliance for any future reference and hand it over to any subsequent user.
Declaration of conformity
The manufacturer declares under his own responsibility that the appliance that this “Instruction manual” refers to complies with the EC Directive on appliances for domestic use. Furthermore, the manufacturer declares that it complies with the prescriptions for the limitation of radio-electric disturbance.
In order to improve the product for manufacturing purposes, the manufacturer reserves the right make technological, aesthetic or dimensional variations without notice.
Regulatory information
The device complies with the following directives:
2004/108/EC; 2006/95/EC; Reg. (EC) n. 1935/2004 and Reg. (EC) n.
2023/2006
CE
2. Warnings
SYMBOL DESCRIPTION
ATTENTION
Always strictly comply with the information marked with ATTENTION or WARNING pictograms.
The WARNING sign warns against a serious injury hazard, while ATTENTION warns against minor injury hazard.
ATTENTION - HOT SURFACE!
The surface temperature of the area where it is located may reach dangerous values and for this reason the direct contact with the skin and heat-sensitive fabrics/materials must be avoided.
READING THE OPERATING MANUAL
It states to read this manual before using for a correct functioning and to prevent any electric shock and/or burn hazard.
RECOMMENDATIONS
This symbol warns to follow the recommendations of the manufacturer concerning safeguard and proper use of the product being used.
GENERAL WARNINGS
Read these recommendations carefully as they contain important about safe installation, use, and maintenance. Failure to comply with the warnings indicated by the words “danger”, “warnings” and “cautions” below may cause severe injury, even lethal, as well as fires, explosions and/or property damage.
This appliance is intended for household use or similar, as:
Kitchen areas in shops, offices and other working places farmhouses bed and breakfasts and similar structures hotels, motels and other residential environments (for customer's use only).
Children should be supervised to ensure that they do not play with the appliance.
Never place the appliance or its parts in water. Use a damp cloth for cleaning.
2. Warnings
If the electrical cord of this appliance is damaged, it must be replaced by an authorized customer service centre since specialized tools are necessary.
Do not touch the appliance hot parts immediately after use. Burn hazard.
Allow the appliance to cool before touching it, moving it or carrying out maintenance operations.
Improper use may cause injury.
Do not leave the appliance unattended while operating.
Do not open kettle lid (1) while water is boiling.
Never use the appliance when kettle is empty.
Connect the kettle (9) to the supplied power base (8).
Do not place the hot kettle directly on surfaces sensitive to high temperatures. Store it preferably onto its base (8).
Only for household use.
This appliance must only be used for the purpose for which it was expressly designed, that it to say warm water up.
- The appliance was designed only for indoor use and non-extreme temperature conditions; do not leave it exposed to the elements (rain, sun, etc.).
- Do not use the appliance to keep and heat up drinks or other kinds of food.
2. Warnings
- The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operations, non-professional repair or failure to comply with the instructions.
• After removing the packaging, and before use, make sure the appliance and all the attachments are working well. The electrical plug and sheath should not be cracked or broken. If the conditions described above occur, immediately unplug the appliance from mains outlet and take it to an authorized After-Sales Service Centre for necessary checking.
- The packing materials (plastic bags, expanded polystyrene, nails, etc.) should be kept away from children since they are potential sources of danger.
- Put the appliance on a flat, smooth and stable surface. Do not put it close to/on hot surfaces as heaters, cooking hobs, flames and similar; furthermore, avoid the contact with easily flat ammable objects, as curtains, cloths, paper, etc.
- Before connecting the appliance, make sure the line voltage is correct. The tag is located on the bottom of the appliance body.
- If the plug does not fit into the wall outlet, have the wall outlet replaced with another type by a qualified electrician. He/she must also check that the cord is suitable for the power absorbed by the appliance. In general, it is not advisable to use an adaptor, multiple sockets, or an extension cord. If they are necessary, use only simple or multiple adaptors and extension cords that conform to safety regulations, being careful not to exceed the load limits indicated on the adaptor and the extension cord, and the maximum power indicated on the multiple adaptor.
- Do not leave the appliance connected when not in use. Remove the plug from the mains outlet when the appliance is not used.
It is recommended to power the appliance through a residual current device (rcd) with a max. operating current of 30 mA.
Connect the appliance to the power mains through an earthed socket.
Avoid unplugging the appliance by pulling the power cord.
While in use, the power socket must be easily reachable in case it is necessary to unplug the appliance.
2. Warnings
PRECAUTIONS FOR YOUR SAFETY
- Do not touch the appliance with wet or damp hands.
- Do not use the appliance with bare feet.
- Do not pull on the electrical cord or the appliance to disconnect the plug from the mains outlet.
- Do not put the wire close to sharped edges, do not fix it and do not leave it hang.
- To avoid dangerous overheating, it is recommended that you unwind the electrical cord to its entire length and that you use the appliance as recommended in "Warnings" related to a correct use of the appliance.
- Before performing any cleaning or maintenance operation, disconnect the appliance from the mains outlet by unplugging it or by deactivating the electrical switch.
- Repairs must only be carried out by an after-sales centre authorized by the manufacturer. Always insist of genuine spare parts. Non-compliance with what has been stated above could compromise the safety of the appliance.
- If you decide not to use the appliance of this type anymore, it is recommended that you make it inoperable by cutting off the mains cord after removing the plug from the mains outlet. You should also render harmless those parts of the appliance that could be dangerous, especially for children who might use an abandoned appliance as a toy.
The installation must be performed according to the manufacturer's instructions. Incorrect installation could cause damage to person, animals and things, for which the manufacturer cannot be held responsible.
- Do not move the appliance whilst operating.
- In case of prolonged absences, turn the appliance off and disconnect the plug from the electric socket.
• Make sure the appliance is unplugged before cleaning operations.

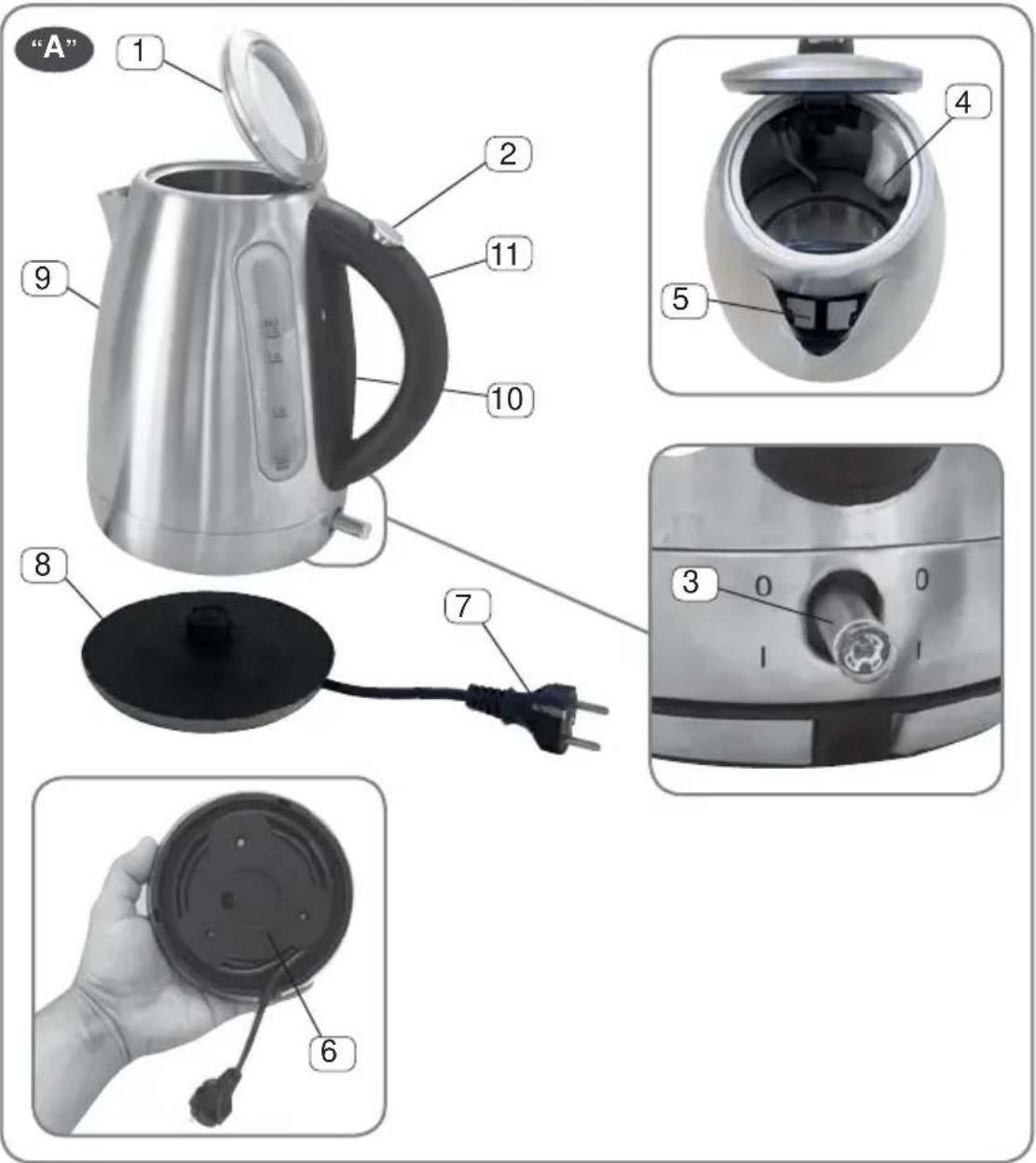

3. Product description
| 1 Lid | |
| 2 Lid opening button | |
| 3 | On/off switch:O=Appliance offI=Appliance on |
| 4 Service light | |
| 5 Removable fi Iter | |
| 6 Cable tidy housing | |
| 7 Power cord plug | |
| 8 Power base | |
| 9 Kettle | |
| 10 Graduated container | |
| 11 Handle | |
| Technical specifications | |
| Appliance dimensions (Hxø) (cm) | 24x15 |
| Power voltage (V) | 230V, 50Hz |
| Power (W) | 1850-2200 |
| Max. capacity (g) | 1000 |
4. Use
POSITIONING AND STARTING
Follow the following precautions when positioning the appliance:
- Put the appliance on a horizontal surface.
- Put the appliance so that it is protected against overheating.
- Plug the power cord into the power socket.
Warnings:
Electric shock hazard in case of use of the appliance with damaged power cord. Never start the appliance with damaged power cord.
Warnings:
Never start the appliance with damaged power cord.
Attention!
Burn hazard. The kettle support heats up during functioning. Do not touch the kettle surface.
When using the appliance for the first time, rinse the kettle (9), then boil clean water three/four times continuously. Empty the kettle (9) and make sure it is clean.
- Unroll the whole power cord (7) before connecting the appliance to the electric power source (Fig. E).
- Open the lid (1) by pressing the opening button (2) - Fig. C.
- Fill kettle (9) as required.

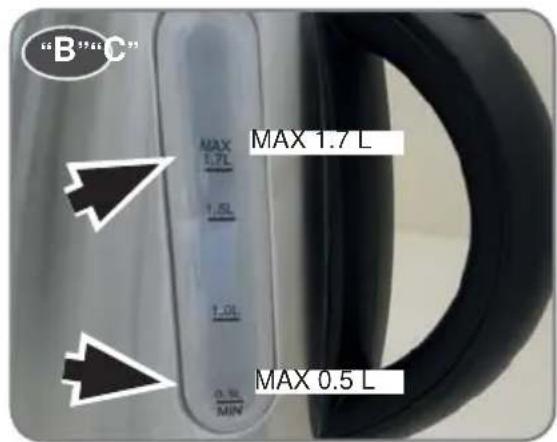

- For a proper functioning, make sure water amount inside the kettle (9) is never below the minimum level (0.5 L) or above the maximum one (1.7 L), as shown on the level graduated indicator (10), Fig. B.
Attention!
Burn hazard. In case the kettle (9) is over-fi lled, hot water may come out.
- Close lid (1) by pressing it down until it locks.
4. Use
Attention!
Burn hazard. A wrong lid closure (1) may cause water or steam leakages as well as an irregular functioning of the water temperature sensor.
- Put the kettle (9) onto power base (8), ensuring that both are perfectly flat, then plug the appliance in.
- Press down the on/off switch (3), Fig. A, positioning it to "I" (ON). The inner blue service light (4) goes on.
• After the boiling cycle, the appliance turns off by itself. - By lifting the kettle (9) from the base (8), the power supply stops.
- Move the on/off switch (3) to "0" (OFF) to interrupt appliance function before water boils.
Attention!
Carry out the filling/emptying operations of water with the boiler removed from its power base.
DIRT FILTER
The appliance is equipped with a removable fi lter (5), close to the kettle spout, which facilitates impurity retention.
To extract the filter, proceed as follows:
- Open the lid (1) by pressing the opening button (2), Fig. C.

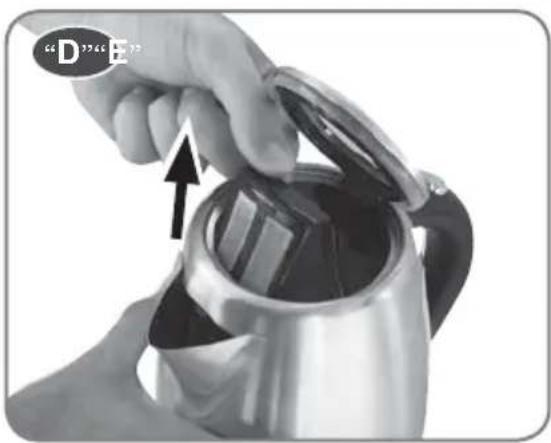

- Remove the filter (5) upwards (Fig. D).
- To position the fi Iter (5) back, proceed in the inverse way compared to removal (fi g. D).
STORING THE APPLIANCE AFTER EACH USE
- After use, when the appliance is unplugged, it is possible to reel the power cord on the bottom of the power base (8) by letting the cord pass through the proper slot (6) to lock it (Fig. A).
5. Maintenance
Attention!
Burn hazard. Before cleaning, always disconnect the plug from the electrical socket and wait for the appliance to cool completely.
For the external cleaning of the kettle (9) and the power base (8), clean with a damp cloth; do not use abrasive detergents.
DECALCIFICATION
Limescale may deposit on the stainless steel plate inside the kettle (9) owing to use. Maintenance on a regular basis permits a proper functioning of the appliance.
For cleaning, use kettle anti-limescale detergents available on the market.
- Pour the anti-limescale detergent into the kettle by following instructions of the detergent itself.
- Empty the kettle (9), rinse it with plenty of water and, when it is completely cooled, wipe it.
• In case of other limescale residues, repeat cleaning procedure.
The intervention frequency depends especially on heated water hardness.
6. Warranty
The appliance is guaranteed for two years from the date of delivery, as shown by the date on the receipt/invoice, unless the purchaser can prove that delivery took place on a later date.
In case of defects on the product existing prior to delivery, Bialetti guarantees the repair or replacement of same, at no charge to the purchaser, unless one of the two remedies is disproportionate to the other. The purchaser is responsible for reporting any conformity defects no later than two months from discovery of same.
The warranty does not cover those parts found to be faulty as a result of negligence or careless use, for example:
- Damages caused by impacts, falls or scratches owing to the use of improper objects.
- Damages caused by limestone or failure to decalcify it on a regular basis.
- Failure to abide by the operating instructions for the appliance.
- Incorrect installation or maintenance carried out by unauthorised persons.
• Normal wear and tear. - Damages caused by modifications made to the inside of the appliance.
- Damages caused through use of a voltage other than that stated in the use and maintenance manual.
- Damages from transport or circumstances that cannot be attributed to defects in the material or workmanship of the appliance.
- Damages arising from repairing carried out by unauthorized service centres.
The warranty also excludes all cases of improper use of the appliance or any instances of professional use.
Bialetti refuses to accept any liability for damage that may directly or indirectly be caused to people, property or pets as a result of failure to abide by all of the guidelines and instructions in this booklet concerning the installation, use and maintenance of the appliance.
This warranty is without prejudice to contractual guarantees made to the retailer.
7. Disposal of the appliance
• This product complies with the Directive 2012/19/EU.
- The symbol representing the crossed out trash can on the appliance indicates that the product, at the end of its useful life, must be treated separately from domestic waste. It must be taken to a recycling centre for electrical and electronic appliances or turned in to the point of sale when purchasing a new, equivalent, appliance.
- The user is responsible for taking the appliance to the recycling centre at the end of its life, under penalty of the sanctions foreseen by the current legislation on waste handling.
- Correct consignment of the no-longer used appliance to a recycling centre for treatment and environmentally compatible elimination contributes to avoiding a negative impact on the environment and public health, and permits recycling of the materials from which the product is made.
- For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased.
- The manufacturer and the importers comply with their responsibility for recycling, treating, and environmentally compatible disposal of waste both directly and in a collective system.
The manufacturer reserves the right to make changes for regulatory, industrial, commercial or aesthetic reasons.
8. Problems/causes/solutions
| Problem found Possible cause Solution | ||
| The appliance does not turn on. | Plug not inserted. | Check proper insertion of the plug or insert it into a different power socket. |
| The voltage required for the appliance does not correspond to the available mains voltage. | Check the mains voltage with the values required for the appliance. | |
| It is not positioned properly on the base. | Position the appliance properly. | |
| The appliance does not heat up. | Formation of scale. | Remove scale using a solution of water and vinegar or anti-limescale detergents specifi c for electrica products. |
| Possible damages to the internal heating element. | Contact the Customer service Bialetti. | |
Nota/Note/Notes/Nota
1. Introduction
Cher client,
Close-up of hands opening a metallic kettle with a lid, showing a black arrow indicating the handle (no text or symbols visible)
1. Einführung
Verehrter Kunde,
Close-up of hands opening a metallic kettle with a lid, showing internal components and a black arrow indicating motion (no text or symbols)
1. Introducción
Estimado cliente,
LEA EL MANUAL DE USO
Close-up of hands opening a metallic kettle with a lid, showing a black arrow indicating the handle (no text or symbols visible)
Nota/Note/Notes/Nota
Nota/Note/Notes/Nota
Nota/Note/Notes/Nota
Via Fogliano 1 25030 Coccaglio (BS) Italy www.bialettigroup.it
