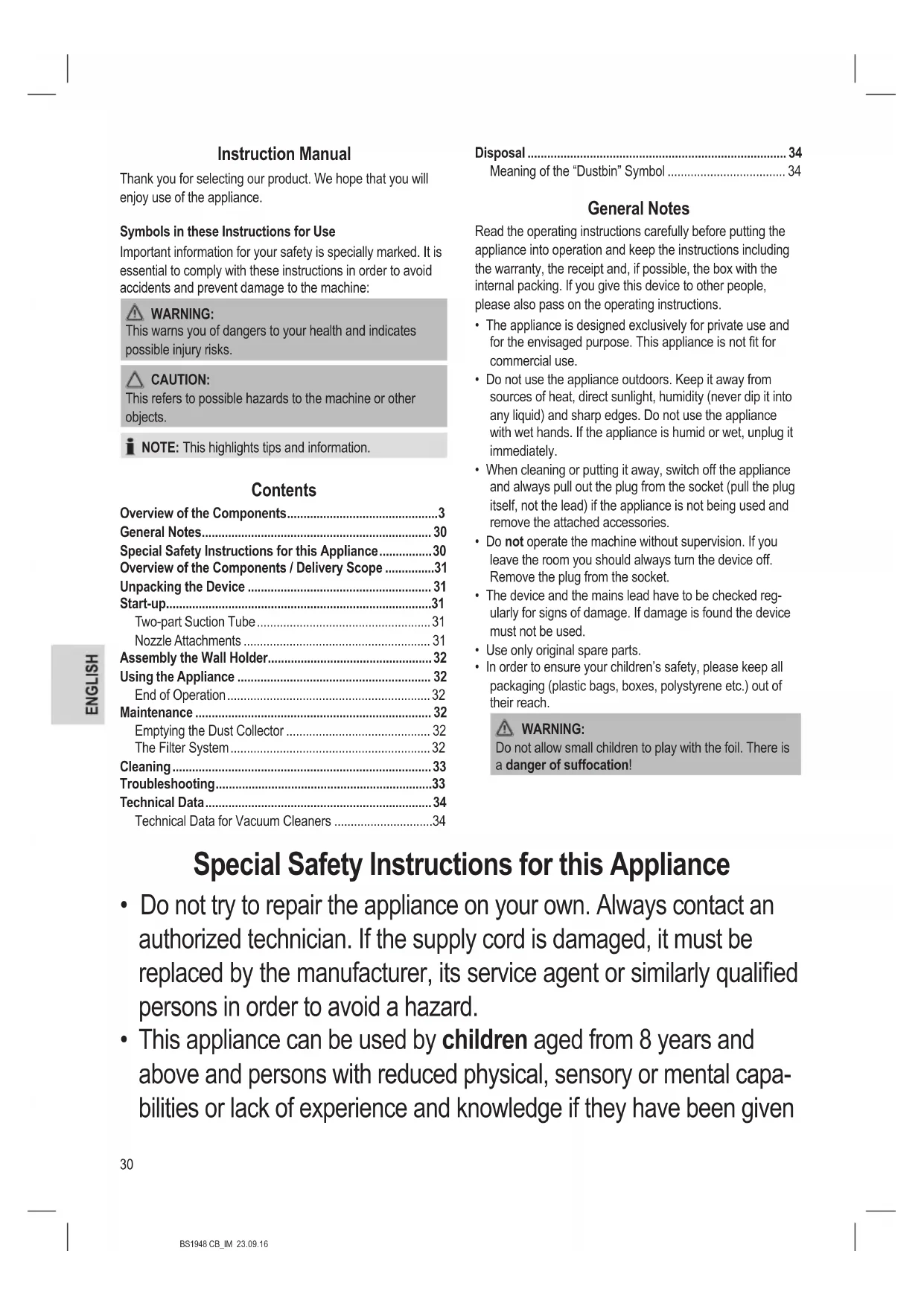

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Contents

Overview of the Components....3

General Notes......30

Special Safety Instructions for this Appliance....30

Overview of the Components / Delivery Scope ....31

Unpacking the Device 31

Start-up....31

Two-part Suction Tube 31

Nozzle Attachments 31

Assembly the Wall Holder....32

Using the Appliance 32

End of Operation....32

Maintenance 32

Emptying the Dust Collector 32

The Filter System....32

Cleaning 33

Troubleshooting....33

Technical Data....34

Technical Data for Vacuum Cleaners ....34

Disposal 34

Meaning of the "Dustbin" Symbol 34

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use the appliance outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Appliance

• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Do not suck up liquids!
- Do not suck up hot ashes or pointed or sharp objects!
- Do not use the device in damp rooms!
- Never use without the filter. Check that the filter is inserted correctly!
- Hair, clothing and body parts away from the vacuum nozzle during use!
- Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.!

Overview of the Components / Delivery Scope

1 On / off switch
2 Cover for exhaust filter
3 Carrying handle
4 Power cord
5 Hook for wall holder
6 Dust collector base plate
7 Dust collector with HEPA filter
8 Lock of the dust collector
9 Opener of the dust collector
10 Lever for extending and retracting the brushes
11 Floor nozzle
12 Suction tube (two-part)
13 Connector for suction tube or nozzle attachments

Accessories not shown:

1x Crevice nozzle

1x Brush nozzle

1x Wall holder

3x Dowel

3x Screw

Unpacking the Device

1. Remove the device from its packaging.
2. Check the delivery scope for completeness.
3. Check the device for any transport damage, in order to prevent hazards.

NOTE:

In case of any transport damage, contact your dealer immediately. Do not use a damaged device!

Start-up

Two-part Suction Tube

• Insert a suction tube with the thicker end into the connector of the appliance.
• If necessary, insert the second suction tube with the thicker end into the other suction tube.
• To detach the suction tubes, pull them off while turning them slightly.

Nozzle Attachments

• You can attach the nozzle attachments both directly to the connector on the appliance as well as to the already mounted suction tube.
• To detach the nozzle attachments, pull them off while turning them slightly.

Floor Nozzle (11)

The floor nozzle is fitted with rollers for easier guiding. You can clean smooth surfaces and carpets with the floor nozzle.

- Adjust the brushes outwards or inwards using the lever (10).

Best use of the appliance depends on the texture of the floor covering. We recommend the following use:

Diagram of a mechanical or electrical component with no visible text or symbols

• Use without brushes: For vacuuming floor coverings with a deep pile

Illustration of a hand using a brush to clean or repair a grid-patterned surface (no text or symbols)

• Use with brushes: For vacuuming smooth floors and carpets with a shallow pile

Crevice nozzle

With the crevice nozzle you can selectively vacuum corners and slots.

Brush nozzle

The brush nozzle is especially suitable for vacuuming upholstery, curtains, or books.

Assembly the Wall Holder

WARNING:

Make sure beforehand whether there are cables in the wall which could be damaged!

1. Measure the height for the wall holder. Hold the vacuum cleaner against the wall when it is fully assembled with two suction tubes and the floor nozzle.
2. Hold the wall holder against the wall in a way that the two drill holes are at the top. Mark 3 drill holes.
3. Drill the holes and insert the dowels into the wall.
4. Insert the screws through the holes of the wall holder. Turn the screws with the wall holder into the dowels.
5. Tighten the screws by hand.

Using the Appliance

1. Unwind the power cord completely.
2. Insert the mains plug into a correctly installed power socket.
3. Switch on the appliance with the on / off switch. Switch position: "I"
4. Adjust the floor nozzle with the lever depending on the floor covering.
5. Vacuum at a steady speed. There is no need to exert pressure.

NOTE:

Pay attention to the range that can be covered with the cable length!

End of Operation

1. Turn the vacuum cleaner off by the on / off switch and remove the plug from the socket.
2. Let the device cool down completely.
3. If you have already installed the wall holder, hang up the vacuum cleaner. You can attach the crevice nozzle and the brush nozzle on the left and the right of the vacuum cleaner.
4. You can wind the power cord loosely around the handle and the dust collector.

Maintenance

Emptying the Dust Collector

1. Disconnect the mains plug from the wall socket.
2. If necessary, remove the suction tube or the nozzle attachment from the appliance.
3. Hold the appliance with the bottom plate of the dust collector over a dustbin.
4. Empty the contents of the dust collector. Slide the opener of the dust collector downwards to open the bottom plate.
5. Then close the base plate again. The lock on the dust collector must engage.

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

The Filter System

Your appliance features 3 filters. The common dust bag system has been replaced by a transparent dust collector. The higher flow speed of the collector allows for heavy dirt and smallest floating particles to be separated from the "sucked-in air".

It is thus not necessary to buy dust bags.

The filters must be cleaned periodically.

CAUTION:

• Never wash the filter in the washing machine.
• Do not use a hairdryer for drying.
• Put the appliance back into operation when all filters are completely dry and correctly assembled.

The Filter Unit

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

The filter unit is composed of:

- HEPA filter

- Coarse filter

Proceed as follows to clean the filter unit:

1. Empty the dust container as described above. (Steps 1-4)
2. Disassembly of the filter unit

2.1 Turn the coarse filter counter-clockwise from the guide rails. Pull the coarse filter from the dust collector.

2.2 Turn the HEPA filter counter-clockwise from the guide rails. Pull the HEPA filter from the dust collector.

1. You can brush out the HEPA filter. In case of heavy staining, clean the filters under running water.
2. Let the filters air-dry completely before refitting them!

3. Wipe the dust collector with a damp cloth and then wipe it dry.

4. Assembly of the filter unit

Refer to the adjacent figure.

6.1 Set the HEPA filter with its 3 guides to the inner circle. Tighten the filter clockwise.
6.2 Set the coarse filter over the HEPA filter with its 3 guides in the outer circle. Tighten the coarse filter clockwise.

6.1 6.2

CAUTION:

If the filters are not tightened, dirt will enter the engine. This can damage the motor.

1. Close the bottom plate.

Outlet Filter

The appliance is also equipped with an outlet filter.

The cover of the filter is located on the back of the appliance.

1. Turn the cover counter-clockwise.
2. Remove the non-woven filter and wash it.
3. Let the non-woven filter dry completely in the air, before reinserting it into the appliance.
4. Close the exhaust filter with the cover. Turn it clockwise until it is attached to the appliance.

Cleaning

WARNING:

• Before cleaning remove the mains lead from the socket.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

- Clean the housing with a soft, dry cloth without additives.

- For cleaning of the filters, read the chapter "Maintenance".

Troubleshooting

Problem Possible cause Remedy
The device does not work.	The appliance is not connected to mains power.	Check the connection to the mains.
		Check the position of the switch.

Problem Possible cause Remedy
Weak suction power.	The dust collector is full.	Empty the dust collector.
	The filters are dirty.	Clean the filters as described under “Maintenance”.
		△ CAUTION: Restart operation only with dry filters.
	There is a foreign body in the suction tube or the nozzle.	Check the accessories for foreign bodies.

Technical Data

Model: BS 1948 CB

Power supply: 220 - 240 V\~, 50 / 60 Hz

Protection class:....II

Net weight: ....approx. 2.30 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Technical Data for Vacuum Cleaners COMMISSION DELEGATED REGULATION (EU)

Nr. 665/2013

Trade mark Bomann
Model BS 1948 CB
Energy efficiency class ^1)		A
Energy consumption
Annual energy consumption ^2)	kWh / year	19.9
Cleaning performance class
Carpet cleaning performance class		E
Hard floor cleaning performance class		A
Dust re-emission class E
Sound power level	dB(A)re1pW	80
Rated input power W 600

1) A (highest efficiency) to G (lowest efficiency).
2) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks.
Actual annual energy consumption will depend on how the appliance is used.

The device meets the European standards and directives in the current version at delivery:

• Low Voltage Directive (LVD) 2014 / 35 / EU
• Electromagnetic Compatibility (EMC) Legislation Directive 2014 / 30 / EU
• RoHS-directive 2011 / 65 / EU
• Ecodesign-directive (ErP) 2009 / 125 / EC
- Ecodesign requirements for vacuum cleaners COMMISSION REGULATION (EU) No 666 / 2013

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcje obsługi

Close-up of a mechanical component with textured surface and tool (no visible text or symbols)

Illustration of a hand using a brush to clean or store floor tiles on a grid-patterned surface (no text or symbols)

Line drawing of a mechanical device with a downward arrow indicating motion (no text or symbols)

System filtrów

Technical line drawing of a mechanical component with layered structure (no text or symbols)

CTC Clatronic Sp. z o.o

Diagram of a mechanical or electrical component with no visible text or symbols

Illustration of a brush applying material to a grid-patterned surface (no text or symbols)

Line drawing of a mechanical device with a downward arrow indicating rotation or adjustment (no text or symbols)

A szürörendszer

Technical line drawing of a mechanical component with top and side views (no text or symbols)

Diagram of a mechanical device interacting with a textured surface (no text or symbols visible)

Illustration of a hand using a tool to clean or store floor tiles on a grid-patterned surface (no text or symbols)

Line drawing of a mechanical device with a rotating shaft and directional arrow (no text or symbols)

Система фильтров

Technical line drawing of a mechanical component with two views: top shows cylindrical structure, bottom shows meshed component (no text or symbols)

Close-up of a mechanical component with textured surface and tool (no visible text or symbols)

Illustration of a hand using a tool to clean or store floor tiles on a grid-patterned surface (no text or symbols)

الفوهة الشقبة
