ST 07260 D IN - Range hood Orbegozo - Free user manual and instructions

Product type	Cooker hood
Brand	Orbegozo
Model	ST 07260 D IN
Power supply	220-240 V, 50 Hz
Total power	162.5 W
Motor power	80 W x 2
Lighting power	2 x 2.5 W (LED)
Number of motors	2
Speeds	3 (Low, Medium, High)
Noise level	70 dB(A)
Air pressure	≥ 250 Pa
Extraction mode	Recirculation or external extraction
Grease filter	Aluminium, dishwasher safe
Minimum distance from hob	65 cm (gas), 75 cm (electric)
Insulation class	Class I (mandatory earth connection)
Installation	Wall-mounted or under cabinet
Dimensions (W x D x H)	60 x 50 x 15 cm (estimated)
Weight	Approximately 8 kg (estimated)
Controls	Push buttons (Stop, Low, Medium, High, Light)
Ventilation type	Horizontal or vertical ventilation

Frequently Asked Questions - ST 07260 D IN Orbegozo

What is the minimum distance to install the hood above a gas hob?

The minimum distance between the cooking surface and the bottom of the hood is 65 cm for a gas hob. If your hob's manual indicates a larger distance, follow that.

How to clean the grease filters of the hood?

Aluminum filters are cleaned by soaking them in hot water (40-50°C) with a degreasing detergent for 3 minutes, then gently brushing. You can also put them in the dishwasher at 60°C. Avoid abrasive detergents.

How to replace the LED bulb of the hood?

Turn off and unplug the appliance. Remove the aluminum filter by pulling it downwards. Replace the defective LED bulb with a bulb of 2.5 W max (type G4 or similar, depending on the model). Put the filter back in place.

Can the hood work in recirculation mode?

Yes, in recirculation mode, the air is filtered and returned to the room. To do this, turn the selector to the inner position and install a charcoal filter (not supplied).

What to do if the hood does not turn on or does not work?

First check the power supply (cable, plug). Make sure the filters are correctly installed. If the problem persists, contact an authorized technical service.

How to install the hood under a cabinet?

Drill 4 holes of 6 mm diameter at the bottom of the cabinet. Fix the hood with the screws, washers and nuts provided, passing the screws through the top of the cabinet. See the diagram of method B in the manual.

What are the available speed levels?

The hood has 3 speeds: Low, Medium and High. Use high speed for maximum extraction during strong odors.

The power cord is damaged, what to do?

Do not use it. Contact an authorized technical service or the manufacturer for replacement. Do not attempt to repair it yourself.

How to set up external air extraction?

Turn the position selector to the external position (picture 7A). Install an exhaust duct to the outside. Make sure the air outlet is unobstructed.

Is the hood eligible for spare parts?

Yes, Orbegozo provides spare parts such as bulbs, filters and motors. Contact Orbegozo After-Sales Service or an authorized dealer to obtain parts.

USER MANUAL ST 07260 D IN Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

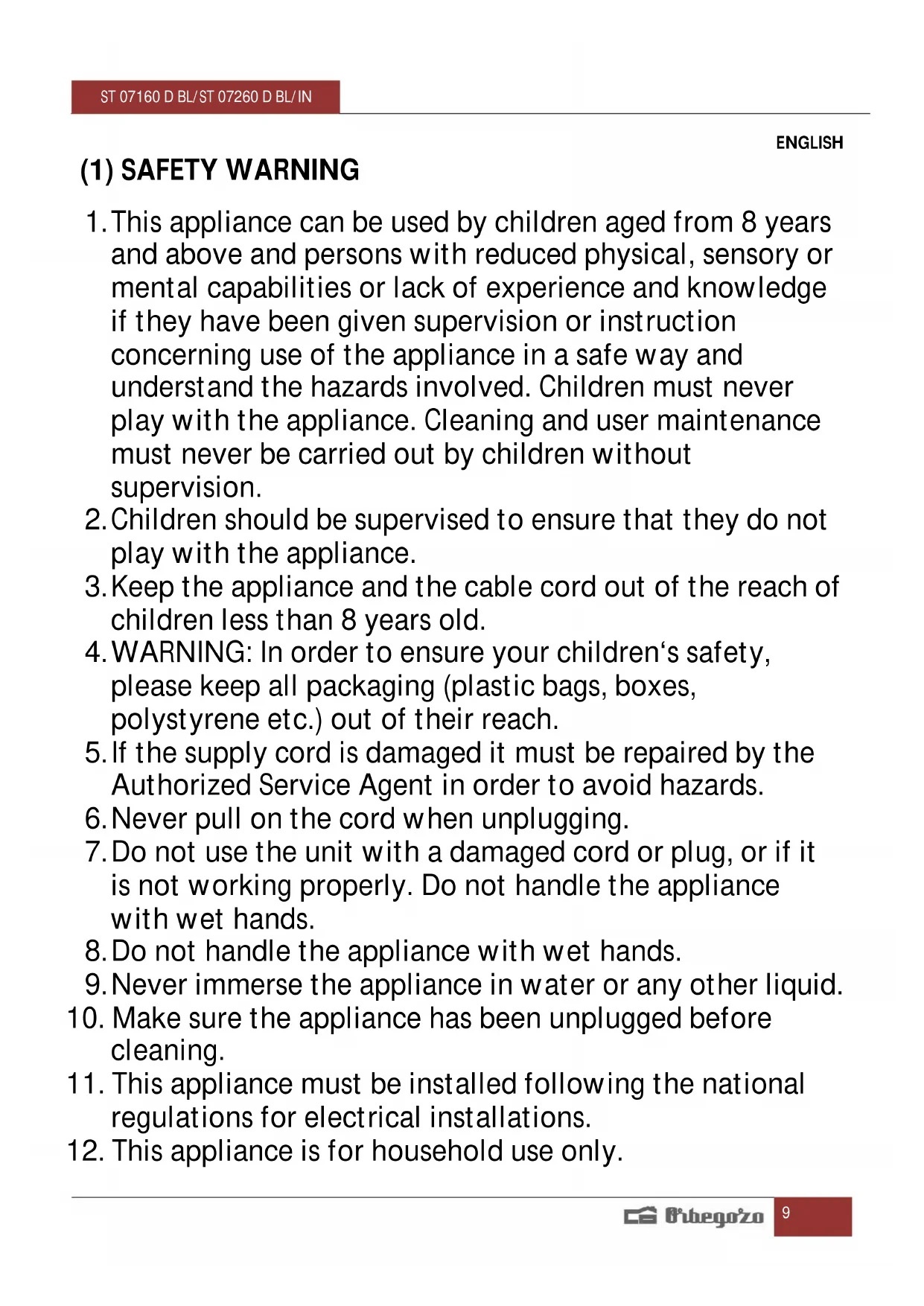

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly. Do not handle the appliance with wet hands.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Ventilation should be provided convenient to the room if used simultaneously a sucker for kitchen and appliances powered by gas or other fuel.

16. Risk of fire if the cleaning is not carried out according to instructions.
17. Do not flambe under the hood.
18. CAUTION: Accessible parts may become hot when used with cooking appliances.
19. Exhaust air should not be sent by conductors used to evacuate fumes from equipment powered by gas or other fuel.
20. The minimum distance between elements of cooking and the bottom of the hood must be at least 65cm if the hood is installed on a gas cooking element. If installation instructions gas cooking element indicate a greater distance should be taken into account. 65cm distance cannot be reduced.
21. The regulations regarding air evacuation must be respected.

(2)NOTICE

1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and competent fitter.
3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.

The cooker hood is used on 220/240v, 50Hz.

(3)FEATURE

1. The cooker hood uses high quality materials, and is made with a streamlined design.

2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean.

3. With the isolated low voltage circuit board control, 12vDC input, the lights are therefore safer.

4. Special wind tunnel construction and oil collector design, free dirt will be absorbed in a second.

(4). INSTALLATION

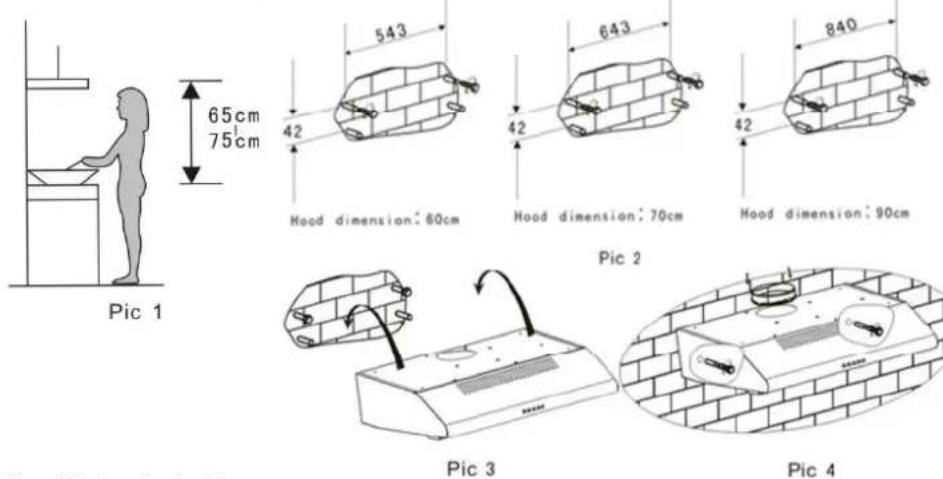

Method A

1. For best results, the hood should be installed at a distance of 65-75cm cooking surface for better performance. Look pic 1.
2. For wall mounting, drill 4 holes of 8mm diameter in a suitable place according to the distance between the center of the holes in the back of the hood. Look pic 2.
3. Insert wall plugs into the holes.
4. Insert the screws into the wall plugs and tighten.
5. Hang the hood onto the screws. Look pic 3.
6. Then insert the locking screws in the rest of anchors and tighten them to secure the hood to the right wall. Look pic 4.
7. Turn the valve on top of the hood.

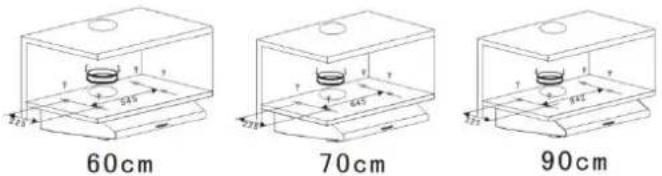

Method B Look pic 5:

1. Drill 4 holes of 6mm diameter at the bottom of the cabinet where it will hang.
2. Turn the valve on the air outlet of the hood, then install the hood to the cabinet bottom, fitting with the 4 screws, flat gasket and nuts provided. Pass the screw with a flat gasket, put another flat gasket on the other end and tighten the nut.

Pic 5

Noise: There are 2 modes of ventilation, horizontal fan and vertical ventilation. Please pay attention to the ventilation mode when installing.

Horizontal ventilation Look 6A drawing, please use the lid to cover the top exit, so air can be vented by the back.

Vertical Ventilation: Look 6B drawing, please use the lid to cover the rear exit, so air can be vented from the top.

Pic 6

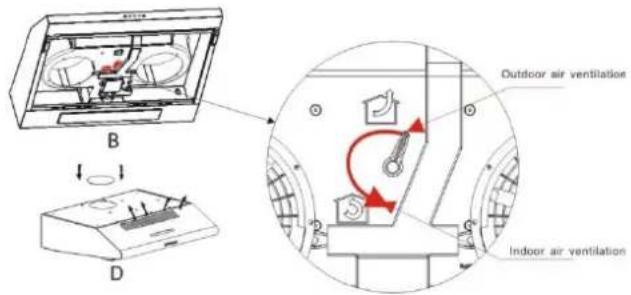

Adjusting the air absorption

Ventilation air to the outside Turn the outside position selector (Dib 7A), install the outlet, turn on the fan, then the air will be expelled for external output.

Ventilation air inside: Turn the dial inside position (Dib 7B), install the outlet cover, turn on the fan, then the air can be expelled from the inside out.

Pic 7

THE CLASS 1 HOOD MUST BE EARTHED

The connection should be made as follows:

BROWN = L (live)

BLUE = N (neutral)

YELLOW/GREEN = Earth

THE CLASS 2 HOOD MUST NOT BE EARTHED

Second class hoods with the characteristics label containing the double square symbol.

The connection should be made as follows;

BROWN = L (live)

BLUE = N (neutral)

(5) OPERATION

Using the control panel (Dib 8):

1. Press the Stop button to stop the engine.
2. Press the button to select Low low speed.
3. Press the button to select Mid average speed.
4. Press the button to select High speed.
5. Press the Light button to turn both lights. Press the button again to turn them off.

Pic 8

(6) MAINTENANCE

Change and filter cleaning

• Remove the filters as shown in pic 9.
• You can clean the filters as shown below:
• Soak for about 3 minutes in hot water (40-50 degrees) with detergent grease remover after gently clean them with a brush. Do not apply too much pressure to avoid damage.
• They may be in the dishwasher with detergent, at a temperature of 60 degrees.
• Do not use an abrasive detergent in them could damage the hood.
• Make sure the hood is off before cleaning.

Pic 9

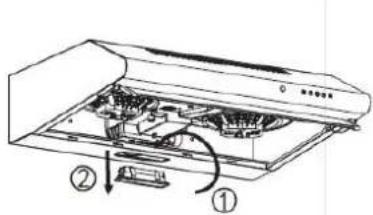

Changing a light pic 10

• Before changing the lights, make sure the appliance is switched off and unplugged.
• Press the aluminum filter handle to the rear of the hood to the front desangle and remove it by pulling down.
• Replace LED light using only 2.5W.
• Place the aluminum filter in its original position.

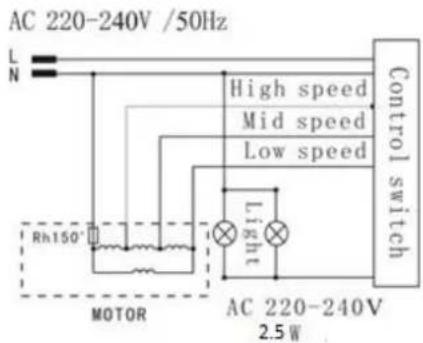

(7). ELECTRICAL DIAGRAM. ST 07160 D BL

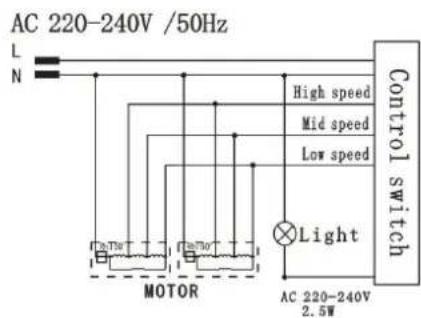

ST 07260 D BL/IN

(8). MAIN PARAMETERS

ST 07160 D BL

Rated Input	220V-240V, 50Hz
Rated Power	82.5W
Lighting Power	2.5W X 2
Motor Power	80W
Drive Mode	Single Motor
Speed	Speed I Speed II Speed III
Air pressure	≥166Pa
Noise	<66dB(A)

ST 07260 D BL/IN

Rated Input	220V-240V, 50Hz
Rated Power	162.5W
Lighting Power	2.5W X 2
Motor Power	80W X 2
Drive Mode	Two Motors
Speed	Speed I Speed II Speed III
Noise	<70Db(A)

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the

environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.
