CMGN 6182S - Freezer CANDY - Free user manual and instructions

Find the device manual for free CMGN 6182S CANDY in PDF.

CANDY CMGN 6182S - Freezer
📄 564 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice CANDY CMGN 6182S - page 29
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Freezer
Brand Candy
Model CMGN 6182S
Climate class SN, N, ST (10 °C to 38 °C)
Freezing capacity Not specified in the manual
Power supply 220-240 V ~ 50 Hz
Main functions Quick Freezing (Fast Freezing), Smart ECO, Holiday Mode, Wi-Fi (SmartFi+), Freshness Control, Water Dispenser, Antibacterial System (UVA), Automatic Defrost
Display Vertical or round screen depending on version
Refrigerant R600a (isobutane), flammable gas
Insulation Cyclopentane
Maintenance Interior cleaning with baking soda, exterior cleaning with mild detergent, vacuum the rear grille
Defrost Automatic (No Frost)
Interior lighting Replaceable LED
Reversible door Yes (reversible, technician recommended)
Child safety Lock possible (key to be kept out of reach)
Alarms Door open, freezer overheat, sensor error
Memory indicator Saves settings in case of power outage
Accessories Baskets, vegetable drawer, water dispenser with reservoir
Dimensions (W x D x H) Not specified in the manual
Weight Not specified in the manual

Frequently Asked Questions - CMGN 6182S CANDY

How to set the freezer temperature?
Use the SET button or the MODE icon depending on the panel. With the vertical unit, press 'Freezer' then adjust. With the round unit, press MODE twice to make the freezer temperature flash, then use + and -. The recommended level is 2 (intermediate).
How to activate Fast Freezing mode?
Press the Option button until 'Fast Freezing' flashes, then press OK. The LED indicator lights up. The mode automatically deactivates after 26 hours. On the round unit, press the Super Freezing icon.
What to do in case of power failure?
Do not open the door. If the outage lasts less than 20 hours, the food remains frozen. Otherwise, check the food and consume it quickly or refreeze after cooking. The appliance saves settings and resumes automatically.
How to clean the inside of the freezer?
Unplug the appliance. Clean with warm water mixed with baking soda. Rinse with clean water and dry. Do not use abrasive products. Also clean the drainage hole with the provided stick.
How to reverse the door opening direction?
It is recommended to call a qualified technician. Otherwise, follow the steps in the manual: disassemble the hinges, reverse the stoppers, and reassemble. The appliance must be empty and unplugged. Two people are required.
How to use the water dispenser?
Fill the water tank (inside the refrigerator) with drinking water up to the Max line. To serve, push the lever slightly with a glass. Clean the tank before first use.
What does the door open alarm mean?
If the refrigerator door remains open for more than 3 minutes, an audible alarm sounds. Close the door or press a button to stop it. If you press, the alarm reactivates after 3 minutes if the door is still open.
How to connect the appliance to Wi-Fi?
Download the Candy simply-Fi app (Android/iOS). On the appliance, press the Wi-Fi icon for 3 seconds until it turns blue. Follow the instructions in the app to register the appliance.
Where to store raw meat in the refrigerator?
Place raw meat on the lowest shelf, above the vegetable drawer, to prevent juices from dripping on other foods. Wrap it in plastic wrap and use a dish to catch juices.
How to change the interior light?
Unplug the appliance. Remove the LED lighting cover. Unscrew the old LED counterclockwise. Screw in the new LED and replace the cover. Plug the appliance back in.

User questions about CMGN 6182S CANDY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Freezer in PDF format for free! Find your manual CMGN 6182S - CANDY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CMGN 6182S by CANDY.

USER MANUAL CMGN 6182S CANDY

SAFETY INFORMATION 29

COMBI REFRIGERATOR CANDY 36

Climate Class 36

TRANSPORTATION INSTRUCTIONS 36

INSTALLATION INSTRUCTIONS 37

STARTING TO USE 37

COMBI OPERATION 38

VERTICAL DISPLAY 38

ROUNDED DISPLAY 40

INTERNAL USER INTERFACE 41

TECHNICAL FEATURES 42

Freshness Control 42

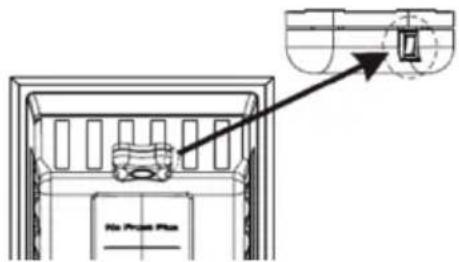

ANTIBACTERIAL SYSTEM (if present) 42

WATER DISPENSER 42

Tips for keeping food perfect in the Fridge 43

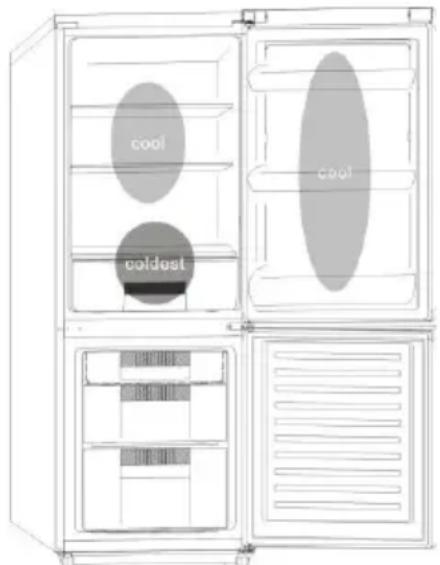

Where to store your foods in the fridge 43

Storing Frozen Food 44

ENERGY SAVING 45

TAKE CARE. 45

Defrosting 45

Cleaning and Care 45

CHANGING THE INTERNAL LIGHT 46

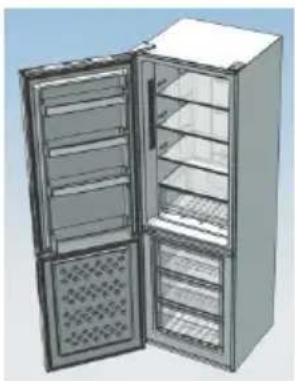

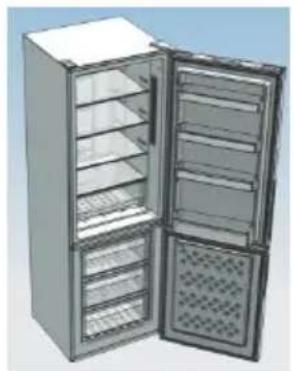

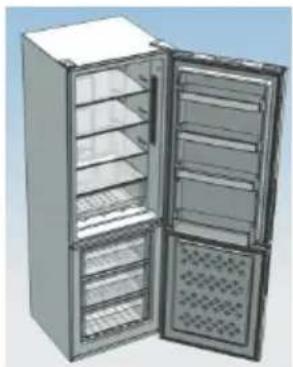

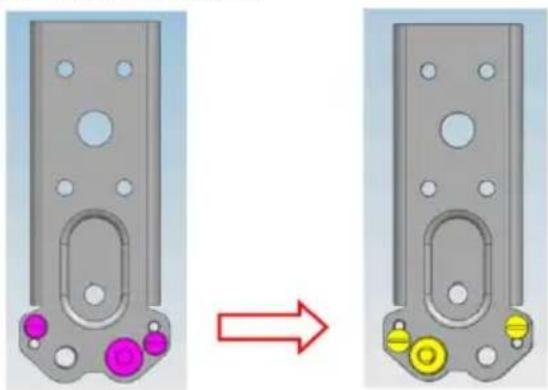

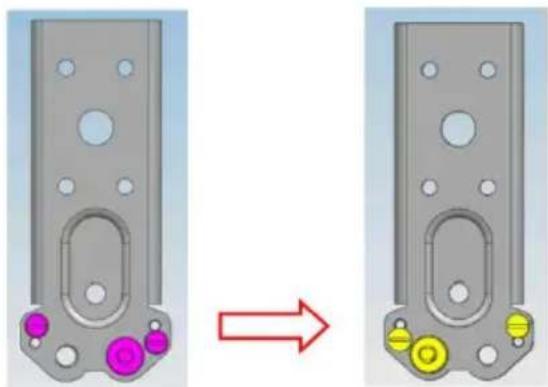

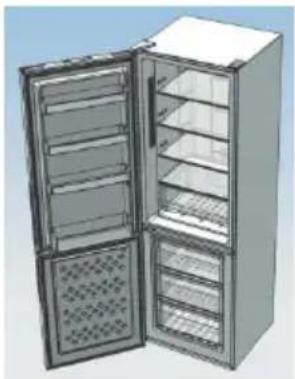

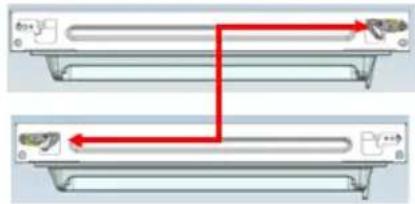

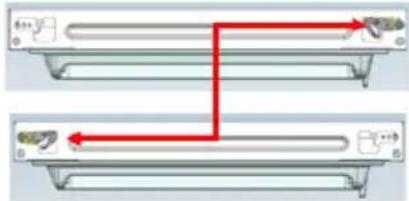

REVERSING THE DOOR SWING 46

TROUBLESHOOTING 51

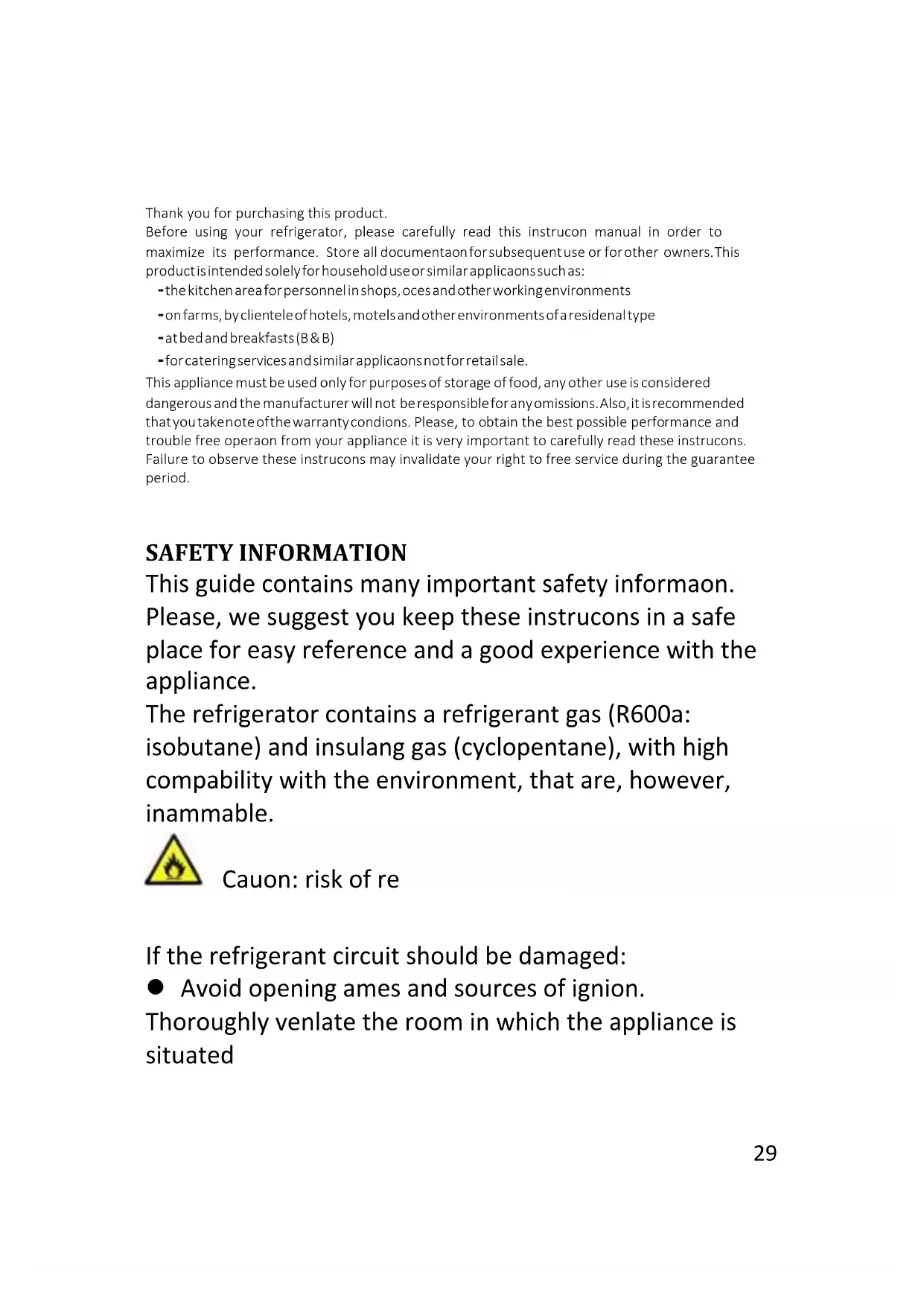

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

  • the kitchen area for personnel in shops, offices and other working environments
  • on farms, by clientele of hotels, motels and other environments of a residential type
  • at bed and breakfasts (B & B)
  • for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions. Failure to observe these instructions may invalidate your right to free service during the guarantee period.

SAFETY INFORMATION

This guide contains many important safety information. Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance.

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, flammable.

CANDY CMGN 6182S - SAFETY INFORMATION - 1

Caution: risk of fire

If the refrigerant circuit should be damaged:

  • Avoid opening flames and sources of ignition.

Thoroughly ventilate the room in which the appliance is situated

WARNING!

  • Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.
  • This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.
  • Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.
  • When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.
  • Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
  • Do not install the appliance near heaters or flammable materials.
  • If there is a power failure do not open the lid.

Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

  • If you find that the lid of the chest freezer is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.
  • Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.
  • Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.
  • This freezer must only be used for its intended purpose (i.e. storing and freezing of edible foodstuff).
  • Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
  • Before performing any operation, unplug the power cord from the power socket.
  • On delivery, check to make sure that the product is not damaged and that all the parts and accessories

are in perfect condition.

  • If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
  • Do not use extension cords or adapters.
  • Do not excessively pull or fold the power cord or touch the plug with wet hands.
  • Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
  • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
  • Do not place or store flammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
  • Do not use or store flammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.
  • Do not place objects and/or containers filled with water on the top of the appliance.
  • We do not recommend the use of extension leads and multi-way adapters.
  • Do not dispose of the appliance on a fire. Take care not to damage the cooling circuit/pipes of the appliance in transportation and in use. In case of

damage, do not expose the appliance to fire, potential ignition source, and immediately ventilate the room where the appliance is situated.

  • The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.
  • Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  • Do not damage the refrigerant circuit.
  • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
  • Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
  • Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
  • Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
  • Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
  • Do not scrape with a knife or sharp object to

remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

  • Do not use mechanical devices or other equipment to hasten the defrosting process.
  • Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
  • Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust. It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause of fire.
  • The product is designed and built for domestic household use only.
  • The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.
  • The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.
  • The guarantee is applicable only to new products and is not transferable if the product is resold.
  • Our company disclaims any liability for incidental or consequential damages.
  • The guarantee does not in any way diminish your statutory or legal rights.
  • Do not perform repairs on this Wine Cooler. All interventions must be performed solely by qualified personnel.
  • If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.
  • This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved. Children should not play with the appliance.

Cleaning and user maintenance should not be made by children without supervision.

  • Locks: If your Fridge/Freezer is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old Fridge/Freezer break off any old locks or latches as a safeguard.

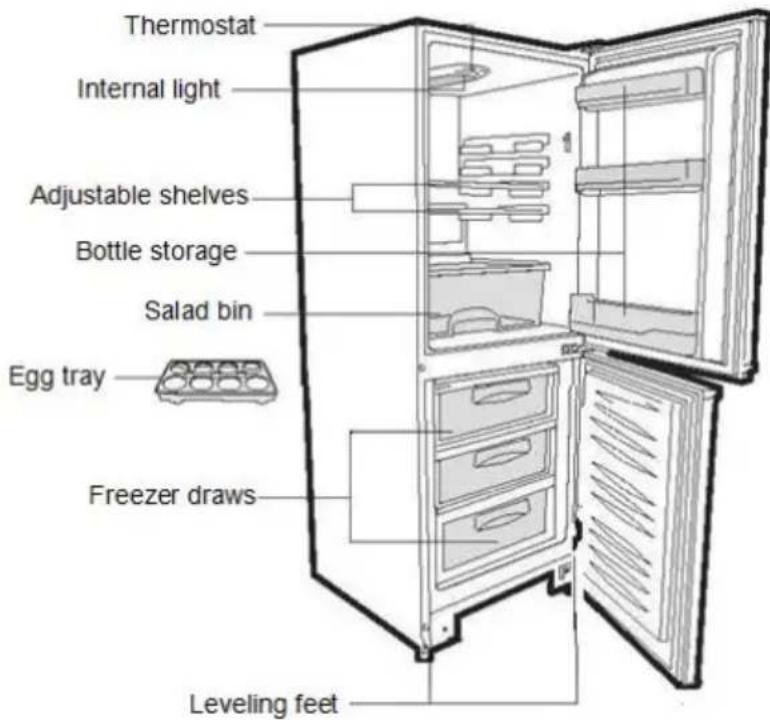

COMBI REFRIGERATOR CANDY

CANDY CMGN 6182S - COMBI REFRIGERATOR CANDY - 1

Climate Class

The appliance is designed to operate at the limited range of ambient temperature, depending on climate zones. Do not use the appliance at the temperature out of the limit. Climate class of your appliance is indicated on the label with technical description inside the fridge compartment.

Climate ClassAmb. T. (°C)Amb. T. (°F)
SNFrom 10 to 32From 50 to 90
NFrom 16 to 32From 61 to 90
STFrom 16 to 38From 61 to 100
TFrom 16 to 43From 61 to 110

TRANSPORTATION INSTRUCTIONS

The appliance should be transported only in a vertical upright position. The packing as supplied must be intact during transportation. If during the course of transport the product has been transported horizontally, it must only be laid on its left hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the system to settle after the appliance is brought back to upright position.

  1. Failure to comply with the above instructions could result in damage occurring to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.
  2. The appliance must be protected against rain, moisture and other atmospheric influences.

INSTALLATION INSTRUCTIONS

  1. If possible avoid placing the appliance near cookers, radiators or in direct sunlight as this will cause the compressor to run for long periods. If installed next to a source of heat or refrigerator, maintain the following minimum side clearances:

From Cookers 4" (100 mm)

From Radiators 12" (300 mm)

From Fridges 4" (100 mm)

  1. Make sure that sufficient room, with an average temperature of between 16°C and 32°C, is provided around the appliance to ensure free air circulation. Ideally, a space of no less than 9 cm on the back and 2 cm on the sides.
  2. The appliance should be located on a smooth surface.
  3. It is forbidden to use the refrigerator outdoors.
  4. Protection from moisture. Do not locate the freezer in a moist space to avoid the metal parts rusting. And do not spray water on the freezer, otherwise it will weaken the insulation and cause current leakage.
  5. Refer to "Cleaning and Care" section to prepare your appliance for use.
  6. If the freezer is installed in unheated areas, garages, etc., in cold weather condensation may form on the outer surfaces. This is quite normal and is not a fault. Remove the condensation by wiping with a dry cloth.
  7. Never place the refrigerator in a wall recess or into fitted cabinets or furniture. When it is working, the grille at the back may become hot and the sides warm. Do not drape the refrigerator with any covering.

STARTING TO USE

Before you start to use the freezer, please check that:

  1. The interior is dry and air can circulate freely at the rear.
  2. Clean the interior as recommended under "TAKE CARE" section (electric parts of the refrigerator can only be wiped with a dry cloth).
  3. Do not switch on until 4 hours after moving the fridge/freezer. The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.
  4. Before connecting the refrigerator to the mains supply, position the thermostat control dial. The thermostat control dial is located inside the fridge compartment.
  5. Turn the thermostat knob to the "3" position and turn on the electricity. The compressor and the light inside the refrigerator will begin to work.
  6. Before storing foods in your refrigerator, turn the refrigerator on and wait for 24 hours, to make sure it is working properly and to allow the fridge/freezer to reach the correct temperature.
  7. Open the door 30 minutes later. If the temperature in the refrigerator has decreased noticeably, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature within limits it opens.

COMBI OPERATION

Appliance connected to power at the first time: When the appliance is connected to power at the first time, the display will be lit for 2 seconds before going normal and the appliance runs with intelligence function.

Display Control: When the refrigerator door is closed and there is no button operation in 3 minutes, the display light goes off.

When the display light is off, open the refrigerator door or click any button to light it up.

VERTICAL DISPLAY

CANDY CMGN 6182S - VERTICAL DISPLAY - 1

TEMPERATURE SETTING: Click the "Fridge" or "Freezer" button and when it flickers in the symbol, temperatures can be set. Each time when the button is clicked, the temperature changes accordingly. Temperatures cannot be set under functions of fast cooling, fast freezing, Smart ECO and vacation. Under temperature setting, if there is no button operation in 5 seconds, the button stops flickering and the set temperature comes into effect.

SMART ECO: Activate the Smart Eco button to set the temperatures of the fridge in max. energy efficiency conditions (+4°C for fridge temperature, -18°C for freezer temperature).

To enter Smart Eco: Click "option" until it flickers and then click "OK" to enter this function.

To deactivate Smart Eco: Click "option" until it goes to Smart ECO, click "OK" to quit this function and the light goes off.

FAST COOLING: Activate Fast Cooling mode to start an additional pulse for a fast freezing of the fridge compartment. The function is activated and confirmed by the switching on of the dedicated LED icon.

To enter Fast Cooling: Click "option" until it flickers in "Fast Cooling" and then click "OK" to enter this function.

To deactivate Fast Cooling: Click "option" until it goes to "fast cooling" and then click "OK" to deactivate this function.

FAST FREEZING: Activate Fast Freezing to rapidly freeze big quantities of food keeping intact nutritional food properties. When the light in Fast Freezing goes off and the freezer temperature goes back to the value before fast freezing. When Fast Freezing time is up (26 hours), it deactivates automatically. When it goes to Vacation, Fast Freezing stops.

To enter Fast Freezing: Click "option" until it flickers in "Fast Freezing" and then click "OK" to enter

this function.

To deactivate Fast Freezing: Click "open" until it goes to "fast freezing" and then click "OK" to quit this function.

VACATION: In case of long stops, the Vacation function can be used. This function deactivates the fridge compartment, while leaving the freezer on. Ensure that there is no food inside the fridge compartment before using this function. The function is activated and confirmed by the switching on of the dedicated LED icon. The light in Vacation goes off and the refrigerator temperature goes back to the value before Vacation.

Vacation quits under functions of Smart ECO and Fast Cooling.

To enter Vacation: Click "open" until it flickers in "Fast Freezing" and then click "OK" to enter this function.

To deactivate Vacation: Click "open" until it goes to "Vacation" and then click "OK" to quit this function.

POWER OFF MEMORY: Refrigerator can automatically keep all the settings in case of power off.

When the unit is plugged in again, the refrigerator will run with the settings before power off.

POWER-ON DELAY: To prevent harm to the refrigerator in case of sudden power cut and power on, the unit does not start immediately if the power off time is less than 5 minutes.

FREEZER OVER-TEMPERATURE ALARM (only in case of power on): When the freezer temperature is higher than 10° C at the first time connected to power, the symbol light of the freezer chamber goes on and the number representing temperature flickers.

Press any button or wait for 5 seconds, flickering stops and it goes back to the temperature that was set.

REFRIGERATOR DOOR OPENING ALARM: When the refrigerator is open over 3 minutes, the buzzer will buzz. Close the door or press any button to stop the alarm, but for the latter, the alarm will go off again after 3 minutes.

SENSOR FAULT ALARM: When it shows "E0", "E1", "E2" or other abnormal symbols, it means sensor faults and the refrigerator needs repair.

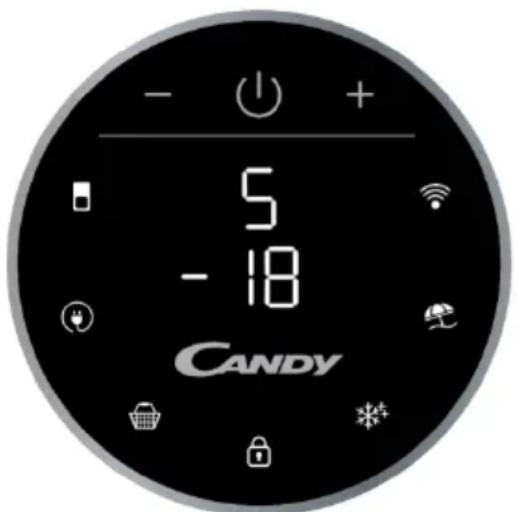

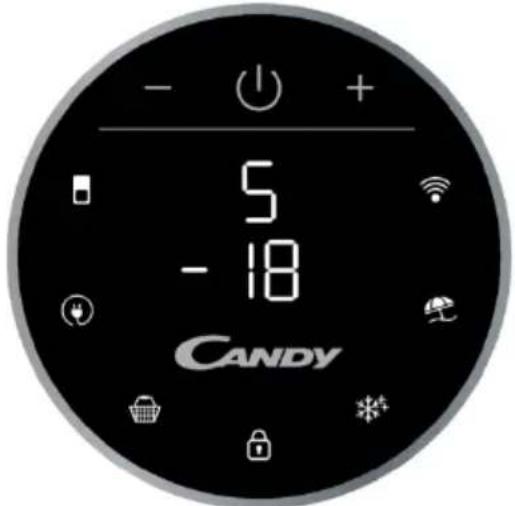

ROUNDED DISPLAY

CANDY CMGN 6182S - ROUNDED DISPLAY - 1

Rounded Display is a touch user interface. When the refrigerator is turned on, white LED lights will be enlightened. When the functions is pressed the icon lights change from white to blue.

SETTING TEMPERATURE: Press MODE icon to change the temperature.

  • Refrigerator Temperature: Press the MODE icon once, the refrigerator digit blinks, and manage the temperature of the refrigerator with "+" and "-" buttons.

Freezer Temperature: Press the MODE icon twice, the freezer digit blinks, and manage the temperature of the freezer with "+" and "-" buttons.

ECO MODE Icon: Press the Eco Mode icon to set the temperatures of the fridge in maximum energy efficiency conditions (+5°C for fridge temperature, -18°C for freezer temperature). The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the ECO mode function, you need to press the Eco Mode icon again and the refrigerator temperature turns back to normal operation.

SUPER COOLING Icon: Press the Super Cooling icon to start an additional pulse for a fast cooling of the fridge compartment. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Super Cooling function, you need to press the Super Cooling icon again and the refrigerator temperature turns back to normal operation.

LOCK Icon: Press the Lock icon to block the display user interface. If the lock function is selected, the icon (LED) should turn blue. When the Lock function is turned on, the user cannot set any new functions. To turn off the Lock function, the user must perform a long press on the icon for 3 seconds to unlock the display.

SUPER FREEZING Icon: Press the Super Freezing icon to rapidly freeze large quantities of food while keeping intact the nutritional properties of the food. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Super Freezing function, you need to press the Super Freezing icon again and the freezer temperature turns back to normal operation.

HOLIDAY Icon: In case of long stops, the Holiday function can be used. This function deactivates the fridge compartment, while leaving the freezer on. Ensure that there is no food inside the fridge compartment before using this function. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Holiday function, you will need to press the Holiday icon again, the light in Holiday goes off and the refrigerator temperature goes back to the value before Holiday.

Wi-Fi Icon: This appliance is equipped with SmartFi+ technology that allows you to control it remotely via App. Press the Wi-Fi icon for 3 seconds to activate the Wi-Fi function and the icon light changes from white to blue.

Machine Enrollment (on App): Download the SimplyFi App on your device. The Candy SimplyFi App is available for devices running both Android and iOS, both for tablets and for smartphones. Get all the details of the SmartFi+ functions by browsing the App in DEMO mode.

Open the App, create the user profile and enroll the appliance following the instructions on the device display or the "Quick Guide" attached on the machine. This operation is necessary just for the first installation. To finalize the enrollment, follow the instructions on the smartphone's screen.

Refrigerator usage from remote by App: When the enrollment is completed, the Wi-Fi LED will be switched on. From now on it will be possible to manage the product by using the buttons on the display or using the App: both of them will be aligned according to the last command given.

INTERNAL USER INTERFACE

CANDY CMGN 6182S - INTERNAL USER INTERFACE - 1

SET Button: Press SET button for setting the temperature until you reach the level you want where level 1 is the warmest and level 4 is the coldest. Under normal operating conditions, we recommend using an intermediate setting (level 2).

Once the setting takes effect, it immediately enters the corresponding stall for operation control, and the stall indicator lights up for 3 seconds and then goes out. Factory default temperature is set to 2. Long press "SET" key for more than 3 seconds to enter the hardware self-check program. The hardware self-check operation is effective within 10 minutes, and the long button operation after 10 minutes is invalid.

Wi-Fi Button: This appliance is equipped with SmartFi+ technology that allows you to control it remotely via App. Press Wi-Fi icon for 3 seconds to activate Wi-Fi function and the icon light changes from white to blue.

Machine Enrollment (on App): Download the SimplyFi App on your device. The Candy SimplyFi App is available for devices running both Android and iOS, both for tablets and for smartphones. Get all the details of the SmartFi+ functions by browsing the App in DEMO mode.

Open the App, create the user profile and enroll the appliance following the instructions on the device display or the "Quick Guide" attached on the machine. This operation is necessary just for the first installation. To finalize the enrollment, follow the instructions on the smartphone's screen.

Refrigerator usage from remote by App: When the enrollment is completed, the Wi-Fi LED will be switched on. From now on it will be possible to manage the product by using the buttons on the display or using the App: both of them will be aligned according to the last command given.

FAST COOL Button: when "FAST COOL" button is pressed, rapid cooling function is activated, according to the 21°C to refrigeration control gear. Maximum running time is 3 hours, after this time temperature will be set to 1.

If the "SET" button is pressed in the process of speed cooling, the instant cooling function is immediately withdrawn and the default is entered into the next gear.

TECHNICAL FEATURES

FRESHNESS CONTROL

Thanks to freshness control, you can guarantee the right humidity level for vegetables and fruits in the crisper drawer (Fresh drawer). The humidity gets bigger as the rod goes from left to right.

CANDY CMGN 6182S - FRESHNESS CONTROL - 1

ANTIBACTERIAL SYSTEM (if present)

LED UVA lights activate a Titanium Filter producing a "photocatalysis" reaction which will destroy bacteria within the refrigerator air. This reaction works when the refrigerator door is closed to avoid purified air leakage.

In Total No Frost products, it is inserted in the sky box and it works every time the compressor works. The filter is permanent and therefore does not need changing.

The antibacterial system has to be turned off during the energy consumption test.

CANDY CMGN 6182S - ANTIBACTERIAL SYSTEM (if present) - 1

WATER DISPENSER

The water dispenser allows you to get chilled water without opening the fridge compartment door.

Before first use

Before using the water dispenser for the first time, remove and clean the water tank located inside the fridge compartment.

  • Lift the water tank out of the fridge compartment.
  • Open the water tank cover and then clean the water tank and cover in warm soapy water. Rinse thoroughly.
  • After cleaning, attach the cover to the water tank and then replace the water tank back on the fridge door.

CANDY CMGN 6182S - Before first use - 1

  • Clean the dispenser pad outside the fridge door.

Filling the water tank with water

  • Open the small cover.
  • Fill the water tank with drinkable water up to the Max line.
  • Close the small cover.

Dispensing

To dispense water, push the dispenser pad gently, using a glass or container. To stop the flow of water, pull your glass away from the dispenser pad.

CANDY CMGN 6182S - Dispensing - 1

Tips for keeping food perfect in the Fridge

Take extra care with meat and fish: cooked meats should always be stored on a shelf above raw meats to avoid bacterial transfer. Keep raw meats on a plate which is large enough to collect juices and cover it with cling film or foil.

Leave space around food: this allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept cool.

Wrap up food! To prevent transfer of flavors and drying out, food should be separately packed or covered. Fruit and vegetables need not be wrapped.

Pre-cooked food should be cooled properly: allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the internal temperature of the Fridge from rising.

Shut the door! To prevent cold air escaping, try to limit the number of times you open the door. When returning from shopping, sort foods to be kept in your Fridge before opening the door. Only open the door to put food in or take it out.

Where to store your foods in the fridge

Cool area: this is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt, fruit juices, hard cheeses e.g. Cheddar. Opened jars and bottles of salad dressings, sauces and jams. Fats, e.g. Butter, margarine, low-fat spreads, cooking fats and lard.

Coldest area (0°C to 5°C): this is where foods which must be cold to keep them safe should be kept:

Raw and uncooked foods should always be wrapped. -Pre-cooked chilled foods, e.g. Ready meals, meat pies, soft cheeses. -Pre-cooked meats e.g. Ham, - Prepared salads (including pre-packed mixed green salads, rice, potato salad etc). Desserts, e.g. Fromage frais, home-prepared food and leftovers or cream cakes.

CANDY CMGN 6182S - Where to store your foods in the fridge - 1

Crisper: this is the most humid part of the fridge. Vegetables, fruit, fresh salad items, unwashed whole lettuce, whole tomatoes, radishes, etc. can be stored here.

WE RECOMMEND THAT ALL PRODUCE KEPT IN THE SALAD BIN IS WRAPPED.

NOTES: Always wrap and store raw meat, poultry, and fish on the lowest shelf at the bottom of the fridge. This will stop them from dripping onto or touching other foods. Do not store inflammable gases or liquids in the fridge.

Electrical operation: after 3 hours on the freezer, the temperature in the cabinet is above -12°C, the alarm light is lit, and the buzzer sounds.

Storing Frozen Food

Clean and defrost your refrigerator regularly.Freeze zzy drinks.
Prepare fresh food for freezing in small porons to ensure rapid freezing.Consume ice-cream and water ices direct from freezer. It may cause “freezer burns” on lips.
Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it.Store poisonous or dangerous substances in the freezer.
Wrap all foods in aluminum foil or freezer quality plasc bags and make sure any air is excluded.
Wrap frozen food when you buy it and put it into the freezer shortly.
Keep food for as short a me as possible and adhere to “Best Before”, “Use By” dates.

For more about storing, download the App and visit "Tips & Hints".

ENERGY SAVING

For better energy saving, we suggest:

  • Installing the appliance away from heat sources, not exposed to direct sunlight, and in a well-ventilated room.
  • Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
  • Do not excessively stuff foods so as to ensure proper air circulation.
  • Defrost the appliance in case there is ice to facilitate the transfer of cold.
  • In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
  • Open or keep the doors of the appliance open as little as possible.
  • Avoid adjusting the setting to temperatures too cold.
  • Remove dust present on the rear of the appliance.

TAKE CARE

Defrosting

This appliance has automatic defrosting system, no need to defrost by hand.

Cleaning and Care

After defrosting you should clean the Fridge/Freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before replacing in the Fridge/Freezer. Condensation will form on the back wall of the Fridge; however it will normally run down the back wall and into the drain hole behind the salad bin.

CANDY CMGN 6182S - Cleaning and Care - 1

The drain hole will have a "cleaning spike" inserted into it. This ensures that small pieces of food cannot enter the drain. After you have cleaned the inside of your Fridge and removed any food residues from around the hole, use the "cleaning spike" to make sure that there are no blockages. Use standard furniture polish to clean the Fridge/Freezer exterior. Make sure that the doors are closed to prevent polish getting on the magnetic door seal or inside.

The grille of the condenser at the back of the Fridge/Freezer and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge/Freezer.

CHANGING THE INTERNAL LIGHT

  1. Before carrying out the LED replacement always disconnect the mains supply.
  2. Hold and lift up the LED light cover.
  3. Remove the old LED by unscrewing it in an anti-clockwise direction.
  4. Replace with a new LED light by screwing it in a clockwise direction making sure that it is secure in the light holder.
  5. Refit the light cover and re-connect your Fridge to the mains supply and switch on.

REVERSING THE DOOR SWING

Disassemble the Refrigerator Door

  1. a. Use a tool to remove the screw on the hinge cover, and then remove the cover. Insert the communication line into the hole on the cabinet top.

b. Use a tool to remove the 4 screws on the upper hinge cover and then remove the cover. Pry up the door bush and small end cap cover on the door.

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 1

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 2

c. Insert the door bush and door communication line into the hole on the door and then put on the small end cap cover.CANDY CMGN 6182S - Disassemble the Refrigerator Door - 3

d. Use a tool to remove the 2 screws as shown in the below figure to remove the hole cover on the cabinet top and get the

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 4

cabinet communication line out of the hole.

Pry up the small end cap cover on the door and get out the door bush and door communication line.

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 5

e. Insert the door bush into the round hole on the door and then put on the small end cap cover.

f. Move the refrigerator door upward over 500mm to remove the door.

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 6

  1. a. Use a tool to remove the 3 screws on the middle hinge cover and then remove the middle hinge.

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 7

b. Move the freezer door upward over 500mm to remove the door.

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 8

c. Remove the adjustable front feet under the lower hinge; use a tool to remove the 4 screws from the lower hinge and then disassemble the lower hinge. Door disassembly is finished.

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 9

CANDY CMGN 6182S - Disassemble the Refrigerator Door - 10

Assemble door, lower hinge accessories to the corresponding positions

  1. a. Use a tool to get the door bush out as shown in the below figure and assemble it to the corresponding position of the other side.

CANDY CMGN 6182S - Assemble door, lower hinge accessories to the corresponding positions - 1

b. Use a tool to remove the screws of the stopper assembly as shown in the figure below, and then assemble them to the other side of the door.

CANDY CMGN 6182S - Assemble door, lower hinge accessories to the corresponding positions - 2

c. Use a tool to remove the axle and two stoppers on the lower hinge, and then assemble them to the position as shown in the figure below.

CANDY CMGN 6182S - Assemble door, lower hinge accessories to the corresponding positions - 3

This situation applies to opening the door on the right side. This situation applies to the left side.

Assemble the refrigerator door and freezer door to the opposite side.

  1. a. Remove the adjustable front foot as shown below by hand, and then assemble the lower hinge to the other side of the cabinet and fix the screws by using a tool.

CANDY CMGN 6182S - Assemble the refrigerator door and freezer door to the opposite side. - 1

b. Assemble the shorter adjustable front foot to the lower hinge side and adjust the height of the foot to make the refrigerator stay level.

CANDY CMGN 6182S - Assemble the refrigerator door and freezer door to the opposite side. - 2

  1. Put on the freezer door and turn the middle hinge by 180 degrees, and then assemble it to the other side of the cabinet; use a tool to screw up the 3 screws to fix the middle hinge.

CANDY CMGN 6182S - Assemble the refrigerator door and freezer door to the opposite side. - 3

  1. Put on the refrigerator door and assemble the upper hinge to the other side of the cabinet; use a tool to screw up the 4 screws to fix the upper hinge.

After that, connect the door communication line and the cabinet communication line, and then put on the upper hinge cover and fix it using a screw.

  1. Assemble the hole cover to the other side of the cabinet and use a tool to screw up the hole cover.

CANDY CMGN 6182S - Assemble the refrigerator door and freezer door to the opposite side. - 4

Door disassembly is finished here.

Figure of door opening from the right.

CANDY CMGN 6182S - Assemble the refrigerator door and freezer door to the opposite side. - 5

Figure of door opening from the left.

CANDY CMGN 6182S - Assemble the refrigerator door and freezer door to the opposite side. - 6

CANDY CMGN 6182S - Assemble the refrigerator door and freezer door to the opposite side. - 7

Double check that the door is aligned correctly and all the seals are closed on all sides. If necessary, re-adjust the levelling feet.

NOTE: If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so. All parts removed must be saved to do the reinstallation of the door. You should rest the fridge freezer on something solid so that it will not slip during the door change process. Do not lay the fridge freezer flat as this may damage the coolant system. Ensure the fridge freezer is unplugged and empty. We recommend that 2 people handle the fridge freezer during assembly.

TROUBLESHOOTING

  • If the appliance does not operate when switched on, check:
  • Power cut: If the internal temperature of the Fridge/Freezer compartment is -18°C or less when the power returns, your food is safe. The food in your Fridge/Freezer will remain frozen for approximately 16 hours with the door closed. Do not open the Fridge/Freezer door more than necessary. The product is designed and built for domestic household use only.
  • The plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance).
  • The fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.
  • The temperature control has been set correctly. If the refrigerator is exceptionally cold, you may have accidentally adjusted the thermostat control dial to a higher position.
  • If the refrigerator is exceptionally warm, the compressor may not be working. Turn the thermostat control dial to the maximum setting and wait a few minutes. If there is no humming noise, it is not working. Contact the local store where your purchase was made.
  • If condensation appears outside of the Refrigerator, this may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues, contact the local store where your purchase was made. If the provided plug has been replaced, make sure the new plug is properly connected. If the appliance is still not operating after the above checks, please contact Customer Service.

SCRAPPING OLD APPLIANCES

CANDY CMGN 6182S - SCRAPPING OLD APPLIANCES - 1

CANDY CMGN 6182S - SCRAPPING OLD APPLIANCES - 2

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste.

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the CE mark on this product, we are confirming compliance with all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

TABLE OF CONTENTS

SAFETY INFORMATION 54

COMBI CANDY 62

Climate class 62

TRANSPORT INSTRUCTIONS 62

INSTALLATION INSTRUCTIONS 63

START-UP 63

COMBINED OPERATION 64

VERTICAL DISPLAY UNIT 64

ROUND DISPLAY UNIT 66

INTERNAL USER INTERFACE 67

TECHNICAL CHARACTERISTICS 68

FRESHNESS CONTROL 68

The Holiday function continues to operate under the Smart ECO and Fast Cooling functions.

THE VERTICAL DISPLAY

CANDY CMGN 6182S - THE VERTICAL DISPLAY - 1

DISPOSAL OF OLD APPLIANCES

CANDY CMGN 6182S - DISPOSAL OF OLD APPLIANCES - 1

CANDY CMGN 6182S - DISPOSAL OF OLD APPLIANCES - 2

SAFETY INFORMATION

This manual contains important safety information.

TROUBLESHOOTING 456

Intended for household use.

Before using the refrigerator, read this manual carefully and keep it for future reference or for new owners. This product is intended for use in domestic and similar applications such as:

  • staff kitchen areas in shops, offices and other working environments
  • farm houses, by clients in hotels, motels and other residential type environments
  • bed and breakfast type environments

catering and similar non-retail applications.

SAFETY INFORMATION

This manual contains many important safety information. We recommend that you keep these instructions in a safe place for future reference and to facilitate and enhance the use of the appliance.

WARNING: FIRE HAZARD

How to operate the device:

  • Remove the device from all sources of ignition. Ensure the room where it is located is well ventilated.

WARNING!

- Be careful when cleaning/maintaining the device and avoid touching the metal parts of the compressor at the rear edge of the device, as this may cause injury to your fingers or damage your product. This device is not intended for storing any other devices. Do not attempt to sit or stand on your device, as it is not designed for such use. You may injure yourself or damage the device. - Make sure that the power cord is not trapped under the device during installation/transportation, to prevent kinking or damage to the power cord. When positioning the device, be careful not to damage the floor coverings, pipes, walls, coverings, etc. Do not move the device by pulling the handle or the door. Do not allow children to play with the device or to operate the control buttons. The manufacturer disclaims any liability in case of failure to follow the instructions. Do not expose the device to rain, moisture, or direct sunlight.

Sunlight and water.

Do not place the device near open flames or flammable materials. - If the power goes out, do not open the door. Frozen food should not be refrozen if the storage time has exceeded 20 hours. If the storage time is longer, the food should be checked and consumed immediately or cooked and refrozen. Do not be alarmed if you notice that the door of the horizontal freezer is difficult to open immediately after closing it. This is due to the vacuum created inside, which will equalize and allow the door to be opened after a few minutes. Do not connect the device to the electrical supply until all packaging elements for transport have been removed. Leave it to rest for at least 4 hours before switching it on, so that the compressor oil can distribute if it has been transported horizontally. This freezer is intended for household use only (i.e., storing and freezing food products). Do not store medicines or scientific research materials

for wine. When storing materials that require strict temperature control, it is possible for them to deteriorate or undergo uncontrolled reactions, which may pose risks.

  • Праздддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徴ацьпсундае оретаць.
  • Disconnect the power cord from the outlet.
  • Check that the product is not damaged and that all its parts and accessories are in perfect condition.
  • If refrigerant leaks into the cooling system, do not touch the walls or use open flames. Open a window and leave the room to let in fresh air. Then contact a service center to request a repair. Do not use flammable materials. Do not turn the appliance upside down or move it while it is full, and do not touch the appliance with wet hands. Do not damage the appliance or its power cord; this could cause electric shock or fire. Do not place or store flammable materials such as ether, petrol, propane, aerosols, paint, or alcohol near the appliance. These materials may

Mounting the doors and the lower hinge plate in their respective positions

  1. a). Using a screwdriver, remove the hinge pin as shown in the illustration below, and then mount it on the opposite side.

CANDY CMGN 6182S - Mounting the doors and the lower hinge plate in their respective positions - 1

b). Using a screwdriver, unscrew the screws of the hinge, as shown in the illustration below, and then screw them into the opposite side.

CANDY CMGN 6182S - Mounting the doors and the lower hinge plate in their respective positions - 2

c). Using a screwdriver, remove the remaining hinge pin from the lower hinge plate, and then screw it into the opposite side, as shown in the illustration below.

CANDY CMGN 6182S - Mounting the doors and the lower hinge plate in their respective positions - 3

This illustration clearly shows the arrangement of the door. This illustration clearly shows the arrangement of the door.

Mounting the refrigerator and freezer doors on the opposite side

  1. a). With your hand, remove the front hinge pin as shown below, and then mount the lower hinge plate on the opposite side and tighten the screws with a screwdriver.

CANDY CMGN 6182S - Mounting the refrigerator and freezer doors on the opposite side - 1

b). Mount the adjustable front hinge pin on the side of the lower hinge plate and adjust the height of the pin so that the refrigerator remains in a horizontal position.

CANDY CMGN 6182S - Mounting the refrigerator and freezer doors on the opposite side - 2

  1. Place the freezer door and turn the middle hinge plate 180 degrees, then mount it on the opposite side of the cabinet. Use a screwdriver to tighten the 3 screws to secure the middle hinge plate.

CANDY CMGN 6182S - Mounting the refrigerator and freezer doors on the opposite side - 3

  1. Place the refrigerator door and mount the upper hinge plate on the opposite side of the cabinet. Use a screwdriver to tighten the 4 screws to secure the upper hinge plate.

After that, connect the communication cable of the door to the communication cable of the cabinet, then place the cover on the upper hinge plate and tighten it with a screwdriver.

  1. Mount the cover on the opening on the opposite side of the cabinet and use a screwdriver to tighten it.

CANDY CMGN 6182S - Mounting the refrigerator and freezer doors on the opposite side - 4

This completes the door reversal procedure.

This illustration shows the door opening clearly.

CANDY CMGN 6182S - Mounting the refrigerator and freezer doors on the opposite side - 5

CANDY CMGN 6182S - Mounting the refrigerator and freezer doors on the opposite side - 6

The appliance door may open on its own.

Check carefully that the door is properly aligned and that all hinges are correctly positioned. If necessary, adjust the hinges.

WARNING: If you need to remove the refrigerator door, we recommend that you contact a qualified technician. Do not attempt to remove the door yourself unless you have the necessary skills. All removed parts must be stored for reassembly of the door. You must support the refrigerator on a stable surface so that it does not tip over while you are removing the door. Do not lay the refrigerator on its back, as this may damage the cooling system. Make sure the refrigerator is unplugged and empty. We recommend that repair and installation of the refrigerator door be carried out by a qualified person.

TROUBLESHOOTING

If the appliance does not work when it is turned on, check the following: - Power supply: If the internal temperature of the refrigerator/freezer compartment is -18°C or lower, when the power supply is restored, the food will be preserved. Food in the refrigerator/freezer will remain frozen for about 16 hours with the door closed. Do not open the refrigerator/freezer door more than necessary. - The product is designed and manufactured for domestic use only. - The plug is correctly inserted into the socket and the power is on. (To check the power supply, plug in another appliance). - The fuse/circuit breaker is on. The temperature control is set correctly. If the refrigerator is too cold, you may have accidentally set the thermostat knob to a higher position. If the refrigerator is too warm, the compressor may not be running. Set the thermostat to the maximum setting and wait a few minutes. If it still does not run, contact the local service center where the purchase was made. If there is a noise coming from the refrigerator, it may be due to the room temperature. Remove any items on top of the refrigerator. If the problem persists, contact the local service center where the purchase was made. If the supplied plug has been replaced, check that it is connected correctly. If after performing the above checks the appliance still does not work, please contact the customer service department.

DISPOSAL OF OLD APPLIANCES

CANDY CMGN 6182S - DISPOSAL OF OLD APPLIANCES - 1

CANDY CMGN 6182S - DISPOSAL OF OLD APPLIANCES - 2

This appliance is marked in accordance with European Directive 2012/19/EC regarding waste electrical and electronic equipment (WEEE).

WEEE contains both hazardous substances (which can have negative effects on the environment) and basic components (which can be reused). It is important that WEEE is disposed of at a designated collection point to ensure that all hazardous substances are removed correctly and all materials are recycled.

Individual households can play an important role in ensuring that WEEE does not become a problem for the environment; it is important to follow some basic rules: WEEE should not be treated as household waste.

WEEE waste must be handed over at the designated collection points, managed by the municipality or by registered companies. For large WEEE in many countries, there may be a possibility for collection from home.

In many countries, when you purchase a new appliance, the old one can be returned to the retailer, who must take it back free of charge on a one-for-one basis, provided it is of equivalent type and has the same functions as the appliance being purchased.

Compliance

By placing the marking on this product, we confirm compliance with all relevant European safety, health, and environmental protection requirements applicable to this product.

SUMMARY

SAFETY INFORMATION 511

CANDY COMBI 518

Climate class 518

TRANSPORT INFORMATION 518

INSTALLATION INSTRUCTIONS 519

USING THE FREEZER 519

OPERATING THE COMBI REFRIGERATOR 520

VERTICAL DISPLAY 520

CIRCULAR DISPLAY 522

INTERNAL USER INTERFACE 523

Climatic class

The appliance is intended for use in a limited range of ambient temperatures, depending on climatic zones. Do not use the appliance at temperatures outside the established limits. The climatic class of the appliance is indicated on the technical data plate inside the refrigerator compartment.

Климатчески КлascОкрж.Т.(°C)Окрж.Т.(°F)
SNОт 10 do 32От 50 do 90
NОт 16 do 32От 61 do 90
STОт 16 do 38От 61 do 100
TОт 16 do 43От 61 do 110

TRANSPORTATION INSTRUCTIONS

The appliance must be transported only in a vertical position.

The packaging in which the product was supplied must remain undamaged during transport. If during transport the appliance is in a horizontal position, it must lie only on its left side (when facing the front of the appliance), and it should not be switched on for at least 4 hours to allow the system to settle after returning the product to the horizontal position.

  1. Failure to follow the above instructions may lead to damage to the appliance. The manufacturer is not responsible in case of non-compliance with these instructions.
  2. The appliance must be protected from rain, moisture, and other atmospheric phenomena.

When setting the temperature, if no button is pressed within 5 seconds, the button stops flashing and the set temperature comes into effect.

SMART ECO: Activate the Smart Eco button to set the refrigerator temperature in maximum energy efficiency mode (+4°C for the refrigerator compartment, -18°C for the freezer compartment).

To enter Smart Eco: Press "Mode" until the light starts flashing, then press "OK" to enter this function.

To exit Smart Eco: Press "Mode" until the function switches to Smart ECO, press "OK" to exit this function, the backlight goes off.

FAST COOLING: Activate the fast cooling mode to start an additional pulse for rapid cooling of the refrigerator compartment.

The function is activated and confirmed by pressing the corresponding button with a light indicator.

To enter fast cooling mode: Press "Mode" until "Fast Cooling" starts flashing, then press "OK" to enter this function.

To exit fast cooling: Press "Mode" until the system switches to "Fast Cooling" mode, then press "OK" to deactivate this function.

QUICK FREEZING: Activate the quick freezing mode to quickly freeze a large quantity of food while preserving its nutritional properties. When the quick freezing time ends, the temperature of the freezer compartment returns to the value set before quick freezing. When the quick freezing time increases (26 hours), it turns off automatically.

When switching to "Holiday" mode, the quick freezing function is disabled.

To enter the quick freezing mode: Press "Mode" until "Fast Freezing" appears on the display, then press "OK" to enter this function.

To exit the quick freezing mode: Press "Mode" until the system switches to "Fast Freezing" mode, then press "OK" to exit this function.

HOLIDAY MODE: If you need to turn off the appliance for a long time, you can use the Holiday function. This function turns off the refrigerator compartment, leaving the freezer compartment on. Before using this function, make sure there are no food items in the refrigerator compartment. The function is activated and confirmed by pressing the corresponding button with the indicator light.

The holiday mode indicator light turns on, and the refrigerator temperature returns to the value set before entering holiday mode.

Holiday mode is turned off when the Smart ECO and Fast Cooling functions are activated.

To enter holiday mode: Press "Mode" until "Fast Freezing" starts flashing, then press "OK" to enter this function.

To exit holiday mode: Press "Mode" until the system switches to "Holiday" mode, then press "OK" to exit this function.

SAVING SETTINGS WHEN POWER IS OFF: The refrigerator can automatically save all settings in case of a power outage. When power is restored, the refrigerator will operate with the parameters that were used before the power outage.

POWER DELAY: To avoid damage to the refrigerator in case of a sudden power outage and subsequent power restoration, the device will not start immediately if the power interruption lasts less than 5 minutes.

SIGNALING OF FREEZER COMPARTMENT OVERHEATING (Only when power is on):

If the temperature of the freezer compartment is above 10°C for the first time when connected to the power supply, the alarm indicator of the freezer compartment lights up, and the temperature display flashes.

Press any button for 5 seconds, the alarm stops, and the system returns to the set temperature.

SIGNALING OF REFRIGERATOR DOOR OPEN: If the refrigerator door remains open for more than 3 minutes, an audible alarm sounds. Close the door or press any button to stop the alarm signal; in the latter case, the alarm signal will stop.

The cycle will resume again after a few minutes.

SIGNALING OF SENSOR FAULTS: When "E0", "E1", "E2" or other symbols of abnormal operation are displayed, this indicates a sensor fault. The refrigerator must be repaired.

CONTROL BUTTONS

CANDY CMGN 6182S - CONTROL BUTTONS - 1

The control buttons are the user interface. When the refrigerator is on, the buttons light up white. When function buttons are pressed, the button light changes from white to blue.

TEMPERATURE SETTING: Press the MODE button to change the temperature.

  • Refrigerator compartment temperature: Press MODE once, the refrigerator compartment number flashes, and its temperature can be adjusted with the "+" and "-" buttons.
  • Freezer compartment temperature: Press MODE twice, the freezer compartment number flashes, and its temperature can be adjusted with the "+" and "-" buttons.

ECO MODE icon:

Press the Eco Mode icon to set the refrigerator temperature to the most energy-efficient range (+5°C for the refrigerator, -18°C for the freezer). This function is activated and confirmed when the icon light changes from white to blue.

If you want to exit the ECO function, you should press the Eco Mode icon again, and the refrigerator temperature will return to normal operation.

SUPER COOLING icon:

Press the Super Cooling icon to start an additional pulse for rapid freezing in the refrigerator compartment.

This function is activated and confirmed when the icon light changes from white to blue.

If you want to exit the Super Cooling function, you should press the Super Cooling icon again, and the refrigerator temperature will return to normal.

LOCK icon: Press the Lock icon to block the user interface. If the lock function is selected, the icon (light) should glow blue. When the lock function is enabled, the user cannot set any new functions. To disable the lock function, the user must press and hold the icon for 3 seconds to unlock the interface.

SUPER FREEZING button: Press the Super Freezing button to quickly freeze a large quantity of food while preserving their nutritional properties. This function is activated and confirmed when the button's light changes from white to blue.

If you want to exit the Super Freezing function, you should press the Super Freezing button again, and the freezer compartment temperature will return to normal.

HOLIDAY button: If you need to be away for a long time, you can use the Holiday function. This function turns off the refrigerator compartment, leaving the freezer compartment on. Before using this function, make sure there are no food items or liquids in the refrigerator compartment. This function is activated and confirmed when the button's light changes from white to blue.

If you want to exit the Holiday function, you will need to press the Holiday button again, the light in Holiday mode will go out, and the refrigerator temperature will return to the value before the holiday.

Wrapping food: To avoid the transfer of odors and drying out of food, you should pack or cover food separately. Fruits and vegetables do not need to be wrapped.

Ready meals should be properly cooled: before placing a cooked dish in the refrigerator, let it cool down. This will prevent an increase in temperature inside the refrigerator.

Close the doors!: To avoid cold air leakage, try to open the refrigerator door less often. Before placing purchased products in the refrigerator, sort them. Open the door only to take out or put in products.

Storage zones for products in the refrigerator

Cool zone: Place where products will be stored longer if they are cool. Milk, yogurt, cottage cheese, fruit juices, hard cheeses such as cheddar. Opened jars and bottles of salad dressings, sauces, and jams. Spreadable products, for example, butter, margarine, low-fat spreads, cooking fats, and lard.

Cold zone (from 0°C to +5°C): Place where you should store products whose temperature must be low:

Raw and undercooked products must be stored in packaging.

-Ready-to-eat chilled products, such as ready meals, meat pâtés, soft cheeses.

-Raw meat products, for example, ham.

-Ready salads (including packaged green salads, rice and potato salads, etc.).

Desserts, for example, cream cheese, homemade dishes, and leftovers of cakes and creams.

CANDY CMGN 6182S - Storage zones for products in the refrigerator - 1

Crisper drawer: this is the humid zone of the refrigerator. Vegetables, fruits, fresh products for salads, etc. Here you can store unwashed lettuce, whole tomatoes, radishes, etc.

IT IS RECOMMENDED TO STORE ALL SALAD PRODUCTS IN PACKAGING.

NOTE. Raw meat, poultry, and fish should be wrapped in wrapping and stored on the lowest shelf in the lower part of the refrigerator. This will prevent contact and dripping of juices onto other products. Do not place flammable liquids in the refrigerator.

If the temperature in the freezer after 3 hours of operation is above -12°C, the alarm indicator lights up and the buzzer sounds.

Storage of frozen products

Packaged products, previously frozen under industrial conditions, should be stored in accordance with the instructions of their manufacturers or in separate compartments.

To achieve the best product quality, as achieved by the manufacturers of frozen products, supported by the food product retailer, please remember the following:

  1. Place the packages in the freezer as soon as possible after purchasing them.
  2. Do not exceed the storage period (“Use by...”, “Best before”), indicated on the packaging.
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : CANDY

Model : CMGN 6182S

Category : Freezer
