USER MANUAL CDI 5012E10 CANDY

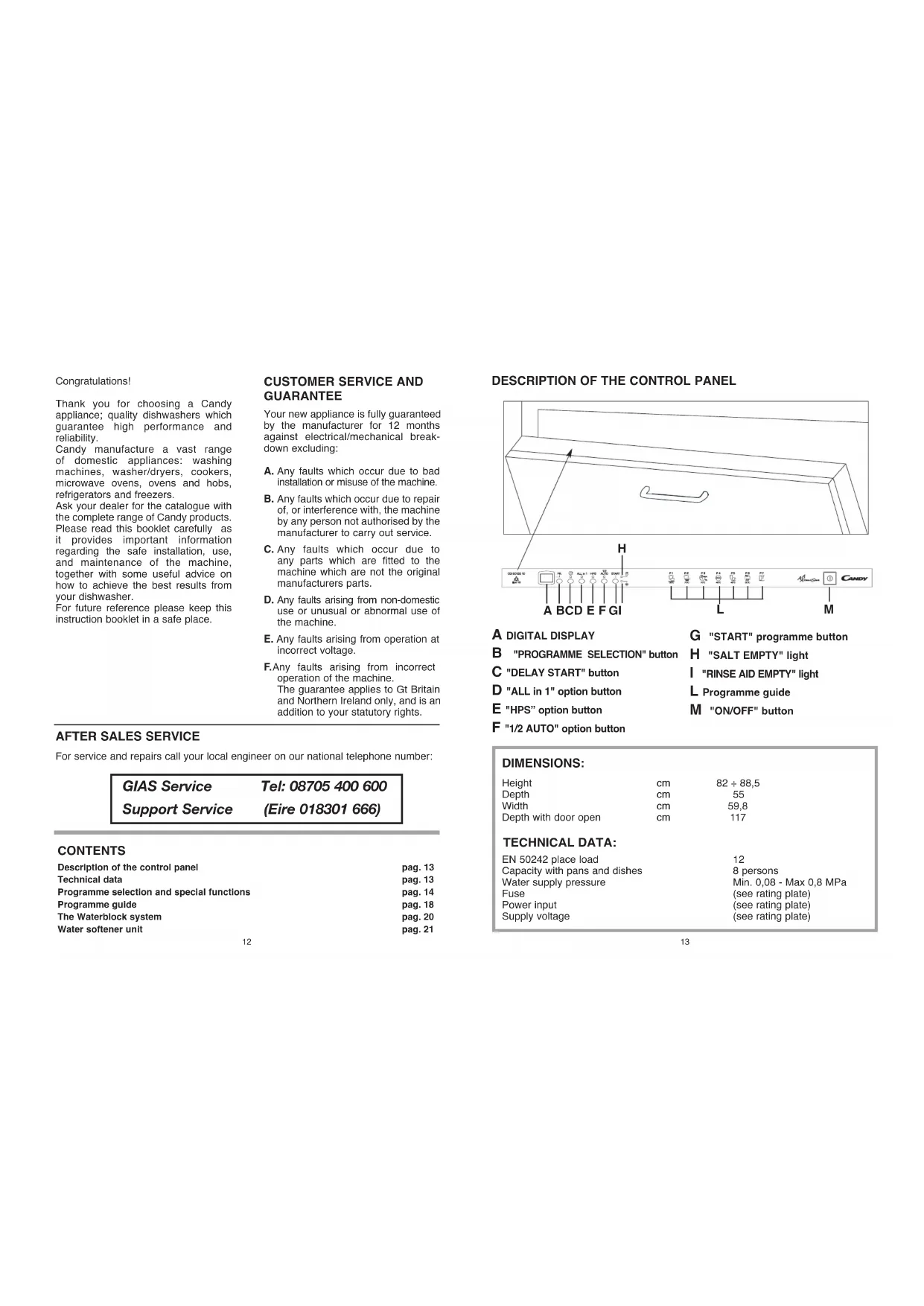

"PROGRAMME SELECTION" button C "DELAY START" button D "ALL in 1" option button E "HPS” option button F "1/2 AUTO" option button G "START" programme button H "SALT EMPTY" light I "RINSE AID EMPTY" light L Programme guide M "ON/OFF" button CONTENTS Description of the control panel Technical data Programme selection and special functions Programme guide The Waterblock system Water softener unit pag. 13 pag. 13 pag. 14 pag. 18 pag. 20 pag. 21 Congratulations! Thank you for choosing a Candy appliance; quality dishwashers which guarantee high performance and reliability. Candy manufacture a vast range of domestic appliances: washing machines, washer/dryers, cookers, microwave ovens, ovens and hobs, refrigerators and freezers. Ask your dealer for the catalogue with the complete range of Candy products. Please read this booklet carefully as it provides important information regarding the safe installation, use, and maintenance of the machine, together with some useful advice on how to achieve the best results from your dishwasher. For future reference please keep this instruction booklet in a safe place.

CUSTOMER SERVICE AND

GUARANTEE Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical break- down excluding: A. Any faults which occur due to bad installation or misuse of the machine. B. Any faults which occur due to repair of, or interference with, the machine by any person not authorised by the manufacturer to carry out service. C. Any faults which occur due to any parts which are fitted to the machine which are not the original manufacturers parts. D. Any faults arising from non-domestic use or unusual or abnormal use of the machine. E. Any faults arising from operation at incorrect voltage. F. Any faults arising from incorrect operation of the machine. The guarantee applies to Gt Britain and Northern Ireland only, and is an addition to your statutory rights.

For service and repairs call your local engineer on our national telephone number: GIAS Service Tel: 08705 400 600 Support Service (Eire 018301 666)

H15 "ALL in 1" button This option optimises the use of "ALL in 1" ("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined detergents. By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt and rinse aid shortage lights are de-activated). WARNING! Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again. IMPORTANT When this option is selected, the "RAPID" cycle is 10 minutes longer. "HPS" button The "HPS" option always guarantees the best results by more effectively dealing with heavier soiling. By using this option, the strength of the selected cycle will be increased, adding one rinse and increasing the temperature and water pressure in the washing phase where foreseen. This option is recommended for very dirty dishes or when dirty dishes may not have been pre-treated allowing the soiling to dry up. IMPORTANT With this option selected the “IMPULSE” wash is turned off. "1/2" AUTO button In response to your everyday washing requirement in addition to the normal wash functions this dishwasher is equipped with the “1/2 AUTO” function. This function enables the uses to wash a reduced number of dishes yet retaining the freedom of loading them both on the top and bottom basket. When this function is activated the dishwasher will automatically reduce the water and energy consumption and the wash time. When selecting the “1/2 AUTO” ensure a reduced amount of detergent is used.

(Use in conjunction with programme guide) IMPORTANT The dishwasher has two very practical functions: - the "recommended" programme (which is ideal for full load daily use) for quick and accurate selection; - the "Auto’ Memory", function saves any programme used at least 3 times consecutively, so that if you regularly use the same washing cycle you do not have to continually set the programme thereby saving time and effort. Program settings ■ Open the door and place dirty dishes inside the appliance. ■ Press the "ON/OFF" button . ■ After pressing the "ON/OFF" button, the symbol of the programme which is factory set at "recommended” or the symbol for the "Auto’ Memory" programme will appear on the display. ■ To select an option, press the corresponding button (the indicator light will turn on). Option buttons must be pressed BEFORE starting the programme for them to be accepted. ■ To set another programme, press the "PROGRAMME SELECTION" button ("PR."). ■ When the required programme is shown in the display, press the "START" button. The length of the program will be shown on the display alternating hours with minutes [I.e.: 1 h (1 hour) / 25 (25 minutes)]. ■ Close the door (after an audible signal has sounded, the programme will start automatically). "IMPULSE" programmes The “IMPULSE” programmes use an impluse washing technology, which reduces consumption, noise and increases performances. IMPORTANT The “intermittent” working of the washing pump MUST NOT BE considered a malfunction, it is a characteristic of the impulse washing so must be considered a normal function of the programme. Programme interruption Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off. WARNING! If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished. Changing a running programme Proceed as follows to change or cancel a running programme: ■ Open the door. ■ Hold the "START" button down for at least 5 seconds (the running programme will be cancelled). ■ At this point a new program can be set. WARNING! Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off. Programme end A 5 second buzzer will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended. Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for a new cycle. Option buttons IMPORTANT All options MUST be turned on or off, BEFORE pressing "START" button.AUTOMATIC FAULT SIGNALS

Turn off the dishwasher, open the inlet hose and reset the cycle. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. Check if the drain tube is bent or if the siphon or filters are clogged. If the problem persists, contact Customer Service. Contact Customer Service. Contact Customer Service. Clean the filter plate. If the problem persists, contact Customer Service.

FAULTS CAUSE SOLUTION

E2 appears on the display and the alarm sounds. E3 appears on the display and the alarm sounds. E4 appears on the display and the alarm sounds. E5 appears on the display and the alarm sounds. E6 appears on the display and the alarm sounds. E8 or Ei appear on the display and the alarm sounds. No water (inlet hose closed). The machine cannot drain water. Water leak Electronic temperature control fault. Electronic control fault. The water heating element is not working correctly or the filter plate is clogged. The dishwasher is able to signal a series of faults in the display.

"DELAY START" button Dishwasher start time can be set with this button, delaying start from 1 to 23 hours. Proceed as follows to set a delayed start: ■ Press the "DELAY START" button ("00" will appear on the display). ■ Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23). ■ To start the countdown press the "START" button. At the end of the countdown, the programme will automatically start. If you wish to see which programme has been selected, press the "PROGRAMME SELECTION" button. Proceed as follows to cancel a delayed start: ■ Hold the "START" button down for at least 5 seconds. ■ At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section. Alarm mute for the PROGRAMME END The alarm for the programme end may be muted as follows: ■ With the dishwasher off, hold down the "PROGRAMME SELECTION" button for few seconds while simultaneously pushing the "ON/OFF" button. ■ "b1” will appear on the display to indicate that the alarm is on. ■ Press the "PROGRAMME SELECTION" button again "b0" will appear on the display to indicate that the alarm is off). ■ Wait for the alarm to sound to indicate that the settings were saved. ■ To turn the alarm on again, follow the same procedure ("b1" will appear on the display to indicate that the buzzer is on). WARNING! To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.1918 65°C

*WITH HOT WATER THE TIME REMAINING UNTIL THE END OF THE PROGRAMME IS AUTOMATICALLYDISPLAYED WHILE THE PROGRAMME IS RUNNING.N/A = OPTION NOT AVAILABLEProgramme Description PROGRAMME GUIDE (“RECOMMENDED” PROGRAMME)Once a day - for normal soiled pans andany other items that have been left allday for washing. Once a day - for heavily soiled pans andany other items that have been left allday for washing.Suitable for heavily soiled items that areto be washed straight after a meal (Max8 place load).- WASHING CLASS A-Energy Saving Programme suitable fornormal soiled items. Using detergentswith enzyme.Programme standardised to EN50242.Suitable for delicate crockery andglassware. Also for less soiled itemsexcluding pans.Quick wash for dishes which are to bewashed immediately after the meal.Wash load of 4/6 persons.Short cold pre-wash for items that arestored in the dishwasher until you areready to wash a full load. YES N/A N/A

The waterblock system has been designed to improve the safety of your appliance, particularly when the machine is left unattended. The waterblock system actually prevents flooding which might be caused by a machine malfunction or as a result of a fracture on the pipes. How does waterblock work The sump located in the base of the appliance collects any possible water leakage and operates a sensor which subsequently activates a valve placed under the water tap and stops any water from the supply even with the tap fully opened. If the box containing the electrical parts is damaged, remove the plug from the socket immediately. To ensure perfect operation of the safety system, box “A” with the hose, should be connected to the tap as shown in figure “1”. The inlet hose should not be cut, as it contains parts under load. If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent. This dishwasher is also equipped with an anti-overflow safety device which, if water exceeds normal levels due to malfunctions, automatically blocks water flow and/or drains excess quantities.

• The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users. Regulate the setting of your water softener unit according to the degree of hardness of your water as follows:

1. Keep the "DELAY START" button

pressed in and at the same time press the "ON/OFF" button . The factory setting "d4" will appear on the display.

2. To change the setting, press the

"DELAY START" button. Each time you press that button the setting will increase by one level. When you have reached "d7", the display will go back to "d1".

3. When the required setting appears on

the display, wait for an audible signal to confirm that the new setting has been stored in memory.

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Regulating the water softener with electronic programmer The water softener can treat water with a hardness level of up to 90°fH (French grading) or 50°dH (German grading) through 8 settings. The settings are listed in the table below. Level

YES YES YES YES YES YES YES Water softener setting
