| Product type | LED effect projector (LED flower) |
| Brand | Velleman |
| Model | Ellison VDPL300CD |
| Power supply | 100~240 VAC, 50/60 Hz |
| Power consumption | 40 W |
| LED type | 320 LEDs of 5 mm (R:80, G:80, B:80, W:40, A:40) |
| DMX channels | 1 or 4 channels |
| Range | ± 20 m |
| Beam angle | 45° |
| Dimensions | 457 x 433 x 286 mm |
| Weight | 7 kg |
| Main functions | Stand-alone mode (automatic or sound-activated), master/slave, DMX512 control |
| Control | Built-in microphone, LED display, 4 push buttons |
| Inputs/Outputs | DMX input (3-pin XLR), DMX output (3-pin XLR), power connector with fuse |
| Protection rating | Indoor use only, protection class I (grounding) |
| Mounting | Tiltable bracket included, M10 bolt mounting, safety cable recommended |
| Safety distance | 0.5 m from flammable objects, 0.5 m between light output and illuminated surface |
| Maintenance and cleaning | Wipe with a damp lint-free cloth, avoid alcohol and solvents. User-replaceable fuse. |
| Safety | Do not look directly at the light source, risk of epilepsy. Disconnect before cleaning. Indoor use only. |
| Spare parts and repairability | No user-serviceable parts except fuse. Order parts from your dealer. Have maintenance performed by qualified technician. |
| General information | 2-year warranty for consumers (EU). Professional use in discos, theaters. Do not use continuously. |
Frequently Asked Questions - Ellison VDPL300CD VELLEMAN
User questions about Ellison VDPL300CD VELLEMAN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-fi system in PDF format for free! Find your manual Ellison VDPL300CD - VELLEMAN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Ellison VDPL300CD by VELLEMAN.

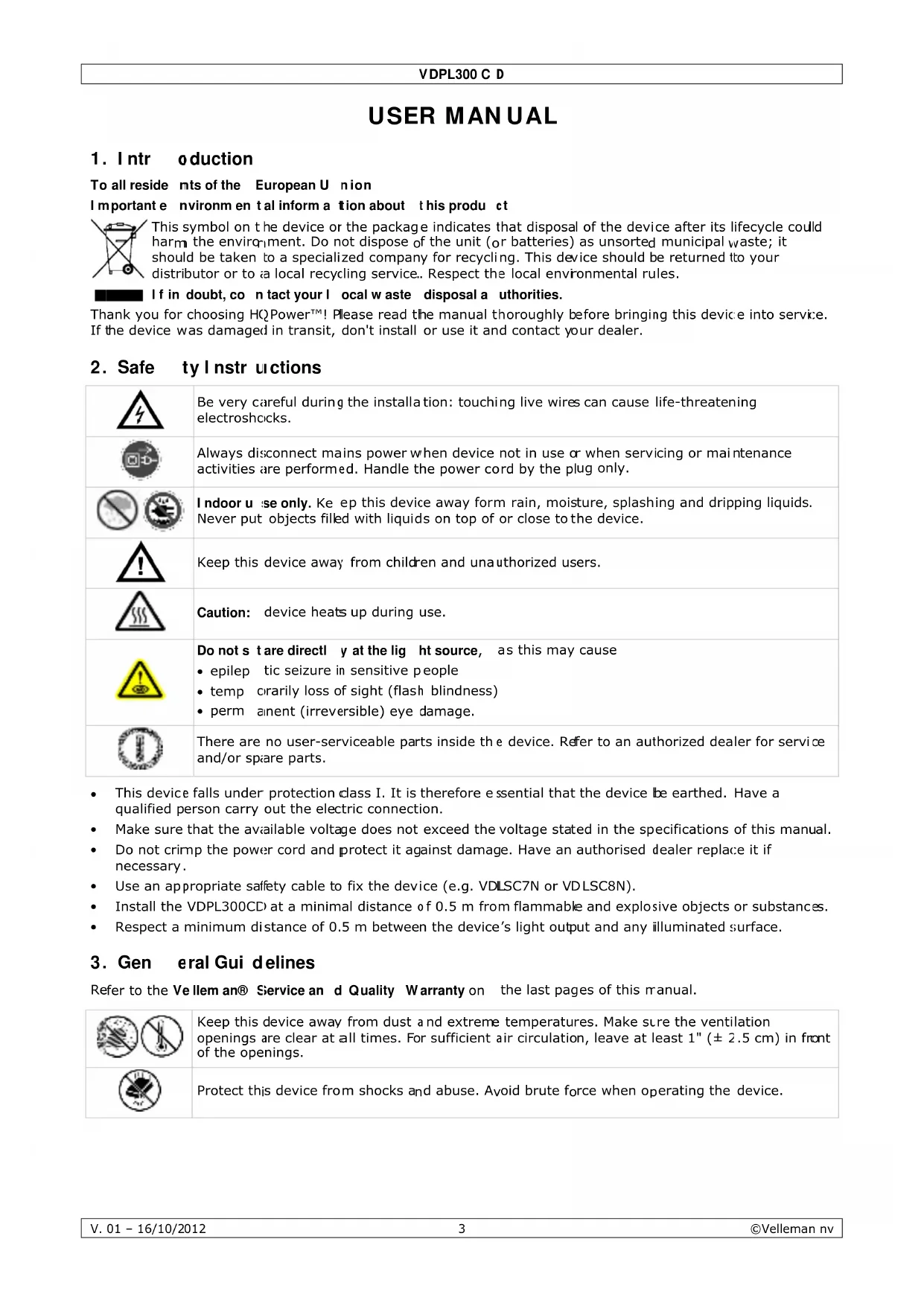

USER MANUAL Ellison VDPL300CD VELLEMAN
How to turn the controller line from 3-pins into 5-pins (plug and socket).
To all reside nts of the European Union
I mportant e nvironm en tal inform a tion about t his prod u ct
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, don't install or use it and contact your dealer.
2. Safety Instructions
| Be very careful during the installation: touching live wires can cause life-threatening electroshocks. | |
| Always disconnect mains power when device not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only. | |
| Indoor use only. Ke ep this device away from rain, moisture, splashing and dripping liquids. Never put objects filled with liquids on top of or close to the device. | |
| Keep this device away from children and unauthorized users. | |
| Caution: device heats up during use. | |
| Do not s tare directl y at the lit ht source, as this may cause epileptic seizure in sensitive people temp crarily loss of sight (flash blindness)perm anent (irreversible) eye damage. | |
| There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts. |
- This device falls under protection class I. It is therefore essential that the device be earthed. Have a qualified person carry out the electric connection.
- Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
- Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
- Use an appropriate saffety cable to fix the device (e.g. VDLSC7N or VDLSC8N).
- Install the VDPL300CD at a minimal distance of 0.5 m from flammable and explosive objects or substances.
- Respect a minimum distance of 0.5 m between the device’s light output and any illuminated surface.
3. Gen eral Guidelines
Refer to the Ve Ilem an® Service and d Quality Warranty on the last pages of this manual.
| Keep this device away from dust and extreme temperatures. Make sure the ventilation openings are clear at all times. For sufficient air circulation, leave at least 1" (±2.5 cm) in front of the openings. | |
| Protect this device from shocks and abuse. Avoid brute force when operating the device. |
Familiarise yourself with the functions of the device before actually using it. Do not allow operation by unqualified people. Any damage that may occur will most probably be due to unprofessional use of the device.
- All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, lamp explosion, crash, etc. Using the device in an unauthorised way will void the warranty.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
- Mechanical wear and LEDs are not covered by warranty.
- A qualified technician should install and service this device.
- Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
This device is designed for professional use on stage, in discos, theatres, etc. The VDPL300CD should only be used indoors with an alternating current of 230 VAC/50 Hz.
- Lighting effects are not designed for permanent operation: regular operation breaks will prolong their lives.
Use the original packaging if the device is to be transported.
- Keep this manual for future reference.
4. Features
multicoloured flower effect combines different effects
- five-headed flower effect constantly rotates multicoloured beams
- built-in automated programs via master/slave or DMX
- sound activated by built-in microphone
- DMX controlled via 1 or 4 channels.
5. Overview
Refer to the illustrations on page 2 of this manual.
| 1 | display | 3 | power cord input + fuse holder | 5 | DMX output |
| 2 | control buttons | 4 | DMX input | 6 | built-in microphone |
6. Installation
Choose a suitable mounting spot. Mount the fixture in the desired angle using the included bracket. Connect the power cord to the mains. Disconnect after use.
Mounting the Device
- Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
The carrying construction must be able to support 10 times the weight of the device for 1 hour without deforming. - The installation must always be secured with a secondary attachment e.g. a safety cable.
- Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in injuries. - For truss mounting, use an appropriate clamp (not incl.) and fit an M10 bolt through the centre of the (folded) bracket.
- Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.
Make sure there is no flammable material within a 0.5m radius of the device. - Have a qualified electrician carry out the electric connection.
- Connect the device to the mains with the power plug. Do not connect it to a dimming pack.
The installation has to be approved by an expert before the device is taken into service.
DMX-512 Connection
- When applicable, connect an XLR cable to the female 3-pin XLR output of a controller (not incl.) and the other side to the male 3-pin XLR input [4] of the VDPL300CD. Multiple VDPL300CDs can be linked through serial linking. The linking cable should be a dual core, screened cable with XLR input and output connectors.
Maximum recommended serial data link distance is 500 meters (1640 ft). Maximum recommended number of fixtures on a serial data link is 32 fixtures. - A DMX terminator is recommended for installations where the DMX cable has to run a long distance or is in an electrically noisy environment (e.g. discos). The terminator prevents corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 resistor between pins 2 and 3, which is then plugged into the XLR output socket [5] of the last device in the chain.
7. Operation
The VDPL300CD can be used in the following modes:
- stand-alone mode: automatic or sound-activated
- master/slave
with a DMX512 controller.
7.1 Control Panel Navigation
Access the control panel functions using the four panel buttons [2] located directly underneath the display [1]. From left to right:
| Button | Function |
| <MENU> | used to access the menu or to return to a previous menu option |
| <UP> | scrolls through the menu options in ascending order |
| <DOWN> | scrolls through the menu options in descending order |
| <ENTER> | used to select and store the current menu or option within the menu |
- The control panel display shows the menu items you select from the menu map. When a menu function is selected, the display will show immediately the first available option for the selected menu function. To select a menu item, press
. - Use the
and buttons to navigate the menu map and menu options. Press to access the menu function currently displayed or to enable a menu option. To return to the previous option or menu without changing the value, press the
7.2 General Setup
Display Settings
You can choose to switch the display off automatically, and to rotate the display readout 180^ .
- Press
- Use <UP> and <DOWN> to choose the desired setting:
- Press
to confirm. - Press
- Press
to toggle between normal (DISP) and rotated display (PSID).
Test Mode
You can run a test programme to check if all LEDs are functional.
- Press
- Press
to quit.
Operation Time
The device counts the time the lights have been operational.
- Press
- Press
Software Version
To check the software version of the device:
- Press
- Press
7.3 Stand-Alone Mode
In stand-alone mode, the device runs one of the built-in programs: automatic or sound-activated.
To set the device to stand-alone mode:
- Connect nothing to the DMX input [4] of the device.
- Press
- Use <UP> and <DOWN> to select a built-in program (SH0 ~ SH12) and press <ENTER> .
Sound Activation
To use sound activation, proceed as follows:
- Press
- Use <UP> and <DOWN> to choose <ON> and press <ENTER> .
- To switch sound activation off again, use <UP> and <DOWN> to choose <OFF> and press <ENTER> .
Setting the Microphone Sensitivity
To change the sensitivity of the internal microphone, proceed as follows:
- Press
- Use <UP> or <DOWN> to change the sensitivity (0 100) and press <ENTER> .
7.4 Master/ Slave Mode
The master/slave mode allows connecting several devices to a single master device. All slave devices will then work synchronously with the master device.
You need to set one device to master mode and all other devices to slave mode.
- Connect all devices in series with DMX cables.
- The first unit in the chain functions as the master fixture. Set up the unit as described in Stand-Alone Mode.
- On the master device, press
- Use <UP> and <DOWN> to choose <MAST> and press <ENTER> .
- On each slave device, press
- Use <UP> and <DOWN> to choose the desired setting:
o < SL1> to run in normal slave mode.
< SL2> to run in reverse slave mode.
- Press
to confirm.
7.5 DMX Mode
This mode allows you to control the fixture by any universal DMX controller.
- All DMX-controlled devices need a digital start address so that the correct device responds to the signals. This digital start address is the channel number from which the device starts to "listen" to the DMX controller. The same starting address can be used for a whole group of devices or an individual address can be set for every device.
- When all devices have the same address, all the units will "listen" to the control signal on one particular channel. In other words: changing the settings of one channel will affect all devices simultaneously. If you set individual addresses, each device will "listen" to a separate channel number. Changing the settings of one channel will only affect the device in question.
- In case of the 1-channel VDPL300CD, you will have to set the start address of the first unit to 1 (CH1), the second to 2 (CH2), the third to 3 (CH3), and so on.
- In case of the 4-channel VDPL300CD, you will have to set the start address of the first unit to 1 (CH1~4), the second to 5 (1 + 4) (CH5~8), the third to 9 (5 + 4) (CH9~12), and so on.
To set the device to work with a DMX controller:
- Press
-
Use <UP> and <DOWN> to select the 1 or 4 channel DMX mode and press <ENTER> .
-
Press
- Use <UP> or <DOWN> to set the DMX starting address (A001 ~ A512) and press <ENTER> .
1 channel mode:
DMX Channel Values
| Channel | From | To | Description |
| 1 | 0 | 7 | Off |
| 8 17 | Chase effect 1 | ||
| 18 27 | Chase effect 2 | ||
| 28 37 | Chase effect 3 | ||
| 38 46 | Chase effect 4 | ||
| 47 56 | Chase effect 5 | ||
| 57 66 | Chase effect 6 | ||
| 67 75 | Chase effect 7 | ||
| 76 85 | Chase effect 8 | ||
| 86 95 | Chase effect 9 | ||
| 96 104 | Chase effect 10 | ||
| 105 | 114 | Chase effect 11 | |
| 115 | 124 | Chase effect 12 | |
| 125 | 133 | Chase effect 13 | |
| 134 | 146 | Chase effect 14 | |
| 144 | 153 | Chase effect 15 | |
| 154 | 162 | Chase effect 16 | |
| 163 | 172 | Chase effect 17 | |
| 173 | 182 | Chase effect 18 | |
| 183 | 191 | Chase effect 19 | |
| 192 | 201 | Chase effect 20 | |
| 202 | 211 | Chase effect 21 | |
| 212 | 220 | Chase effect 22 | |
| 221 | 230 | Chase effect 23 | |
| 231 | 240 | Chase effect 24 | |
| 241 | 249 | Chase effect 25 | |
| 250 | 255 | Sound-activated |
4 channel mode:
| Channel | From | To | Description |
| 1 | 0 | 9 | Off |
| 10 | 129 | Synchronous show | |
| 130 | 249 | Asynchronous show | |
| 250 | 255 | Sound-activated | |
| 2 | 0 21 | Chase effect 1 | |
| 22 42 | Chase effect 2 | ||
| 43 63 | Chase effect 3 | ||
| 64 85 | Chase effect 4 | ||
| 86 106 | Chase effect 5 | ||
| 107 | 127 | Chase effect 6 | |
| 128 | 149 | Chase effect 7 | |
| 150 | 170 | Chase effect 8 | |
| 171 | 191 | Chase effect 9 | |
| 192 | 213 | Chase effect 10 | |
| 214 | 234 | Chase effect 11 | |
| 235 | 255 | Chase effect 12 |
VDPL300CD
| Channel | From | To | Description |
| 3 0 255 Speed slow to fast | |||
| 4 | 0 | 9 | Strobe |
| 10 255 Strobe slow to fast | |||
8. Cleaning and Maintenance
All screws should be tightened and free of corrosion.
- The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting supports, do not change the location of the connections...
- Mechanically moving parts must not show any signs of wear and tear.
- The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
- Disconnect the device from the mains prior to maintenance activities.
- Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
There are no user-serviceable parts, apart from the fuse.
- Contact your dealer for spare parts if necessary.
Replacing the Fuse
Only replace the fuse by a fuse of the same type and rating.
- Before replacing the fuse, unplug the mains lead.
- Wedge the fuse holder out of its housing with a flat-head screwdriver.
- Remove the damaged fuse from its holder and replace with the exact same type of fuse.
- Insert the fuse holder back in its place and reconnect power.
9. Technical Specifications
| power supply | 100 ~ 240 VAC - 50/60 Hz |
| power consumption | 40 W |
| LEDs | 320 high power 5 mm LEDs (R:80, G:80, B:80, W:40, A:40) |
| DMX channels | 1 or 4 channels |
| projecting distance | ± 20 m |
| beam angle | 45° |
| dimensions | 457 x 433 x 286 mm |
| weight | 7 kg |
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device.
For more info concerning this product and the latest version of this manual, please visit our website www.hqpow er.eu.
The information in this m manual is subject to change w ithout prior notice.
© COPYRIGHTNOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
GEBRUI KERSHANDLEIDING
1. Inlei ding
Aan alle ing ezetenen v an de Euro pese Unie
Belangrijke m ilieu-info rmatie bet reflfende di t product
Version del softw are
Para controlar la version del software del aparato:
Vellem and Service and Quality Warranty
Since its foundation in 1972, Vellem an® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
-
All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
-
Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
Not covered by warranty:
-
all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits:
-
consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
-
flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
-
flaws caused deliberately, negligently or resulting from improper handling, negligent m maintenance, abusive use or use contrary to the manufacturer's instructions:
-
damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
-
damage resulting from an inappropriate packing and shipping of the article;
-
all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
-
Articles to be repaired must be delivered to your Vellem an® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
-
Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
-
Repairs occurring after warranty expiration are subject to shipping costs.
-
The above conditions are without prejudice to all commercial warranties.
The above enumeration is subject to m odification according to the article (see article's m anual).
