USER MANUAL 1.34 XC Wolf Garten

Instruction manual 11

F

Mode d'emploi 16

1

Istruzione d'uso 22

NL

Line drawing of a lawn mower with an inset close-up showing the blade and handle (no text or symbols)

B

C

Illustration of a lawn mower with a circular inset showing a propeller and rotational motion (no text or symbols)

E 2 1

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

G click click

H ≤ Ø 6,5 mm > Ø 6,5 mm

J click

K

Line drawing of a car with a magnified inset showing a hand holding a knife, no text or symbols present.

M

Line drawing of a lawn mower with grass blades and a moving arrow indicating clockwise motion (no text or symbols)

O 1 2

Illustration of a person pouring water from a container into a bucket (no text or symbols)

Q

Technical line drawing of a mechanical pump assembly (no text or symbols)

1.34 XC - 1.37 XC - 1.40 XC

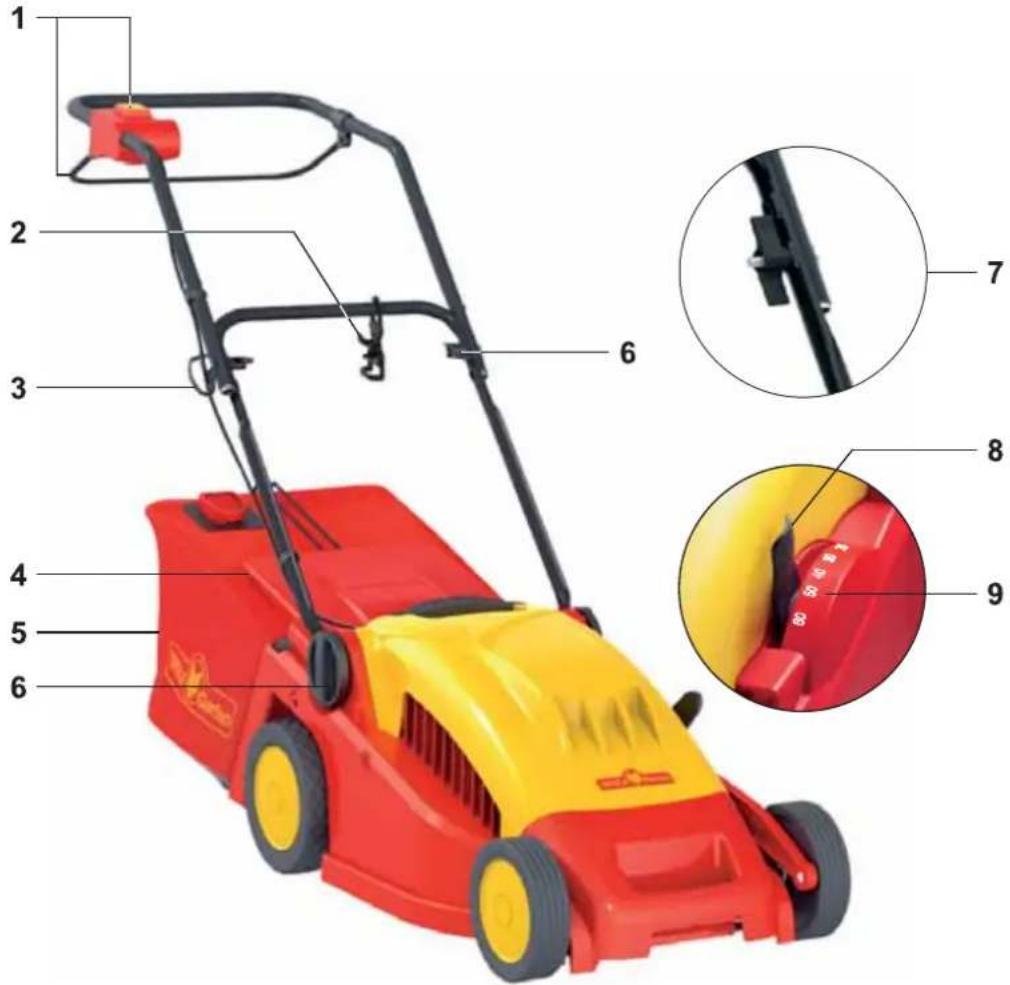

Labeled diagram of a red and yellow lawn mower with numbered parts and close-up insets showing internal components.

D

1 On-/Off-switch
2 Cable-kink protection
3 Cable anti-king protection
4 Deflector plate
5 Collector
6 Fitting of handle
7 Handle height adjustment
8 Height adjustment
9 Indicator to cutting

F

Red and yellow lawn mower toy with visible wheels and front blades (no text or symbols)

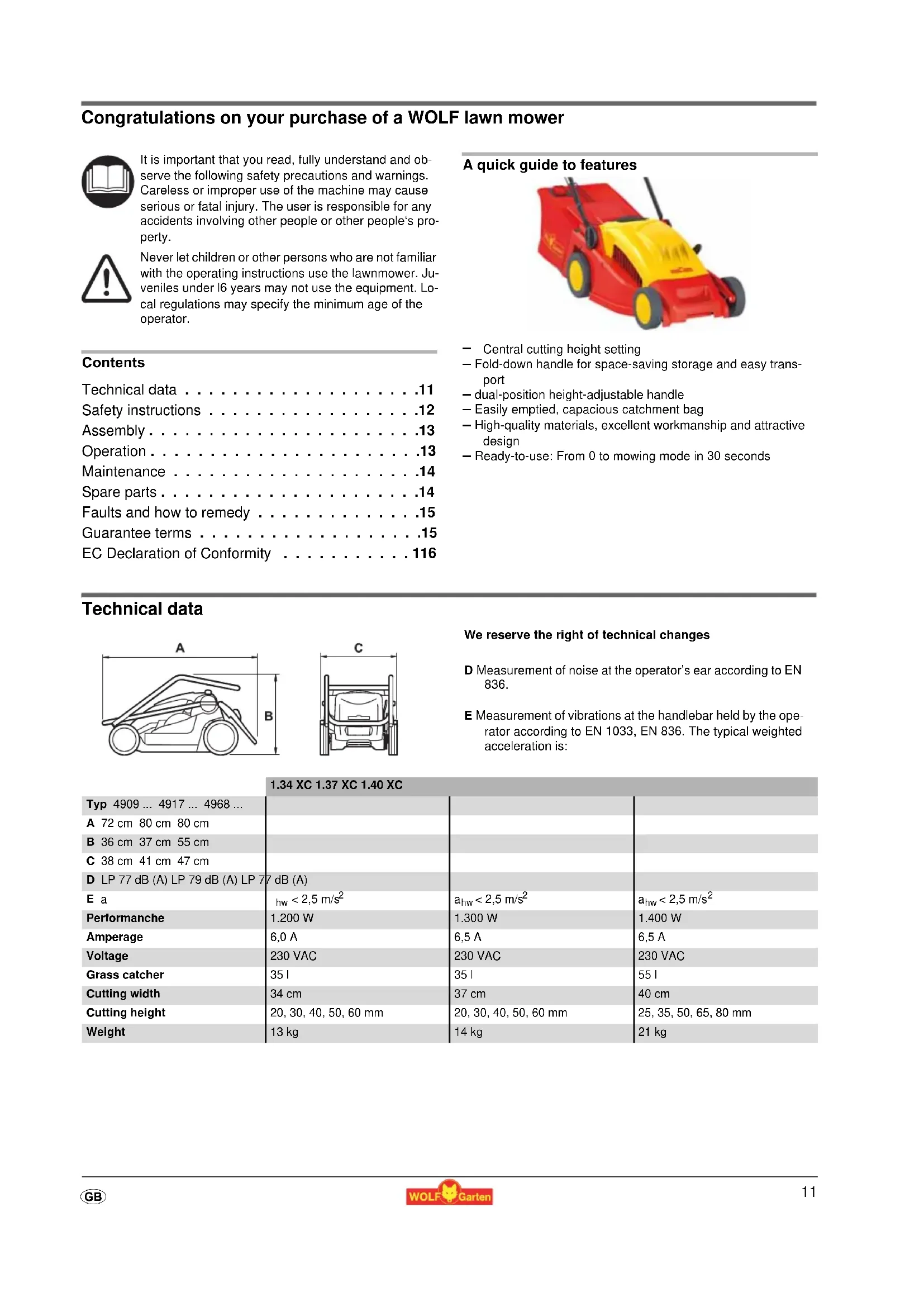

Congratulations on your purchase of a WOLF lawn mower

It is important that you read, fully understand and observe the following safety precautions and warnings. Careless or improper use of the machine may cause serious or fatal injury. The user is responsible for any accidents involving other people or other people's property.

Never let children or other persons who are not familiar with the operating instructions use the lawnmower. Juveniles under 16 years may not use the equipment. Local regulations may specify the minimum age of the operator.

Contents

Technical data .....11

Safety instructions .....12

Assembly....13

Operation....13

Maintenance .....14

Spare parts .....14

Faults and how to remedy .....15

Guarantee terms .....15

EC Declaration of Conformity .....116

A quick guide to features

Red and yellow lawn mower toy with visible wheels and front blades (no text or symbols)

• Central cutting height setting
• Fold-down handle for space-saving storage and easy transport
• dual-position height-adjustable handle
  — Easily emptied, capacious catchment bag
  — High-quality materials, excellent workmanship and attractive design
• Ready-to-use: From 0 to mowing mode in 30 seconds

Technical data

A B

We reserve the right of technical changes

D Measurement of noise at the operator's ear according to EN 836.
E Measurement of vibrations at the handlebar held by the operator according to EN 1033, EN 836. The typical weighted acceleration is:

1.34 XC 1.37 XC 1.40 XC

Typ 4909 ... 4917 ... 4968 ...
A 72 cm 80 cm 80 cm
B 36 cm 37 cm 55 cm
C 38 cm 41 cm 47 cm
D LP 77 dB (A) LP 79 dB (A) LP 77 dB (A)
E a	_hw < 2,5 m/s^2	a_hw < 2,5 m/s^2	a_hw < 2,5 m/s^2
Performanche	1.200 W	1.300 W	1.400 W
Amperage	6,0 A	6,5 A	6,5 A
Voltage	230 VAC	230 VAC	230 VAC
Grass catcher	35 l	35 l	55 l
Cutting width	34 cm	37 cm	40 cm
Cutting height	20, 30, 40, 50, 60 mm	20, 30, 40, 50, 60 mm	25, 35, 50, 65, 80 mm
Weight	13 kg	14 kg	21 kg

Safety instructions

Meaning of the symbols

Attention!
Read instruction manual before use!

Keep bystanders away!

Attention!
- Sharp knives - before performing a maintenance work or if the cable is damaged pull out the plug!

Keep the supp- ly flexible cord away from the cutting blade!

General information

• This lawnmower is designed for domestic grass and lawn surfaces. Because of the physical risk to the user or to others, the lawnmower must not be used for other purposes.
• Never mow the lawn if others – in particular children and animals – are in the vicinity.
• Only mow the lawn during daylight or with the aid of appropriate artificial light.

Before mowing

● Always wear sturdy shoes and long trousers when mowing. Never mow while barefoot or wearing flimsy sandals.
- Check the site on which the machine is to be used, and remove all items which could be caught and ejected
- Check the line and connection cable fitted to the outside of the lawnmower for damage and ageing (brittleness). Only use if in perfect condition.
- Only have the cable repaired by a qualified person.
- Check the grass catchment device regularly for wear-and-tear and deformation.
- Check the protective flap frequently for brittleness and to ensure that it is attached firmly.
- Before use, carry out a visual inspection to check whether the cutting gear and its mounts are blunt or damaged. In order to avoid generating an imbalance, replace blunt or damaged cutting gear as an entire set.

Cables

Attention! Electric shock through cable damage

When the cable is cut through or damaged, the safety fuse doesn't always trip.

• Do not touch cable, before pulling out the power plug from the socket.

• Damaged cable has to be completely replaced. Patching the cable with insulating tape is forbidden.

• Use only extension cables with a minimum cross-section of 3 x 1.5 m ^2 and a length of max. 25 m:

• When using rubber-sheathed cables, they must be of type HO 7 RN-F or heavier.
• When using PVC-sheathed cables, they must be of type HO5 VV-F or heavier (cables of this type are not suitable for continuous outdoor use).
  ● Plugs and couplings must be protected from splashes.
• Use a residual current protection device (RCD) with a residual current not exceeding 30 mA.
• Fit the connection cable to the mains lead cleat. Do not allow to rub against edges or against sharp or pointed objects. Do not squeeze cables through tight door or window openings. Switch devices must not be removed or circumvented (e.g. connecting the switch lever to the handle bars)

When mowing

• Do not tilt the lawnmower when switching on the motor, unless the lawnmower has to be tilted when starting. If that is the case, do not tip the lawnmower more than absolutely necessary, and only lift the part furthest removed from the user. Always ensure that both hands are in the operating position before replacing the lawnmower on the ground.
• Caution, danger! Cutting gear will continue running!
• Maintain the safety distance prescribed by the handle bars.
• Only switch on the motor if your feet are at a safe distance from the cutting gear.
  ● Take care to ensure a safe and stable position, especially on slopes. Never run; always walk calmly forward.
  ● Always mow slopes at right angles to the incline; never mow up and down.
• When mowing slopes, be especially careful when changing direction.
  ● Never mow steep slopes.
• Be especially careful when mowing backwards and pulling the lawnmower towards you.
• Switch the mower off when tilting it, running on empty or transporting the lawnmower, e.g. to/from a lawn or along paths.
• Never use the lawnmower if safety devices are faulty or missing, such as deflector and/or grass catchment devices.
• Caution: do not touch running cutters.
  ● Always keep hands and feet away from rotating parts. Do not stand in front of the grass ejector opening.
  ● Never lift or carry a lawnmower while the motor is running.
  ● Never open the guard flap while the motor is still running.
• Before removing the grass catchment device, turn off the motor and wait until the cutting gear has stopped running. After emptying the grass catchment device, reattach carefully.
• Never drive across gravel while the motor is running – impacting stones!

• Avoid mowing wet grass where possible.

• Switch off the lawnmower, pull the mains plug and wait for the lawnmower to stop running if, for example:
  — leaving the lawnmower

• unblocking a blade
  — intending to check, clean or work on the lawnmower
• you have encountered a foreign object, in which case you should check the lawnmower for damage and carry out any necessary repairs.
• the lawnmower is vibrating heavily (switch off immediately and ascertain the cause).
• you wish to change the settings or carry out cleaning work.
• you wish to check whether the connection cables have become tangled or damaged.
• If the connection cable is damaged during use, it must be immediately disconnected from the mains power supply. Do not touch the cable before it has been disconnected from the mains power supply.

Maintenance

Attention! Rotary cutter blade

Before all maintenance and cleaning work:

• Pull out the power plug.

• Do not touch running blades.

• Never spray down the lawnmower using water, especially not at high pressure.

• Regularly check and tighten all visible screws and nuts, especially those relating to the cutting bar, to ensure a firm fit.
  ● Always have blades changed or re-sharpened by a specialist workshop, since a balance test must be carried out as specified in the safety regulations following any removal of parts.
• Only use original WOLF spare parts. Otherwise we can't guarantee that your mower conforms to the safety regulations.
  ● Never park your lawnmower in damp rooms.
• For safety reasons, replace worn or damaged parts.

Disposal

Do not dispose of electrical equipment in domestic waste. Recycle equipment, accessories and packaging in an environment-friendly manner.

Assembly

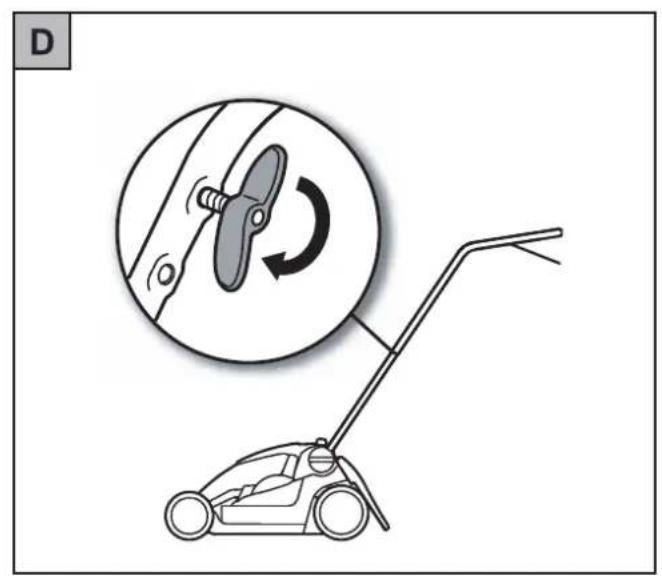

Fasten handle bars A B C D

Caution!

The cable can be damaged while folding up or pulling out the handle bar.

• Inlay the cable in the bend protection A

• When adjusting the handle height take care that the cable is not crimped C

• Fold the bottom part of the handle up and screw it tight with the two hand wheels B

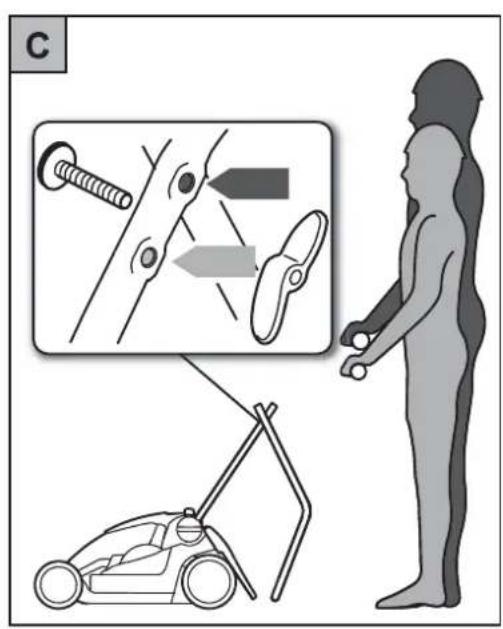

• Set the handle to the desired height . C
• Fold the upper part of the handle out and screw it tight with the wing nuts D

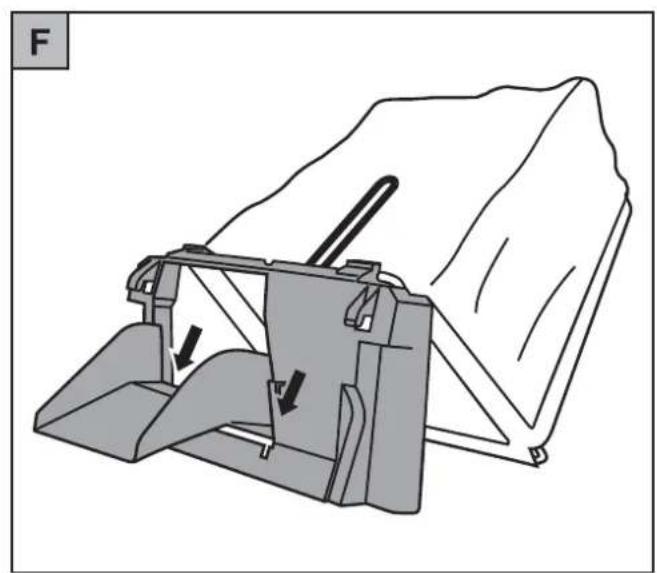

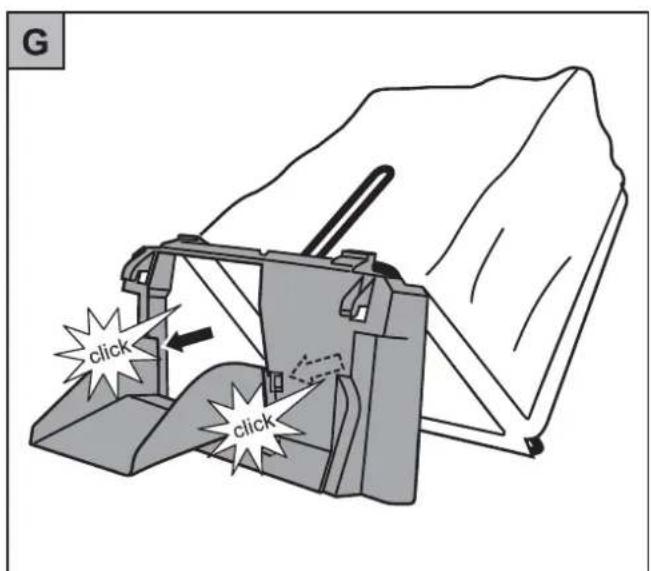

Mount the collecting bag E F G

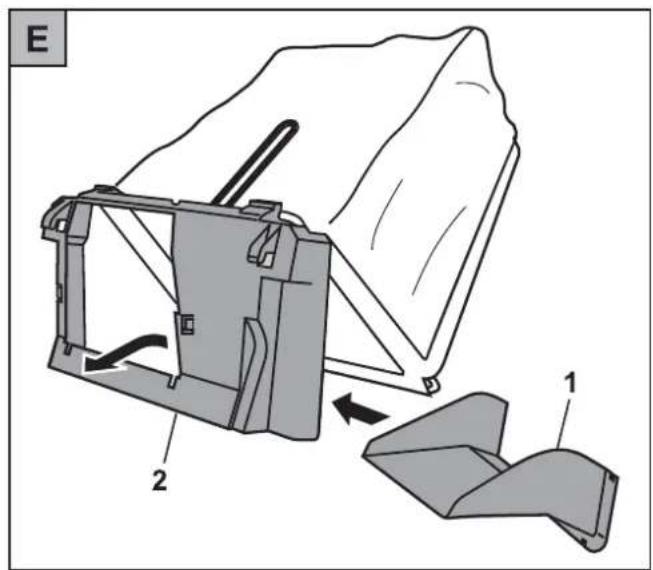

1. Place the chute (1) on the collecting bag flap (2) E F
2. Press the chute from behind onto the collecting bag flap. The chute is ready for use as soon as it locks into place G

Operation

Operating times

- Please check noise abatement regulations prevailing in your country.

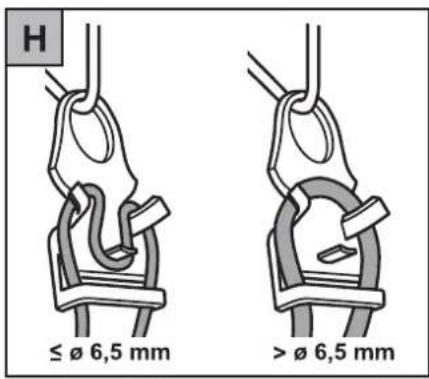

Feed cable through the strain relief H

- Please feed cable through the strain relief H

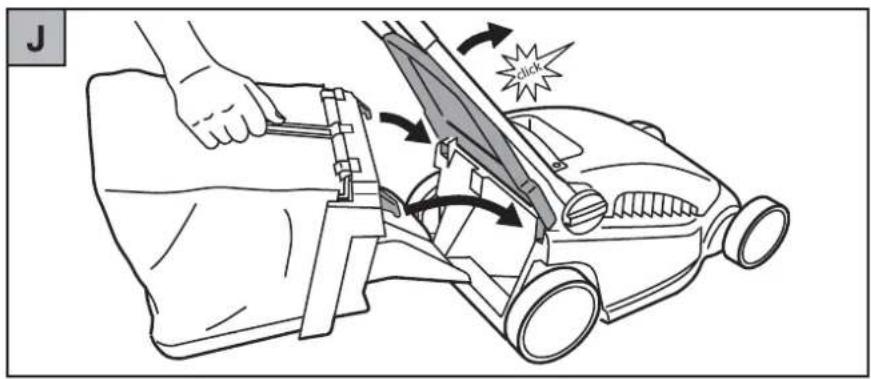

Hang up collection bag J

Attention! Rotary cutter blade

Undertake adjustments on the equipment only after the motor is switched off and the cutting tool has come to a standstill.

1. Lift the protective flap.
2. Hang the grass bag in the chassis with the hooks in the recesses (see arrow).
3. Replace the protective flap.

Set cut height

Attention! Rotary cutter blade

Undertake work/adjustments on the equipment only after the motor is switched off and the cutting tool has come to a standstill.

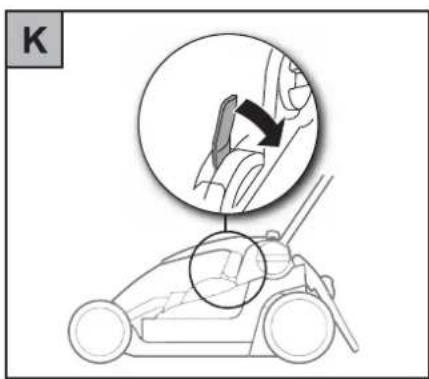

1. Pull the lever out . K

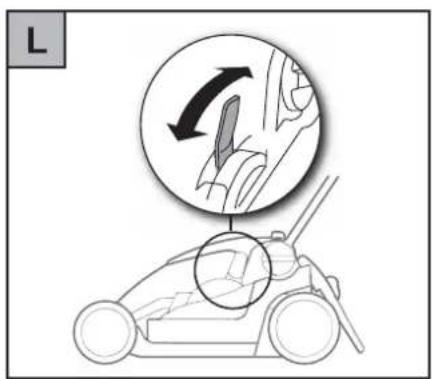

2. Set the desired cutting height . L

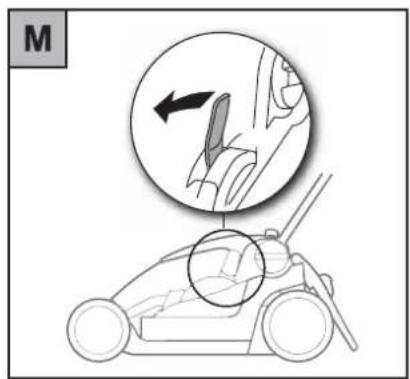

3. Press the lever back in . M

Selection of Cutting height

• If possible, mow when grass is dry in order to protect turf. Do not se cutting position too low when mowing very hight or wet grass.
  ● We recommend an average cutting height of 40-50 mm.

Connecting to the mains (230 Volts, A.C., 50 Hz)

- The mower operates from any normal household mains supply, provided with a 16 Amps. fuse.

Note: Residual current protection device

These protection devices safeguard while touching damaged wires, from insulation flaws and in certain cases, also while damaging live wires.

- We recommend that the equipment only be plugged into a power socket, which is protected by a residual current protection device (RCD) with a residual current of not more than 30 mA.

- Retrofit kits are available for old installations. Consult an electrician.

Starting and Stoping

• Switch on motor with mowerplaced on level and firm ground.

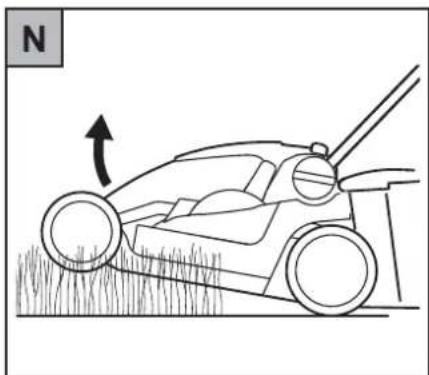

  ● not in high grass - alternatively tilt slightly .N

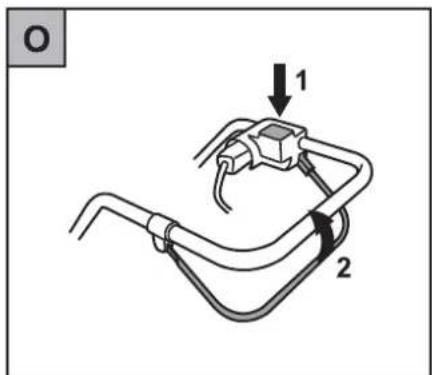

Switch-on motor 0

1. Depress button and hold (1).
2. Lift up bar (2).
3. Release bar (2).

Switch-off motor O

- Release bar (2).

Maintenance

General

Attention! Rotary cutter blade

Before all maintenance and cleaning work:

• pull out the power plug.
• Do not touch running blades.

Cleaning

• Clean mower thoroughly after each mowing with cloth or brush.
• Do not spray with water.

Winter Storage

● Clean mower thoroughly before storing away.
- Have your mower thoroughly checked once a year by an approved Service Centre.

Emptying of Grassbox

The grassbox is full and should be emptied as soon as grass clippings remain uncollected on the ground behind your mower.

Attention! Rotary cutter blade

Undertake adjustments on the equipment only after the motor is switched off and the cutting tool has come to a standstill.

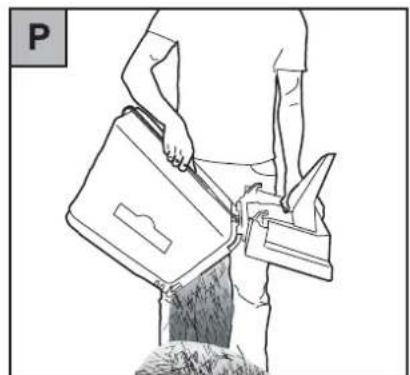

● Empty collection bag P
- Remove potential blockages in the cutting space before starting.

Tips for mowing

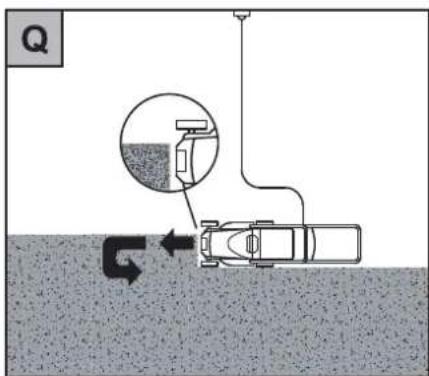

• To prevent strips of grass from being left unmowed, the cutting paths must always overlap a few centimeters Q
  ● Always let cable trail on the cut side of the lawn.

- Do not store it in a wet or humid place.

Changing blades R

- For all works on blades, coupling and cutter bars, first of all, pull out the power plug and wear protective gloves.

Attention!

An unbalance can develop after regrinding of the blade. ● Always regrind the blades in a specialist workshop, because an unbalance check should be undertaken according to the safety regulations.

- Always change blades in a specialist workshop. A torque spanner of 10 mm is mandatorily required. Fastening torque of the screws: 6-7 N-m (B7).

- Always change blades in a specialist workshop. A torque spanner of 13 mm is mandatorily required. Fastening torque of the screws: 16-18 N-m (40).

Spare parts

Item number Order description Product information

4909 031 Grass catcher (34)

4917 031 Grass catcher (37)

4968 030 Grass catcher (40)

4904 096 Vi 34 FM Replacement blade 34 cm

4907 096 Vi 37 FM Replacement blade 37 cm

4970 096 Vi 40 FM Replacement blade 40 cm

Faults and how to remedy

		Remedy (X) by:
Problem Possible cause		WOLF service-workshop	Yourself
Uneven running, heavy vibrations in the mower	Blades damaged	X ---
	Blades loose in the fastening parts	--- X
	Fuse blown	--- X
Motor will not run	Cable damaged: Attention! Electric shock through cable damageWhen the cable is cut through or damaged, the safety fuse doesn't always trip.Do not touch cable, before pulling out the power plug from the socket.Damaged cable has to be completely replaced.Patching cable with insulating tape is forbidden.	X	---
Poor mowing-/catching	Blunt blades	X ---
	Catcher bag blocked	--- X
	Incorrect cutting height	--- X

When in doubt, always consult a WOLF service workshop.
Important: switch off the mower and disconnect the mains plug before inspecting, cleaning or working on the blades.

Guarantee terms

Please carefully retain the guarantee card completed by the seller, or the proof of purchase.

The company WOLF-Garten provides a guarantee for 10 years from the date of purchase. This guarantee is in accordance with the relevant state of technology and the utilisation purpose / area of application. The consumer's statutory rights are not affected by the following guarantee guidelines.

Pre-conditions for the 10-years guarantee entitlement:

- Deployment of the device solely for private use.

The guarantee is reduced to 12 months in the commercial sector or leasing business.

• Proper handling and observance of all information given in the operating manual, which forms part of our guarantee terms.
• Observance of the prescribed maintenance intervals.
• No unauthorised alteration of the design.

The guarantee services will be performed by our authorized repair shops or:

GB WOLFGarden Ltd.

Crown BusinessPark

Tredegar

Gwent, NP22 4EF

Tel. :++ 44 / 14 95 30 66 00

Fax :++ 44 / 14 95 30 33 44

E-mail: [e-mail]

• Installation of original WOLF replacement parts / accessories.
• Presentation of the completed guarantee card and/or proof of purchase.

This guarantee does not extend to normal wear-and-tear on accu's, blades, blade mounting components or friction disks, V-belts/toothed belts, running wheels/tyres, air filters, spark plugs and spark plug connectors. Any guarantee claim shall be immediately void in the event of unauthorised repairs. Faults and defects which can be traced to material or manufacturing faults will be rectified exclusively by our contracted workshops (the seller has the right to remedy a defect) in your vicinity, or by the manufacturer if the latter is closer. Any claims going beyond the provision of a guarantee are ruled out. There is no entitlement to a replacement. Any transport damage should be reported not to us but to the shipper in question since, otherwise, any compensation claims vis-à-vis the shipper would be voided.

Red and yellow lawn mower toy with visible wheels and front blades (no text or symbols)

Red and yellow lawn mower toy with visible wheels and front blades (no text or symbols)

Red and yellow toy lawn mower with black wheels (no text or symbols visible)

Lawnmower, walk behind and mains-operated

Red and yellow lawn mower on a green grassy field with trees in the background (no visible text or symbols)

Man using a red-handled tree trap to lift a tree branch, with green foliage and stone pavement in background (no text or symbols visible)

A leafy green lettuce growing in soil with a red-handled tool nearby (no text or symbols visible)

409269 0000000000 Type Nysteb

Illustration of a red spray gun with a flame, mounted on a green hedgehog (no text or symbols)

Red and black lawn shaver in a grassy field with green foliage (no text or symbols visible)

Person using a red pushrower on a paved path in a garden setting (no visible text or symbols)

Hand watering a red and yellow lawn tool in a green grassy garden with colorful flowers (no text or symbols visible)

Red lawn mower with white and gray roof, parked on grass under trees (no visible text or symbols)

Close-up of a manual pruning tool with red and silver blades, placed on forest leaves (no text or symbols visible)
