USER MANUAL OFEN Mini 68825 UNOLD

Black UNOLO portable toaster with fish inside, accompanied by two bread rolls and a plate of buns (no visible text or symbols)

OFEN MINI

Bedienungsanleitung

Instructions for use Model 68825

Technical Specifications....19

Explanation of symbols....19

Important Safeguards....19

General information 22

Before using the appliance for the

first time....22

Operation....23

Cleaning and Care 24

Recipes 25

Guarantee Conditions....26

Waste Disposal/Environmental Protection ...26

Service 17

Labeled diagram of a toaster oven showing interior components and exterior view with numbered parts

IHR NEUER OFEN

D Ab Seite 8

Close-up of a printer emitting printed documents into a slot (no visible text or symbols)

REZEPTE

Pizza-Toast

Zutaten:

Housing: Metal/plastic

Door: Heat-resistant glass

Dimensions: Approx. 35.3 x 27.1 x 19.5 cm (L/W/H)

Volume: Approx. 9 litres

Weight: Approx. 2,7 kg

Power cord: Approx. 90 cm

Features: Temperature regulator, temperature adjustable from 100-230°C, timer up to 30 minutes, indicator light

Accessories: Baking sheet, grill grate, ope rating instruction s

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

IMPORTANT SAFEGUARDS

Please read the following instructions and keep them on hand for later reference.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children of less than 3 years should be kept away unless continuously supervised.

3. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have

been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. CAUTION – Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Connect appliance only to an AC power supply to the voltage on the rating plate.

4. The appliance is to be connected to a socket-outlet having an earthing contact.

5. Do not operate this appliance with an external timer or remote control system.

6. Do not operate the appliance on or in the vicinity of hot surfaces.

7. The appliance is intended for indoor use only. Place the appliance on a dry, level and sturdy surface.

8. Leave sufficient space between the appliance and walls, furniture and flammable objects such as curtains. There should be at least 10 cm of space on the sides and at least 30 cm above the appliance.

9. Place the appliance with its back against the wall.

10. Never leave the appliance unattended while it is in operation.

11. Always maintain a distance of at least 2 cm between the food being cooked in the oven and the top and bottom heating elements to prevent the food from catching fire - fire hazard!

12. Use only suitable cookware for baking and cooking in the oven.

13. Use only accessories recommended by the manufacturer. The use of other accessories can result in hazards and can also damage the appliance.

14. The appliance is intended for household use only, or for similar areas of use, such as:

■ kitchenettes in businesses, offices or other workplaces,

■ agricultural enterprises,
■ for use by guests in hotels, motels or other lodgings,
■ in private guesthouses or holiday homes.

1. Do not pull on the power cord. Do not hang the power cord over the edge of a countertop. Do not wrap the power cord around the appliance and avoid kinking of the power cord.

2. Make sure that the power cord does not come into contact with the hot parts of the appliance. Do not touch hot parts. Always use pot holders.

3. The appliance becomes hot during operation. Please use pot holders. Never cover the appliance during operation.

4. Provide for adequate ventilation when the appliance is in operation.

5. Use the appliance only indoors.

6. The appliance does not shut off automatically. Therefore, set the temperature selector switch to 0 and unplug the appliance after use.

7. In spite of the integrated timer that switches off the appliance after a maximum of 30 minutes, after preparing food the temperature regulator must be set to O/OFF/AUS and the mains plug must be unplugged.

8. Never cover the appliance with aluminium foil or other objects during operation. This also applies for the crumb tray; the crumb tray must always be freely accessible.

9. Never clean the appliance with scouring sponges that contain metal. Scouring pads that contain metal can cause electric shock if the contact electrical components!

10. Please note that the food that is prepared in the appliance must not be heavier than 3.0 kg. Place the prepared food uniformly on the baking sheet, or the grill grate to avoid one-sided load.

11. Never place paper, plastic or other similar objects in the oven.

12. If you notice scratches or other damage on the glass door of the appliance, please contact our customer service organisation before placing the appliance in service again.

13. Do not immerse the appliance in water or other liquids.

14. All parts must be completely dry before being assembled.

15. Please allow the appliance to cool completely before moving, cleaning or storing it. Before handling the appliance, always unplug it from the electrical outlet.

16. Check the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance for inspection and/or repair to our after sales service. Unauthorized repairs can result in serious risks to the user and will void the warranty.

CAUTION:

The appliance becomes very hot during operation!

Never open the housing of the appliance. This can result in electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

GENERAL INFORMATION

CAUTION!

The appliance becomes very hot during operation, also on the outer surfaces. Therefore, be sure to maintain sufficient clearance between the appliance and all flammable objects; also provide for sufficient ventilation. Always use pot holders whenever the appliance is in operation or as long as it is still hot.

1. Your oven is ideal for daily use in preparing a wide variety of foods. Since cooking times can vary, we recommend that you keep an eye on the cooking process and check the food regularly for doneness.
2. For some recipes we recommend pre-heating the appliance. For these recipes, switch on the appliance 5 to 10 minutes ahead of time and select the temperature specified in the recipe.
3. Do not use metal objects to clean the housing or baking sheet. The baking sheet is not suitable for cutting. Never cut cake or pizza on the baking sheet.
4. The appliance becomes hot during operation; therefore, always use pot holders.
5. The glass door is not a placement surface. Therefore, to prevent damage, do not place any objects such as pans and dishes on the open glass door.
6. Always open the glass door carefully; escaping hot air could result in burns.
7. We recommend using the oven to keep food that has finished cooking warm only for a short time, since otherwise it can dry out.
8. After use, make sure that all switches are set to O/OFF/AUS.
9. When not in use, you must always unplug the appliance from the electrical outlet.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

1. Remove all packaging materials from the appliance and ensure that all parts are complete and undamaged. Keep packaging materials away from children–danger of suffocation!
2. Wash the removable parts in warm water with mild dishwashing detergent. Do not use abrasive cleaners or steel wool. Rinse off the parts with clean water. Dry all parts thoroughly.
3. Wipe off the housing with a damp cloth.
4. If the heating elements need to be cleaned, wipe them off with a well wrung-out damp cloth. Ensure that water cannot get into the housing.
5. Do not immerse the appliance in water or other liquids.
6. Note: The first time you use the appliance, it is possible that there will be some smoke. This smoke is normal and does not represent a hazard. How-

ever, we recommend pre-heating the appliance before first use to eliminate any residue.

1. Place the appliance on a heat-proof, sturdy and level surface.

2. Leave sufficient space between the appliance and walls and other flammable objects, such as curtains.

3. Ensure that all switches are set to the O/OFF/AUS position.

4. Plug the power cord of the appliance into an electrical outlet (220–240 V \~ AC). As soon as the appliance is connected to the mains supply the indicator light is illuminated.

5. Using the temperature selector switch, set the appliance to 230^ C and turn the timer to 30 minutes.

6. Open the window during this burn-in phase. After pre-heating the appliance there may already be visible traces of use; however, these do not affect the function of the appliance and do not constitute grounds for a complaint.

7. Switch off the appliance (all switches on O/OFF/AUS and allow the appliance to cool completely.

8. Now your appliance is ready for use.

OPERATION

1. Prepare the dish as desired .

2. Plug the power cord of the appliance into an electrical outlet (220–240 V\~AC). As soon as the appliance is connected to the mains supply the indicator light is illuminated.

3. Use the temperature regulator to set the desired temperature.

4. Via the timer, select the desired cooking time between 0 and 30 by setting the timer control to the desired operating time. After this time has elapsed, a signal tone sounds and the heating elements of the appliance switch off. If you want to prepare a dish that takes longer than 30 minutes in the oven, it may be necessary to set the timer several times. Naturally, you can readjust the timer settings at any time while the oven is in operation.

5. Place the food in the oven and close the glass door of the appliance.

- Grill grate: Suitable for food to be baked au gratin, and food in baking pans, and also as a holder for the baking sheet. The baking sheet can be placed on the grill grate.

■ Baking sheet: Suitable preparation of foods that require water or that lose liquid during the cooking process.

1. The appliance automatically switches off the heating elements after the set time.

2. In addition when the dish is done, turn the temperature regulator to O/OFF/AUS.

3. To safely switch off the appliance, unplug the mains plug from the electrical outlet. The indicator light will go out.

CAUTION:

The appliance is very hot during and after operation! The door and the outer surface can become very hot during operation.

CLEANING AND CARE

Before cleaning, switch off the appliance (set all switches to O/OFF/AUS) and unplug the mains plug from the electrical outlet. Allow the appliance to cool completely.

1. Do not immerse the appliance in water or other liquids in order to clean it.
2. All removable parts, such as the baking sheet and grill grate, etc. can be washed in warm water with mild dishwashing detergent. After washing, rinse the parts with clean water and dry them thoroughly.
3. In case food ever burns on, you can briefly soak the specific part in hot water with mild dishwashing detergent to remove all residues.
4. If the heating elements need to be cleaned, wipe them off a well wrung-out damp cloth.
5. To clean the housing, wipe it off inside and outside with a damp cloth.
6. Ensure that water does not get into the appliance.
7. The interior surfaces of the oven are equipped with an easy-to-clean surface and can be cleaned with a damp cloth. Wipe off splashes immediately with a damp cloth.
8. Never use e cautic or abrasive cleaners or steel wool, etc.

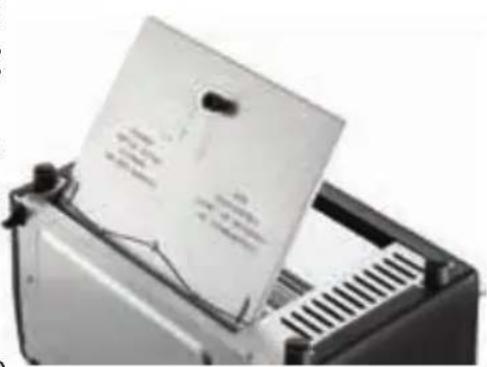

9. Remove crumbs and residue from the crumb door on a regular basis. Unplug the mains plug from the electrical outlet!
10. To do this, tilt the appliance slightly to the side (do not turn it completely upside down).
11. Open the door.
12. Empty the crumbs.
13. Close the door and firmly fasten it in place.
14. The appliance must be completely dry before you use it again.

Close-up of a printer's paper being inserted into a slot (no visible text or symbols)

RECIPES

Pizza toast

Ingredients:

2 slices bread for toasting, 1 slice cervelet salami, 1 slice cooked ham, 1 small tomato, 1 TBSP sliced mushrooms, 1 slice Edam cheese, 1 TBSP sour cream, 12 tsp oregano, salt and pepper to taste

Preparation:

Place the bread slices on the grate, insert the grate at the third level from the bottom and toast the bread briefly at 230^ C top and bottom heat until the top side is slightly brown. Then turn and toast the other side briefly. Dice all ingredients except the sour cream and spices, mix with the sour cream and spices and spread mixture on the toasted bread slices.

Place the bread slices on the greased baking sheet, place the baking sheet on the grill grate and insert the grill grate in the oven at the third level from the bottom and brown at 230 °C with top and bottom heat for about 5 minutes.

Pork steaks

Ingredients:

2 pork steaks (200 g each), 1/2 tsp salt, a few dashes of Tabasco, 1/2 tsp paprika, 1 TBSP oil

Preparation:

Prepare a marinade from the Tabasco, paprika and oil and marinate the steaks for approx. 2 hours.

Place the seasoned steaks on the grill grate; grill the steaks at 230^ C with top and bottom heat approx. 10 minutes on each side.

TIP:

To save time use steaks that have already been marinated (ready-to-grill steaks) from the butcher.

Mixed vegetables

Ingredients:

100g seasonal mixed vegetables, prepared, 1 TBSP mixed herbs, 1/2 tsp spices for vegetables

Preparation:

Cut larger vegetables into fine strips. Mix the vegetables with the spices and distribute on a piece of aluminium foil. Add butter in flakes, if desired.

Take the foil by the corners and twist together to form small packages. Place the wrapped vegetables on the baking sheet and cook in the oven at 180^ C with top and bottom heat for about 30 minutes. The cooking time can vary depending on the type of vegetables.

After cooking, sprinkle the vegetables with fresh chopped herbs.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODÈLE 68825

SPÉCIFICATION TECHNIQUE

Puissance : 1.050 Watts, 220-240 V\~, 50 Hz

Close-up of a printer's paper being inserted into a slot (no visible text or symbols)

RECETTES

Toast pizza

Ingrédients :

CONDITIONS DE GARANTIE

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Close-up of a printer's paper being inserted into a slot (no visible text or symbols)

RECEPTEN

Pizza-toast

Ingrediënten:

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

ISTRUZIONI PER L'USO MODELLO 68825

DATI TECNICI

Volume: Circa 9 litri

Peso: Circa 2,7 kg

Close-up of a mechanical device with a paper sheet being inserted, showing internal components and ventilation grilles (no visible text or symbols)

RICETTE

Toast pizza

Ingredienti:

Symbol of a trash bin crossed with a diagonal line and a horizontal line, representing no waste or elimination (no text or labels)

MANUAL DE INSTRUCCIONES MODELO 68825

DATOS TÉCNICOS

Potencia: 1.050 vatios, 220-240 V\~, 50/60 Hz

Close-up of a printer's paper being inserted into a black box (no visible text or symbols)

RECETAS

Tostada de pizza

Ingredientes:

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

NÁVOD K OBSLUZE MODEL 68825

TECHNICKÉ ÚDAJE

Close-up of a printer's front panel with paper cutouts and ventilation slots (no visible text or symbols)

RECEPTY

Toust pizza
