HB 5850 - Hair Straightener GRUNDIG - Free user manual and instructions

USER MANUAL HB 5850 GRUNDIG

White hair styling brush with black handle and orange buttons, no visible text or symbols on body

DE EN TR ES FR HR PL

A B C D E F G 199 GRUNDIG

DEUTSCH 05-15

ENGLISH 16-23

TÜRKÇE 24-31

ESPAÑOL 32-40

FRANÇAIS 41-49

HRVATSKI 50-58

POLSKI 59-68

Prohibition sign showing a showerhead falling from water, indicating no pollution or leakage

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

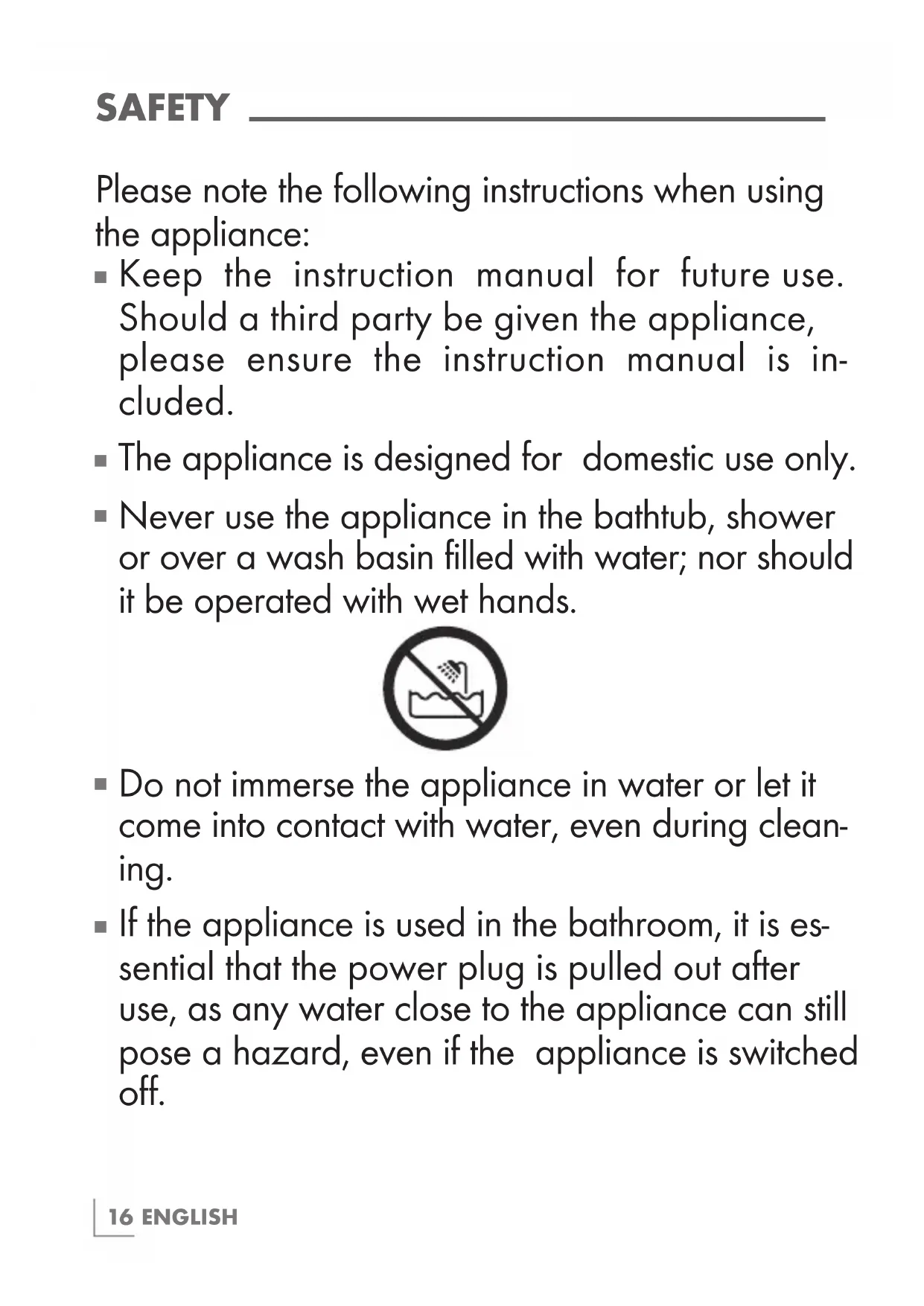

Please note the following instructions when using the appliance:

• Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.
  ■ The appliance is designed for domestic use only.
  ■ Never use the appliance in the bathtub, shower or over a wash basin filled with water; nor should it be operated with wet hands.

Prohibition sign showing a prohibition symbol with a showerhead above water and a diagonal line

• Do not immerse the appliance in water or let it come into contact with water, even during cleaning.
  If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as any water close to the appliance can still pose a hazard, even if the appliance is switched off.

• For additional protection, It is recommended you to install a residual current device (RCD) having a rated residual operating current not exceeding 30 mA in the electrical circuit. Ask your installer for advice.
  ■ Never cover the appliance, for example with a towel.
  ■ The appliance can become very hot. Never leave your hair in contact with the bristles for more than a few seconds.
  ■ The housing of the appliance may get hot when used for long periods. In this case do not touch with your hands and allow it to cool.

• Do not allow the hot bristles to come into contact with your face, neck or head.
  ■ Unplug the appliance after use. Do not disconnect the plug by pulling on the cord. Place the appliance on a heat resistant surface and allow it to cool.
  ■ Never use the appliance if it or the power cord is visibly damaged.

■ If the power cord is damaged, it must be replaced by the manufacturer, a service centre or a similarly qualified person to avoid any danger of electrical shock.
- Keep the appliance out of the reach of children.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Never open the appliance under any circumstance. No warranty claims are accepted for damage caused by improper handling.

- Check if the mains voltage on the type plate (on the handle of the appliance) corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to unplug it.

■ Never wrap the power cord around the appliance.
■ Never use the appliance in or near to combustible, flammable places and materials and furniture. Do not let the appliance come into contact with or become covered by flammable materials e.g. curtains, textiles, walls, etc. Please make sure that the appliance is always kept a safe distance away from flammable materials and furniture.
- Do not put paper, cardboard, plastic under the appliance.
■ Make sure that you unplug the product before cleaning and maintenance.

Dear Customer,

congratulations on the purchase of your GRUNDIG Ionic Straightener Brush HB 5850.

Read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come.

A responsible approach!

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

GRUNDIG focusses on contractually agreed social working conditions with fair wages for both internal employees

and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

Grundig.

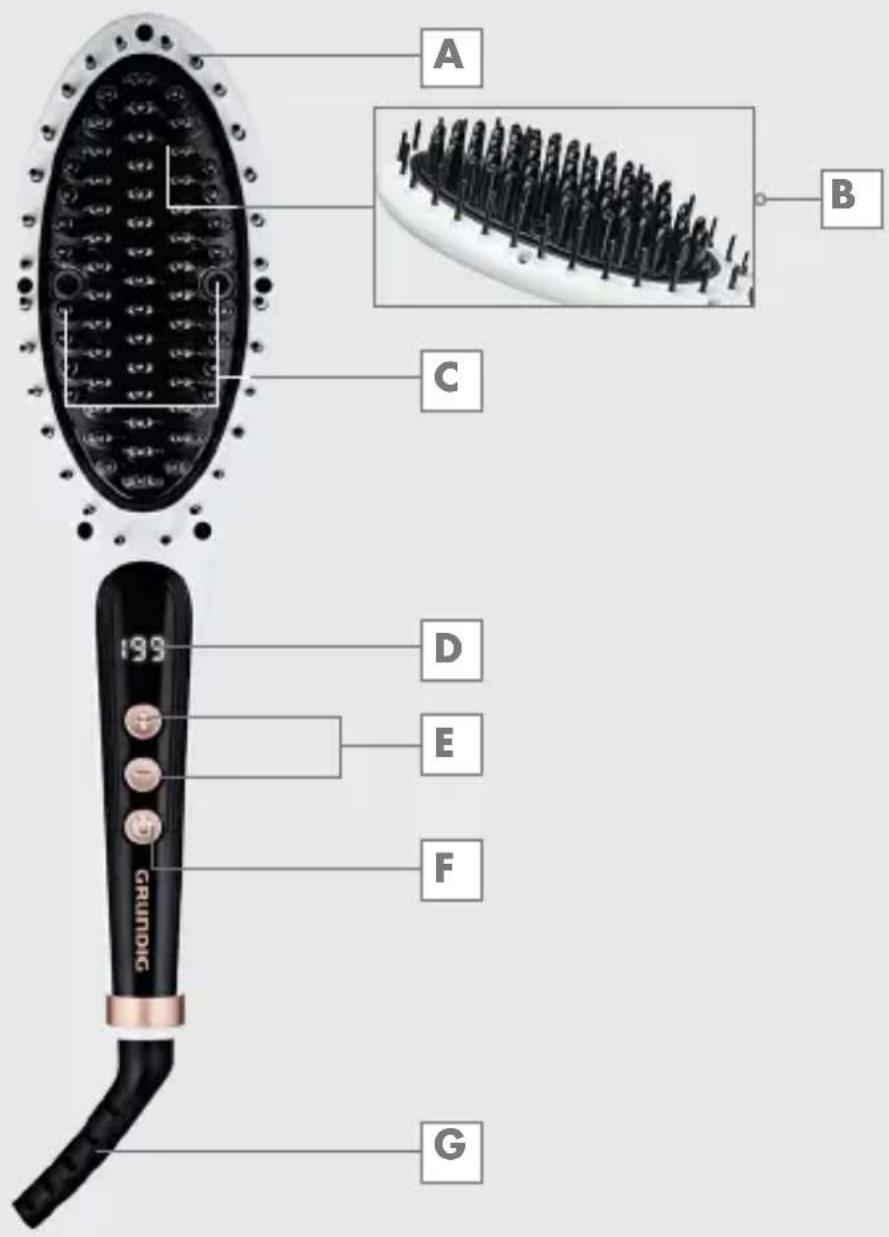

Controls

See the figure on page 3.

A Non-heated plastic bristles

B Heated ceramic bristle

c Ions outlet

D LED display

E "+" and "-" button

F On/off button

G Cable with swivel joint and hangning loop

Straightening hair

Caution

■ The housing of the appliance becomes very hot. Do not touch the housing near the heating element.
■ Place the appliance on a solid, flat, heat resistant surface. Do not place the appliance on any soft or uneven surfaces such as carpets, rugs or bedding and never cover.
■ Make sure your hair is completely dry.

1 Plug the power cord G into the wall socket.
2 Switch the appliance on by pushing the On/Off switch F.
- The LED display D lights up in white.
3 Set the temperature by operating the "+" and "-" buttons E
- The LED display illuminates the temperature when it is ready.

Notes

■ Adjust to the lowest temperature the first time you use it.
■ Adjust the temperature (5 settings) suitable for your type of hair.

4 Comb or brush out a section of your hair about 3 cm wide, starting at the neck.
5 Guide the brush in a careful, smooth movement away from the head to the end of the section of hair. Avoid making kinks in it

Caution

■ Do not touch the bristles as they are very hot.
6 Hold the appliance in position until the hair is heated.

- This takes a few seconds at the most.

Notes

■ Repeat the procedure section by section.
■ If you have thick hair, you might have to repeat this procedure on the same section several times.
- Keep the strand of hair taut so that no kinks form.

7 After use, switch the appliance off by pushing the On/Off switch F. The LED display D turns off. Then unplug the power cord G.

Notes

■ Switches off automatically after 60 minutes

■ Never leave the appliance unattended while it is plugged in.
■ Unplug the power cord after use.
- Allow the appliance to cool in a safe place.

Useful tips

■ To achieve best results make sure your hair is completely dry.

INFORMATION

Cleaning and care

1 Turn the appliance off and unplug the power cord G from the wall socket.
2 Before cleaning, allow the appliance to cool completely.
- The appliance can become very hot and may take up to 45 minutes to cool.
3 Clean the housing and ceramic bristles only with a soft cloth moistened with water.

Caution

■ Never put the appliance or power cord in water or any other liquid. Do not use any cleaning agents.

Note

■ Before using the appliance after cleaning, dry all parts carefully using a dry soft towel.

Storage

■ If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure that it is unplugged, has completely cooled and is completely dry.
■ Do not wrap the power cord around the appliance.
- Keep it in a cool, dry place.
■ Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin crossed out by a diagonal line, no text or numbers present

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offi- cal collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was pu- chased. Each household performs important role in recovering and recy- cling of old appliance. Appropriate disposal of used appliance helps pre- vent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive

(2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply:

100-240 V\~, 50/60 Hz

Power: 58-63 W

Electrical insulation class: II

Technical and design modifications reserved.

Prohibition sign showing a shower stroke over water with no text or symbols

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Prohibition sign with crossed-out machine and battery symbol, indicating no protection or resistance

Prohibition sign showing a shower stroke over water with no text or symbols

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Pure electrical circuit lines without any symbols

Prohibition sign showing a showerhead spraying water, no text present

Cher client, chère cliente,

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Symbol of a vehicle crossed with a diagonal line, no text or numbers present

Prohibition sign showing a showerhead falling from a container, enclosed in a circle (no text or symbols)

■ Ne uranjajte uređaj u vodu i pazite da ne dođe u kontakt s vodom, čak i tijekom čišćenja.

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Ovaj simbol označava da se ovaj proizvod ne smije odlagati zajedno s ostalim kućanskim otpa- dom na kraju njegovog radnog vijeka. Rabljeni uređaj mora se vratiti na službeno sabirno mjesto za recikliranje električnih i elektroničkih uređaja. Da biste pronašli te sustave za prikupljanje, obratite se lokalnim vlastima ili prodavaču gdje je proizvod kupljen. Svako kućanstvo igra važnu ulogu u uporabi i recikliranju starih uređaja. Odgovarajuće odlaganje iskori-

štenog aparata pomaže u sprečavanju mogućih negativnih posljedica za okoliš i ljudsko zdravlje.

Usklađenost s Direktivom o zabrani uporabe određenih opasnih tvari u električnoj i elektroničkoj opremi (RoHS):

Prohibition sign showing a showerhead spraying water, no text present

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.
