Product type	Hair dryer
Brand	Grundig
Model	QuietDry HD9681
Power supply	220-240 V~, 50-60 Hz
Power	1580-1850 W
Electrical insulation class	II
Temperature levels	3 (low, moderate, high)
Airflow levels	2 (silent mode and strong flow)
Cold air function	Yes, dedicated button
Overheat protection	Yes
Removable air intake grille	Yes
Included accessories	Fine concentrator nozzle, diffuser, 2 styling nozzles (1 standard, 1 fast)
Cable length	Approximately 1.8 m (estimated)
Weight	Approximately 600 g (estimated)
Dimensions (L x W x H)	Approximately 25 x 8 x 8 cm (estimated)
Maintenance	Clean with a soft cloth, do not immerse, let cool
Safety	Do not use near water, unplug after use
Spare parts and repairability	Accessories available for at least 5 years, repair by authorized center
Recycling	Compliant with WEEE, do not dispose of with household waste

Frequently Asked Questions - QuietDry HD9681 GRUNDIG

Can I use this hairdryer in a bathroom?

It is not recommended to use the appliance in a bathroom, under a shower or near a bathtub. If you still use it, unplug it after each use and install a residual current device (30 mA) for added safety.

How to activate the cold air function?

Press the Cool air button (mark C) to interrupt the hot airflow and release cold air. Ideal for setting your hairstyle.

What accessories are included with the HD9681 model?

The hairdryer comes with a fine concentrator nozzle, a diffuser for volume, and two styling nozzles (one standard and one fast).

How to clean the hairdryer?

Unplug the appliance and let it cool. Clean it with a soft cloth. Never immerse the appliance or cable in water. The air intake grille is removable for easier cleaning.

What if the power cord is damaged?

Do not use the appliance. Contact an authorized service center to replace the cable. Any non-professional repair may be dangerous.

How to store the appliance after use?

Unplug it, let it cool completely and make sure it is dry. Never wrap the cable around the appliance. Store it in a cool, dry place, out of reach of children.

What temperature settings are available?

Three levels: low (section §), medium (section §§) for gentle drying, and high (section §§§) for fast drying. Combine with the 2 airflow speeds.

Is the hairdryer quiet?

Yes, the QuietDry model has a silent mode (speed 1) that offers a gentle airflow with reduced noise. Ideal for undisturbed use.

Can I use the diffuser on wet hair?

Yes, the diffuser is designed to add volume to the roots and can be used on damp or dry hair. Set a moderate temperature to avoid burning the scalp.

How to recycle this appliance at the end of its life?

Do not dispose of it with household waste. Take it to an official collection point for waste electrical and electronic equipment (WEEE). The packaging is recyclable.

USER MANUAL QuietDry HD9681 GRUNDIG

Silhouette of a human head with curved lines, resembling a stylized face or profile (no text or symbols)

HD 9681

Illustration of a woman with closed eyes and hands clasped, accompanied by a red prohibition symbol (no text or labels)

Safety warning sign showing no liability for a car seatbelt, with an electrical outlet diagram above.

Line drawing of a hair dryer with red label (no text or symbols on the diagram itself)

3

4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Illustration of a person holding a book, no text or symbols present

6 2 1 0 1 1 0 5 50

7 2 1 0 18 14 13 11 10 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 ✓

Diagram of a hairdryer with a fan blade and handle, showing a red arrow indicating direction (no text or symbols)

Line drawing of a handheld hair dryer with red label (no text or symbols)

10 31

1

Prohibition sign with red circle and diagonal line crossing, indicating no prohibition or resistance

Prohibition sign with red circle and diagonal line crossing, indicating no prohibition or disapproval

Illustration of a hand cleaning a surface with a no-smoking symbol (no text or labels)

Illustration of a hand holding a medical device with a no-smoking symbol (no text or labels)

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMİZLEME VE BAKIM
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
HR	RAD ČIŠĆENJE I ODRŽAVANJE
PL	OBSŁUGA CZYSZCZENIE I KONSERWACJA

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Symbol of a vehicle crossed with a diagonal line, no text or numbers present

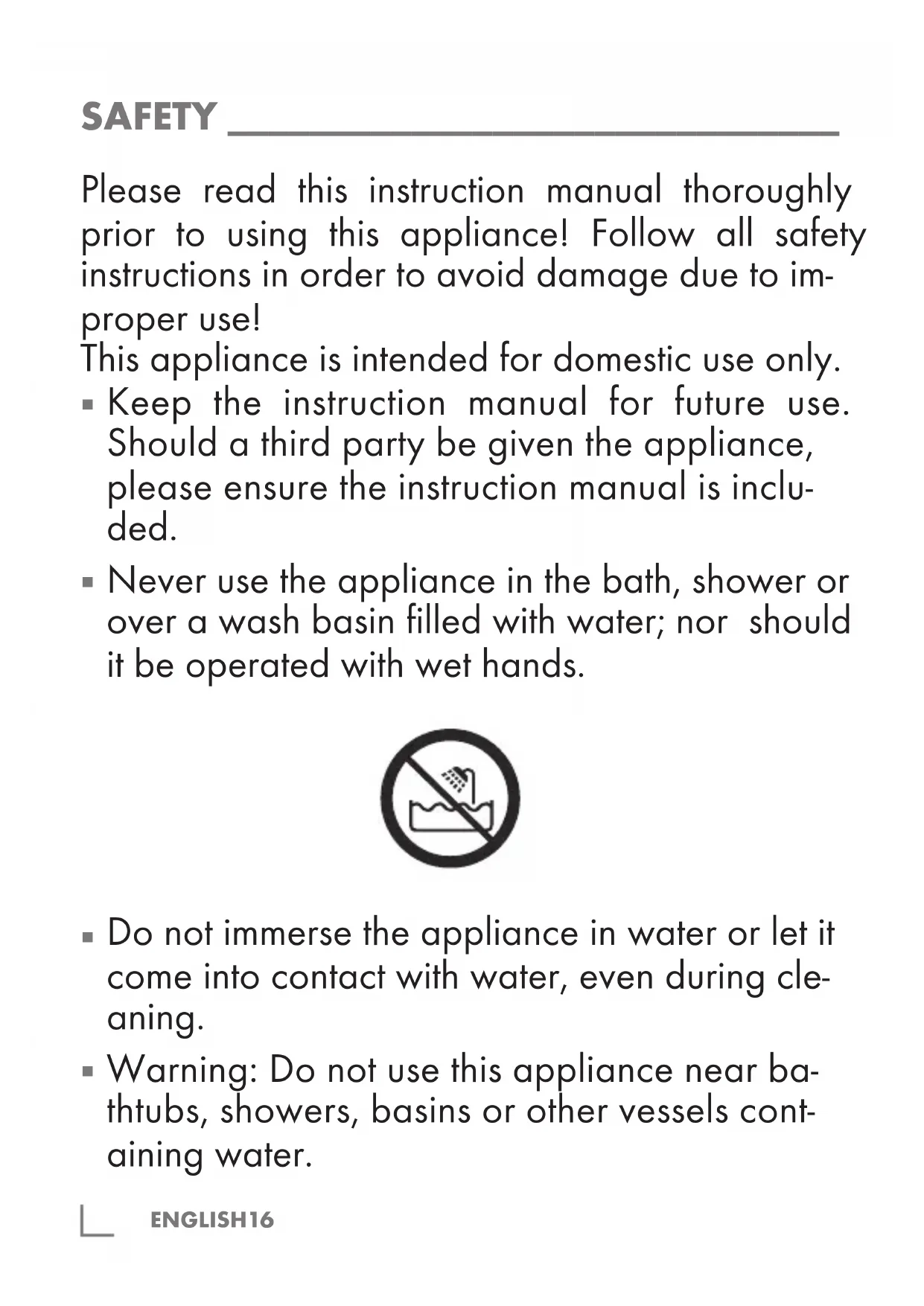

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damage due to improper use!

This appliance is intended for domestic use only.

- Keep the instruction manual for future use. Should a third party be given the appliance, please ensure the instruction manual is included.

■ Never use the appliance in the bath, shower or over a wash basin filled with water; nor should it be operated with wet hands.

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

• Do not immerse the appliance in water or let it come into contact with water, even during cleaning.
  ■ Warning: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

■ Before cleaning or user maintenance operation first plug out.
- If the appliance is used in the bathroom, it is essential that the power plug is pulled out after use, as water close to the appliance can still constitute a danger, even if the appliance is switched off.
- If not already in use, installing a residual current-operated protective device (RCD) is recommended for additional protection with a rated residual operating current not exceeding 30 mA in the electrical circuit of your bathroom. Ask your electrician for advice.
■ Never place the appliance on soft cushions or blankets during operation.
■ Ensure that the air induction and output openings are not covered during operation.
■ The appliance is equipped with an overheating protection system.

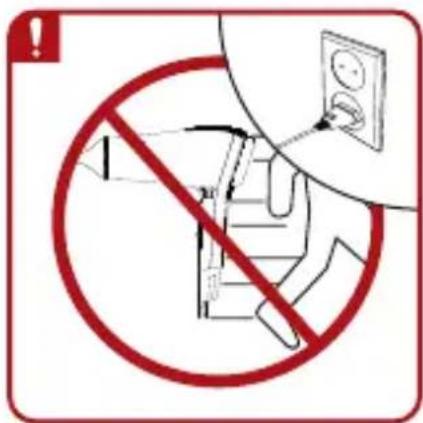

■ Unplug the appliance after use. Do not disconnect the plug by pulling on the cord.

■ Never use the appliance if it or the power cord is visibly damaged.
- Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.
- Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by a service centre to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
■ Always keep the appliance out of the reach of children.
■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

- Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by incorrect handling.

- A warm flow of air is required to achieve a perfect result. Please note that a metallised brush can become extremely hot during prolonged or intensive use. To avoid injury, adjust the usage time of the appliance to the accessory being used.

Dear customer,

congratulations on the purchase of your GRUNDIG SilenceDry Hair Dryer HD 9681.

Read the following user notes carefully to ensure full enjoyment of your quality Grundig product for many years to come.

A responsible approach!

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

Grundig.

Controls and parts

See the figure on page 3.

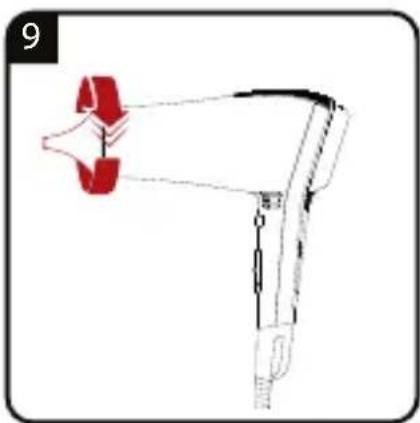

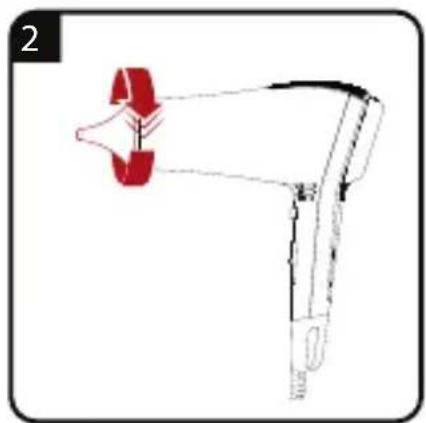

A Slim concentrator nozzle
B Detachable air inlet grille
Cool Shot
D Speed level
E Temperature level
F Power cord with hanging loop

Accessories

G Diffuser
H 2 styling nozzles (1 standard, 1 quickstyle)

Diffuser G

The diffuser ensures more volume and lifts the hair at the roots.

Settings

Your appliance has the following settings:

Cool Shot C

- ✦ Disconnects the hot air flow and lets cold air flow out

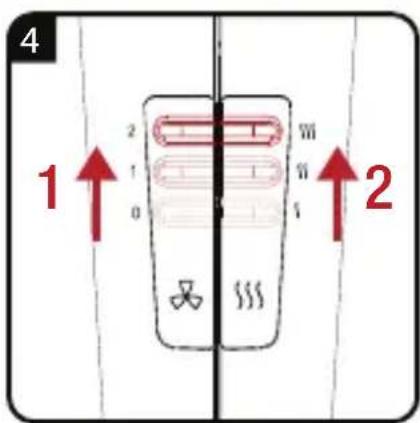

Speed level D

-0:off
- 1 : gentle air flow (Silence mode)
- 2 : strong air flow

Temperature level E

• § : Low temperature
• §§: Moderate temperature for gently drying and styling
• high temperature for fast drying

OPERATION

Notes

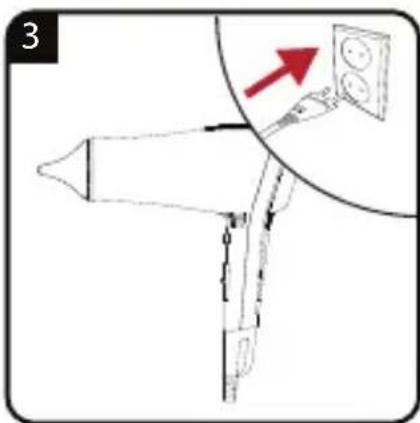

• Check if the mains voltage on the type plate on the handle of the appliance corresponds to your local mains supply.
  ■ The Cool Shot interrupts the hot air with a flow of cold air. This allows you to fix your hairstyle better and more lastingly.

Caution

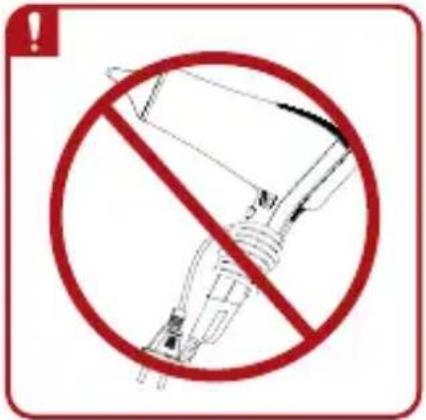

■ Never wind the power cord around the appliance, as this can result in damage. Check the power cord and the appliance regularly for visible damage.

Cleaning and care

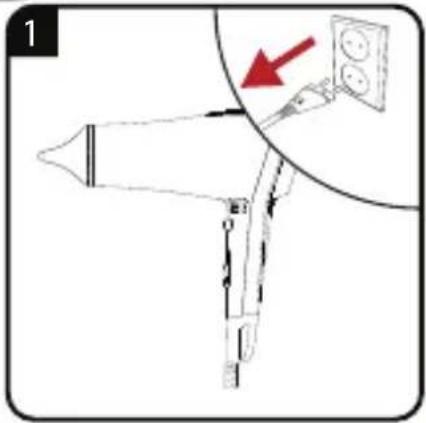

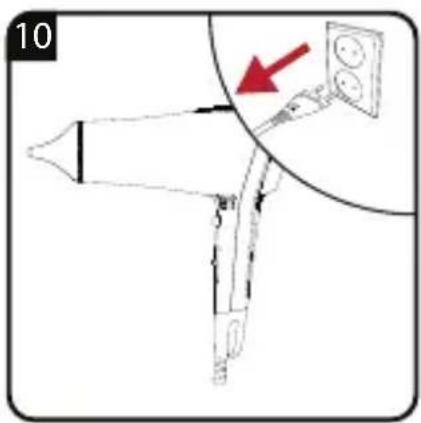

■ Turn the appliance off and unplug the power cord from the wall socket.

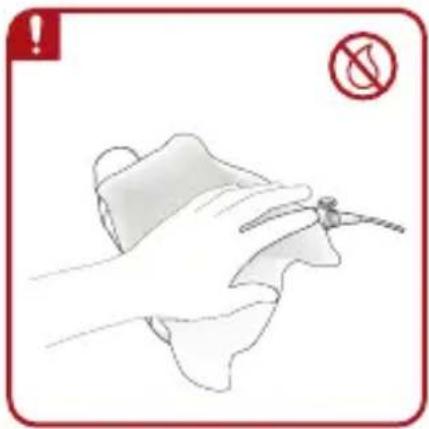

■ Before cleaning, allow the appliance to cool down. The appliance can become very hot.

Note

■ Before using the appliance after cleaning, dry all parts carefully with a soft cloth or paper towel.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.
■ Make sure that it is unplugged, has completely cooled down and is completely dry.
■ Do not wrap the power cord around the appliance.
- Keep the appliance in a cool, dry place.
■ Make sure that the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Prohibition sign with crossed-out trash bin and no text or symbols

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our

National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220-240 V\~, 50-60Hz

Power: 1580-1850 W

Electrical insulation class: II

Technical and design modifications reserved.

Please see the cover page of the user manual for initial use, general use and cleaning sections.

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Prohibition sign with crossed-out bicycle and battery icon, indicating no waste or waste disposal

Prohibition sign showing a showerhead spraying water, no text present

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Symbol of a crossed-out electrical device with no text or labels

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

Cher client, chère cliente,

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Symbol of a crossed-out electrical device with no text or labels

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

- Ne uranjajte uređaj u vodu i pazite da ne dođe u kontakt s vodom, čak i tijekom čišćenja.

- Upozorenje: ne upotrebljavajte uređaj blizu kada, tuševa, umivaonika ni drugih posuda koji sadrže vodu.

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)

Razina temperature E

• § : Niska temperatura
• : Umjerena temperatura za nježno sušenje i oblikovanje frizure
• §§ visoka temperatura za brzo sušenje

RAD

Napomena

■ Provjerite da li napon na tipskoj pločici na ručki uređaja odgovara naponu vaše lokalne mreže.
Hladno puhanje prekida topli zrak puhanjem hladnog zraka. To vam omogućuje da bolje i dugotrajnije oblikujete svoju frizuru.

Oprez

Nikada nemojte namotavati kabel napajanja oko uređaja, jer to može rezultirati oštećenjem. Redovito provjeravajte kabel napajanja i uređaj za vidljiva oštećenja.

Symbol of a waste bin crossing over a rectangular block (no text or labels)

Ovaj simbol označava da se ovaj proizvod ne smije odlagati zajedno s ostalim kućanskim otpadom na kraju njegovog radnog vijeka. Rabljeni uređaj mora se vratiti na službeno sabirno mjesto za recikliranje električnih i elektroničkih uređaja. Da biste pronašli te sustave za prikupljanje, obratite se lokalnim vlastima ili prodavaču gdje je proizvod kupljen. Svako kućanstvo igra važnu ulogu u uporabi i recikliranju starih uređaja. Odgovarajuće odlaganje iskorištenog aparata pomaže u sprečavanju mogućih negativnih posljedica za okoliš i ljudsko zdravlje.

Sukladnost s Direktivom RoHS

Prohibition sign showing a showerhead spraying water, with no text or symbols beyond the prohibition symbol.

Stylized grayscale illustration of a tree with leaves and roots, enclosed in a circular frame (no text or symbols)
