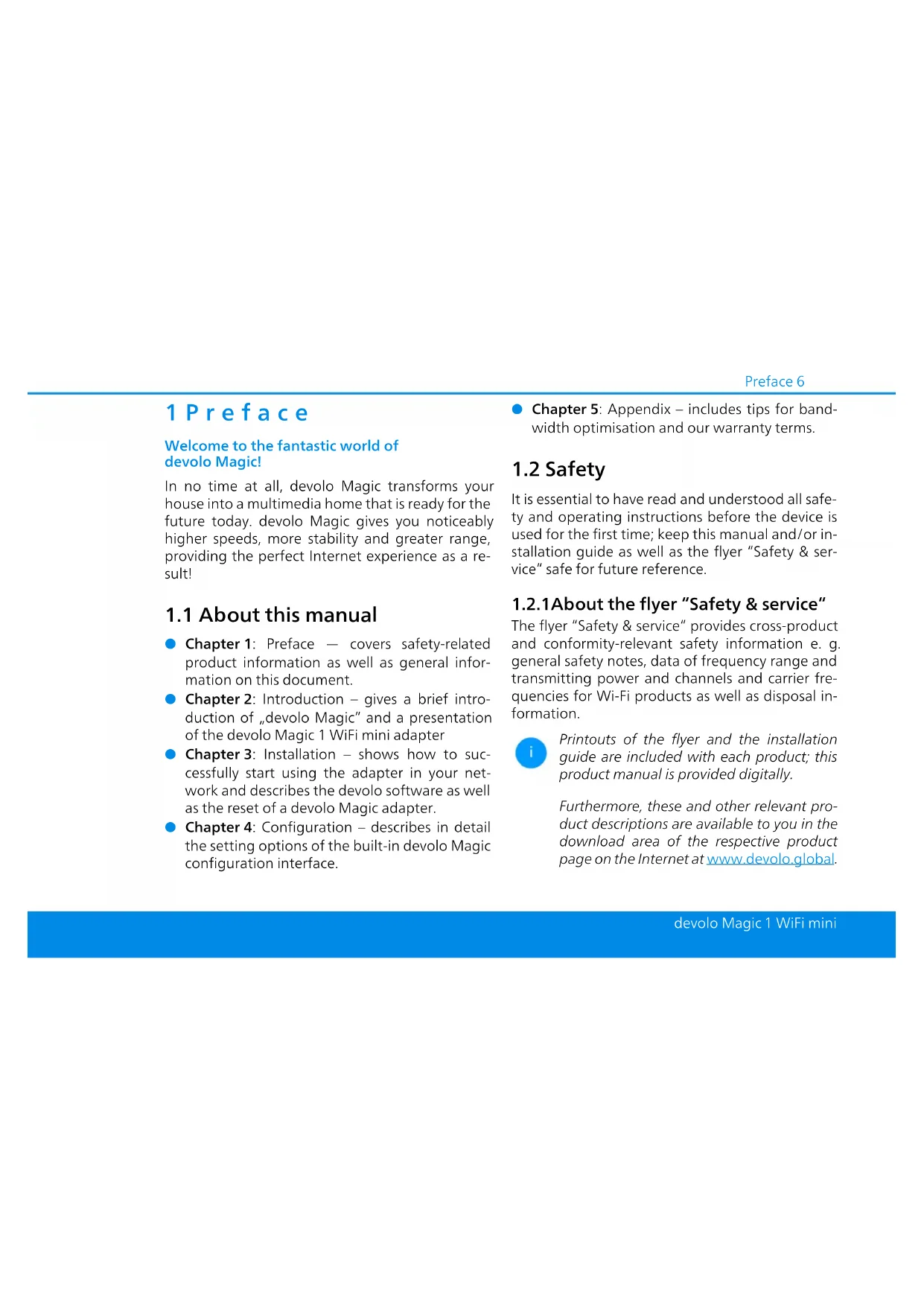

1 Preface

Welcome to the fantastic world of devolo Magic!

In no time at all, devolo Magic transforms your house into a multimedia home that is ready for the future today. devolo Magic gives you noticeably higher speeds, more stability and greater range, providing the perfect Internet experience as a result!

1.1 About this manual

Chapter 1: Preface - covers safety-related product information as well as general information on this document.
Chapter 2: Introduction - gives a brief introduction of "devolo Magic" and a presentation of the devolo Magic 1 WiFi mini adapter
Chapter 3: Installation - shows how to successfully start using the adapter in your network and describes the devolo software as well as the reset of a devolo Magic adapter.
Chapter 4: Configuration - describes in detail the setting options of the built-in devolo Magic configuration interface.

Chapter 5: Appendix - includes tips for bandwidth optimisation and our warranty terms.

1.2 Safety

It is essential to have read and understood all safety and operating instructions before the device is used for the first time; keep this manual and/or installation guide as well as the flyer "Safety & service" safe for future reference.

1.2.1 About the flyer "Safety & service"

The flyer "Safety & service" provides cross-product and conformity-relevant safety information e. g. general safety notes, data of frequency range and transmitting power and channels and carrier frequencies for Wi-Fi products as well as disposal information.

Printouts of the flyer and the installation guide are included with each product; this product manual is provided digitally.

Furthermore, these and other relevant product descriptions are available to you in the download area of the respective product page on the Internet at www.devolo.global.

1.2.2Description of the icons

This section contains a brief description of the icons used in this manual.

Icon Description

Very important safety symbol that warns you of hazardous electrical voltage which if not avoided can result in serious injury or death.

An important safety symbol that warns you of a potentially dangerous situation involving a tripping hazard which can result in injuries.

An important note that should be observed which can potentially lead to material damages.

The device may only be used in-doors in dry conditions.

Icon Description
	The device is a Class II product. All electrically conductive (made of metal) housing parts which in case of a fault condition during operation or maintenance can be under voltage, are separated from live elements by reinforced insulation.
CE	The manufacturer/distributing company uses the CE marking to declare that the product meets all applicable European regulations and has been subjected to the prescribed conformity assessment procedures.
i	Additional information, background material and configuration tips for your device.
✓	Indicates a completed course of action

1.2.3 Intended use

Use the devolo devices as described to prevent damage and injury.

The device is a communication device only designed for indoors and is equipped with a PLC - (PowerLine Communication) and a Wi-Fi module. The devices communicate with each other by means of, PLC and Wi-Fi.

The device enable transmission of the existing Internet/data signal over the in-house wiring and via Wi-Fi and integrate Internet-compatible terminal devices into the home network.

devolo Magic 1 LAN

The device is a communication device only designed for indoors and is equipped with a PLC (PowerLine Communication) module. The devices communicate with each other by means of PLC.

The device enable transmission of the existing Internet/data signal over the in-house wiring and integrate Internet-compatible terminal devices into the home network.

The delivered products are intended for operation in the EU and EFTA.

1.2.4CE conformity

A printout of the simplified CE declaration of this product is separately included. The complete CE declaration can be found under www.devolo.global/support/ce.

1.3 devolo on the Internet

For detailed information on our products and devolo Magic, visit www.devolo.global.

There you will find product descriptions and documentation, and also updates of devolo software and your device's firmware.

If you have any further ideas or suggestions related to our products, please don't hesitate to contact us at [e-mail]!

2 Introduction

2.1 devolo Magic

Home is where devolo Magic is – in no time at all, devolo Magic transforms your house or flat into a multimedia home of the future with noticeably higher speed, more stability and greater range, providing the perfect Internet experience as a result!

Be inspired by products that are astonishingly easy to install, with impressive, innovative technology and unbeatable performance.

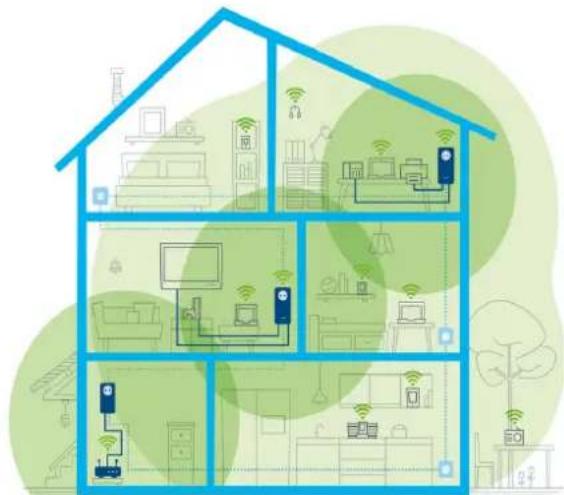

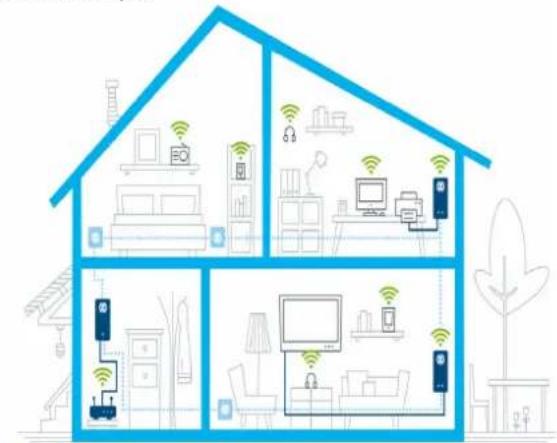

devolo Magic throughout the home

Be ready for the technology of the future today

devolo Magic embodies the new generation of the tried-and-tested Powerline technology (PLC) based on the cutting-edge G.hn architecture. G.hn was developed by the International Telecommunication Union (ITU) with ongoing development provided primarily by the HomeGrid Forum industry association. devolo Magic products are certified

according to HomeGrid standards and are compatible with other HomeGrid-certified products.

Like the HomePlug AV technology used in established devolo dLAN devices, devolo Magic uses the household mains supply for data transmission and secures ideal performance and stability in locations where network cables are not viable or desired and/or the Wi-Fi frequently falls short due to ceilings and walls.

To set up a devolo Magic network, you need at least two devolo Magic devices. For technical reasons, devices from the devolo Magic series are not compatible with dLAN devices.

2.2 Introduction to the devolo magic adapter:

Unpack- plug in - get started and be prepared for the new generation of the tried-and-tested Powerline technology and innovative mesh WiFi with swiftness and stability:

Powerline

At speeds up to 1200 Mbps
Over distances up to 400 metres

• Security - with 128-bit AES Powerline encryption

Mesh WiFi

At speeds up to 300 Mbps
- Two antennas cover the 2.4 Wi-Fi frequencies.
Air-time fairness - Quicker Wi-Fi devices take priority in the network.
Roaming - Quickly and seamlessly connect to the strongest Wi-Fi access point
Security - with WPA3 for wireless n ("IEEE 802.11a/b/g/n" Wi-Fi high-speed standards)
- Convenient additional functions such as guest WiFi and Config Sync are integrated in the devolo Magic 1 WiFi mini.
- Efficiency- The integrated PowerSave mode reduces energy consumption automatically at low data traffic.
The 1 network connector on the devolo Magic 1 WiFi mini let you connect stationary network devices—such as a game console, TV or media receiver—to your Internet access point over the Powerline network (e.g. Internet router).

11 Introduction

The devolo Magic 1 WiFi mini features

A Powerline button (house symbol) with LED status display,
A Wi-Fi button with LED status display,
- Two internal Wi-Fi antennas,
One network connector,
A Reset button (small opening next to the network jack).

The LED status displays can be disabled. You can find more information about this in Chapter 4 Network configuration or online at www.devolo.global/devolo-cockpit.

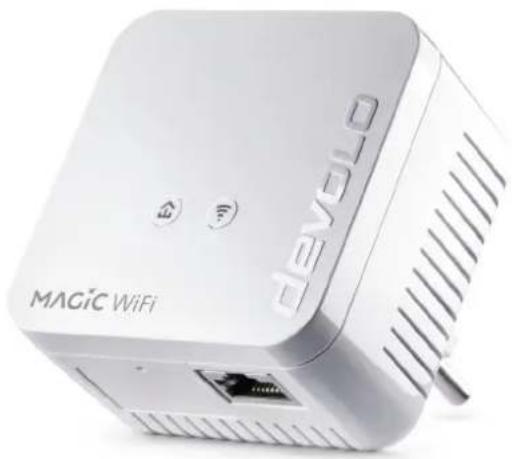

devolo Magic 1 WiFi mini with country-specific connector

Network connector and reset button

2.3 Pairing - Establishing a Powerline connection

devolo Magic adapters that are in the factory default condition, i.e. have been recently purchased or successfully reset (see Chapter 3.6 Removing the devolo Magic adapter from a PLC network), automatically start to attempt to pair (establish a Powerline connection) with anotherdevolo Magic adapter when reconnected to the mains supply.

Starting up a new devolo Magic PLC network

After plugging the devolo Magic adapters into available power sockets, a new devolo Magic network is established automatically within 3 minutes.

Expanding an existing devolo Magic Powerline network by adding another devolo Magic adapter

In order to use a new devolo Magic 1 WiFi mini in your devolo Magic- network, first you have to connect it to your existing devolo Magic adapters devices as a network. This is accomplished by using a shared Powerline password, which can be assigned in various ways:

Using devolo Cockpit or the devolo Home Network App (see Chapter 3.5 Installation of devolo software)

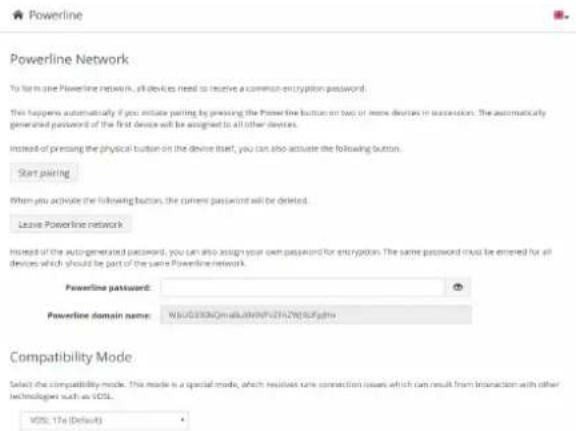

Using the web interface (see Chapter 4.5 Powerline)
Using the Powerline button as described below.
Plug the new devolo Magic adapter into an available power socket and, for approximately 1 second, press the PLC button on a devolo Magic adapter in your existing devolo Magic network.
The new devolo Magic adapter pairs automatically so no button needs to be pressed. The LED of this adapter now also flashes white.

13 Introduction

For each pairing operation, only one additional devolo Magic adapter can be added at a time.
After a short time, the flashing LED becomes a steady white light. The devolo Magic adapter has been successfully integrated into your existing devolo Magic network.
You can find detailed information about installing devolo Magic adapters in Chapter 3.4 Connecting the devolo Magic 1 WiFi mini.

2.3.1 Reading the Powerline indicator light

The integrated Powerline indicator light (LED)

It shows the status for the devolo Magic 1 WiFi mini.

by illuminating and/or flashing:

	LED Flash hinging behaviour	Meaning LED status display	(web interface*)
1 Red LED Lights up for up to 75 sec.		Start-up process Cannot be disabled
2 Red LED Flashes at intervals of 0.5 sec. (on/off)		Status 1: The reset of the devolo Magic adapter was successful. The PLC/set reset button has been pressed and held for 10 seconds.Status 2: The devolo Magic adapter (once again) has the factory default settings. Since the last reset, no pairing with another devolo Magic adapter has taken place Connect the adapter with another devolo Magic adapter to create a full-fledged PLC network as described in Chapter 2.3 Pairing - Establishing a Powerline connection.	Cannot be disabled

15 Introduction

	LED Flashing behaviour		Meaning LED status display	(web interface*)
3 Red LED Lights up steady			Status 1: The other network nodes are in standby mode and cannot currently be accessed over the mains supply. The PLC LEDs of the other devolo Magic adapters flash white only for a short time.Status 2:The connection to the other network nodes has been interrupted. There may be electromagnetic or radio frequency interference on the power line. In this case, put the devolo Magic adapters closer to each other or try to shut off the source of interference.	Can be disabled
4	R e white LED	dFlashes atnin- tervals of 0.1 sec. red/2 sec. white	dData transmission rate not in optimum range**	Can be disabled
	LED Flash hinging behaviour		Meaning LED status display	(web interface*)
5	W h LED	Status 1: e Flashes at intervals of 0.5 sec. (on/off) Status 2: Flashes at intervals of 1 sec. (on/off)	Status 1: This devolo Magic adapter is in pairing mode and the system is searching for new devolo Magic adapters.Status 2: Someone has triggered the "Identify device" function on the web interface or in the devolo Home Network App. This function identifies the devolo Magic adapter being sought.	Cannot be disabled
6	W h LED	Lights upsteady	The devolo Magic connection does not have any issues and the devolo Magic adapter is ready to operate.	Can be disabled
7	W h LED	Flashes at intervals of 0.1 sec. on / 5 sec. off	The devolo Magic adapter is in standby mode.***	Can be disabled
8	R e white LED	dFlashes atnin- tervals of 0.5 sec. red/ 0.5 sec. white	dThe devolo Magic adapter is carrying out a firmware update.	Cannot be disabled

• Information about the web interface can be found in Chapter 4 Network configuration.
  ** Information on improving the transmission rate can be found in Chapter 5.1 Bandwidth optimization.
  ***A devolo Magic adapter switches to standby mode after approximately 10 minutes if no active network device (e.g. computer) is connected to the network interface and the Wi-Fi is switched off. In this mode, the devolo Magic adapter cannot be accessed over the electrical wiring. As soon as the network device (e.g. computer) connected to the network interface is switched on again, your devolo Magic adapter can also be accessed over the electrical wiring again.

Check whether the adapter is connected to the mains supply correctly and whether the pairing operation has been carried out successfully. For more information about this, refer to 3.4 Connecting the devolo Magic 1 WiFi mini.

2.3.2Wi-Fi button

This button controls the following functions:

Wi-Fi on/off

In the factory default settings, the Wi-Fi setting is already enabled and the Wi-Fi encryption is set to WPA2. The default Wi-Fi key for the initial installation of the devolo Magic 1 WiFi mini is the device's Wi-Fi key. You will find the unique key on the label on the back of the housing.

WiFi key: WWWWWWWWWWWWWWW

Wi-Fi key

Before the networking procedure, write down the Wi-Fi key of the devolo Magic 1 WiFi mini. You can find the device's unique key on the label on the rear side of the housing. In order to connect the devolo Magic 1 WiFi mini with your laptop, tablet or smartphone later via Wi-Fi, enter the noted Wi-Fi key as the network security key.

In order to switch Wi-Fi off, press and hold the Wi-Fi button longer than 3 seconds.
In order to switch Wi-Fi back on, briefly tap the Wi-Fi button.

Connecting WiFi devices via WPS

If the device is still on factory defaults, tap the Wi-Fi button in order to activate WPS.
- If the Wi-Fi connection was switched off and you would like to activate WPS, press the Wi-Fi button twice; once to switch Wi-Fi on, and again to activate WPS.
- If the Wi-Fi connection is switched on and you want to copy these settings to another devolo Magic adapter, continue reading with the Chapter 4.7.5 Config Sync.

WPS is one of the encryption standards developed by the Wi-Fi Alliance. The objective of WPS is to make it easier to add devices to an existing network. For more detailed information, refer to Chapter 4.4.7 WiFi Protected Setup (WPS).

2.3.3Reading the Wi-Fi indicator light

The integrated Wi-Fi indicator light (LED) shows the status of the devolo Magic 1 WiFi mini by illuminating and/or flashing

	Wi-Fi-LED Flashing behavior Meanings	led status display	(web interface*)
1 W White LED Flashes at intervals of 0,1 sec. on / 5 sec. off		The devolo Magic adapter is in WPS mode to integrate Wi-Fi-enabled devices via WPS.	Cannot be disabled
2 W White LED Lights up steady Wi-Fi is swtched on and active. Can be disabled
3 W White LED Off Status 1:		The Wi-Fi LED is switched off and the devolo magic adapter is still ready for use.Status 2:The Wi-Fi function ist disabled.	Can be disabled

• Information about the web interface can be found in Chapter 4 Network configuration.

2.3.4Reset button

The Reset button (small opening next to the network jack) has two different functions:

Restart

The device restarts if you press the Reset button for less than 10 seconds.

Factory default settings

To remove a devolo Magic adapter from your devolo Magic network and successfully restore its entire configuration to the factory defaults, press and hold the reset button longer than 10 seconds.

You can use a pointed object (such as a paperclip) to press the Reset button.

Keep in mind that all settings that have already been made will be lost!

Wait until the LED flashes white and then disconnect the devolo Magic adapter from the mains supply.

The devolo Magic adapter has been successfully removed from your existing devolo Magic network.

2.3.5Network jack

You can use the network jack on the devolo Magic adapter to connect it to stationary devices such as computers, game consoles, etc. using a standard network cable.

2.3.6Wi-Fi antennas

The internal Wi-Fi antennas are for connecting to other network devices wirelessly.

3 Initial use

This chapter tells you everything you need to know to set up and use your devolo Magic 1 WiFi mini. We describe how to connect the device and briefly describe the devolo software that comes with it.

3.1 Package contents

Please ensure that the delivery is complete before beginning with the installation of your devolo Magic 1 WiFi mini:

Single Kit:

1 devolo Magic 1 WiFi mini
Printed installation guide
Printed flyer "Safety & Service"
Printed simplified CE declaration
Online manual

or

Starter Kit:

1 devolo Magic 1 WiFi mini
1 devolo Magic 1 LAN
1 network cable
Printed installation guide
Printed flyer "Safety & Service"

Printed simplified CE declaration
Online manual

or

Multiroom Kit:

2 devolo Magic 1 WiFi mini
1 devolo Magic 1 LAN
1 network cable
Printed installation guide
Printed flyer "Safety & Service"
Printed simplified CE declaration
Online manual

devolo reserves the right to change the package contents without prior notice.

3.2 System requirements

• Operating systems supported by devolo Cockpit:

from Windows 7 (32-bit/64-bit),
from Ubuntu 13.10 (32-bit/64-bit),
from Mac (OS X 10.9)

Gigabit network connection
Network connection

Please note that your computer or other device must have a network card or network adapter with a network interface.

To set up a devolo network, you need at least two devolo adapters.

3.3 Important notes

Use the devolo devices, the devolo software and the provided accessories as described to prevent damage and injury.

It is essential to have read and understood all safety and operating instructions before the device is used for the first time.

In this context, please read the chapter 1.2 Safety as well as the supplied flyer „Safety & service".

The flyer is also available in the download area of the respective product page on the Internet at www.devolo.global.

CAUTION! Damage to the device caused by ambient conditions

Only use device indoors in dry conditions

DANGER! Electric shock caused by electricity

Device must be plugged into a power socket with a connected earth wire (PE)

CAUTION! Damage to the device caused by unpermitted voltage range

Only operate devices on mains power supply as described on the rating plate.

Technical data

For the permitted voltage range for operating the device and the power consumption, refer to the type plate on the rear of the device.

For further technical data of this product, please refer to the data sheet in the download area of the respective product page on the Internet at www.devolo.global.

3.4 Connecting the devolo Magic 1 WiFi mini

In the following sections we describe how to connect the devolo Magic 1 WiFi mini and integrate it into a network. We clarify the exact procedures based on potential network scenarios.

3.4.1 Starter Kit – Automatic set-up for a new devolo Magic Powerline network

• Connect the devolo Magic 1 LAN to your Internet access device's network connection (e.g. your Internet router).

CAUTION! Tripping hazard Lay the cable in a barrier-free manner and ensure that the electrical socket and the connected network devices are easily accessible

Plug both devolo Magic adapters into available power sockets within 3 minutes. As soon as the LEDs on both adapters flash white at regular intervals of 0.5 sec., they are ready to operate and automatically start the process of establishing an encrypted connection to each other (see Chapter 2.3.1 Reading the Powerline indicator light).

If the LEDs on both devolo Magic adapters light up in white, then your devolo Magic network has been set up according to your individual specifications and is protected from unauthorised access.

3.4.2Addition - Expanding an existing Powerline network by adding another devolo Magic 1 WiFi mini

Before you can use the devolo Magic 1 WiFi mini in your devolo Magic network, first you have to connect it to your existing devolo Magic adapters as a network. This is accomplished by using a shared password.

Plug the devolo Magic 1 WiFi mini into an available power socket. As soon as the LED flashes white at regular intervals of 0.5 seconds, the adapter is ready to operate but not yet integrated into a devolo Magic network (see Chapter 2.3.1 Reading the Powerline indicator light).

Pairing - Establishing a PLC connection

Before you can use the new devolo Magic 1 WiFi mini devolo Magic network, first you have to connect it to your existing devolo Magic adapters as a network. This is accomplished by using a shared password:

Within 3 minutes, press the Powerline button on a devolo Magic adapter in your existing devolo Magic network for approximately 1 sec.

The new devolo Magic adapter pairs automatically so no button needs to be pressed. The LED of this adapter now also flashes white.
If the LEDs light up white on both devolo Magic adapters, the new adapter has been successfully integrated into your existing devolo Magic network.
For each pairing operation, only one additional adapter can be added at a time.

3.4.3Changing the network password

A network password can also be changed in the following ways:

Using the web interface of the devolo Magic adapter (see Chapter 4.5 Powerline)
or
Using devolo Cockpit or the devolo Home Networking App. For more information, refer to the following chapter.

3.4.4Establish a Wi-Fi connection with the devolo Magic 1 WiFi mini

Establish the Wi-Fi connection with your laptop, tablet or smartphone by entering the previously noted Wi-Fi key as the network security key.

3.4.5 Integrating the devolo Magic 1 WiFi mini into an existing Wi-Fi network

To ensure that the devolo Magic 1 WiFi mini has the same Wi-Fi configuration as your Wi-Fi router, you can apply the Wi-Fi access data at the touch of a button using the WiFi Clone function. This can be enabled in different ways:

Activating WiFi Clone:

• Activating WiFi Clone by pressing a button: Briefly press the PLC button on your devolo Magic WiFi adapter. After the button is pressed, the LED flashes white. Press the WPS button on your router within 2 minutes. Please consult your router's instruction for use to find out how long to press the button for.
  or
• Activating WiFi Clone from the web interface. More information about this function can be

found in Chapter 4.4.7 WiFi Protected Setup (WPS).

3.5 Installation of devolo software

Installing devolo Cockpit software

devolo Cockpit finds all accessible devolo Magic adapters in your devolo Magic network, displays information about these devices and encrypts your devolo Magic network individually. You can use the software to navigate to the integrated web interface.

Operating systems supported by devolo Cockpit (Version 5.0 or later):

from Windows 7 (32-bit/64-bit) or later,
from Ubuntu 13.10 (32-bit/64-bit),
from Mac (OS X 10.9)

You can find the software and additional information on devolo Cockpit online at www.devolo.global/devolo-cockpit.

Downloading the devolo Home Networking App

The devolo Home Networking App is devolo's free app also for checking and configuring WiFi, PLC

and LAN connections for the devolo Magic adapter (using a smartphone or tablet). The smartphone or tablet connects to the devolo Magic adapter at home over Wi-Fi.

Download the devolo Home Networking App to your smartphone or tablet computer from the corresponding store.
The devolo Home Networking App is placed in your smartphone's or tablet's app list as usual. Tapping on the devolo Home Networking App icon brings you to the start menu.

You can find more information about the devolo Home Networking App online at www.devolo.global/home-network-app.

3.6 Removing the devolo Magic adapter from a PLC network

To remove a devolo Magic adapter from your network and successfully restore its entire configuration to the factory default settings,

press the reset button longer than 10 seconds.
Wait until the LED flashes white and then disconnect the adapter from the mains supply.

Keep in mind that all settings that have already been made will be lost!

To integrate the mains supply into another network, proceed as described in Chapter 3.4.2 Addition - Expanding an existing Powerline network by adding another devolo Magic 1 WiFi mini.

4 Network configuration

The devolo Magic 1 WiFi mini has a built-in web interface that can be called up using a standard web browser. All settings for operating the device can be modified here.

4.1 Calling up the built-in web interface

You can access the built-in online web interface for the devolo Magic 1 WiFi mini in different ways:

Using the devolo Home Network App on your smartphone or tablet, you can access the device's web interface by going to the devolo Home Network App overview page and tapping on the gear/arrow.

You can find more information on devolo Home Network App in Chapter 3.5 Installation of devolo software.

or

Using the Cockpit software under Start All Programs devolo devolo Cockpit, you can get to the device's web interface by clicking on the corresponding tab for the devolo Magic 1 WiFi mini. Then the program

determines the current IP address and starts the configuration in the web browser.

By default, the web interface will open directly. However, if an access password has been set via the option System Management, you have to enter that password first. Read more about this under 4.7 System.

4.2 General information about the menu

All menu functions are described in the corresponding interface as well as in the associated chapter in the manual. The sequence of the description in the manual follows the structure of the menu. The figures for the device interface serve as examples.

Logging in

The web interface is not password protected. Assigning a login password is mandatory when logging in for the first time to prevent unauthorised access by third parties.

Enter your existing password each time you login again and confirm by pressing Log in.

Please log in with your password!

Password

Login

Logging out

Log out of the web interface by clicking Log out.

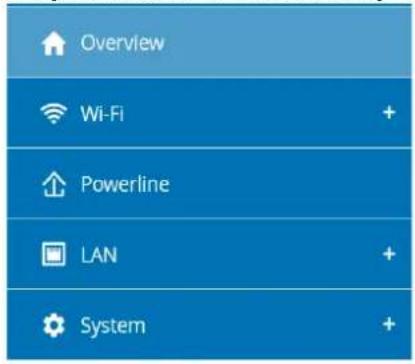

Language selection

Select the desired language in the language selection list.

The central areas of the web interface and their sub-categories are listed on the left edge. Click the entry for an area to move directly into it.

Making changes

Once you make a change, two icons are shown on the corresponding menu page:

• Disk icon: Your settings are being saved.
• X icon: The operation is being cancelled. Your settings are not being saved.

Required fields

Fields with a red border are required fields. This means entries must be made in these fields to continue with the configuration.

Help text blank fields

Fields that have not been filled in yet contain greyed out help text, which indicates the required content for the field. This help text disappears immediately once content has been entered.

Default settings

Some fields contain default settings which ensure the greatest amount of compatibility and ease of use. Default settings are identified with an * in drop-down menus.

Default settings can of course be replaced with customised information.

Recommended settings

Some fields include recommended settings.

Recommended settings can of course be replaced with customised information.

Tables

You can make changes within a table by clicking the corresponding table row in Time Control and Parental Control. In edit mode, the corresponding table rows have a blue background. In edit mode, the corresponding table rows have a blue background.

Invalid entries

Entry errors are either highlighted by a red border or error messages are shown.

Buttons

Click the Disk icon to save the settings for the respective web interface area.

Click the X icon or use the Menu path above the buttons to exit the respective web interface area.

Click the Recycle bin icon to delete an entry.

Click the Arrow icon to refresh a list.

4.3 Overview

The Overview area shows the status of the devolo Magic 1 WiFi mini and the connected LAN, Powerline (PLC) and Wi-Fi devices.

System

You can see status information for your device here.

System

Information

Name: devolo-033

Serial number: 1805233820010033

You can view status information for a wireless network such as frequency channels in use, SSIDs in use and connected Wi-Fi devices here.

WiFi

2.4 GHz

Current channel: 6 (auto)

Enabled SSIDs: MiniMaus

ConnectedWiFi 3

clients:

Powerline

You can view status information for your devolo Magic network and connected devices here.

Powerline

Local Device

Network: Connected

Network

Connected clients: 4

LAN

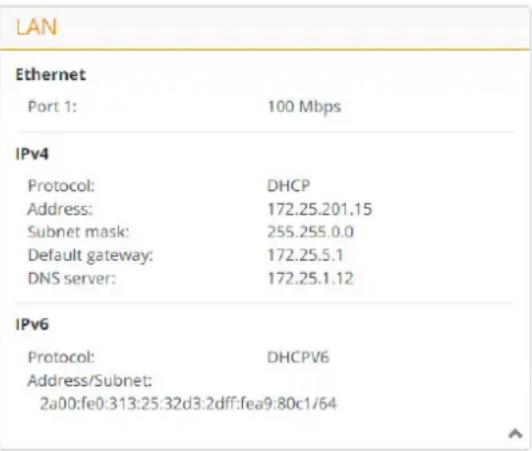

You can see status information for a cable-based network such as protocol information or the connection speed of the Ethernet port, etc. here.

LAN

Ethernet

Port 1:

100 Mbps

IPv4

Protocol:

DHCP

Address:

192.168.46.232

Subnet mask:

255.255.255.0

Default gateway:

192.168.46.1

DNS server:

172.25.1.12

4.4 Wi-Fi

Make all changes to your wireless network in the Wi-Fi area.

WiFi Clients

WiFi Network

4.4.1Status

You can see the current status of your Wi-Fi network configuration here, e.g. the connected Wi-Fi stations, the MAC address, the selected frequency band, the SSID, the transfer rates and the connection duration.

4.4.2Wi-Fi networks

You can make all necessary changes to your Wi-Fi network here.

Wi-Fi network mode

The WiFi network mode field lets you define your preferred setting by clicking the respective field:

On - The 2.4 GHz frequency band is used
- Off - If desired, you can completely switch off the Wi-Fi section of your devolo Magic 1 WiFi mini here.

Keep in mind that after saving this setting, you will be disconnected from any existing wireless connection to the devolo Magic 1 WiFi mini. In this case, configure the device over Ethernet.

2.4 GHz

Channel

Encryption:

Password:

Network name

The network name (SSID) determines the name of your wireless network. You can see this name when logging onto the Wi-Fi, allowing you to identify the correct Wi-Fi network.

Channel

There are 13 channels available in the 2.4 GHz frequency band. The channels recommended for Europe are the channels 1, 6 and 11. This ensures the frequency bands of the channels do not overlap and any connection problems are avoided.

The channel selection default setting is Automatic.

The devolo Magic 1 WiFi mini regularly a automatically executes the channel selection in this setting. In other words, if the last connected station logs out, a search for a suitable channel is carried out immediately. If no stations are connected, the device automatically selects a channel every 15 minutes.

Channels

In the Channel field, you can manually select a 2.4 GHz channel. If you are not sure which wireless channels are used by nearby devices, select the Automatic option.

Security

The WPA3 Personal (WiFi Protected Access) security standard is available for securing data transmission in your wireless network. This method allows for individualised keys consisting of letters and numbers and the depicted special

characters with a length of up to 63 characters. You can simply enter them into the Key field via the keyboard.

and

4.4.3Guest network

If you have friends or acquaintances visiting and you want to provide them with Internet access but without giving away the password for your Wi-Fi, you can set up a separate guest account in addition to the main Internet connection. The guest account can have its own network name, time limit and Wi-Fi password. This way your visitors can browse the Internet without having access to your local network.

Configuration

The quest network does only allow access to the internal

Network name: devicguest-027

Encouragement:

HCPWPAW

A2 WPA2 WPA3/WPA2 WPA3

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311 ;

m = 311 ;

m = 311 ;

m = 311 ;

m = 311 ;

m = 311 ;

。

图1

a1

y

化

1

3K

HC

1

1

C

16

1

图

a

1

1

1

11

BC

1

orl

21

d.

For

(2)

am

C

y

ui

me

LW

1

a1

u,

01

E

A

D.

+

(2)

at

T

10

D/

0

孔

O

1

CL

31

1

ne

V

P

一

.

。

.

.

D

at

act

ad

M

re

c)

ur

V

F

06

ECL

=U

AC

LE

3

sec

图1

-y：

：

m = 311 ;

iscn

m = 311

.

。

。

T

is

24

th

and

all

214

c. t

11

13

11

th

图

all

SW

S1

，

1

1

，

S

nc

01

ie

te

5

nc

n

。

m = 311 ;

1

1

B

…

.

+

6

2.4

图1

to

5

/

10

0

1d

d

te

5.

0

。

m = 311

+

QV

20

arc

U

e n

ey

06

HC

1

一

T

C

2.1

。

an

or

3

[Tab]

1

C

3

U,

图1

LET

a

LO

…

+

…

+

·

（一）

f:

f

CTe

5

nt

OT

e

e

。

。

1

m = 311

，

1

12 =

12 =

12 =

12 =

12 =

12 =

12 =

31 + u + 4q = 1 + u + uq dH

-1

m = 311

m = 311

A.

1

A

···

12/14

12/14

12/14

QR code

Using the QR code, you can conveniently set up the connection to the guest network for mobile devices. Scanning the QR code automatically transfers the credentials for the guest network to the respective mobile device. The QR code is visible only if the guest network has been enabled.

4.4.4Mesh

Mesh

All devolo Magic series WiFi adapters offer mesh Wi-Fi, which entails completely new and improved Wi-Fi functions:

• Fast roaming (IEEE 802.11r) streamlines the registration process for Wi-Fi end devices, such as smartphones or tablets, when switching to another Wi-Fi access point.

The feature Fast roaming is not compatible with all Wi-Fi clients. If there will be connection problems with one of your devices, please deactivate these option.

In factory default condition of the devolo Magic 1 WiFi mini Fast roaming is turned off by default.

In addition, the new air-time fairness feature processes the requests of high-speed WiFi clients at higher priority. This prevents older devices, which may require more time for a download, from creating WiFi bottlenecks.

In order to turn the mesh functions on, activate the Enable option.

The mesh function of the devolo Magic 1 WiFi mini is switched on by default.

Mesh WiFi

Enabling the Mesh functionality features will optimize your InfinetW network experience while using your mobile devices. Inference streaming and data compression, scaling, scaling, and scaling, and dynamic, frequency selection for provision WNT access even with many clients and businesses. Awareness optimizes your bandwidth.

√table

Features

[15]. IEEE 8.2.7 (it also called "Fast Ranging") accelerates the gain of a Wi-Fi device to this Wi-Fi access point. Requirement: The device was already connected to the Wi-Fi access point and is able to transmit data in a single time period. The Wi-Fi access point is not compatible with every Wi-Fi device. If you experience problems with any of your devices, please disable this option.

□周建林

NiF Clone

With Close allows you to apply the WFI access data (network name and WFI password) of another WFI access point to this device automatically. This is a way to set up the configuration process and then run the WFI button on the device controlling the WFI access data (SDI and the password) to be applied.

Start Configuration

WiFi Clone

WiFi Clone makes it possible to simply copy the Wi-Fi configuration data of an existing Wi-Fi access point (e.g. your Wi-Fi router) to all Wi-Fi access points (Single SSID). Start the procedure with the Start setup option and then press the WPS button

of the device with the Wi-Fi access data (SSID and Wi-Fi password) to be applied.

4.4.5Schedule control

The Schedule control area lets you define when and if your WiFi is switched on and off.

2.1.10

When the WIU conversion function is activated, the secret network will be able to send off the last WIU device has signed off from your iOS OS/Android.

Please note that many tablets of theophylline must be taken more than 2000 ml/day (infrequent).

Overview of the wifi schedule settings

Configuration

Enabling WiFi schedule control

In order to be able to use time control, activate the Enable option.

Configuration

You can define multiple time periods during which your wireless network is to be enabled for each

weekday. Then the time control automatically switches the wireless network on or off.

Automatic disconnection

If you enable the Automatic disconnection option, the wireless network is not switched off until the last station has logged off.

Manually switching the device on and off (using a button) always has priority over automatic time control. The configured time control then takes effect automatically during the next defined time period.

4.4.6Parental control

You can regulate Wi-Fi access for specific devices based on time using this function. For instance, to prevent your children from using the Internet excessively, you can define how long they may use the Wi-Fi per day. Synchronisation with an (Internet) time server is necessary to be able to use the parental control. In this case, the time server (System Management Time Server (NTP)) for the devolo Magic 1 WiFi mini ac has to be enabled and an active Internet connection is also required.

The time server pool.ntp.org is enabled by default. You can find more information in Chapter 4.7.2 Management

If you would like to set up a time quota (usage time in hours) or a time period (active from/to), activate the Enable option. Now enter the MAC addresses of the devices you want to set up parental control for.

Under Type, define either a time quota (time limit) or a time period for when you want the MAC addresses entered to receive Internet access. Under Select interval, select the desired time frame.

A1:55:EE:5E:14:8E

Configuration

Please note that WFSchedule Settings have precedence over these settings!

You can limit access to certain WRF devices by the MAC address. Please define the time periods during which WRF access is stopped.

Setting the time quota

Under Time Quota, the time limit can be selected.

Confirm your settings by clicking the Disk icon.

Setting the time period

Under Time Period, the desired time period can be selected. After entering the interval, enter the desired start and end times in hour and minute format.

Confirm your settings by clicking the Disk icon.

If you want to delete a time quota (time limit) or a time period from the list, click/touch the dustbin icon.

4.4.7WiFi Protected Setup (WPS)

WiFi Protected Setup (WPS) is one of the international encryption standards developed by the WiFi Alliance for easily and quickly setting up a secure wireless network. The encryption keys of the respective Wi-Fi devices are transmitted automatically and continuously to the other Wi-Fi device(s) in the wireless network.

Enabling WPS encryption

In order to be able to use WPS encryption, activate the Enable option.

The devolo Magic 1 WiFi mini offers two different variants for transmitting these encryption keys:

WPS using WPS pushbutton

Start the encryption process on the devolo Magic 1 WiFi mini
By pressing the Wi-Fi button on the front side of the device or
By pressing the corresponding Start button on the user interface under WiFi WPS Pushbutton.
- Then either press the WPS key of the Wi-Fi device you are adding or enable the WPS mechanism in the Wi-Fi settings of the Wi-Fi device. Now the devices exchange their encryption keys and establish a secure Wi-Fi connection. The Wi-Fi LED on the front panel indicates the synchronisation process by flashing.

WPS via PIN

To interconnect Wi-Fi devices in your wireless network securely using a PIN variant, go to the web interface and, under WiFi WPS WPS PIN, enter the WPS PIN generated by your Android smartphone or tablet and start the encryption process by pressing the corresponding Start button.

Use of the WPS method implies the use of the WPA/WPA2/WPA3 encryption standard.

Therefore take note of the following automatic settings:

• If under WiFi WiFi networks, the No encryption option is selected in advance, WPA2 is set automatically. The newly generated password is displayed under WiFi WiFi networks in the Key field.
  If under WiFi WiFi networks, the WPA/WPA2/WPA3 option is selected in advance, this setting remains with the previously assigned password.

4.4.8Neighbour networks

The Neighbour networks area displays visible wireless networks in your surroundings.

Network name	Channel	Signal quality (%)
devolo-183	100	94
DVT-3490.5	124	94
devolo-183	11	94
NETGEAR70_onaset_1	5	94
Loft TV.6	6	94
DVT-3490.2	1	94
devico24	1	94
devolo-159	1	94
ASUS_7487b8d8e8	9	94
NETGEAR-2	2	94

4.5 Powerline

Make all changes to your Powerline network in the Powerline area.

Pairing - Establishing a Powerline connection

In order to use a new devolo Magic 1 WiFi mini in your devolo Magic network, first you have to connect it to your existing devolo Magic adapters devices as a network. This is accomplished by using a shared password. This can be assigned in different ways:

Using devolo Cockpit or the devolo Home Network App (see Chapter 3.5 Installation of devolo software),
- Only using the Powerline button (see Chapter 2.3 Pairing - Establishing a Powerline connection and 3.4 Connecting the devolo Magic 1 WiFi mini)
Using the web interface, in the Powerline menu; as described below:

Pairing - Using physical button and on-screen button

First, press the Powerline button on a devolo Magic adapter in your existing network.
- Then, click Start pairing to start the pairing operation. This may take some time.

As soon as the new devolo Magic adapter is integrated into your existing network, it appears in a list of available and established connections (see Chapter 4.5 Powerline).

Pairing - Using custom password

You can also assign your network a custom Powerline password you pick yourself. Enter this password for each devolo Magic adapter in the Network password field and confirm your settings by clicking the Disk icon.

Note that the custom password is not assigned to the whole Powerline network automatically. Instead, you must assign it separately to each of your devolo Magic adapters.

Unpairing - Removing an adapter from a network

To remove a devolo Magic adapter from your devolo Magic network, click Leave Powerline network.
Wait until the LED flashes red and then disconnect the devolo Magic adapter from the mains supply.

Compatibility mode

Using as VDSL connection may negatively impact the performance of the bandwidth connection by crosstalk of the signal.

Compatibility Mode
In rare cases, VDSL connection problems can be caused by crosstalk with the powerline. If automatic compatibility made is enabled, the problem is solved in this situation and adjust its output signal accordingly, which should provide the best balance between performance and mitigation of crosstalk.
Automatic compatibility mode (recommended) *
If automatic mode is disabled, or cannot reliably direct crossact, a static mitigation profile will be used instead. Select the profile which matches the type of your VDS connection, or select "Full Power" for no mitigation at all.

* Changes will have effect after system reboot.

In order to mitigate any potential negative effects the device provides the following options:

Automatic compatibility mode

If the option Automatic compatibility mode (recommended) is enabled, the device can automatically adjust the output signal to avoid interference as much as possible. This option is configured b default.

Manual compatibility mode

If an interference has not been eliminated despite activating the automatic setting, please disable it and set the compatibility mode as well as the signal transmission profile manually:

SISO

Full power
VDSL 17a (default)
VDSL35b

Get in touch with your internet provider to find out which signal transmission profile is the best option for your internet connection.

The SISO operating mode and the VDSL 17a signal transmission profile are configured by default.

Connections

The table lists all available and connected devolo Magic adapters for your network along with displaying the following details:

Device ID: Device ID (number) of the respective devolo Magic adapter in the devolo Magic network

MAC address: MAC address of the respective devolo Magic adapter

Transmit (Mbps): Rate for transmitting data

Receive (Mbps): Rate for receiving data

4.6 LAN

You make changes to the network settings in the LAN area.

4.6.1Status

You can see the current LAN status of the devolo Magic adapters here. The Ethernet area shows the network devices connected to the two network connectors Port 1 (e.g. PC, NAS, etc.).

IPv4/IPv6

Depending on how the devolo Magic 1 WiFi mini is connected to the Internet (IPv4 or IPv6), current network information is displayed, such as Address, Subnet mask, Standard gateway and DNS server.

4.6.2IPv4/IPv6 configuration

In the factory default settings, only the Get IP configuration from a DHCP server option for IPv4 is enabled. This means that the IPv4 address is retrieved automatically from a DHCP server. The currently assigned network data are visible (greyed out).

If a DHCP server is already present on the network for assigning IP addresses (e.g. your Internet router), you should leave the Get IP configuration from a DHCP server option enabled so that the devolo Magic 1 WiFi mini automatically receives an address from it.

If you want to assign a static IP address, make entries accordingly for the Address, Subnet mask, Default gateway and DNS server fields.

Confirm your settings by clicking the Disk icon.

Then, restart the devolo Magic adapter (see Chapter 4.7.3 Configuration) to ensure that your changes take effect.

IPv6 configuration

If you want automatic IP address assignment and there is already a DHCP server present on the network for assigning IP addresses (e.g. your Internet router), enable the Get IP configuration from a DHCP server option to ensure that the devolo Magic 1 WiFi mini automatically receives an address from it.

If you want to assign a static IP address, make entries accordingly for the Address, Subnet mask, Default gateway and DNS server fields.

Confirm your settings by clicking the Disk icon.

4.7 System

In the System area, you can configure the settings for security and other devolo Magic adapter device functions.

System Status

Date and Time

Local time:

Time zone:

Time server 1:

30.08.2019 10:13

Europe/Berlin

europe.pool.ntp.org

MAC addresses

Powerline:

Ethernet:

10.D3.2D:A9:80:C0

30:D3:2D:A9:B0:C1

LEDS

WIFI LED:

Powerline LED:

Enabled

Enabled

Buttons

PLC button:

WiFi button:

Enabled

Enabled

4.7.1Status

Here you can view the most important information on the devolo Magic adapter, including the current date and time, time zone, MAC address of the adapter, status of the Wi-Fi and Powerline LEDs and the two operating buttons (Powerline button and Wi-Fi button).

4.7.2 Management

System information lets you enter user-defined names in the Device name (hostname) and Device location fields. Both pieces of information are particularly helpful if multiple devolo Magic adapters are to be used and identified in the network.

Under Change password, a login password can be set for accessing the web interface.

By default, the built-in web interface of the devolo Magic 1 WiFi mini is not protected by a password. We recommend assigning a password when the installation of the devolo Magic 1 WiFi mini is complete to protect it against tampering by third parties.

To do so, enter the desired new password twice. Now the web interface is protected against unauthorized access with your custom password!

In Power Management, you can enable Powersave mode and Standby mode on the devolo Magic 1 WiFi mini.

If Powersave mode has been enabled, the devolo Magic 1 WiFi mini switches to PowerSave mode automatically whenever reduced data transmission over ethernet is detected.

The latency (time for transmitting a data packet) may be negatively affected.

If Standby mode is enabled, the devolo Magic 1 WiFi mini automatically switches to Standby mode if no ethernet connection has been enabled, i.e. if no network device (e.g. computer) is switched on and connected to the network interface and if Wi-Fi is disabled.

In this mode, the devolo Magic 1 WiFi mini is not accessible over the Powerline network. As soon as the network device (e.g. computer) connected to the network interface is switched on again, your adapter can also be accessed over the electrical wiring again.

Powersave mode is disabled in the devolo Magic 1 WiFi mini factory default settings.

Standby mode is enabled in the devolo Magic 1 WiFi mini factory default condition.

The LED settings let you disable the LED status display of the WiFi and Powerline LEDs. An error status is indicated by corresponding flashing behaviour regardless of this setting.

For information on the LED behaviour of the devolo Magic adapter in standby mode, refer to Chapter 2.3.1 Reading the Powerline indicator light and 2.3.3 Reading the Wi-Fi indicator light.

You can completely disable the operating buttons on the devolo Magic adapter in order to protect yourself against possible changes. Simply disable the Enable Powerline button or Enable Wi-Fi button option.

The operating buttons are enabled in the devolo Magic 1 WiFi mini factory default settings.

Under Time zone, you can select the current time zone, e.g. Europe/Berlin. The Time server (NTP) option lets you specify a time server. A time server is a server on the Internet whose task consists of

providing the exact time. Most time servers are coupled with a radio clock. Select your time zone and time server; the devolo Magic 1 WiFi mini automatically switches between standard time and summer time.

4.7.3 Configuration

Saving the device configuration

To save the enabled configuration to your computer as a file, select the corresponding button in the System Configuration Save Configuration to File area. The system starts downloading the current device configuration.

Restoring the device configuration

An existing configuration file can be sent to the devolo Magic 1 WiFi mini in the System Configuration area and enabled there. Select a suitable file via the Browse ... button and start the operation by clicking the Restore button.

Resetting the device configuration

The devolo Magic 1 WiFi mini is reset to the original factory defaults in the System Configuration area with the Factory Settings option.

Doing so causes you to lose your personal Wi-Fi and PLC settings. The last-assigned passwords for the devolo Magic 1 WiFi mini are also reset.

For backup purposes, all active configuration settings can be transmitted to your computer, stored there as a file and reloaded into the devolo Magic 1 WiFi mini. This function can be useful for creating a variety of configurations that will let you quickly and easily set up the device for use in different network environments.

Reboot device

In order to reboot the devolo Magic 1 WiFi mini, select the Reboot button in the System Configuration area.

4.7.4Firmware

Current firmware

The currently installed firmware of the devolo Magic 1 WiFi mini is displayed here.

Download updated firmware

The firmware of the devolo Magic 1 WiFi includes the software for operating the device. If necessary, devolo offers new versions on the Internet as a file download, for example to modify existing functions.

• If you have downloaded an updated firmware file for the devolo Magic 1 WiFi mini to your computer, navigate to the System → Firmware → Update firmware area. Click Browse ... and select the downloaded file.
• Confirm the update procedure with Update firmware. After a successful update, the devolo Magic 1 WiFi mini restarts automatically.

Ensure that the update procedure is not interrupted.

Searching for and updating firmware automatically

The adapter can also look for up-to-date firmware automatically. To do this, enable the Regular check for firmware updates option.

The devolo Magic 1 WiFi mini lets you know when a new firmware version becomes available. The option is enabled by default.

The Automatically install firmware updates option allows the adapter to automatically install the firmware it has found.

The devolo Magic 1 WiFi mini automatically updates its firmware. The option is enabled by default.

4.7.5Config Sync

Config Sync allows settings to be configured uniformly for all devolo Magic devices in the network. This includes the following settings e.g.:

Wi-Fi network
Guest network
MeshWiFi
Time control and time server settings.

In order to switch Config Sync on, activate the Enable option.

Please note that the Wi-Fi is always switched on or off for the entire network. Therefore, stop Config Sync first on a device that you want to configure or switch separately.

5 Appendix

5.1 Bandwidth optimization

To significantly improve the transmission capacity of the network, we recommend that you comply with the following "connection rules":

Plug the devolo Magic 1 WiFi mini directly into a wall socket. Avoid using power strips. This may impair the transmission of the PLC signals.
- If there are several sockets in the wall directly next to each other, they behave like a power strip. Individual sockets are optimal.

Fig. 5: Bandwidth optimization

5.2 Warranty conditions

If your devolo device is found to be defective during initial installation or within the warranty period, please contact the vendor who sold you the product. The vendor will take care of the repair or warranty claim for you. The complete warranty conditions can be found at

www.devolo.global/support.

Index

A

Adapter equipment 11

C

CE declaration 8

Changing/assigning the network password 12, 24

Channels and frequencies in the 2.4-GHz band 6

Config Sync 48

D

DefaultWiFikey17

devolo App 25

devolo Cockpit 25

devolo Magic 9

devolo software 25

DHCP server 43

Disposal 6

E

Expanding an existing devolo Magic network 12

F

Factory default settings 20, 25

Factory reset 20

LAN (network connection) 20

LED status display 11

Login password 27

N

Network connection 20

0

Operating buttons 45

P

Package contents 21

Pairing (establishing a PLC connection) 12

PLC9

Powerline 9

Powerline status display 14

R

Reset 11, 20

S

Safety information 6

Safety notes 8

Starting up a new devolo Magic network 12

Symbol description 7

System requirements 21

T

Time server 45

Transmitting power in the 2.4-GHz band 6

W

Warranty 49

WiFi antenna 20

WiFi key 17

WiFi status display 19

WPA 34

WPA234

WPA3 34

© 2024 devolo solutions GmbH Aachen (Germany)

Wi-Fi Protected Setup (WPS) is one of the most popular schemes for Wi-Fi security. It is a technique that protects the data from unauthorized access by exploiting the vulnerabilities of the system. The Wi-Fi Protection layer (WPS) is a layer 1 layer in the Wi-Fi protocol, which is responsible for protecting the data from unauthorized access by unauthorized users. This layer is a layer 2 layer in the Wi-Fi protocol, which is responsible for protecting the data from unauthorized access by unauthorized users.

© 2024 devolo solutions GmbH Aachen (Germany)

devolo Magic overal in huis

devolo Home Network App downloads

De devolo Home Network App is de gratis app van devolo waarmeu via uw smartphone of tablet de WiFi-, PLC- en LAN-verbindingen van de devolo Magic-adapter kutn controleren en configureren. De smartphone of tablet maakt via WiFi verbinding met de devolo Magic-adapter thus.

code is reserved for 64 tokens (passphrase of 64 tokens pre-shared key)

Mesh (Multiroom WiFi)

"15600000000000000000000000000000000000000000000
