USER MANUAL DR 890 CD ALBRECHT

Two modern audio recording devices with digital displays and control knobs (no visible text or symbols)

Bedienungsanleitung

Deutsch

Inhaltsverzeichnis

1. Erste Schritte....3

Internet radio Last listened > Station list > System settings > Main menu >

3.1. Zuletzt gehört

Stations Location > Genre > Search stations > Popular stations > New stations >

Help For support or to register: http://nuvola.link/sr Access Code: DHKR6ST Valid for 10 minutes

Music player Shared media > USB playback My playlist Repeat play: Off Shuffle play: Off

DE

JB-Laptop: Audio Music > Playlists >

Music player 03:28 All Out of Love Album: Sweet Dreams: The Encore Collection

Scanned screenshot of a software interface with Chinese text and a blue banner containing a logo or icon.

DAB Stations: 15 Scanning /

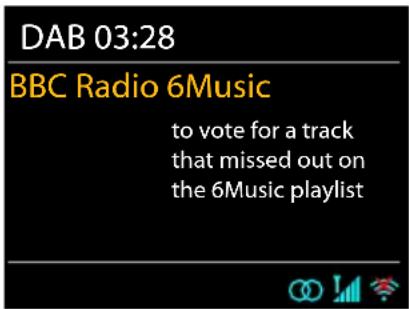

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

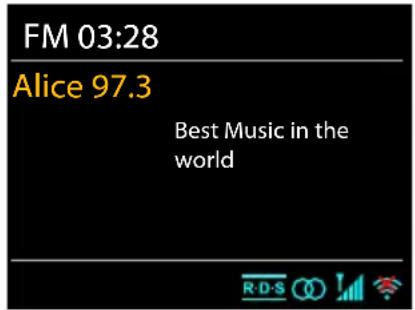

FM 03:28 Alice 97.3 Best Music in the world

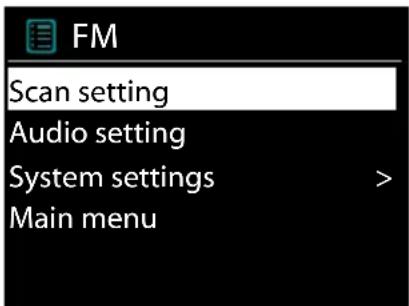

FM Scan setting Audio setting System settings > Main menu

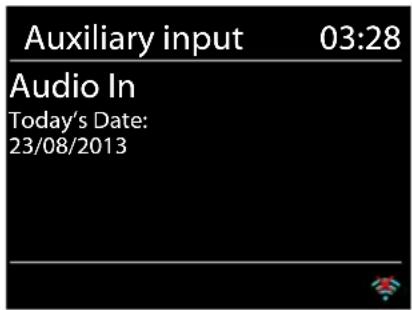

Auxiliary input 03:28 Audio In Today's Date: 23/08/2013

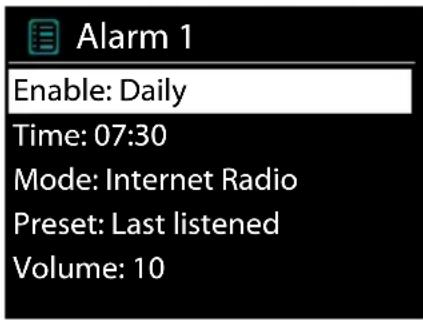

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

Set snooze time 5 minutes

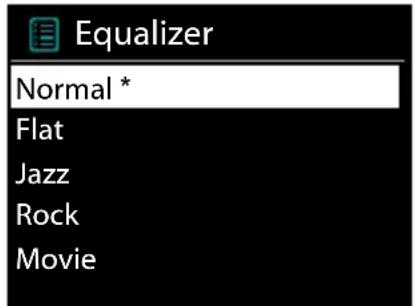

Equalizer Normal * Flat Jazz Rock Movie

13.2. Netzwerk

WPS Setup ! Push WPS button at the other end Press SELECT to continue

- Pin

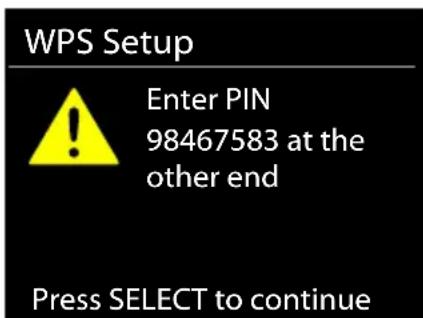

WPS Setup Enter PIN 98467583 at the other end Press SELECT to continue

Setup wizard Setup wizard completed Press SELECT to exit

13.2.2. PCB WLAN-Setup

13.2.6. Net Remote PIN-Setup

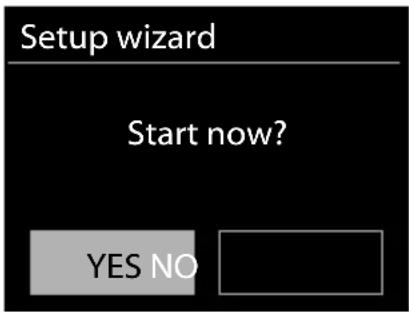

Setup wizard Start now? YES NO

GK 200 CD GK 200 CD Group membership GK 200 CD Group membership GK 200 CD Group membership GK 200 CD

Technische Daten

Two modern audio recording devices with digital displays and control knobs, shown from different angles (no visible text or labels)

Manual

English

Table of content

1. First Steps ...... 33

1.1. Language 33
1.2. Package contents....33
1.3. Getting started....33

1. Overview of your DR 890 CD / Key Descriptions ....34

2.1. Front 34
2.2. Back 34
2.3.Key descriptions 35
2.4. Remote Control 36
2.5.Modes 37

1. Internet Radio 37

3.1. Last listened 37
3.2. Station List 38
3.3.Favourites 38

3.3.1. Preset a Station....38
3.3.2. Recall a Stations 38

3.4. Online Favourites....38
3.4.1. My added Stations 39
3.5. Now Playing Information 39

1. Spotify....39

2. Media Player....39

5.1. Shared media....39
5.2. USB playback....40
5.3. Repeat/shuffle 40
5.4. Now playing information....40
5.5. DMR (DLNA Streaming) 40
5.6. Control on PC....41
5.7. Control on Smartphone/Tablet 42

1. DAB/DAB+ Mode 42

6.1. Scanning for DAB stations 42
6.2. Station List 42
6.3. Station Order 42
6.4. Preset a Stations....43
6.5. Recall a Stations 43
6.6.Manual Tune 43
6.7. DAB Display Information 43

6.7.1.DAB+ Slideshow 43

6.8. Prune Invalid 43
6.9. Dynamic Range Control (DRC) 43

1. FM Mode 44

7.1. Scanning for FM stations 44
7.2.Preset a Station 44
7.3. Recall a Station 44
7.4. Now playing information....44
7.5. Settings 44

7.5.1. Scan settings....44
7.5.2. Audio settings....45

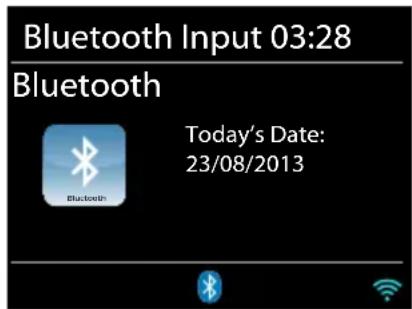

1. Bluetooth Mode 45

2. CD Mode 45

9.1. Playback....45
9.2. Repeat/shuffle 45
9.3. CD track programming....46
9.4. MP3 / WMA CD 46

1. Aux-In Mode 46

2. Sleep (Timer) 46

3. Alarm 47

4. System Settings....47

13.1. Equalizer 47
13.2. Network 48

13.2.1. Network Wizard....48

13.2.2.PCBWLAN Setup 49

13.2.3.View Settings....49

13.2.4.WLAN Region 49

13.2.5. Manual Settings 50

13.2.6.Net Remote PIN Setup 50

13.2.7. Network Profile....50

13.2.8. Clear network Settings 50

13.2.9. Keep Network Connected 50

13.3.Time/Date 50

13.4. Language 50

13.5. Factory reset 50

13.6. Software Update 50

13.7. Setup Wizard....51

13.7.1.Time/Date 51

13.7.2. Auto-Update 51

13.7.3.Time Zone, Daylight Saving Time 51

13.7.4. Manual Update....51

13.8. Info 51

13.9. Backlight....51

13.10. Multiroom 51

13.10.1.View Details 51

13.10.2. Create New Group 51

13.10.3.Add to Group 51

13.10.4. List Current Clients....52

13.10.5.Leave Group 52

13.10.6. Dissolve Group....52

13.11. Output Choice 52

13.12. Standby Clock Format 52

1. UNDOK APP 52

2. Troubleshooting 54

3. Safety instructions 56

4. Warranty and Recycling Information 57

17.1.WEEE and Recycling 57

17.2. Service Address and Technical Hotline (for units sold in Germany)....57

1. First Steps

1.1. Language

If you would like to change the language, press and hold „MENU“ on the radio and go to „Systemeinstellungen > Sprache“ to switch to your preferred language.

1.2. Package contents

Please make sure that the following contents are included in the package:

1. DR 890 CD Radio

2. Power supply

3. 3.5mm Audio Cable

4. Cable-antenna

5. Remote Control

6. User manual

1.3. Getting started

Connect the supplied cable antenna or an external DAB/FM antenna, as well as the power adaptor to the back of the DR 890 CD and plug it into a power socket. Switch on the radio through the power switch on the backside.

Get the network environment ready for wireless WiFi: Make sure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection. You

may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and DR 890 CD. Check if the light indicators on the network device are in appropriate status.

At the first time operation, system asks if you want to start the Setup Wizard. Select YES to continue the setup. You will be able to configure the date, time and network settings. Details of the Network Setup can be referred to Section „13.2. Network“. If you choose NO, the next screen asks if you would like to run the wizard again the next time the DR 890 CD is started.

Press 🔒 to enter standby mode. The time, date and any active alarm times display on the screen. After the first start the DR 890 CD will automatically connect to your network and the last played station.

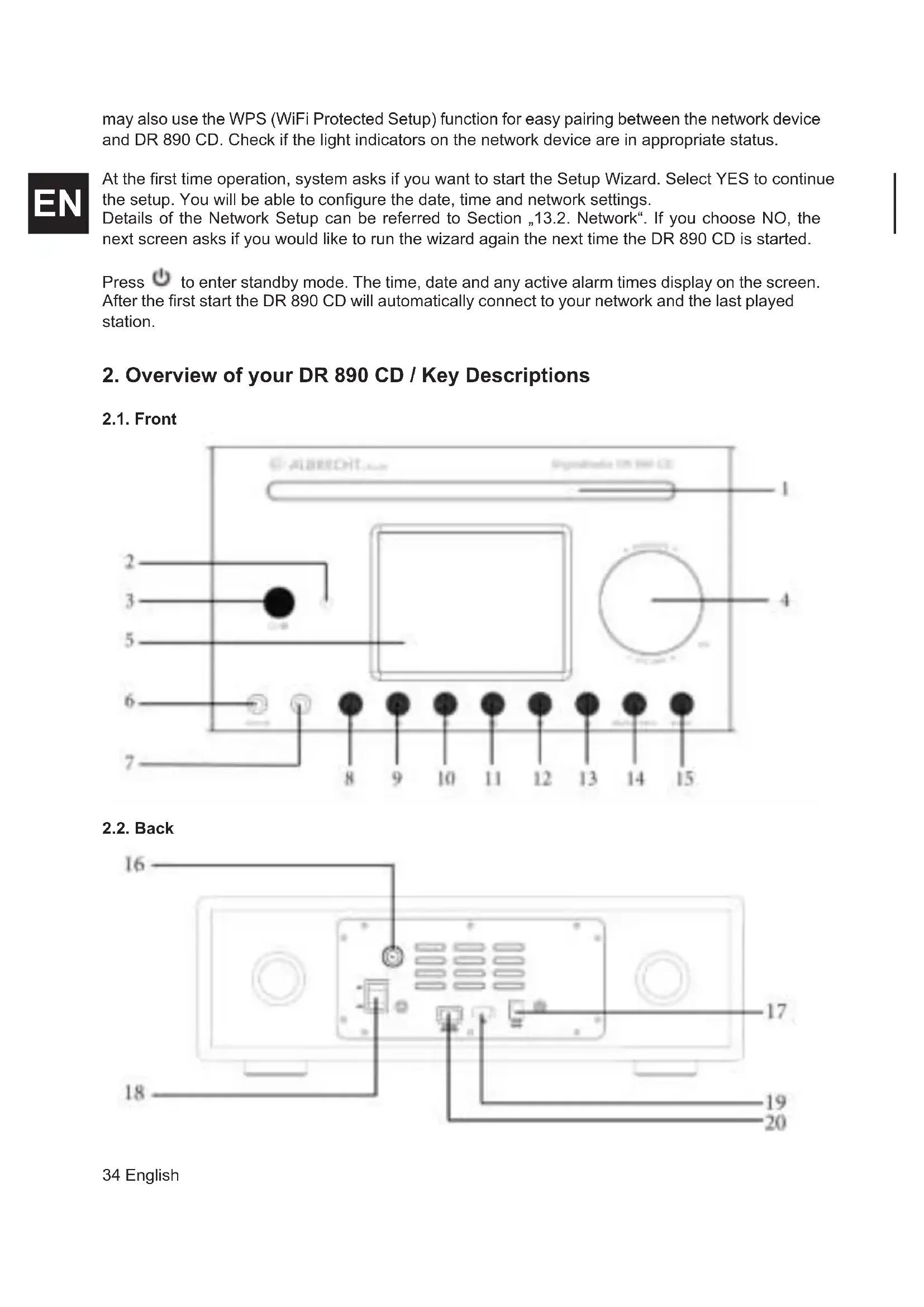

2. Overview of your DR 890 CD / Key Descriptions

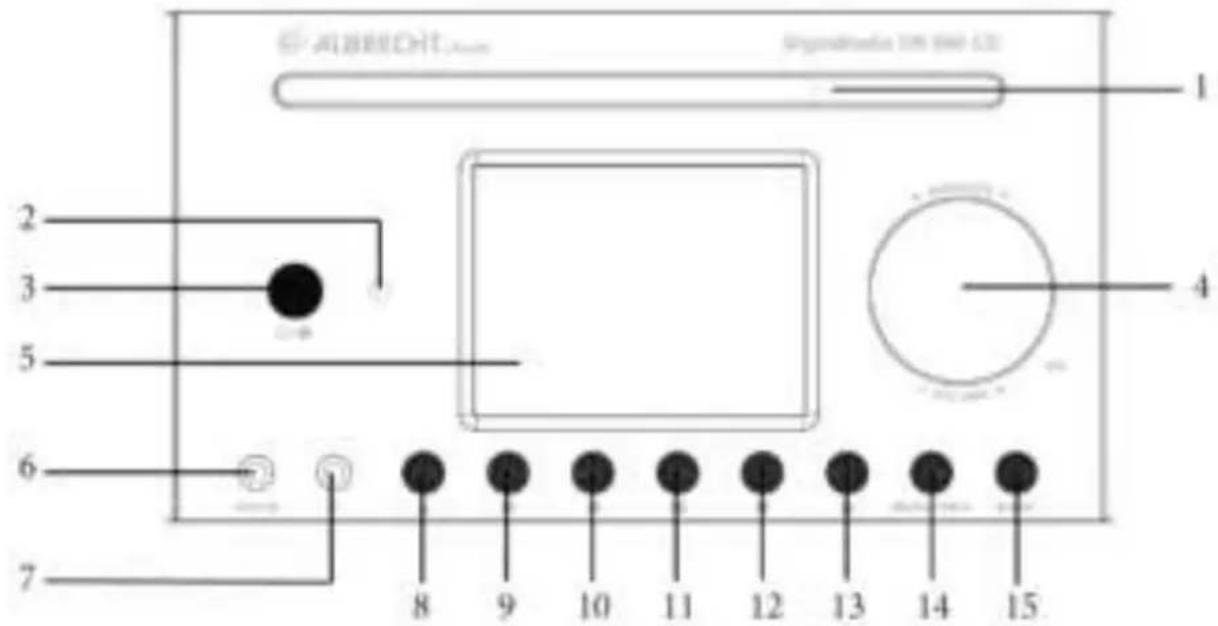

2.1. Front

ALBRECH Signal processing 100.000 GB 1 2 3 5 6 7 8 9 10 11 12 13 14 15

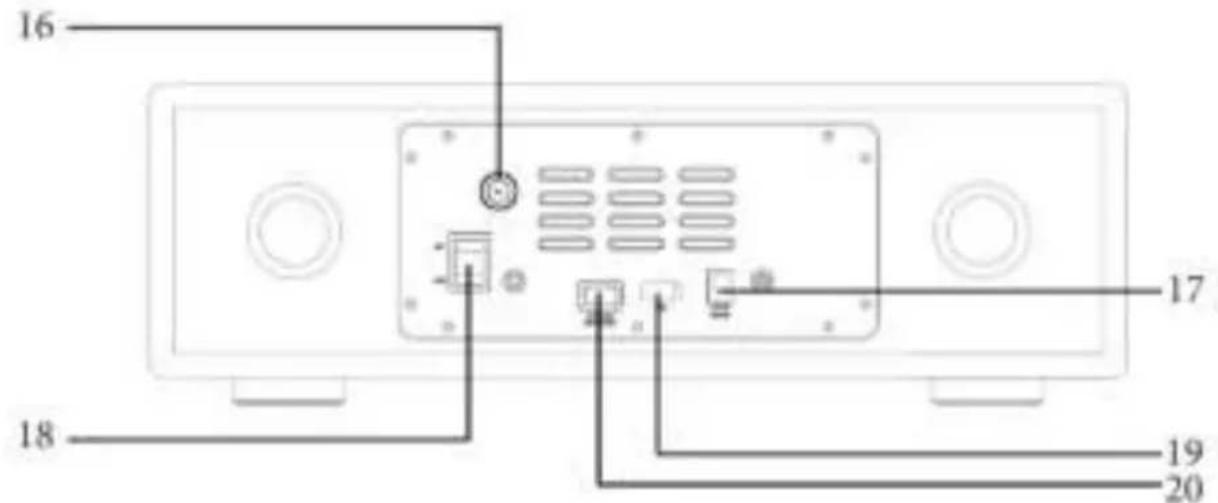

2.2. Back

16 17 18 19 20

34 English

2.3. Key descriptions

No.	Description	Functions
1	CD	CD tray Play CD
2	IR	receiver Receive infrared signal	from remote
3		On/standby Home	Press long to turn the radio on or to standbyPress short to turn to home menu
4	VOLUME	Volume and Navigation Knob	Rotate to adjust the volumeRotate to browse the menuPress to confirm a selection (scan for next station)
5	Display 2.8" TFT Colour Screen
6	Aux-In Aux-In	Jack Connect external	audio sources 3.5mm
7		Headphone jack	Connect headphones, connecting headphones disables the speakers, except during alarm
8		Eject Open / close the CD-tray
9		Track back Press	to play the previous trackPress and hold to fast rewind
10		Next Track	Press to play the next trackPress and hold to fast forward
11		Play - Pause	Press to play or pause
12		Stop	Press to stop and return to the playlist
13		Favourite	Press to open the favourite listPress and hold to store a favourite
14	Menu INFO	Mode Menu Info Button	Press long to open the mode menuPress to cycle through informations
15	BACK	Back Button	Step back in menus
16	Antenna	IEC connector	For DAB / FM cable antenna or external antenna
17	DC-IN	DC-IN socket	Connect to power source
18	ON/OFF	On/Off switch	Main power switch for DC-IN
19	USB	USB Port	Connector for external USB audio source
20	UPDATE	UPDATE ONLY	For software-updates only

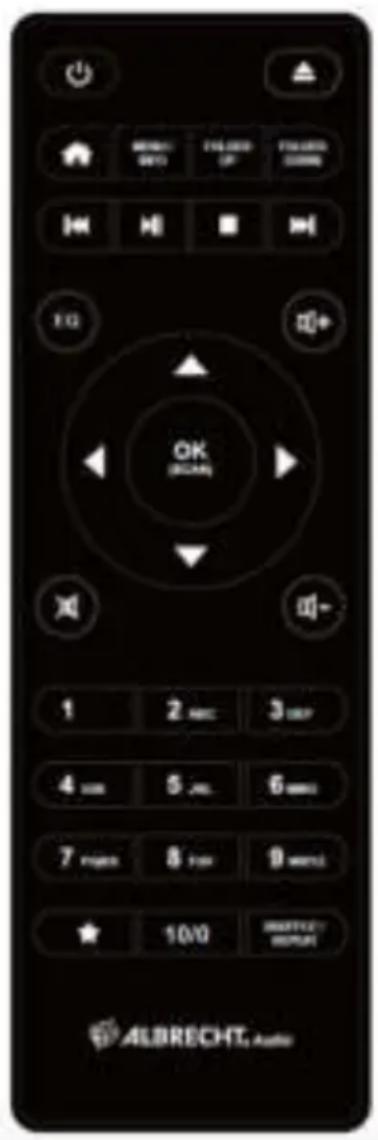

2.4. Remote Control

EN

	On/Standby Press to switch between On and Standby
	Eject Open / close the CD tray
	Mode button Press to return to home menu
MENU INFO	Mode Menu Info Button	Press long to open mode menu Press to cycle informations
FOLDER UP		Moves to the parent folder
FOLDER DOWN		Opens the selected folder
	Track back Press for previous track Press and hold to fast rewind
	Play / Pause Press to play or pause
	Stop Stop and return to the playlist
	Next Track Press for next track Press and hold to fast forward
EQ Equalizer Shortcut to Equalizer
	Volume + Increase the audio output
	Up button Tune	Scroll up / DAB: Station list FM: Tune up 0.05 MHz
	Left-button Moves left in Menu
OK SCAN	Select SCAN	To confirm your selection FM scan for next station
	Right-button Moves right in Menu
	Tune down Down button	Scroll down / DAB: Station list FM: Tune down 0.05 MHz
	Mute To mute/unmute the sound
	Volume - Decrease the audio output
1-10 Preset Recall Long press save preset Short press recall preset
	Favourites	Press to open the favourite list Press long to store a favourite
SHUFFLE REPEAT	Long press Short Press	On / off random function On / off repeat function

OK (RON) 1 2 REC 3 ORF 4 WM 5 JL 6 WM 7 RMS 8 PM 9 WM ★ 10/0 INSTINCT RESET ALBRECHT Audio

To insert AAA batteries into the battery compartment, open the cover on the backside of the remote. The correct polarity is shown in the battery compartment. Dispose used batteries according to the instructions.

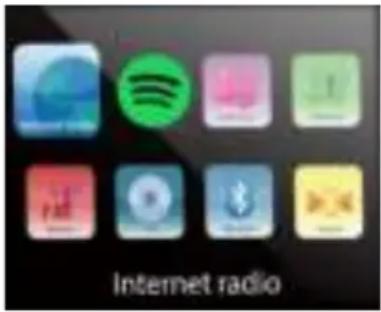

2.5. Modes

In the Main Menu, you can select the following modes: Internet Radio, Spotify, DAB, FM, CD, Bluetooth, Aux-In and Media Player.

Alternatively, press 🔒 to enter Home Menu, move to the mode by rotating the navigation knob or press ▲ or ▼ on the remote control.

Internet radio

3. Internet Radio

DR 890 CD can play thousands of radio stations and podcasts from around the world through a broadband internet connection. When you select Internet Radio, DR 890 CD directly contacts the Internet Radio portal to get a list of stations. The portal also enables multiple lists of favourite stations that you can personalize

To enter Internet Radio Mode, press 🔒, choose Internet Radio and press OK.

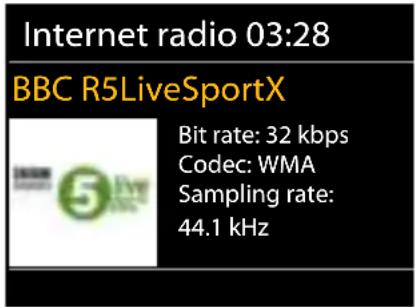

Internet radio 03:28 BBC R5LiveSportX Bit rate: 32 kbps Codec: WMA Sampling rate: 44.1 kHz

If you are already listening to an Internet Radio station, you can press BACK or ◀ on the remote control to quickly return to the last visited branch of the menu tree, rather than press and hold MENU to go to the first menu of Internet Radio mode. Press ▶ to pause playing. Press again to play the station.

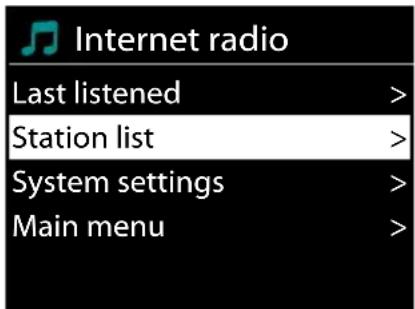

Internet radio Last listened > Station list > System settings > Main menu >

3.1. Last listened

When Internet Radio mode restarts, the last-listened station is selected. To select another recently used station, enter here to select one of the last listened stations. Most recent stations appear at the top of the list.

3.2. Station List

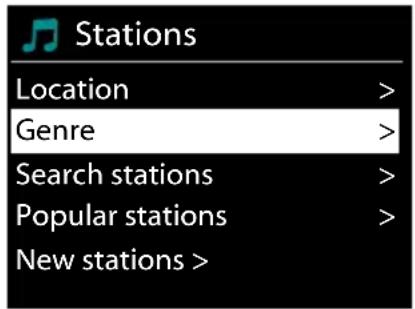

Stations Location > Genre > Search stations > Popular stations > New stations >

Internet Radio stations are organized with different categories, Location, Genre, Popular and New. You can also find the station by searching with a keyword.

3.3. Favourites

Favourites are stored in the radio and cannot be accessed from other radios.

3.3.1. Preset a Station

While listening to a IR station, long press ★ until the Save to Preset menu opens. Select one of the 20 presets to save the currently playing station with OK. You can also easily store a station on a specific preset number by pressing and holding 1-10 key on the remote control.

3.3.2. Recall a Stations

Short press ★ to go to the Recall from Preset menu select the desired station and confirm with OK. A preset can also be recalled by short pressing its corresponding 1 to 10 key on the remote control. When a preset station is playing, it shows ★ (1, 2, 3, etc) at the bottom of the screen.

3.4. Online Favourites

The online favourites are not stored on the unit itself but in a folder on the Internet Radio portal, and are available through all Internet Radios registered on the same account.

To register your DR 890 CD, choose Station list > Help > Get access code to get your radio's unique portal access code first. (Do not confuse the portal access code with the Radio ID from System settings).

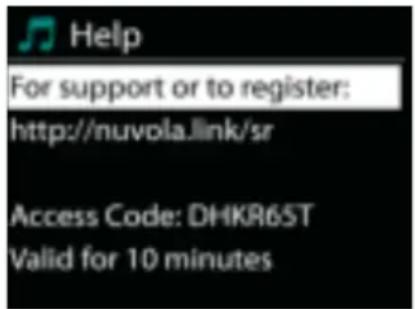

Help For support or to register: http://nuvola.link/sr Access Code: DHKR65T Valid for 10 minutes

Visit the portal website at https://smartradio.frontier-nuvola.net/ and go to Manage Favourites. If this is your first visit to the portal, register for a new account, entering the following information:

• access code
• your e-mail address
• password
• radio model

If you already have an account and wish to add an additional radio, log in to your account and select Device > Connect new device.

Once your radio is registered with the portal, you can immediately use the Internet Radio favourites and added stations features.

To store a playing station as a favourite, press and hold OK until the display shows 'Favourite added'. The station appears in the default favourites list.

3.4.1. My added Stations

Even though the Internet Radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own via the portal.

3.5. Now Playing Information

While the stream is playing, the screen shows its name and description. To view further information, press INFO.

Each time you press INFO, another set of information is displayed, cycle through name/description, genre/location, reliability, codec/sampling rate, playback buffer and today's date.

4. Spotify

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

Spotify™

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-partylicenses

With Spotify, you have millions of songs at your disposal: your favourite artists, pre-made playlists for every mood, the latest hits, and music recommendations tailored to you.

The Spotify Connect feature lets you play and control music wirelessly on your radio. Select the music you like on your smartphone, tablet or PC and play it over the radio.

5. Media Player

Music player mode plays audio files in MP3, WMA, WAV, AAC or FLAC format from a computer on the local network

To enter Music player Mode, press 🔒 to choose Music player and press OK.

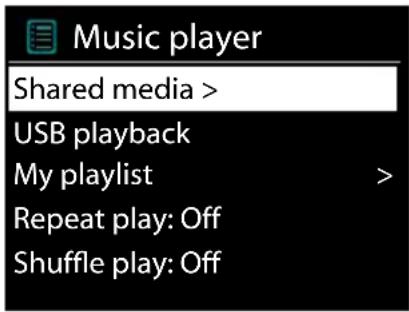

Music player Shared media > USB playback My playlist Repeat play: Off Shuffle play: Off

If you are already playing a music file, you can press BACK or ▶ on the remote control rather than press and hold MENU to quickly return to the last visited branch of the menu tree.

You can use ▶ or ▶ to play the previous or next track, press and hold to rewind or fast forward. Press ▶ to play or pause. Press ▶ to stop playback and return to the song list.

5.1. Shared media

If you have set up shared media, you should see an entry consisting of : . If you have more than one computer sharing media, the alternatives are listed. Select the shared media you want to play.

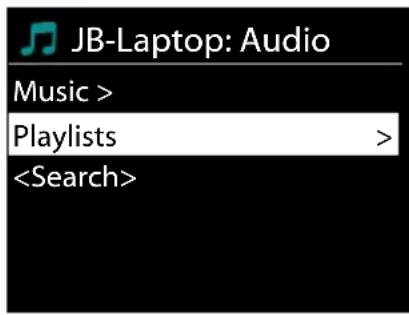

JB-Laptop: Audio Music > Playlists >

From this point on, the menus are generated from the shared media server. The first menu shows a list of media types, for example Music, Video, Pictures and Playlists. DR 890 CD can only play music and playlists.

There is also a search function which finds tracks in a similar way to Internet Radio search.

From Music, there are numerous ways of selecting tracks including Genre, Artist, Album,

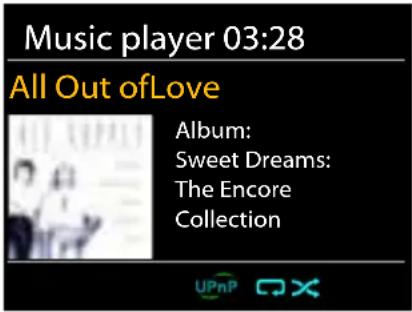

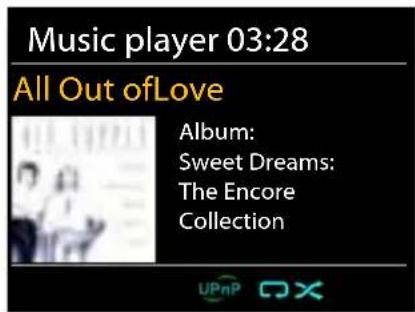

Music player 03:28 All Out ofLove Album: Sweet Dreams: The Encore Collection

Composer and Rating.

Once you have found a track you want to play, press OK. A short press plays the track immediately.

5.2. USB playback

When this menu is selected, menus are generated from the folders on the USB device. Browse the folders with the navigation knob and BACK button, or direction keys on the remote control. The display shows folders and file names (not necessarily track names).

Once you have found a track you want to play, press OK. A short press plays the track immediately.

Note: The USB port is just for music playback, it supports no charging functionality.

5.3. Repeat/shuffle

You can set these options to repeat tracks or play them in random order. In order to activate Repeat or Shuffle press the corresponding button on the remote control.

5.4. Now playing information

While a track is playing, the screen shows its track and artist. There is also a progress bar with figures for elapsed and total track time. At the bottom of the screen, an icon indicates UPnP or USB depending on the source. To view further information, press INFO.

Each time you press INFO, another set of information is displayed, cycling through the information: artist, album, codec/sampling rate, playback buffer and today's date.

Album cover of the track from music server is supported, while album cover from USB is unsupported.

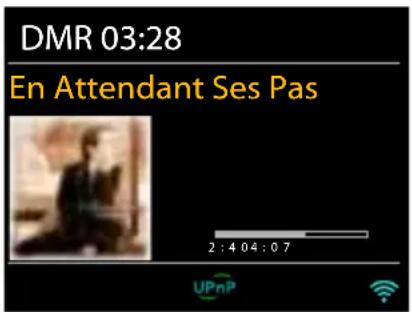

5.5. DMR (DLNA Streaming)

Shared music in Section „5.1. Shared media“ is a way of music streaming where you look for the music list and control playback from DR 890 CD. This topic will introduce another way to do the music streaming without controlling the playback on the DR 890 CD.

You can share the music files from PC, Android mobile or tablet, and directly use your PC, Android mobile, tablet or iPhone / iPad to control music playback on the DR 890 CD. It is simple called DLNA streaming.

5.6. Control on PC

The PC system requirements for DLNA are Windows 7 and Windows Media Player 12. Setup as below:

Firstly, share the media on your PC to DR 890 CD.

Windows Media Player > Streaming >Activate Media Streaming> Media streaming options

Name: 12340000000 Description: Name: 12340000000 Name: 12340000000 Name: 12340000000 Name: 12340000000 Name: 12340000000 Name: 12340000000 Name: 12340000000 Name: 12340086666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666666 Name: 12340000000 Name: 12340000000 Name: 12340000000 Name: 12340000000 Name: 1234008555555555555555555555555555555555555555555555555555555555555 Name: 123400855555555555555555555555555555555555555555 Name: 123408777777777777777777777777777777777777777777777777777777777 Name: 12341989999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999999 Name: 123418888888888888888888888888888888888888888888888888888888888888888888 Name: 1234188888888888888888888888888888888888888888888888888888 Name: 123418888888888888888888888888888888888888

Open Windows Media Player and click Streaming > Enable remote control of my Player. Right click any music in the library and choose Play to DR 890 CD

Open Close Save As Save As Open Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Close Save As Help Open

A box of music playback pops up for the streaming.

Scanned screenshot of a software interface with a blue banner and control buttons at the bottom

To stop DRM mode and switch to another one, press and hold MENU select Main menu and switch to another mode. Or restart the radio.

5.7. Control on Smartphone/Tablet

You may search and install any free or commercial DLNAApps from Google Play or Apple Store if you are using Android mobile, tablet or iPhone / iPad.

It is suggested to use BubbleUPnP on Android and iPhone/iPad devices. Procedures for playing shared music on the app are as follows:

1. Select DR 890 CD as the player.
2. Select music server and choose the music.

NOTE: Some Apps may not support streaming music from iPhone/iPod but they can still be used to control streaming music from other servers. Some Apps may allow to play the music to multiple players at the same time. Some Apps can create a playlist if you choose several music.

Study the own instruction of the software or Apps you use to enjoy DLNA streaming if necessary.

6. DAB/DAB+ Mode

DAB radio mode receives DAB/DAB+ digital radio and displays information about the station. To enter DAB Mode, press 🔒 to choose DAB and press OK.

For optimal performance make sure that the antenna is correctly adjusted to get the maximum signal strength and the best possible sound quality (also for FM). The icon on the bottom right corner of the display shows the strength of the DAB/DAB+ signal detected by the device.

6.1. Scanning for DAB stations

The first time you select DAB radio mode, or if the station list is empty, DR 890 CD automatically performs a full scan to search for available stations.

DAB Stations: 15 Scanning /

Once the scan is complete, the radio shows a list of available stations

If you wish to do a DAB scan later again, press and hold MENU to enter the menu where you can select Scan and confirm with OK. The station list will be updated accordingly.

6.2. Station List

To change a station, press ▲/▼ on the remote control, select a station and press OK. Once selected, the station starts playing and the screen shows information about the station, track or show. Or press and hold MENU to enter the menu, then select Station List to view the list of stations already scanned. Rotating the navigation knob or press ▲/▼ on the remote control to select the station you want to listen and press OK to confirm.

6.3. Station Order

The stations can be sorted in 3 different ways: Alphanumeric, Ensemble or Valid.

Press and hold MENU to enter the menu, select and press OK to confirm.

6.4. Preset a Stations

While listening to a DAB+ station, long press ★ until the Save to Preset menu opens. Select one of the 20 presets to save the currently playing station with OK. You can also easily store a station on a specific preset number by pressing and holding 1-10 key on the remote control.

6.5. Recall a Stations

Short press ★ to go to the Recall from Preset menu select the desired station and confirm with OK. A preset can also be recalled by short pressing its corresponding 1 to 10 key on the remote control. When a preset station is playing, it shows ★ (1, 2, 3, etc) at the bottom of the screen.

6.6. Manual Tune

As well as the normal method of scanning and selecting stations from a list, you can also tune manually to a particular channel/frequency. To manually tune press and hold MENU to enter the menu, select Manual Tune and choose a particular channel/frequency and press OK to confirm

6.7. DAB Display Information

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

While the DAB radio is playing, the display shows information about the current song. To view further information, press INFO. Each time you press INFO, another set of information is displayed, cycling through DLS text, signal strength, programme type, ensemble name, channel number/frequency, signal error rate, bit rate/codec, time and date.

6.7.1. DAB+ Slideshow

Additionally DAB+ is also able to show slideshow pictures transmitted by the radio stations. In order to switch to full screen, press OK. To minimize press OK again

6.8. Prune Invalid

Enter to remove the stations that are listed but are not available. Press and hold Menu select Prune invalid and confirm with OK.

6.9. Dynamic Range Control (DRC)

If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter.

There are 3 levels of compression:

• DRC off - no compression. This is the default setting.
• DRC low - medium compression.
• DRC high - maximum compression.
  Press and hold MENU to enter the menu, select DRC choose high, low or off and OK to confirm.

Note: the selected radio station has to support the DRC functionality.

7. FM Mode

FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information.

To enter FM Mode, press 🔒, choose FM radio and press OK.

FM 03:28 Alice 97.3 Best Music in the world

7.1. Scanning for FM stations

To search for FM station, press OK (SCAN on the remote control). The frequency display starts to run up/down as DR 890 CD scans the FM band. It stops when it is receiving a station. You may press ▲/▼ on the remote control to tune station manually. Each step moves 0.05MHz

7.2. Preset a Station

While listening to a FM station, long press ★ until the Save to Preset menu opens. Select one of the 20 presets to save the currently playing station with OK. You can also easily store a station on a specific preset number by pressing and holding 1-10 key on the remote control.

7.3. Recall a Station

Short press ★ to go to the Recall from Preset menu select the desired station and confirm with OK. A preset can also be recalled by short pressing its corresponding 1 to 10 key on the remote control. When a preset station is playing, it shows ★ (1, 2, 3, etc) at the bottom of the screen.

7.4. Now playing information

While the stream is playing, the screen shows its frequency, or if RDS information is available, station name and any further RDS information such as programme name, track, title and contact details. If no information is available, just the frequency is shown. Each time you press INFO, another set of information is displayed, cycling through RDS text, further RDS text (station/programme type), frequency and today's date.

Stereo and RDS broadcasts are indicated with an icon at the bottom of the screen.

7.5. Settings

FM Scan setting Audio setting System settings > Main menu

7.5.1. Scan settings

By default FM scans stop at any available station. Change the scan settings to stop only at stations with good signal strength, select YES after choosing "Strong station only?".

7.5.2. Audio settings

All stereo stations are played in stereo. For weak stations, this may result in a poor signal-to-noise ratio. To play weak stations in mono, select FM>Audio settings: "Listen in mono only".

8. Bluetooth Mode

The DR 890 CD is able to connect to other Bluetooth sources and play their audio streams. Please note that the maximum Bluetooth range is about 10 meters and the radio is not able to connect to other Bluetooth headsets, but sources only, such as smartphones.

Bluetooth Input 03:28 Bluetooth Today's Date: 23/08/2013

To enter Bluetooth Mode, press 🔒 to choose Bluetooth and press OK.

When you select the Bluetooth mode, the device is entering the pairing mode. Turn on your smartphone/tablet/other Bluetooth device to search for the radio. The Bluetooth pairing name of the radio adapter is „DR 890 CD“. If pairing is successful, the screen will show „Connected“ and the DR 890 CD will start playing music from your device.

When DR 890 CD is waiting for pairing, there is a blinking Bluetooth icon at the bottom. If the pairing is successful, it has a “beep” sound and the Bluetooth icon becomes steady.

Control the music playback from your Bluetooth device. To unpair from DR 890 CD, press and hold MENU and choose BT disconnect or press and hold ★ to unpair Bluetooth.

9. CD Mode

DR 890 CD can playback CD-DA format audio CD-R/CD-RW discs that have been finalised* upon completion of recording. It may fail to play some CD-R/CD-RW discs due to poor recording and wide variation in quality of the CD-R/CD-RW disc.

*Finalising enables a CD-R/CD-RW disc to playback on audio players. A disc which has not been finalised may have information added to it using a computer but may not always be playable.

To enter CD Mode, press 🔗, choose CD and press OK

Press ▲ to open the CD-tray and insert a disc with printed side facing up. Press ▲ again and the disc will be loaded automatically. The unit will check the CD type and load its track list. The display will show 'Loading' during the CD is being read and will begin to play afterwards.

9.1. Playback

Use or to play the previous or next track, press and hold of to rewind or fast forward.

Press ▶ to pause the track. Press it again to resume. Press ■ to stop the track.

To take out the CD, press ▲. You can press the number key to go to the selected track.

9.2. Repeat/shuffle

Short press REPEAT on the remote control to swap among normal playback, repeat one, repeat all (and repeat folder for MP3 / WMA CD).

Press and hold SHUFFLE to turn on/off the function of random.

9.3. CD track programming

Stop the playback first if any track is playing.

Press ★ to program. Set the first programming track, use ▶ or ▶ to seek the track. Press OK to confirm and set the next programming track.

Repeat the steps. When programming is completed, press ★.

Press ▶ to start playing the programmed track(s).

9.4. MP3 / WMA CD

DR 890 CD is able to play CD-R and CD-RW discs containing MP3 and WMA files. It is assumed in this section that a file is equivalent to a CD track.

Playback controls are the same as „9.1. Playback“, “8.2. Repeat/Shuffle” and „9.3. CD track programming“. In addition, DR 890 CD allows to skip folders by pressing FOLDER UP or FOLDER DOWN on the remote control. The first file of the next or previous folder will be played and you can also display additional Information by pressing INFO.

A MP3 / WMA CD may not contain more than 512 files and not more than 99 folders. MP3 and WMA files should be created with an audio sample rate of 44.1kHz (this is normal for files created from CD audio content).

MP3 and WMA data rates up to 320 KBit per second are supported. WMA Lossless files are not supported. The unit will not play files which include digital rights management (DRM) protection.

When burning CD-R and CD-RW discs with audio files, various problems may arise which could lead to problems with playback. Typically such problems are caused by poor CD writing or audio encoding software, or by the hardware settings of the PC's CD writer, or by the CD being used. Should such problems arise, contact the customer services of your CD writer or software manufacturer or look in their product documentation for relevant information. When you are making audio CDs, take care to observe all legal guidelines and ensure that the copyright of third parties is not infringed.

10. Aux-In Mode

Aux-In mode plays audio from an external source such as an MP3 player. To use the Aux-In mode:

• Turn the volume low on both DR 890 CD and, if adjustable, the audio source device.
• Connect the external audio source to the Aux-In 3.5mm stereo socket on the frontside.
• Press , then move to Aux-In and press OK.
• Adjust the volume of DR 890 CD (and, if necessary, the audio source device) as required.

Auxiliary input 03:28 Audio In Today's Date: 23/08/2013

11. Sleep (Timer)

The Sleep Timer will switch the DR 890 CD into Standby mode after the selected time 15/30/45/60 minutes runs out. To set the Sleep Timer press and hold MENU, move to Main menu, select Sleep and set the time. Once the time is set, there will be a moon icon with the remaining time at the left bottom of the display.

12. Alarm

There are two independent wake-up alarms with snooze functionality. Each alarm can be set to start in a particular mode.

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

To set an Alarm press and hold MENU move to Main menu select Alarms.

Select the alarm number (1 or 2) then configure the following parameters:

• Enable: Off, Daily, Once, Weekends or Weekdays
• Time
• Date: only if "Once" is selected
  • Mode: Buzzer, Internet Radio, DAB, FM or CD
• Preset: Last listened or Presets of the chosen mode (not when Buzzer is selected)
  • Volume: 0-32

To activate the new settings, scroll down and select Save. The screen shows active alarms with an icon at the bottom left.

At the set time, the alarm will activate. The alarm volume starts at a very low level and increases to the selected volume over a time period of about 30 seconds. To activate Snooze, press any key on the unit or the remote control except ⏻. You can change the snooze period 5/10/15/30 by pressing any key except ⏻. The radio returns to standby for the set period, with the alarm icon flashing and the remaining time. Press ⏻ on the device or the remote control to turn the alarm off.

Set snooze time 5 minutes

Note: When the selected Mode is not available the DR 890 CD falls back to Buzzer. Connecting headphones disables the speakers, except alarms.

13. System Settings

To select System settings press and hold MENU move to System settings and confirm with OK.

13.1. Equalizer

Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop and News. Also a user-defined setting is available; create your own EQ with custom bass, treble settings. Press EQ at the remote control to open the Equalizer, every next press of EQ moves to the next EQ mode and you can hear it immediately. To confirm the EQ Mode press OK.

Default setting is Rock.

Equalizer Normal * Flat Jazz Rock Movie

13.2. Network

13.2.1. Network Wizard

Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network.

1. Scanning for networks

DR 890 CD is compatible with all common network protocols and encryption methods. It searches for the available networks and lists them so you can choose your desired network.

These networks support WPS functionality which eases the connection to this network. For more information see next page.

If you network does not support WPS functionality you will be asked your network's encryption key in the next step. If it does support WPS you will be asked to choose between the WPS methods "Push button" or "PIN". Or you can skip WPS in order to enter your encryption key.

2. Standard encrypted network

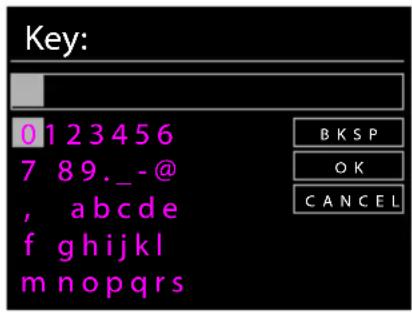

To enter the network's key, use the navigation knob or direction keys on the remote control to move the cursor through the characters and press the knob or OK (SCAN) on the remote control to confirm. As each character is selected, the key is built up near the top of the display.

Key: 0123456 7 89._-@ , abcde f ghijkl m nopqrs B K S P O K C A N C E L

To select "Backspace" (BKSP), "OK" or "Cancel" with the navigation knob turn the selection to "0" and then turn the knob further backwards.

3. WPS encrypted network

WPS encrypted networks are identified by [WPS] at the start of the network name. Use one of the following methods of connection:

- Push button

DR 890 CD prompts you to press the connect button on the router. It then scans for a ready Push Button network and connects.

WPS Setup

Push WPS button at the other end

Press SELECT to continue

- Pin

DR 890 CD generates an 8-digit code number which you enter into the wireless router, access point, or an external registrar.

WPS Setup

Enter PIN 98467583 at the other end

Press SELECT to continue

- Skip WPS

Enter key as for a standard encrypted network. See point 2

For more information on setting up a WPS encrypted network, see your WPS router's instructions.

4. Completion

DR 890 CD attempts to connect to the selected network. It will show connected if the setup is successful. If connecting fails, DR 890 CD returns to a previous screen to try again. Press the navigation knob or OK on the remote control to quit the setup wizard.

Setup wizard

Setup wizard completed

Press SELECT to exit

13.2.2. PCB WLAN Setup

Push Button Configuration, it is to connect the AP that supports WPS (Wi-Fi Protected Setup).

13.2.3. View Settings

View the information of current connected network: Active connection, MAC address, WLAN region, DHCP, SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS.

13.2.4. WLAN Region

Select the WLAN region to obtain the optimal WLAN connectivity: Europe or Australia.

13.2.5. Manual Settings

Choose network connection and enable or disable DHCP (Dynamic Host Configuration Protocol)

13.2.6. Net Remote PIN Setup

Allows you to define a PIN number to be entered before being able to connect to DR 890 CD remotely over a network.)

13.2.7. Network Profile

DR 890 CD remembers the last four wireless networks it has been connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing the reel or OK on the remote control then choosing YES to confirm delete.

13.2.8. Clear network Settings

To clear all network settings choose YES and confirm with OK

13.2.9. Keep Network Connected

If you choose keep network connected, the WiFi will not disconnect even you are in standby mode. Otherwise, the connection will always be available. This option allows the device to be ready for DLNA streaming in any operating modes. Details for DLNA streaming, refer to Section „5.5. DMR (DLNA Streaming)“.

13.3. Time/Date

Set the time manually or auto update time format, time zone and daylight.

13.4. Language

The default language is German. Change it as your preference.

The following languages are available: English, Danish, Dutch, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish.

13.5. Factory reset

A factory reset resets all user settings to default values, so that time and date, network configuration and presets are lost. However, the DR 890 CD's current software version is maintained, as is the registration with the Internet Radio portal. Internet Radio favourites therefore remain unless you re-register your DR 890 CD with another account on the portal website.

13.6. Software Update

From time to time, software upgrades may be created with bug fixes and/or additional features. You can either check manually or set DR 890 CD to check periodically automatically (this is the default). If newer available software is detected, you will be asked if you want to go ahead with an update. If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained.

NOTE: Before starting a software upgrade, ensure that DR 890 CD is plugged into a stable main power connection. Disconnecting power during an upgrade may permanently damage the unit.

13.7. Setup Wizard

Setup wizard Start now? YES NO

13.7.1. Time/Date

Display format

Select 12 or 24 as the time format.

13.7.2. Auto-Update

The time and date can be updated manually or automatically from DAB, FM or your network. Auto-update works with data sent over DAB, FM or the Internet. The clock is only updated when in a corresponding mode, so it is best to select a mode you use regularly. DAB and FM use time signals broadcast with radio transmissions. Network uses a time signal sent from the Internet Radio portal when being in any network-connected mode.

13.7.3. Time Zone, Daylight Saving Time

Set your time zone. If your country uses the daylight saving time and it is in effect, turn on the Daylight saving option.

13.7.4. Manual Update

If you set "No update", the wizard prompts you to set the time and date manually. The date and time are displayed as dd-mm-yyyy (day-month-year) and hh:mm (hour:minutes). The active value is flashing. Adjust each value with the navigate knob or ▲/▼ on the remote control. Once the value is set, press OK or ◀/▶ to continue setting the next value.

13.8. Info

View the firmware version and the radio ID.

13.9. Backlight

You may change the backlight for On level to High, Medium or Low and for the Dim level to Medium or Low. Also adjust the Timeout duration after which turns the radio to Dim level after it has not been used.

13.10. Multiroom

This menu manages the Multiroom functionality of the radio. For more information please see „14. UNDOK APP“. With the UNDOK app you can manage the same functions more comfortable.

This section covers only the basics of the Multiroom function. For a more detailed manual, please download from our website: www.alan-electroncis.de/download.aspx

13.10.1. View Details

This menu shows the current details about the radio's Multiroom settings.

13.10.2. Create New Group

In this menu a new Multiroom group is created by entering it's name

13.10.3. Add to Group

If there are other Multiroom devices available they be selected here and be added to the current group.

13.10.4. List Current Clients

Shows all devices which have been grouped together with the DR 890 CD.

13.10.5. Leave Group

The radio will leave the current Multiroom group. All other units will remain in this group.

13.10.6. Dissolve Group

The radio will ungroup itself and all other radios from the same group.

13.11. Output Choice

Choose here between "Speaker or Earphone" (SP/EP, default) or "Speaker and Earphone" (SP+EP).

• Speaker or Earphone: connecting headphones disables the speakers, except alarms.
• Speaker and Earphone: audio output through both simultaneously.

13.12. Standby Clook Format

Choose here the Clock for the Standby Display as Analog or Digital with date

14. UNDOK APP

The full functionality of the Multiroom feature can only be used in combination with UNDOK app. The app is available for Android and iPhone.

UNDOK opens the following possibilities:

• Comfortable remote control of the radio within the same WiFi via your smartphone's touch screen.
• Grouping it together with other Multiroom devices.
• Playback of your smartphone's music library.

GRI 890 CD Grippenerschuldung GRI 890 CD Impede in Groupman Brausprogramme Brausprogramme

Technical Specifications

Model number DR 890 CD
Description Internet Radio with DAB+/ FM / BT / CD Player
Display 2,8" / 320 x 240 TFT colour display
Network supported IEEE 802.11a/b/g/n wireless (WiFi 2,4GHz/5GHz)Bluetooth (BT 4.0, Supports A2DP, AVRCP profiles)
Encrypted key WEP, WPA, WPA2 (PSK), WPS
Streaming UPnP, DLNA
Supported playback formats (streaming and USB)	MP3 (up to 320 kbit/s), WMA (up to 384 kbit/s), WAV (up to 1.536 mbit/s), AAC/AAC+ (up to 96kHz, 24bit), FLAC (up to 48kHz, 24bit)
CD Player Supports CD-ROM, CD-R, CD-RW
Supported playback formats (CD) CD-DA, MP3, WMA (up to 48kHz, 384kbps)
DAB / DAB+ Band III (174.928 – 239.200 MHz)
FM 87.5 - 108.0 MHz, RDS supported
Power Supply Power Adaptor, DC 16V 2250mA
Remote Control Power Supply 2x 1.5V AA battery
Standby mode power consumption	<1,0W
Networked standby mode power consumption	<3,0W
Operating temperature 0°C - 35°C
Speaker power output	2 x 15W RMS
Connections 3.5mm headphone socket	USB port (for playback only, no charging function)3.5mm Aux-In socket, stereoDC IN power supply socket
Dimensions	350mm(L) x 105mm(H) x 250mm(D)
Weight	3,5 kg

Power Adapter (please use only the original power adaptor)
Manufacturer ShenZhen Xinspower Technology Co., Ltd
Address B 2F A BLDG 3 Huang Pu Shui Ku Rd., Shajing StBaoan, Shenzhen, 518125 Guangdong, China
Type A361-1602250E
Input 100 – 240V ~ AC, 50/60Hz, 1.5A

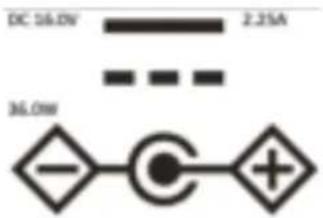

Output
Average Active Efficiency 88,21%
Efficiency at Low Load (10%) 87,14%
No-load Power Consumption 0,09W
Safety Class II

15. Troubleshooting

Error Remedy
The device does not switch on. Check if the power adaptor is connected properly.
System freezes 1. Disconnect the power plug for 1 minute, then restart the device.2. If the error has then not been resolved, reset the unit to the factory setting (see chapter „13.5. Factory reset“)
No sound.	1. Turn on the sound as it may be muted2. Increase the volume.3. Pull any connected headphone or speaker from the connector jack.
No network connection can be established.	1. Check the WLAN function.2. Try to set an IP address at the device.3. Activate the DHCP function on the router and make the connection again at the device.4. A firewall is activated on the network – set the respective program in such a way that access is possible.5. Reboot the router
WiFi connection cannot be established.	1. Check the availability of WLAN network on the router.2. Place the device closer to the router.3. Make sure the password is correct.
Internet station is not playing. 1. Check the network as well as the access point and firewall.2. The station may not be available currently, try it again later or select another station.3. The link of the station is changed or the station no longer transmits – ask the provider for information.4. The link of manual added station is not correct, make sure it is correct and re-enter.
Hiss in FM mode 1. Check/move the FM antenna.2. Move the radio.
No stations available / burbling / intermittent in DAB mode.	1. Move the radio.2. Rescan local stations only (high-strength).3. Check the local DAB coverage.
Alarm does not work. 1. Switch on the alarm.2. Due to the volume setting, refer to the solutions of “No sound”.3. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
USB driver or MP3 player is not detected.	1. Check if the USB driver or MP3 player is plugged properly.2. Some USB hard disks need external power supply, make sure it is connected to the power.3. Not all MP3 players can be read directly on the device – use an USB drive instead.
All other undetermined cases. DR	890 CD may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot DR 890 CD if necessary.The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.

16. Safety instructions

Please read these instructions carefully. They contain important information which will help you get the best from your product and ensure safe and correct installation and operation.

General safety information

• Keep the product and all its parts out of reach of small children.
• Do not attempt to open the product. This product does not contain any user serviceable parts. Unauthorised handling of the device may damage it and will void your warranty.
• Do not use your Radio near emergency/intensive care medical equipment; if you have a pacemaker fitted or during an electrical storm.
• To avoid possible hearing damage, do not listen to this radio at high volume levels for long periods of time. Always keep the volume within reasonable limits.

Power source

• Only use the power supply that came with the product. Using an unauthorised power supply will invalidate your guarantee and may irrecoverably damage the product.
• Disconnect your Radio from the mains power supply during thunderstorms.
• Always check that you have completely switched off your Radio, before you change or disconnect the power supply.
• Where the mains power plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• If the radio is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

Moisture and water

• Keep it dry. Avoid exposure to precipitation, humidity and liquids which could all affect the product circuitry.
• Do not leave it in low temperatures as moisture can form inside the product, which may damage the circuit board.
• Do not use it in the dust environment as dust can damage the interior electronic components and lead to malfunctions in the device.

Ventilation

• If the radio is moved from a cold environment into a warmer one, do let it adapt to the new temperature before operate the device. Otherwise, it might lead to condensation and cause malfunctions in the device.
• Do not block or cover slots, holes or openings on the product by placing on soft furnishings such as carpets, rugs or beds as these are provided for functionality and/or ventilation to ensure safe operation of the product

Heat sources and flames

• Do not leave it in high temperatures as electronic devices and plastic parts may warp in heat.
• Keep it away from bright sunlight or heat sources, such as a radiator.

17. Warranty and Recycling Information

We are legally obliged to include disposal and warranty information as well as EU declaration of conformity with the use instructions in different countries for every unit. Please find this information on the following pages.

2-Year Warranty from Date of Purchase

The manufacturer/retailer guarantees this product for two years from date of purchase. This warranty includes all malfunctions caused by defective components or incorrect functions within the warranty period excluding wear and tear, such as exhausted batteries, scratches on the display, defective casing, broken antenna and defects due to external effects such as corrosion, over voltage through improper external power supply or the use of unsuitable accessories. Defects due to unintended use are also excluded from the warranty.

Please contact your local dealer for warranty claims. The dealer will repair or exchange the product or forward it to an authorized service center. You can also contact our service partner directly. Please include your proof of purchase with the product and describe the malfunction as clearly as possible.

17.1. WEEE and Recycling

The European laws do not allow any more the disposal of old or defective electric or electronic devices with the household waste. Return your product to a municipal collection point for recycling to dispose of it. This system is financed by the industry and ensures environmentally responsible disposal and the recycling of valuable raw materials.

17.2. Service Address and Technical Hotline (for units sold in Germany)

Contact our service hotline by phone [phone] (regular costs for German fixed network) or e-mail at [e-mail]

Conformity Declaration

Hereby, Alan Electronics GmbH declares that the radio equipment type DR 890 CD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.alan-electronics.de/download.aspx

Printing errors reserved.

Information in this user manual are subject to change without prior notice.

ALBRECHT® Audio

Two modern audio recording devices with digital displays and control knobs, shown from different angles (no visible text or labels)

Guide d'utilisation

Français

Table des matières

Internet radio Last listened > Station list > System settings > Main menu >

Stations Location > Genre > Search stations > Popular stations > New stations >

Help For support or to register: http://nuvola.link/sr Access Code: DHKR65T Valid for 10 minutes

JB-Laptop: Audio Music > Playlists >

Music player 03:28 All Out of Love Album: Sweet Dreams: The Encore Collection

Name and description by: C:\Users\Software\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\Adobe\ Adobe Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ Name and description □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. 100% □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No. □ No. No.

Open Help Save As

Scanned screenshot of a mobile app interface with a blue banner and control buttons at the bottom

DAB Stations: 15 Scanning /

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

FM 03:28 Alice 97.3 Best Music in the world

7.1. Recherche de stations FM

FM Scan setting Audio setting System settings > Main menu

Auxiliary input 03:28 Audio In Today's Date: 23/08/2013

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

Set snooze time 5 minutes

Equalizer Normal * Flat Jazz Rock Movie

13.2. Réseau

13.2.1. Assistant de configuration

WPS Setup ! Push WPS button at the other end Press SELECT to continue

- Pin

Enter PIN 98467583 at the other end

Press SELECT to continue

- Méthode Skip WPS

Setup wizard completed

Press SELECT to exit

13.2.2. Configuration PCB WLAN

Setup wizard Start now? YES NO

13.7.1. Heure/Date

Format d'affichage

Two modern audio recording devices with digital displays and control knobs (no visible text or symbols)

Manuale

Italiano

Internet radio Last listened > Station list > System settings > Main menu >

Stations Location > Genre > Search stations > Popular stations > New stations >

Help For support or to register: http://nuvola.link/sr Access Code: DHKR65T Valid for 10 minutes

JB-Laptop: Audio Music > Playlists >

Music player 03:28 All Out ofLove Album: Sweet Dreams: The Encore Collection

Scanned screenshot of a legacy Windows application interface with a blue header and control buttons

DAB Stations: 15 Scanning /

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

FM 03:28 Alice 97.3 Best Music in the world

FM Scan setting Audio setting System settings > Main menu

Auxiliary input 03:28 Audio In Today's Date: 23/08/2013

11. Spegnimento (Timer)

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

Set snooze time 5 minutes

Equalizer Normal * Flat Jazz Rock Movie

13.2. Rete

WPS Setup ! Push WPS button at the other end Press SELECT to continue

- Pin

Enter PIN 98467583 at the other end

Press SELECT to continue

- Saltare WPS

Setup wizard completed

Press SELECT to exit

Setup wizard Start now? YES NO

13.7.1. Ora/Data

Two modern audio recording devices with digital displays and control knobs, shown from different angles (no visible text or labels)

Manual

Español

Tabla de contenidos

Internet radio Last listened > Station list > System settings > Main menu >

Stations Location > Genre > Search stations > Popular stations > New stations >

Help For support or to register: http://nuvola.link/sr Access Code: DHKR65T Valid for 10 minutes

Music player Shared media > USB playback My playlist Repeat play: Off Shuffle play: Off

JB-Laptop: Audio Music > Playlists >

Music player 03:28 All Out ofLove Album: Sweet Dreams: The Encore Collection

Name: 10.0000000000 Name: 10.0000000000 Name: 10.0000000000 Name: 10.0000000000 Name: 10.0000000000 Name: 10.0000000000 Name: 10.000000001 Name: 10.00000001 Name: 10.0000001 Name: 10.000001 Name: 10.001 Name: 10.01 Name: 10.1 Name: 11.1 Name: 12.1 Name: 13.1 Name: 14.1 Name: 15.1 Name: 16.1 Name: 17.1 Name: 18.1 Name: 19.1 Name: 20.1 Name: 21.1 Name: 22.1 Name: 23.1 Name: 24.1 Name: 25.1 Name: 26.1 Name: 27.1 Name: 28.1 Name: 29.1 Name: 30.1 Name: 31.1 Name: 32.1 Name: 33.1 Name: 34.1 Name: 35.1 Name: 36.1 Name: 37.1 Name: 38.1 Name: 39.1 Name: 40.1 Name: 41.1 Name: 42.1 Name: 43.1 Name: 44.1 Name: 45.1 Name: 46.1 Name: 47.1 Name: 48.1 Name: 49.1 Name: 50.1 Name: 51.1 Name: 52.1 Name: 53.1 Name: 54.1 Name: 55.1 Name: 56.1 Name: 57.1 Name: 58.1 Name: 59.1 Name: 60.1 Name: 61.1 Name: 62.1 Name: 63.1 Name: 64.1 Name: 65.1 Name: 66.1 Name: 67.1 Name: 68.1 Name: 69.1 Name: 70.1 Name: 71.1 Name: 72.1 Name: 73.1 Name: 74.1 Name: 75.1 Name: 76.1 Name: 77.1 Name: 78.1 Name: 79.1 Name: 80.1 Name: 81.1 Name: 82.1 Name: 83.1 Name: 84.1 Name: 85.1 Name: 86.1 Name: 87.1 Name: 88.1 Name: 89.1 Name: 90.1 Name: 91.1 Name: 92.1 Name: 93.1 Name: 94.1 Name: 95.1 Name: 96.1 Name: 97.1 Name: 98.1 Name: 99.1 Name: 100.1

Find the Image group Find Find the Image group Find Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image Group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image group Find the Image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the image groups Find the images

Scanned screenshot of a mobile app interface with a blue banner and control buttons

DAB Stations: 15 Scanning /

DAB 03:28 BBC Radio 6Music to vote for a track that missed out on the 6Music playlist

FM 03:28 Alice 97.3 Best Music in the world

FM Scan setting Audio setting System settings > Main menu

Auxiliary input 03:28 Audio In Today's Date: 23/08/2013

Alarm 1 Enable: Daily Time: 07:30 Mode: Internet Radio Preset: Last listened Volume: 10

Equalizer Normal * Flat Jazz Rock Movie

13.2. Red

13.2.1. Asistente de red

WPS Setup ! Push WPS button at the other end Press SELECT to continue

- Pin

Enter PIN 98467583 at the other end

Press SELECT to continue

ES

- Saltar WPS

Setup wizard completed

Press SELECT to exit

Setup wizard Start now? YES NO

13.7.1. Hora/Fecha

Formato de pantalla
