Instruction Book EDBS3350 EDBS3360 EDBS3370 Steam Station

B4www.electrolux.com Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy accessories and consumables for your appliance: www.electrolux.com/shop CONTENTS ENGLISH 6 FRANÇAIS 10

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.

CUSTOMER CARE AND SERVICE

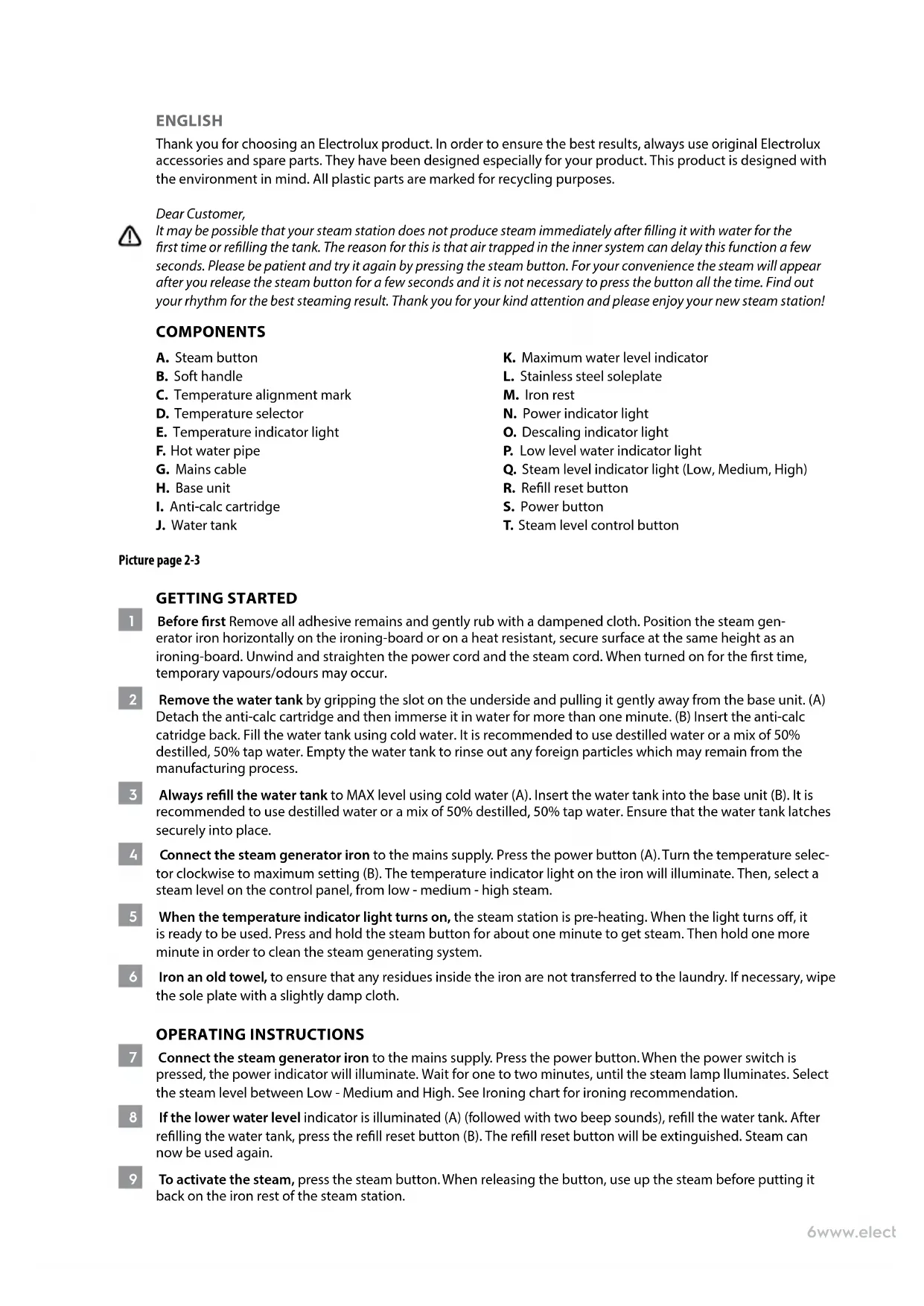

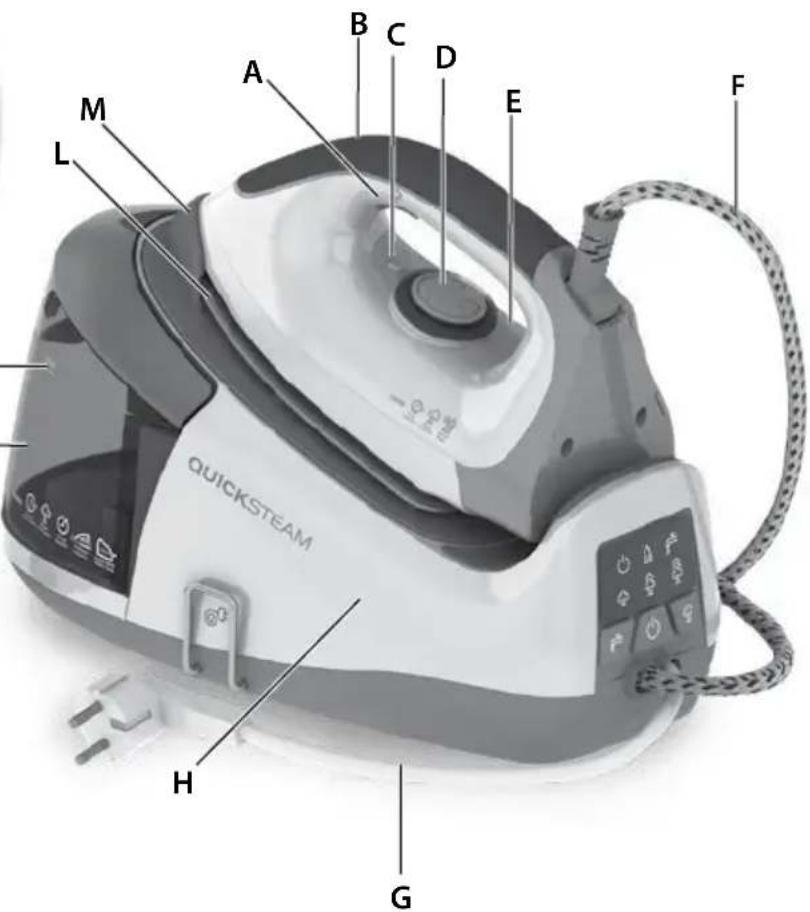

When contacting Service, ensure that you have the following data available: - Model Number - PNC number - Serial number The information can be found on the rating plate.5www.electrolux.com6www.electrolux.com ENGLISH Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes. Dear Customer, It may be possible that your steam station does not produce steam immediately after lling it with water for the rst time or relling the tank. The reason for this is that air trapped in the inner system can delay this function a few seconds. Please be patient and try it again by pressing the steam button. For your convenience the steam will appear after you release the steam button for a few seconds and it is not necessary to press the button all the time. Find out your rhythm for the best steaming result. Thank you for your kind attention and please enjoy your new steam station! COMPONENTS A. Steam button B. Soft handle C. Temperature alignment mark D. Temperature selector E. Temperature indicator light F. Hot water pipe G. Mains cable H. Base unit

I. Anti-calc cartridge

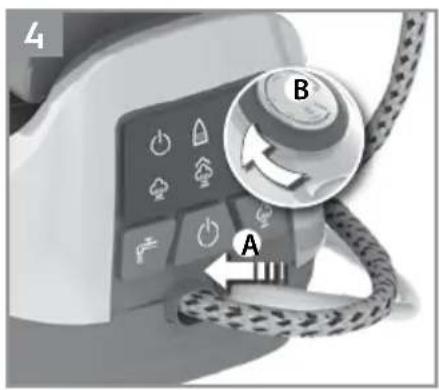

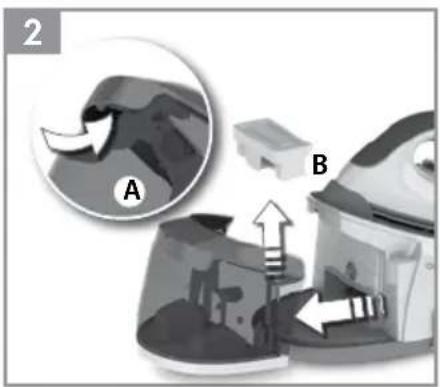

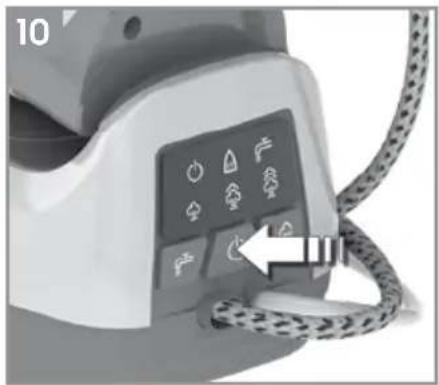

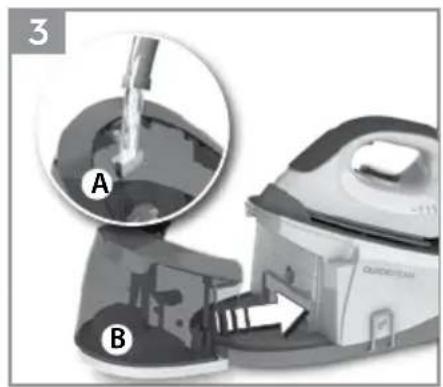

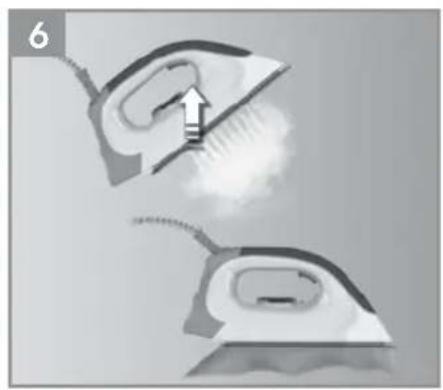

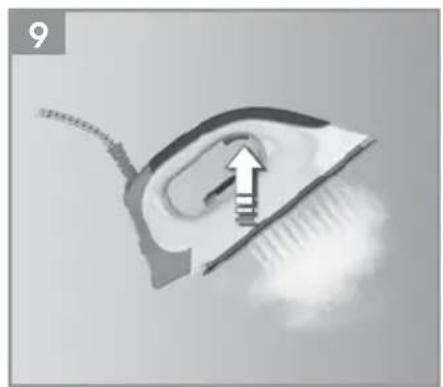

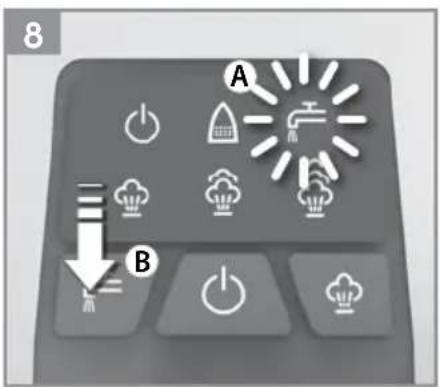

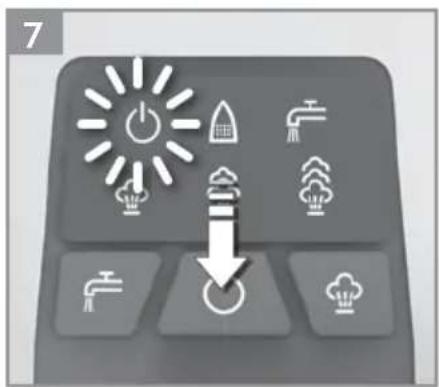

J. Water tank K. Maximum water level indicator L. Stainless steel soleplate M. Iron rest N. Power indicator light O. Descaling indicator light P. Low level water indicator light Q. Steam level indicator light (Low, Medium, High) R. Rell reset button S. Power button T. Steam level control button Picture page 2-3 GETTING STARTED 1 Before rst Remove all adhesive remains and gently rub with a dampened cloth. Position the steam gen- erator iron horizontally on the ironing-board or on a heat resistant, secure surface at the same height as an ironing-board. Unwind and straighten the power cord and the steam cord. When turned on for the rst time, temporary vapours/odours may occur. 2 Remove the water tank by gripping the slot on the underside and pulling it gently away from the base unit. (A) Detach the anti-calc cartridge and then immerse it in water for more than one minute. (B) Insert the anti-calc catridge back. Fill the water tank using cold water. It is recommended to use destilled water or a mix of 50% destilled, 50% tap water. Empty the water tank to rinse out any foreign particles which may remain from the manufacturing process. 3 Always rell the water tank to MAX level using cold water (A). Insert the water tank into the base unit (B). It is recommended to use destilled water or a mix of 50% destilled, 50% tap water. Ensure that the water tank latches securely into place. 4 Connect the steam generator iron to the mains supply. Press the power button (A). Turn the temperature selec- tor clockwise to maximum setting (B). The temperature indicator light on the iron will illuminate. Then, select a steam level on the control panel, from low - medium - high steam. 5 When the temperature indicator light turns on, the steam station is pre-heating. When the light turns o, it is ready to be used. Press and hold the steam button for about one minute to get steam. Then hold one more minute in order to clean the steam generating system. 6 Iron an old towel, to ensure that any residues inside the iron are not transferred to the laundry. If necessary, wipe the sole plate with a slightly damp cloth. OPERATING INSTRUCTIONS 7 Connect the steam generator iron to the mains supply. Press the power button. When the power switch is pressed, the power indicator will illuminate. Wait for one to two minutes, until the steam lamp lluminates. Select the steam level between Low - Medium and High. See Ironing chart for ironing recommendation. 8 If the lower water level indicator is illuminated (A) (followed with two beep sounds), rell the water tank. After relling the water tank, press the rell reset button (B). The rell reset button will be extinguished. Steam can now be used again. 9 To activate the steam, press the steam button. When releasing the button, use up the steam before putting it back on the iron rest of the steam station.7www.electrolux.com

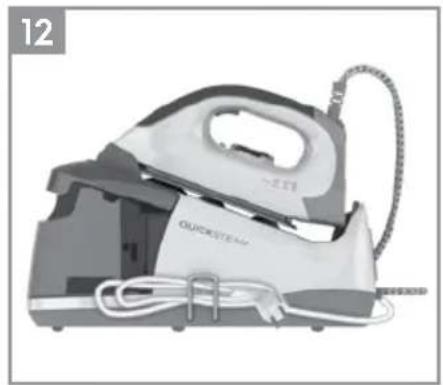

10 To turn o the iron by pressing the power button for a while, until a beep will sound. If the iron is left unattend- ed on the iron rest, it turns automatically o after 10 minutes. 11 Always cool the iron fully on the iron rest before stowing away. Once the iron is cool, empty the water tank. Store the steam generator iron 12 Always store the cord winded safely by the side of the iron. NEVER wind the power cord around the iron.

CLEANING DO NOT USE ANY DETERGENT

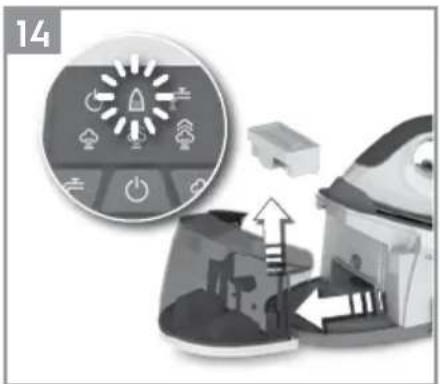

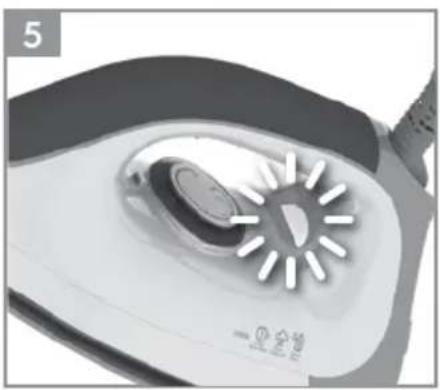

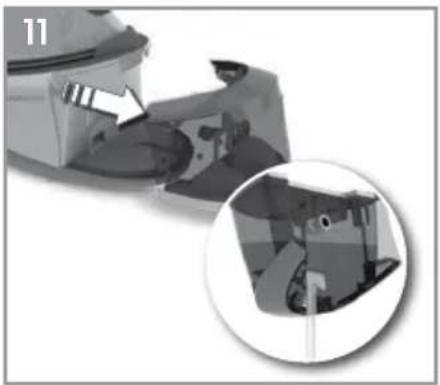

13 Always store the iron on its heel rest. To clean exterior surfaces, use a damp soft cloth and wipe dry. Caution: Do not use any chemical solvents, as these will damage the surface. 14 Replacing the de-calc box: If the descaling indicator is illuminated detach the water tank. Remove the de-calc box by pulling it upwards. Immerse a new de-calc box in water for more than one minute, then place it inside the water tank. Ensure the new de-calc box is correctly positioned, if not, the descaling indicator will keep ashing. For the best performance we recommend cartridge from our range, reference number EDC06.

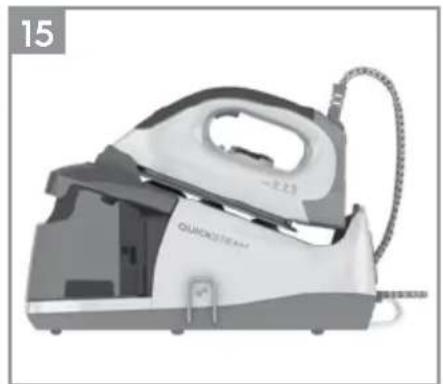

When nished using the appliance, turn the temperature dial to the OFF (“0“) position. Store the iron on the iron rest. Note: Do not store the iron with water in the tank.

THERMOSAFE™ * CERTAIN MODELS ONLY

16 Your appliance is equipped with ThermoSafe™ hot soleplate indicator which detects when the soleplate is hot by changing its colour from black to red. Once the temperature of the soleplate is <40C°, the colour changes back to black to show that the iron is ready to be stored away. Enjoy your new Electrolux product! SAFETY ADVICE Read the following instruction carefully before using machine for the rst time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

• The surfaces are liable to get hot during use

• This product is appropriate for use with tap water. It is recommended to use destilled water or a mix of 50% destilled, 50% tap water.

• The appliance may only be connected to a power supply whose voltage and frequency comply with the specications on the rating plate!

• The iron is not to be used if it has been dropped, if there are visible signs of damage on the iron or its cord or if it is leaking.8www.electrolux.com

• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied person, in order to avoid hazard.

• The iron must be used and rested on a stable surface. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

• Never leave the appliance unattended while connected to the supply mains.

• The appliance must be switched o and the mains plug withdrawn each time after use, before cleaning and maintenance.

• The plug must be removed from the socket outlet before the water reservoir is lled with water.

• The mains cable must not come into contact with any hot parts of the appliance.

• Do not immerse the appliance in water or any other liquid.

• Do not exceed the maximum lling volume as indicated on the appliances.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use. IRONING CHART

FABRIC TEMPERATURE SETTING IRONING RECOMMENDATION

Acrylic “nylon” Dry iron on the wrong side. Acetate “nylon” Dry iron on the wrong side while still damp or use spray to dampen. Nylon & Polyester “nylon” Iron on the wrong side while still damp or use spray to dampen. Rayon “nylon” Iron on the wrong side of fabric. Viscose “nylon” Mainly dry iron. Steam can be used under manufacturer’s instructions. Silk Iron on the wrong side. Use an ironing cloth to prevent shine marks. Cotton blends Check the label and follow the manufacturer’s instructions. Use setting for the bre requiring lowest setting. Wool & Wool blends Steam iron on the wrong side or use ironing cloth. Cotton Dry iron while still damp or use spray to dampen. Use steam medium to high. Corduroy Steam iron on the wrong side or use ironing cloth. Linen to “MAX” Iron on the wrong side or use ironing cloth to prevent shine marks, especially with dark colours. Dry iron while still damp or use spray to dampen. Use steam medium to high.9www.electrolux.com

Denim to “MAX” Use maximum steam. Varied ironing speed and fabric dampness might cause optimal setting to dier from that recommended in the table! TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Soleplate is not heating even though iron is turned on. Connection problem Check main power supply cable, plug and outlet. Temperature control is in MIN position. Select adequate temperature. Iron does not produce steam. Not enough water in tank. Fill water tank (see “Getting started”, no 2). Steam control is selected in non- steam position. Set steam control between positions of minimum steam and maximum steam (see “Ironing chart”). Selected temperature is lower than that specified to use with steam. Increase temperature to at least

Steam jet and vertical steam jet function does not work. Steam jet function was used very frequently within a short period. Put iron on horizontal position and wait before using steam jet function. Iron is not hot enough. Adjust the proper temperature to steam ironing (up to ). Put iron in vertical position and wait until temperature indicator light turns o. Water leaks from the soleplate during ironing. The iron is not hot enough. Set the temperature dial to a temperature
