USER MANUAL Juice Extractor 202040 PRINCESS

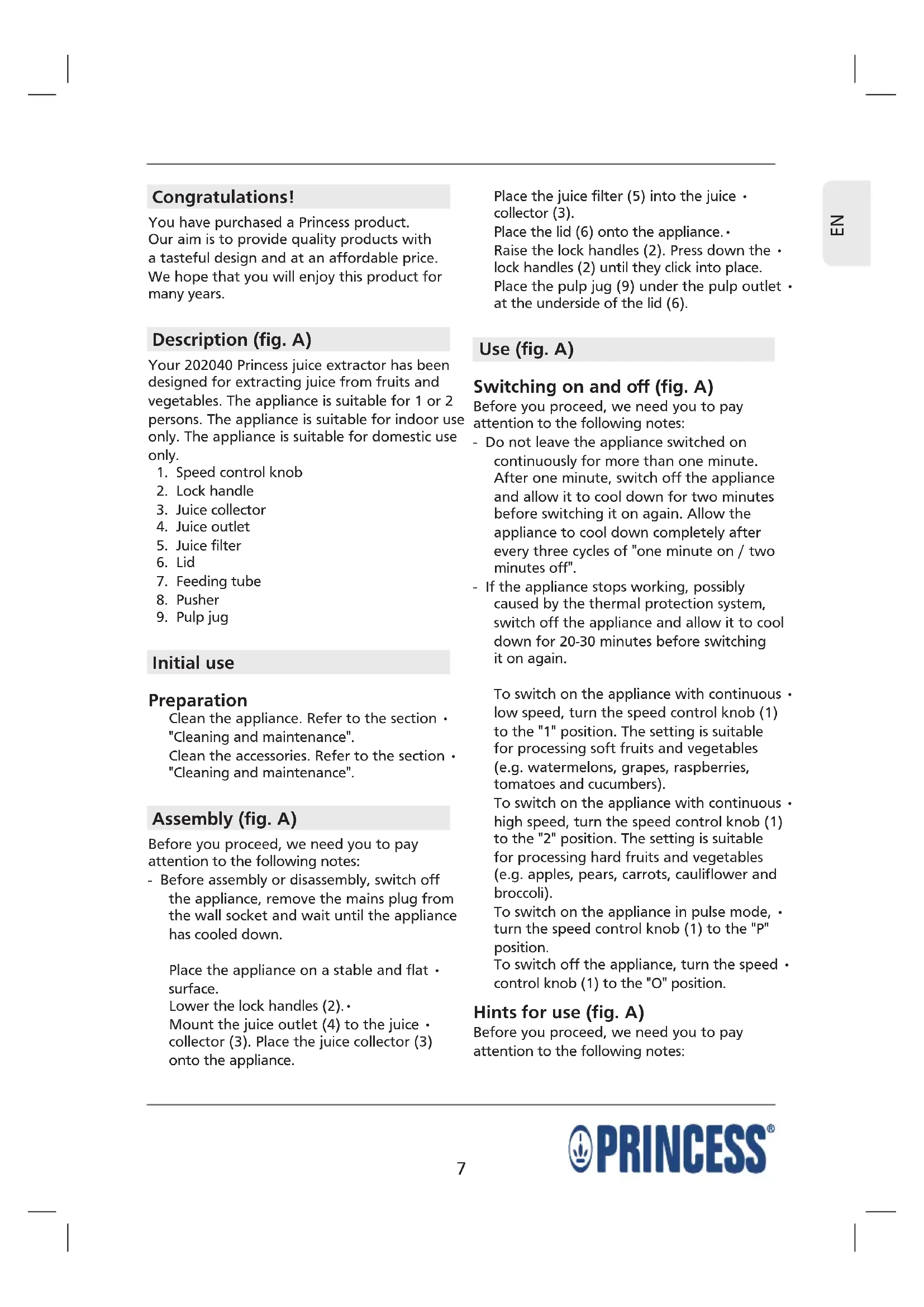

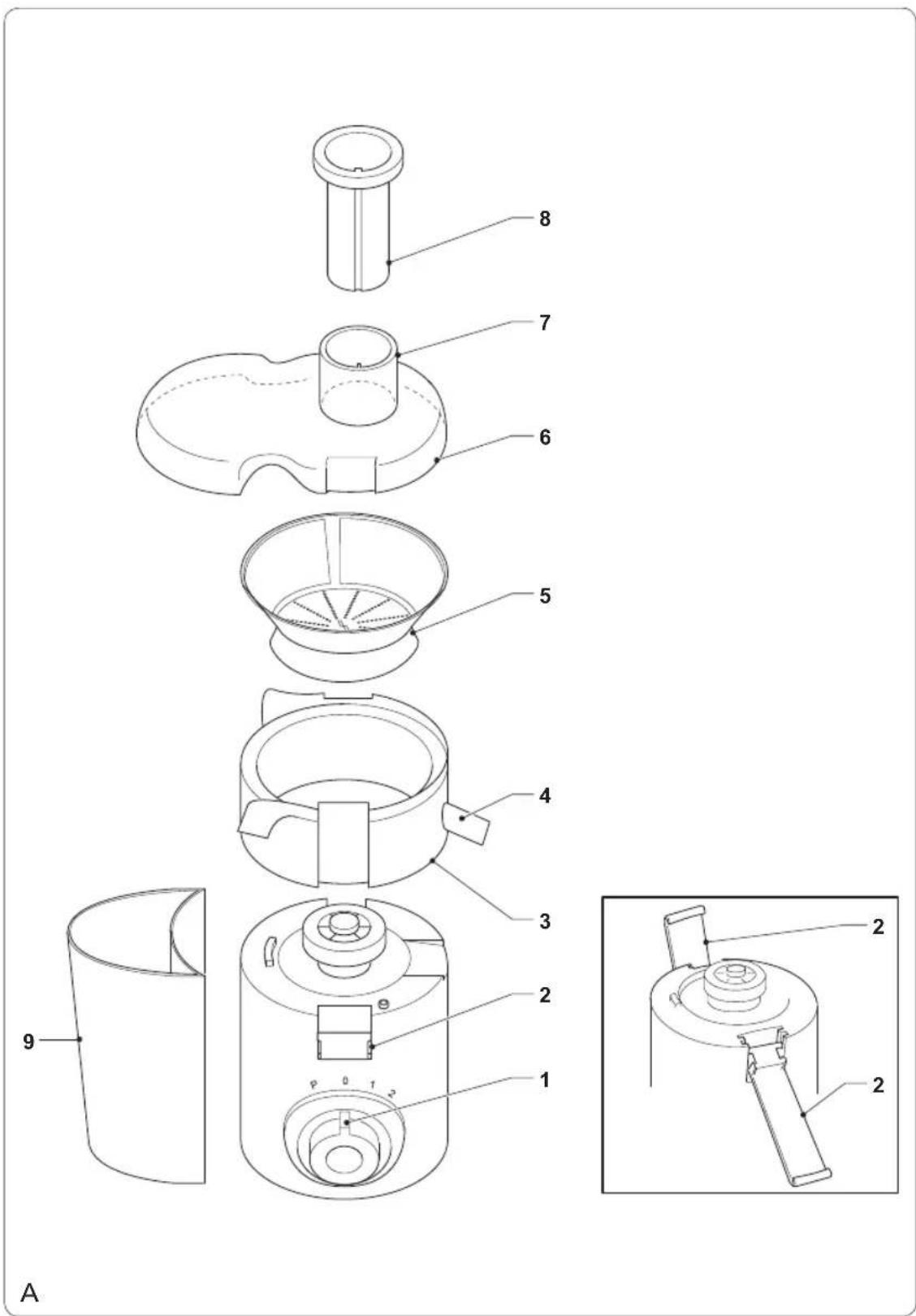

Congratulations! You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years. Description (fig. A) Your 202040 Princess juice extractor has been designed for extracting juice from fruits and vegetables. The appliance is suitable for 1 or 2 persons. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

Initial use Preparation Clean the appliance. Refer to the section • "Cleaning and maintenance". Clean the accessories. Refer to the section • "Cleaning and maintenance". Assembly (fig. A) Before you proceed, we need you to pay attention to the following notes: - Before assembly or disassembly, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. Place the appliance on a stable and flat • surface. Lower the lock handles (2).• Mount the juice outlet (4) to the juice • collector (3). Place the juice collector (3) onto the appliance. Place the juice filter (5) into the juice • collector (3). Place the lid (6) onto the appliance.• Raise the lock handles (2). Press down the • lock handles (2) until they click into place. Place the pulp jug (9) under the pulp outlet • at the underside of the lid (6). Use (fig. A) Switching on and off (fig. A) Before you proceed, we need you to pay attention to the following notes: - Do not leave the appliance switched on continuously for more than one minute. After one minute, switch off the appliance and allow it to cool down for two minutes before switching it on again. Allow the appliance to cool down completely after every three cycles of "one minute on / two minutes off". - If the appliance stops working, possibly caused by the thermal protection system, switch off the appliance and allow it to cool down for 20-30 minutes before switching it on again. To switch on the appliance with continuous • low speed, turn the speed control knob (1) to the "1" position. The setting is suitable for processing soft fruits and vegetables (e.g. watermelons, grapes, raspberries, tomatoes and cucumbers). To switch on the appliance with continuous • high speed, turn the speed control knob (1) to the "2" position. The setting is suitable for processing hard fruits and vegetables (e.g. apples, pears, carrots, cauliflower and broccoli). To switch on the appliance in pulse mode, • turn the speed control knob (1) to the "P" position. To switch off the appliance, turn the speed • control knob (1) to the "O" position. Hints for use (fig. A) Before you proceed, we need you to pay attention to the following notes:8

- Do not insert your hands into the feeding tube to press food ingredients. Always use the pusher. Do not exert too much pressure on the pusher. - If the appliance starts to vibrate strongly, switch off the appliance and subsequently clean the juice filter. Before you proceed, we would like you to focus your attention on the following notes: - Only operate the appliance when the pulp jug is placed under the pulp outlet. Regularly empty the pulp jug when processing larger quantities of fruit or vegetables. Empty the pulp jug when it is full. - Only operate the appliance when a juice jug is placed under the juice outlet. Regularly empty the juice jug when processing larger quantities of fruit or vegetables. Empty the juice jug when it is full. Assemble the appliance. Refer to the • section "Assembly". Place a juice jug under the juice outlet (4).• Insert the mains plug into the wall socket.• Switch on the appliance.• Cut the fruits and vegetables into pieces • that fit into the feeding tube (7). Put the pieces of fruit and vegetables into the feeding tube (7). Use the pusher (8) to press the pieces of fruit and vegetables through the feeding tube (7). Do not exert too much pressure on the pusher (8). If necessary, empty the juice filter (5) and • the pulp jug (9). After use, switch off the appliance, remove • the mains plug from the wall socket and wait until the appliance has cooled down. Making juice Preferably use fresh fruits and vegetables, • as they contain more juice. Do not use fruits or vegetables with hard • seeds or thick skins. Always remove hard seeds or thick skins. When processing harder fruits or vegetables • (e.g. carrot), use very small pieces only and do not exert more pressure on the pusher to prevent jamming of the appliance. Very hard fruits, fibrous fruits and fruits • with starch (e.g. bananas, mangos, papayas, avocados, dates and figs) are not suitable for the juice extractor. Use a food processor, blender or stick blender to process very hard fruits, fibrous fruits and fruits with starch. Very hard vegetables, fibrous vegetables • and vegetables with starch (e.g. potatoes and sugar cane) are not suitable for the juice extractor. Use a food processor, blender or stick blender to process very hard vegetables, fibrous vegetables and vegetables with starch. It is recommended to drink the juice • immediately after extraction, as the juice will quickly lose its taste and nutritional value. Add a little lemon juice or lime juice to slow down the process. Refer to the below table for the nutritional • values of a wide range of fruits and vegetables. Fruit/vegetable Nutrient Energy Apple Vitamin C 200g = 150kJ (72Cal) Pear Dietary fibres 150g = 250kJ (60Cal) Peach Vitamin B3, C & K; Dietary fibres 150g = 205kJ (49Cal) Nectarine Vitamin B3, C & K; Dietary fibres 180g = 335kJ (85Cal) Apricot Vitamin K; Dietary fibres 30g = 85kJ (20Cal) Melon Vitamin A & C; Dietary fibres; Folic acid 200g = 210kJ (50Cal) Kiwi Vitamin C & K 100g = 100kJ (40Cal) Pineapple Vitamin C 150g = 245kJ (59Cal) Grape Vitamin B6, C & K 125g = 355kJ (85Cal) Raspberry Vitamin C, Fe, K & Mg 125g = 130kJ (31Cal) Blueberry Vitamin C 125g = 295kJ (70Cal) Tomato Vitamin A, C & E; Dietary fibres; Folic acid 1100g = 90kJ (22Cal) Cucumber Vitamin C 280g = 120kJ (29Cal) Carrot Vitamin A, B6 & C; Dietary fibres 120g = 125kJ (30Cal) Celery Vitamin C & K 80g = 55kJ (7Cal) Cabbage Vitamin B6, C & K; Dietary fibres; Folic acid 100g = 110kJ (26Cal)9

Beet Vitamin C & K; Dietary fibres; Folic acid 160g = 190kJ (45Cal) Fennel Vitamin A, B6 & C; Dietary fibres 300g = 145kJ (35Cal) Brussels sprout Vitamin B, B6, C & E; Dietary fibres; Folic acid 100g = 110kJ (26Cal) Cleaning and maintenance (fig. A) The appliance must be cleaned after each use. Before you proceed, we need you to pay attention to the following notes: - Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or other liquids. Before you proceed, we would like you to focus your attention on the following notes: - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. - Do not clean the appliance in the dishwasher. It is not recommended to clean the accessories in the dishwasher. - Do not sterilise any accessories with water with a temperature higher than 80 °C or in the microwave to prevent deformation or damage. The materials of all parts that come into contact with food must be clean and hygienic and comply with food hygiene certification. Regularly check the appliance for possible • damage. Clean the outside of the appliance with a • soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth. Clean the accessories:• - Disassemble the appliance. - Clean the accessories in soapy water. Rinse the accessories under running water. Thoroughly dry the accessories. - Assemble the appliance. Refer to the section "Assembly". Put the appliance and the accessories in • the original packaging. Store the appliance with the accessories in • a dry and frost-free place, out of the reach of children. Safety instructions General safety Read the manual carefully before use. • Keep the manual for future reference. Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. Children should be supervised to ensure • that they do not play with the appliance. The appliance is not intended for use by • persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Do not use the appliance if any part or any • accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not use the appliance near bathtubs, • showers, basins or other vessels containing water. Do not immerse the appliance in water or • other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again. This appliance is intended to be used in • domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and- breakfast type environments.10

Electrical safety Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance. The appliance is not intended to be • operated by means of an external timer or separate remote-control system. Connect the appliance to an earthed wall • socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 x 1 mm

For additional protection, install a residual • current device (RCD) with a rated residual operating current that does not exceed 30 mA. Make sure that water cannot enter the • contact plugs of the mains cable and the extension cable. Always fully unwind the mains cable and • the extension cable. Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away from heat, oil • and sharp edges. Do not use the appliance if the mains cable • or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not pull the mains cable to disconnect • the mains plug from the mains. Disconnect the mains plug from the mains • when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance. Safety instructions for juice extractors Do not use the appliance outdoors.• Do not use the appliance in damp • environments. Place the appliance on a stable and flat • surface. Place the appliance on a heat-resistant and • splash-proof surface. Do not place the appliance on a hob.• Make sure that the appliance does not • come into contact with flammable material. Keep the appliance away from heat sources. • Do not place the appliance on hot surfaces or near open flames. Make sure that your hands are dry before • touching the appliance. Beware of sharp parts. Do not touch • moving parts. Store the appliance in a dry place when • not in use. Make sure that children do not have access to stored appliances. U.K. Wiring instructions The wires in the mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN LIVE As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board. This is a double-insulated appliance and does not need an earth connection. Warning! On no account should either the live or neutral wires be connected to the earth terminal. Disclaimer Subject to change; specifications can be changed without further notice.11
