202000 - Juicer PRINCESS - Free user manual and instructions

USER MANUAL 202000 PRINCESS

Lotte Juicer Article 202000

PRINCESS™ — 1500 — 1250 — 1000 — 750 — 500 — 250

• Gebruiksaanwijzing • User's instructions • Mode d'emploi
• Bedienungsanleitung • Instrucciones de uso • Istruzioni per l'uso
• Bruksanvisning • Brugsanvisning • Bruksanvisning • Käyttöohje
  • Instruções de uso • Odηγίες χρήσης • المستخدم

Nederlands 1

English 4

Français 8

Deutsch 12

Español 16

Italiano 20

Svenska 24

Dansk 27

Norsk 30

Suomi 33

Português 36

Ελληνικά 40

المملكة المتحدة 44

Algemeen

This Princess Lotte Juicer is ideal for quickly pressing a wide variety of citrus fruits. This attractively designed appliance is a welcome addition in every kitchen.

With the two pressing cones supplied you can press both large and small citrus fruit with the greatest of ease. The juice drips directly into an attractively designed jug that you can take straight to the table.

Operation and controls

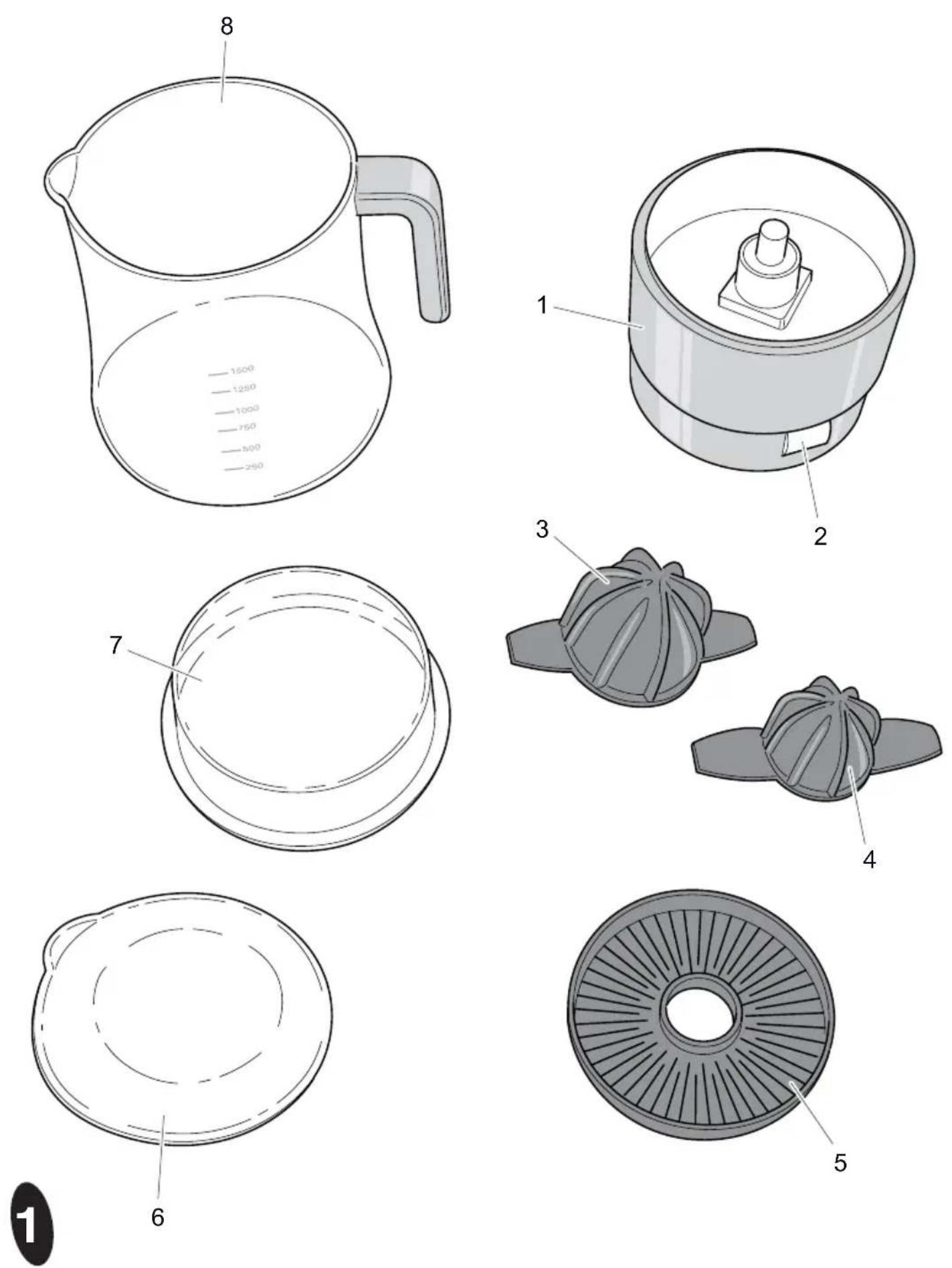

See figure 1.

The appliance includes the following components:

1 Motor unit
2 Drip stop control
3 Large pressing cone
4 Small pressing cone
5 Pulp compartment
6 Juicer jug lid
7 Motor unit lid

8 Ju i c e r j u g

Before using for the first time

- Make sure that the mains voltage is the same as that indicated on the type plate on the appliance.

1 Remove all packaging materials and stickers from the appliance.
2 Clean the appliance and all the accessories (see 'Maintenance and cleaning').

Preparing the appliance for use

- Do not use the juicer without the juicer jug.

1 Put the juicer jug on a flat, stable surface where it cannot fall.
2 Place the motor unit on the juicer jug. Ensure that the juicer jug pushes the drip stop control fully in.
3 Place the pulp compartment in the motor unit.
4 Place the small pressing cone in the pulp compartment opening. This is used to press small citrus fruits (such as lemons).
5 Place the large pressing cone over the small one. Using the large pressing cone you can press larger citrus fruits (such as grapefruit).
6 Put the plug into the wall socket.

Use

1 Cut a citrus fruit in half.
2 Place the cut surface of one half on the pressing cone.
3 Press the fruit downwards. With the pressure the juicer switches on and the fruit is pressed. The juice flows automatically into the juicer jug.
4 Press the fruit until hardly any more juice comes out. When you release the pressure, the appliance stops turning.
5 Press the fruit downwards once more. The pressing cone may turn in the other direction.

Note:

The motor automatically changes directions when it is switched on and off. This is normal and this increases the amount of juice.

6 Stop pressing when no more juice comes out, or when the juicer jug is full. Check the level indicator on the juicer jug at regular intervals.

Note:

To prevent the appliance from overheating you will need to allow it to cool for around 5 minutes after every 10 pressings.

7 Lift the motor unit off the juicer jug. The drip stop system will prevent any more juice flowing out of the reservoir. The

juice in the juicer jug is ready for pouring.

After use

1 Remove the plug from the wall socket.
2 Clean the appliance and all accessories (see 'Maintenance and cleaning').
3 Store the appliance in a dry, frost-free location.

Maintenance and cleaning

• Allow the appliance to cool down before you clean it.
• Clean the appliance thoroughly after use.
• Make sure the appliance is not plugged into the wall socket when you are going to clean it.
• Make sure no moisture comes into contact with the appliance's electrical parts.
• Never immerse the appliance, the power cord or the plug in water or other liquids.
• Never use aggressive or scouring cleaning products or sharp objects (such as a knife or a hard brush) to clean the appliance.
• Only the loose parts (pressing cones, pulp compartment, juicer jug and the lids) may be cleaned in a dishwasher. The appliance itself (motor unit) may not be cleaned in a dishwasher.

1 Clean the motor unit with a damp cloth.
2 Wash the pressing cones, the pulp compartment, the juicer jug and the lids with warm water with a small quantity detergent.
3 Rinse the pressing cones, the pulp compartment, the juicer jug and the lids

with clean water and dry them with a towel.

4 Place the pulp compartment and the pressing cones in the appliance.
5 Place the lid on the appliance.
6 Place the appliance on the juicer jug.
7 Store the juicer lid with the appliance.

Safety

General

• Read and follow these instructions carefully. Keep this manual for future reference.
• Use this appliance only in accordance with these instructions.
• This appliance is intended solely for domestic use.
• The use of this appliance by children or persons with a physical, sensory, mental or motor disability or with a lack of the necessary knowledge and experience may cause a hazard.
  Persons responsible for the safety of such people must give explicit instructions or supervise the use of the appliance.
• Keep the appliance out of the reach of children, and of persons who may not be able to operate it safely.
• Have the appliance repaired only by a qualified electrician. Never try to repair the appliance yourself.
• Only use accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.

Electricity & heat

- The appliance is not intended to be operated by means of an external timer or separate remote control system.

• Always remove the plug from the wall socket when the appliance is not going to be used for a period of time.
• When you remove the plug from the wall socket, pull the plug and not the power cord.
• Never pull the power cord to move the appliance.
• Never move the appliance while it is in use.
• Do not use the appliance if the appliance or the power cord is damaged. Have a damaged power cord replaced by a qualified electrician.
• Make sure the appliance, the power cord and the plug do not come into contact with heat sources, such as a hot hob or a naked flame.
• Make sure the power cord does not come into contact with water, other fluids or chemicals.
• Do not pick up the appliance if it falls into water. Immediately remove the plug from the wall socket. Do not use the appliance anymore.
• If you use the appliance continuously for an extended period, the motor will get hot. In that case, allow the motor to cool down before you use the appliance again.

During use

• Never allow the power cord to hang over the edge of the draining board, worktop or table.
  • Always make sure the power cord has been fully unwound.
• Never use the appliance outdoors.
• Never use the appliance in a humid room.

• Never use the appliance for more than 5 minutes at one time.

• Remove the plug from the wall socket in the event of a malfunction during use, before cleaning the appliance, before fitting or removing an accessory and before storing the appliance after use.

• Make sure your hands are dry when you touch the appliance, the power cord or the plug.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: ON NO ACCOUNT SHOULD EITHER THE LIVE OR NEUTRAL WIRES BE CONNECTED TO THE EARTH TERMINAL

With this appliance, if a 13A plug is used a 3A fuse should be fitted. If any other type of plug is used, a 15A fuse must be fitted either in the plug or at the distribution board.

The Environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

If you wish to dispose of the appliance whilst it still works properly or can be easily repaired, then ensure that the appliance is recycled.

When the appliance reaches the end of its useful life, it should be disposed of in a responsible manner, thereby ensuring the reuse of the appliance or its parts. Do not dispose of the appliance with unsorted refuse; hand it in at the store, or take it to a recognized collection point. Contact your municipality for information about the reception and collection systems in your area.

Applicable European guideline:

2002/95/EC

2002/96/EC
