USER MANUAL 201003 PRINCESS

Line drawing of a hand washing machine with a central knob and side handle (no text or symbols)

Exploded view diagram of a kitchen appliance with numbered parts for identification

A

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or operation.

B

Gefeliciteerd!

You have purchased a Princess appliance. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this appliance for many years.

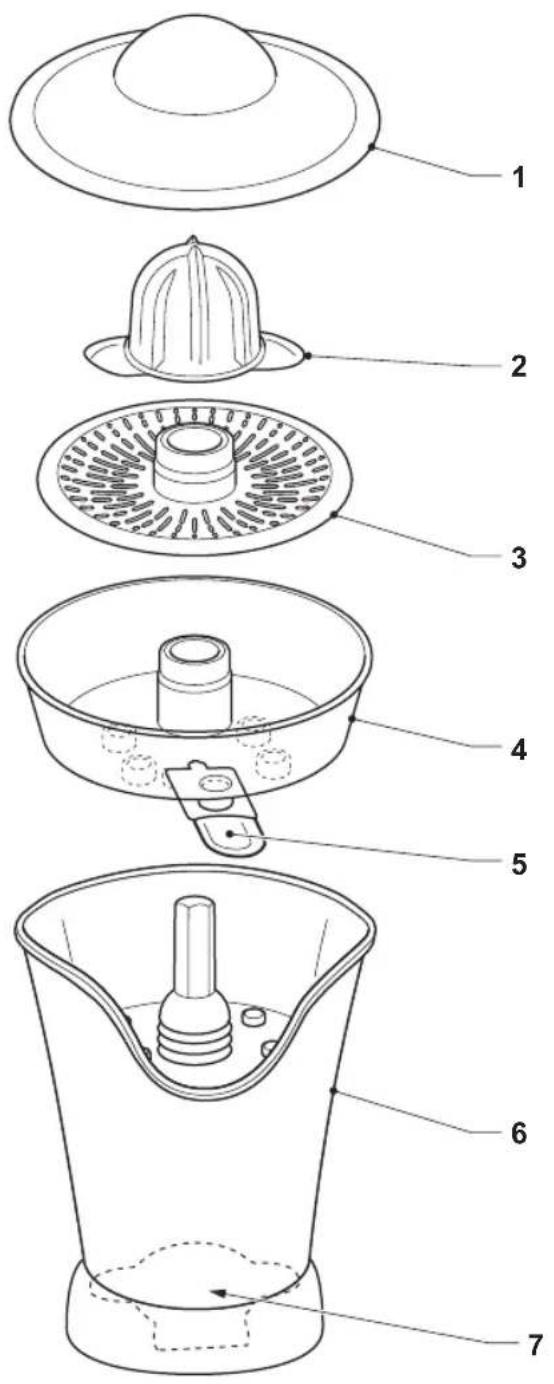

Description (fig. A)

Your 201003 Princess juicer has been designed for rapidly pressing citrus fruits. The appliance is suitable for domestic use only.

1. Dust lid
2. Pressing cone
3. Pulp collector
4. Juice collector
5. Juice outlet
6. Motor housing
7. Accessory storage

Initial use

Preparation

Clean the appliance. Refer to the section • "Cleaning and maintenance".

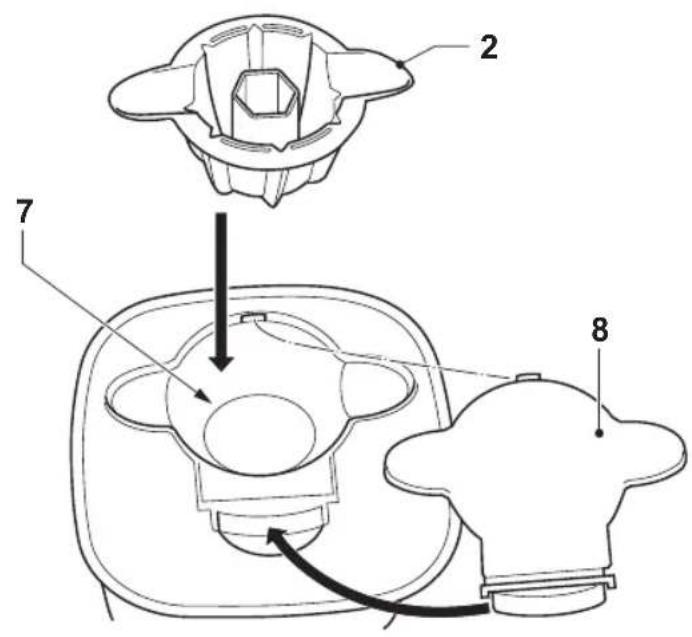

Assembly (fig. A & B)

Before you proceed, we need you to pay attention to the following notes:

- Before assembly, remove the mains plug from the wall socket and wait for the motor to stop running.

Take the pressing cone (2) from the accessory storage (7).

Mount the juice collector (4) onto the motor housing (6) until it clicks into place. Place the pulp collector (3) onto the juice collector (4).

Place the pressing cone (2) onto the pulp • collector (3).

Use

Hints for use

Before you proceed, we need you to pay attention to the following notes:

- Do not leave the appliance switched on continuously for more than three minutes.

- Let the appliance cool down for approximately five minutes after every ten pressings.

Assemble the juicer. Refer to the section • "Assembly".

Cut the citrus fruit in half.

Place the cut surface of one half onto the • pressing cone:

• For small citrus fruits (lemons, limes, etc.), use the small pressing cone.
• For large citrus fruits (oranges, grapefruits, etc.), use the large pressing cone.

Press the citrus fruit with one hand. The appliance automatically starts to press the citrus fruit. The juice automatically flows into the juice collector.

Place a container under the juice outlet. Push the juice outlet downward to allow the juice to flow. Push the juice outlet upward to make sure that the juice outlet does not drip.

Press the citrus fruit until hardly any more · juice is extracted from the citrus fruit.

The appliance automatically stops when the pressure is released.

Empty the pulp collector regularly, when you process larger quantities of fruit.

Stop pressing the citrus fruit in one of the following situations:

• no more juice is extracted from the citrus fruit;
• the juice collector is full;
• the container is full.

Use the dust lid according to the situation: •

- If you do not use the appliance within a short period of time, place the dust lid onto the appliance.

• After use, remove the mains plug from the wall socket.

Cleaning and maintenance

The appliance must be cleaned after each use.

Before you proceed, we need you to pay attention to the following notes:

• Before cleaning or maintenance, remove the mains plug from the wall socket and wait for the motor to stop running.
• Do not immerse the appliance in water or other liquids.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• Do not clean the appliance in the dishwasher. It is not recommended to wash the removable parts of the appliance or the accessories in a dishwasher.

Regularly check the appliance for possible damage.

Clean the motor housing with a soft, damp cloth.

Clean the accessories: •

• Clean the pressing cones, the pulp collector, the dust lid, the juice collector and the juice outlet in soapy water.
• Rinse the accessories under running water.
• Thoroughly dry the accessories.

After cleaning, put the appliance in the original packaging.

Put the pressing cone into the accessory • storage.

Store the appliance in a dry and frost-free • place, out of the reach of children.

Storage

Store the appliance in the original • packaging when not in use.

Store the appliance with the accessories in a dry and frost-free place, out of the reach of children.

Safety instructions

General safety

Read the manual carefully before use. · Keep the manual for future reference.

Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.

• Children should be supervised to ensure that they do not play with the appliance.
- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
- Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
- Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands.

Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.

This appliance is intended to be used in domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and-breakfast type environments.

Electrical safety

Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 mm^2 ).
• For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30 mA.

Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the extension cable.

Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Keep the mains cable away from heat, oil and sharp edges.

Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not pull the mains cable to disconnect • the mains plug from the mains.

Disconnect the mains plug from the mains · when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for juicers

Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.

Make sure that water cannot enter the contact plugs of the mains cable.

Do not use an external timer or a remote control to operate the appliance.

Place the appliance on a stable and flat surface.

Keep the appliance away from heat • sources. Do not place the appliance on hot surfaces or near open flames.

Make sure that your hands are dry before touching the appliance.

Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands.

Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

If a 13Amp (BS1363) plug is used, a 3Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

This is a double-insulated appliance and does not need an earth connection.

Warning! On no account should either the live or neutral wires be connected to the earth terminal.

Disclaimer

Subject to change; specifications can be changed without further notice.
