USER MANUAL DVA325JP07 BLACK & DECKER

ENGLISH(Original instructions) Intended use Your BLACK+DECKER DVA325JP Dustbuster hand-held vacuum cleaner has been designed for vacuum cleaning purposes. This appliance is intended for household use only. Read all of this manual carefully before operating the appliance. Safety instructions

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, re and/or serious injury. u The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury. u Retain this manual for future reference. Using your appliance u Do not use the appliance to pick up liquids or any materials that could catch re. u Do not use the appliance near water.u Do not immerse the appliance in water.u Never pull the charger lead to disconnect the charger from the socket. Keep the charger lead away from heat, oil and sharp edges. u This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Inspection and repairs Before use, check the appliance for dam- aged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation. u Do not use the appliance if any part is damaged or defective. u Have any damaged or defective parts repaired or replaced by an authorized repair agent. u Regularly check the charger lead for damage. Replace the charger if the lead is damaged or defective. u Never attempt to remove or replace any parts other than those specied in this manual. Additional safety instructions After use u Unplug the charger before cleaning the charger or charging base. u When not in use, the appliance should be stored in a dry place.5 ENGLISH(Original instructions)u Children should not have access to stored appliances. Residual risks Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc. Even with the application of the relevant safety regulations and the implementa- tion of safety devices, certain residual risks can not be avoided. These include: u Injuries caused by touching any rotating/moving parts. u Injuries caused when changing any parts, blades or accessories. u Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks. u Impairment of hearing.u Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.) Chargers Your charger has been designed for a specic voltage. Always check that the mains voltage corresponds to the voltage on the rating plate. Warning! Never attempt to replace the charger unit with a regular mains plug. u Use your BLACK+DECKER charger only to charge the battery in the appliance with which it was supplied. Other batteries could burst, causing personal injury and damage. u Never attempt to charge non- rechargeable batteries. u If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard. u Do not expose the charger to water.u Do not open the charger.u Do not probe the charger.u The appliance/battery must be placed in a well ventilated area when charging. Electrical safety Symbols on the charger Read all of this manual carefully before using the appliance.

This tool is double insulated; therefore no earth wire is required. Always check that the power sup- ply corresponds to the voltage on the rating plate.

The charger is intended for indoor use only. Labels on applianceThe following symbols appear on this appliance along with the date code. Read all of this manual carefully before using the applianceS003AQ-15Only use with charger S003AQ-156 ENGLISH (Original instructions) Features This tool includes some or all of the following features.

1. On/off power switch

Use Charging (Fig. A, B) Warning! For use only with the supplied charger. From new, the rechargeable cells of the product need a mini- mum charge time of 16 hours to ensure full power. u Place the charging terminal (8) into the charging port (9) on the handle of the unit as shown in gure A. u Place the wall charger (7) into a power outlet and switch on as shown in gure B. Note: The On/off power switch (1) must be in the (“O”) posi- tion, the product will not charge if it is in any other position. u While charging, the charger may get warm, this is perfectly normal and safe. It is safe to leave the appliance connect- ed to the charger indenitely. The charger automatically reduces power consumption when charging is complete. Warning! Do not charge the battery at ambient temperatures below 4°C or above 40°C. Use Switching on and off (Fig. D) u To start, slide the On/Off switch ( 1 ) forward (i.e. “O”= Off, “I” = On) in Figure C. u To stop, slide the switch back. Using the pull out crevice tool (Fig. C) u Extend the crevice tool (4) as shown in gure D, until it clicks in place. Attaching the pet head (Fig. E) Warning! The unit needs to be switched off when the pet head is attached or detached. Warning! Do not use directly on pets. u Slide the dust bowl opening (3) into the opening of the motorized pet head (6), ensuring that the connectors (6b) engage with the recesses (3b). An audible click will be heard. Removing the pet head (Fig. F) u Pull the motorized pet head release tabs (6a) outward to release them from the recesses (3a). u Pull the main unit from the pet head. Warning! The unit needs to be switched off when the pet head is attached or detached. Cleaning the lters (Fig. G, H, I, J, K) u Press the dust chamber release button (2) as shown in gure G. u Seperate the dust chamber (3) from the motor unit as shown in gure G. u You can use the easy empty feature as shown in gure H. u Lift the filter (5) out of the dust chamber (3) using the tab (5a) provided shown in gure I. u Empty the dust bowl (3) by lightly shaking over a suitable container as shown in gure J. u Rinse out the dust-bowl with warm soapy water. u Wash the lters with warm soapy water as shown in gure

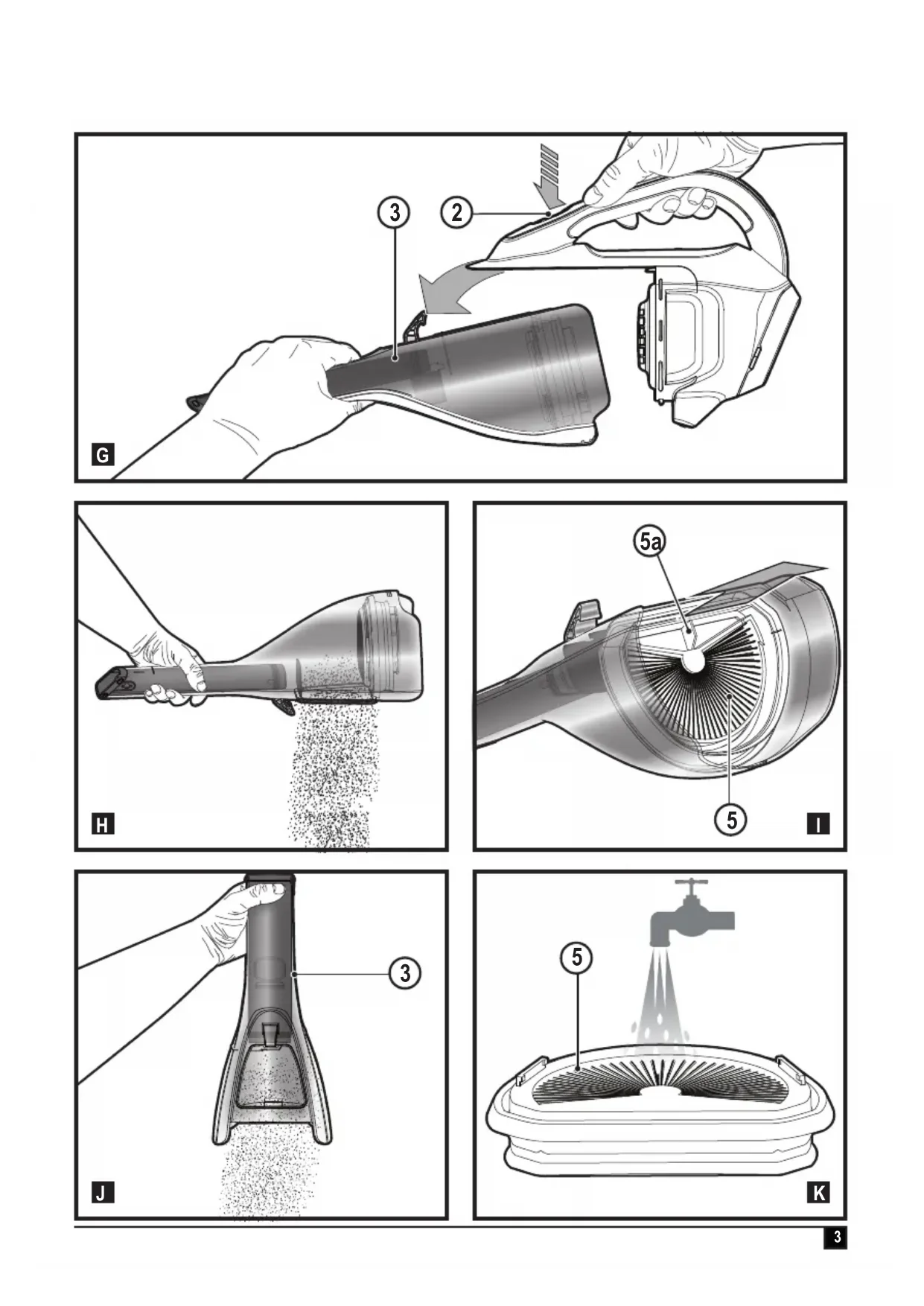

u Allow the lters to dry naturally, using heat may cause the lters to distort. u Ret the lter (5) into dust chamber (3). Make sure the lter tabs face forward. Never place the lters into the dust chamber backwards. u Replace the dust chamber onto the motor unit. Make sure the release button (2) clicks into place. Scented lter u BEFORE FIRST USE - remove bag from the scented pre-lter. Reassemble per instructions above. u When the vacuum is turned on, the plastic scented lter will emit an aroma to freshen the air. Warning! Causes mild skin irritation. Wash face, hands and any exposed skin thoroughly after handling. Wear protective gloves/protective clothing/eye protection/face protection. If in eyes: Rinse cautiously with water for several minutes. Remove contact lenses if present and easy to do. Continue rinsing. If skin irritation occurs: Get medical advice/attention. Warning! Harmful to aquatic life with long lasting effects. Avoid release into the environment. Dispose of contents/ containers to an approved waste disposal plant. Do not ingest. Note: When the plastic scented filter no longer lets off the aro- ma, it can be an indication that the filter needs to be replaced. See below for information on replacement filters. Replacing the lters The filters should be replaced every 6 to 9 months and when- ever worn or damaged.7 (Übersetzung der ursprünglichen Anweisungen)DEUTSCHENGLISH(Original instructions)Replacement filters are available from your BLACK+DECKER dealer (cat. noVPF30).u Remove the old lters as described above.u Fit the new lters as described above. Maintenance Your BLACK+DECKER cordless appliance has been designed to operate over a long period of time with a minimum of main-tenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.Warning! Before performing any maintenance on cordless appliances:u Run the battery down completely if it is integral and then switch off.u Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.u Regularly clean the ventilation slots in your appliance/charger using a soft brush or dry cloth.u Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner. Protecting the environment
