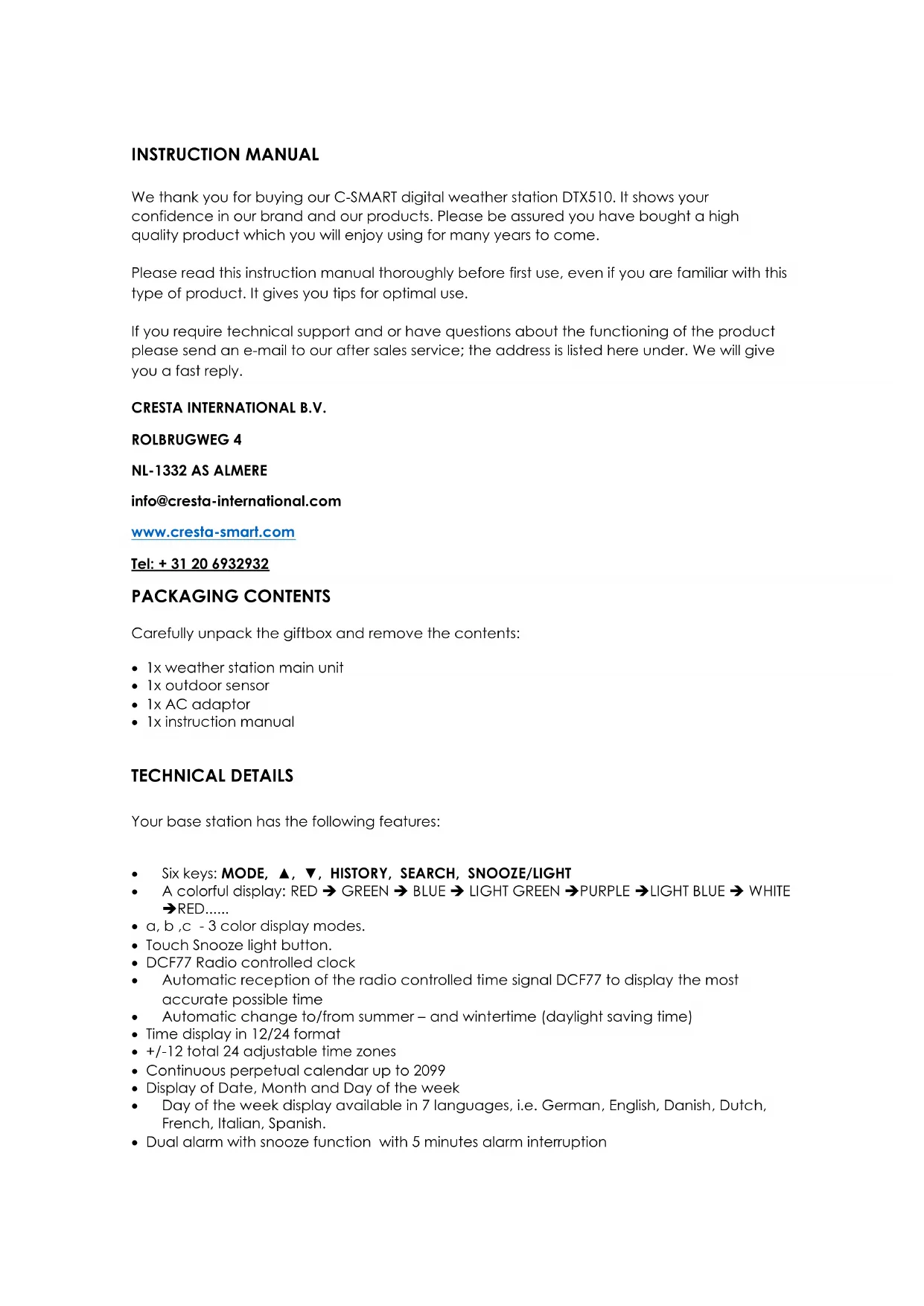

We thank you for buying our C-SMART digital weather station DTX510. It shows your confidence in our brand and our products. Please be assured you have bought a high quality product which you will enjoy using for many years to come.

Please read this instruction manual thoroughly before first use, even if you are familiar with this type of product. It gives you tips for optimal use.

If you require technical support and or have questions about the functioning of the product please send an e-mail to our after sales service; the address is listed here under. We will give you a fast reply.

CRESTA INTERNATIONAL B.V.

ROLBRUGWEG 4

NL-1332 AS ALMERE

[e-mail]

www.cresta-smart.com

Tel: [phone]

PACKAGING CONTENTS

Carefully unpack the giftbox and remove the contents:

• 1x weather station main unit
• 1x outdoor sensor
• 1x AC adaptor
• 1x instruction manual

TECHNICAL DETAILS

Your base station has the following features:

Six keys: MODE, ▲,▼, HISTORY, SEARCH, SNOOZE/LIGHT
A colorful display: RED GREEN BLUE LIGHT GREEN PURPLE LIGHT BLUE WHITE RED......
- a, b, c - 3 color display modes.
- Touch Snooze light button.
- DCF77 Radio controlled clock
Automatic reception of the radio controlled time signal DCF77 to display the most accurate possible time
Automatic change to/from summer - and wintertime (daylight saving time)
Time display in 12/24 format
+/-12 total 24 adjustable time zones
- Continuous perpetual calendar up to 2099
- Display of Date, Month and Day of the week
Day of the week display available in 7 languages, i.e. German, English, Danish, Dutch, French, Italian, Spanish.
- Dual alarm with snooze function with 5 minutes alarm interruption

• 5 weather forecast icons: SUNNY, PARTLY CLOUDY, CLOUDY, RAIN CHANCE, STORM CHANCE
  Barometer and bar of 12 hours history for air pressure
• Indoor /outdoor temperature and humidity with trend
  Max./min. of temperature and humidity
  Thermometer measuring range inside: ^ C to +50^ , outside -20^ 60^
• Temperature display elective in ^ C or ^ F
• Temperature alert for outdoor
  Living space humidity
• Low battery indication
  Main unit batteries: 3 × AAA, LR03, 1.5V

Outdoor sensor:

Frequency: 433 MHz
Transmission range: 50 meters in open area.

** The actual distance may vary depending upon the environmental circumstances, it will be shortened if there is such as from concrete wall etc.

• Batteries: 2 xAAA, LR03, 1.5V

INSTALLATION

• Open the battery compartment located on the rear side of the devices. Place the batteries in the battery compartment. Observe the shown polarity as shown in the compartments. The batteries are backup batteries.
• The ALTITUDE is now flashing, Please use the "▲", "▼" keys to set the altitude of your position. By default it is set to "0". Then press "SNOOZE/LIGHT", the WEATHER FORCAST icon is now flashing. Please use "▲", "▼" to choose the actual weather.
• Insert 2xAAA, LR03,1.5V batteries into the outdoor sensor and observe if the red LED light flashing.
• The station is now connecting to the outdoor sensor. This process takes about 3 minutes. Then the display of the base station shows the outdoor temperature and humidity, in case of a failure of the reception, please press "SEARCH" for more than 3 seconds to receive again.
• The automatic receiving of the DCF77 radio signal begins after 3 minutes of the outdoor reception.
• This RCC reception process is going on, the flashing symbol " "appears in the time display area at the same time.
• Once the radio signal receiving is successful, the display shows the symbol " " continuously and is not flashing anymore.
• A 5.0V AC adaptor is included.

MOUNTING THE OUTDOOR SENSOR

We suggest the outdoor sensor to be hung on as below showing, better not stand it at an outside place. Try to avoid direct sun shine or rain as much as possible.

If, due to a bad reception, or is no RCC automatic time reception possible, follow the steps below manually.

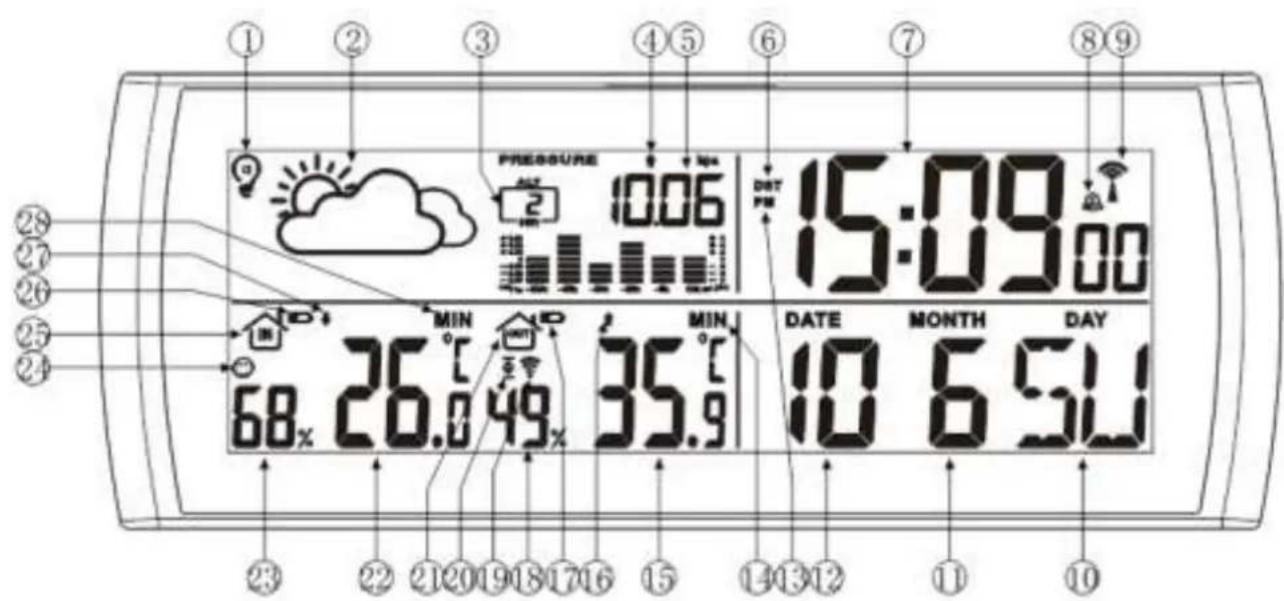

LCD OVERVIEW:

Item	Name	Item	Name
1	Light Mode	17	Outdoor low battery
2	Weather Forecast	18	Outdoor humidity
3	Historical record	19	RF receive
4	Pressure trend	20	Temperature alarm
5	Pressure data	21	Outdoor icon
6	Daylight saving time	22	Indoor temperature
7	Time	23	Indoor humidity
8	Alarm clock	24	Comfort icon
9	RCC receive	25	Indoor icon
10	Week	26	Indoor low battery
11	Month	27	Indoor temperature trend
12	Date	28	Min indoor temperature
13	Afternoon	29	Holder
14	Min outdoor temperature	30	Battery cover
15	Outdoor temperature	31	Battery compartment
16	Outdoor temperature trend

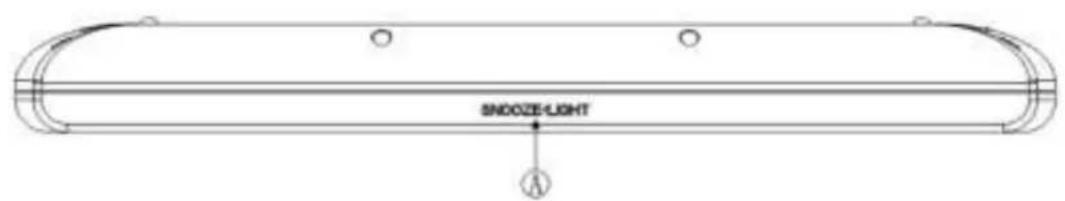

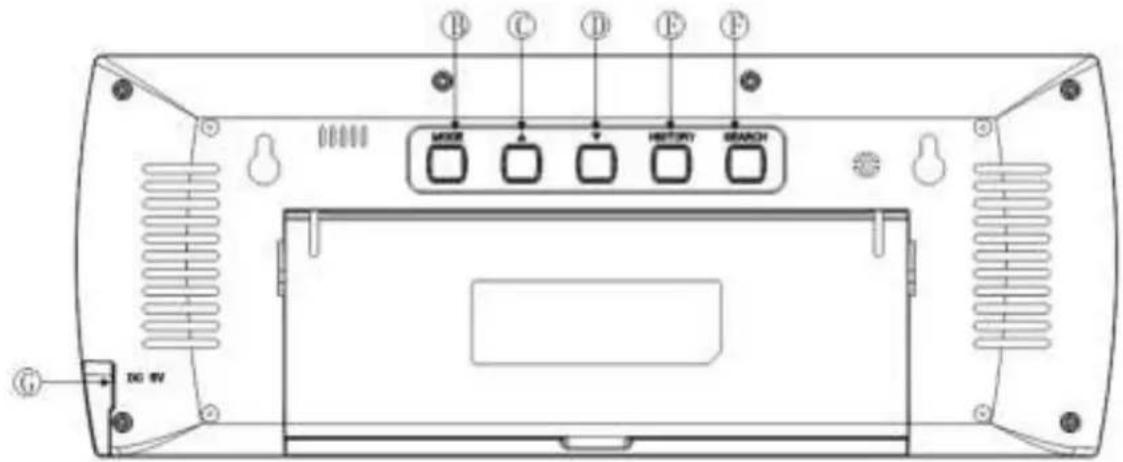

TOP SIDE:

	Press button	Press and hold (3 seconds)
(A) SNOOZELIGHT	1. Activates alarm snooze2. Display black light (when without power adaptor plugged in)	Setting the backlight mode A, B or C
(B) MODE	Time/Alarm1/Alarm 2 switching	Setting the time format, time zone shift, hours, year, date, day of the week language, air pressure unit,
(C) UP	Check the MAX/MIN temperature and humidity data; One step forward in setting	Clear the MAX/MIN temperature and humidity data
(D)DOWN	Check the history of air pressureOne step back in setting	Enter the alert setting
(E) HISTORY	View the air pressure history	Air pressure reading adjust
(F)SEARCH		Re- registration the CHANNEL data
(G)DC jack		Plug in the power adaptor.

REMARK: The SNOOZE/LIGHT button, it is a touch button, make sure not to touch it when you do the manual set-up for functions not related to this button.

In the standard mode, press and hold the key "MODE" for 3 seconds.
The display for the YEAR is flashing. Use "▲" or "▼" to select the correct year.
Press "MODE" to confirm.
The display for the MONTH is now flashing. Use "▲" or "▼" to select the correct month.
Press "MODE" to confirm.
The display for the DATE is now flashing. Use "▲" or "▼" to select the correct date.
Press "MODE" to confirm.
The display for the TIME ZONE is flashing. Use "▲" or "▼" to select the correct time zone (-12 to +12).
Press "MODE" to confirm.
The 12/24 HOUR FORMAT is flashing. Use "▲" or "▼" to select
Press "MODE" to confirm.
- The LANGUAGE selection for the display of the WEEKDAYS is now flashing. Use “▲” or “▼” to select the language (EN - English, GE- German, SP - Spanish,IT - Italian, FR - French, DU - Dutch, DA - Danish).
The hPa/inHg for the air pressure is now flashing, Use "▲" or "▼" to select.
Press "MODE" to confirm.
The display for the HOUR is now flashing. Use "▲" or "▼" to select the correct hour.
Press "MODE" to confirm.
The display for the MINUTES is now flashing. Use "▲" or "▼" to select the correct minutes..
Press "MODE" to confirm.

INFORMATION:

• The clock automatically changes from the set-up mode to the time display mode if no keys are pressed for 20 seconds.
• Explanation for the time zone display:

You can manually adjust the clock to the time zone of a country located up to 1500km distance to Frankfurt/Main where the clock can still receive the DCF77 signal but where the actual time differs from the time received.

If, e.g. the time in a given country is 1 hour ahead of the German time, set the time zone display to 01. The clock is now DCF77 controlled but shows the time is one hour ahead.

DAILY ALARM SET-UP

• Press "MODE" to switch from time display to A1 display
• Press and hold the key "MODE" for 3 seconds, the flashing alarm time are shown
  The HOUR display of the alarm time is flashing. Use "▲" and "▼" to select the hour. Press "MODE" to confirm.
  The MINUTES display is now flashing. Use "▲" and "▼" to select the minutes,
  Press "MODE" to confirm.
• The same setting as for A2.

DAILY ALARM ON/OFF

• Press "MODE" to switch from the time display to the "A1" or "A2" mode
• When the A1 or A2 alarm time is showing press “▲” or “▼” to activate the alarm with the alarm symbol showing.
  Press" ▲"or"▼"again to cancel the alarm

INFORMATION:

The clock automatically changes from set-up mode to time mode if no keys are pressed for 20 seconds.
- The alarm sounds for 2 minutes if no key is pressed to stop it.

SNOOZE FUNCTION

To activate the snooze function, please follow the steps below

• Press the key "SNOOZE /LIGHT", while the alarm sounds, to activate the snooze function.
• If the snooze function is activated, alarm symbol is flashing.
  The alarm repeat after 5 minutes.
• The snooze function can be stopped by pressing any key.

12/24 HOURS MODE

The time display can be in 12 (AM/PM) or 24 hours mode, please follow the manual set-up to select

°C/°F TEMPERATURE DISPLAY

The temperature display can be in ^ C or ^ F , press "▼" to select in normal mode

MAX./ MIN. FOR THE INDOOR/OUTDOOR TEMPERATURE AND HUMIDITY

Press "▲" to display indoor and outdoor max temperature and humidity.
Press "▲" again to display indoor and outdoor min temperature and humidity
- Hold “▲” for more than 3 seconds to clear up the max./min.

TEMPERATURE ALERT SET-UP

• Hold “▼” to flash ON OF, press “▲” or “▼” to select on/off.
• Press "MODE", the upper limit of outside temperature is flashing, use "▲" and "▼" to set the maximum alert temperature.
• Press "MODE", the lower limit of outside temperature is flashing, use "▲" and "▼" to set the minimum alert temperature.
  If select OF, press "MODE" until to quit the alert.
• When the alert is activated, the alert symbol will be shown.

TEMPERATURE ALERT ON/OFF

• Alert on: Temperature alert symbol shown in display
• Alert off: Temperature alert symbol goes out.

INFORMATION

• The set-up process cannot be completed if the maximum temperature selected is lower than the minimum selected temperature.
• The minimum temperature selected must at least be 1^ below the maximum selected temperature.

5 WEATHER FORCAST ICONS

Sunny

Parity Clouds

C)

1

Rain Storm

SUNNY

PARTLY CLOUDY

CLOUDY

RAIN CHANCE

STORM CHANCE

REMARK:

The current displayed icon reflects the weather forecast for the next 12-24 hours. It may not reflect the current state of the weather.

BAROMETER AND BAR HISTORY FOR THE PAST 12 HOURS OF AIRPRESSURE.

The air pressure can be displayed in hPa and inHg. The bar shows the air pressure development of the past 12 hours.

When you insert the batteries, the altitude reading under the PRESSURE will flash,

Use “▲” and “▼” to select the altitude to adjust the pressure reading. The default setting is “0”.

Press "SNOOZE/LIGHT", the WEATHER icon flashing, use "▲" and "▼" to select the actual weather.

Press "SNOOZE/LIGHT" to confirm.

Please hold the "HISTORY" key to enter the above when the weather station is in the normal mode.

ILLUMINATION

Press the key "SNOOZE/LIGHT" to activate the color display or turn the display off.

BACKLIGHT SETTING.

Please note: The SNOOZE/LIGHT button it is touch button, make sure not to touch it when you do the manual set-up for functions not related to this button.

• Press and hold the key "SNOOZE /LIGHT" for 2 seconds to enter the a/b/c mode setting. In the top left corner a LIGHTBULB icon is flashing with the letter "a".

• In the "a" mode you can select the backlight color. Touching the SNOOZE/LIGHT button will change the color of the display in the following order:

RED GREEN BLUE LIGHT GREEN PURPLE LIGHT BLUE WHITE RED.....

Select the color of your choice and confirm by pressing the „ MODE“ button, which you will find at the backside of the base station.

• If the LIGHTBULB icon with the letter „a“ is flashing and you push the “▼” key the LIGHTBULB icon will move downward and will show the letter „b".
  In the "b" mode the backlight color will change with the weather forecast :

The display color will be LIGHT GREEN when the weather is SUNNY RED when the weather is PARTLY CLOUDY GREEN when the weather is CLOUDY BLUE when the weather shows RAIN CHANCE PURPLE when the weather shows STORM CHANCE

If you prefer this setting please press the "MODE" button confirm
- If the LIGHTBULB icon with the letter „b“ is flashing and you push the “▼” key the LIGHTBULB icon will move downward and will show the letter „c“.
In the "C" mode the backlight color will change with the outdoor temperature:
- If the temperature is Above 30^ is will show RED If the temperature is between 25 29.9^ it will show LIGHT GREEN If the temperature is between 20 24.9^ it will show GREEN If the temperature is between 10 19.9^ it will show WHITE If the temperature is between 0 9.9^ it will show LIGHT BLUE If the temperature is between -0.1^ -9.9^ it will show BLUE If the temperature is Below -10^ it will show PURPLE. If you prefer this setting please press the "MODE" button to confirm
- Default: Without RF, the backlight color will display RED; When the RF is received, the corresponding color is displayed.
- In any mode, press the "MODE" and "▼" keys at the same time to enter into the automatic color change. Each color shows 7 seconds in an automatic cycle. Manually press "MODE" to confirm the color, and quit the automatic change mode. The program does not set the automatic exit.

Backlight color switch:

RED GREEN BLUE LIGHT GREEN PURPLE LIGHT BLUE WHITE RED.....

• When you are in the "b" or "c" mode, if you hold MODE and the "▼" key at the same time, the b or c mode will be stopped.
• If you operate the base station with batteries only the backlight will lighten up for 10 seconds when you press the "SNOOZE/LIGHT" button and will then switch off in order to save the batteries.

TEMPERATURE, HUMIDITY AND AIR PRESSURE TRENDS

• The arrows in the display show the trends of the values of the temperature and the humidity measurements on both the outdoor sensor or base station.

Indications on the display	↑	→	↓
Trends	Rising	Constant	Falling

LIVING SPACE HUMIDITY

The weather station uses saved data to determine the humidity in the living space and shows this with the respective symbols.

Comfortable

Dry

Humid

ICE ALERT

• When the outdoor temperature is lower than +1^ , there is an ICE ALERT symbol showing in the display. It means the weather may start to be icy.

LOW BATTERY CONDITION DISPLAY

The weather station displays the LOW BATTERY CONDITION symbol to remind you that either the batteries of the base station or the outdoor sensor need to be exchanged. We advise you to change ALL batteries if one of the components show the LOW BATTERY CONDITION icon. There is a fair chance the other component will show the same icon shortly after you have changed on the the components batteries. The complete battery exchange guarantees a smooth operation of your weatherstation.

• The Weather station LOW BATTERY CONDITION icon is displayed next to the HOUSE Icon with text „IN".
• The Outdoor sensor LOW BATTERY CONDITION icon is displayed next to the HOUSE icon with text „OUT".

RF CONNECTION TO THE OUTDOOR SENSOR

• Press and hold the key "SEARCH" for 3 seconds to search for the outdoor sensor. The RF signal symbol at the outside area will flash when it is trying to connec . The RF reception is weaker in rooms with concrete walls e.g. in the basement and in office buildings. The distance will be shortened if you have interference. For extreme cases, please put the main unit near a window

RECEPTION OF THE RADIO CONTROLLED TIME SIGNAL

• The DCF77 radio signal search starts automatically about 3 minutes after the battery exchange. The "RADIO TOWER" signal is flashing.

• Press“▲” and “▼” for more than 3 seconds to enter or quit the Radio controlled signal reception

• The clock synchronizes with the DCF77 radio signal automatically and daily from AM 1:00 to 3:00 to correct potential time deviations each hour. If the synchronization is unsuccessful the "RADIO TOWER" symbol disappears from the display. A further synchronization attempt is made from 4:00 and 5:00 until it has been successful. This process is repeated up until 5:00 AM. If the synchronization fails the daily reception will stop. New synchronizations will be done the next night starting 01.00 AM

INFORMATION

The Flashing "RADIO TOWER" symbol stands for DCF77 radio signal reception started.
- The continuous "RADIO TOWER" symbol stands for DCF77 radio signal reception successful.
- Please observe a minimal distance of 2.5 meter to sources of interference such as televisions or computer screens.
The radio signal is weaker in rooms with concrete walls e.g. in the basement and in office buildings. For extreme cases, please put the main unit near a window.
- There are less atmospheric disturbances at night. A radio time signal reception is usually possible at that time. One synchronisation per day is sufficient to keep the time display accuracy at 1 second.

TIP

You can adjust the time manually in case the clock cannot receive the DCF radio signal due to interferences, large distance to the sender, obstructions like mountains, etc. As soon as the radio signal can be received, the clock will be adjusted automatically.

The DCF77 Radio signal can be received up to a distance of 1.500km from Frankfurt/Main.

ENVIRONMENT FRIENDLY DISPOSAL

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment – WEEE – requires that old household electrical appliances should not be disposed of in the normal unsorted municipal waste stream. Old appliances should be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation that when you dispose of the appliance, it should be separately collected. Contact your local authority for information concerning the correct disposal of your old appliance.
