Operating Instructions (Household) Rechargeable Shaver Model No. ES-LL41 ES-LL21 PB016136 - ES-LL21_(00)_cover1_08-06-18.indd 1 2018/8/6 11:05:202

Operating Instructions(Household) Rechargeable ShaverModel No. ES-LL41 ES-LL21

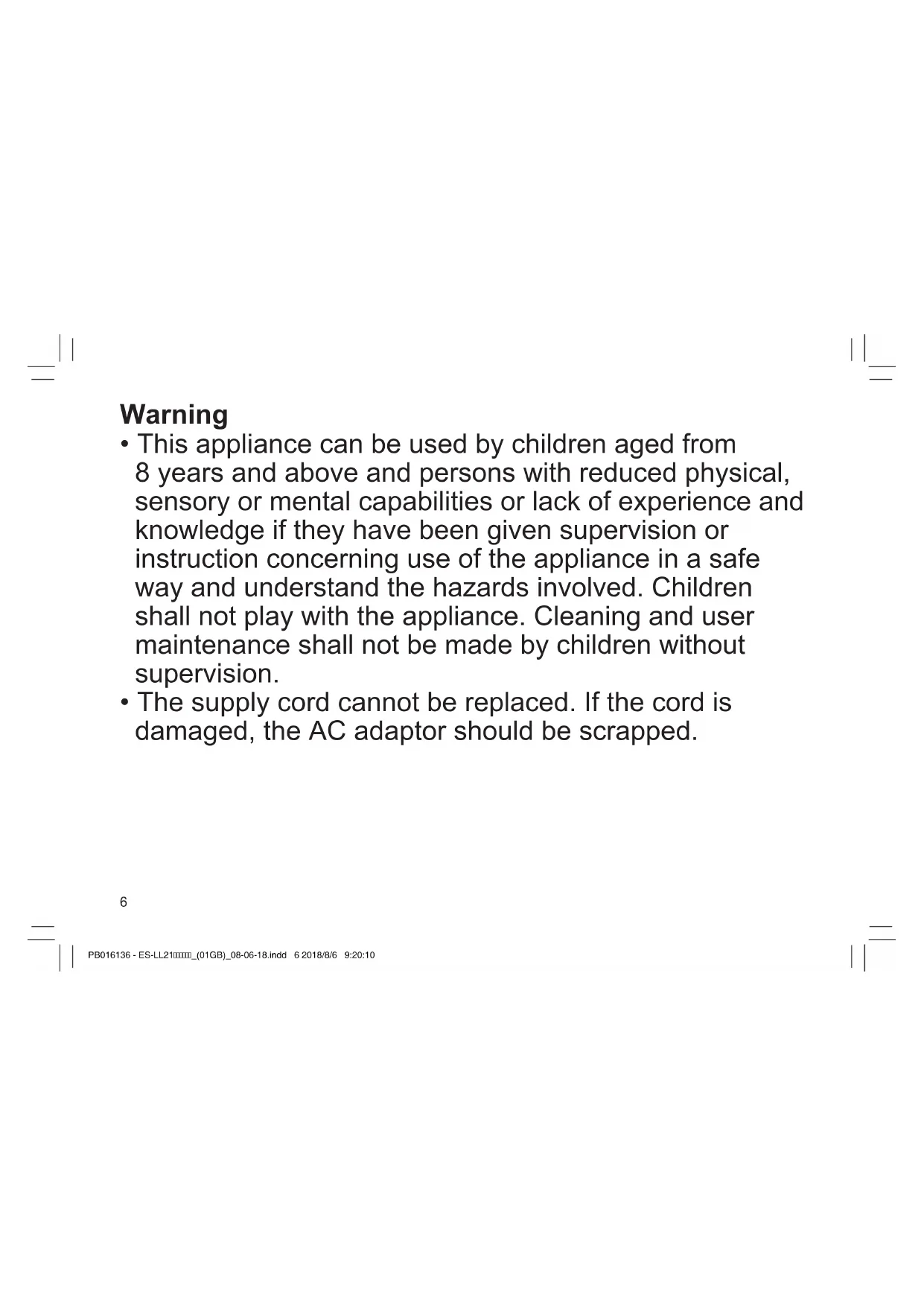

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped. PB016136 - ES-LL21_(01GB)_08-06-18.indd 6 2018/8/6 9:20:107 TR RO H SK CZ PL FIN S N P DK E NL I F D GB

• This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

• Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor. (See page 12.)

• Thefollowingsymbolindicatesthataspecic detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol. PB016136 - ES-LL21_(01GB)_08-06-18.indd 7 2018/8/6 9:20:108 Safety precautions Toreducetheriskofinjury,lossoflife,electricshock,re, and damage to property, always observe the following safety precautions. Explanation of symbols The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER Denotes a potential hazard that will result in serious injury or death.

WARNING Denotes a potential hazard that could result in serious injury or death.

CAUTION Denotes a hazard that could result in minor injury or property damage. The following symbols are used to classify and describe the type of instructions to be observed. Thissymbolisusedtoalertuserstoaspecic operating procedure that must not be performed. Thissymbolisusedtoalertuserstoaspecic operating procedure that must be followed in order to operate the unit safely.

WARNING ► This product This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment. - Doing so may cause overheating, ignition, or explosion. Do not modify or repair. -Doingsomaycausere,electricshock,orinjury. Contact an authorized service centre for repair (battery change etc.). Never disassemble except when disposing of the product. -Doingsomaycausere,electricshock,orinjury. ► In case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or malfunction. - Failuretodosomaycausere,electricshock,orinjury. <Abnormality or malfunction cases>

• The main body, adaptor or cord is deformed or abnormally hot.

• The main body, adaptor or cord smells of burning.

• There is an abnormal sound during use or charging of the main body, adaptor or cord. - Immediately request inspection or repair at an authorized service centre. ► Power supply Do not connect or disconnect the adaptor to a household outlet with a wet hand. - Doing so may cause electric shock or injury. PB016136 - ES-LL21_(01GB)_08-06-18.indd 8 2018/8/6 9:20:109 TR RO H SK CZ PL FIN S N P DK E NL I F D GB

WARNING Do not immerse the AC adaptor in water or wash with water. Do not place the AC adaptor over or near water filled sink or bathtub. Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet. Do not damage, modify, or forcibly bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord. -Doingsomaycauseelectricshockorreduetoa short circuit. Do not use in a way exceeding the rating of the household outlet or the wiring. - Exceeding the rating by connecting too many plugs toonehouseholdoutletmaycauseredueto overheating. Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the adaptor. -Failuretodosomaycausereorelectricshock. Disconnect the AC adaptor when cleaning the shaver with water. - Failure to do so may cause electric shock or injury. Regularly clean the power plug and the appliance plug to prevent dust from accumulating. -Failuretodosomaycausereduetoinsulation failure caused by humidity. ► Preventing accidents Do not store within reach of children or infants. Do not let them use it. - Putting parts or accessories in the mouth may cause an accident or injury. If oil is consumed accidentally, do not induce vomiting, drink a large amount of water and contact a physician. If oil comes into contact with eyes, wash immediately and thoroughly with running water and contact a physician. - Failure to follow these instructions may result in physical problems.

CAUTION ► Protecting the skin Do not use excessive pressure to apply the system outer foil to your lip or other part of your face. Do not apply the system outer foil directly to blemishes or injured skin. Do not touch the blade section (metallic section) of the inner blade. - Doing so may cause injury to skin or hand. Do not forcefully press the system outer foil. Also, do not touch the system outer foil with fingers or nails when in use. Do not use this product for hair on head or any other part of the body. - Doing so may cause injury to skin or reduce the life of the system outer foil. PB016136 - ES-LL21_(01GB)_08-06-18.indd 9 2018/8/6 9:20:1010

CAUTION Check the system outer foil for cracks or deformations before use. - Failure to do so may cause injury to the skin. Be sure to place the protective cap on the shaver when carrying around or storing. - Failure to do so may cause injury to skin or reduce the life of the system outer foil. ► Note the following precautions Do not wrap the cord around the adaptor when storing. - Doing so may cause the wire in the cord to break withtheload,andmaycausereduetoashort circuit. Do not allow metal objects or trash to adhere to the power plug or the appliance plug. -Doingsomaycauseelectricshockorreduetoa short circuit. Do not disconnect the adaptor or the appliance plug by holding onto the cord. - Doing so may cause electric shock or injury. Do not share your shaver with your family or other people. -Doingsomayresultininfectionorinammation. Do not drop or hit against other objects. - Doing so may cause injury. Disconnect the adaptor from the household outlet when not charging. -Failuretodosomaycauseelectricshockorredue to electrical leakage resulting from insulation deterioration. Handling of the removed battery when disposing

• The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

• Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.

• Do not hit, disassemble, modify, or puncture with a nail.

• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

• Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat.

• Never peel off the tube. - Doing so may cause overheating, ignition, or explosion. PB016136 - ES-LL21_(01GB)_08-06-18.indd 10 2018/8/6 9:20:1011 TR RO H SK CZ PL FIN S N P DK E NL I F D GB Intended use

• Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.

• Do not bring the system outer foil into contact with hard objects. Doing so may damage the blades as they are very thin and deform easily.

• Do not dry the main body with a dryer or a fan heater. Doing so may cause malfunction or deformation of the parts.

• Do not leave the shaver exposed to direct sunlight with the foil frame detached. Doing so may deteriorate the waterproof rubber and degrade waterproof function, which may cause to malfunction.

• Store the shaver in a place with low humidity after use. Failure to do so may cause malfunction due to condensation or rust.

• Keep both the inner blades inserted. If only one of the inner blades is inserted, the shaver may be damaged.

• If you clean the shaver with water, do not use salt water or hot water. Do not soak the shaver in water for a long period of time.

• Before using a comb attachment, check that it has been installed correctly. Failure to do so may cause beard to be cut too short.

WARNING After removing the rechargeable battery, do not keep it within reach of children and infants. - The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately. If the battery fluid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water. - Failure to do so may cause eye injury. Consult a physician immediately.

CAUTION If the battery fluid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water. -Failuretodosomaycauseinammation. PB016136 - ES-LL21_(01GB)_08-06-18.indd 11 2018/8/6 9:20:1112 Parts identication

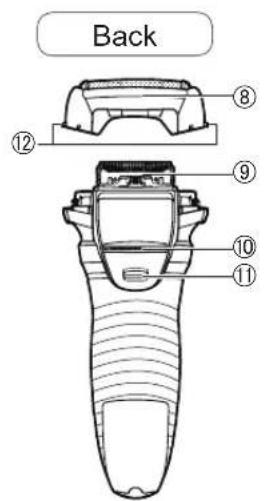

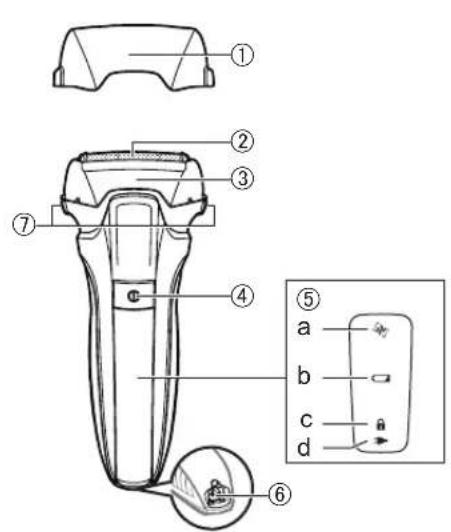

b. Battery capacity lamp ( ) c. Switch lock lamp ( ) d. Charge status lamp

Length adjustment comb attachment (1~3 mm) ES-LL41 Comb attachment release buttons

Length adjustment comb attachment (5~7 mm) ES-LL41 Comb attachment release buttons Accessories

Operating Instructions

Guarantee Card Preparation Charging the shaver

into appliance socket.

2. Plug the adaptor [

] into a household outlet.

• Checkthatthechargestatuslamp ( ) is glowing.

• Chargingiscompletedafter approx. 1 hour.

3. Disconnect the adaptor after

charging is completed.

Note You cannot operate the shaver while charging. While charging The charge status lamp ( ) glows. After charging is completed The charge status lamp ( ) turns off. PB016136 - ES-LL21_(01GB)_08-06-18.indd 12 2018/8/6 9:20:1113 TR RO H SK CZ PL FIN S N P DK E NL I F D GB How to use Using the shaver

• The“shavingsensor”,whichautomatically adjusts the power depending on the beard thickness, will operate. It will shave with high power on areas where the beard is heavy, and reduce the power on areas where the beard is thin, to reduce burden on the skin.

• Thepowercannotbeturnedonwhentheswitchlock lamp ( ) blinks, as the power switch is locked. Press the power switch for more than 2 seconds to unlock. (See page 14.) Tips for better shaving Apply the whole system outer foil perpendicularly against the skin and shave by slowly gliding the shaver over the face against the grain of the beard.

• Thebeardunderthechinandaround the throat can be shaved better by stretching the skin so the beard will stand.

• Topreventdamagingthesystemouter foil, do not shave with only a part of the system outer foil. Abnormal charging The charge status lamp ( ) will blink twice every second. Notes

• Afterchargingiscompleted,turningthepowerswitchON with the shaver plugged in will cause the charge status lamp

) to light up and then turn off after 5 seconds. This shows that the shaver is fully charged.

• Whenchargingtheshaverforthersttimeorwhenithas not been in use for more than 6 months, the charging time may change or the charge status lamp ( ) may not glow for a few minutes. It will eventually glow if kept connected.

• Recommendedambienttemperatureforchargingis 10 °C – 35 °C. It may take longer to charge, or the charge status lamp ( ) will blink quickly and the battery may fail to charge properly in extremely high or low temperatures.

• Theshavercanbeusedforapproximately2weekswitha full charge. (Based on one 3-minute dry-shave usages per day in an ambient temperature range of 20 °C – 30 °C.) The number of usable days varies depending on the following conditions. - Beard thickness - Pressure applied to the skin - Usage frequency of the sonic vibration cleaning mode - Use of the trimmer attachment

• Ifthereisnoisefromtheradioorothersourceswhileusing or charging the appliance, move to a different location to use the appliance. PB016136 - ES-LL21_(01GB)_08-06-18.indd 13 2018/8/6 9:20:1214

when nished. While using The shaving sensor lamp ( ) blinks. When the battery capacity is low The battery capacity lamp ( ) blinks for 5 seconds when the power switch is pressed. The appliance beeps twice after switched off.

• Youcanshave2to3timesafterthebatterycapacitylamp ( ) blinks. (This will differ depending on usage.) Notes

• Theappliancemaynotoperateinanambienttemperature lower than approximately 5 °C.

• Theshavingsensormaynotresponddependingonthetype and quantity of the shaving gel. This is not abnormal.

• Dependingonthebeardthicknessortheamountofbeard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal.

• Topreventerroneousoperation,placeyour ngersonthethumbrestwhileusingthe shaver.

• Thesonicvibrationcleaningmodeisactivatedwhenthepower switch is pressed for more than 2 seconds while the shaver is not operating (the switch lock is unlocked). (See page 17.) You cannot shave in this mode. ►Locking/unlocking the power switch Locking the power switch

• The shaver starts operating.

for more than 2 seconds until the switch lock lamp

• The shaver will stop operating.

• The switch lock lamp (

will light up for 5 seconds and turn off. Unlocking the power switch

1. Press for more than

2 seconds until the switch lock lamp ( ) turns off.

• The switch lock lamp (

1. Slide the trimmer handle up.

and use. Press and hold the top knob ( ) and slide the trimmer handle down to lower the trimmer. Tips for better usage Apply the trimmer edge perpendicular to skin gently and move it to the arrow direction slowly. Trimming sideburns or building beard shape Pre-shave of long beards Using the comb attachment ES-LL41

• Donotusewithshavingcreamsappliedorwhenthebeard is wet. Wet beard can stick to the skin or clump making it difcultforthebladetocut.

• Combbeardandsideburnsbeforetrimming.

attachment to the main body until it clicks.

height lever left and right to align it to the desired trimming length. PB016136 - ES-LL21_(01GB)_08-06-18.indd 15 2018/8/6 9:20:1716 Trimming height (mm) (approx.) Corresponding position of trimming height lever and trimming height mark 1 mm 1 mm 2 mm 3 mm 2 mm 3 mm 5 mm 5 mm 6 mm 7 mm 6 mm 7 mm

4. Turn the shaver on, bring the

comb of the comb attachment into contact with the skin, and cut the beard by moving the trimmer.

5. Press and hold the comb

attachment release buttons to remove. Notes

• Becarefulnottocutyourhandonthebladewhenattaching and removing the comb attachment.

• Hairtrimmingsmaycollectinsidethecombattachmentwhen a large volume of beard is cut, so discard hair trimmings after each use. (See page 17.)

• Ifthecombattachmentisnotattachedproperly,itmay become loose during use resulting in excessive cutting.

• Sometimesthebeardmaybelongerthanthesettrimming height.

• Ifthebeardistoolong,thetrimmingresultmaybeaffected. Please cut your beard to about 2 cm in length before using the trimmer. Cleaning the shaver We recommend cleaning the shaver after each use. Cleaning with water

• TurntheshaveroffanddisconnecttheACadaptor.

1. Apply some hand soap and

some water to the system outer foil [

2. Press for more than 2

seconds to activate the sonic vibration cleaning mode.

• Splashingoffoamissuppressed.

• Thebatterycapacitylamp( ) and the charge status lamp ( ) blink alternately.

• Afterabout20seconds,itwillbe automatically turned off, or you can turn it off by pressing the power switch.

3. Remove the outer foil section.

• Seepage18forremovingtheouter foil section.

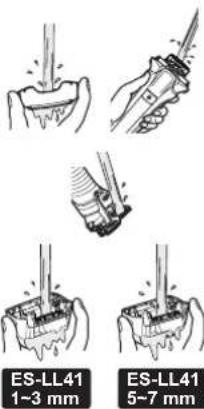

4. Clean the shaver, the outer foil

section, the trimmer, and the comb attachment with running water.

• Splashingisreducedbyrinsingthe shaver in sonic vibration cleaning mode.

• Afterrinsingwithwater,shakethe shaver up and down for a few times to remove excess moisture and then wipe off any drops of water with a dry cloth. ES-LL41 1~3 mm ES-LL41 5~7 mm

5. Dry the outer foil section, the

shaver, the trimmer, and the comb attachment completely.

It will keep the movement of the blade smooth and maintain a comfort shave.

1. Apply one drop of oil to each of the

2. Raise the trimmer and apply a drop of oil.

3.Switchtheshaveron,andrunitforapproximatelyve seconds.

4. Switch off the shaver, and wipe off any excess oil from

the system outer foil with a soft cloth. Notes

• Becarefulnottohitthemainbodyonthesinkoranyother object while draining the water. Failure to do so may cause malfunction.

• Donotwipewiththinners,benzine,alcoholetc. Doing so may cause malfunction, cracking or discoloration of the parts. Wipe with diluted soapy water.

8], system outer foil [

] using the long brush. ►Cleaning with the short brush

9] using the short brush by moving it in direction as illustrated.

• Donotmovetheshortbrush perpendicularly against the blades as it will damage the inner blades and affect their sharpness. Replacing the system outer foil and the inner blades System outer foil Once every year Inner blades Once every two years ►Removing the outer foil section Press the foil frame release buttons [

7] and lift the outer foil section [

8] upwards. ►Replacing the system outer foil

1. Press the system outer foil release buttons

] and pull down the system outer foil

• Donotpressthesystemouterfoilrelease buttons with excessive force. Doing so may bend the system outer foil, preventing complete attachment to the foil frame.

2. Align the foil frame mark ( ) and the

system outer foil mark ( ) and securely attach together until it clicks. ►Replacing the inner blades

2. Insert the inner blades one at a time.

►Attaching the outer foil section After turning the foil frame mark ( ) to the front, securely attach the outer foil section

8] to the shaver until it clicks. Note Do not throw away the foil frame. PB016136 - ES-LL21_(01GB)_08-06-18.indd 18 2018/8/6 9:20:2519 TR RO H SK CZ PL FIN S N P DK E NL I F D GB FAQ Question Answer Will the battery deteriorate if not used for an extended period of time? The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months. Can I charge the shaver after every use? The battery used is a lithium-ion, so charging after every use will have no effect on battery life. Why should the adaptor be disconnected after charge? Charging the battery for more than 1 hour will not affect battery performance, but disconnect the adaptor for safety and to save energy. What is the constituent of the dedicated oil? Constituent of the oil is liquid parafn. Why does the appliance beep twice after switched off? The sound indicates that the battery capacity is running low. Please charge the appliance. Troubleshooting Perform the following actions. If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair. Problem Action The power switch does not turn ON. Unlock the switch lock. (See page 14.) The shaving sensor does not respond. Depending on the beard thickness or the amount of beard trimmings in the shaver head, the shaving sensor may not react and the driving sound may not change. This is not abnormal. The shaving sensor may not respond depending on the type and quantity of the shaving gel. This is not abnormal. The shaving sensor may not respond when the remaining battery capacity is low. If this happens, recharge the shaver. Apply oil. (See page 17.) The shaving sensor may not respond when there is not enough oil on the blades. PB016136 - ES-LL21_(01GB)_08-06-18.indd 19 2018/8/6 9:20:2520 Problem Action The shaving sensor responds even though the shaver is not in contact with the skin. Clean the beard trimmings from the shaver. When the shaver is extremely dirty, wash with water. (See page 16.) Replace the system outer foil and/ or inner blades. Expected life of system outer foil and inner blades: System outer foil:  Approximately1year Inner blades:  Approximately2years Operating time is short even after charging. Apply oil. This can be improved by cleaning every time after shaving. When the number of operations per charge starts to decrease, the battery is nearing the end of its life. Problem Action Shaver does not operate even after charging. Use the appliance in an ambient temperature approximately 5 °C or higher. The battery has reached the end of its life. The shaver will not operate with the AC adaptor connected. Please use the shaver after it has beensufcientlychargedandthe AC adaptor disconnected. The driving sound changes while shaving. The shaving sensor is operating. The sound changes depending on the beard thickness. Makes a loud sound. Apply oil. The blades will not move smoothly when there is no oil on the blades, requiring more power. The shaver makes a high-pitched sound due to the linear motor drive. This does not indicate a problem. Conrmthatthebladesare properly attached. Clean the system outer foil with the brush. (See page 18.) The odor is getting stronger. This can be improved by cleaning every time after shaving. PB016136 - ES-LL21_(01GB)_08-06-18.indd 20 2018/8/6 9:20:2621 TR RO H SK CZ PL FIN S N P DK E NL I F D GB Problem Action Shavingsyoutinall directions. This can be improved by cleaning every time after shaving. Clean the inner blades with the brush when shavings are adhering to the inner blades. System outer foil gets hot. Apply oil. Check if the system outer foil is damaged or deformed. If yes, replace it. (See page 18.) You do not get as close a shave as before. This can be improved by cleaning every time after shaving. Replace the system outer foil and/ or inner blades. Expected life of system outer foil and inner blades: System outer foil:  Approximately1year Inner blades:  Approximately2years Apply oil. Service Contact Please visit Panasonic web site http://www.panasonic.com or contactanauthorizedservicecentre(Younditscontact addressinthepaneuropeanguaranteeleaet.)ifyouneed information or if the shaver or the AC adaptor gets damaged. Replacement parts Replacement parts are available at your dealer or Service Centre. Replacement parts for ES-LL41/ES-LL21 System outer foil and inner blades WES9013 System outer foil WES9087 Inner blades WES9068 Battery life The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by an authorized service centre. PB016136 - ES-LL21_(01GB)_08-06-18.indd 21 2018/8/6 9:20:2622 For environmental protection and recycling of materials This shaver contains a Lithium-ion battery. Please make sure that the battery is disposed of at an ofciallyassignedlocation,ifthereisoneinyourcountry. Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. Note for the battery symbol (bottom symbol) This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Disposal of the built-in rechargeable battery Remove the built-in rechargeable battery before disposing of the shaver. The battery must be disposed of safely. Please make sure that the battery is disposed of at an ofciallydesignatedlocationifthereisone. Thisguremustonlybeusedwhendisposingoftheshaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

• RemovetheshaverfromtheACadaptor.

• Pressthepowerswitchtoturnonthepowerandthenkeep the power on until the battery is completely discharged.

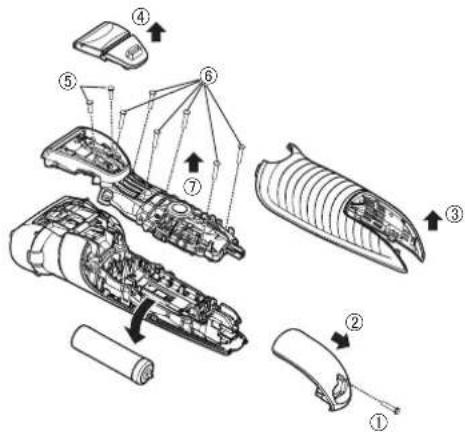

• Performsteps1 to 7 and lift the battery, and then remove it.

• Takecarenottoshortcircuitthepositiveandnegative terminals of the removed battery, and insulate the terminals by applying tape to them.

1. Remova as lâminas interiores [
