USER MANUAL Vaporella Next VN18.35 POLTI

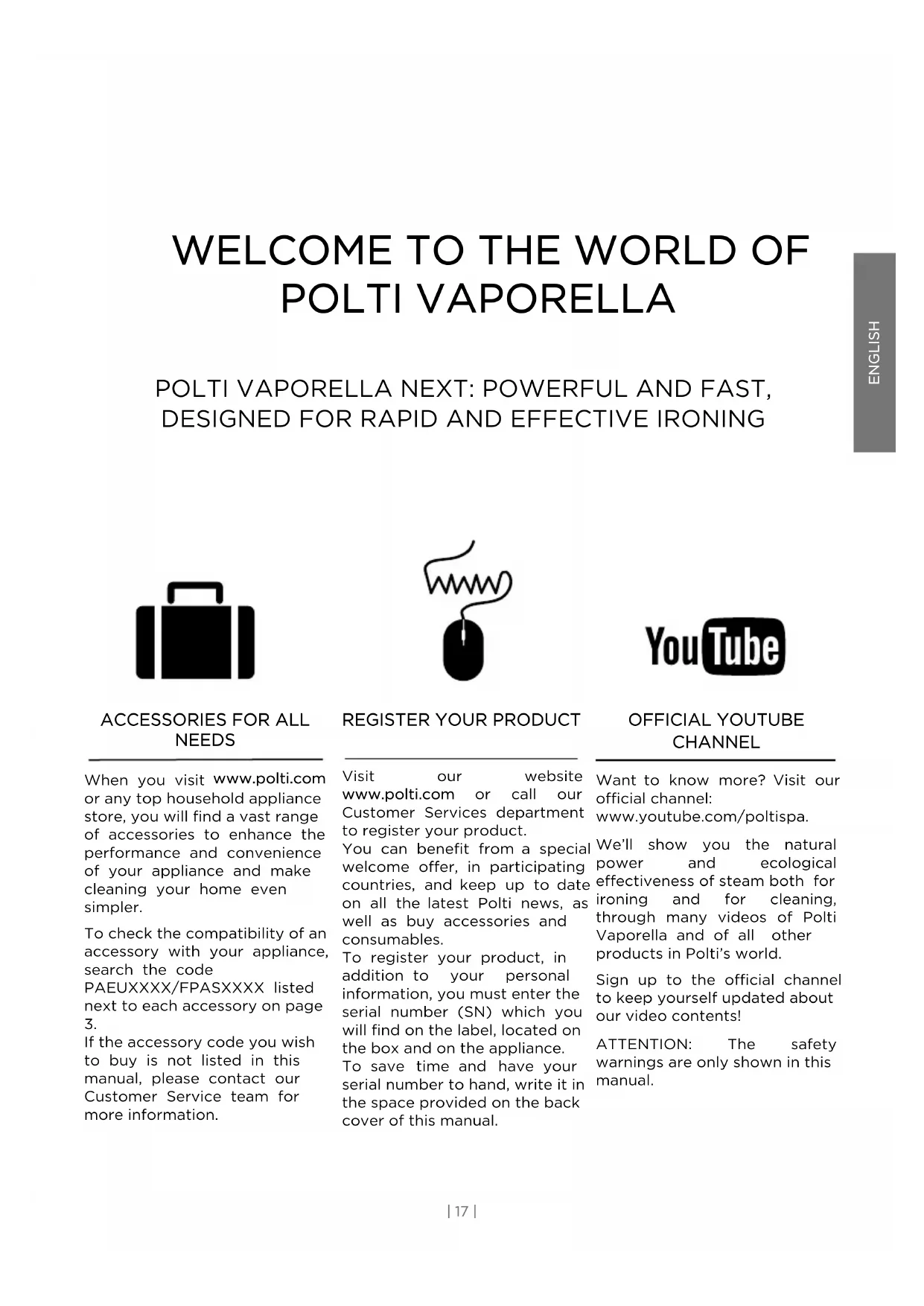

NEEDS When you visit www.polti.com or any top household appliance store, you will find a vast range of accessories to enhance the performance and convenience of your appliance and make cleaning your home even simpler. To check the compatibility of an accessory with your appliance, search the code PAEUXXXX/FPASXXXX listed next to each accessory on page

If the accessory code you wish to buy is not listed in this manual, please contact our Customer Service team for more information.

REGISTER YOUR PRODUCT

Visit our website www.polti.com or call our Customer Services department to register your product. You can benefit from a special welcome offer, in participating countries, and keep up to date on all the latest Polti news, as well as buy accessories and consumables. To register your product, in addition to your personal information, you must enter the serial number (SN) which you will find on the label, located on the box and on the appliance. To save time and have your serial number to hand, write it in the space provided on the back cover of this manual. OFFICIAL YOUTUBE CHANNEL Want to know more? Visit our official channel: www.youtube.com/poltispa. We’ll show you the natural power and ecological effectiveness of steam both for ironing and for cleaning, through many videos of Polti Vaporella and of all other products in Polti’s world. Sign up to the official channel to keep yourself updated about our video contents! ATTENTION: The safety warnings are only shown in this manual.SAFETY WARNINGS

WARNINGS IN THIS MANUAL,

AND ON THE APPLIANCE

ITSELF. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. Correct use of the product is only as detailed in this instruction manual. Any use which does not comply with these instructions will invalidate the warranty. SAFETY SYMBOLS:

WARNING: High temperature. Risk of scalding!

If shown on the product, do not touch as parts may be very hot.

Risk of scalding! This appliance reaches very high temperatures. Incorrect use of the device can cause scalding.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try to repair the appliance yourself. In the event of a heavy knock, fall, damage or fall into water, the appliance may no longer be safe to use. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• This iron must not be used if it has been dropped, if there are visible signs of damage or if it leaks.

• The plug must be removed from the power socket before the ENGLISH | 18 |tank/boiler is filled.

• The filling, or decalcifying, or rinsing, or inspection apertures that are under pressure, shall not be opened during use.

• When accessing the pressurised boiler (removing the cap, filling up, decalcifying, rinsing, inspection), ensure that the appliance has been switched off at the power switch and disconnected from the mains for at least two hour, allowing it to cool. There is a risk of accidents while the boiler is a switched on/hot and pressurised.

• The appliance must not be left unattended if plugged in to the mains.

• The iron must be used and rested on a stable surface.

• When placing the iron on its stand, make sure that the surface on which the stand is placed is stable.

• The iron must be used with the ironing (fixed or removable) mat provided.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Keep the appliance and the power cable out of the reach of children under 8 years of age when the appliance is switched on or during the cooling phase.

• Keep all the parts of the packaging out of the reach of children; they are not toys. Keep the plastic bag out of the reach of children: danger of suffocation.

• This appliance is designed exclusively for indoor domestic use. In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the fundamental precautions listed in this manual. ENGLISH | 19 |RISKS CONNECTED TO THE POWER SUPPLY–ELECTROCUTION

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your domestic system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical system to which the appliance is connected complies with current laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the domestic electrical circuit in use.

• Do not overload sockets with adaptors and/or transformers. Only connect the product to a single socket with current that is compatible with the plug supplied.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and possibly lead to short circuiting, fire, power outage or damage to the equipment. Only use extension leads which are certified, suitable for the power rating, supporting 16A and earthed.

• Always turn the appliance off before unplugging it.

• To remove the plug from the socket, do not pull the power cable, but hold the plug itself to avoid damage to the plug and the cable.

• Always unplug the appliance if it is not in use and before any preparation, maintenance or cleaning operation.

• Fully unwind the cable and steam hose before connecting the appliance to the mains and before use. Always use the product with the cable and steam hose completely unwound.

• Do not pull or jerk the cable or the steam hose, or strain it (twisting, crushing or stretching). Keep the cable and steam hose away from hot and/or sharp surfaces and elements. Avoid the cable and steam hose coming into contact with the hot iron plate. Avoid crushing the cable and steam hose in doors and windows. Do not pull the cable and steam hose tight around corners. Avoid treading on the cable and steam hose. Do not walk over the cable and steam hose. Do not wind the power cable and steam hose around the appliance, ENGLISH | 20 |especially if the appliance is hot.

• Do not change the plug on the power cable.

• If the power cable or the steam hose is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid all possible hazards. Do not use the product if the power cable and the steam hose are damaged.

• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Do not immerse the appliance, including the power cable and plug, in water or other liquids.

• Steam must not be directed towards equipment containing electric or electronic components. RISKS DURING USE OF THE PRODUCT – INJURIES/SCALDING

• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.

• Do not pour toxic substances, acids, solvents, detergents, corrosive substances and/or explosives, perfumes or scented water into the water tank and boiler.

• Only pour water or the water mix indicated in the section “Which water to use in the boiler” into the tank.

• Do not direct the steam jet or the iron onto toxic substances, acids, solvents, detergents or corrosive substances. The handling and removal of dangerous substances must be carried out according to the indications of the manufacturers of these substances.

• Do not direct the steam jet or the iron onto explosive powders or liquids, hydrocarbons, open flames and or extremely hot objects.

• Do not direct the steam jet at the ironing mat and/or the appliance itself.

• Do not position the product near sources of heat such as fireplaces, stoves and ovens.

• Do not obstruct the openings and grills on the product.

• Do not direct the steam jet or the iron onto any part of the ENGLISH | 21 |body of people or animals.

• Do not direct the steam jet or the iron onto clothes while they are being worn.

• Clothes and fabrics which have been subjected to a deep steam reach very high temperatures, above 100°C. Take care when handling the appliance.

• During use, keep the product in a horizontal position on a stable surface.

• Iron only on supports that are heat resistant and which allow the steam to permeate.

• When placing the iron on its stand, make sure that the surface on which the stand is placed, is stable.

• If the iron rest mat needs to be replaced, only use original spare parts.

• Do not rest the iron on a base without the ironing mat.

• Do not place the hot appliance on heat-sensitive surfaces.

• If ironing whilst sitting down, take care to ensure that the jet of steam is not angled towards your legs. Steam can scald.

• Before connecting the appliance to the current, ensure that the continuous steam jet button is not pressed (if present).

• Do not leave the iron unattended when the steam is activated.

• Wait until the iron has cooled down completely before storing after use. ENGLISH

| 22 |CORRECT USE OF THE PRODUCT

This appliance is intended for domestic use as an iron with separate boiler, in accordance with the descriptions and instructions contained in this manual. Please read these instructions carefully and keep them. This manual is also available on the website www.polti.com. POLTI S.p.A. reserves the right to make the aesthetic, technical and construction changes it deems necessary, without prior notice. Before leaving our factory all our products are rigorously tested. This is the reason why your Polti Vaporella may contain some residual water in the boiler. Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appliance and invalidate the warranty.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but must be sent to an official collection facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner may result in the application of the administrative sanctions envisaged by current legislation.

WHICH WATER TO USE IN THE

BOILER This appliance has been designed to function with medium-hardness tap water between 8°f and 20°f. If the tap water is very hard, do not just use demineralised water but a mix composed of 50% tap water and 50% demineralised water which is widely available to purchase.

Warning: check the hardness of the water at

the technical office at your local council or the local water supplier. If you only use tap water, you can reduce the formation of limescale by using the special Polti Kalstop (PAEU0094) anti-limescale product, distributed by Polti, and available for sale at all major domestic-appliance stores or online at www.polti.com. Do not use distilled water, undiluted demineralised water, rain water or water containing additives (e.g. starch, perfumes), scented water or water produced by other domestic appliances, by water softeners and filter jugs. Do not add chemical, natural, detergent, or limescale removing substances, etc.

1. PREPARATION FOR USE

1.1 Position Polti Vaporella Next on a stable,

flat, heat-resistant surface.

1.2 Open the lid to fill the tank. Fill the water

tank with water up to the MAX level marked on the water tank (1). This operation must always be carried out with the power cable disconnected from the mains. You can fill up the tank when necessary, without stopping and waiting for the applian- ce to cool.

plug in an appropriate mains socket (2), whi- ch is earthed. The light on the switch will start to flash. Take out and unwind the steam hose.

1.5 To turn on the appliance press . The light

on the switch will change from flashing to constant (3) and the iron heating light (4) will also come on.

ADJUSTMENT Before ironing an item of clothing, always check the symbols on its label, for the instructions provided by the manufacturer. The sound emitted on switching on your appliance and periodically during use, is due to the water refilling system and is quite normal. ENGLISH | 23 |Check, based on the following table, the most appropriate type of ironing:

3.1 Make sure that section 1 has been

completed and regulate the temperature of the iron (6) as described in section 2

3.2 Wait until the “steam ready” indicator ()

of Polti Vaporella Next (5) is on and constant and the iron heating indicator light (4) is off. 3.3. Press the steam button on the iron (7) to make the steam come out from the holes in the soleplate. Start ironing the garments. Releasing the button, the flow stops.

4. STEAM PULSE FUNCTION

(only for models POLTI VAPORELLA NEXT VN 18.35 - VN 18.30) The STEAM PULSE function (intermittent steam) can be activated for quick and easy ironing, by double-clicking on the steam but- ton of the iron (7). The intermittent steam pe- netrates further into the fabric, speeding up and improving the ironing. In this mode, the iron will alternate between emitting steam and not emitting steam. To deactivate this function, press the steam button of the iron again. To reactivate, repeat the procedure from the beginning. The Steam Pulse function is also recommen- ded for vertical ironing.

It is possible to use the iron vertically to remove creases from fabrics and/or to freshen up the fibres, eliminating possible residual odours. Hold the iron in a vertical position, press the steam button (7), and if permissible based on the type of fabric, touch the fabric lightly with the plate.

Make sure that section 1 has been followed, adjusting the temperature of the iron (6) to the lowest temperature as in section 2. Conti- nue with the ironing without pressing the steam button on the iron.

(only for models POLTI VAPORELLA NEXT VN 18.35 - VN 18.30) With the ECO function, Polti Vaporella Next automatically sets the steam pressure for si- gnificant energy savings and at the same time ensures excellent performance for ironing all fabrics, including the most resistant ones (cotton / jeans / linen). To activate or deactivate the ECO function, ju- st press the ECO button on the appliance (8).

Using the TURBO function, you can quickly and easily iron even the heaviest fabrics, smoothing out the most stubborn creases in one go.

edium temperature – wool, silk:

et the iron temperature adjustment knob to the position •• Low temperature – synthetic, acrylic, ny-

on, polyester: Set the iron temperature adjustment knob to the position • - Do not iron - Steam ironing and steam treatment not allowed

WARNING: For low temperature we do not

recommend the use of steam since water could come out from the holes on the soleplate. For medium temperature alternate the use of steam and dry ironing to avoid water leaking from the holes on the soleplate. Divide the laundry according to the symbols on the garment labels or according to the kind of fabric. Always start ironing with the garments that require the lowest temperature, in order to reduce the waiting times and avoid the risk of burning the fabrics. When first using the steam, there may be some drops of water leaking out of the plate, this is due to imperfect thermal stabilization. We therefore recommend that the first jet of steam be directed onto a cloth. The heating indicator light turns on and off du- ring use. This indicates that the electrical resi- stor has started to work to keep the temperatu- re in the iron steady: continue ironing normally.

WARNING: Do not place the hot iron directly

on any surface. Polti Vaporella is equipped with an iron rest mat with soft non-slip inserts designed to resist high temperatures. During dry ironing, take care not to push the steam release button on the iron since some water drops can come out from the soleplate. ENGLISH | 24 |To activate this function, just press the TUR- BO button on the appliance (9). The Turbo function has a maximum duration of 10 minu- tes. To reactivate it just press the TURBO switch again.

9. 360° FLUID CURVE TECHNOLOGY

PLATE The innovative multidirectional rounded sole- plate with a scratch-resistant covering allows for 360° ironing. The pointed tip reaches the most difficult areas and the concentration of steam in this area smooths even the most stubborn creases. The channels distribute the steam evenly, making the iron slide more ea- sily for faster ironing with less effort.

10. AUTOMATIC SWITCH-OFF

After 10 minutes without use (calculated from the last operation carried out on the appliance), the boiler and the iron switch off automatically. The indicator light flashes. To re-activate the appliance, press the switch

A lack of water in the tank is identified by the out-of-water light coming on ( ) (10). To restart operations just fill the water tank again as described in section 1.

12. GENERAL MAINTENANCE

Before carrying out any maintenance on the device, always unplug it from the power mains making sure that the product has cooled down before proceeding. To clean the outside of the appliance, use only use a damp cloth. Do not use detergents of any type. For good maintenance of the boiler we suggest using Polti Kalstop, the special anti- limescale product, distributed by Polti, and available for sale at all major domestic- appliance stores or online at www.polti.com. Clean the iron soleplate when it is completely cold with a damp cloth or with a non-abrasive sponge.

(special maintenance) This special function makes it possible to ex- tend the life of Polti Vaporella Next and auto- matically indicates when the boiler needs to be cleaned. When the Calc Cleaning light comes on ( ) (11) proceed as follows:

13.1 Disconnect the appliance and let it cool

down for at least 2 hours, if it is hot.

13.2 Empty the water from the tank to pre-

13.3 Place the appliance onto its side to un-

screw the boiler cap (12).

13.4 Pour 250 ml of cold water into the boiler.

13.5 Rinse out the boiler and pour the water

away into the sink or into a container for collecting dirty water. If the water is very dirty, repeat the operation until it is clean.

13.6 Put 100 ml of water into the boiler and

screw back the cap. Make sure that the seal is in and the cap is screwed on properly.

13.7 Refill the water tank.

13.8 Reconnect the plug to the mains electri-

13.10 Press the Turbo switch and the ON/OFF

switch together for at least five seconds. The Calc Cleaning light ( ) will turn off.

13.11 Now the appliance can be used normally

again. Do not use this mode for ironing synthetic, silk and wool clothing.

WARNING: Risk of scalding! When

accessing the boiler (removing the cap, filling up, emptying), ensure that the appliance is switched off at the power switch and has been disconnected from the mains for at least two hours. The maintenance light coming on does not affect normal use of the appliance. It is pos- sible to continue ironing. However, cleaning the boiler when the light comes on will keep your Polti Vaporella Next in perfect opera- ting condition for longer.

WARNING: Do not exceed the quantity of

water recommended and pour it slowly into the boiler, paying attention not to let it overflow. ENGLISH

| 25 |14. REPLACEMENT BOILER CAP

GASKET If the gasket of the boiler cap is damaged, replace it with the approved spare part, as described below:

14.1 Unplug the appliance and let it cool down

for 2 hours at least, if it is hot.

14.2 Empty the water from the tank to

14.3 Place the appliance onto its side and

unscrew the boiler cap (12).

14.4 Remove the damaged washer.

14.5 Insert the new gasket and push it in

14.6 Screw the boiler cap back on, making su-

re that it is screwed on correctly. The spare gasket can be purchased from authorized Polti Service centres (check on www.polti.com for the updated list).

Polti Kalstop is the limescale product for appliances with boiler for ironing and steam cleaning. Regular use of Polti Kalstop, every time the tank is filled with water: - Extends the life of the appliance. - Allows emission of a “drier” steam - Prevents limescale build up. - Protects the walls of the boiler. - Contributes to saving energy. Polti Kalstop is sold in packages of 20 phials at household appliance stores, at Polti authorized service centres and at www.polti.com.

16.1 Turn off the appliance and disconnect

from the mains electricity.

16.2 Wait for the appliance to cool down

completely before storing it.

16.3 Empty the water tank.

16.4 Position the iron on top of the mat,

inserting it into the back section of the appliance first (13) and then securing it with the locking slider (14) located on the front section of the appliance.

16.5 Place the tube into the hook on the side

of the unit (15). Before storing Polti Vaporella Next, make su- re that the iron is locked by setting the lever on the slider to (see point 16.4).

WARNING: Risk of scalding! When

accessing the boiler (removing the cap, filling up, emptying), ensure that the appliance is switched off at the power switch and has been disconnected from the mains for at least two hours. ENGLISH | 26 |17. TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

Water comes out of the iron instead of steam Temperature dial is turned to minimum value. Check that the iron temperature adjustment dial is set to medium/high. When first switched on. Emit onto a cloth until steam comes out of the holes in the plate. Steam does not come out of the iron. No power. Make sure that the appliance is connected to the mains and the switch is on. Water reservoir empty. Fill the water tank. Little steam comes out of the iron. The steam is dry and not very visible, but present and effective. This is a normal phenomenon seen in particular environmental conditions. The appliance does not turn on. Switch off or flashing. Press the switch and make sure that the appliance is connected to the mains. Traces of water remain on the garments. The ironing board cover is saturated with water as the board is not suited to the power of an iron with a boiler. Check that the ironing board is suitable (a board with a mesh top that prevents condensation). Water under the appliance. Boiler cap screwed on incorrectly. Unscrew the boiler cap and screw it back on (section 13). Seal of the boiler cap damaged. Replace the damaged seal (section 14). If problems persist or are not listed above, please contact a Polti Authorised Service Cen- tre (www.polti.com for the updated list) or contact Customer Services. ENGLISH | 27 || 28 | ENGLISH WARRANTY This appliance is for domestic use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over; the date of purchase must be proven via a proof of purchase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompanied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold with respect to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warranties apply.

WHAT THE WARRANTY COVERS

During the warranty period, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the customer is not liable to pay for any work or materials. In case of irreparable defects, Polti may replace the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Centres with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty period.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruction booklet, an integral part of the product sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, etc.) damaged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of maintenance/cleaning according to the manufacturer’s instructions.

• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this manual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instructions indicated in this instruction booklet, regarding warnings for use and product maintenance. To see the up-to-date list of the Polti Authorised Service Centres, visit the website www.polti.com.| 29 |FRANÇAIS
