USER MANUAL K52080AM KENSINGTON

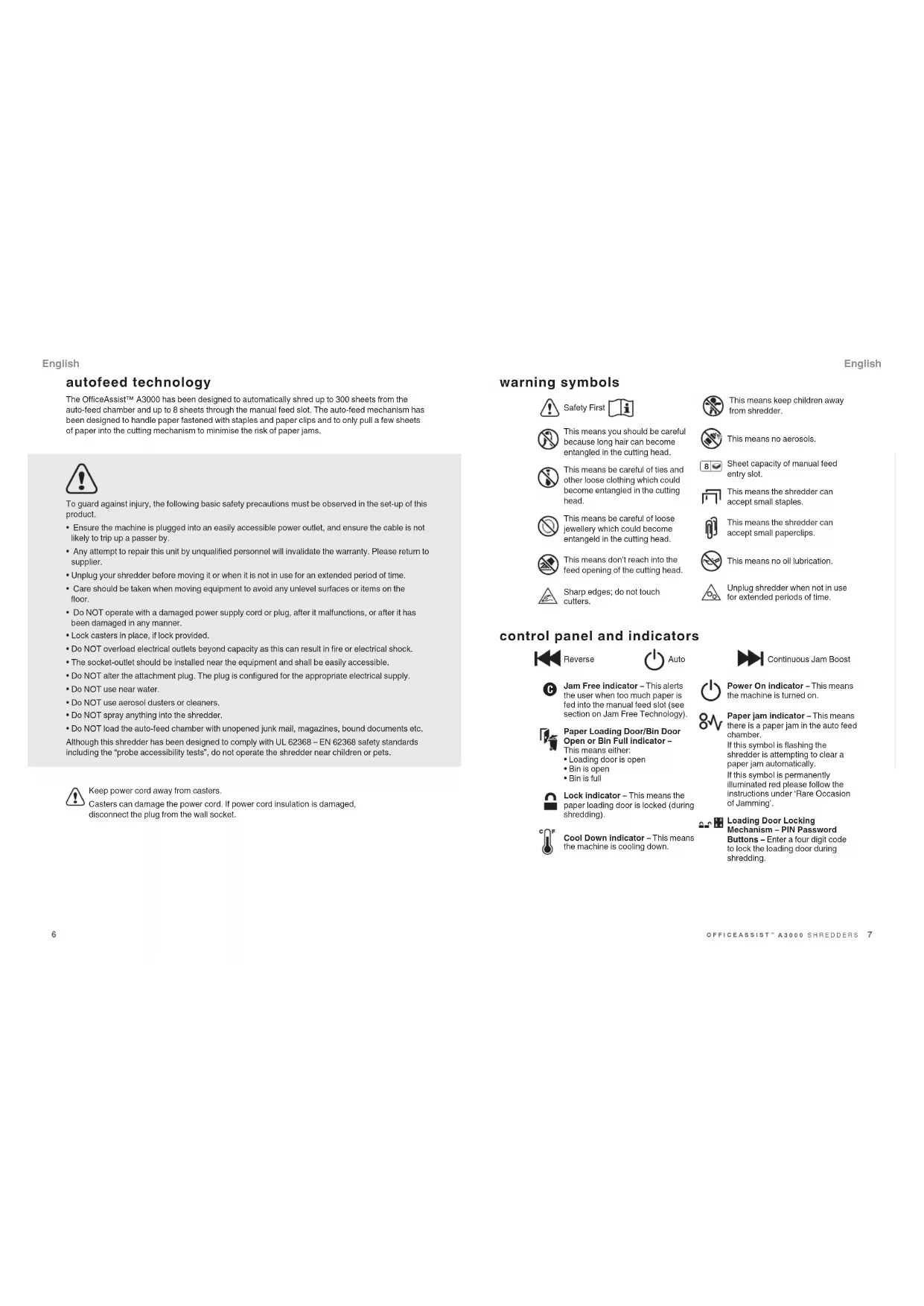

The OfficeAssist™ A3000 has been designed to automatically shred up to 300 sheets from the auto-feed chamber and up to 8 sheets through the manual feed slot. The auto-feed mechanism has been designed to handle paper fastened with staples and paper clips and to only pull a few sheets of paper into the cutting mechanism to minimise the risk of paper jams.

To guard against injury, the following basic safety precautions must be observed in the set-up of this product.

• Ensure the machine is plugged into an easily accessible power outlet, and ensure the cable is not likely to trip up a passer by.
• Any attempt to repair this unit by unqualified personnel will invalidate the warranty. Please return to supplier.
• Unplug your shredder before moving it or when it is not in use for an extended period of time.
• Care should be taken when moving equipment to avoid any unlevel surfaces or items on the floor.
• Do NOT operate with a damaged power supply cord or plug, after it malfunctions, or after it has been damaged in any manner.
• Lock casters in place, if lock provided.
• Do NOT overload electrical outlets beyond capacity as this can result in fire or electrical shock.
• The socket-outlet should be installed near the equipment and shall be easily accessible.
• Do NOT alter the attachment plug. The plug is configured for the appropriate electrical supply.
  Do NOT use near water.
• Do NOT use aerosol dusters or cleaners.
• Do NOT spray anything into the shredder.
• Do NOT load the auto-feed chamber with unopened junk mail, magazines, bound documents etc. Although this shredder has been designed to comply with UL 62368 - EN 62368 safety standards including the "probe accessibility tests", do not operate the shredder near children or pets.

Keep power cord away from casters.

Casters can damage the power cord. If power cord insulation is damaged, disconnect the plug from the wall socket.

English

ng symbols

Safety First

This means you should be careful because long hair can become entangled in the cutting head.

This means be careful of ties and other loose clothing which could become entangled in the cutting head.

This means be careful of loose jewellery which could become entangeld in the cutting head.

This means don't reach into the feed opening of the cutting head.

Sharp edges; do not touch cutters.

This means keep children away from shredder.

This means no aerosols.

Sheet capacity of manual feed entry slot.

This means the shredder can accept small staples.

This means the shredder can accept small paperclips.

This means no oil lubrication

Unplug shredder when not in use for extended periods of time.

control panel and indicators

Reverse

Auto

Jam Free indicator: This alerts the user when too much paper is fed into the manual feed slot (see section on Jam Free Technology)

Paper Loading Door/Bin Door Open or Bin Full Indicator -

This means either:
- Loading door is open
Bin is open
Bin is full

Lock Indicator - This means the paper loading door is locked (during shredding).

Cool Down indicator - This means the machine is cooling down.

Continuous Jam Boost

Power On indicator - This means the machine is turned on.

Paper jam indicator - This means there is a paper jam in the auto feed chamber.

If this symbol is flashing the shredder is attempting to clear a paper jam automatically.

If this symbol is permanently illuminated red please follow the instructions under 'Rare Occasion of Jamming'.

Loading Door Locking Mechanism - PIN Password Buttons - Enter a four digit code to lock the loading door during shredding.

English

OfficeAssist™ A3000 shredding capability

OfficeAssist A3000 CAN shred the following:

300 sheets

Stapled paper, 25mm within the corner
26/6 and 24/6 or smaller staples
- Small sized paper loaded centrally

300 sheets
- Paper clip paper, 25mm within the corner
- Capable of shredding small/medium paper clips (max. wire thickness = 0.9 mm)
- 20 lb paper (through manual feed slot ONLY)

A3 folded in half max. 2 sheets
300 sheets
20 lb paper
Letter and Legal
- A3 single sheet folded in half to make A4

OfficeAssist™ A3000 CAN shred (through the manual feed slot):

Thick paper or card.

Multiple folded

sheets (e.g. A3

sheets folded in

Glossy paper or

a sheet covered

with print on both

sides.

OfficeAssist A3000 CANNOT shred the following:

Heavy duty

staples. Check

the staple le

length is not

greater than

6mm.

Bulldog clips

Large clips.

Check the length

of the paperclip

is not longer than

32mm.

Plastic sheets,

laminated

documents,

plastic folders.

图1.2.1

Adhesive labels.

Bound

documents

Magazines or

other documents

bound by multiple

staples or clips.

English

bin or loading door open safety function

As a safety precaution, if the bin or loading door is opened during shredding, the shredder will stop and the bin full indicator will illuminate (1).

intelligent help

1 In the unlikely event of the shredder jamming, the OfficeAssist™ A3000 will stop shredding, and the jam icon will blink in orange.
2 The shredder will illuminate the FWD (▶) and REV (▶) buttons in the sequence necessary to clear the jam.
3 If the jam cannot be intelligently cleared, the jam icon (_V) will illuminate in red. At this point open the auto feed chamber to clear any jammed material.

automatic jam clearance

Auto* Jam Clearance: In the unlikely event of the shredder jamming, the OfficeAssist A3000 will automatically reverse and forward the engine three times to clear a jam. During this operation the Paper Jam indicator will flash (AVR).

operation (1)

1 Unpack the product.
2 Connect the shredder to mains supply.
3 Ensure the ON/OFF button on the back of the machine is in the ON position, which will illuminate the blue standby symbol (O).
4 To commence shredding, press the Auto button (O), which sets the shredder into auto mode. You are now ready to shred
5 To load the shredder, simply lift the loading door handle to open the loading door and insert documents. You can open the door further to 90 degrees for easier access if required. Load up to 300 sheets at a time into the feed chamber. Do not fill above the 300 MAX level, this could damage the shredder.
6 The shredder will start the shredding cycle automatically ONLY after closing the loading door.
If there is still paper in the Autofeed chamber after first attempt, open and re-close the paper loading door a second time.
Attention: If required you can now lock the loading door by entering a 4 digit code (see Locking the Paper Loading Door section).
7 If you only have up to 8 sheets to shred, you can use the manual feed slot, provided the auto feed chamber is empty.
Insert paper to be shredded into the feed area. The shredder will detect the paper and start automatically.
9 If the shredder is left in auto mode for more than 2 minutes without being used, the shredder will automatically turn back to sleep mode in order to save power.
10 The shredder will automatically wake up from sleep mode when paper is inserted into the shred mouth or you open the loading door. There is no need to press the Auto button ( )

English

reverse function (2)

1 Should you wish to reverse paper out whilst shredding, a reverse button ( ) has been fitted for your convenience.
2 Reverse the paper out then turn the machine off using the ON/OFF switch at the rear of the shredder. Remove the paper from the manual feed slot (if being used) or open the loading door, remove the remaining stack of paper, then pull the jammed paper free of the cutting mechanism.
3 To resume shredding, turn the shredder on using the ON/OFF switch at the rear of the shredder. Return the switch to the auto position ().

locking the paper loading door (3)

For additional security the paper loading door can be locked during the shredding of confidential material.

To lock shredder:

1 Place documents in tray. Close paper loading door.
2 Press any 4 digits. REMEMBER YOUR CODE!
Shredder unlocks automatically when:
4 digit code is re-entered.
- Shredding is complete.
- Shredder is inactive for 30 minutes (but documents remain in tray)

CD/DVD shredding (4)

A separate CD/DVD tray is provided to collect the shredded CD/DVD shards, ensure that this is correctly mounted onto the bin before shredding.

1 Lift up the paper loading door.
2 Always insert CDs/DVDs in the CD/DVD slot. Only shred one CD/DVD at a time.
3 Close the paper loading door.
4 Empty the CD/DVD bin after 8 CDs/DVDs to avoid waste spilling over into the paper waste bin.
5 Remove the CD/DVD tray before recommending to shred paper.

credit card shredding (5)

1 Lift up the paper loading door.
2 Insert the credit card into the roller as shown. Only shred one credit card at a time.
3 Close the paper loading door.

Kensington encourages customers to recycle shredded paper.

Please note that shredded paper cannot be recycled if mixed with credit card shards. If recycling, please separate shredded paper and credit cards.

English

bin full (6)

The shredder will not function when the bin is full and the bin full symbol (1) is illuminated. You should empty the bin.

• Pull open the bin slowly to empty.
• Push the empty bin back into place and press the auto button to resume shredding.

over heating

If the OfficeAssist™ A3000 is used continuously for over 16 minutes the shredder may overheat and the cool down indicator will flash red ( ). Please allow the shredder to cool down. When the shredder is ready to be used the thermometer symbol will no longer illuminate. If the shredder needs to cool down while shredding, no action is needed. The shredder will automatically restart shredding paper once it has cooled down after periods of continuous use. All you need to do is ensure paper is loaded into the chamber and the bin is empty when the machine is cooling down.

self-cleaning cutters (7)

After emptying and replacing a full bin, the shredder will run in forward for 4 seconds, stop for 2 seconds and then reverse for 4 seconds to clear away any remaining paper from the cutter mechanism. This unique 'self-cleaning' mechanism is additional jam prevention technology from Kensington.

English

maintenance (8)

The rollers on the auto-feed mechanism may become dirty over time, please wipe clean with a dry cloth to maintain maximum product performance.

The auto-start infra-red sensor, located in the paper feed entry-slot, can occasionally become covered in paper-dust causing the shredder to run despite no paper being fed into the machine. Switch the shredder off at the rear of the machine and carefully clean the sensor using a cotton-swab.

shredder accessories

Visit gbc.com for shredder bags. SKU#1765010B

English

technical specifications
Kensington OfficeAssist A3000

Sheet capacity: Manual feed slot	8 sheets (20 lb)
Sheet capacity: Autofeed chamber	300 sheets (20 lb)
Duty Cycle 12 min ON / 40 min OFF
Run time from cold 15 minutes
Volta / Hz 120V / 60Hz
Amperage 2 Amps
Motor Watts 270 Watts

Limited Warranty

Limited 2 year Cutler Warranty for OfficeAssist A300 Shredder and Limited 2 Year Warranty for all other Parts

ACCO Brands USA LLC. Four Corporate Drives, Lake Zurich, IL 51047-8997 (In Canada, ACCO Branco Cansea Inc., 5 Presidio Court, Brampton, ON L65 657; and in Mexico, ACCO Mexicana, S.A. de C.V. Ar. Circuit Industrial Norte [Por League Industrial Lemns E300], Lerma Edo, De Mexico) (each, respectively). "ACCO Brands") warrants to the original purchaser that the owners of this Kenelington Office AssistTM ACCO300 are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase and all other parts are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase.

ACCO Bends obligation under this warranty is limited to replacement or repair, at ACCO Bends option, of any warranted part found defective by ACCO Bends without charge for material or labor. Any replacement at ACCO Bends option, may be the same product or a substantially similar product that may contain remanufactured or refinished parts. This warranty shall be void in the following circumstances:

(i)If the product has been misused.

If the product has been damaged by negligence or accident, or

(iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands' authorized agents.

For warranty execution, please call:

1-800-541-0094 in the USA

1-800-263-1065 In Canada

C1-551-1500-5700/5778 in Mexico

Or go to www.Kersingaten.com to register your product.

TO THE EXTENT ALL OWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTYES.

REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE BINDING ON ACCO BRANDS TO THE EXTENT PERMITTED BY APPLICABLE LAWS. ANY IMPLIED WARRANTYES (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. SOME STATES AND JURISCDIENCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPUED WARRANTY PARTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INDIVIDUAL, PUNITIVE, EXEMPLARY, CONSEJCTUAL OR SIMILAR DAMAGE, WHETHER OR NOT FORSEEABLE. SOME STATES AND JURISCDIENCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIVIDUAL, PUNITIVE, EXEMPLARY, CONSEJCTUAL, OR SIMILAR DAMAGE, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR IF DIFFERENT, IN THEIR JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.

To the extent permitted by law, this warranty is not transferable and will automatically terminate if the original product purchaser sells or otherwise disceases of the product.

This warranty gives you specific legal rights. Other rights, which vary from jurisdiction to jurisdiction, may exist. In addition some jurisdictions do not allow (i) this exclusion of certain warranties, (ii) limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain types of costs and/or damages, so the above limitations may not apply.
