USER MANUAL Max STADLERFORM

Operating instructions

Mode d'emploi

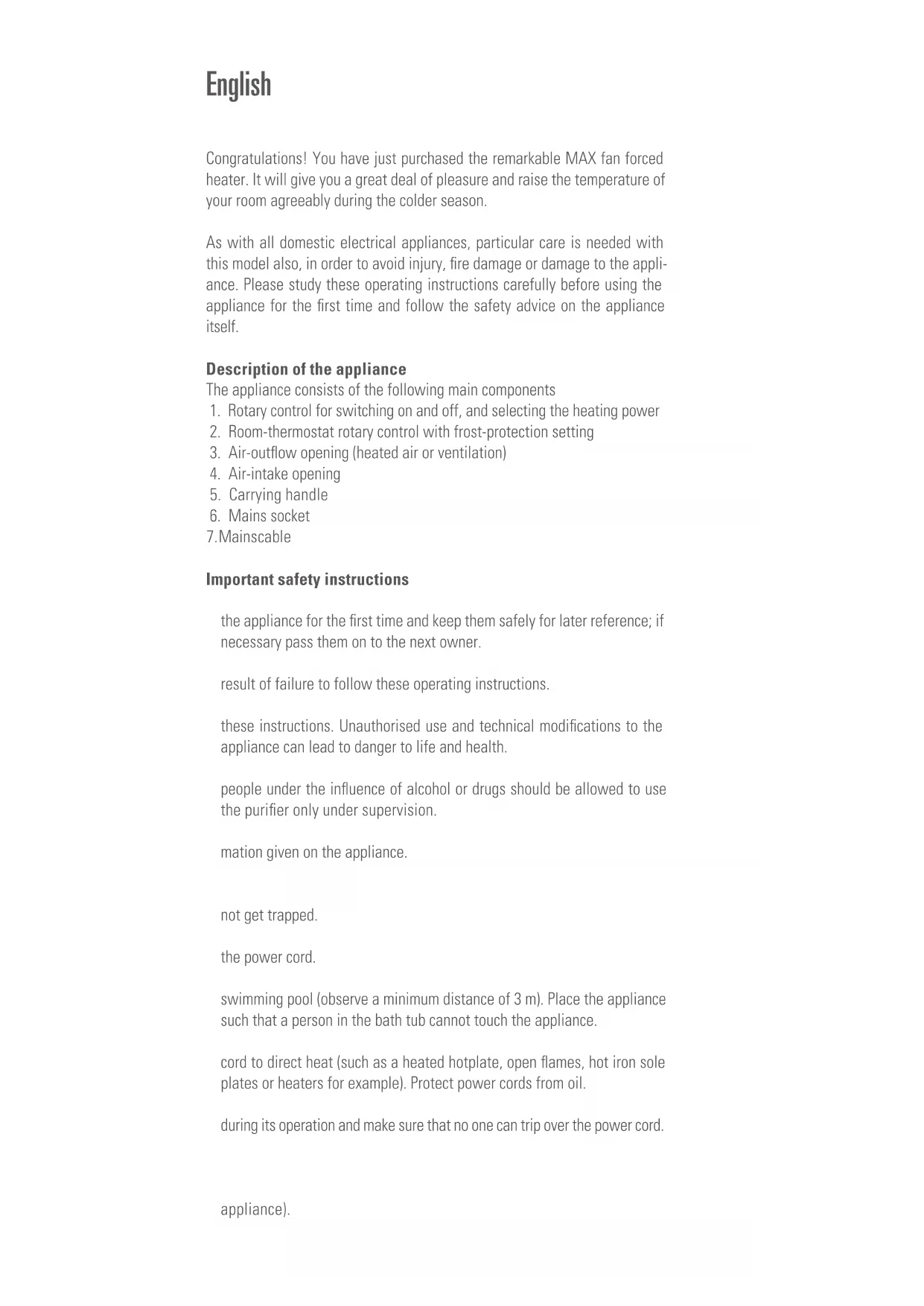

Congratulations! You have just purchased the remarkable MAX fan forced heater. It will give you a great deal of pleasure and raise the temperature of your room agreeably during the colder season.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

The appliance consists of the following main components

1. Rotary control for switching on and off, and selecting the heating power
2. Room-thermostat rotary control with frost-protection setting
3. Air-outflow opening (heated air or ventilation)
4. Air-intake opening
5. Carrying handle
6. Mains socket
   7.Mainscable

Important safety instructions

the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

result of failure to follow these operating instructions.

these instructions. Unauthorised use and technical modifications to the appliance can lead to danger to life and health.

people under the influence of alcohol or drugs should be allowed to use the purifier only under supervision.

mation given on the appliance.

not get trapped.

the power cord.

swimming pool (observe a minimum distance of 3m ). Place the appliance such that a person in the bath tub cannot touch the appliance.

cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.

during its operation and make sure that no one can trip over the power cord.

appliance).

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

appliance.

its service agent or similarly qualified persons in order to avoid a hazard.

Cleaning

appliance and unplug the mains cable from the socket.

the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.

sively dusty; clean them occasionally with a dry brush or vacuum cleaner.

Repairs/disposal

electrical technician. If improper repairs are carried out, the guarantee lapses and all liability is refused.

malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).

it in at the collection point provided for the purpose.

the communal collection points.

tion points are located.

elements may cause hazardous substances to find their way into the groundwater and from there into the food chain, or to poison the flora and fauna for many years to come.

obliged to take back the old one at least free of charge for disposal.

Setting up/operation

1. Having set up the MAX heater in the desired position, insert the mains cable (7) into the mains socket (6) on the appliance and connect the cable (7) to the household supply socket.
2. Switch on the MAX to the desired level by means of the rotary control (1).

Rotary control (1)

Position 0 = Off

Position = Ventilation, turn the room-thermostat rotary control (2) clockwise as far as the stop

Position I = Heating, 800 watt

Position II = Heating, 2000 watt

Room thermostat (2)

The room-thermostat control (2) allows for an infinitely variable temperature adjustment.

Setting: for maximum temperature turn the control clockwise,

for minimum temperature, turn the control anti-clockwise.

Turn the thermostat control (2) clockwise as far as the stop. If the desired room temperature has been reached, turn the thermostat control (2) anticlockwise until the appliance switches off. If the room temperature drops, then MAX switches on again automatically.

Frost-protection circuit\*

Set the room-thermostat control (2) to ※ .

To prevent the room temperature from falling below approx. +5^ , set the rotary control (1) to position I or II (depending on the size of room, Position II for larger rooms) and the room-temperature control (2) to . The appliance switches on automatically at approx. +5^ and off again at approx. +7^ . In this way frost damages can be avoided.

Protection against over-heating

MAX is fitted with an over-temperature safety device which switches off the appliance in the case of a technical fault or improper use. Should this occur, pull the mains cable (7) out of the supply socket and remedy the fault or correct the method of use. The appliance can be put back into use when it has cooled down and has been disconnected from the mains supply for a short time.

Note: make quite sure that there is always sufficient space between the appliance and the wall or other large objects. The air flow must not be impeded by objects of any kind.

Specifications

Rated power 2000 watt (Position II)

Measurements 290 × 368 × 270 ~mm (width x height x depth)

Weight approx. 2.5kg

Heating settings 0 - - 800 - 2000 watt

Thermostat infinitely variable

Automatic frost protection fitted

Over-heating protection fitted

Double insulation yes

Sound level

less than 40 dB(A)

Complies with EU regulations

GS/CE/WEE/RoHS

All rights for any technical modifications are reserved

Position 0 = Arr

Position I = Chauffage 800 Watt

Position II = Chauffage 2000 Watt

Thermostat (2)

Protection anti-surchauffe

Protection anti-surchauffe

oui

Double-isolation de protection

oui

Niveau de bruit

inéfieru à 40 dB(A)

Stand I = Verwarming 800 watt

Stand II = Verwarming 2000 watt

Ruimtethermostat (2)

Beveiling against overhitting aanwezig

Asento I = Lammitys; 800 W

Asento II = Lämmitys; 2000 W

Lampotilan saadin (2)

(width x height x depth)

Paino approx. 2.5kg

This warranty covers defects of construction, production and material. All abrasion parts are excuded and also inappropriate usage or maintenance.

Garantie 2 ans

Thanks to all people involved in this project: Del Xu for his organisation, Silvio Manzoni and Peter Hafner for the engineering and CAD work, Mario Rothenbühler for the renderings, Matti Walker for the award winning design and graphic work.

Martin Stadler, CEO Stadler Form Aktiengesellschaft
