RE205 - Wifi repeater TP-LINK - Free user manual and instructions

Product Type	Wi-Fi Range Extender
Brand	TP-Link
Model	RE205
Power Supply	Via electrical outlet (100-240V AC)
Wi-Fi Connection	Wi-Fi 802.11n (300 Mbps), 2.4 GHz band
Ethernet Port	1 Gigabit RJ45 port (Wi-Fi client mode)
Buttons	Reset button (RESET), WPS button
LED Indicators	Connection and power indicators
Main Functions	Wi-Fi signal amplification, Wi-Fi client mode via Ethernet
Configuration	Web interface via http://tplinkrepeater.net or 192.168.0.254
Recommended Placement	Halfway between the router and the area to cover
Safety Instructions	Keep away from water, fire, humidity; do not disassemble
Maintenance and Cleaning	Clean with a dry cloth, unplug before cleaning
Spare Parts and Repairability	No user-serviceable parts
Warranty	3-year limited
Certifications	CE, RoHS
Package Contents	Range extender, quick installation guide

Frequently Asked Questions - RE205 TP-LINK

Why can't I access the authentication page after entering http://tplinkrepeater.net?

Make sure the computer is connected to the extender (via Wi-Fi or Ethernet). Check that IP address acquisition is set to automatic. Use the default IP address 192.168.0.254 or check the router's DHCP list. Reset the extender if necessary.

How do I reset the extender?

Press and hold the RESET button for about 10 seconds until all LEDs briefly turn off, then release.

Where should I place the extender for best performance?

Plug the extender halfway between your router and the area to cover for optimal signal.

Can I connect a wired device to the extender?

Yes, if your extender has an Ethernet port, connect a cable between the device and the extender. The extender will act as a Wi-Fi client.

What safety precautions should I follow?

Keep the device away from water, fire, and humidity. Do not attempt to disassemble or repair it yourself. Use only in areas where wireless is permitted.

How do I connect my computer to the extender during initial setup?

Connect to the extender's Wi-Fi network (default SSID: TP-Link_Extender or similar). If using an Ethernet cable, disable your PC's Wi-Fi.

What is the default IP address of the extender?

The default IP address is 192.168.0.254 or you can use http://tplinkrepeater.net.

How do I know if the configuration is complete?

After following the instructions on the web page, you should see a confirmation message. You can then connect your devices to the extended Wi-Fi network with the password you set.

Can I use the extender as a Wi-Fi adapter for a device without Wi-Fi?

Yes, in Wi-Fi client mode. Connect the extender to the router via Wi-Fi, then connect the device (e.g., TV, console) to the extender via an Ethernet cable.

What if I forgot the extender's admin password?

Reset the extender by holding the RESET button. After reset, you can access the configuration page without a password (or with a default password) and create a new one.

USER MANUAL RE205 TP-LINK

TP-Link Technologies Co., Ltd.

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd,

Nanshan, Shenzhen, China

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Italia S.r.l.

TP-Link Netherlands B.V.

Archimedesbaan 18,3439 ME Nieuwegein

TP-Link (Nordic) AB

Forumvagen 14, Plan 13, 131 53, Nacka, Sweden

TP-Link Hellas Ltd.

Marathonodromou 77, Marousi 151 24, Greece

NWS.TP-Link Portugal, Unipessoal, Lda.

Specifications are subject to change without notice. is a registered trademark of

TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from

TP-Link Technologies Co., Ltd. Copyright © 2017 TP-Link Technologies Co., Ltd. All rights reserved.

www.tp-link.com

Quick Installation Guide

Wi-Fi Range Extender

7106507483 REV2.1.0

Contents

Deutsch 1
English- 4
Espanol- 7
Eλληνικά 10
Francais- 13
Italiano 16
Portugues 19
Suomi 22
Nederlands 25
Svenska 28
Norsk- 31
Dansk 34
Türkce- 37

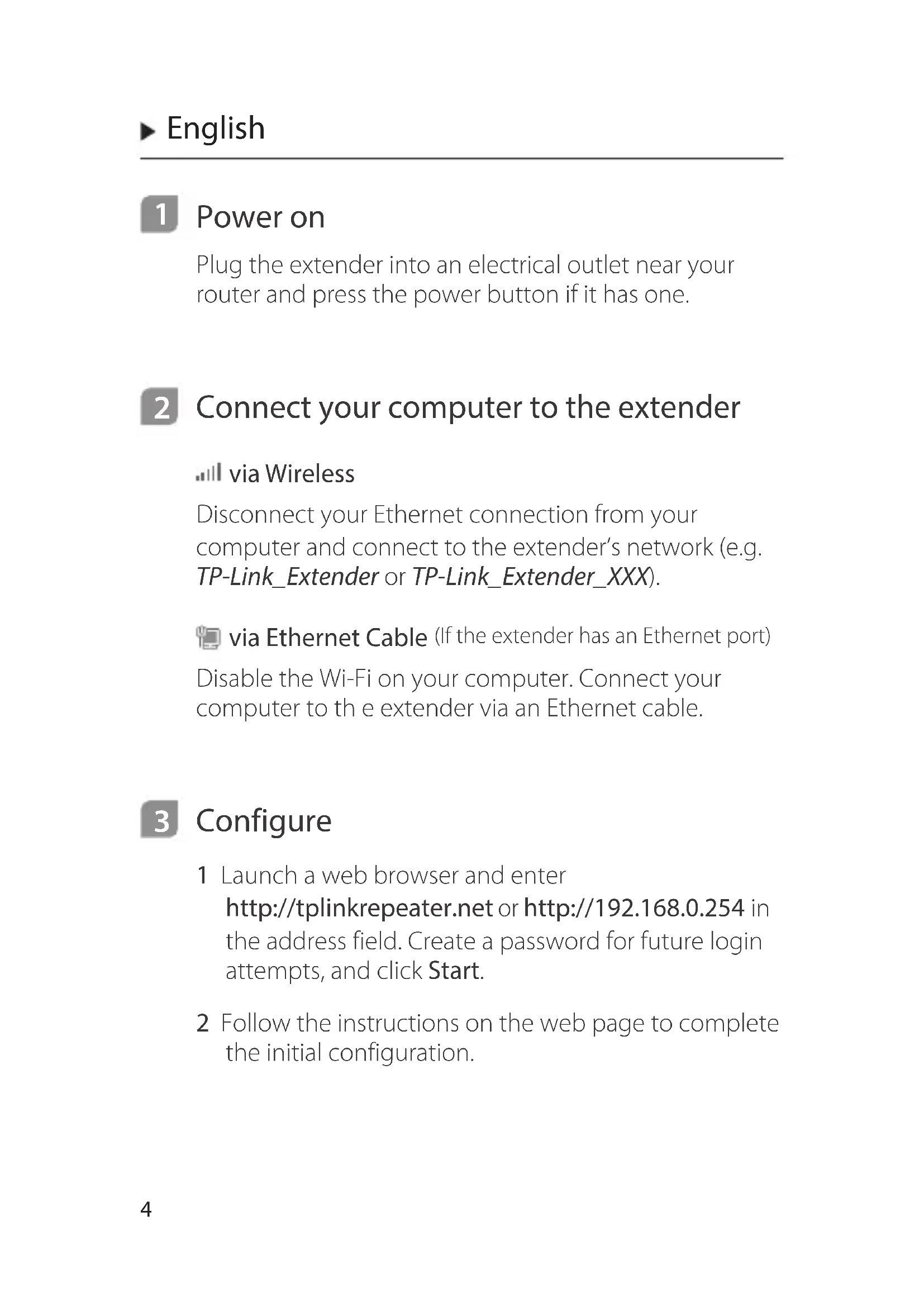

1 Einsatzalen

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXX).

via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

1 Launch a web browser and enter http://tplinkrepeater.net or http://192.168.0.254 in the address field. Create a password for future login attempts, and click Start.

2 Follow the instructions on the web page to complete the initial configuration.

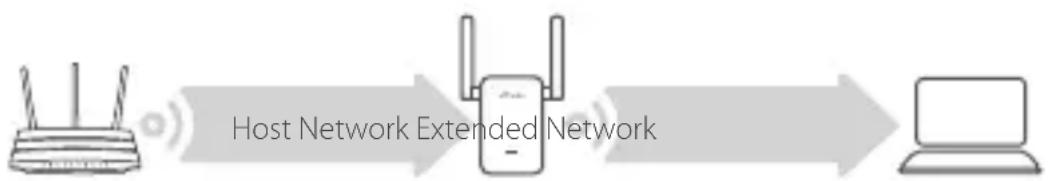

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Router Extender Clients

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

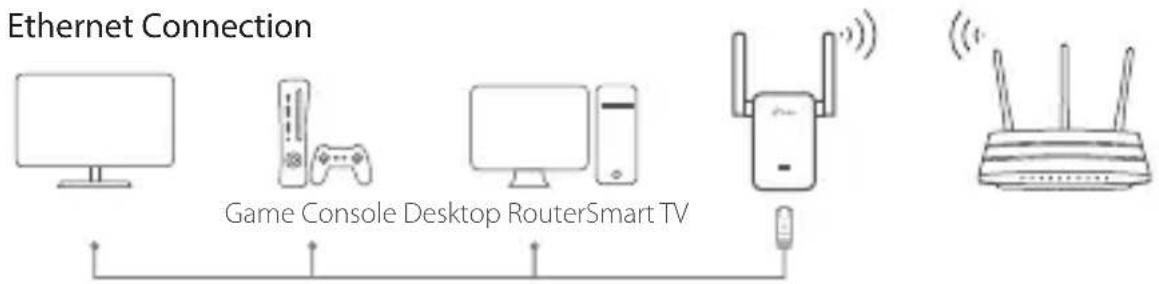

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Encender

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE

EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
