USER MANUAL 2405056 RUSSELL HOBBS

Black and silver image of a Russell Hobbs coffee maker with clear glass and control panel (no visible text or symbols on the device body)

3 4 1 2 max 5 8 9 6 7 minor

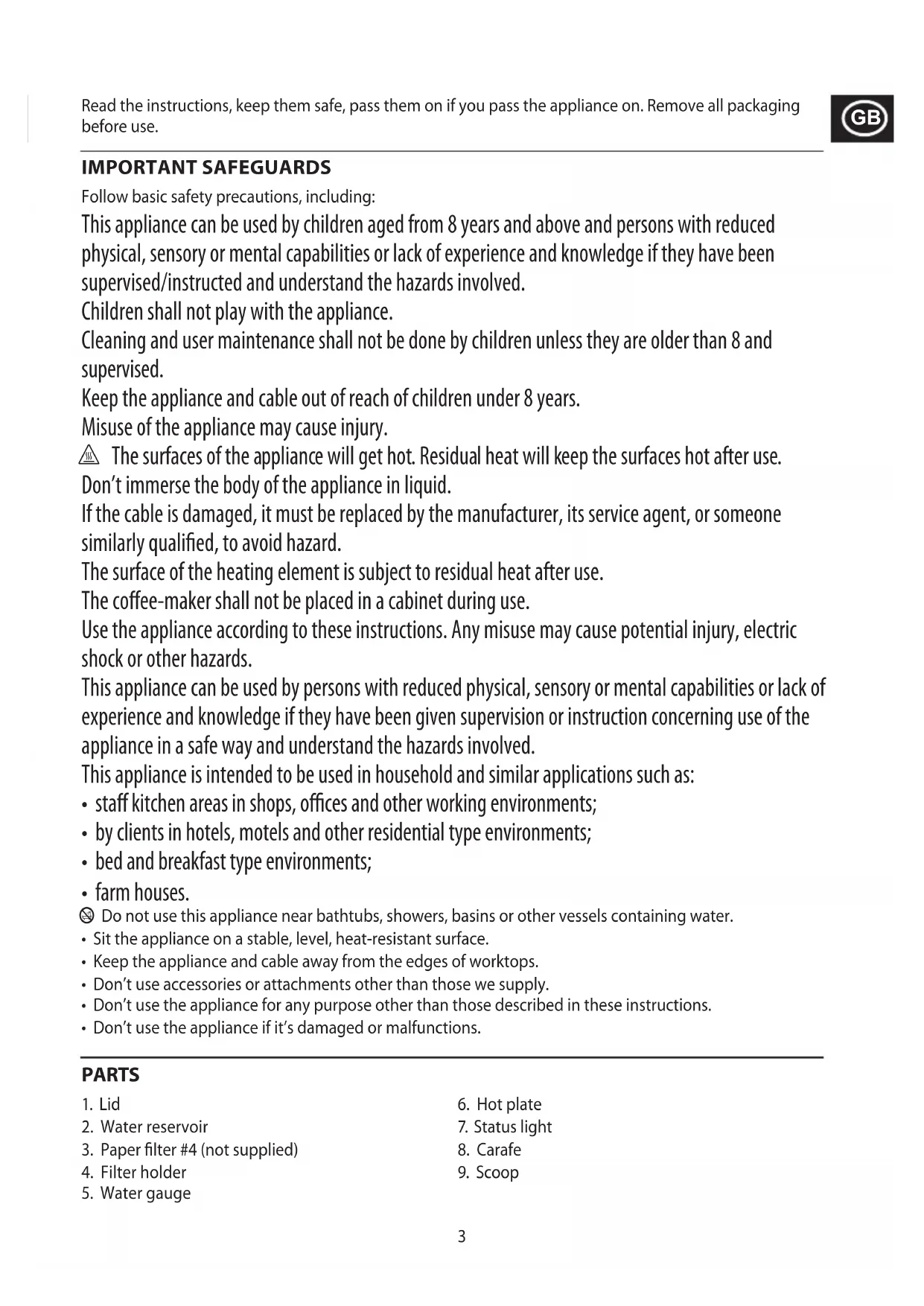

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8 years.

Misuse of the appliance may cause injury.

The surfaces of the appliance will get hot. Residual heat will keep the surfaces hot after use. Don't immerse the body of the appliance in liquid.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

The surface of the heating element is subject to residual heat after use.

The coffee-maker shall not be placed in a cabinet during use.

Use the appliance according to these instructions. Any misuse may cause potential injury, electric shock or other hazards.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
• farm houses.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Sit the appliance on a stable, level, heat-resistant surface.
• Keep the appliance and cable away from the edges of worktops.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.

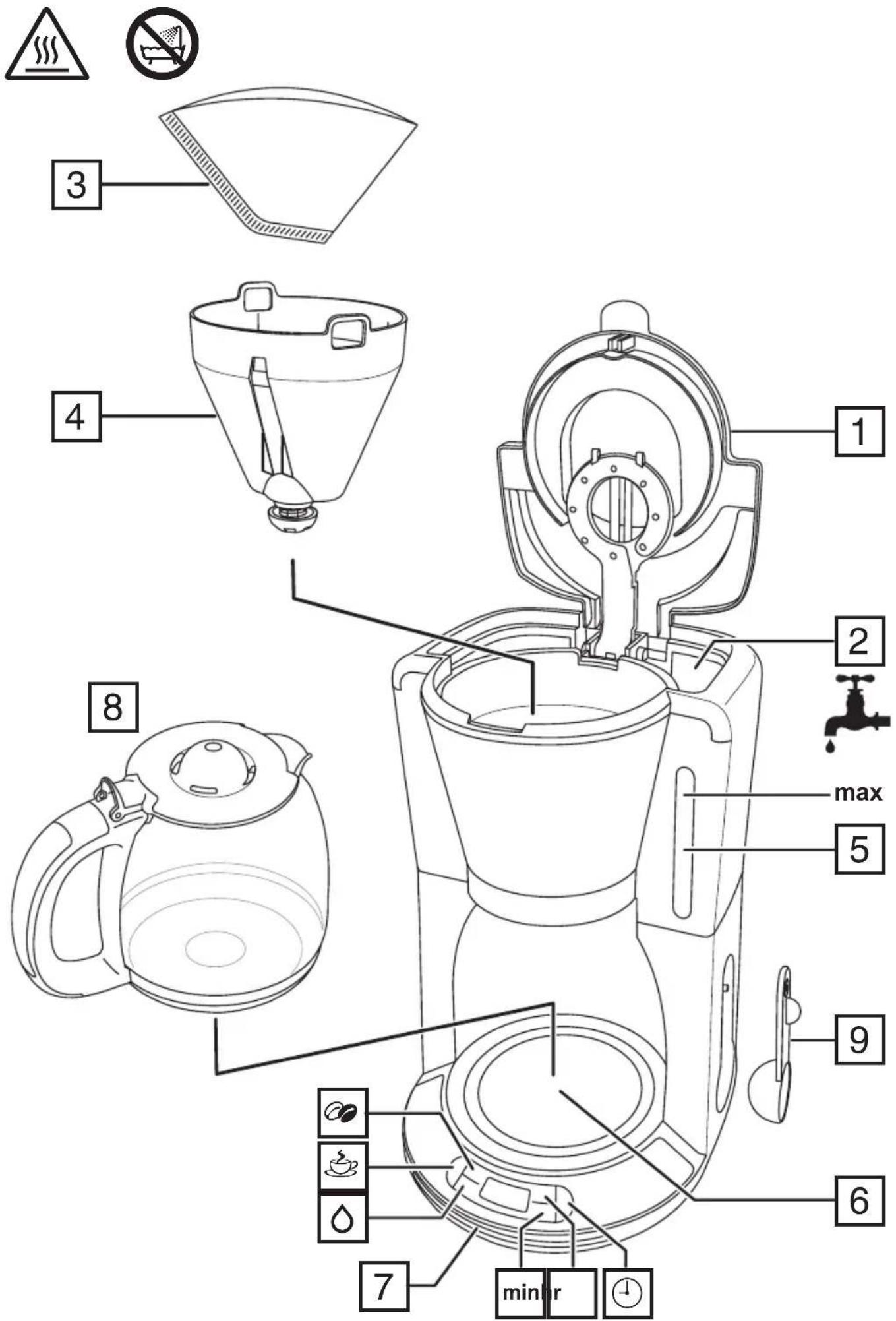

PARTS

1. Lid
2. Water reservoir
3. Paper filter #4 (not supplied)
4. Filter holder

5. Water gauge

6. Hot plate

7. Status light
8. Carafe
9. Scoop

BEFORE USING FOR THE FIRST TIME

Fill the reservoir to the max mark, and run the appliance without coffee.

FILLING

1. Remove the carafe from the hotplate.
2. Open the lid.
3. Fill the reservoir with the exact amount of water required. Note that the brewing process will use all of the water that you put in the reservoir.
4. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
5. Put a #4 paper filter into the filter holder.
6. The reservoir is calibrated to give 10 large cups (at 125ml per cup) and 15 small cups (at 83ml per cup). For each large cup, add 6g of ground filter coffee and for each small cup add 4g.
7. Close the lid.
8. Replace the carafe on the hotplate.

SET THE CLOCK

It isn't necessary to set the clock to use your coffee maker but you will need to set it if you want to use the timer functions.

1. Put the plug into the power socket.
2. Press the ⏻ button.
3. Use the hr and min buttons to set the correct time in 24 hour format.
4. The clock will retain its settings until the coffee maker is unplugged.
5. To change the time, press the ⏻ button. The time will flash. Use the hr and min buttons to set the new time. If you don't press either the hr or min buttons within 3 seconds, the coffee maker will revert to normal, and the current time will show.

STATUS LIGHT

The status light will flash while your coffee maker is brewing.

After the coffee has finished brewing, the status light will stop flashing and stay on for the first 30 minutes of the “keep warm” period.

The status light will flash for the last 10 minutes of the keep warm period to alert you that the keep warm period is coming to an end.

STANDBY MODE

After 5 minutes of inactivity your coffee maker will go into standby mode and the display backlight will go out.

Press any button to wake the appliance.

Note that with the exception of the ⚙ button, the first button press will only wake the appliance and you will need to press the same button again to perform the button's function.

Standby mode does not affect the function of the hotplate.

COFFEE STRENGTH

Pressing the 🔒 button will make the brewed coffee slightly stronger. You can also use it if you are only brewing a partial carafe of coffee (i.e. not completely filling the reservoir). Your coffee maker will then alter the brewing process so your coffee will have about the same strength as it would if you had made a full carafe.

MAKING COFFEE

Note: If you want to use the coffee strength feature press the 🔗 button before pressing the 🔕 button.

1. Press the 🎨 button – the 🔊 icon will appear on the display.
2. Shortly afterwards, coffee will start to drip into the carafe.
3. If you want to stop the coffee maker while it's brewing, press the 🎨 button.
4. Once brewed, the hotplate will keep the carafe warm for up to 40 minutes.

USING THE TIMER

Note: Make sure the clock is set to the correct time. Use the h and min buttons.

1. Set the timer to the time you want to start brewing.

a) Press and hold the ⏻ button until the ⏻ icon flashes on the display.
b) Use the h and min buttons to set the time you want brewing to start.

If you don't press either the hr or min buttons within 3 seconds, the coffee maker will revert to normal, and the current time will show. Press the ⏻ button to start again.

1. When the time is programmed, press the ⚙ button. The ⏻ icon will appear on the display. Your coffee maker is now set to make coffee at the selected time.
2. If you want to use the coffee strength feature when using the timer, press the 🔗 button now.

- If you want to check the program time press the ⏻ button. The programmed time will show for 3 seconds and then return to the time of day.

• If you want to cancel the timer before brewing has started, press the 🤔 button.
- If you want to stop the coffee maker while it's brewing, press the 🎨 button.

KEEP WARM/AUTO SHUT-OFF

• Your coffee maker will keep the coffee warm for about 40 minutes.
• 40 minutes after brewing your coffee maker will shut down and the time of day will be displayed.

A QUICK CUP

If you want a quick cup of coffee before the brewing cycle has finished:

1. You can remove the carafe at any time. The non-drip valve will prevent coffee dripping on to the hotplate.
2. To prevent the filter holder overflowing, replace the carafe on the hotplate within about 20 seconds.
3. When you replace the carafe on the hotplate the non-drip valve opens to let any remaining coffee through.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool.
2. Tip the contents of the filter holder into the bin.
3. Wipe all surfaces with a clean damp cloth.
4. Press the lever at the rear of the carafe lid, above the handle, to open the carafe lid.
5. Hand wash the carafe and filter holder.
6. Replace the filter holder. Make sure that the filter holder is pressed down all the way into position. It will click when correctly installed.
7. Close the lid, and press down to lock it.

SELF CLEAN

To prevent scale building up, use the self clean function at least monthly in normal water areas, more often in hard water areas.

Ensure the kitchen is well ventilated, as heating vinegar causes an unpleasant smell.

This operation will take 35-45 minutes.

1. Mix 6 cups of white vinegar with 4 cups of water in the carafe.
2. Pour the mixture into the reservoir.
3. Close the lid.
4. Replace the carafe on the hotplate.
5. Put the plug into the power socket.
6. Press the ◊ button. ◊ will show on the display.
7. Part of the mixture will come through. The remainder will soak in the boiler for 30 minutes, then come through.
8. At the end of the operation the appliance will switch itself off.
9. Fill the reservoir to the max mark, and run the appliance without coffee.
10. Do this 2 or 3 times, till the vinegar smell has gone.
    Products returned under guarantee with faults due to scale will be subject to a repair charge.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
