USER MANUAL TVAC71040 ABUS

Security Tech Germany

TVAC71000, TVAC71010, TVAC71020, TVAC71030, TVAC71040 TVAC71050, TVAC71060 TVAC71100, TVAC71110

Bedienungsanleitung
User manual
F Manuel utiliseur
Gebruikershandleiding
Brugerhandbog
Instrukcja obslugi
HctpyKua no 3kcnnyataa

D

These user manual contains important information for installation and operation. This should be also noted when this product is passed on to a third party.Therefore look after these operating instructions for future reference!

A list of contents with the corresponding page number can be found in the index on page 21.

F

Security Tech Germany

TVAC71000, TVAC71010, TVAC71020, TVAC71030, TVAC71040

TVAC71050, TVAC71060

TVAC71100, TVAC71110

Security Tech Germany

TVAC71000, TVAC71010, TVAC71020, TVAC71030, TVAC71040
TVAC71050, TVAC71060
TVAC71100, TVAC71110

GB

User guide

CE

Version 10/2013

English

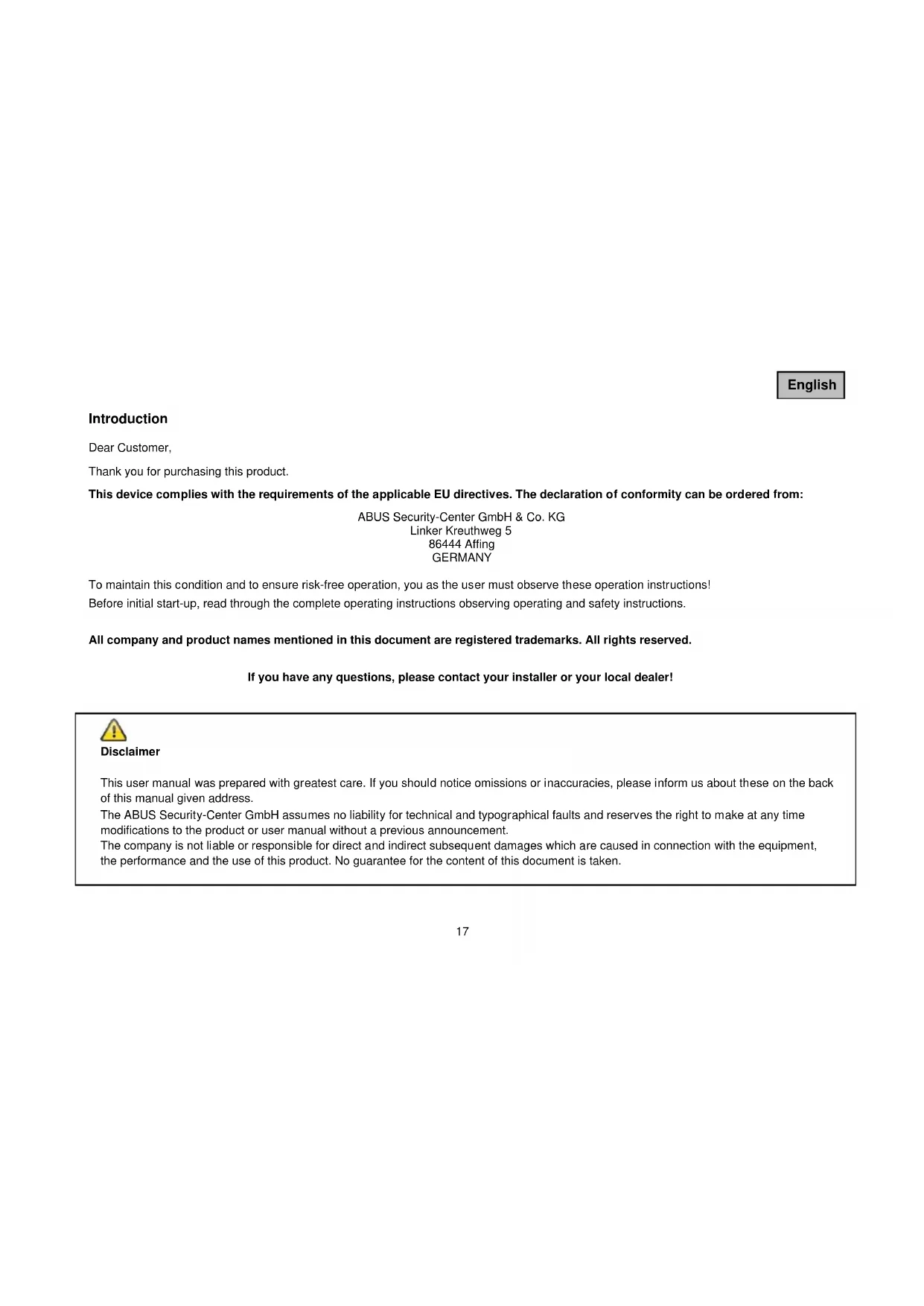

Introduction

Dear Customer,

Thank you for purchasing this product.

This device complies with the requirements of the applicable EU directives. The declaration of conformity can be ordered from:

To maintain this condition and to ensure risk-free operation, you as the user must observe these operation instructions!

Before initial start-up, read through the complete operating instructions observing operating and safety instructions.

All company and product names mentioned in this document are registered trademarks. All rights reserved.

If you have any questions, please contact your installer or your local dealer!

Disclaimer

This user manual was prepared with greatest care. If you should notice omissions or inaccuracies, please inform us about these on the back of this manual given address.

The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement.

The company is not liable or responsible for direct and indirect subsequent damages which are caused in connection with the equipment, the performance and the use of this product. No guarantee for the content of this document is taken.

English

Icon explanation

A flash in the triangle is used if there is danger for the health, e.g. by an electric shock.

An exclamation mark in the triangle points to an important note in this user manual which must be minded.

This symbol can be found when you are to be given tips and information on operation.

Important safety advice

1	The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss!
2	ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions. In such cases the warranty will expire.

The following safety information and hazard notes are not only intended to protect your health, but also to protect the device from damage. Please read the following points carefully:

There are no components inside the product that require servicing. Dismantling the product invalidates the CE certification and the guarantee / warranty.
- The product may be damaged if it is dropped, even from a low height.

Avoid the following adverse conditions during operation:

• Extreme heat or cold
• Direct sunlight
• Dust or flammable gases, vapours, or solvents
  Strong vibrations
• Strong magnetic fields (e.g. next to machines or loudspeakers)

English

General safety information:

• Never look directly into the infrared illuminator from a short distance (1 m). Do not use optical devices such as a magnifying glass to look directly at the illuminator.
  Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc., can pose a danger to children if played with.
• Do not insert any objects into the device through the openings.
  Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products.
  Please pay attention to the safety information and user guides for the other connected devices.
  Check the device for damage before commissioning. Do not put the device into operation if you detect any damage.
  Adhere to the operating voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).

Safety information

1. Power supply: 12 - 24 VAC / VDC

Only operate this device on a power source which supplies the power specified on the type plate. If you are unsure which voltage is supplied at the installation location, contact your power supply company. Disconnect the device from the power supply before carrying out maintenance or installation work.

1. Overloading

Avoid overloading electrical sockets, extension cables, and adapters, as this can result in fires or electric shocks.

1. Cleaning

Only use a damp cloth to clean the device. Do not use corrosive cleaning materials. Disconnect the device from the power supply while doing so.

English

Warnings

Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the power cable and plug:

2. Do not modify or manipulate the power cable or plug.

3. Do not bend or twist the power cable.
4. Do not pull the cable when disconnecting the device from the power - always take hold of the plug.

5. Ensure that the power cable is positioned as far away as possible from any heating equipment, as this could otherwise melt the plastic coating.

6. Follow these instructions. Non-compliance with these instructions could lead to an electric shock.

7. Never open the housing or power supply unit.

8. Do not insert any metallic or flammable objects into the device.
   Use overvoltage protection to prevent damage caused by overvoltage (e.g. electrical storms).

9. Disconnect defective devices from the power immediately and contact your specialist dealer.

4	During the installation into an existing video surveillance system make sure that all devices are disconnected from the low and supply voltage circuit.
1	If in doubt allow a professional electrician to mount, install and wire-up your device. Improper electrical connection to the mains does not only represent at threat to you but also to other persons.Wire-up the entire system making sure that the mains and low voltage circuit remain separated and cannot come into contact with each other in normal use or due to any malfunctioning.

Unpacking

While you are unpacking the device please handle it with utmost care.

i	If you notice any damage of the original packaging, please check at first the device. If the device shows damages, please contact your local dealer.

English

Table of contents

1. Intended use 22
2. Scope of delivery 22
3. Features and Functions 22
4. Description of the illuminators 22
5. Mounting / installation 23
6. Notes on using infrared illuminators 24
7. Maintenance and cleaning 24

7.1 Maintenance 24
7.2 Cleaning 25

1. Disposal 25
2. Technical data 26

English

1. Intended use

The infrared/white light illuminators are suitable for setting up video surveillance equipment. Thanks to their IP66 protection class, they can be used both inside and outside. The variable 12-24 VAC / VDC voltage input ensures a comprehensive power supply. The photo sensor ensures that the illuminator switches on and switches off automatically. The illuminator can be used with a camera for video surveillance.

For a detailed description of functions, refer to Section 3, "Features and functions".

2. Scope of delivery

• Illuminator
• User guide

3. Features and Functions

Aluminium housing
· 1 / 4 thread
Variable voltage input
Protection class IP 66

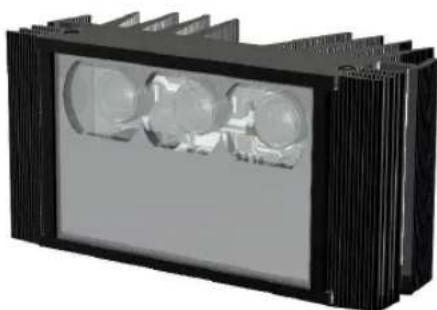

4. Description of the illuminators

English

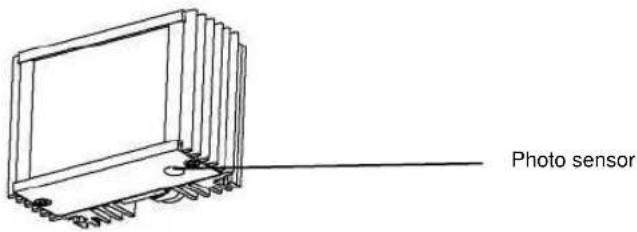

There is a photo sensor on the underside of the illuminator that switches the illuminator on and off.

When light intensity falls below 3 lux, the illuminator turns on automatically.

On the back of the illuminator, there is a 1/4 thread for installing the illuminator with a mount.

5. Mounting / installation

IMPORTANT!

The illuminator must be disconnected from the mains power during installation.

The polarity is unimportant.

For ceiling or wall installation, use the ceiling/wall bracket supplied as an optional accessory. Proceed as follows:

1. First fix the wall/ceiling bracket in the position required using the screws supplied.
2. Connect the illuminator to a stabilised 12-24 VDC/VAC power source with sufficient power (up to 12 Watt, depending on the model).
3. Mount the infrared/white light illuminator on the wall/ceiling bracket.
4. Adjust the direction of the illuminator and fix the position.

Please note:

Ensure that the cable remains taut during installation.

Installation example for installing the cable

6. Notes on using infrared illuminators

Infrared illuminators as a lighting source can only be used together with infrared B/W or day/night cameras.
- When IR illuminators are used, there may be a camera focus shift. This can be avoided by the use of IR-corrected lenses.
The range of infrared illuminators depends on the IR sensitivity of the camera model used. The specified ranges of the illuminators are based on a camera light sensitivity of 0.1 lux.
- Objects can appear unusual in IR light. For example, a green field appears dark in daylight (normal light). In infrared light, however, green light appears almost white.
- As for all illumination sources, the infrared illuminators should be installed as near as possible to the area to be monitored. Make sure that the light direction is adapted to the camera direction and does not dazzle the camera.
Clean the infrared illuminator regularly (at least every three months) since the light strength is reduced by dirt and the lamp cannot cool so effectively. Do not use any abrasive substances or alcohol for cleaning.

7. Maintenance and cleaning

7.1 Maintenance

Regularly check the product's physical state, e.g. check for damage of the housing.

If you suspect that safe operation cannot be guaranteed anymore, disconnect the product and ensure that it cannot be used by mistake.

You can assume that safe operation is not possible anymore when

the device shows visible damage,
- the device does not function anymore

Please note:

The product is absolutely maintenance-free for you. There are no components on the inside of the product to be checked or services by you, never open it.

7.2 Cleaning

Wipe the product with a clean, dry cloth. If the device is very dirty, you can moisten the cloth with lukewarm water.

Ensure that no liquids can get into the device.

Do not use any chemical cleaners, since they could damage the housing surface or the screen (discolorations).

8. Disposal

Important: The EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental protection the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Disposing of used devices can be done at official recycling centres in your country. Obey local regulations when disposing of material. Further details on returns (also for non-European countries) can be obtained at your local authority. Separate collection and recycling saves natural resources and ensures that all the provisions for protecting health and environment are observed when recycling the product.

English

9. Technical data

Model	TVAC71000	TVAC71010	TVAC71020	TVAC71030	TVAC71040
IP protection class	IP 66	IP 66	IP 66	IP 66	IP 66
Dimensions	\( {85} \times {55} \times {49} \)	\( {85} \times {55} \times {49} \)	\( {85} \times {55} \times {49} \)	\( {85} \times {55} \times {49} \)	\( {134} \times {67} \times {64} \)
Weight	0.35 kg	0.35 kg	0.35 kg	0.35 kg	0.6 kg
IR wavelength/ Colour temperature	850 nm	850 nm	940 nm	940 nm	6300 K
Voltage	12-24 VDC/VAC	12-24 VDC/VAC	12-24 VDC/VAC	12-24 VDC/VAC	12-24 VDC/VAC
Current	0.5 A max.	0.5 A max	0.5 A max	0.5 A max	1 A max.
Operating temperature	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C
Range at 0.1 Lux	10 m	20 m	5 m	10 m	18 m
Angle of view	\( {60}^{ \circ } \)	\( {30}^{ \circ } \)	\( {60}^{ \circ } \)	\( {20}^{ \circ } \)	60/40
IR activation	< 3 lux	< 3 lux	< 3 lux	< 3 lux	< 3 lux
Housing material	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium

English

Model	TVAC71050	TVAC71060	TVAC71100	TVAC71110
IP protection class	IP 66	IP 66	IP 66	IP 66
Dimensions	85 x 70 x 69	85 x 70 x 69	85 x 89 x 69	85 x 89 x 69
Weight	0.45 kg	0.45 kg	0.60 kg	0.60 kg
IR wavelength	850 nm	850 nm	850 nm	850 nm
Voltage	12-24 VDC/VAC	12-24 VDC/VAC	12-24 VDC/VAC	12-24 VDC/VAC
Current	0.85 A max.	0.85 A max.	0.85 A max.	0.85 A max.
Operating temperature	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C
Range at 0.1 Lux	12 m	30 m	15 m	35 m
Angle of view	60°	30°	60°	30°
IR activation	< 3 lux	< 3 lux	< 3 lux	< 3 lux
Housing material	Aluminium	Aluminium	Aluminium	Aluminium

Security Tech Germany

TVAC71000, TVAC71010, TVAC71020, TVAC71030, TVAC71040
TVAC71050, TVAC71060
TVAC71100, TVAC71110

Chere cliente, cher client,

the performance and the use of this product. No guarantee for the content of this document is taken.

Français

Security Tech Germany

TVAC71000, TVAC71010, TVAC71020, TVAC71030, TVAC71040

TVAC71050, TVAC71060

TVAC71100, TVAC71110

Security Tech Germany

TVAC71000, TVAC71010, TVAC71020, TVAC71030, TVAC71040
TVAC71050, TVAC71060
TVAC71100, TVAC71110

DK

Brugerhandbog

CE

Version 10/2013

Indforing

Kaere kunde,

Important: The EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental protection the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Disposing of used devices can be done at official recycling centers in your country. Obey local regulations when disposing of material. Further details on returns (also for non-European countries) can be obtained at your local authority. Separate collection and recycling saves natural resources and ensures that all the provisions for protecting health and environment are observed when recycling the product.

9. Teknisk data

Model	TVAC71000	TVAC71010	TVAC71020	TVAC71030	TVAC71040
IP-kapslingsklasse	IP 66	IP 66	IP 66	IP 66	IP 66
Mål	85 x 55 x 49	85 x 55 x 49	85 x 55 x 49	85 x 55 x 49	134 x 67 x 64
Vægt	0,35 kg	0,35 kg	0,35 kg	0,35 kg	0,6 kg
IR-bølgelænge/ farvetemperatur	850 nm	850 nm	940 nm	940 nm	6300 K
Spænding	12 - 24 VDC/VAC	12 - 24 VDC/VAC	12 - 24 VDC/VAC	12 - 24 VDC/VAC	12 - 24 VDC/VAC
Strømstyrke	0,5 A maks.	0,5 A maks.	0,5 A maks.	0,5 A maks.	1 A maks.
Drifts- temperatur	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C
Rækkevidde ved 0,1 lux	10 m	20 m	5 m	10 m	18 m
Synsvinkel	60°	30°	60°	20°	60/40
IR-aktivering	< 3 lux	< 3 lux	< 3 lux	< 3 lux	< 3 lux
Husmateriale	Aluminium	Aluminium	Aluminium	Aluminium	Aluminium

Dansk

Model	TVAC71050	TVAC71060	TVAC71100	TVAC71110
IP-kapslingsklasse	IP 66	IP 66	IP 66	IP 66
Mäl	85 x 70 x 69	85 x 70 x 69	85 x 89 x 69	85 x 89 x 69
Vægt	0,45 kg	0,45 kg	0,60 kg	0,60 kg
IR-bølgelængde	850 nm	850 nm	850 nm	850 nm
Spænding	12 - 24 VDC/VAC	12 - 24 VDC/VAC	12 - 24 VDC/VAC	12 - 24 VDC/VAC
Strømstyrke	0,85 A maks.	0,85 A maks.	0,85 A maks.	0,85 A maks.
Drifts-temperatur	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C	-30 ... +40 °C
Rækkevidde ved 0,1 lux	12 m	30 m	15 m	35 m
Synsvinkel	60°	30°	60°	30°
IR-aktivering	< 3 lux	< 3 lux	< 3 lux	< 3 lux
Husmateriale	Aluminium	Aluminium	Aluminium	Aluminium

Security Tech Germany

TVAC71000, TVAC71010, TVAC71020, TVAC71030, TVAC71040
TVAC71050, TVAC71060
TVAC71100, TVAC71110

Instrukcja obstugi

Wersja 10/2013

Polski

Wpwadzenie

Szanowna Klientko, Szanowny Kliencie,

Security Tech Germany

TVAC71000, TVAC71010, TVAC71020, TVAC71030, TVAC71040
TVAC71050, TVAC71060
TVAC71100, TVAC71110

Hnctpykunno 3Kcnnyataun

Bercna 10/2013

Pycckn

BVeDeHne

Ybaxaembie KIneHTbl!

MbI 6IarOapIM BAC 3a npio6peTeHne daHHoro npoDyKta.

DAnHHn npHbOp COoTBcTByET Tpe6OBaHm DeIcTByUOxN dIpeKTHB EC. Deknapaun o COOTBeCTBnNoocTyHa no aDpecy:

McklHoyehne OTBtCTBeHHOCTN

HnHCTpyKuINo 3KnIyataunb6bIaNcoCTabHeHa cMbIM TuaTeNbHbIM opa3OM. B clyae,ecnBb 3amTnn ynyueHn Hn HToOHCTn, cooBHTe Hm O HNX B nCbMeHHOf pOpme no aDpecy, yka3aHHOMy Ha obaTHo CTopoHE pyKOBOcTBa. KomnaHr ABUS Security-Center GmbH & Co. KG He hceT OTBeTCTBeHHOCt 3a TexNHueckne N TIOrpaΦnueckne O uN6Kn N ocTabJIeT 3a cbo npabo B IIObO Momet BpemeHN BHocNT bMHeHn BnpdyKT INHCTpyKUnn PO kcnNyataun 6e3 npdeBaNPteHBOR npdynpexJeHn. KomnaHr ABUS Security-Center GmbH & Co. KG He hceT OTBeTCTBeHHOCt 3a Bo3HKwN B pe3yntaTe npmaOn n KocBHeH yuePb C8ra3n C OCHaSeHHeM, KaeeCTBom paobTb i npimeHeHem daHHOro npOykTa. KomnaHr He npedocTabJr e HnKaok rapaHTn Ha coedePKaHne daHHOro dOKymEHTa.

Pycckn

0603haueHHe cHMBOJIOB

He BCTaBnTe MeIknE DeTaJIH Yepe3 OTBepCTnBO BVHTpb np6opa.

IcnoNb3yTe ToBko yka3aHHbIe npOn3BODHTeJIeM DoONHHTeBHOe 6OpdyOBAHHe n npHaJNeXHOCTn. He noKIOaHTe HecOBMeCTMbIe npOdyKTbl.
CobnOaTe yka3aHnNo TeXnKe 6e3oNaChocTn HnHCTpyKuIN No kcnIyatauIN OCTaNbHbIX NODKNIOUeHHbIX npnbopOB.
- Peped npimehenem npoBepbTe npo6op Ha nobpekdeHn. B clyae nx o6hapykeHn He nCnoJb3yTe daHHb np6op.
Co6nOaTe npdeBn HappkeHn 3Knnyatau, yka3aHoro B TexHuecknx DaHbIX. Bbcokoe HnnpjKeHne MoKet npnbecTu npOpue np6opAp n npdcTabnaTgpyBaWe 6e3oNaChocn nopaxHeHem 3JekTpueckm TOKOM.

Yka3aHnno TExnke 6e30nacHoCTN

1. 3neKtponntaHnCeTeB0B6Iok nHTaHn: 12-24 B nepem./B noct. toka

NcnoB3yTeIaHnHO np6bopa TOnbKO TOT NcToUHKn 3NeKtpoNTaHn, HapJxKeHne KOtOPO COOTBeTCTByeYka3aHOMy Ha 3aBOcko TaBnue. Ecn Bbl ToH No He 3HaTe XapaKTepnCTnK CEtn 3NeKtpoNTaHn, OpaTnTECB BaWy 3HePretnueckyo KOMNaHIO. PpeD npOBedeHem pa60 nTO TexO6CnykBAHIO n yctAHOBKe OTKIOHTpe np6bp ot 3NeKtpocTeN.

1. Neperpy3ka

CTapaNTecb He donyckatb neperpy3kn wTeNceBhix po3eTOK, ydHnHTeBhIX KaBeIe N aDantepOB, TAK KAc 3TO MOKET npNBcTN KBO3HNKHOBEHIO NOkapa nn ydApY TOKOM.

Pycckn

1. UncTka

PpOu3BOUInTe YnCTky np6opA TOJbKO BnaxKbIM MaTePnaIOM 6e3 pnpMeHHeNy UcTReX CpeDCTB.

PnHm Heo6xOJMo OTKIOHTb np6Op OT NITAHNA CETN.

IpeDynpexdHeH!

DBoBaB3KcPnyatauHHeo6xOIMoCo6IIOaTB Bce yka3AHnNo TeXnKe 6eONacHOCTN N3KcPnyatauIN！

1. Co6nOdaTe CneIyUoIe yka3aHnBa BO n36exKaHHe NOBnEHH NoBpeKdEHH Ha cTeBOM Ka6eNe I WTeNceJe.

He n3MeHnTe Hn He npOn3BOuNTe MaHnpyJzHn Ha ceTeBOM Ka6eNe n WTeNceJe.
He crn6aTe n He nepekpyuBaTe cTeBoi Ka6eIb.
PnOtkIoueHnn np6opa ot cetn notaHne 3a wTekep, a He 3a npoBoc cTeBoro Ka6eJra.
CneIte 3a TEM, YTO6bI Ka6eNb HaxOunnc KaK MoXHO daJIbwe OT np6OpOB OToNNHe NO 36ekaHne PnabNeHHnnr nnactIKoBOI oboOnouKn Ka6eJn.

1. CnedyTe daHHbIM yka3aHnM. HecobJIODeHne MOKeT npBecTN K nopaxKeHIO 3JeKTPnuCeckm TOKOM:

3anpeaaetcT OKpbBaTb KOpNc NIN CTeBOB 6NOK NTaHnA.
3aippeaaetcBCTabTbMetannnueckne nOrHeonacHbe 6bekTb BHytbp Kopnyca npn6opa.
Bo n36eKaHHe Bo3NHKHOBeHHIOBpeXdEHH BcJeDCTBne IpeHaPjKeHHa (HaNPmep, npn rpo3e) NCNoJb3yTe 3NeKtpnueckn npedoxpaHntel.

1. HEmeIeHNO OTKIOUHTe DepeKTHbIe np6Opbl OT cETN 3JIeKTPoNTaHn I CBJXITcB C BaIIM dIePOM

1

YbědniTEcB pRi yCtAHOBKe B IMMeIooJIeCRA yCtAHOBKe BIVdeOHa6JIIOJDeHINr, YTo BCE npIbOpBf OTKIIouHeBf OT CTeN BvICOKOrO HapPrJKeHn rI cIeN Hn3KOrO HapPrJKeHn.

2

B cIyUae comHeHn He IprO3BOJITe MOHTaJc, yCtAHOBKn I prOkJIaDkn KaIbEg CaMOCToTEnbHO, a IprEdoCTaBbTe 3TO 3KcneptAm. HenaIeJXaJee E NekBaIINФIuPobAHnOE BbIOnIeHnE 3JeKTPuYeCKnX paBof I paBof IO yCtAHOBKe npIbOpOB B DomaIHNx yCtOBnX npIedCTaBnIeT onAChocTb He TOnbKO dIra Bac, Ho TAKKe I dIra DpyrNx nIu. CoEdInHte KaIbEhem yCtAHOBJIeHbIe IprbOpBf, TAK YToBc cTeB bVicOKOrO hApPrJKeHn I cIeN Hn3KOrO hApPrJKeHn 6blIin IpoLoJKeHbI OTdIbHNo dpyr OT dpyra, He IpeceKaiNcB IIHn He MOrIa IpeceCbS B CNeIcTBe DeΦeKtA.

PacnaKobka

Pycckn

Bo Bpempaacnakobkn 6paauaTeCb C npnbopom C oO6oN octopoXnocTbIO.

PnB03MOXHOM NOBpeKdEHN opRnHaJIbHOY naKOBKn Heo6xOIMO ChaIAPA npOBepNTpnp6Op. B cIyae yctAHOBHeHH NOBpeKdEHn np6op aOTouHnTe np6Op C ynaKOBKn o6paTHo n COo6uHTe B cIy6By noCTABKn.

Pycckn

CoepkaHne

1. PpimHeHne no Ha3NaueHnIO 83
2. 06bem noctabkn 83
3. CboBCTBaNΦyHKcHn 83
4. TexHHueckoe onncanHe npOkeKTopa 83
5. MoHTax / yCTaHObKa 84
6. Yukazannno npimmehenn HpapkpaHbIX npoKeKTopOB 85
7. TexHHueckoe obcnykBaHne uCtka 85

7.1 Texnueckoe obcnykBaHne 85
7.2 86
8. ytnn3aun 86
9. TexHHueckne daHHbIe 87

Pycckn

1.Ппменец noHa3нayehnIO

DAnHbIe HnФpakpaChbIe npoxekTopbl nPoxekTopbl beJIoRo CBaTpeJHa3NaHeBd JnA yCTaHOBKn IpOceccnoHaJIbHbIX CnCTEm BInDeoHa6IIOHeH. BlaToDapra KlaCcy 3auNTbl (IP66) npoxekTopbl MOKHO yCTaHaBnBaTb KaK BHyTpN, TAK N BHe NOMEueHn. PerynpyeMoE BxOdHoe HApJKeHne 12-24 B Noct. ToKa/B nepeM. ObecneuBaET HaedxHyIO nOaHy NITAHn. DaTHNK CBeta OBeCeuHBAeT ATOMaTHUeCKOE BKNIOUeHne N BbIKIOUeHne npoxekTopa. PpoxekTop MoKET IcNoIb3OBaTbC B CnCTeMe BInDeoHa6IIOHeH pN iOnkIOUeHm K Kamepe.

IpoDp6HoeTexHHueCKoe OONCAHHe FyHKnI npOyKTA cm. B nyHKTe 3. (CBoiCTBa nFyHKnIIN).

2. 06bEm nocTabKn

• PpOKeKTop
• INCHtpyKUH no 3KcNpyatauH

3. CBOINCTBa nФункци

AnomHHneBbIK Kopnyc
Pe3b6a 1 / 4
- Perynnpemyb noTeHuaNbHbN BxOd
- Knaacc 3aunTbIP 66

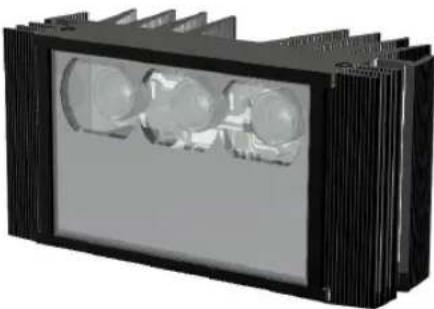

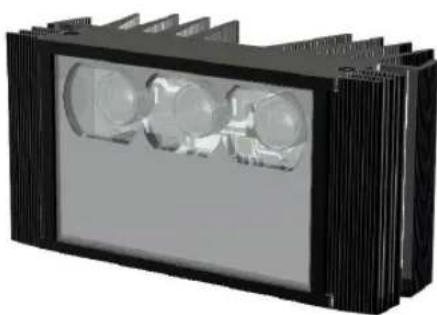

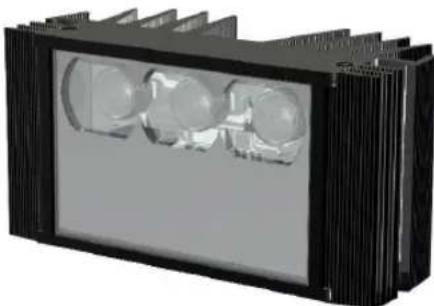

4. TexHHueckoe onncahne npoxekTopa

DaTHNK CBeta

Pycckn

IaBtOMaTnueCKoRbKIOUeHnNbIKIOUeHnIPOXKeToppaHaeroHNKHeiCTOpOHe npedyCMOTpeH daTnK CBeTa.

PpOKeKTop BkIIOuAeTc npypoBHe OCBeUeHHOCTm MeHee 3 IIOKC.

Ha 6paTHoI CTOpOHe npoxeKToPa npEynCMOTpeHa pe3b6a 14 nIyCtAHOBKn npoxeKToPa Ha KPOHHTeH.

5. MoHTax / yCTaHOBka

BHIMAHHE!

Bo Bpemr moHTaxa npoxkeTOp doJnKeH 6bIt bO TKnIOueH OT cTeI 3JIeKTPoNTHaHIA.

Ha noJrphocTb moXHO He oBaauTaB BHIMAHNA.

MOnTaKa npOKeKTopa Ha CTeHe NIN NOToNke HcNoIb3yIte CneUaNbHbIe DOnONHITeNbHbIe KpOHHTeHbI, KOtOpBIE NOCTaJIHOrTcB KOMJIeKTe. DeiCTByTE CNeDyHOUM O6pa3OM:

1. ChauJa 3aKpeNITe KPOHHTeH Ha npEiNoJraEMOM MecTe MOHTaxa Ha cTHe NINI NOTOnke C NOMOJIbIO JIO6bIX BNHTOB.
2. POnKInHHTe npOKeTOp K CTaBnBHomy NcToHHky nTuHn 12-24 B NoCT. ToKa/B nepeM. DocTaTOHm MOuHocTN (D0 12 BT, B 3ABNCIMOCr OT MoJI).
3. 3akpennte HhpaKpaChbI npoxeKTop nnn npoxeKTop 6enoro CBeta Ha KPOHtneHa CTeHe nn noTOnke.
4. HactpoTe Heo6xoDnmoe nOIOKeHHe nPoKeKTopa n 3aФNKcnpyTe 3Ty nO3NtIO.

06paNTe BHHMaHHe!

Pn yctahOBKe cneDnte 3a TEM, YTO6bI Ka6bI He 6bln CINbHO HATryHT.

Ppimep yctahOBKn npacnoJooKeHMe Kaebna:

6. Yka3aHnno npimMeHHIO nHΦpakpaChbIX npOKeKTopoB

• INHppaKpachBle npoxKeTOpbl npMmHaOTcI nIocBeUeHHn TOnbKO npn pa6Ote C cepHO-6JIbIMn KamepaMn IIN KamepaMn DHeBHoro N HooHoro Ha6NIODeHHN, KOToPbI NOxOJr IIN HPPaKpachOH cBeMKN.
• Pn nCnoB3oBaHmN IK-npOKeToppa fokyK kAmebpI MoKet CmecTntbca (pacfoKycnpobKa). B Taknx cnuyax moxHO nCnoB3oBaTb o6BeKTHBbI c NK-koppeKnei.
  JaIbHocTb IK-npoxekTopa 3aBnCt OT yBCTBnTeBHOCTN NcNoJb3yEmoM MoEeIN KamepbK IK-n3nyeHIO. PpNBedeHHie 3NaHeHna DaJIbHOCTN IK-npoxekTopoB paccuHaBnDn KaMepbYBCHTBeBHOCTbO 0,1nOKc.
• Pn INHpapacpachom 3nyeHHN pEmTbMoryr BblraTe bHeobuHO. Hanpimep, 3eJeha TpaBa npn dHeBHOM ocBeueHHKaeTcdoBOBHO TEMHO. Ondako nPn INHpapacpachom ocBeueHHN 3eJehb UCBET KaKeTc NOyIM.
  Kak ndpyrne nctouhNk OCBeHn HCTOuyHK INHpaKpachoro OCBeHn HEOxOJMo paCOnaratB BO3MOXHO 6nHex K yAcKy, 3a KOtOpbIM BeTeTcRa HabIOHe. Ppi 3OM Heo6xOJMo HAcTPOHTb HAnpaBJeHne CBeTa B COOTBeTCTBN C HanpaBJeHmE 063opa KaMepbl NCKHouHTb BO3MOXHOCTb OCJIJIeHn OBekTNBa.
• Yto6bI n36exKaTb CHNKeHn IHTeHCNBHOCTn OCBeUeHn I3-3a 3aPr3HeHHoro CTekNa n CHNKeHn OXnaKdaUoJero 3000peKta paHaTopa, npOkeTOp Heo6xoDmPo perynepHo UcTMTb (He peKe, yem pa3 B Tprn Meca). 3anpeaetc nCnoNb3OBaTb dnn YnCTKN OCTpBle PpeMeTb INI CNPT.

7. TexHnueckoe 6cbnyxmbaHne n uNcTka

7.1 TexHHueckoe 6cbnyKbHaHne

PepnoDnueckn npoBepaTe npOyKT Ha npEmdetexHnueckoBezOnacNoctu,Ha npimep,Ha noBpeKdHeNeKopnyca.

B cnyae BO3HMKHOBeHHN IpeDnIOLOXKeHH O HeBO3MOXHOCTN 06ceNeueHH 6e3OnaCHOH 3KcNlYaTaUN NPOyKT Heo6xOIMO N3bA r b n 3KcNpyataun IN neepkblb K Hemy DocTy n B cnyae HnpeDnHaMepeHHO 3KcNpyataun.

BepoTHbIe cnyuH, KOrda 6e3OnaCha 3KcNpyatauHa HeBO3MOXHa:

ecn yctaHOBHeHb BIMMbIe NOBpeKdHn np6opa,
- ecnnpoaykHT HecnpaaBeH.

06paTnTe BHHMaHHe!

DanHb npOyKT He Tpe6yeT TexHueeCKOro 0cbLyKbAHnry. BHytpn npOdykTa He HaxoOnTCra HnKaNX qacte, Tpe6yOuNX npOBepKn HIn TexO6cLyKbAHnry. OTKpbBaTb npOdyKT 3anPeueHo!

Pycckn

7.2 UcTka

PpOu3BODTe YnCTky npOyKToTolbKO YnCTbIM cyxIM MaTePnAnOM. PpN CnIbHOM 3aRpa3HeHH MaTePnAn MoKeT 6bIT bIeKo CMOeH B NOJTyEnIO BOE.

KnKocTNe DoJIKNbI nonaTaB BO BHyTp npi6opa.

He npIMeHnTe XmMuecknx OuncntTeJe, TaK KaK 3TO MOKeT BbI3BaTb NOBpeXJdHMe NOBepxHOcTe KOpNyca mOHHTopa (N npNBecTu K OkpaunBaHHIO).

8. YtJnI3aun

BnHmHe! DnpeKTHBa 2002/96/EC perIamentnpuyTe HaIeJkaun C6op, nepepaOtky n IcNoIb3OBaHne OTOxOob 3JIeKTPueckoro n 3JIeKTPoHoro obOpyDobAHn. DaHnbC mBON O3Haayet, YTO B CBA3N C oxpAHOkpykaHoue cpebl np6op no OKOHAnn Cpoka erO cnjXkbdoTbYtIN3OBAH B COOTBeCTBUN C DeCTBYUOMM 3aKHOdaTeHBIMn HopMaMn OTJeBHO OT bItb N pOn3BOCDBeHHbIX OTOXOB. YTNIN3aun CTaporo 06OpyDobAHn MOKeT ocUeCTBnTbcrape3 oOpuMaNBhe nyKTB IpneMa B BaWe CTpaHE. Co6IIOaTe MeCTHbe npEtniCAHn NO yTNIN3aun MaTePnaIob. Boone npOp6Hy IO HOpmauio O npme (a TaKke B cTpaHax, He BXoJauix B EC) Bbl Noptyte B MeCTbX opraHax ynpabLeHn. Pa3dEnbHb C6op OTOxOob IN PncaiKnIHr NOMaer T cbepb npipOndhie pecypcbI. YcTaHObNeHO, YTO npri pncaiKnIHre npOdyKaTc co6IIOaOTcBCE npEtniCAHn NO Oxpae 3dOpOBBy IO OkpykaIouei Cpebl.

Pycckn

9. TexHHueckne daHHbIe

These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher.

The operating instructions reflect the current technical specifications at the time of print.

We reserve the right to change the technical or physical specifications.
