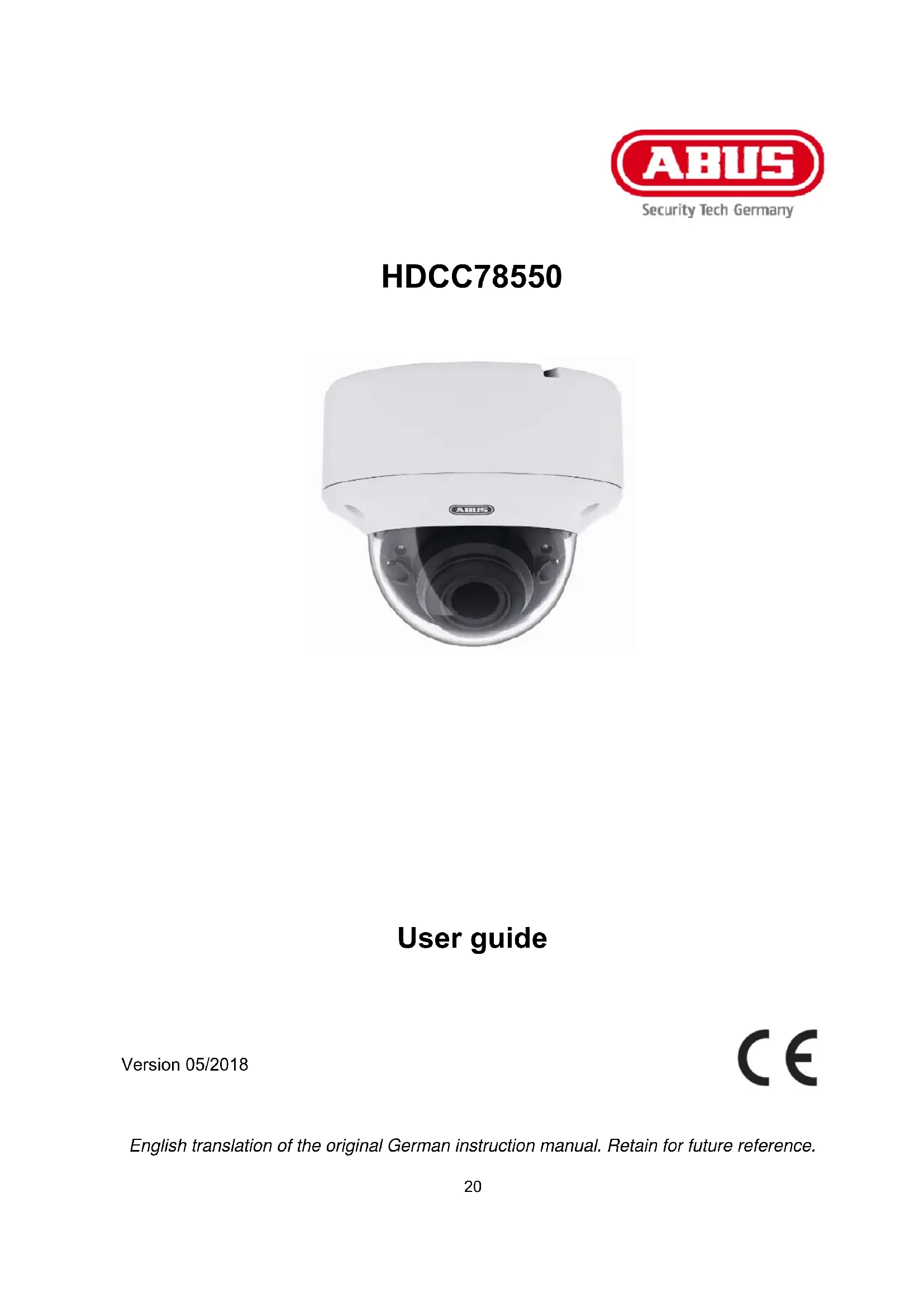

USER MANUAL HDCC78550 ABUS

These user manual contains important information for installation and operation. This should be also noted when this product is passed on to a third party.Therefore look after these operating instructions for future reference! A list of contents with the corresponding page number can be found in the index on page 24.

English translation of the original German instruction manual. Retain for future reference.21

Dear customer, Thank you for purchasing this product. The device complies with the requirements of the following EU directives: EMC Directive 2014/30/EU and the RoHS Directive 2011/65/EU. To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe this user guide. Please read the entire user guide carefully before putting the product into operation, and pay attention to all operating instructions and safety information. All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist installation contractor or specialist dealer.

Disclaimer This user guide has been produced with the greatest of care. Should you discover any omissions or inaccuracies however, please inform us in writing at the address provided on the back of the manual. ABUS Security-Center GmbH & Co. KG assumes no liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior notice. ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No guarantee is made for the contents of this document.22

lish Explanation of symbols

The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock). The triangular warning symbol indicates important notes in this user guide which must be observed. This symbol indicates special tips and notes on the operation of the unit.

All guarantee claims are invalid in the event of damage caused by non-compliance with this user guide. We cannot be held liable for resulting damage. We cannot be held liable for material or personal damage caused by improper operation or non-compliance with the safety information. All guarantee claims are void in such cases.

The following safety information and hazard notes are not only intended to protect your health, but also to protect the device from damage. Please read the following points carefully: There are no components inside the product that require servicing. Dismantling the product invalidates the CE certification and the guarantee/warranty. The product may be damaged if it is dropped, even from a low height. Install the device so that the image sensor is not subjected to direct sunlight. Pay attention to the installation instructions in the corresponding section of this user manual. The device is designed for indoor and outdoor use (IP67). Avoid the following adverse conditions during operation: Moisture or excess humidity Extreme heat or cold Direct sunlight Dust or flammable gases, vapours or solvents Strong vibrations Strong magnetic fields (e.g. near machines or loudspeakers). The camera must not be installed on unstable surfaces. General safety information: Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc. can pose a danger to children if played with. The video surveillance camera contains small parts which could be swallowed and must be kept out of the reach of children for safety reasons. Do not insert any objects into the device through the openings. Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products. Please pay attention to the safety information and user manuals for the other connected devices. Check the device for damage before putting it into operation. Do not put the device into operation if you identify any damage. Adhere to the normal voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).23

lish Safety information

1. Power supply: Note the information provided on the type plate for supply voltage and

Avoid overloading electrical sockets, extension cables and adapters, as this can result in fire or electric shock.

Only use a damp cloth to clean the device. Do not use corrosive cleaning materials. Disconnect the device from the power supply before cleaning. Warnings Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the power cable and plug:

Do not pull the cable when disconnecting the device from the power – always take hold of the plug. Ensure that the power cable is positioned as far away as possible from any heating equipment, as this could otherwise melt the plastic coating.

2. Follow these instructions. Non-compliance with these instructions could lead to electric shock:

Never open the housing or power supply unit. Do not insert any metallic or flammable objects into the device. Use surge protection to prevent damage caused by overvoltage (e.g. in electrical storms).

3. Disconnect defective devices from the power immediately and contact your specialist dealer.

When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit.

If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the mains network or domestic installations puts both you and others at risk. Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Unpacking the device Handle the device with extreme care when unpacking it.

If the original packaging has been damaged, inspect the device. If the device shows signs of damage, return it in the original packaging and inform the delivery service.24

This camera is designed for both daytime and night-time use. It provides video images in HD resolution. The output signal is provided in HD-TVI format. This allows the use of a conventional coaxial cable for signal transmission. It is used for video surveillance in conjunction with a recording device. The device is designed for indoor and outdoor use.

2. Scope of delivery

3. Features and functions

4K resolution: 3840 x 2160 @ 12.5 fps (HDCC78550) Transmission via conventional CCTV infrastructure (up to 500 m via RG59 cable) Motor-controlled Vario lens, 2.8–12 mm IR LEDs for night vision DNR for noise-free images True WDR function to compensate for image contrasts (120 dB) Weatherproof camera housing (IP67) On-screen display for camera configuration (control via DVR via coaxial cable)26

1 Camera module with lens 2 Infrared LED (2, to the left and right of the lens) 3 Photo sensor for day/night switching 4 Joystick for controlling the on-screen display 5 Dome 6 Installation adapter for surface mounting 7 Power supply (12 VDC or 24 VAC, 2-pin connection, polarity does not need to be observed) 8 HD-TVI video output (BNC, labelled 'TVI') 9 Additional analogue video output for service purposes (BNC, CVBS)

5.1. Mounting the camera

IMPORTANT! The camera must be disconnected from the power supply during installation.

Use the accompanying drilling template for drilling the mounting holes for the installation adapter. An opening is provided on the installation adapter for cabling at the side. A cable gland must be used (M25x1.5) for cabling at the side. Use screw anchors and screws that are appropriate to the surface to fix the installation adapter in place.

Now remove the camera dome from the camera module. Use the hexagon wrench provided to do this. To simplify installation, a retaining rope with eye is provided in the installation adapter to allow the camera module to be suspended. Now guide the connecting cable through the installation adapter and either into the ceiling or through the side opening. The connection to the installation cable can be made inside the installation adapter if required.

Now insert the camera module into the installation adapter. When doing so, ensure that the guide rail and guide notch of the installation adapter and camera module fit correctly. It is only then that the camera module is in the correct position. Now retighten the fixing screws of the camera module. After orienting the camera module, attach the camera cap and camera dome. Now fix the camera dome in place.28

lish 5.2. Orientation of the camera The camera module can be oriented in three axes. 1: Tilt 70° 2: Rotation 340° 3: Pivot 320°

The IR range is strongly dependent on the environmental conditions. If the area in the camera’s field of view reflects poorly or if there are no objects within the max. illumination range, the brightness of the video image at night may be too low. This will result in poor usability of the video image. In addition, when installing the camera it must be ensured that no objects are located in close proximity to the camera’s field of view (e.g. roof gutter or wall). These objects can reflect back the IR light, resulting in circular fading on the video image in the opposite direction to the object. 5.3. Power supply

IMPORTANT! Before starting installation, ensure that the power supply voltage and the rated voltage of the camera are identical. The cameras require a 12 V DC or 24 V AC power supply. The polarity of the DC voltage supply does not need to be observed! 5.4. Connecting the video cable In order to transmit the HD-TVI video signal from the camera to a recorder, an RG59 type coaxial cable with BNC connector (male) must be connected to the connection labelled 'TVI’. The cable length to the next device must not exceed 500 m (RG59). An RG59 type coaxial cable can be connected to the analogue video output (labelled ‘CVBS’). The cable length to the next device must not exceed 100 m.

To ensure optimum quality of the HD-TVI signal transmission, it is important that the cable is neither kinked nor crushed at any point, and that its radius is adequate (min. bending radius 6 cm). Damage to the cable or porosity as a result of ageing can have a negative impact on the quality of the signal or image (e.g. shadowing around the edges).

lish 5.5. Installation on the wall mount

1. First drill the four holes in the wall to attach

the wall mount to the wall.

2. Use appropriate screw anchors and screws

to attach the wall mount to the wall.

3. Screw the round adapter plate on to the wall

mount. Secure the adapter using a side fixing screw.

4. Attach the installation adapter to the wall

5. Run all cables through the wall mount and

connect them correctly to the camera module.

6. You can now carry out the subsequent steps

as previously described in the section on installation. The appropriate TVAC31320 wall mount is required for the installation. This is not included in the scope of delivery of the camera.

5.6 Installation on a suspended ceiling

The following installation data must be observed: Installation depth (min.): 50 mm Diameter of camera insert: min. 145 mm (max. 152 mm) Diameter for fixings: 10 mm

1. First, create an opening of min. 145 mm to

max. 152 mm at the desired location in the suspended ceiling.

2. Glue the drilling template to the opening in

the ceiling in a central position.

3. Drill three holes with a diameter of approx.

10 mm in the places marked.

4. Screw the three long metric screws supplied

through the three outer fixing holes in the ceiling recessing ring.

5. Then screw the three spreading clamps on

to the three metric screws from the back.

6. Insert the ceiling recessing ring into the

feed-through and the three spreading clamps into the fixing holes and push the spreading clamps through the fixing holes. The spreading clamps should now hold the ceiling recessing ring to the ceiling.

7. Next fasten the three fixing screws until the

ceiling recessing ring is finally level and firmly attached to the ceiling.

8. The camera module can then be installed

and oriented in the same way as during the installation in the installation adapter, and the dome can be placed on top.30

lish The appropriate TVAC31360 recessing ring is required for the installation. This is not included in the scope of delivery of the camera. The required installation depth is min. 5 cm.31

6.1. Opening the on-screen display This camera’s on-screen display can be opened either using the joystick in the camera or via the ABUS HD-TVI DVR. Please consult the user manual for the ABUS HD-TVI DVR. 6.2. Description of the on-screen display Pressing the on-screen display control button opens the on-screen display. This on-screen display allows you to adjust a number of detailed settings.

Function Description Video Format Video resolution setting Options: 8 megapixel @ 15 frames per second 8 megapixel @ 12.5 frames per second 5 megapixel @ 20 frames per second 4 megapixel @ 25 frames per second 4 megapixel @ 30 frames per second 2 megapixel @ 25 frames per second 2 megapixel @ 30 frames per second

Language Setting for the language of the on-screen display For this camera model, English is currently the only available language. Settings Advanced camera settings Press the ENTER button to open the advanced camera settings menu. Save&Exit Save and exit the menu32

Exposure This menu item allows you to adjust general exposure settings, e.g. whether the camera should process high contrasts or whether the camera requires special settings for night vision. Function Description Brightness (1~10): Picture brightness setting Exposure Mode Global: General automatic exposure setting without WDR function BLC: Automatic exposure setting with backlight compensation. The BLC function enhances the image display in the event of medium image contrast levels. WDR: Automatic exposure setting with WDR function (wide dynamic range). The WDR function enables improved display of high image contrasts. This function also has a four-step setting for adjusting to the respective contrast conditions. HLC: This function reduces overexposure caused by very bright light sources. AGC Automatic gain control. As the setting is increased, the video image appears lighter in poor lighting conditions, although the higher the setting the higher the image noise. Off: Deactivated Low: Low Medium: Medium High: High Slow Shutter (Off~X4): Continuous exposure setting. Longer exposure times for each image make the resulting image lighter. However, this results in a reduction in the frame rate (the longer the exposure time, the lower the frame rate). Off: deactivated X2/X4: Exposure time increased by a factor of x Back Return to previous menu screen Save&Exit Save and exit the menu33

lish White Balance This menu item allows you to adjust the white balance settings. Function Description Auto Automatic white balance manual, handbook, guide, instructions Manual white balance R Gain: Gain factor for proportion of red in image B Gain: Gain factor for proportion of blue in image Back: Return to previous menu screen Save&Exit: Save and exit the menu

DAY NIGHT This menu item allows you to set the mode for day/night switching. Function Description Auto Automatic activation/deactivation of day mode or night mode. The integrated photo sensor controls the switchover according to the lighting level. IR Light: On: IR LEDs activated in night mode Off: IR LEDs deactivated in night mode Smart IR: Function for reducing overexposure of IR light with close objects On: Function activated Off: Function deactivated D->N Threshold (1–9): Switching threshold from day to night mode N->D Threshold (1–9): Switching threshold from night to day mode Back: Return to previous menu screen Colour The camera stays in colour mode permanently. The infrared cut filter is constantly in front of the lens, and the IR LEDs are constantly off. B&W The camera stays in black/white mode permanently. The infrared cut filter is constantly separated from the lens. The IR LEDs are switched on and off automatically by the photo sensor.

Video Settings This menu item allows you to adjust general image settings, such as contrast or video image mirroring. Function Description Contrast (0~10): Image contrast setting Sharpness (0~10): This function allows image sharpness perception to be adjusted electronically. Saturation (0~10): Saturation of the video image 3DNR (0~10): Noise reduction function setting. The higher the value set, the more noise will be removed from the video image by the software.34

lish Mirror Mirroring of the video image Off: Deactivated HV: Horizontal and vertical image mirroring (standard) V: Vertical image mirroring H: Horizontal image mirroring Defog (0–4): Function for improving the contrast. A higher value increases the image noise. RETURN Return to previous menu screen

Factory Default (Reset) Function Description Factory Default Reset all camera settings in the main menu to the factory settings Ok: Confirm process Cancel: Cancel process

Save&Exit Function Description Save&Exit Save all settings and exit the on-screen display35

7. Maintenance and cleaning

7.1. Maintenance Regularly check the technical safety of the product, e.g. check the housing for damage. If it appears to no longer be possible to operate the product safely, stop using it and secure it to prevent unintentional use. It is likely that safe operation is no longer possible in the event that: the device shows signs of visible damage the device no longer works correctly

Please note: You do not need to perform any maintenance on the product. There are no components to service and nothing inside the product to check. Never open it. 7.2. Cleaning Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water to remove stubborn dirt.

Do not allow any liquids to enter the device. Do not use any chemical cleaning products as they could damage the surface of the housing and screen (discolouration).

Important: EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic devices. This symbol means that, in the interest of environmental protection, the device must be disposed of separately from household or industrial waste at the end of its lifespan in accordance with applicable local legal guidelines. Used devices can be disposed of at official recycling centres in your country. Obey local regulations when disposing of material. Further details on returns (also for non-EU countries) can be obtained from your local authority. Separate collection and recycling conserve natural resources and ensure that all the provisions for protecting health and the environment are observed when recycling the product.36

More technical information on each individual camera is available via the product search at www.abus.com.

The IR range is strongly dependent on the environmental conditions. If the area in the camera’s field of view reflects poorly or if there are no objects within the max. illumination range, the brightness of the video image at night may be too low. This will result in poor usability of the video image. In addition, when installing the camera it must be ensured that no objects are located in close proximity to the camera’s field of view (e.g. roof gutter or wall). These objects can reflect back the IR light, resulting in circular fading on the video image in the opposite direction to the object.37

© Copyright 02/2018 by ABUS Security-Center
