USER MANUAL Juice Master Digital 8449 Solis

Exterior view of a modern Sesie brand coffee maker with clear branding and control panel (no text or symbols on main body)

▲ DEUTSCH 04
▲ FRANÇAIS 22
ITALIANO 40
▲ ENGLISH 58
▲ NEDERLANDS 76

Technical diagram of a coffee maker with labeled parts including blender, filter, and cup

Line drawing of a juicer with handle and side arm (no text or symbols)

▲ DIE FUNKTIONSTASTEN UND DAS DISPLAY

HARD VEG HARD FRUIT MED FRUIT SOFT VEG SOFT FRUIT ON OFF ±

- TASTE

Technical line drawing of a mechanical device with no visible text or symbols

SCHRITT 5:

Line drawing of a simple electric shaver with lid and handle (no text or symbols)

D

D

SCHRITT 7:

Line drawing of a juice maker with handle and spout (no text or symbols)

▲ DEMONTAGE DES ENTSAFTERS

SCHRITT 1:

Line drawing of a juice maker and its water tap (no text or symbols)

Technical diagram of a coffee maker with labeled parts including blender, filter, and blender cup

Line drawing of a coffee maker with handle and spout (no text or symbols)

▲ LES TOUCHES DE FONCTION ET L'ECRAN

HARD VEG HARD FRUIT MED FRUIT SOFT VEG SOFT FRUIT ON OFF ±

TOUCHE

Line drawing of a coffee maker with lid and side arm (no text or symbols)

Sième ETAPE :

Line drawing of a portable electric shaver with lid and handle (no text or symbols)

7ième ETAPE :

Line drawing of a juice maker with handle and spout (no text or symbols)

▲ DEMONTAGE DE LA CENTRIFUGEUSE

1ière ETAPE :

Line drawing of a juicer and its water tap (no text or symbols)

Dimensions env. 49,0 × 39,5 × 24,0 cm

Technical diagram of a coffee maker with labeled parts including blender, filter, and pitcher

Line drawing of a coffee maker with handle and spout (no text or symbols)

▲ I TASTI FUNZIONE E IL DISPLAY

HARD VEG HARD FRUIT MED FRUIT SOFT VEG SOFT FRUIT ON OFF ±

TASTO

Line drawing of a mechanical device with no visible text or symbols

PASSO 5:

Line drawing of a vintage-style blender with lid and side arm (no text or symbols)

PASSO 7:

Line drawing of a manual juice maker with handle and spout (no text or symbols)

▲ SMONTAGGIO DELLA CENTRIFUGA

PASSO 1:

Line drawing of a juice juicer and its water tap (no text or symbols)

Dimensioni ca. 49,0 × 39,5 × 24,0 cm

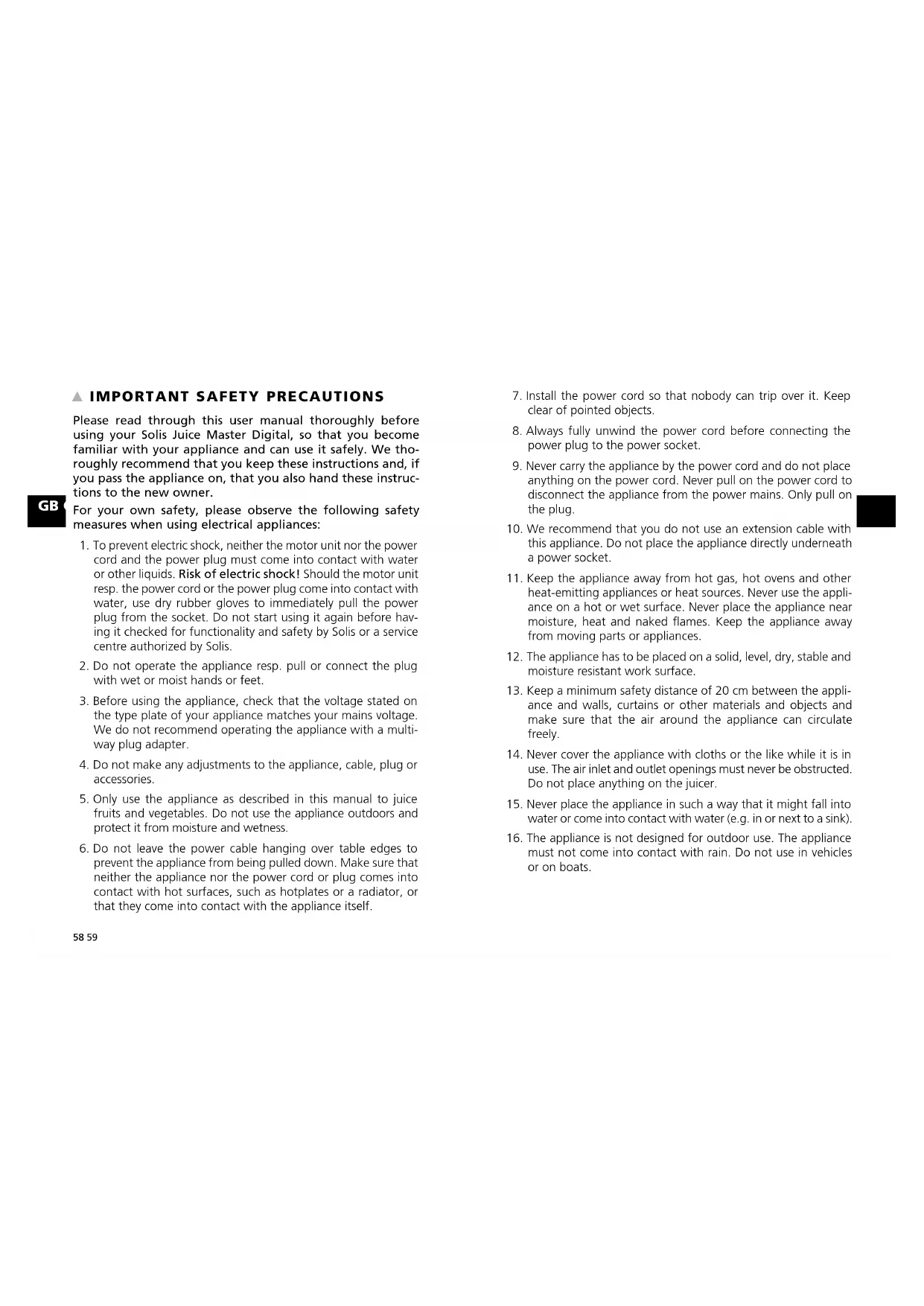

Please read through this user manual thoroughly before using your Solis Juice Master Digital, so that you become familiar with your appliance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

For your own safety, please observe the following safety measures when using electrical appliances:

1. To prevent electric shock, neither the motor unit nor the power cord and the power plug must come into contact with water or other liquids. Risk of electric shock! Should the motor unit resp. the power cord or the power plug come into contact with water, use dry rubber gloves to immediately pull the power plug from the socket. Do not start using it again before having it checked for functionality and safety by Solis or a service centre authorized by Solis.
2. Do not operate the appliance resp. pull or connect the plug with wet or moist hands or feet.
3. Before using the appliance, check that the voltage stated on the type plate of your appliance matches your mains voltage. We do not recommend operating the appliance with a multi-way plug adapter.
4. Do not make any adjustments to the appliance, cable, plug or accessories.
5. Only use the appliance as described in this manual to juice fruits and vegetables. Do not use the appliance outdoors and protect it from moisture and wetness.

6. Do not leave the power cable hanging over table edges to prevent the appliance from being pulled down. Make sure that neither the appliance nor the power cord or plug comes into contact with hot surfaces, such as hotplates or a radiator, or that they come into contact with the appliance itself.

7. Install the power cord so that nobody can trip over it. Keep clear of pointed objects.

8. Always fully unwind the power cord before connecting the power plug to the power socket.
9. Never carry the appliance by the power cord and do not place anything on the power cord. Never pull on the power cord to disconnect the appliance from the power mains. Only pull on the plug.
10. We recommend that you do not use an extension cable with this appliance. Do not place the appliance directly underneath a power socket.
11. Keep the appliance away from hot gas, hot ovens and other heat-emitting appliances or heat sources. Never use the appliance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.
12. The appliance has to be placed on a solid, level, dry, stable and moisture resistant work surface.
13. Keep a minimum safety distance of 20 cm between the appliance and walls, curtains or other materials and objects and make sure that the air around the appliance can circulate freely.
14. Never cover the appliance with cloths or the like while it is in use. The air inlet and outlet openings must never be obstructed. Do not place anything on the juicer.
15. Never place the appliance in such a way that it might fall into water or come into contact with water (e.g. in or next to a sink).

16. The appliance is not designed for outdoor use. The appliance must not come into contact with rain. Do not use in vehicles or on boats.

17. Unplug the appliance when it is not in use or unattended, and before cleaning. We recommend the use of a residual current device (RCD safety switch) to ensure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30 mA maximum. For professional advice consult an electrician.

18. Before pulling the power plug of the appliance out of the power socket, always make sure that the appliance is not in use.
19. Do not make any changes to the appliance, the power cord, the plug or the accessories.
20. Incorrect use may cause injury!
21. Never reach for an appliance that has fallen into water or other liquids. Always use dry rubber gloves to pull the plug before taking it out. Do not start using it again before having it checked for functionality and safety by Solis or a service centre authorized by Solis.
22. Place the appliance so that it is never exposed to direct sunlight.
23. Never insert any objects or tool into appliance openings. The appliance may become damaged – danger of electric shock!
24. Before attaching or removing parts, always switch the appliance off and pull the plug.
25. Never use the appliance without fruits or vegetables.
26. Always make sure that the appliance is correctly assembled before connecting it to a power socket and starting to use it.
27. Never reach into the funnel! You might be seriously injured! During use, only use the tamper to push down on the vegetables / the fruits. Never insert any other object into the funnel!
28. Do not shake or move the appliance while it is in use. Never move the appliance if it is filled with vegetables and in operation. Before moving the appliance, you should switch it off,

pull the plug and empty the pomace container as well as the juice jug.

1. Only use the appliance as described in this manual. Only use with the provided accessories or accessories recommended by Solis, incorrect accessories or misuse can lead to damage of the appliance, fire, electric shock or personal damage.
2. Never use the appliance with an external timer switch or remote control.
3. The appliance is only suited for household use and not for commercial use.
4. Remove and discard all packaging materials and potential stickers or labels (except for the type plate) before using the appliance for the first time.
5. Check your juicer before every use to make sure that the appliance itself, the power cord and the power plug are without damage and no parts have come loose.
6. To prevent electric shock, do not use the appliance if cord or power plug are damaged or if the appliance has other faults, has fallen down resp. is damaged in any other way or if parts have come loose. Never attempt repairs yourself but take the appliance to Solis or a service centre authorized by Solis in order to get it inspected, repaired or mechanically and electrically maintained, in order to avoid a hazard.

7. People with limited physical, sensorial or mental capabilities as well as unknowing or inexperienced people and children must not use the juicer except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done by unsupervised children. Under no circumstances must the appliance be used or cleaned by children under the age of 8. The appliance and its power cord have to kept away from children under the age of 8.

8. Keep the appliance and the power cord away from children and pets.

9. Children must be supervised, so that they do not play with the juicer.
10. Always switch the appliance off before pulling the plug, otherwise the appliance might be damaged.
11. Do not place anything on the appliance while it is in use or in storage.
12. Pull the plug after every use. Only then, the appliance is fully switched off.
13. The appliance has to be cleaned after every use. Please refer to the notes given in the section "Cleaning and maintenance" on page 73 of this manual.
14. Only clean the appliance chassis with a dry or slightly moist cloth. Never use aggressive, abrasive or acidic detergents for cleaning.
15. When lifting or moving the appliance, always hold the juicer by the base. Always switch the appliance off first, pull the plug and empty out the pomace and the juice. Always move the appliance very carefully and do not shake or throw it, it might be damaged.
16. Should you notice a strange smell or sound, switch the appliance off and pull the plug. Do not start using it again before having its functionality and safety checked by Solis or a service centre authorised by Solis.
17. Never touch the grating blades in the sieve, they are extremely sharp and might injure you!

18. Before removing the cover, you always have to switch the appliance off with the ON/OFF button and wait for the strainer to come to a complete standstill. Then touch the ⏻ button and pull the power plug.

19. If you have used the appliance for 30 seconds, you should always take a break of 30 seconds to prevent the motor from overheating.

20. Caution: When cleaning or removing resp. installing parts, the appliance has to be at a complete standstill and be switched off as well as disconnected from the power. Otherwise, there is the risk of injury.

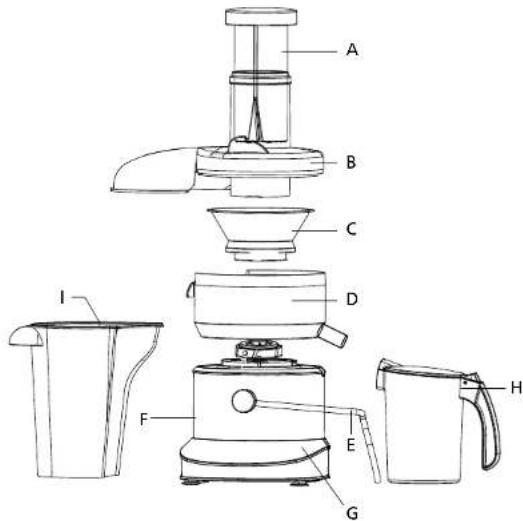

▲ APPLIANCE DESCRIPTION

GB

Technical diagram of a coffee maker with labeled parts including blender, filter, and blender cup

A Tamper
B Cover with funnel
C Sieve with grating blades
D Juicer bowl
E Clasp
F Motor unit
G Control panel

Accessories:

H Juice jug with foam separator (removable) and hinged lid

I Pomace container

Line drawing of a simple electric juice maker with handle and spout (no text or symbols)

▲ THE FUNCTION BUTTONS AND THE DISPLAY

HARD VEG HARD FRUIT MED FRUIT SOFT VEG SOFT FRUIT ON OFF ±

BUTTON

• for switching the appliance on and off

Once you have connected the appliance to the power, the ⏻ button lights up permanently. The other illuminated buttons are not yet lit up.

If you touch the ⏻ button, the other buttons light up as well. You can now operate the +/- and the ON/OFF button.

If you want to switch the appliance off after juicing, touch the ⏻ button again. All illuminated buttons apart from the ⏻ button go out.

+/- BUTTON

• for setting the juicing power / speed;

5 eligible settings:

5 HARD VEG for hard vegetables
4 HARD FRUIT for hard fruits
3 MED FRUIT for medium-hard fruits
2 SOFT VEG for soft vegetables
1 SOFT FRUIT for soft fruits

ON/OFF BUTTON

- For starting resp. stopping the rotation / juicing process

Once you have selected the juicing power with the +/- button, touch the ON/OFF button and the appliance starts rotating resp. juicing.

If you want to stop or interrupt the juicing process, touch the ON/OFF button again to stop the rotation.

Note: All function buttons are touch-sensitive sensor buttons and only have to be gently touched to be activated.

DISPLAY

- Displays the 5 possible settings and the number indicating the currently selected setting.

▲ ASSEMBLING THE JUICER

STEP 1:

- Place the motor unit on a dry, stable, moisture resistant and level work surface with a power socket nearby. The clasp should be placed on the side with the spout recess.

GB

STEP 2:

- Place the juicer bowl on the motor unit. The spout of the juicer bowl has to be placed in the corresponding recess in the motor unit.

STEP 3:

- Place the sieve in the juicer bowl. Firmly press down on the edge of the sieve to make it audibly lock into place in the juicer bowl. Caution: Never touch the grinding blades in the sieve, only touch the sieve by the raised edge! The grinding blades are sharp, risk of injury!

STEP 4:

- Place the cover with the funnel on the juicer bowl. The cover for the pomace container should be directed in the direction opposite from the spout. The cover should completely glide into the juicer bowl, the pomace container cover is placed exactly above the bulge of the bowl.

Line drawing of a multi-tiered coffee maker with a handle and spout (no text or symbols)

STEP 5:

- Push the clasp up and over the cover so that it audibly locks into place.

STEP 6:

- Place the pomace container under the designated cover, so that it touches the motor unit and the pomace container is fully covered by the cover. Tip: To simplify the cleaning of the pomace container, you can line it with a thin plastic bag.

Line drawing of a simple electric shaver with lid and side arm (no text or symbols)

STEP 7:

- When you start using the appliance and fill the vegetables / the fruits into the funnel on the top, use the tamper to slowly push the vegetables resp. the fruits downwards. Only use the tamper to push down on the vegetables / the fruits. Never insert any other objects or your hand into the funnel!

Line drawing of a juice maker with handle and spout (no text or symbols)

▲ DISASSEMBLING THE JUICER

STEP 1:

• Pull the pomace container out of the appliance. Remove the juice jug.

STEP 2:

- Open the clasp by folding it over the retinency and down to the right.

STEP 3:

• Lift the juicer cover with the tamper off the juicer bowl.

STEP 4:

- Lift the juicer bowl together with the inlying sieve off the motor unit. When lifting both parts off together, you avoid injuring yourself with the sharp sieve. To do that, firmly yank the juicer bowl up to separate it from the motor unit. After that, you can turn the juicer bowl upside down so that the sieve falls out. Alternatively, you can first remove the sieve from the juicer bowl by firmly pulling it up and out. When doing this, you must only hold the sieve by the upper edge, as the grinding blades in the sieve are extremely sharp and must never be touched! Then, the juicer bowl can be easily lifted off the motor unit.

▲ BEFORE FIRST USE

• Before using your juicer for the first time, remove all potential advertisement stickers and labels (except for the type plate).
  Take the appliance apart as described in the section "Disassembling the juicer" (see page 68).
• Rinse all juicer parts except the motor unit with warm (not above 50 °C) water and some detergent. Please be very careful not to injure yourself with the sharp grinding blades in the sieve. For the sieve, best use a dish scrubber. Dry all parts carefully.
• Wipe the motor unit clean with a soft, slightly moist towel.
• When all parts are completely clean, assemble the juicer as described in the section "Assembling the juicer" (see page 66).

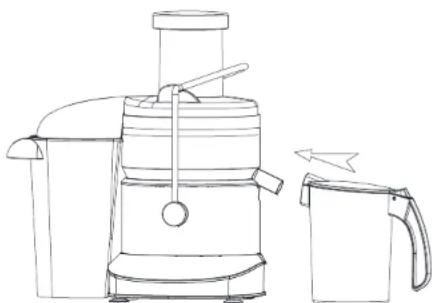

▲ USING THE JUICER

1. Place the cleaned and dry appliance, fully assembled, on a dry, stable, level and moisture resistant work surface.
2. Place the pomace container under the designated cover, so that it touches the motor unit and the cover fully covers the pomace container.
3. Place the juice jug in such a way, that the juicer spout protrudes into the spout on the juice jug.

Line drawing of a juice<|im_start|> Greenland tea maker and its water tap (no text or symbols)

1. Wash the vegetables or the fruits and peel the fruits or the vegetables with inedible or very thick skins (e.g. oranges). Remove large pips and stones from the stone fruit (e.g. peaches, nectarines, mangos, apricots, cherries, plums etc.), otherwise, the appliance might be damaged. You can leave the pips in fruits with small pips, like water melons, grapes or apples.
2. Cut the fruits or the vegetables into suitably small pieces, so that they fit into the funnel.
3. Plug the power plug into a suitable power outlet, the ⏻ button lights up. All other illuminated buttons are not yet lit. Touch the ⏻ button and the other two buttons as well as the display light up also.
4. The standard setting "3" flashes in the display, the arrow in front of the setting indicates the selected speed.
5. Use the +/- button to choose the desired speed:

5 HARD VEG for hard vegetables like e.g. fennel, carrots etc.
- 4 HARD FRUIT for hard fruits like e.g. apples, pears etc.
- 3 MED FRUIT for medium-hard fruits like e.g. plums
- 2 SOFT VEG for soft vegetables like e.g. cucumbers, tomatoes etc.
- 1 SOFT FRUIT for soft fruits like e.g. peaches, grapes etc.

• Tip: You should choose a lower speed (1 resp. 2) for vegetables and fruits with high water content.
• If the number of the correct speed lights up in the display, touch the ON/OFF button. The appliance starts up. The number of the selected speed lights up constantly in the display.
• Fill the funnel with the fruits / the vegetables and slowly push them down the funnel with the tamper. To extract as much juice as possible, it is important to push the tamper down very slowly.
• Caution: Only use the tamper to move foods down the funnel. Never reach into the funnel with any other objects or your hands. Risk of appliance damage and injuries! Never remove potential blockades with your hand or other kitchen tools! To remove blockades, always switch the appliance off first, pull the power plug and wait for the appliance to come to a complete standstill.
• The juice now runs into the juice jug, the pulp is expelled into the pomace container.
• As soon as the juice jug or the pomace container are full, switch the appliance off with the ON/OFF button, wait for the appliance to come to a standstill and remove the juice jug resp. the pomace container and empty out both vessels.
• If you do not wish to use the appliance any further, first switch it off with the ON/OFF button and wait for the appliance to come to a complete standstill. Now touch the ⏻ button, all other illuminated buttons apart from the ⏻ button itself go out. Then, pull the power plug.
• After using it, disassemble the appliance and clean it as described in the section "Cleaning and Maintenance" (see page 73).

Caution: Never use the appliance while empty, meaning without foods in the funnel.

Should you have used the appliance for 30 seconds, you should always take a break of 30 seconds to prevent the motor from overheating.

Important notes:

• Always remove hard skins as well as stones and large pips before juicing.
- Fruits and vegetables can be put into the funnel with some small leaves attached. However, larger leaves and stalks have to be removed beforehand.
- Very soft fruits like bananas or figs can not be put into the juicer. The pulp would jam up the appliance and cause motor damage.
- Do not process any frozen vegetables or fruits – this could damage the appliance.
• Never let the appliance run idly!

▲ CLEANING AND MAINTENANCE

• The appliance should be cleaned after every use.
- Before cleaning the juicer first switch the appliance off with the ON/OFF button and wait for it to come to a standstill. Then, touch the ⏻ button as well and pull the power plug.
- Remove the juice jug and the pomace container from the appliance.
- Disassemble the appliance as described. We recommend pulling the sieve out of the appliance together with the juicer bowl and then turning the juicer bowl upside down to remove the sieve. Like this, you avoid coming into contact with the grating blades.
Should you pull the sieve out separately, you must only touch the sieve by the upper edge, so that you do not touch the grating blades. Caution: The grating blades are very sharp!
- All removable parts can be cleaned in water. The motor unit on the other hand must never be submerged in water! After that, dry all parts carefully. The black plastic part on the juicer bowl can not be removed.
- You can clean the removable parts in warm (not above 50°) dish water with a sponge resp. clean the sieve with a dish scrubber.
- Clean the motor unit with a slightly moist towel and some mild detergent.
• Make sure that all parts are completely dry before reassembling the appliance.
- In general, do not use any aggressive or scouring detergents or metal sponges, as these might damage the surface.

▲ STORAGE

• Check, if the appliance is disconnected from the power and clean and dry.
• Best store the appliance fully assembled and in an upright position in a dry, dark space, best in the original packaging. Do not place anything on the appliance.
  • Always keep the appliance and the power cord out of the reach of children.

▲ TECHNICAL SPECIFICATIONS

Model no. FB-818FA TOUCH, Type 8449

Product description High speed juicer

Voltage/Frequency 220–240 V\~ / 50 Hz

Output 800 Watts

Rotation 9000–16000 rpm

Specifications

approx. 49.0 × 39.5 × 24.0 cm

(W (incl. pomace container and juice jug) × H × D)

Weight approx. 4.08 kg

Technical changes reserved.

▲ DISPOSAL

EU 2012/19/EU

Information for correct disposal of the product in accordance with the European Directive EU 2012/19/EU.

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time.

SOLIS HELPLINE

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require. The contact addresses can be found at the end of this manual.

Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.

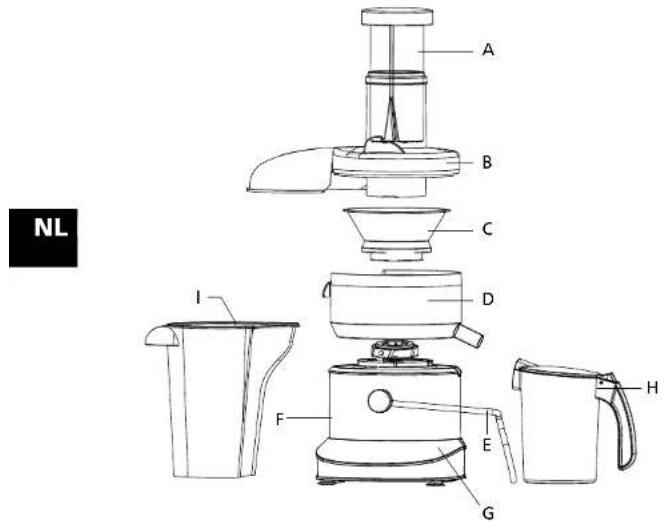

▲ APPARAATBESCHRIJVING

NL A B C D I F E G H

Line drawing of a coffee maker with handle and spout (no text or symbols)

▲ DE FUNCTIEKNOPPEN EN HET DISPLAY

HARD VEG HARD FRUIT MED FRUIT SOFT VEG SOFT FRUIT ON OFF ±

-KNOP

Line drawing of a multi-tiered coffee maker with a downward arrow indicating compression (no text or symbols)

STAP 5:

Line drawing of a simple electric shaver with lid and handle (no text or symbols)

STAP 7:

Line drawing of a juice maker with handle and spout (no text or symbols)

▲ DE SAPCENTRIFUGE DEMONTEREN

STAP 1:

Line drawing of a pair of juice jacks, one with handle and one with lid, shown without any text or symbols.

ca. 49,0 × 39,5 × 24,0 cm

▲ Solis customer service

Please contact us in advance of sending in products for return or repair. We will gladly give you the respective address. Alternatively, you can simply visit www.solis.com.

▲ Solis Klantendienst Helpline

Address for return shipment of

goods differs – please refer to:

Address for return shipment of

goods differs – please refer to

www.solis.com

+41 - 91 - 802 90 10

[e-mail]

www.solis.com
