USER MANUAL VS08GP1269 SIEMENS

Instructions for use

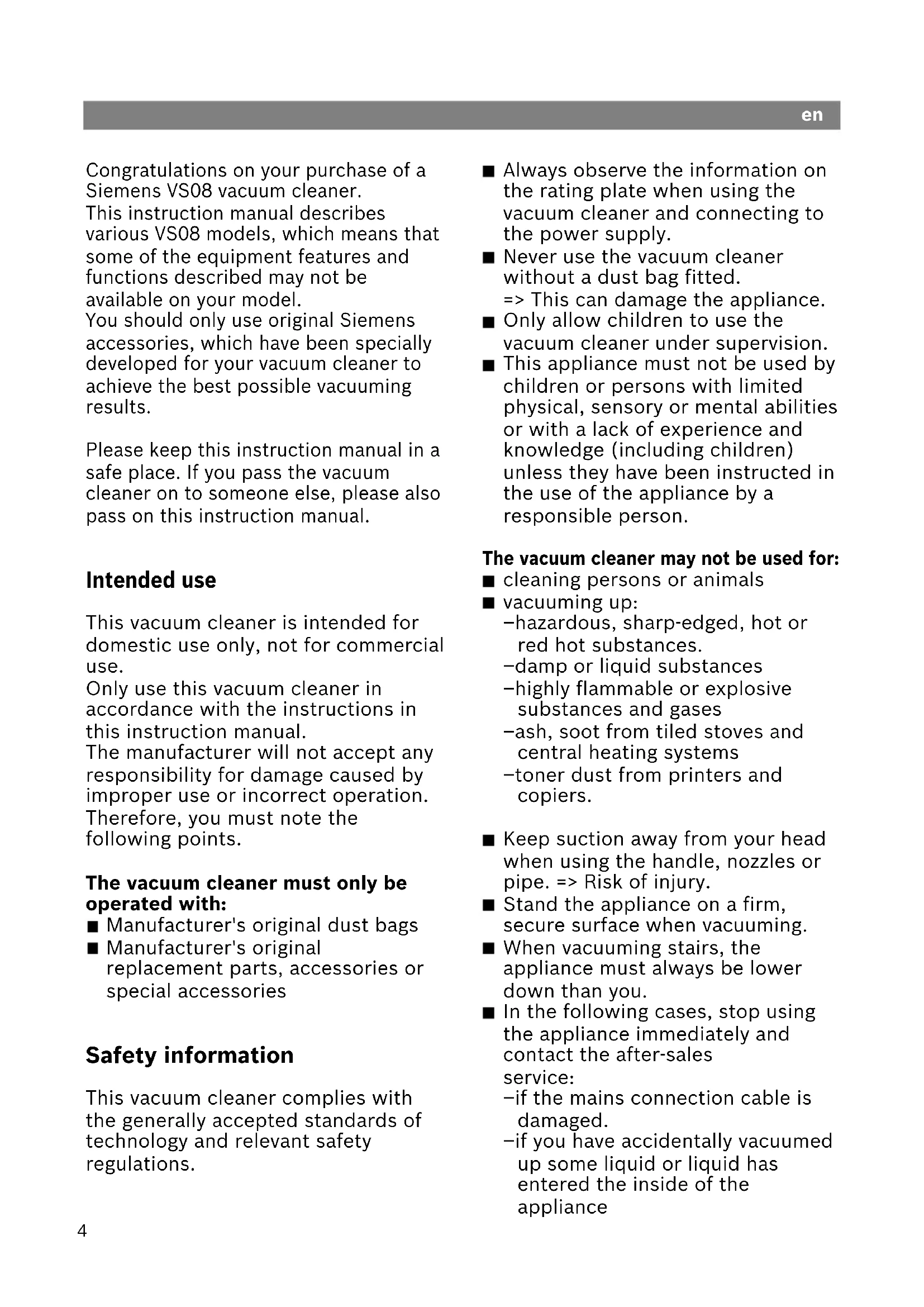

Congratulations on your purchase of a Siemens VS08 vacuum cleaner. This instruction manual describes various VS08 models, which means that some of the equipment features and functions described may not be available on your model. You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation.

Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■ Never use the vacuum cleaner without a dust bag fitted. => This can damage the appliance.
■ Only allow children to use the vacuum cleaner under supervision.
■ This appliance must not be used by children or persons with limited physical, sensory or mental abilities or with a lack of experience and knowledge (including children) unless they have been instructed in the use of the appliance by a responsible person.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:
-hazardous, sharp-edged, hot or red hot substances.
-damp or liquid substances
-highly flammable or explosive substances and gases
-ash, soot from tiled stoves and central heating systems
-toner dust from printers and copiers.

• Keep suction away from your head when using the handle, nozzles or pipe. => Risk of injury.
  ■ Stand the appliance on a firm, secure surface when vacuuming.
  ■ When vacuuming stairs, the appliance must always be lower down than you.
  ■ In the following cases, stop using the appliance immediately and contact the after-sales service:
  -if the mains connection cable is damaged.
  -if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance

-if the appliance has been dropped.

■ Do not use the power cord to carry the vacuum cleaner.

■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.

■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.

■ Do not pull the power cord around sharp corners or allow it to become trapped.

■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.

■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.

■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.

■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.

■ The vacuum cleaner is not suitable for use on building sites. =>Vacuuming up building rubble could damage the appliance.

■ Switch off the appliance when it is not in use.

■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.

■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).

■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials.

As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse. If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

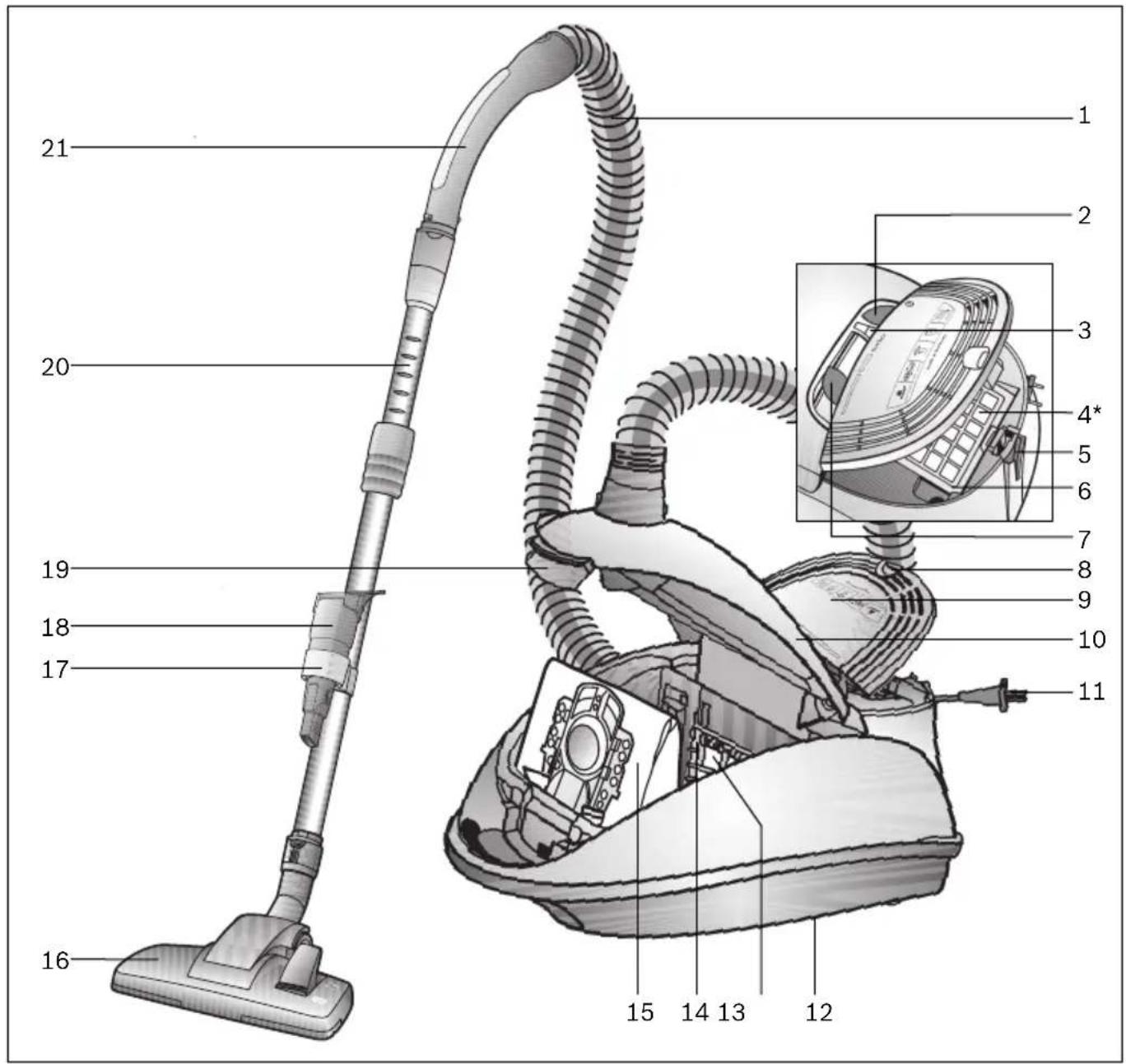

Labeled diagram of a vacuum cleaner with numbered parts for identification

1 Suction hose
2 ON/OFF button
3 Change filter indicator
4 Exhaust filter*
5 Parking aid
6 Frame for exhaust filter
7 Suction adjustment
8 Exhaust grille latch
9 Exhaust grille
10 Dust compartment cover
11 Power cord
12 Parking aid (on unit underside)

13 Motor protection filter
14 Filter bracket
15 dust bag
16 Adjustable floor tool* with locking collar
17 Accessory holder
18 Combination tool
19 Dust compartment handle
20 Telescopic tube with adjusting sleeve and unlatching sleeve
21 Hose handle

*Depending on equipment level

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

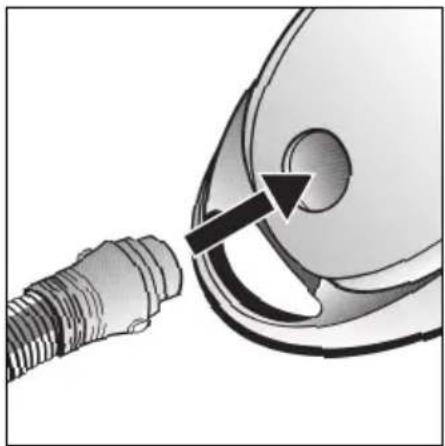

Insert the suction hose connector into the suction opening until it engages.

Diagram showing a mechanical component being inserted into a device (no text or symbols present)

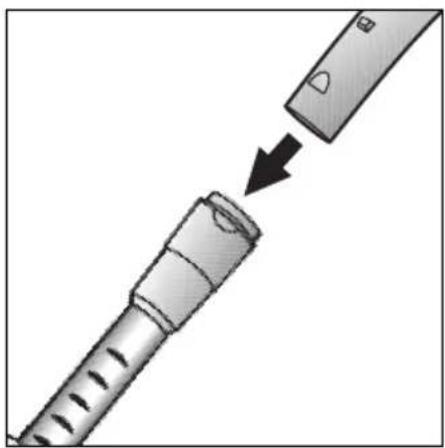

Push the handle into the telescopic tube until it engages.

Illustration of a vacuum cleaner's handle with a downward arrow indicating insertion (no text or symbols present)

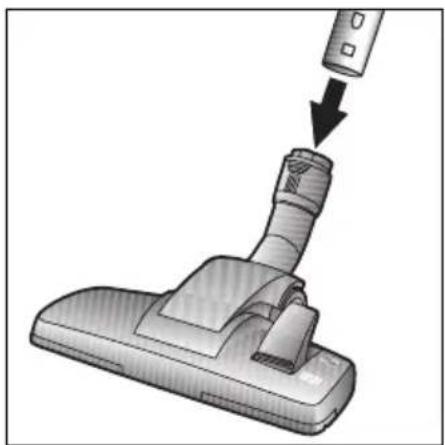

Push the telescopic tube into the connecting piece of the floor nozzle until it engages.

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Press the adjusting sleeve in the direction of the arrow and adjust the telescopic tube to the length required.

CLICK!

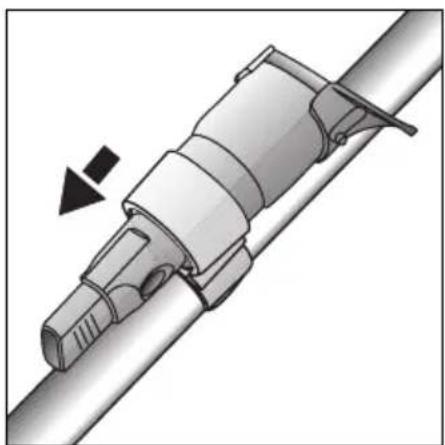

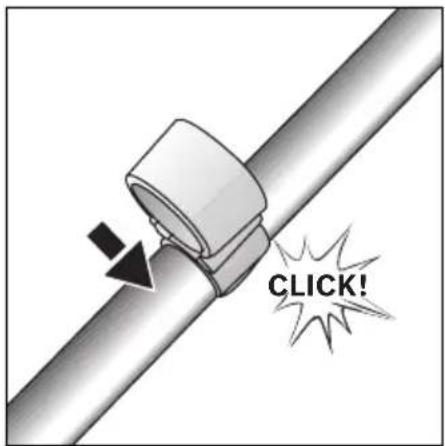

Fasten the accessory holder to the suction pipe and insert the combination tool from above.

Mechanical component diagram showing a cylindrical assembly with a pointed tip and a black arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

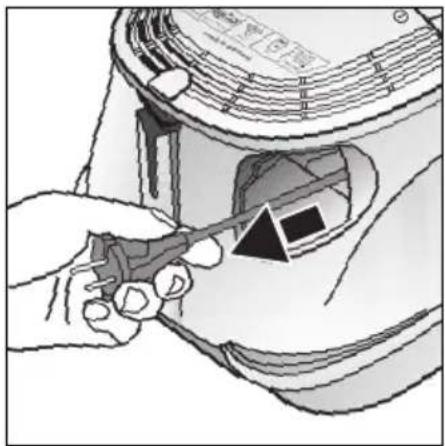

Take the mains plug, pull the mains cable to the required length and insert the plug in a wall socket.

turbo

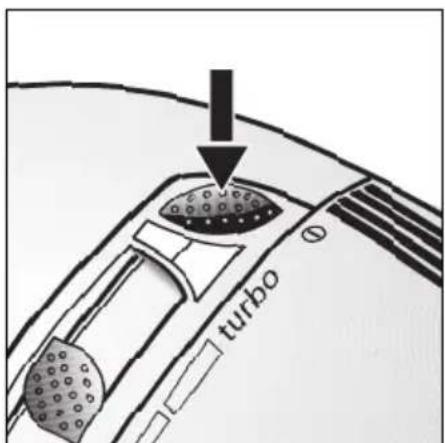

To switch your vacuum cleaner on and off, press the On/Off key in the direction of the arrow.

min max

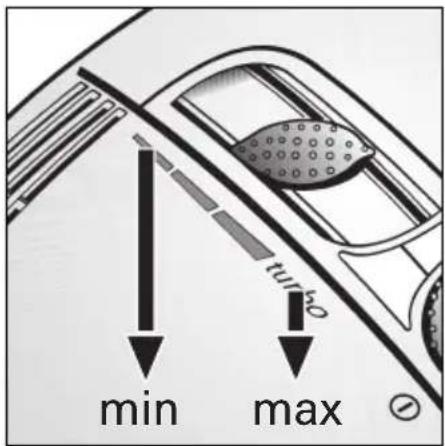

You have bought an extremely powerful device. The highest suction setting is therefore only recommended for heavily soiled, durable carpeted and hard floors.

Use the suction adjuster to infinitely adjust the suction to the required level.

■ Low suction range: turbo

For vacuuming delicate fabrics, e.g. curtains.

■ Moderate suction range:

For cleaning carpets and when there is little dirt.

■ High suction range: turbo

For vacuuming durable floor coverings, hard floors and for heavily soiled surfaces.

■ Turbo range: turbo

For vacuuming stubborn dirt and very heavily soiled surfaces.

Diagram showing two identical vacuum cleaner components with downward arrows indicating motion, separated by a diagonal line (no text or symbols)

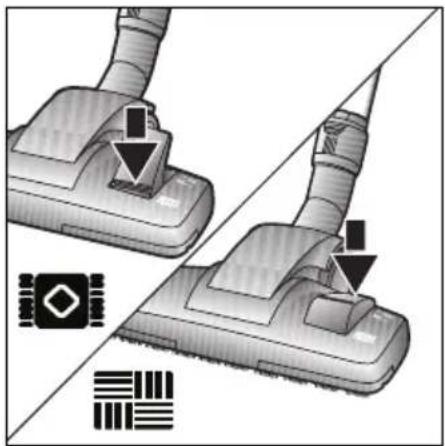

Adjusting the floor nozzle:

■ For cleaning rugs and carpets =>

■ For cleaning hard floors =>

Mechanical component diagram showing a tool interacting with a rod (no text or symbols visible)

Vacuuming with accessories

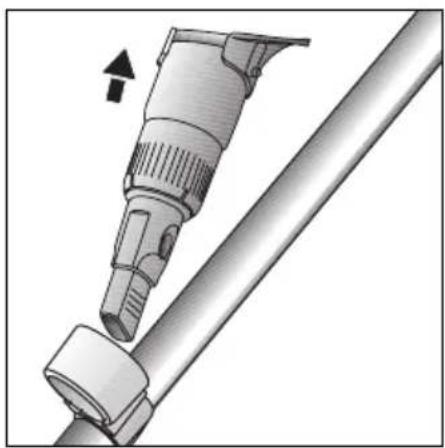

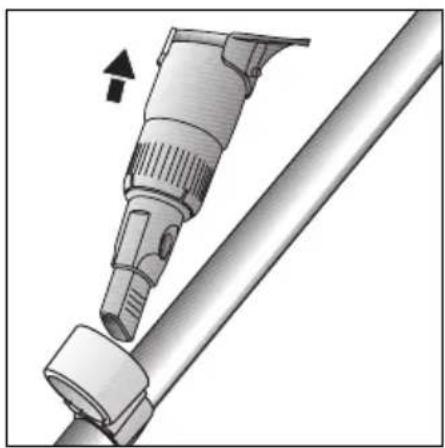

Remove the combination tool upwards out of the accessory holder.

a CLICK! CLICK!

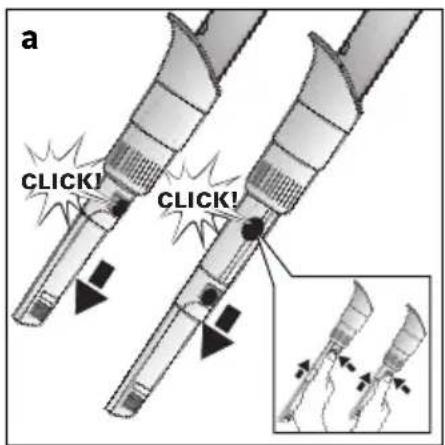

a) Crevice nozzle

For vacuuming in crevices and corners.

For difficult-to-reach places, the combination tool can be extended in two stages by pulling out the crevice nozzle like a telescope.

■ Pull out the crevice nozzle in two stages until it audibly clicks into place.

■ The crevice nozzle can be pushed back together by releasing the telescopic locks (press in the direction of the arrow).

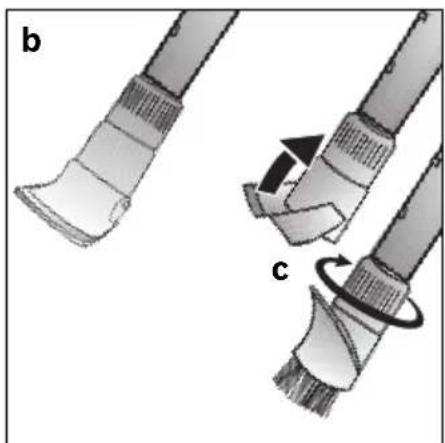

b) Upholstery nozzle

For cleaning upholstered furniture, curtains, etc.

c) Hard furnishings brush

For window frames, cabinets, profiles, etc.

■ Fold up the upholstery nozzle in the direction of the arrow.

■ The brush ring is extended by turning in the direction of the arrow.

■ The brush ring must be turned back in and the upholstery nozzle folded back up before the combination tool is inserted into the accessory holder.

Illustration of two medical or surgical tools labeled 'b' and 'c', showing different tool designs (no text or symbols present)

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and handle assembly (no text or symbols)

When you stop cleaning for a moment, you can use the parking aid at the back of the vacuum cleaner.

Slide the plastic lug on the nozzle connector into the groove at the back of the vacuum cleaner.

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

■ Switch the vacuum cleaner off and unplug the power cord from the mains.
■ Tug the power cord and let go. The cable then rewinds automatically.
■ To reactivate or deactivate the cable brake, quickly tug the power cord.

Illustration of a vacuum cleaner with control panel and mechanical components (no text or symbols)

Technical diagram of a mechanical device with a valve and handle, showing no text or symbols

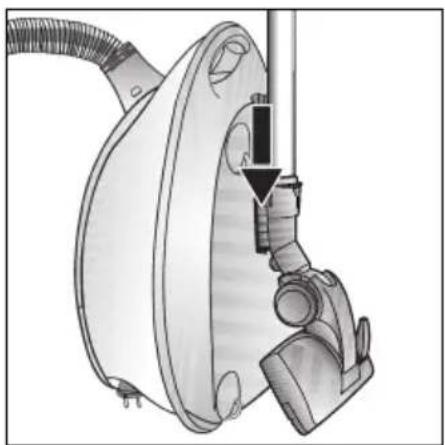

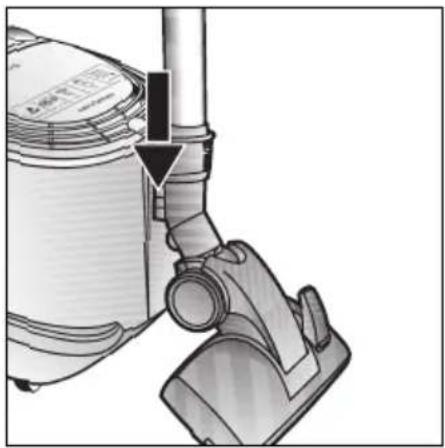

To store or transport the vacuum cleaner, you can use the parking aid on the cleaner's underside. Place the vacuum cleaner upright.

Slide the plastic lug on the floor nozzle into the groove no the unit underside.

Mechanical diagram showing a threaded pipe connected to a circular component with directional arrows (no text or symbols)

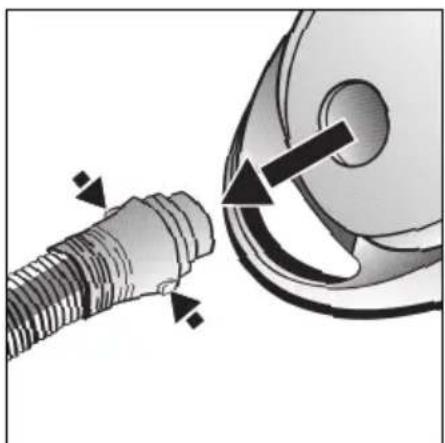

To remove the suction hose, press the two lugs together and pull the hose out.

Diagram showing a device being processed with arrows indicating process flow (no text or symbols present)

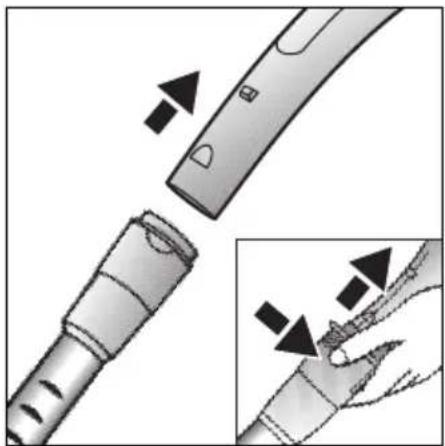

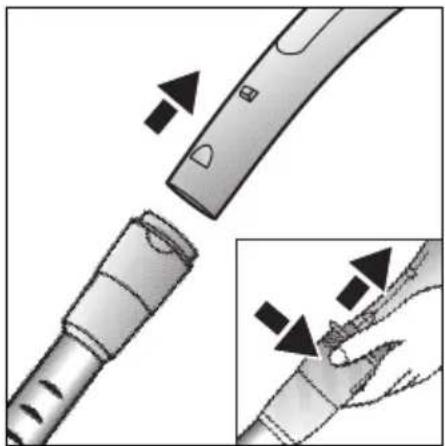

To release the connection, press the unlatching sleeve and pull the handle out.

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

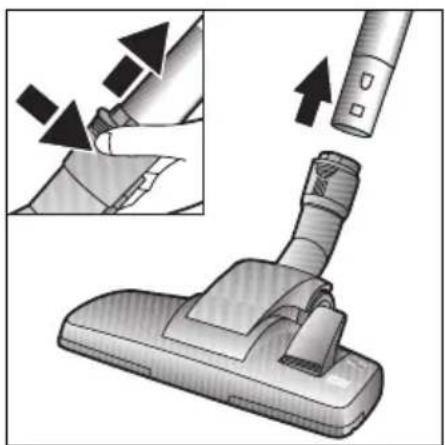

To release the connection, press the unlatching sleeve and pull the telescopic tube out.

Illustration of a hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols)

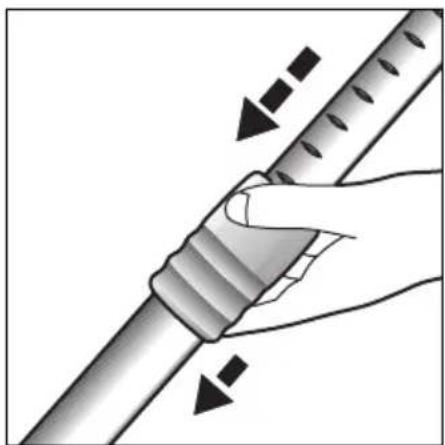

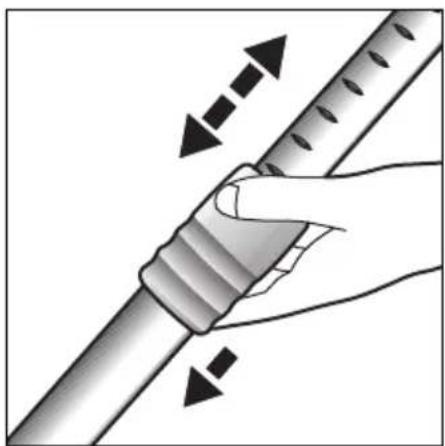

To adjust the length of the telescopic tube, press the adjusting sleeve in the direction of the arrow and adjust the tube to the required length.

turbo

Replacing the dust bag

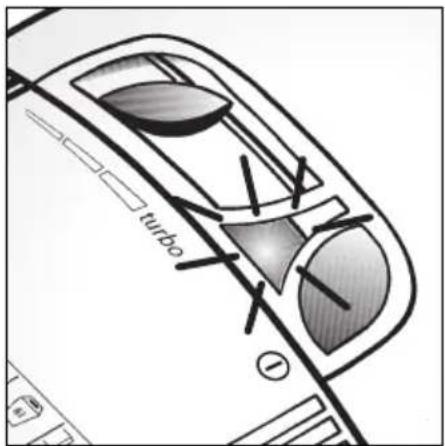

If the dust bag change indicator lights up brightly and uniformly when the nozzle is lifted from the floor and the vacuum is on its highest setting, you should change the dust bag, even if it is not yet full. In this case it is essential to change the dust bag due to the type of material it contains.

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

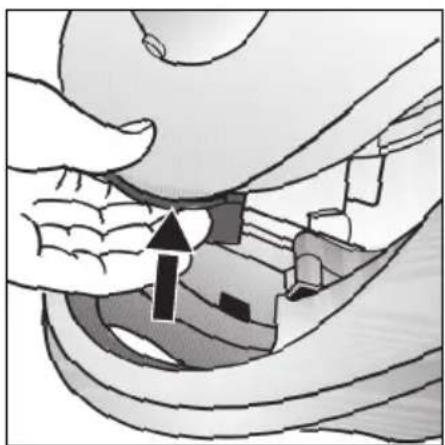

Turn the dust compartment locking lever in the direction of the arrow to open the dust compartment cover.

Diagram of a mechanical component inside a vehicle, showing internal parts and an upward arrow (no text or symbols)

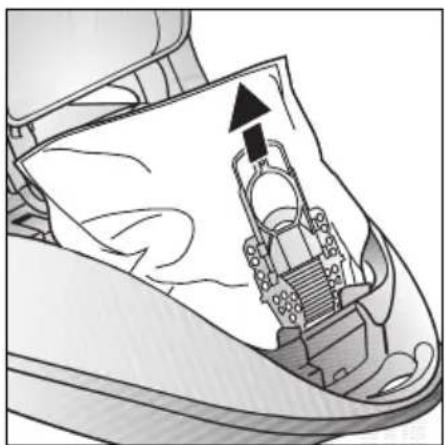

Seal the dust bag by pulling the sealing strip and then remove it.

For increased uptake of dust, even if the dust bag is already part-full, we recommend the use of replacement filter type VZ41AFP.

Mechanical component diagram showing a motor assembly with a paper label and directional arrow (no text or symbols present)

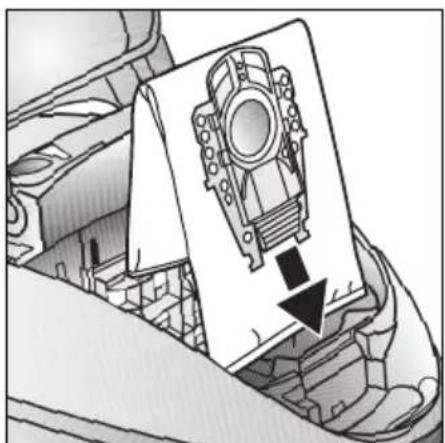

Place a new dust bag in the holder and close the dust bag compartment cover.

! Caution: The dust bag compartment cover will only close when the dust bag, textile filter or dust collector has been inserted.
If the dust bag change indicator continues to light up after the dust bag has been changed, please check whether the nozzle, pipe or vacuum hose are obstructed.

Diagram illustrating three steps of cleaning a food container: adding a tray, removing seeds, and pouring into a bucket with a recycling symbol.

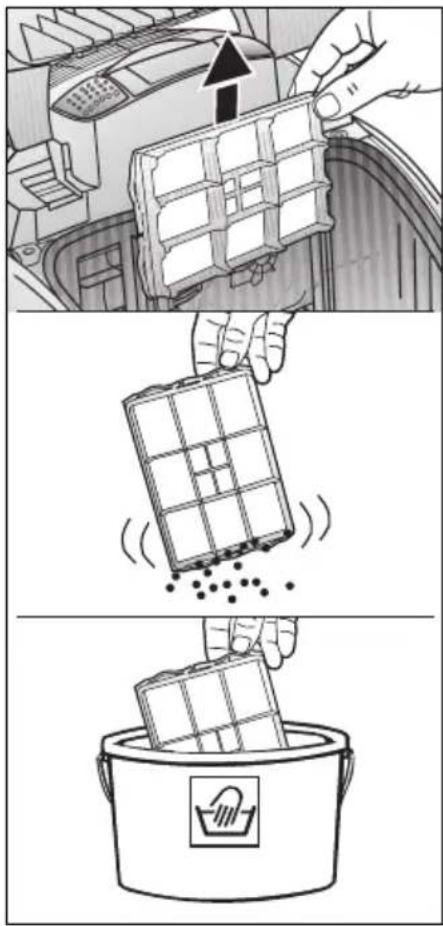

Cleaning the motor protection filter

The motor protection filter should be cleaned at regular intervals by tapping it or washing it out.

■ Open the dust compartment cover.
■ Remove the motor protection filter in the direction of the arrow.
■ Empty the motor protection filter by tapping it.
■ If the motor protection filter is very dirty, wash it out.
Leave the filter to dry for at least 24 hours.
■ After cleaning, insert the motor protection filter into the appliance until it engages and close the dust bag compartment lid.

Diagram of a hand placing a component into a car interior with a mesh grille (no text or symbols)

Replacing the HEPA filter

The HEPA filter should be replaced once a year.

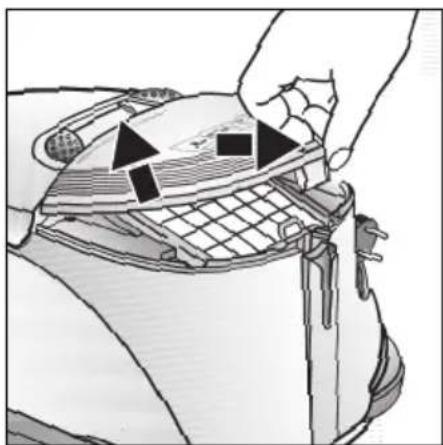

Press the locking tab in the direction of the arrow to unlatch the exhaust grille and open it.

Illustration of a hand opening a small box with checkered pattern, showing internal components and arrows indicating movement (no text or symbols)

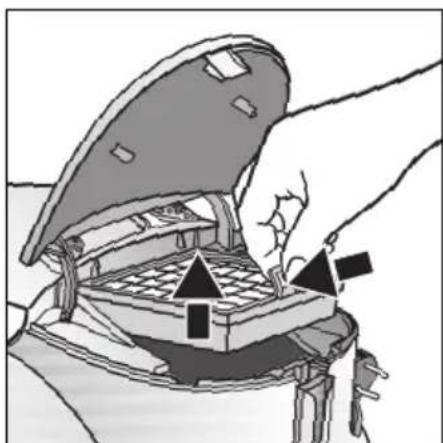

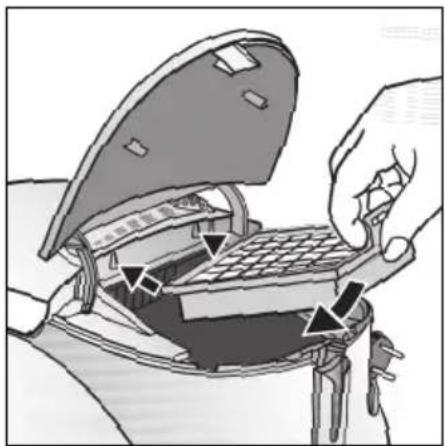

Release the Hepa filter by moving the locking lever in the direction of the arrow and remove it from the vacuum cleaner.

Diagram showing hands inserting a device into a container with labeled parts and arrows indicating flow or movement.

Insert the new Hepa filter and clip into place.

Close the exhaust grille.

If you have used the vacuum cleaner for fine dust particles (such as plaster or cement), clean the motor protection filter by tapping it and, if necessary, replace the motor protection filter and the micro-hygiene filter.

Care

en

■ Always switch the vacuum cleaner off and disconnect the power cord from the mains before cleaning the vacuum cleaner.
■ The vacuum cleaner and plastic accessories can be cleaned with a commercial plasticcleaner.

Do not use abrasive, glass or all-purpose cleaners.

Never immerse the vacuum cleaner in water.

■ The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical changes.

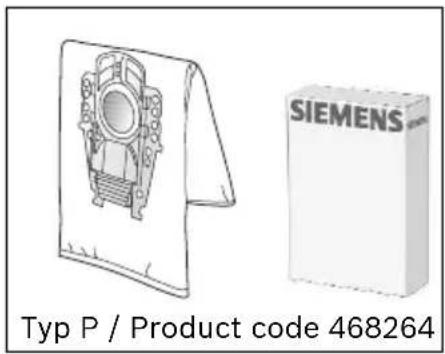

SIEMENS Typ P / Product code 468264

Replacement filter pack VZ41AFP

Contains:

4 dust bags self sealing bags

1 Microsan exhaust filter

http://www.dust-bag-siemens.com

Line drawing of a rectangular solar panel with grid layout and mounting bracket (no text or symbols)

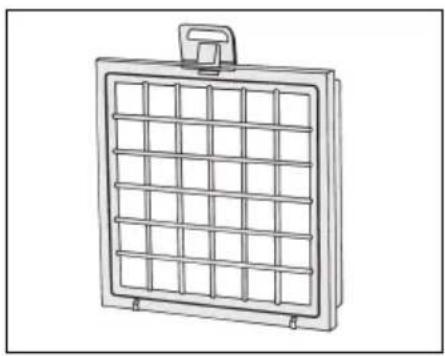

HEPA filter (Class H12) VZ151HFB

Recommended for allergy sufferers.

Ensures very clean exhaust air.

Replace once a year.

Illustration of a mechanical component with a handle and central knob (no text or symbols)

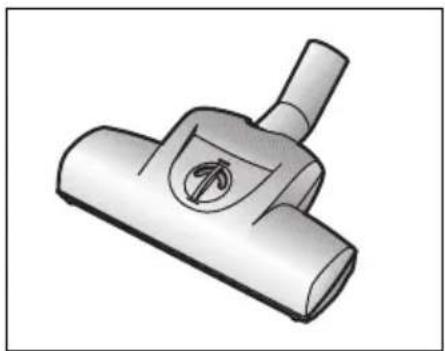

TURBO-UNIVERSAL® brush VZ102TBB

All-in-one brushing and vacuum cleaning of shallow-pile rugs and carpets and for all hard floor coverings. Especially suitable for removing animal hair. The brush roll is driven by the suction air flow. No separate

electrical connection is needed.

3D illustration of a mechanical lever or pivot device with a handle and base (no text or symbols)

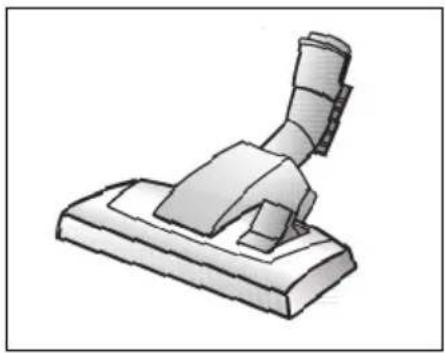

Floor nozzle VZ082BD

Adjustable floor nozzle, suitable for carpets and hard floors.

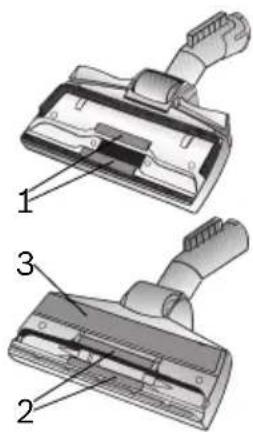

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3

String remover (1/2) and polishing attachment (3) are available from customer services.

String remover (1): Product code 188565 String remover (2): Product code 184773 Polishing attachment (3): Product code 482209

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the process (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with a pointed tip and directional arrow (no text or symbols)

Illustration of hands using a tool to adjust or install a component inside a device (no text or symbols visible)

Diagram showing two identical vacuum cleaner components with downward arrows indicating force or movement, separated by a diagonal line (no text or symbols present)

Mechanical component diagram showing a tool inserted into a pipe with an arrow indicating direction (no text or symbols present)

Diagram showing two mechanical components labeled 'b' and 'c', with arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and handle assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Diagram of a vacuum cleaner with labeled control panel and directional arrow indicating operation

Technical illustration of a mechanical device with a valve and handle (no text or symbols)

Mechanical diagram showing a threaded connector interacting with a mechanical component (no text or symbols)

Diagram showing a device being processed with arrows indicating process steps (no text or symbols present)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a curved object with an arrow indicating motion (no text or symbols present)

Diagram of a mechanical component inside a vehicle, showing internal parts and an upward arrow (no text or symbols)

Mechanical component diagram showing a motor assembly with a paper feed and directional arrow (no text or symbols)

Diagram illustrating three steps of cleaning a food container: adding a tray, removing seeds, and pouring into a bucket with a recycling symbol.

Diagram of a hand placing a meshed object onto a car surface, with no visible text or symbols.

Illustration of a hand opening a small box with a grid pattern inside, no text or symbols present

Illustration of hands inserting a device into a container with a grid-patterned box (no text or symbols)

Line drawing of a rectangular solar panel with grid layout and mounting bracket (no text or symbols)

Filtre HEPA (classe H12) VZ151HFB

Illustration of a handheld industrial tool or valve component (no text or symbols visible)

Brosse UNIVERSELLE TURBO® VZ102TBB

Illustration of a mechanical lever or pivot device with a handle and base (no text or symbols)

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating insertion (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with a pointed tip and a black arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram showing two identical vacuum cleaner components with downward arrows indicating motion, separated by a diagonal line (no text or symbols)

Vloermondstuk instellen:

Mechanical component with a pointed tool inserted into a cylindrical shaft (no text or symbols visible)

Diagram showing two mechanical components labeled 'b' and 'c', with arrows indicating motion or rotation (no text or symbols present)

Diagram of a vacuum cleaner's internal structure, showing nozzle and handle assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Illustration of a vacuum cleaner with control panel and mechanical components (no text or symbols)

Technical diagram of a mechanical device with a valve and handle, showing no text or symbols

Mechanical component diagram showing a threaded connector and a circular housing with directional arrows (no text or symbols)

Illustration of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component inside a vehicle, showing internal parts and an upward arrow (no text or symbols)

Mechanical component diagram showing a motor assembly with a paper label and directional arrow (no text or symbols present)

Diagram illustrating three steps of cleaning a food container: adding a tray, pouring contents into a bucket with a recycling symbol.

Motorbeveiligingsfilter schoonmaken

Diagram of a hand placing a component into a car interior with a mesh grille (no text or symbols)

Hepa-filter vervangen\*

Illustration of a hand opening a small box with a checkered pattern, showing internal components (no text or symbols)

Diagram showing hands inserting a device into a container with labeled parts and arrows indicating flow or movement.

Line drawing of a rectangular solar panel with grid layout and top handle (no text or symbols)

HEPA-filter (Klasse H12) VZ151HFB

Illustration of a mechanical component with a handle and central knob (no text or symbols)

TURBO-UNIVERSAL®-borstel VZ102TBB

Illustration of a mechanical lever or pivot device with a handle and base (no text or symbols)

Vloermondstuk VZ082BD

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the process (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with a pointed tip and a black arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram showing two identical vacuum cleaner components with downward arrows indicating force or movement, separated by a diagonal line (no text or symbols)

Mechanical component diagram showing a tool inserted into a pipe with an arrow indicating direction (no text or symbols present)

Diagram showing two mechanical components labeled 'b' and 'c', with arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and handle assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Diagram of a vacuum cleaner with labeled control panel and directional arrow indicating airflow or movement

Technical illustration of a mechanical device with a valve and handle (no text or symbols)

Mechanical diagram showing a threaded connector inserted into a circular component with directional arrows (no text or symbols)

Diagram showing a device being processed with arrows indicating process steps (no text or symbols present)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols)

Medical illustration showing a hand performing a procedure on a patient's abdomen (no text or labels present)

Diagram of a mechanical component inside a vehicle, showing internal parts and an upward arrow (no text or symbols)

Mechanical component diagram showing a motor assembly with a paper label and directional arrow (no text or symbols present)

Diagram illustrating three steps of cleaning a food container: adding a tray, removing seeds, and pouring into a bucket with a recycling symbol.

Illustration of a hand placing a meshed object onto a car surface, with no visible text or symbols.

Illustration of a hand opening a box with a checkered pattern inside, showing internal components (no text or symbols)

Line drawing of a rectangular solar panel with grid layout and mounting bracket (no text or symbols)

Filtro HEPA (classe H12) VZ151HFB

Illustration of a handheld industrial tool or valve component (no text or symbols visible)

Spazzola TURBO-UNIVERSAL®VZ102TBB

Illustration of a mechanical lever or pivot device with a handle and base (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating insertion (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with a pointed tip and a black arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram showing two identical vacuum cleaner footshells with downward arrows indicating force or movement, separated by a diagonal line (no text or symbols)

Ajustar la boquilla universal:

Mechanical component diagram showing a tool inserted into a pipe with an arrow indicating direction (no text or symbols present)

Diagram showing two mechanical components labeled 'b' and 'c', with arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and valve assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Illustration of a vacuum cleaner's air purifier with control panel and mechanical components (no text or symbols)

Technical illustration of a mechanical device with a valve and handle (no text or symbols)

Mechanical diagram showing a threaded pipe connected to a circular component with directional arrows (no text or symbols)

Illustration of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component inside a vehicle, showing internal parts and an upward arrow (no text or symbols)

Mechanical component diagram showing a motor assembly with a paper label and directional arrow (no text or symbols present)

Diagram illustrating three steps of cleaning a food container: adding granular material, pouring into a bucket with a recycling symbol.

Diagram of a hand placing a mesh component into a car interior (no text or symbols visible)

Illustration of a hand opening a small electronic device with a grid-patterned case (no text or symbols visible)

Illustration of hands inserting a device into a container with a grid-patterned box (no text or symbols visible)

Line drawing of a rectangular solar panel with grid layout and mounting bracket (no text or symbols)

Filtro HEPA (clase H12) VZ151HFB

Illustration of a mechanical component with a handle and central knob (no text or symbols)

Cepillo TURBO-UNIVERSAL® VZ102TBB

Illustration of a mechanical lever or clamp device (no text or symbols visible)

Boquilla universal VZ082BD

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

■ Original filterpose

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the process (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with a pointed tip and directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a component inside a device (no text or symbols visible)

Diagram showing two identical vacuum cleaner components with downward arrows indicating force or movement, separated by a diagonal line (no text or symbols)

Mechanical component diagram showing a tool inserted into a pipe with an arrow indicating direction (no text or symbols present)

Diagram showing two types of medical or surgical tools labeled 'b' and 'c', with arrows indicating rotation or movement (no text or symbols beyond labels)

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and handle assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Diagram of a vacuum cleaner with labeled control panel and directional arrow indicating operation

Technical illustration of a mechanical device with a valve and handle (no text or symbols)

Mechanical component diagram showing a threaded connector and a circular housing with directional arrows (no text or symbols)

Diagram showing a device being processed with arrows indicating process steps (no text or symbols present)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols)

Frigør teleskoprøret og skyd det sammen ved at trykke skydetasten/skydemanchetten i pilens retning.

turbo

Skifte filterpose

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Diagram of a car interior showing a mechanical component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a component with a directional arrow indicating motion (no text or symbols present)

Sæt en ny filterpose i holderen, og luk støvrumslåget.

Diagram illustrating three steps of cleaning a food container: adding a tray, removing seeds, and pouring into a bucket with a recycling symbol.

Diagram of a hand placing a meshed object on a car surface, showing internal structure and components (no text or symbols)

Illustration of a hand opening a small electronic device with a grid-patterned case (no text or symbols visible)

Illustration of hands inserting a device into a container with a grid-patterned box (no text or symbols)

Line drawing of a rectangular solar panel with grid layout and mounting bracket (no text or symbols)

HEPA-filter (klasse H12) VZ151HFB

Illustration of a handheld industrial tool or valve component (no text or symbols visible)

TURBO-UNIVERSAL®-børste VZ102TBB

Illustration of a mechanical lever or pivot device with a handle and base (no text or symbols)

Gulvmundstykke VZ082BD

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating insertion (no text or symbols present)

Skyv teleskoprøret inn i stussen på gulvmunn-stykket til det smekker på plass.

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

*avhengig av modell

Mechanical component diagram showing a cylindrical assembly with a pointed tip and a black arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram showing two identical vacuum cleaner foot holders with downward arrows indicating force or movement, separated by a diagonal line (no text or symbols present)

Mechanical device with a pointed tip inserted into a cylindrical shaft, showing a directional arrow (no text or symbols)

Diagram showing two types of medical or surgical tools labeled 'b' and 'c', with arrows indicating rotation or movement (no text or symbols beyond labels)

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and valve assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

■ Slå av støvsugeren og trekk ut nettstøpselet fra stikkontakten.
■ Trekk nettkabelen litt til deg og slipp den (kabelen kveiles automatisk opp).
■ Ved å trekke i nettkabelen aktiveres kabelbremsen på nytt. Trekk kort i den när du skal deaktivere den.

Illustration of a vacuum cleaner's air lift with control panel and mechanical components (no text or symbols)

Technical diagram of a mechanical device with a valve and handle, showing no text or symbols

Mechanical component diagram showing a threaded connector and a circular housing with directional arrows (no text or symbols)

Illustration of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component inside a vehicle, showing internal parts and an upward arrow (no text or symbols)

Mechanical component diagram showing a motor assembly with a directional arrow indicating motion (no text or symbols present)

Diagram illustrating three steps of cleaning a food container: adding granular material, pouring contents, and removing a plastic cup with a recycling symbol.

Rengjøre motorfilter

Diagram of a hand placing a mesh component into a car interior (no text or symbols visible)

Bytte Hepa-filter\*

Illustration of a hand opening a small electronic device with a grid-patterned box (no text or symbols visible)

Illustration of hands inserting a device into a container with a grid-patterned box (no text or symbols visible)

Line drawing of a rectangular solar panel with grid layout and mounting bracket (no text or symbols)

HEPA-filter (klasse H12) VZ151HFB

Anbefales til allergikere. Gir ekstremt ren utblåsningsluft. Byttes én gang i året.

Illustration of a mechanical component with a handle and central knob (no text or symbols)

TURBO-UNIVERSAL®-børste VZ102TBB

Illustration of a mechanical clamp or lever device (no text or symbols visible)

Technical diagram of a vacuum cleaner with labeled parts 1, 2, and 3

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating the process (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Mechanical component with a lever and pin assembly, showing a black arrow indicating direction (no text or symbols present)

Illustration of hands using a tool to adjust or install a component, no text or symbols visible

Diagram showing two identical vacuum cleaner components with downward arrows indicating force or movement, separated by a diagonal line (no text or symbols)

Mechanical component diagram showing a tool inserted into a pipe with an arrow indicating direction (no text or symbols present)

Diagram showing two types of medical or surgical tools labeled 'b' and 'c', with arrows indicating rotation or movement (no text or symbols beyond labels)

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and handle assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Illustration of a vacuum cleaner's air purifier with control panel and directional arrow (no text or symbols)

Technical illustration of a mechanical device with a valve and handle (no text or symbols)

Mechanical component diagram showing a threaded pipe connected to a circular housing with directional arrows (no text or symbols)

Illustration of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Diagram of a car interior showing a mechanical component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a component with a directional arrow indicating movement (no text or symbols present)

Diagram illustrating three steps of cleaning a food container: adding a tray, removing seeds, and pouring into a bucket with a recycling symbol.

Diagram of a hand placing a component into a car interior with a mesh grille (no text or symbols)

Byta HEPA-filter\*

Illustration of a hand opening a box with a checkered pattern inside, showing internal components (no text or symbols)

Illustration of hands inserting a device into a container with a grid-patterned box (no text or symbols)

Line drawing of a rectangular solar panel with grid layout and mounting bracket (no text or symbols)

HEPA-filter (Klass H12) VZ151HFB

Illustration of a handheld industrial tool or valve component (no text or symbols visible)

TURBO-UNIVERSAL®-borste VZ102TBB

Illustration of a mechanical lever or lever device with a handle and base (no text or symbols)

Golvmunstycke VZ082BD

Technical diagram of a mechanical device with labeled parts 1, 2, and 3

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating insertion (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with a pointed tip and a black arrow indicating direction (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram showing two identical vacuum cleaner components with downward arrows indicating motion, separated by a diagonal line (no text or symbols)

Mechanical component diagram showing a tool inserted into a pipe with an arrow indicating direction (no text or symbols present)

Diagram showing two mechanical components labeled 'b' and 'c', with arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and handle assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Diagram of a vacuum cleaner with labeled control panel and directional arrow indicating action

Mechanical device with attached pipe and valve, showing internal components (no text or symbols)

Mechanical diagram showing a threaded pipe connected to a circular component with directional arrows (no text or symbols)

Illustration of a handheld device with two views showing internal components and directional arrows (no text or symbols)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component inside a vehicle, showing internal parts and an upward arrow (no text or symbols)

Mechanical component diagram showing a motor assembly with a paper label and directional arrow (no text or symbols present)

Diagram illustrating three steps of cleaning a food container: adding a tray, pouring contents into a bucket with a recycling symbol.

Diagram of a hand placing a component into a car interior with a mesh grille (no text or symbols)

Illustration of a hand opening a small box with a checkered pattern, showing internal components and arrows indicating movement (no text or symbols)

Illustration of hands inserting a device into a container with a grid-patterned box (no text or symbols visible)

Line drawing of a rectangular solar panel with grid layout and mounting bracket (no text or symbols)

Illustration of a mechanical component with a handle and central knob (no text or symbols)

TURBO-UNIVERSAL®-harja VZ102TBB

Illustration of a mechanical lever or pivot device with a handle and base (no text or symbols)

Lattiasuulake VZ082BD

Technical diagram showing three labeled parts of a mechanical device, likely a valve or clamp assembly.

Labeled diagram of a vacuum cleaner with numbered parts for identification

Close-up of a mechanical component with a threaded end and a circular hole, showing a directional arrow (no text or symbols)

Diagram showing a device being inserted into a cylindrical component, with an arrow indicating the process (no text or symbols present)

Illustration of a vacuum cleaner's handle with a downward arrow indicating insertion (no text or symbols present)

Illustration of a hand holding a cylindrical object with directional arrows indicating movement or force (no text or symbols)

Mechanical component diagram showing a cylindrical assembly with a pointed tip and directional arrow (no text or symbols)

Illustration of a hand using a tool to adjust or install a component inside a device (no text or symbols visible)

Diagram showing two identical vacuum cleaner components with downward arrows indicating process flow or inspection, alongside a stylized icon (no text or symbols)

Ajustar o bocal:

■ para aspirar tapetes e alcatifas =>

■ para aspirar soalhos rijos =>

Mechanical device with a lever and handle, showing a mechanical assembly (no text or symbols visible)

Illustration of two medical or surgical tools labeled 'b' and 'c', showing mechanical components with no visible text or symbols.

Aspirar pt

Technical illustration of a vacuum cleaner's internal structure, showing nozzle and handle assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Illustration of a vacuum cleaner's air purifier with control panel and mechanical components (no text or symbols)

Technical illustration of a mechanical device with a pipe and lever mechanism (no text or symbols)

Mechanical diagram showing a threaded connector interacting with a circular component (no text or symbols)

Diagram showing a device being processed with arrows indicating process steps (no text or symbols present)

Illustration of a vacuum cleaner's handle and lever assembly, showing part being inserted (no text or symbols)

Illustration of a hand holding a cylindrical tool with directional arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

■ Abra a tampa do compartimento do saco do pó, actuando a alavanca de fecho no sentido da seta.

Diagram of a car interior showing a mechanical component with an arrow indicating direction (no text or symbols present)

Mechanical assembly diagram showing a component with a directional arrow indicating movement (no text or symbols present)

Diagram illustrating three steps of cleaning a food container: adding a tray, removing seeds, and pouring into a bucket with a recycling symbol.

Diagram of a hand placing a meshed object onto a car surface, with no visible text or symbols.

Trocar o filtro HEPA

Illustration of a hand opening a small electronic device with a grid-patterned case, no text or symbols present

Illustration of hands inserting a device into a container with a grid-patterned box (no text or symbols)

■ Colocar e encaixar o novo filtro HEPA.
■ Feche a grelha de saída do ar.

Line drawing of a rectangular solar panel with grid layout and top handle (no text or symbols)

Filtro HEPA (classe H12) VZ151HFB

Illustration of a handheld industrial tool or valve component (no text or symbols visible)

Escova TURBO-UNIVERSAL® VZ102TBB

Illustration of a mechanical lever or pivot device with a handle and base (no text or symbols)

Bocal VZ082BD

Technical illustration of a mechanical device with a handle and labeled component (no text or symbols present)

Technical diagram of a vacuum cleaner with labeled parts 1 and 3

Levanta-fios (1): ref ^a 188565

Levanta-fios (2): ref ^a 184773

Polidor (3): ref ^a 482209

Kundendienst-Zentren • Central-Service-Depots • Service Après-Vente • Servizio Assistenza • Centrale Servicestation • Asistencia técnica • Servicevaerkter • Apparatservice • Huolto

DE Deutschland, Germany

HEATHERTON, Victoria 3202

Tel.:[phone]

Fax: [phone]

valid only in AUS

mailto:[e-mail]

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Odobašina 57

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

To arrange an engineer visit or to order replacement spare parts or accessories

Tel.: [phone]

GR Greece, Ελλάς

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

145 64 Kifisia

Greece – Athens

Tel.:[phone]

Fax:[phone]

North Greece – Thessaloniki

Tel.:[phone]

Fax:[phone]

South Greece – Heraklion/Kreta

Tel.:[phone]

Fax: [phone]

Central-Greece – Patras

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:service.siemens@

bshg.com

HR Hrvatska, Croatia

Andabaka d.o.o.

Gunduliceva 10

21000 Split

Info-Line: 021 481 403

Info-Fax: [phone]

mailto:[e-mail]

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.:[phone]

Fax: [phone]

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.:[phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.:[phone]

Fax: [phone]

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

Symbol of a trash bin crossed with no text or labels

en

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Symbol of a trash bin crossed with no text or labels

da

■ The design of this product is environment-friendly.

All plastic parts are identified for recycling purposes

■ Printed on recycled paper
