Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use and not for commercial use. Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■ Vacuum-cleaning persons or animals
■ Vacuuming up:

- hazardous, sharp-edged, hot or glowing substances. - damp or liquid substances.

- highly flammable or explosive substances and gases.

• ash, soot from tiled stoves and central heating systems.
• toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note:

- Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.
■ Children must never play with the appliance.

■ Cleaning and user maintenance must never be carried out by children without supervision.

■ Plastic bags and films must be kept out of the reach of children before disposal.

= Risk of suffocation.

Proper use

■ Only connect and use the vacuum cleaner in accordance with the specifications on the rating plate.
■ Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

= This may damage the vacuum cleaner.
■ Always keep the vacuum cleaner away from your head when using nozzles and tubes.
= This could cause injury!
■ When vacuuming stairs, the appliance must always be positioned below the user.
■ Do not use the power cord or the hose to carry or transport the vacuum cleaner.
■ For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarly qualified person.
■ If using the appliance for longer than 30 minutes, pull out the power cord completely.
■ When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord.
■ Do not pull the power cord over sharp edges or allow it to become trapped.
■ When the cable is being automatically rewound, ensure that the mains plug is not thrown towards persons, body parts, animals or objects.
= Use the mains plug to guide the power cord.
■ Pull out the mains plug before carrying out any work on the vacuum cleaner.
- Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from the weather, moisture and sources of heat.
■ Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■ The vacuum cleaner is not suitable for use on construction sites.
= Vacuuming up building rubble could damage the appliance.
■ When not in use, switch off the appliance and pull out the mains plug.
At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.

Please note

- The mains socket must be protected by at least a 16 amp circuit breaker.

If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the circuit breaker from tripping, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■ Old appliance

Old appliances still contain many valuable materials. Therefore, please take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled. For current disposal methods, please enquire at a retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.

Notes on the energy label

This vacuum cleaner is a general purpose vacuum cleaner.

To achieve the declared energy efficiency and cleaning performance class on carpet and hard floor, please use the interchangeable universal nozzle.

These calculations are based on the delegated regulation (EU) no. 665/2013 established by the commission on 3rd May 2013 as a supplement to Directive 2010/30/EU. All of the procedures in these instructions that are not described in more precise detail were listed based on DIN EN 60312-1:2014.

fr

= Fare for kvelning!

Simple line drawing of an open book with a right-handled arrow indicating rotation (no text or symbols)

Gerätebeschreibung

powerSensor Technology\*

Congratulations on your purchase of the Siemens Q8.0 vacuum cleaner.

This instruction manual describes various Q8.0 models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner, in order to achieve the best possible vacuuming results.

Please keep this instruction manual for future reference. When passing the vacuum cleaner on to a third party, also pass on this instruction manual.

Fold out the picture pages.

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Your vacuum cleaner

1 Adjustable floor nozzle* (For the same functions, the appearance of the nozzle may differ from the picture)
2 Hard-floor nozzle*
3 Telescopic tube with adjusting sleeve (and accessory connection)*
4 Telescopic tube with sliding switch (and accessory connection)*
5 Crevice nozzle
6 Accessories holder
7 Upholstery nozzle
8 Hard furnishings brush (for fitting on the upholstery nozzle)*
9 Flexible hose
10 Hose handle
11 Dust bag change indicator
12 Power rotary control and on/off switch
13 Exhaust filter
14 Parking aid
15 Power cord
16 Rear flap
17 Carrying handle
18 Dust bag compartment lid
19 Storage aid (on the underside of the appliance)
20 Dust bag
21 Motor protection filter

Replacement parts and special accessories

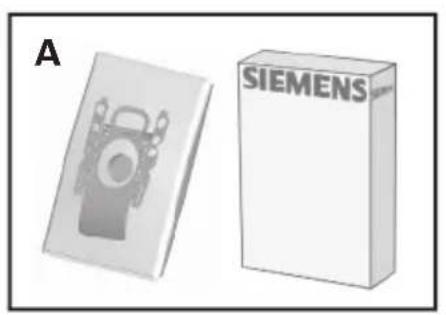

A Replacement filter pack

Filter type PowerProtect (Spare part no.: VZ41FGALL)

("For high suction power"/"for top performance and excellent cleaning quality")

Contents:

• 4 dust bags with fasteners
• 1 micro-hygiene filter

We therefore recommend that you only use our original dust bags.

Your appliance is a highly efficient vacuum cleaner that achieves excellent cleaning results when used with high-quality dust bags.

Only by using high-quality dust bags (such as Siemens original dust bags) can you ensure that your vacuum cleaner is working at the energy efficiency class, dust pick-up rate and dust retention capacity listed on its EU energy label.

The use of inferior-quality dust bags (e.g. paper bags) can have a negative effect on the service life and performance of your appliance.

Using unsuitable or inferior-quality dust bags can also damage your vacuum cleaner. Such damage is not covered by our guarantee.

You can find more information about this at www.siemens-home.com/dust-bag.

You can order our original vacuum cleaner bags here.

B Hard-floor nozzle VZ123HD

For vacuuming hard floors (parquet, tiles, terracotta, etc.)

C Hard-floor nozzle VZ124HD

Innovative "soft & roll" hard-floor nozzle: 2 rotating brush rollers made from natural hair. Coarse dirt is not pushed away.

Initial use

Fig. 1

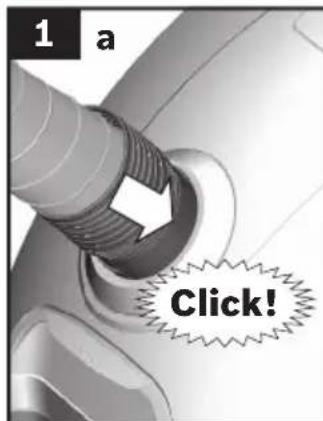

a) Push the flexible hose adapter into the air intake opening in the lid until it locks in place.

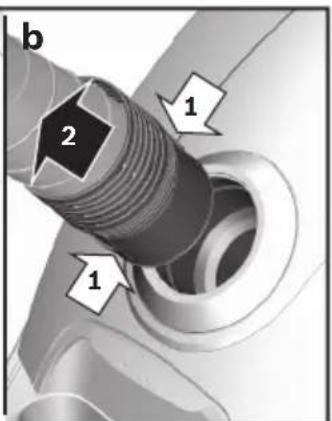

b) To remove the flexible hose, press the two catches together and pull out the hose.

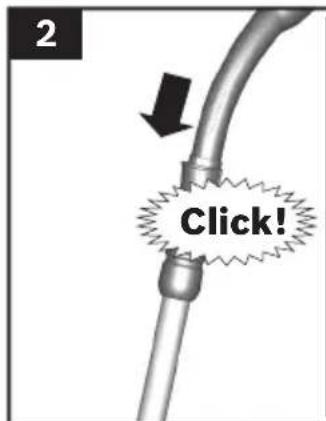

Fig. 2

• Push the handle into the telescopic tube until it locks into place.
• To release the connection, press the locking collar and pull out the telescopic tube.

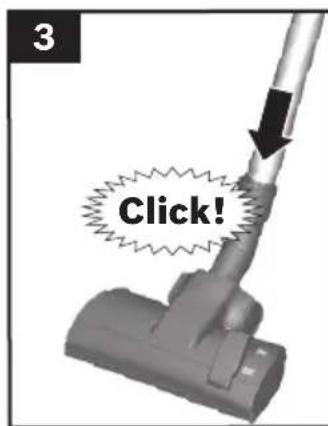

Fig. 3

• Push the telescopic tube into the connecting piece of the floor nozzle until it locks in place.
• To release the connection, press the locking collar and pull out the telescopic tube.

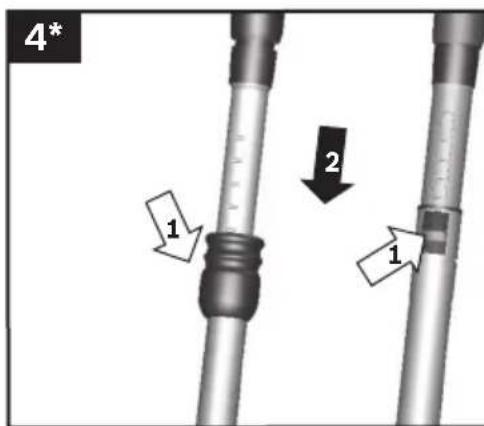

Fig. 4\*

- Unlock the telescopic tube by moving the sliding switch or adjusting sleeve in the direction of the arrow, and adjust to the desired length.

Fig. 5

a) Place the accessories holder in the required position on the telescopic tube.
b) Put the hard furnishings brush on the upholstery nozzle and lock it in place.
c) Use some pressure to insert the upholstery nozzle with hard furnishings brush and the crevice nozzle into the accessories holder from above or below.

Fig. 6

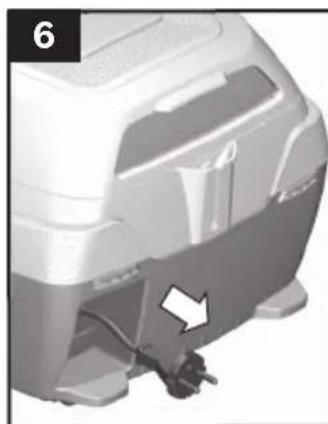

- Holding the power cord by the plug, pull it out to the required length and insert the plug into the mains socket.

If using the appliance for longer than 30 minutes,

- pull out the power cord completely. =>Risk of overheating and subsequent damage.

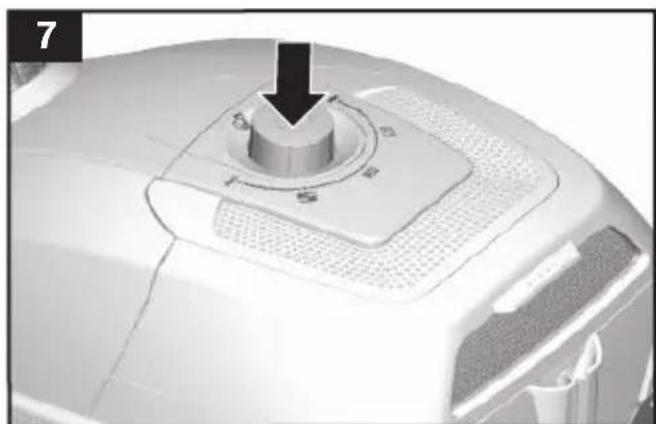

Fig. 7 Switching on and off

- To switch the vacuum cleaner on or off, press the rotary control.

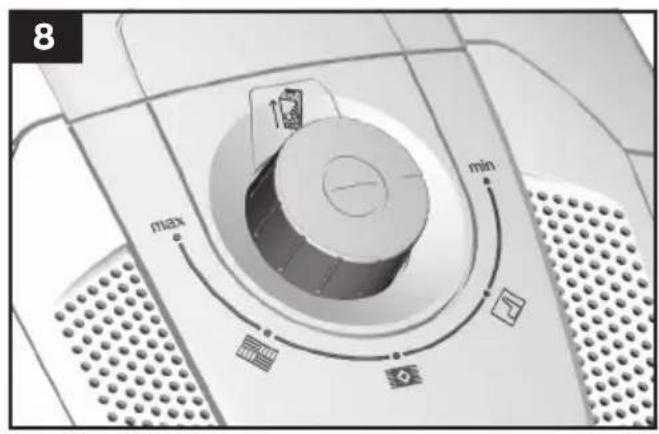

Fig. 8 Controlling the suction level

Turn the rotary control to infinitely adjust the suction level to the level required.

min

For vacuuming curtains and delicate textiles

For vacuuming upholstered furniture and cushions

For vacuuming delicate rugs and for daily vacuuming of lightly soiled floors

For vacuuming durable floor coverings

max - For vacuuming hard floors and heavily soiled rugs and carpets

Vacuuming

Caution:

- Floor nozzles are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). You must therefore check the underside of the floor nozzle at regular intervals. Worn undersides of floor nozzles may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor nozzles.

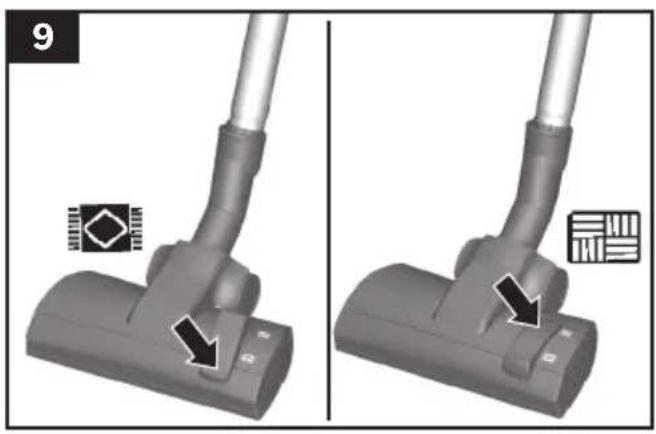

Fig. 9

Set the adjustable floor nozzle:

■ Rugs and carpets =>

■ Hard floors/parquet =>

Fig. 10\* Vacuuming with accessories

Attach the nozzles to the suction pipe or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.

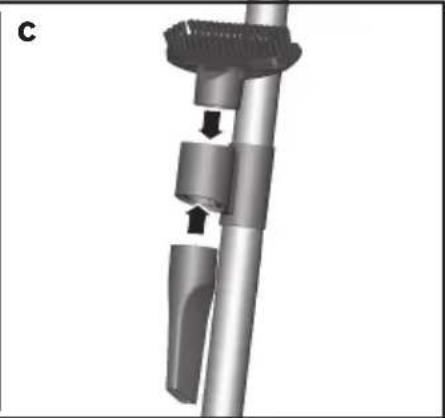

c) Upholstery nozzle with attachable hard furnishings brush for vacuuming window frames, cupboards, cornicing, etc.

●After use, reinsert the crevice nozzle and upholstery nozzle into the accessories holder.

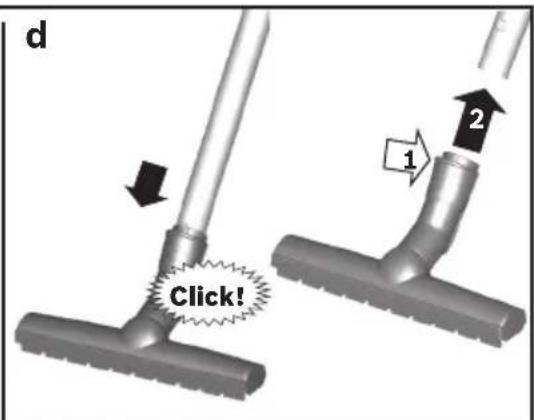

d) Hard-floornozzle

For vacuuming hard floor coverings (tiles, parquet*, etc.)

• Push the telescopic tube into the connecting piece of the hard-floor nozzle until it locks in place.
• To release the connection, press the locking collar and pull out the telescopic tube.

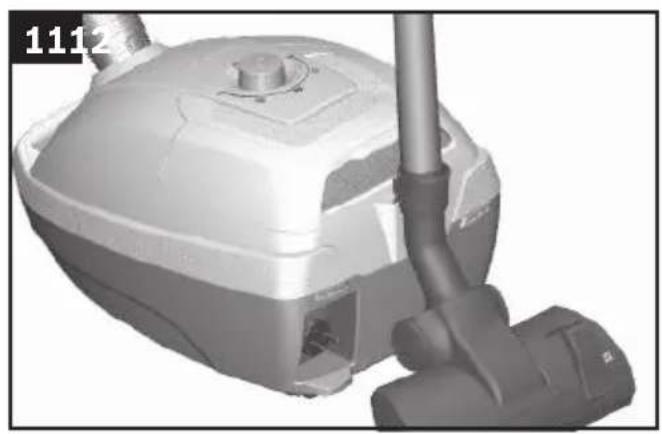

Fig. 11

• You can use the parking aid on the back of the vacuum cleaner if you want to stop vacuuming for a short time.
  ●After switching off the appliance, slide the hook on the floor nozzle into the recess on the back of the appliance.

Fig. 12

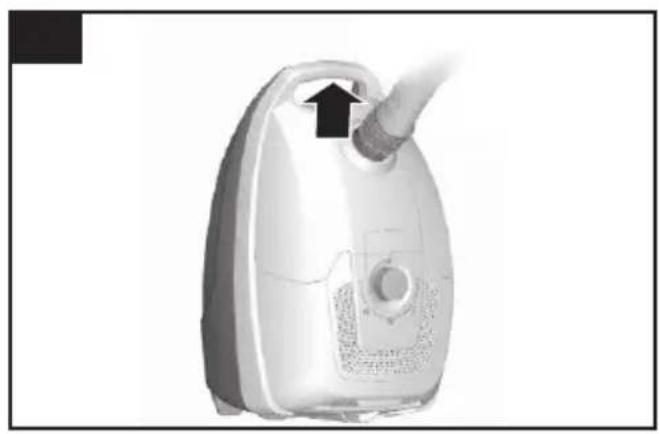

To overcome obstacles, e.g. steps, the appliance can also be carried by the handle on the appliance body.

After using the appliance

Fig. 13

• Pull out the mains plug.

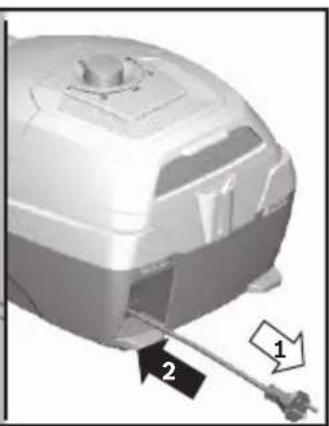

• Briefly pull on the power cord and release it (the cable retracts automatically).

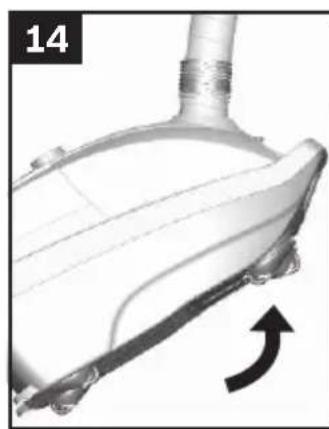

Fig. 14

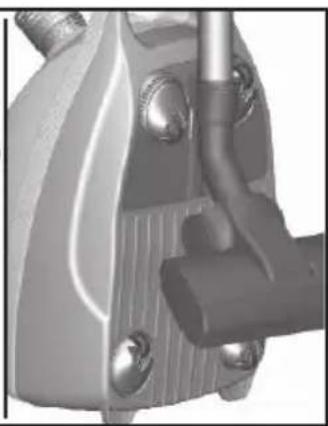

●To store or transport the appliance, you can use the storage aid on the underside of the appliance.
- Stand the appliance upright on its end. Slide the hook on the floor nozzle into the recess on the underside of the appliance.

powerSensor technology\*

If your appliance is fitted with powerSensor technology*, this automatically ensures that the appliance is always working at its optimum power level. In conjunction with using original dust bags, this ensures minimal dust bag use and additional energy savings. powerSensor technology is always activated automatically, and does not need to be activated by the user. GALL type replacement bags (VZ4GXXLP2 / VZ41F-GALL) are required to guarantee the optimum performance of the powerSensor technology.

Changing the filter

! Caution: Always switch off the appliance before changing the filter.

Replacing the dust bag

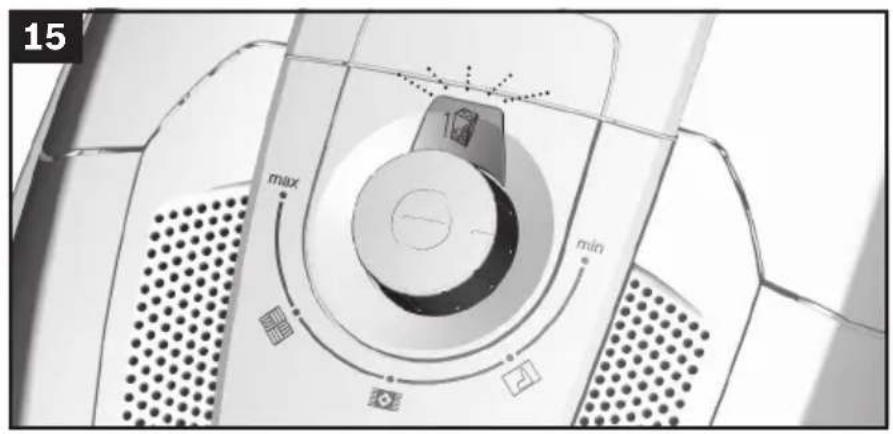

Fig. 15

- If the dust bag change indicator lights up continuously when the nozzle is lifted from the floor and the highest power setting has been selected, the dust bag must be changed, even though it may not yet be full. In this case, it needs to be changed due to the type of dust which has been vacuumed.

The nozzle, suction pipe and flexible hose must not be blocked, even if this does not trigger the dust bag change indicator.

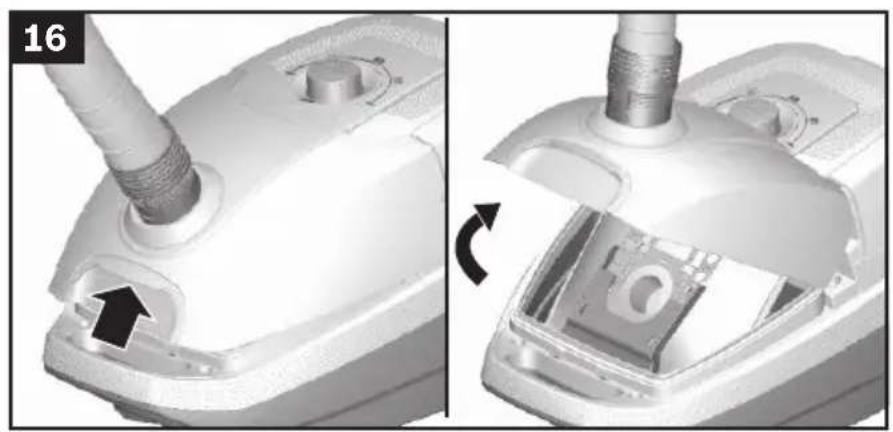

Fig. 16 Opening the lid

- Open the lid by moving the locking lever in the direction of the arrow.

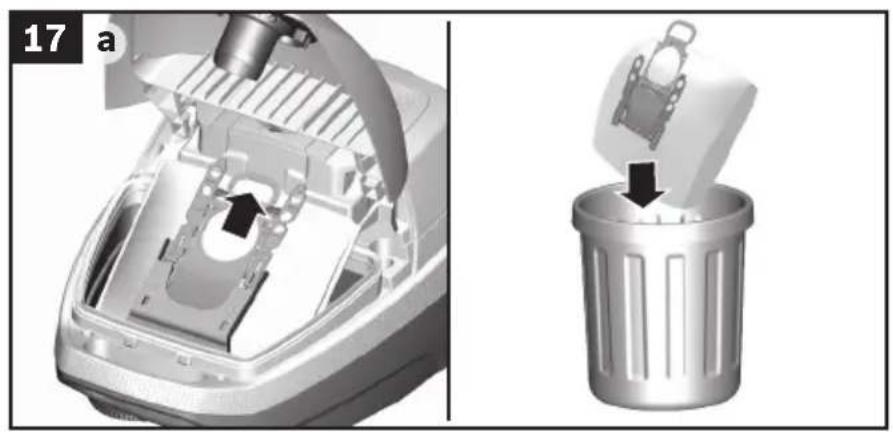

Fig. 17

a) Close the dust bag by pulling on the locking tab, and remove the bag.
b) Push the new dust bag into the holder until it clicks into place. When doing so, leave the dust bag folded as it was when removed from the packaging. Do not crease or kink the dust bag, and ensure that it is not pinched when the lid is closed.

! Caution: The lid will only close if a dust bag has been inserted.

Motor protection filter

! Caution: The vacuum must not be operated without the motor protection filter.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by tapping out the dirt and rinsing.

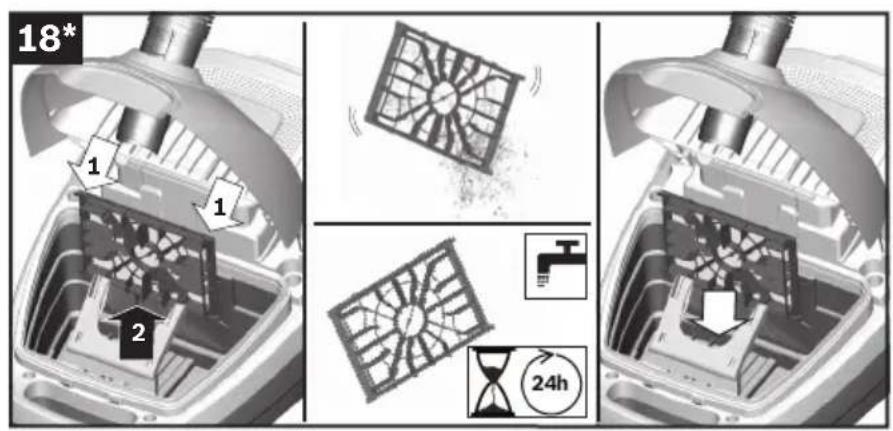

Fig. 18\*

Open the dust bag compartment lid. Fig. 16
- Release the motor protection filter by pulling on the side tabs and pull it out in the direction of the arrow.
- Clean the motor protection filter by tapping out the dirt.
- if it is very dirty, the motor protection filter should be rinsed.

The filter must then be left to dry for at least 24 hours.

After cleaning, refit the motor protection filter into the appliance and lock it in place at the top. Close the dust bag compartment lid.

Cleaning the foam filter

If your appliance is fitted with a filter frame and foam filter, the foam filter should be cleaned at regular intervals by tapping out the dust.

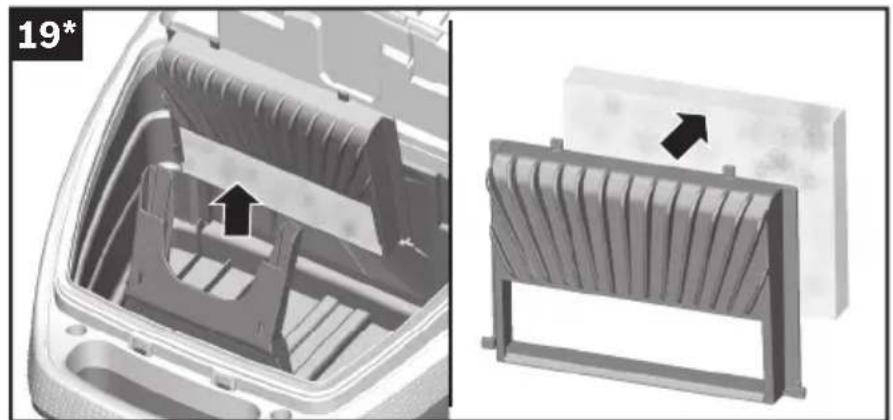

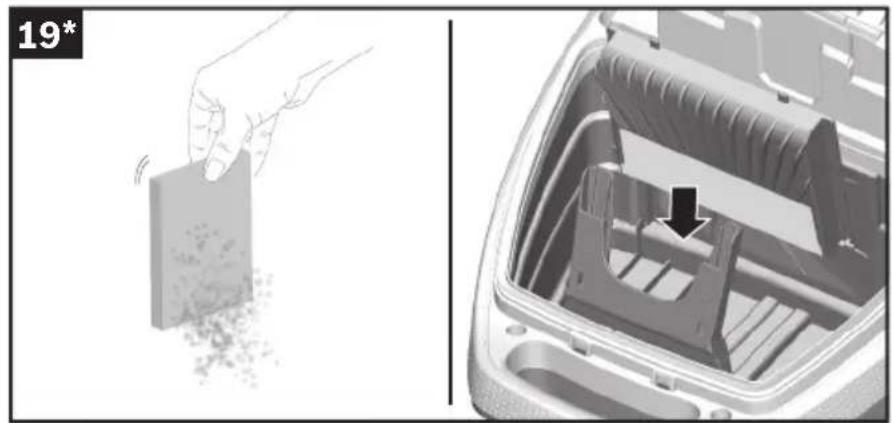

Fig. 19\*

Open the dust bag compartment lid. Fig. 16

Pull out the filter frame and foam filter in the direction of the arrow.
- Remove the foam filter from the filter frame and clean it by tapping out the dust.
After cleaning, place the foam filter back in the filter frame, insert the filter frame with foam filter in the appliance and close the dust bag compartment lid.

Caution: The vacuum cleaner must not be operated

- without the motor protection filter.

Exhaust filter

The exhaust filter must be cleaned or replaced at least once a year.

Replacing the micro-hygiene exhaust filter

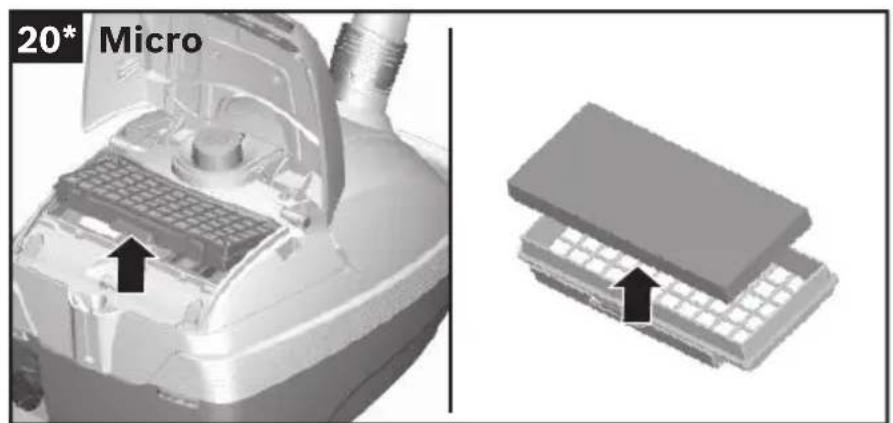

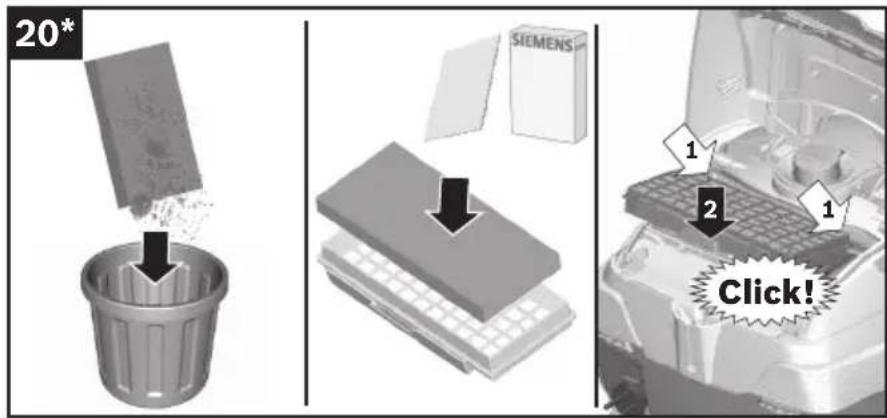

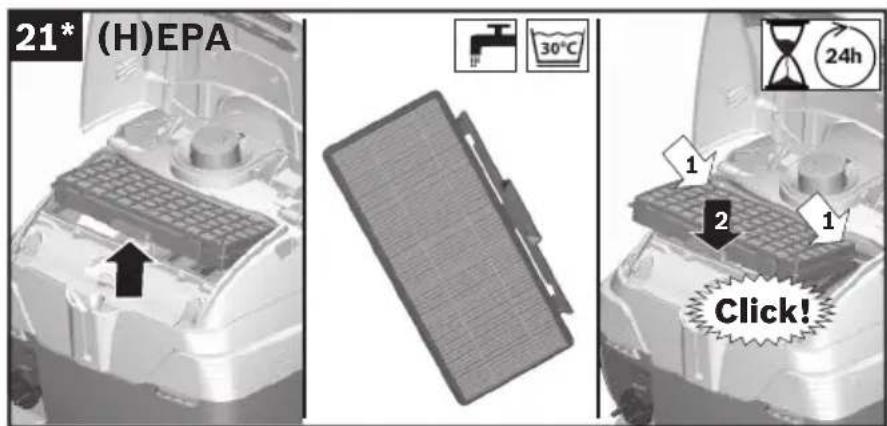

Fig. 20\*

• Open the rear flap.
• Unlock the filter holder by moving the locking tab in the direction of the arrow.
• Remove the foam filter* from the filter holder and tap it out.

Replace the old micro-hygiene filter with a new one. (This is included in the filter pack when you purchase original dust bags).

Insert the foam filter into the filter holder.

- Insert the filter holder into the appliance and lock it in place.

Cleaning the (H)EPA\* exhaust filter

The (H)EPA* filter is designed so that it does not need to be replaced, provided the appliance is used as intended in the household.

To ensure that the vacuum cleaner is working at its optimum power level, the (H)EPA* filter should be rinsed out after one year. The filtering action of the filter remains intact, even if the filter surface becomes discoloured.

Fig. 21\*

• Open the rear flap.
• Unlock the (H)EPA* filter by moving the locking tab in the direction of the arrow, and remove it from the appliance.
• Tap out the filter unit and rinse it under running water.

Alternatively, the unit can be cleaned in a washing machine at max. 30 °C using a gentle programme and the lowest spin speed.

TIP: To protect other laundry items, put the filter unit into a laundry bag.

Once the (H)EPA* filter has dried completely (at least 24 hours), insert it back into the appliance and lock it in place.
- Close the rear flap.

After vacuuming fine dust particles (e.g. gypsum, cement, etc.), clean the motor protection filter by tapping it out or, if necessary, replace the motor protection filter and exhaust filter.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with an ordinary plastic cleaner.

Do not use abrasive materials, glass-cleaning agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

fr

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Beskrivelse

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-handled arrow indicating rotation (no text or symbols)

Produktbeskrivning

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Laitteen kuvaus

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Περιγραφή συσκευής

powerSensor Technology\*

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Cihaz açıklaması

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Opis urządzenia

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

A készülék leírása

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Описание на уреда

powerSensor Technology\*

Simple line drawing of an open book with a right-handled arrow indicating rotation (no text or symbols)

powerSensor Technology\*

www.siemens-home.com/dust-bag

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

وصف الجهاز

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.:[phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

European Trade Center Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.siemens-home.bg

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.siemens-home.co.uk or call

Tel.:[phone]*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:siemens.hk.service@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:.[phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.siemens-home.com/hr

www.siemens-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.:[phone]*

Fax: [phone]

www.siemens-home.com/ie

*0.03 € per minute at peak.

Off peak 0.0088 € per minute

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

1. Hamelacha St.

Industrial Park North

71293 Lod

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Tel.: [phone]

www.siemens-home.com/in

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.:[phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, لبنان

Tehaco s.a.r.l

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

www.siemens-home.com/lu

LV Latvija, Latvia

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.:[phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. „Rialto-Studio“

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

www.siemens-home.com/pt

RO România, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect.1

13682 Bucuresti

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/ro

RU Russia, Россия

www.siemens-home.com/sk

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/tr

US United States of America

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA, 92614

Tel.: [phone] toll-free

Fax: [phone]

mailto:siemens-usa-questions@

bshg.com

www.siemens-home.com

XK Kosovo

NTP GAMA

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.siemens-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.:[phone]

Fax:[phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

www.siemens-home.com/tr

www.siemens-yetkiliservisi.com

Bandrol ve Seri No. :

KÜÇÜK EV ALETLERİ

GARANTI

BELGESİ

Exploded view diagram of a vacuum cleaner with numbered parts and exploded views of the device

Two 3D printing machines, one with a camera icon and the other Siemens logo (no text or symbols on the devices themselves)

3D rendered image of a Y-shaped pipe fitting with textured ends, labeled 'B' in the top-left corner (no other text or symbols)

3D rendered image of a mechanical component with a lever and base (no text or symbols)

1 a Click!

b 1 2 1

2 Click!

Diagram showing a mechanical component with labeled parts 1 and 2, indicating assembly or assembly steps.

3 Click!

Diagram showing a vacuum cleaner with labeled parts 1 and 2, indicating assembly or positioning.

4* 1 2 1

3D diagram of a mechanical component with a pull rod and cylindrical housing, no text or symbols present

3D rendered mechanical component with a curved arrow indicating rotation (no text or symbols)

Mechanical assembly diagram showing a shaft and threaded component with directional arrows (no text or symbols)

Close-up of a mechanical component with a white arrow pointing to a feature, no visible text or symbols

Close-up of a wall socket with a plug inserted, showing a black arrow pointing to the plug (no text or symbols visible)

Close-up of a white car interior component with a black arrow pointing to a cylindrical knob (no text or symbols visible)

8 max min

Two-step illustration of a vacuum cleaner's tip and base, showing mechanical components and directional arrows (no text or symbols)

Close-up of a metallic tool tip with a black arrow indicating a joint or insertion point (no text or symbols)

Illustration of a vacuum cleaner with an upward arrow indicating motion (no text or symbols)

Close-up of a vacuum cleaner's tip and base component with an arrow indicating insertion (no text or symbols)

d Click! 1 2

3D rendered image of a white and black vacuum cleaner with a cylindrical tube inserted, no visible text or symbols

White industrial vacuum cleaner with a pipe inserted, showing internal components and a black arrow pointing to the outlet (no text or symbols visible)

Close-up of a white electrical socket connected to a cable with an arrow indicating insertion (no text or symbols)

3D rendering of a mechanical device with labeled parts (1 and 2), no visible text or symbols beyond labels

Close-up of a mechanical component with a curved arrow indicating rotation (no text or symbols)

Mechanical component with threaded fasteners and a cylindrical shaft (no visible text or symbols)

15 max min

Close-up of a white industrial machine component with a pipe inserted, showing internal structure and a circular opening (no text or symbols visible)

3D mechanical assembly diagram showing internal components and a final waste bin (no text or symbols)

17 b

3D mechanical assembly diagram showing internal components and a side view with arrows indicating movement (no text or symbols)

Diagram showing a hand placing granular material into a device, with an arrow indicating the process (no text or symbols present)

20* Micro

20* SIEMENS 1 2 1 Click!

21* (H)EPA 30°C 24h 1 2 1 Click!

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY
