USER MANUAL BGS7PERF5 BOSCH

Black-and-white illustration of a vacuum cleaner emitting light beams on textured ground, with three white arrows pointing outward (no text or symbols)

Register your new Bosch now: www.bosch-home.com/welcome

Black and white photo of a vacuum cleaner with control panel and headrest (no visible text or symbols)

Black-and-white photo of a potted plant placed on a textured floor next to a window, with no visible text or symbols.

BGS7... Relaxx'x Ultimate

BOSCH

3D rendered Y-shaped pipe fitting with textured ends, labeled 'A' in top-left corner (no other text or symbols)

3D rendered mechanical component with a curved handle and flange, labeled 'B' in the top-left corner (no other text or symbols)

1 Click!

2 a Click!

b 1 2 1

3 a Click!

b 1 2

4 a Click!

Close-up of a vacuum cleaner's tip with labeled parts (1 and 2), no text or symbols present.

5 1 2

Mechanical assembly diagram showing two stages of a pipe fitting with arrows indicating movement (no text or symbols present)

Close-up of a mechanical device with a black arrow pointing to a component (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing to a circular knob (no text or symbols visible)

9 min max

Close-up of a mechanical component with a curved arrow indicating rotation or movement, no visible text or symbols.

Close-up of a vacuum cleaner's head and side arm, showing internal components and mounting bracket (no text or symbols visible)

3D rendering of a vacuum cleaner on stairs, no text or symbols visible

14 2 1

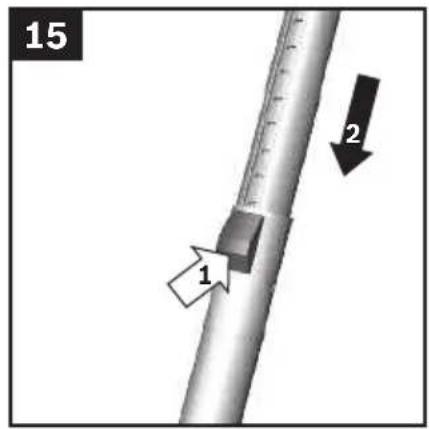

15 1 2

3D rendered mechanical component with a curved arrow indicating rotation (no text or symbols)

3D rendered image of a vacuum cleaner with attached pipe and valve (no text or symbols visible)

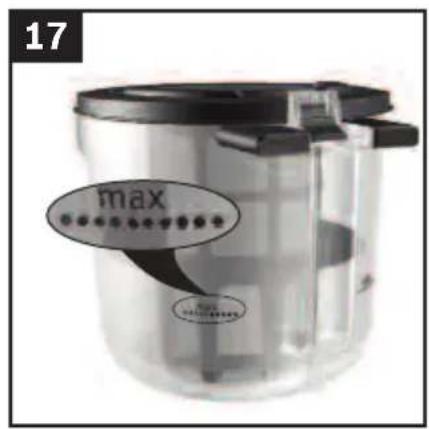

17 max 0.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Close-up of a vacuum cleaner with open lid and circular arrow indicating rotation (no text or symbols)

Close-up of a vacuum cleaner with lid and air gap, showing internal components and a black arrow indicating motion (no text or symbols)

Transparent plastic water heater with black lid and arrow indicating a component (no text or symbols visible)

Close-up of a transparent kitchen grater with a handle and internal structure, showing a black arrow indicating upward motion (no text or symbols)

Close-up of a mechanical device with a handle and internal structure, showing a black arrow pointing to a component (no text or symbols visible)

b Click!

Close-up of a stainless steel rice cooker with open lid and internal cooling unit, showing heat transfer arrow (no text or symbols)

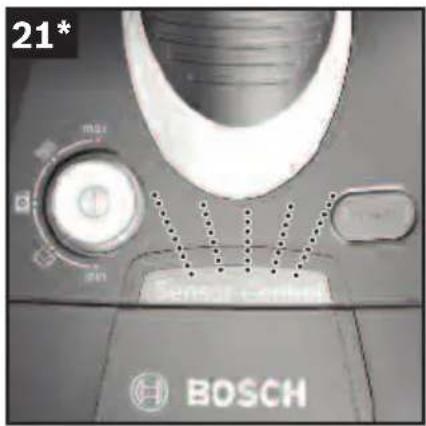

21* m3r Sensul ccntr BOSCH

Close-up of a mechanical component with a circular opening and internal structure (no visible text or symbols)

Close-up of a Bosch air purifier with control knobs and dials (no readable text or symbols)

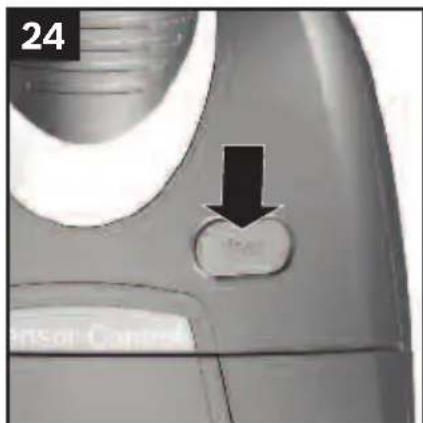

24 Sensor Control

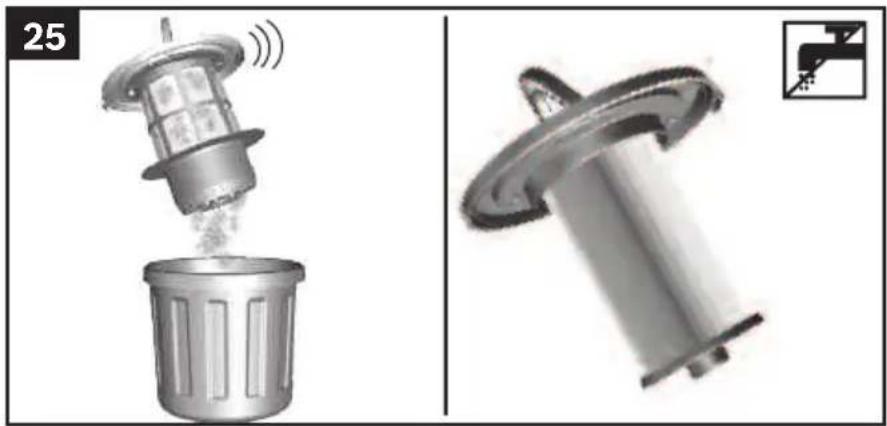

Two grayscale images showing a waste sorting device and its corresponding mechanical component (no text or symbols)

26 a b 1 2

de Sicherheit ....2 Gebrauchsanleitung ....40
en Safety information ....4 Instructions for use ....43
fr Consignes de sécurité .... 5 Mode d'emploi .... 47
it Norme di securezza ....7 Istruizioni per l'uso .... 50
nl Veiligheidsvoorschriften....9 Gebruiksaanwijzing ....54
es Consejos y advertencias de seguridad ....11 Instrucciones de uso ....57
pt Indicações de segurança ....13 Manual de instruções ....61
el Υποδείξεις ασφαλείας ....15 Οδηγίες Χρήσης ....64
tr Güvenlik bilgileri ....17 Kullanma kılavuzu ....68
pl Wskazówki dotyczące bezpieczeństwa ....19 Instrukcja użytkowania .... 72
hu Biztonsági útmutató .... 21 Használati utasítás .... 75
ru Правила техники безопасности .....23 Описание прибора .....79
kk Қауіпсіздік нұсқалары....25 Сіздің шансорғышыңыз....83
bg Указания за безопасност....27 струкция за научна на ползване....86
uk exnika безпеки ....29 Секилаад пилососа....90
az təhlükəsizlik 31 təlimat 94
ka myuzmmbjou....33 o6u6m7j0j0....98
zh 安全信息 .... 35 使用說明 .... 102
th ข้อมูลต้านความปลอดภัย....36 ผู้มือการใช้งาน....105
39....إرشادات الأمن 110....إرشادات الاستخدام
ar

de

Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This appliance is intended for domestic use only. This appliance is intended for use up to a maximum height of 2000 metres above sea level. Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■Vacuum-cleaning persons or animals
■Vacuuming up:

• hazardous, sharp-edged, hot or glowing substances.
• damp or liquid substances.
• highly flammable or explosive substances and gases.
• ash, soot from tiled stoves and central heating systems.
• toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note:

Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are

supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.

■Children must never play with the appliance.
■Cleaning and user maintenance must never be carried out by children without supervision.
■Plastic bags and films must be kept out of the reach of children before disposal.

= Risk of suffocation.

Proper use

■Only connect and use the vacuum cleaner in accordance with the specifications on the rating plate.
■Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

= This may damage the vacuum cleaner.

■Always keep the vacuum cleaner away from your head when using nozzles and tubes.

= This could cause injury!

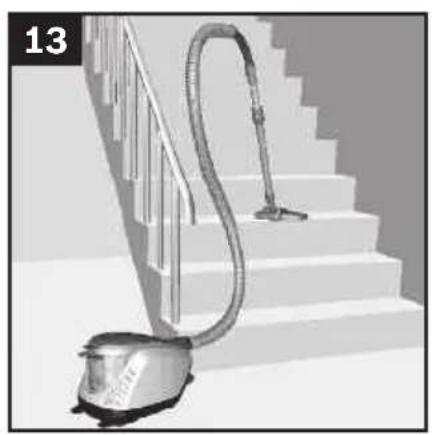

■When vacuuming stairs, the appliance must always be positioned below the user.
■Do not use the power cord or the hose to carry or transport the vacuum cleaner.
■For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarlyqualified person.
■If using the appliance for longer than 30 minutes, pull out the power cord completely.
■When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord.
■Do not pull the power cord over sharp edges or allow it to become trapped.
■When the cable is being automatically rewound, ensure that the mains plug is not thrown towards persons, body parts, animals or objects.

= Use the mains plug to guide the power cord.

■Pull out the mains plug before carrying out any work on the vacuum cleaner.
■Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.
■For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■Protect the vacuum cleaner from the weather, moisture and sources of heat.
■Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).

■The vacuum cleaner is not suitable for use on construction sites.

= Vacuuming up building rubble could damage the appliance.
■When not in use, switch off the appliance and pull out the mains plug.
■At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.

Please note

- The mains socket must be protected by at least a 16 amp circuit breaker.

If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the circuit breaker from tripping, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■Old appliance

Old appliances still contain many valuable materials. Therefore, please take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled. For current disposal methods, please enquire at a retailer or your local council.

■Disposal of filters and dust bags

Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.

Notes on the energy label

This vacuum cleaner is a general purpose vacuum cleaner with a primary hose.

To achieve the energy efficiency rating and cleaning effectiveness rating on carpets, please use the interchangeable universal nozzle.

To achieve the energy efficiency rating and cleaning effectiveness rating on hard floors with gaps and cracks, please use the supplied hard-floor nozzle without the clip-in edge cleaning bristles.

These calculations are based on the Commission Delegated Regulation (EU) No. 665/2013 of 3rd May 2013 supplementing Directive 2010/30/EU.

Unless otherwise stated, all the procedures referred to in these instructions were carried out in accordance with the EN 60312-1:2017* standard.

*As the motor service test is carried out with the dust collector empty, the stated motor service life must be increased by 10% for tests with the dust collector half filled.

fr

T\*XFTW\*JiPFiW qaDEaFa1S

Simple line drawing of an open book with a right-pointing arrow on the right page (no text or symbols)

Gerätebeschreibung

3D rendered Y-shaped pipe fitting (no text or symbols)

Zum Saugen glatter Böden (Parkett, Fliesen, Terracotta,...)

3D rendered image of a metallic mechanical component with a protruding rod (no text or symbols visible)

Congratulations on your purchase of the Bosch GS70 vacuum cleaner.

This instruction manual describes various GS70 models, which means that some of the equipment features and functions described may not apply to your model. You should only use original Bosch accessories, which have been specially developed for your vacuum cleaner, to achieve the best possible vacuuming results.

Fold out the picture pages.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Your vacuum cleaner

1 Adjustable floor tool with accessory connection
2 Telescopic tube with sliding switch and accessory connection
3 Accessories holder
4 Flexible hose
5 Handle
6 Brush ring (to fit on the upholstery nozzle)
7 Parking aid on the side of the appliance
8 Power cord
9 Dust container
10 Upholstery nozzle
11 Crevice nozzle
12 "Clean" filter cleaning button*
13 Power level indicator
14 On/Off button with electronic suction regulator
15 Appliance lid
16 Carrying handle
17 Storage aid on the underside of the appliance
18 Plate filter
19 Fluff filter
20 Professional upholstery nozzle*
21 Professional crevice nozzle*
22 Hard-floor nozzle

Replacement parts and special accessories

A Hard-floor nozzle BBZ123HD

3D rendered Y-shaped pipe fitting (no text or symbols)

For vacuuming hard floors (parquet, tiles, terracotta, etc.)

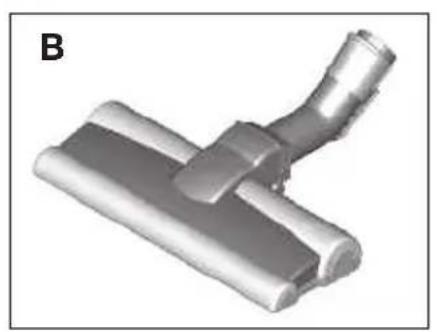

B Hard-floor nozzle BBZ124HD

Metal mechanical component with a protruding rod (no text or symbols visible)

With 2 rotating brush rollers For caring for expensive hard floors and for the improved collection of coarse dirt.

Before using your appliance for the first time

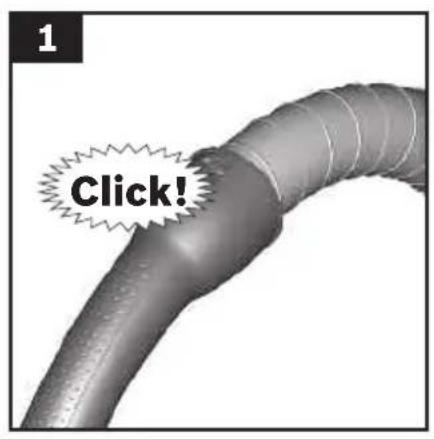

Fig. 1

- Push the handle onto the flexible hose and lock it in place.

Initial use

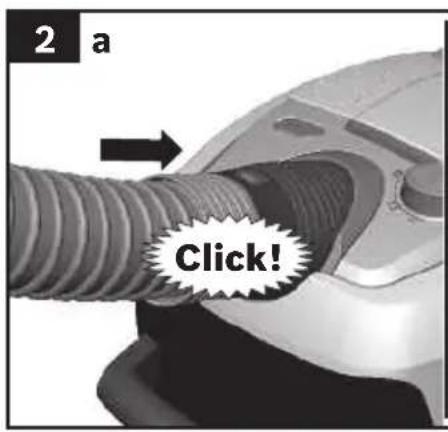

Fig. 2

a) Push the flexible tube adapter into the air intake opening on the appliance and lock it in place. You will hear an audible 'click'.

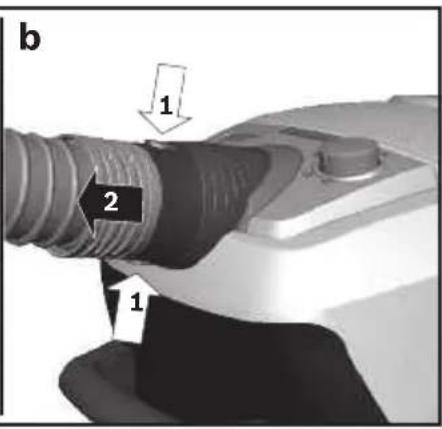

b) To remove the flexible hose, press the two catches together and pull out the hose.

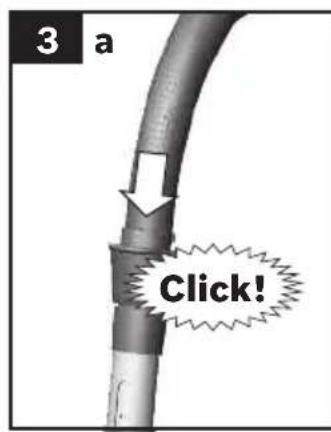

Fig. 3*

a) Push the handle into the telescopic tube. To remove it, turn the handle slightly and pull it out of the tube.
b) Push the handle into the telescopic tube until it locks into place. To release the connection, squeeze the collar sleeve and pull the handle out.

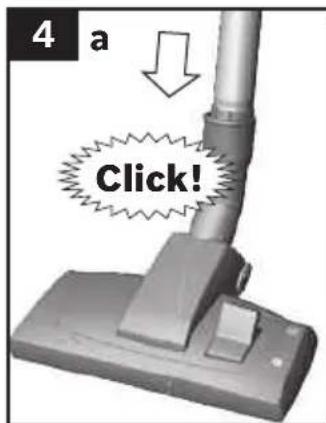

Fig. 4

a) Insert the telescopic tube into the connecting piece of the floor tool. To release the connection, turn the tube slightly and pull it out of the floor tool.

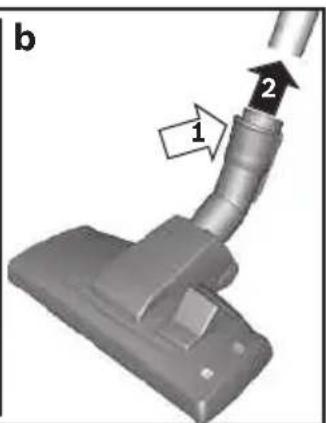

b) Push the telescopic tube into the connecting piece of the floor tool until it locks in place. To release the connection, press on the locking collar and pull out the telescopic tube.

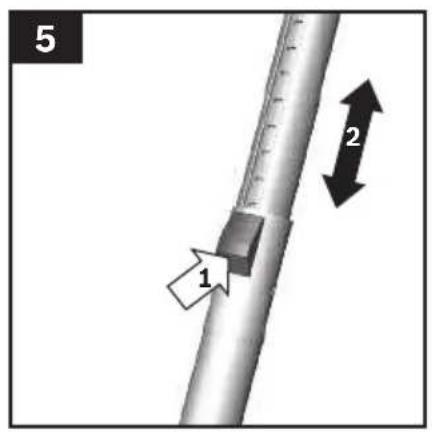

Fig. 5*

- Unlock the telescopic tube by moving the sliding switch in the direction of the arrow and adjust to the desired length. The slide resistance on carpet is at its lowest when the telescopic tube has been completely pulled out.

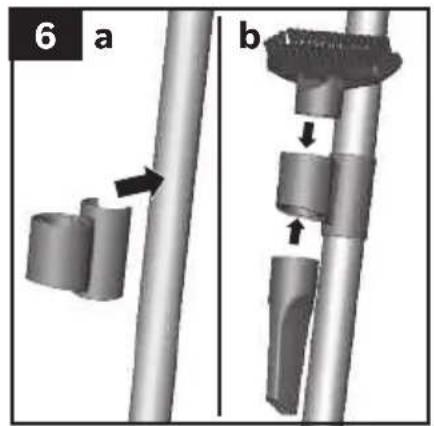

Fig. 6*

a) Place the accessories holder in the required position on the telescopic tube.
b) Use some pressure to insert the upholstery nozzle with brush ring and the crevice nozzle into the accessories holder from above or below.

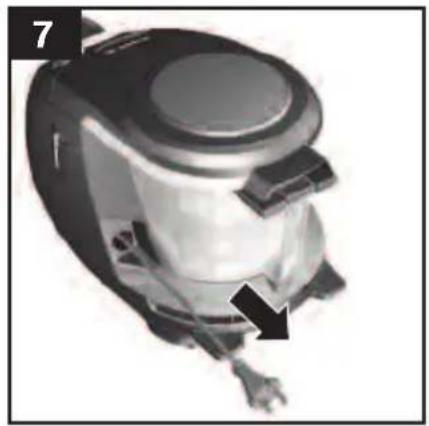

Fig. 7

●Holding the power cord by the plug, pull out to the required length and insert the plug into the mains socket.

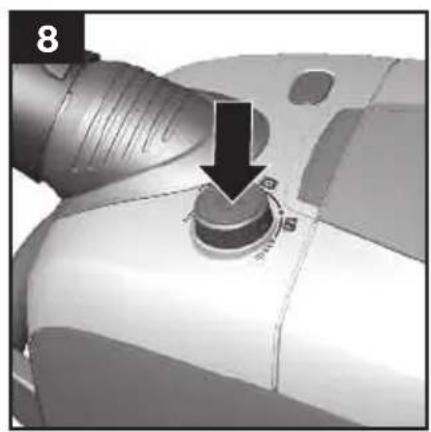

Fig. 8

- To switch the vacuum cleaner on or off, press the ON/OFF button.

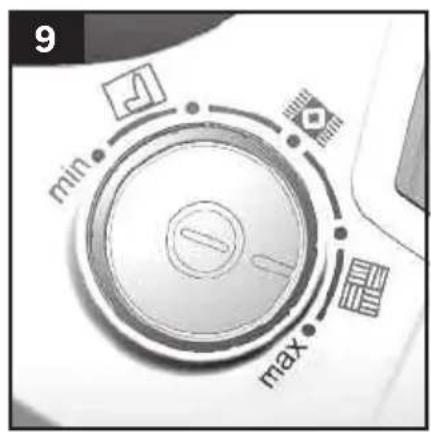

Fig. 9\* Controlling the suction level

Turn the rotary control to infinitely adjust the suction level to the level required.

min - For vacuuming curtains and delicate textiles

For vacuuming upholstered furniture and cushions

For vacuuming delicate rugs und for daily vacuuming of lightly soiled floors

For vacuuming durable floor coverings

max - For vacuuming hard floors and heavily soiled rugs and carpets

Vacuum cleaner with „ComfortSensor“

Fig. 10\* Controlling the suction level

Turn the rotary control to infinitely adjust the suction level to the level required.

- For vacuuming upholstered furniture and cushions

- For vacuuming delicate rugs und for daily vacuuming of lightly soiled floors

- For vacuuming durable floor coverings

Comfort - one setting for all floors. Makes vacuuming a breeze, whatever the floor type.

max - For vacuuming hard floors and heavily soiled rugs and carpets

Vacuum cleaner with „autoControl“

Fig. 11\* Controlling the suction level

Turn the rotary control to infinitely adjust the suction level to the level required.

min - For vacuuming curtains and delicate textiles

For vacuuming upholstered furniture and cushions

For vacuuming delicate rugs und for daily vacuuming of lightly soiled floors

For vacuuming durable floor coverings

auto - For vacuuming hard floors and heavily soiled rugs and carpets

Vacuuming

Caution

Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

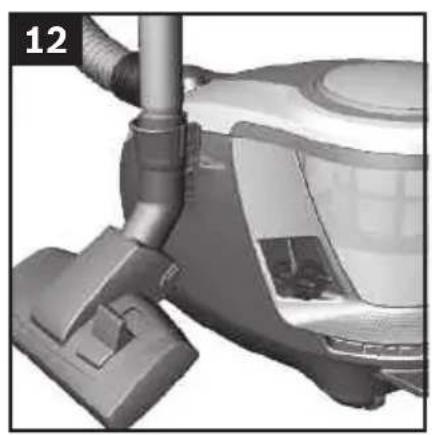

Fig. 12

Set the adjustable floor nozzle:

■ Rugs and carpets =>

■ Hard floors/parquet =>

If you are vacuuming up larger particles, make sure that you vacuum them up successively and carefully to ensure that the vacuum channels of the floor tool do not become blocked.

If necessary, you should raise the nozzle in order to better vacuum up the dirt particles.

Vacuuming with accessories

Fig. 13\*

Attach the nozzles to the suction pipe or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
c) Upholstery nozzle with fixed brush ring for vacuuming window frames, cupboards, profiles, etc.

After use, reinsert the crevice nozzle and upholstery nozzle into the accessories holder.

d) Professional crevice nozzle

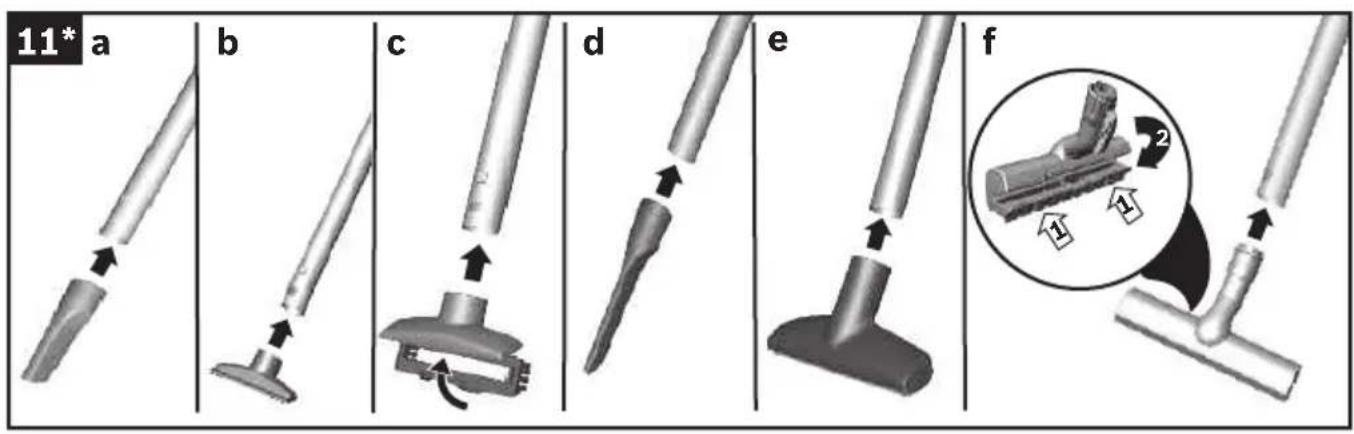

Extra-long crevice nozzle for cleaning crevices, corners and narrow spaces, e.g. in a car.

e) Professional upholstery nozzle

For gently and thoroughly cleaning upholstered furniture, curtains, etc.

For cleaning the professional upholstery nozzle, simply vacuum it using the handle.

f) Hard-floor nozzle

• with clip-in edge cleaning bristles:
  For gentle but effective cleaning of hard floor coverings (tiles, parquet, etc.)
• without edge cleaning bristles:
  For cleaning dirt in gaps and cracks
  The edge cleaning bristles can be removed by pushing the two catches in the direction of the arrows.

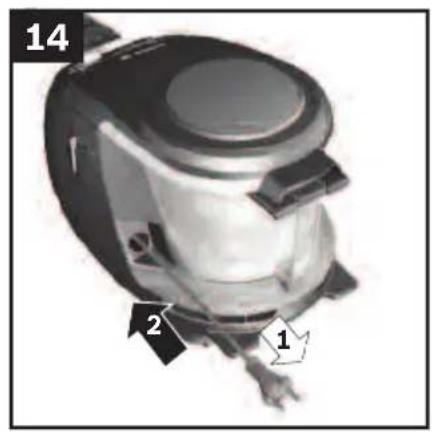

Fig. 14

You can use the parking aid on the side of the vacuum cleaner if you wish to stop vacuuming for a short time.

●After switching off the appliance, slide the hook on the floor tool into the parking aid.

Fig. 15\*

When vacuuming stairs, the appliance must be positioned at the bottom of the stairs. If it does not reach far enough, the appliance can also be carried using the carrying handle.

When your work is finished

Fig. 16

• Switch off the appliance.
• Pull out the mains plug.
• Briefly pull the power cord and release. (The power cord retracts automatically).

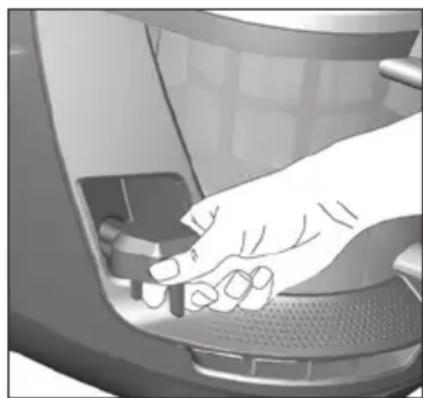

Caution

- Please make sure that the contacts of the mains plug do not protrude out beyond the appliance. This may cause scratching/damage to furniture and doors, etc.

Turn the plug to the side if necessary.

Hand pressing down on a car intake manifold (no text or symbols visible)

Fig. 17

- Unlock the telescopic tube by moving the sliding switch in the direction of the arrow and slide one tube into the other.

Fig. 18

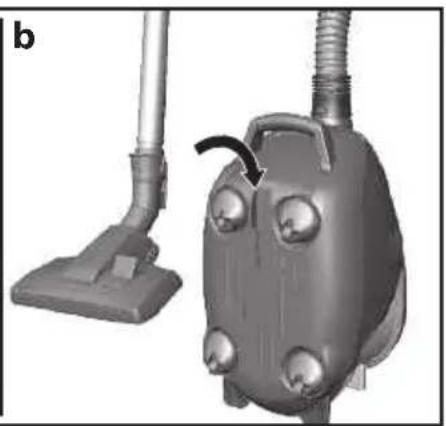

To store the appliance, use the storage aid on the underside.

a) Stand the appliance up by the handle.
b) Slide the hook on the floor tool into the storage aid.

Emptying the dust container

Fig. 19

In order to achieve good vacuuming results, the dust container should be emptied after every use or, at the latest, when dust or dirt has visibly collected on the fluff filter or when dust at one point in the container has reached the height of the marking.

When emptying the dust container, always check how dirty the fluff filter is and, if necessary, clean it as detailed in the "Cleaning the fluff filter" instructions.

Fig. 28

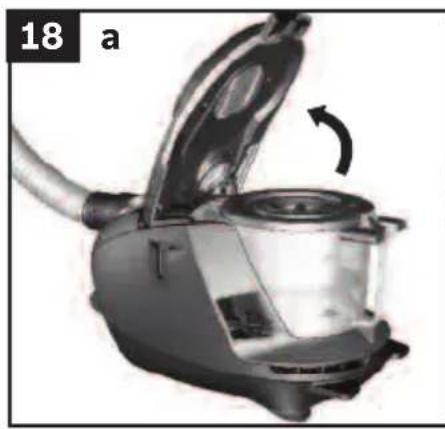

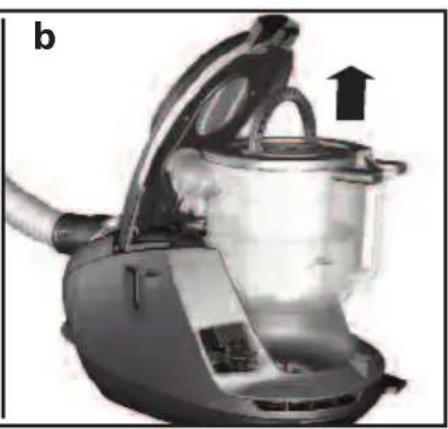

Fig. 20

a) Open the appliance lid by pulling the locking tab.
b) Use the handle to remove the dust container from the appliance.

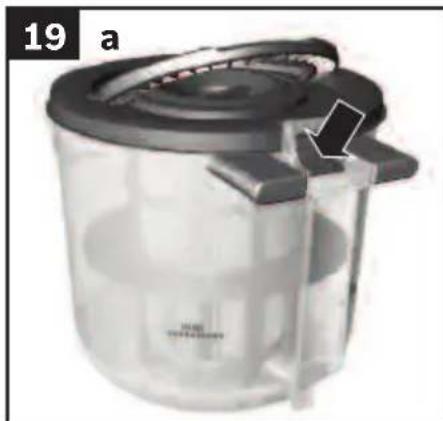

Fig. 21

a) Release the filter unit of the dust container by pressing the release button.

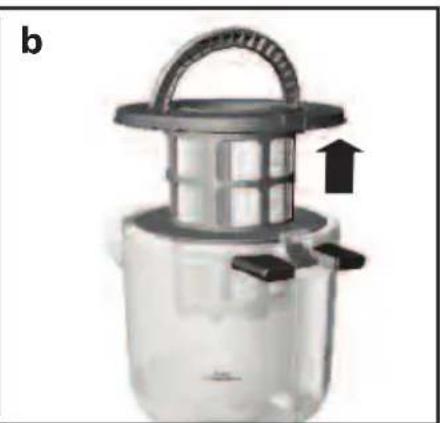

b) Take the filter unit out of the dust container and empty the dust container.

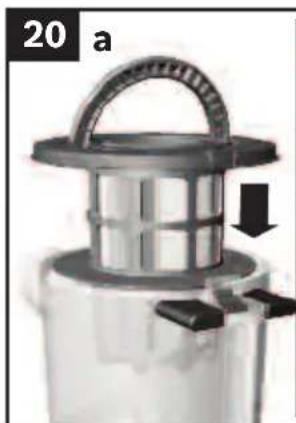

Fig. 22

a) Insert the filter unit into the dust container, making sure it is correctly seated. The arrow on the filter cover must point in the direction of the locking tab.

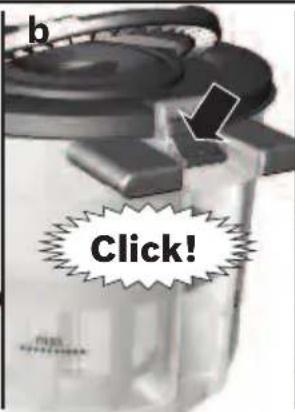

b) Press on the container lid until you hear it click into place.

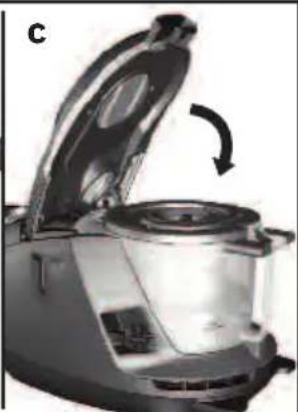

c) When reinserting the dust container into the appliance, make sure it is correctly seated. Close the appliance lid until the locking tab clicks into place again.

Caution

- If you notice any resistance when closing the lid, check that the filter is complete and that the filter and dust container are correctly seated. Cleaning and care

Filter care

Cleaning the plate filter

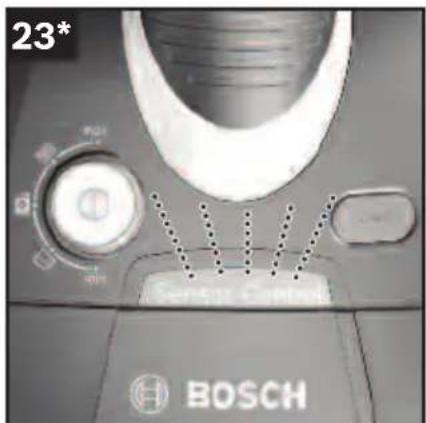

Your appliance is equipped with a "Sensor Control" Function. Fig. 23* + Fig. 25*

This function constantly monitors whether your vacuum cleaner is reaching its optimum power level. The indicator light lets you know when you need to clean the plate filter, so that the vacuum cleaner can reach its optimum power level once more.

Vacuum cleaner with "RotationClean" function

Fig. 23\*

The indicator lights up blue when the appliance is working at its optimum level. Once the indicator turns red and flashes, the plate filter must be cleaned. The appliance is automatically adjusted back to the lowest power setting.

Fig. 24\*

- Switch the appliance off in order to clean the plate filter.

! Caution: the filter can only be cleaned if the appliance is switched off.

• Open the appliance lid by pulling the locking tab.
• To clean the plate filter, turn the knob at least three turns through 180^ .

You can also clean the filter if the suction is becoming less powerful, even if the indicator has not lit up. We recommend that you clean the plate filter each time before emptying the dust container. It must be cleaned at the latest when the "Sensor Control" indicator lights up.

If the indicator flashes three times in quick succession, even though the plate filter is clean, this is probably due to a dirty fluff filter or a blockage. In this case, the appliance automatically adjusts to the lowest power setting and the indicator lights up red permanently.

- Switch the appliance off, empty the dust container and clean the fluff filter according to the instructions in "Cleaning the fluff filter". Fig. 28

Vacuum cleaner with "SelfClean" function

Fig. 25\*

The indicator lights up blue when the appliance is working at its optimum level. Once the indicator turns red and flashes, the appliance switches off automatically

Filter cleaning is activated and performed by the integrated cleaning motor.

If the appliance cleans three times in quick succession, this is probably due to a dirty fluff filter or a blockage. In this case, the appliance automatically adjusts to the lowest power setting and the indicator lights up red.

- Switch the appliance off, empty the dust container and clean the fluff filter according to the instructions in "Cleaning the fluff filter". Fig. 28

Fig. 26\*

If required, you can also activate the cleaning procedure manually by pressing the "Clean" filter cleaning button when the appliance is switched on.

If suction power is reducing, you can also clean the filter even if the indicator has not lit up. We recommend that you clean the plate filter each time before emptying the dust container.

Tapping out the plate filter

Fig. 27

If the plate filter is particularly dirty, the dirt can also be tapped out.

- Tap out the filter over a dustbin.

The dirt will fall down out of the filter.

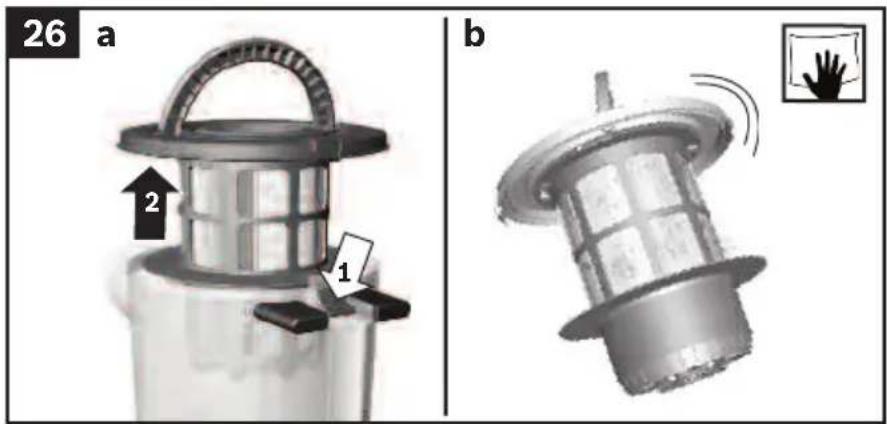

Cleaning the fluff filter

The fluff filter should be cleaned at regular intervals in order to ensure optimum operation of the vacuum cleaner.

Fig. 28

- Open the appliance lid and remove the dust container from the appliance. Fig. 20

a) Take the filter unit out of the dust container.
b) It is usually sufficient to lightly shake or tap out the whole filter unit when the dust container is emptied in order to dislodge any particles of dirt.
- If this is not sufficient, you can use a dry cloth to remove dirt particles from the fluff filter.

Cleaning instructions

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with an ordinary plastic cleaner.

Caution:

- Do not use a scourer, glass-cleaning agent or multipurpose cleaning product. Never immerse the vacuum cleaner in water.

Subject to technical modifications.

fr

Simple line drawing of an open book with a right-pointing arrow on the right page (no text or symbols)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered mechanical component with a lever and flange (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Metal mechanical component with a protruding rod (no visible text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the right page (no text or symbols)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered mechanical component with a lever and flange (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a mechanical component with a lever and flange (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

3D rendered image of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical clip or bracket component (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Περιγραφή συσκευής

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Metal mechanical component with a protruding rod (no visible text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Cihaz açıklaması

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Metal mechanical component with a protruding rod (no visible text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

Opis urządzenia

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered image of a metallic mechanical clip or bracket component (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

A készülék leírása

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Metal mechanical component with a protruding rod (no visible text or symbols)

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Описание прибора

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered mechanical component with a lever and flange (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Metal mechanical component with a protruding rod (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Описание на уреда

3D rendering of a Y-shaped pipe fitting (no text or symbols)

3D rendered mechanical component with a lever and flange (no text or symbols visible)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

3D rendered image of a Y-shaped pipe fitting (no text or symbols)

Metal mechanical component with a protruding rod (no visible text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

liXaPSI K\*JOi1i

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Metal mechanical component with a protruding shaft (no visible text or symbols)

Simple line drawing of an open book with a curved arrow indicating rotation (no text or symbols)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

U_2m_6n 6g_1o_3n_6o_6n U_5f_3d_3b_6o_6 (3s_630_0, g_1m_6b_6, _0f_3m_6_0)

Metal mechanical component with a protruding rod (no visible text or symbols)

a) g_3g_2g_0g_1=ls g_2g_0g_0=g_3g_2g_0g_0=g_3g_0s .

e) 36m2g10m65m7m6n 85m0m0g0u 15g4g6p0 6d0m0 s3g0x0, q5g0g0n0s p0 u63. duny0y0 p0 15g0y0d3m0s0 g4g6p0n0s0z0. 36m2g10m65m7m6n 37m0b0u15g4g6p0u 85u6f4g6p0 7g4m0m0 15g0m0g0n0 p0ssd4g3g6n5u6n7g6p0n o0.

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

您的吸塵器

3D rendered Y-shaped pipe fitting (no text or symbols)

硬質地板吸塵專用

(實木地板、瓷磚、紅瓦等)

B 硬質地板吸嘴BBZ124HD

Metallic mechanical component with a protruding rod (no visible text or symbols)

配備2個旋轉刷頭

Hand pressing down on a car intake manifold (no text or symbols visible)

* 視配備規格而定

17

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Metal mechanical component with a protruding rod (no visible text or symbols)

3D rendered mechanical component with a lever handle (no text or symbols visible)

التشغيل

1 صورة

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

وصف الجهاز

3D rendering of a Y-shaped pipe fitting (no text or symbols)

Kundendienst – Customer Service

DE Deutschland, Germany

BSH Home Appliances FZE Round About 13,

Plot Nr MO-0532A

Jebel Ali Free Zone – Dubai Tel.: [phone]

mailto:[e-mail] www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k

Rr. Shkelqim Fusha, Selite, Pallati "Matrix Konstruksion", Kati 0 dhe +1

1023 Tirane

Tel.: [phone], -131

Fax: [phone]

mailto:[e-mail]

EXPERT SERVIS

Rruga e Kavajes,

Kulla B Nr 223/1 Kati I 1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Cel: [phone]

mailto:[e-mail]

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.au

* Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel.: [phone]

Fax: [phone]

mailto:bosch_siemens_sarajevo@

yahoo.com

Business center FPI, floor 5,

Cherni vrah Blvd. 51B

1407 Sofia

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.bg

BH Bahrain,

Khalaifat Est.

P.O. Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order

spare parts and accessories or for

product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

* Calls are charged at the basic rate, please

check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.bosch-home.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KZ Kazakhstan, Казақстан

IP Anackiy A.N. PTN-Service

Kuyshi Dina str.23/1 N3

Astana

Tel.: [phone]

mailto: [e-mail]

Technodom Service

Utegen Batira Str. 73

480096 Almaty

Tel.: [phone]

mailto: [e-mail]

www.technodom.kz

Kombitechnocentr

Zhambyl st. 117

480096 Almaty

Tel.: [phone]

mailto:[e-mail]

www.cts.kz

TOO Evrika Service

Shimkent, Riskulova 22.

Shimkent 160018

Tel.: [phone]

mailto:evrika [e-mail]

www.evrika.com

AV SERVICE

Abulhair hana Str. 51

Uralsk 090000

Tel.: [phone]

mailto:[e-mail]

www.avservice.kz

LB Lebanon,

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30 am to 5.00 pm

(exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

Abdul Latif Jameel Electronics

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore, 新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm (exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

pt

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

послаже, please select nonс Business (in millions) in reverse direction, which, unless otherwise is complete to check it, please pay a salary for any person.

Технологий вет.

[e-mail]
