USER MANUAL MID700GBT001 Bluetech

1 Outlook Description 4
2 Power Button usage. 4

3 Using Micro SD Card 5

Charge the device 5
Turn the device on 5
Wi-Fi Network Setup 5

5 DESKTOP 7

6 Screen Lock 8
7 Pre-loaded Applications 8
8 Desktop Function Menu 10
9 Application Management 12

Install Android Applications 12
Download Android Applications direct from a Website 12
Uninstalling Android Applications 12

10 WmtWeather 12
11CLOCK. 13

Alarm 13

12APPMARKET 14

Download Applications 14
App Market Function Menu 14

R0wSER 14

14CALENDAR 15
Add Event 15

15CAMERA 15

Menu Function 15
Take Pictures 15
Take Videos 16

16 CALCULATOR 16
17 REORDER 16

18 EMAIL 16

Add Email accounts 16
Email Inbox 17
Edit Email Account 18
Delete Email Accounts 18

19 FILE BROWSER 18

Copy Media between Computer and Tablet 19
Delete files 19

20 MY MUSIC 19

Play Music. 19
The Operation with Music and Playlist 20

21 MY VIDEO 20

Play Video 20

The Operation with Video and Playlist 20

22 MY PHOTO 21

Doodle 21

23 CONTACTS 21

Add New Contacts 21

Add Contact to Favorites 22

Edit Contacts 22

Delete Contacts 22

24 PICTURE CAPTURE 22

25 TASK MANAGER 22

Stopping Applications 22

Uninstall Applications 23

26 YouTube 23

27 Wi-Fi Settings 23

28 3G Settings 23

29 SETTINGS 24

Frequently Asked Questions 26

Android 26

Basic Device Functionary 26

Email 26

Media Cards 26

Music 26

Photos 26

Video 26

Wi-Fi 27

Battery Management 27

Important Safety Precautions 27

Appendix: The Optional parts and models 28

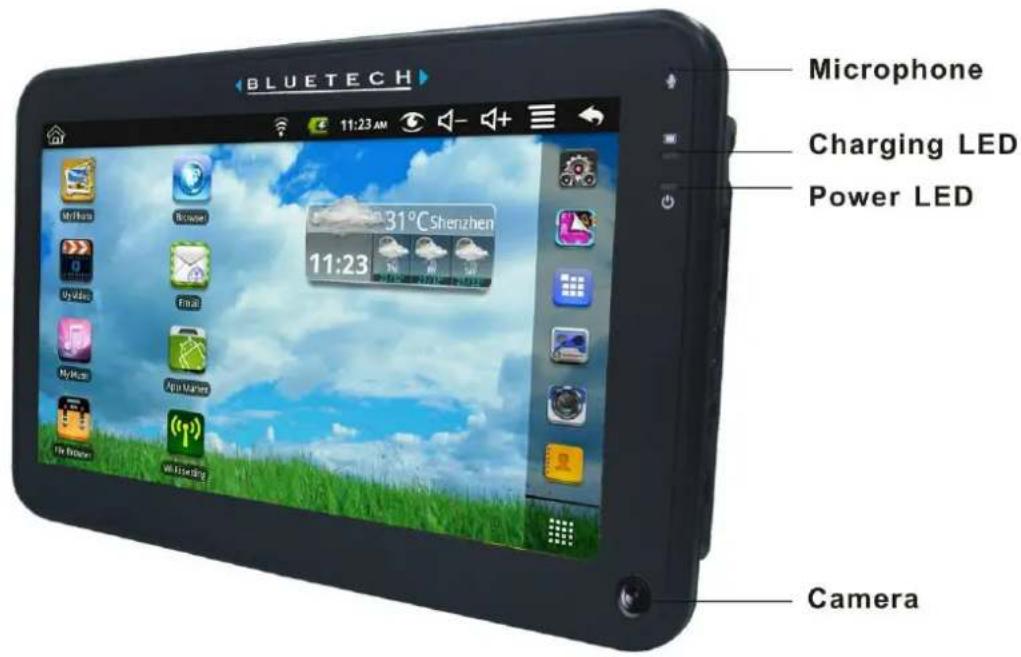

1 Outlook Description

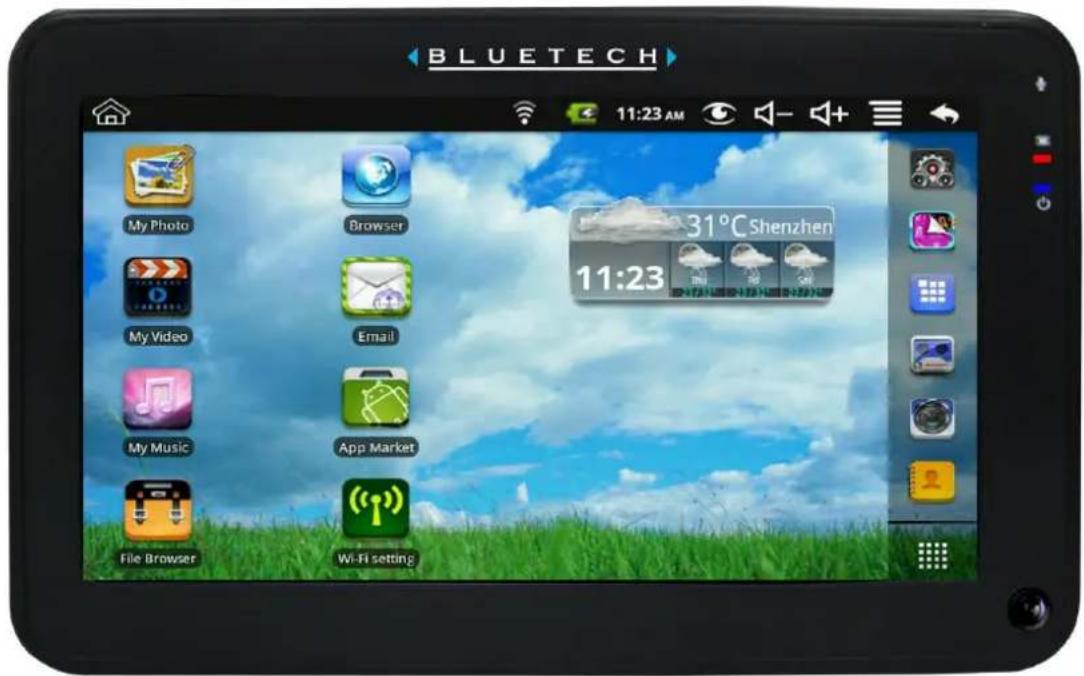

Front:

Right side:

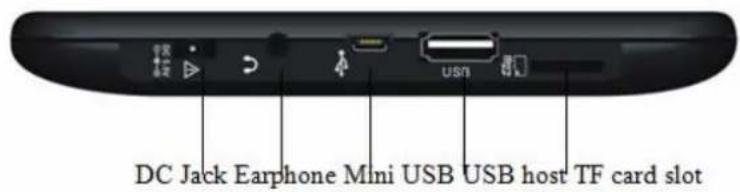

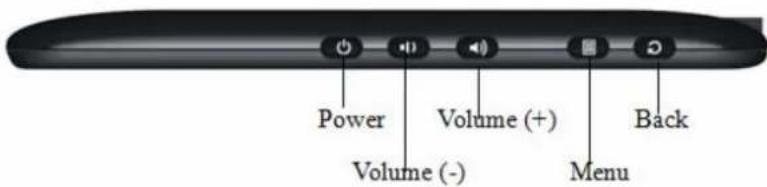

Top:

2 Power Button Usage

Turn On: Press the power button and hold for 2 seconds.

Turn Off: Press the power button and hold for 2 seconds, tap Power off tap OK.

Screen lock: Press the power button quickly to lock and close the screen.

Force Off: If device does not respond, press and hold the power button for 5seconds.

(Warning: Force off could lead to unpredictable system errors occur!)

3 Using Micro SD Card

The device supports a maximum 32GB microSD card.

Insert your card into the microSD slot until it clicks into place. It's OK

Remove microSD Card

Close all applications or documents which have been opened on the card. Tap

Settings SD card, U-disk & device storage Unmount SD card. Press the card lightly; it is partially ejected allowing you to pull the card out.

Don't insert and remove the microsd card repeatedly in a short time, as this may cause damage to the card.
We recommend using major brands of memory cards to avoid incompatibility.

4 Getting Started

Charge the device

☆ You cannot charge the battery using the USB cable.
You can use the device while the battery is charging, although the charging time is longer when operating and charging at the same time.

Plug the power adapter into an electrical wall outlet, and then connect to the device to fully charge the battery before use (approx. 4hour).

While charging, the battery indicator light is red. When fully charged, the battery indicator light is green.

Turn the device on

Press the power button and hold for 2 seconds.

Wi-Fi Network Setup

Since many features require a Wi-Fi connection, we recommend you set up your Wi-Fi network now.

1. Tap Settings, Wireless & network.
2. Select Wi-Fi to turn on.

The device automatically scans and lists all local Wi-Fi Network found. A indicates secure networks that require login name/password to connect.

1. Tap the desired network to which you want to connect, enter the Network Password if applicable, tap Connect.

2. Tap

to return to the Desktop screen.

If your Wi-Fi network is set as hidden, it won't be found by the auto scan. Tap Add Wi-Fi network and follow the prompts to add your network.

Wifi quick instruction as below

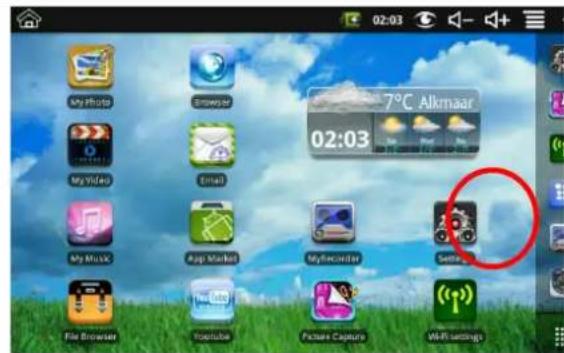

1. Click on SETTINGS

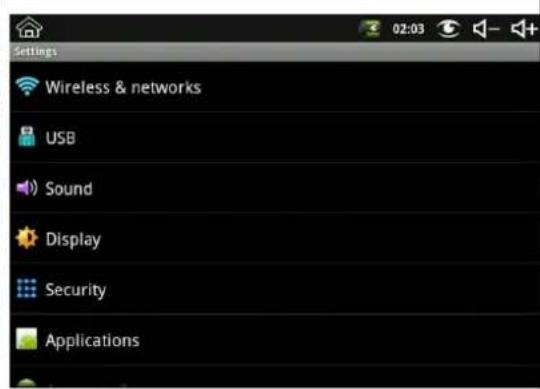

2. Select Wireless & networks

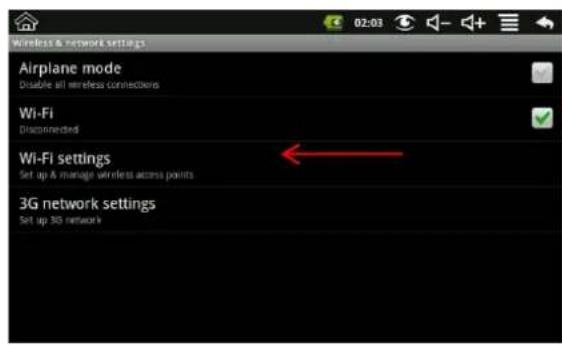

3. Check if Wi fi is selected and click Wi-Fi settings

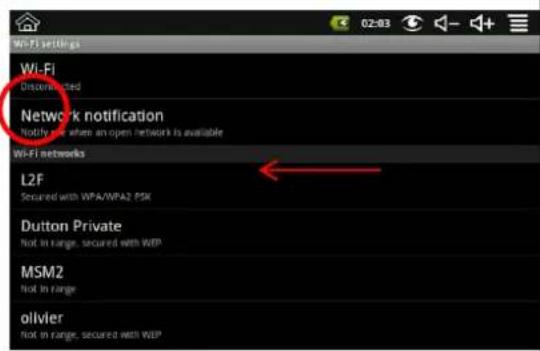

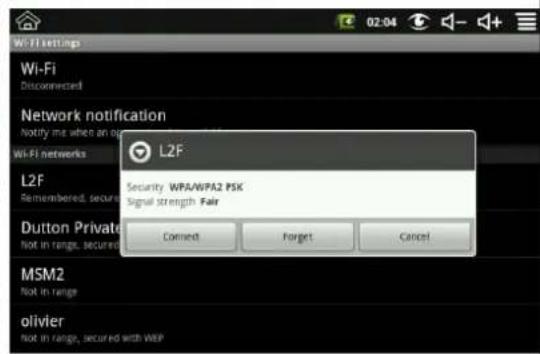

4. Your Wifi accessnowappear. In example, it's called L2F. Click on it

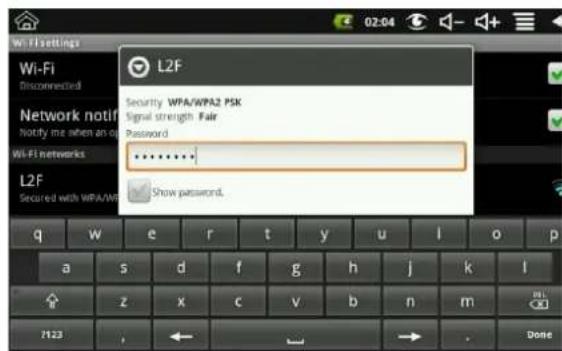

5. Enter Wifi Security code (ask your operator)

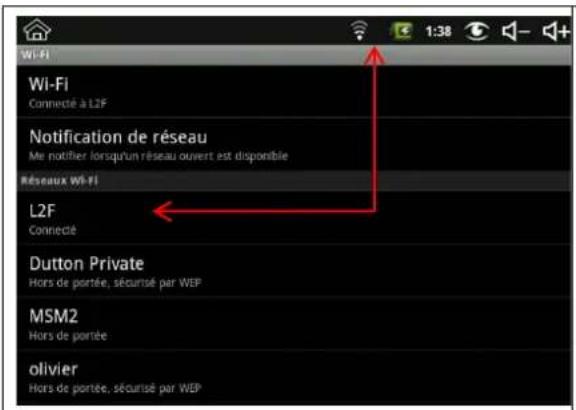

6. Click on Connect

Your wifi is connected on Wifi

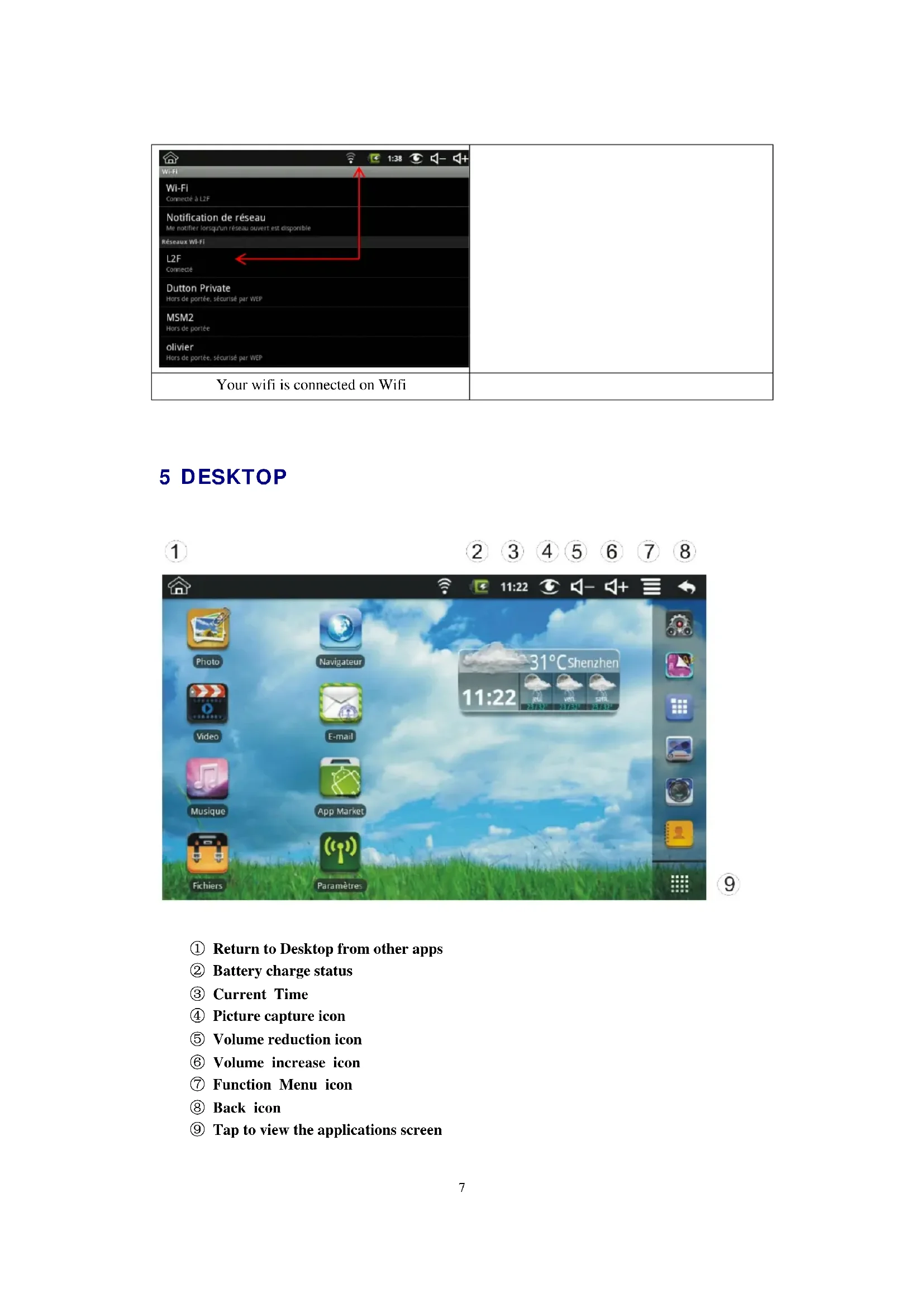

5 DESKTOP

① Return to Desktop from other apps
② Battery charge status
③ Current Time
④ Picture capture icon
⑤ Volume reduction icon
⑥ Volume increase icon
⑦ Function Menu icon
⑧ Back icon
⑨ Tap to view the applications screen

Tap on any application icon to launch it.
Touch, hold and then slide icons to reposition them on the screen

Touch, hold and slide icons onto to remove them from the

Desktop screen.

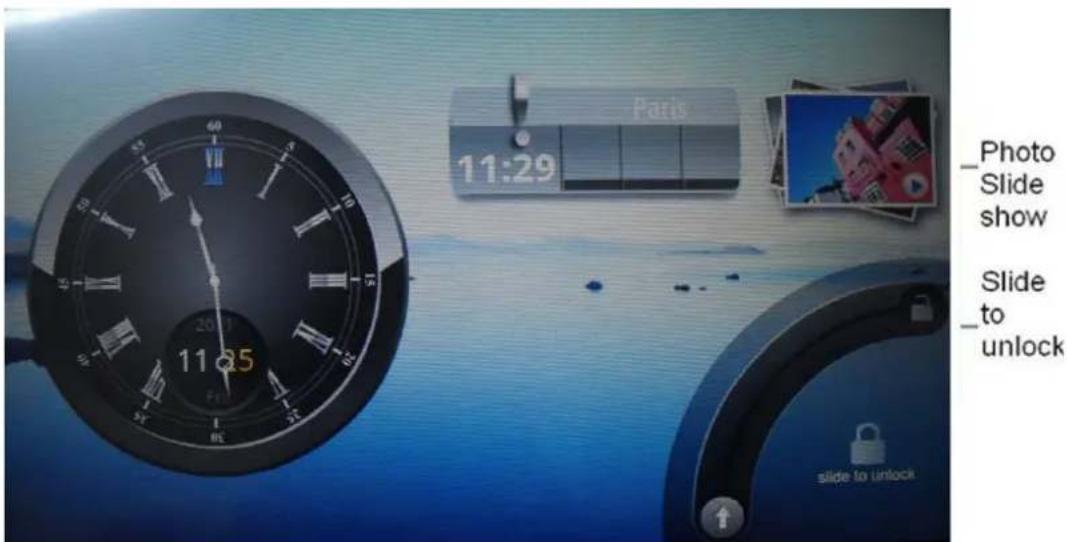

6 Screen Lock

Can be set to automatically lock screen or quickly press the power button to manually lock screen. Lock screen displays the following:

Tap the icon to enter My Photo to do slide show. And slide the track like the picture to unlock.

7 Pre-loaded Applications

Wmtweather	Display the weather.
Clock	Use as alarm clock with scheduled alarms.
App Market	Downloaded applications quickly & easily.

	Browser	Access the Internet and "surf the web" whenever desired.
16	Calendar	Calendar with ability to set events.
	Camera	Take photos and save to internal memory or your memory device.
	Calculator	Do calculation.
	Email	Send/Receive email using your existing email addresses.
	File Browser	File manager application for viewing and managing files and apps. Use to install Android apps, and to backup files to your SD card.
	My Music	Play and manage audio files.
	My Video	Play and manage video files.
	My Photo	View and manage photo files.
	Contacts	Create a list of personal contacts, which can also be linked with your email.
	Picture Capture	Capture image of the screen.
	Task Manager	Application manager for managing processes.
	YouTube	Quick launch to YouTube.com videos.
	Settings	Multiple settings for personalizing and enhancing your Device.

Wi-Fi Settings	Set Wi-Fi network.
3G Settings	Set 3G network.

To move an icon to the Desktop screen, touch & hold on the icon, and then release it when it appears on the Desktop screen.
Touch, hold and then slide icons to reposition them on the screen.

Touch, hold and slide icons onto to remove them from the Desktop screen.

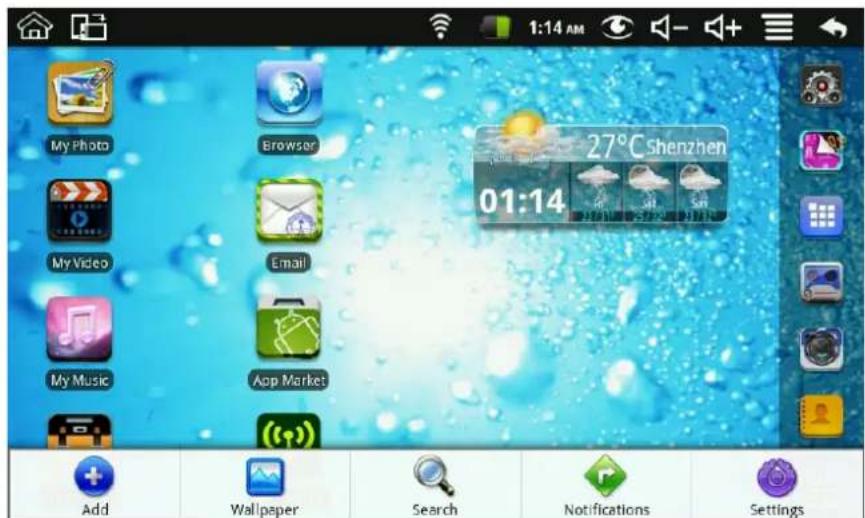

8 Desktop Function Menu

On the Desktop screen, you can tap to display the Function Menu.

Add	The viewable portion of the Desktop screen allows only 16 icons. In order to add more items, finger slide the screen horizontally to expose available space, and then tap the Add icon again. If the screen is full, the Add icon won't response.
	Shortcuts	Add quick launch shortcuts on the Desktop to applications, bookmarks or settings. ★ If you select items that are shortcuts already on the Desktop screen, they will be duplicated, resulting in multiple icons for the same item.
	Widgets	Analog clock: Add a round analog clock. Calendar: Add a calendar widget to display current date & events. Music Player: Add a music widget to quickly begin playing music without launching the music application.
	Folders	New Folder: Add a folder into which you can add applications as desired. To move applications on the Desktop screen into the folder, touch, hold & drag the icons directly on top of the folder icon. To add applications from the All Application screen, first tap on the folder to open it, open the All Application screen, and then touch & hold on an application icon. It is copied into the folder.
Wallpaper		Select wallpaper from Picture and Wallpapers.
Search		Perform a quick Google search. Tap in the entry field, → enter the desired search text, → tap.
Notifications		List any pending notifications (i.e., new email, calendar events, etc).
Settings		See “Settings” on page 24.

9 Application Management

Install Android Applications

There are many interesting and free Android applications that can be found on the web. Just launch your web browser and do a search for "Android applications".

Purchased or free Android applications that you have downloaded to your computer can

File Browser application.

be installed quickly & easily on your Tablet using the

1. Copy the .apk files that you want to install onto a SD card or USB device, → insert or connect to your Device.

2. Tap the

File Browser application icon.

1. Tap

or and locate the folder in which the .apk application files were

1. T
2. Tap on a .apk file Install.

The application is installed and the application icon is added to the Applications screen.

1. Tap Open to launch the application now, or tap Done to return to the File Browser screen.

Download Android Applications direct from a Website

You can download Android applications directly from websites, and then quickly and easily install them on your device.

Web application icon to launch the internet browser.

1. Enter the desired website URL, and tap the download link for the application you want to install on your device.
2. After the download is complete, touch & hold on the download file (in the Download history screen), tap Open Install.

Uninstalling Android Applications

You can also quickly and easily uninstall the Android applications that you have installed.

1. Tap

Settings Applications Manage applications.

1. Tap the application you want to uninstall, Uninstall.
2. Tap OK to confirm the Uninstall.

10 WmtWeather

Tap the

WmtWeather application icon.

General setting

You can set Temperature Unit(°C), Update frequency and Auto Wallpaper.

My cities

You can add city and set it to be my city.

You can make the weather displayed on the Desktop through adding widget. The way is: tap

Add Widgets WmtWeather。

11 CLOCK

Tap the

Clock application icon. You can see the time and date.

Alarm

You can use your device as an alarm clock by setting multiple alarms.

This clock icon displayed at the top of screens indicates that one or more alarms have been set and are active.

Add Alarm

1. Tap the

Clock application icon.

1. Tap

Add alarm.

1. Set up your alarm as desired.

If you don't select a repeat, the alarm is automatically deleted after it is activated.
4. Tap Turn alarm on.
5. Tap Done.

Shut Off Alarm Alert

When a scheduled alarm is activated, a pop-up window with the alarm title appears. Tap Snooze if you want to be reminded again in 10 minutes.

Tap Dismiss to cancel the alert.

Turn Alarm on

On alarms that you have set to repeat, you may want to temporarily turn on alarms rather than delete them.

1. In the Alarm screen, tap

on the alarm(s) you want to turn on.

1. Tap

to turn on again.

Edit Alarm

Clock application icon.
1. Tap the
2. Tap on the alarm you want to edit, make desired edits.

Delete Alarm

Clock application icon.
1. Tap the
2. Tap on the alarm you want to delete.

12 APP MARKET

The App Market has many applications that you can quickly and easily download to your Tablet.

Download Applications

1. Tap the App Market application icon.

The first time, you are prompted for your App Market login information. If you have not yet registered an account, tap Register.

Otherwise, tap Login and enter your login information and then tap Login again.

1. You can select applications from the default Featured group, by Categories, Top (latest, hottest, random), or search by name.
2. Tap on an application, Download.
3. After the app is downloaded, tap Install.
4. Tap Open to launch now, or Done to return to the App Market screen.

History

After downloading apps, tap on History to manage the installed applications. You can add and/or view comments from other users, launch apps, and uninstall them.

App Market Function Menu

to display the App Market Function Menu.

Profile

Tap to access your profile information. You can Change Password, Change Email and Save Password. TapLogout on the top right corner of Profile to exit your account.

About

Displays

App

store

version

and

support

information.

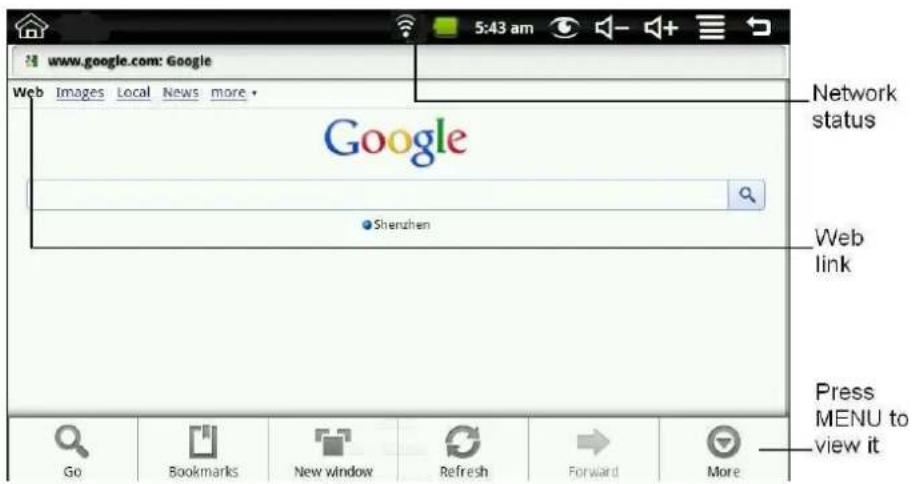

13 BROWSER

Users can connect to the Internet through a browser.

Click the browser icon on the Desktop, and then you can open the Web browser.

14CALENDAR

16 Calendar application icon.

For the first time using the Calendar, you need to add an Exchange account. Enter account email address and password. Click Next and follow the prompts to complete the account configuration. Then you can use the Calendar.

Add Event

1. On the Calendar screen, tap on the date to which you want to add an event.
2. Tap on the event time, tap in each entry field to enter the desired event information.

3. Tap Done.

4. Tap to select desired Calendar screen.

Dates with green bars indicate scheduled events.

15 CAMERA

Tap the Camera application icon.

Menu Function

1. Press Menu button to pop-up the menu list, including: Switch to video/Switch to camera and My Photo/My Video.
2. In Camera, tap My Photo can enter it to scan the picture.
3. In Camcorder, tap My Video can enter the list of the video.

Take Pictures

1. In Camera tap

to take the picture.

1. The picture will be saved.

2. Tap the picture thumbnail

to enter My Photo to scan the picture.

1. Press Back to the Camera.

2. Tap

to exit the Camera and back to the Desktop.

Take Videos

1. Tap

switch to video, and you can take videos.

1. Tap

to begin and tap

to begin and tap to stop.

1. The video will be saved.

2. Tap the video thumbnail

to play the video.

1. Press Back to the Camera.

2. Tap

switch back to camera.

1. Tap

to exit the Camera and back to the Desktop.

Note: You can tap

to choose to save the files in the Localdisk or the SD card.

16 CALCULATOR

1. Tap the Calculator application icon.
2. Tap the numbers and sign of operation to do the calculation.
3. Tap CLEAR to clear the result one by one, tap and hold CLEAR to clear all.

17 REORDER

1. Tap the

record icon to start recording.

1. Tap the

record icon to stop record.

1. Tap the

play button to play the voice of recording.

18 EMAIL

POP3 and SMTP accounts are supported.

Add Email accounts

You can enter one or more personal email addresses that you would like to access through your Tablet.

1. Tap the Email application icon.
2. On the Your Accounts screen, tap Next.
3. Tap in the Email address entry field, enter your email address.
4. Tap in the Password entry field, enter your email password.
5. Tap Done.
6. Manual Setup (optional): The server settings are automatically populated based on your email account provider (i.e., gmail.com, etc). However, if you need to change the server settings tap Manual Setup and make necessary changes.
7. Tap Next.
8. Optional: Enter a name for the account.
9. Enter name for outgoing message, tap Done.

After setup, if you are unable to connect to afree email account, check with your email provider to make sure their servers support free accounts on Post Office Protocol (POP) or Simple Mail Transfer Protocol (SMTP).

Email Inbox

1. Tap the Email application icon.
2. If you set up only one email account, it opens immediately. If you set up multiple accounts, they are listed in the Accounts screen.
3. Tap on the desired email account, tap Inbox.

Open Email Message

1. On the Inbox screen, tap on an email to open it.
2. For attachments, tap Open to launch appropriate application, or tap Save to save attachment to a SD card.
3. To replay, tap Reply or Reply all.

a. Tap in theCompose Mail entry field to enter your reply message.
b. Tap Send to send immediately, Save as draft to save without send or Discard to discard without saving or sending.

1. To delete the email immediately, tap Delete.

Compose New Email Message

1. On the Inbox screen, tap Compose.

2. Tap in the To entry field and then enter the recipient's email address.

3. Optionally, if you want to add Cc or Bcc recipients, tap Add Cc/Bcc, and then enter the recipient's email address.
4. Tap in the Subject entry field to enter your desired subject title.

5. Tap in theCompose Mail area to enter your personal message.

6. If desired, tap Add Attachment to attach a file.

7. When ready to send the email, tap Send.

Edit Email Account

1. Tap the Email application icon.

2. On the Inbox screen, tap Account settings.

3. Set your desired preferences to customize your email account.

4. Tap to return to the Inbox screen.

Delete Email Accounts

If you have multiple accounts, and you delete the account designated as the default account, the next email listed is automatically set as the default.

1. Tap the Email application icon.

2. On the Inbox screen, tap Accounts.

3. Touch & hold on the account you want to delete.

4. In the pop-up Account options window, tap Remove account.

5. Tap OK to confirm the deletion.

Set Default Email Account

You must always have one account designated as the default account, so if you have multiple email accounts, you can select any one as the default.

1. Tap the Email application icon.

2. On the Inbox screen, tap Account Settings.

3. Tap Default Account to select it.

If you delete the account that was designated as the default account, the next email listed is automatically designated as the default.

19 FILE BROWSER

Tap the File Browser application icon to view the files on all storage devices (Internal memory, SD card, USB device), and to quickly & easily install Android application on your Tablet.

Use the icons across the top of the screen as follows:

Local disk (Internal memory)

Your SD card

U-disk/USB flash drive (using the included cable)

Display precious folder

Create a new folder

Allows you to multi-select items

Copy Media between Computer and Tablet

You can use the File Browser to copy files between an external storage devices and your computer. You can first copy the desired files onto a SD card or USB device.

The internal device storage is titled "LocalDisk", a memory card "sddcard", and a USB storage device is titled "udisk".
The instructions below are for copying from a SD card or USB storage device into the device. You can use the same method to copy from the device to a SD card or USB storage device, and then connect the storage device to your computer to transfer the files into the desired folder on your computer.

1. Tap the or to display the contents of your storage device.

2. Tap and hold in the folder/file you want to copy, tap Copy.

3. Tap on the ROM Internal Memory, tap on the folder into which you want to copy the file, tap Paste.

Delete files

Tap and hold on the folder/file you want to delete, tap Delete OK to confirm the deletion.

20 MY MUSIC

Audio file formats supported: MP2, MP3, WAV, AAC, WMA.

Play Music

My Music application icon.

1. Select an audio file from All/Albums/Artists/Directories/My Favourites/User Defined Playlists to play it.

2. To stop the music, tap the Pause icon.

3. To leave the music playing and return to previous screens, tap or tap to return to the Desktop screen.

Tap the photo on the left corner can enter the Music Player interface.

At this interface, you can do: view the lyrics, play / pause, switch to the previous / next, added to favorites, loop and random operation etc.

The Operation with Music and Playlist

Add playlist

1. Tap the User Defined Playlists

2. Add New Playlist.

3. Input the playlist name.

4. Tap Add.

Rename or Delete playlist

Tap and hold in the playlist, tap Rename or Delete.

Add music

1. Tap and hold in the music you want to add, tap

1. Click the following item to add music in it (if you don't want to add, tap Cancel).

Delete music

Tap and hold in the music you want to delete, tap

MultiSelect

Tap and hold in one music can do multiselect, tap to select all or clear all.

21 MY VIDEO

Video file formats supported: MPEG1/2/4、MJPG、H263、H264。In addition to H264 which is supported by (720× 480) resolution, the other video formats are supported (1280× 720) resolution.

Play Video

1. Tap the My Video application icon.
2. Select a video file from All/Directories/My Favourites/User Defined Playlists to play it.

3. Tap on the screen to display video controls (adjust volume, pause/play, previous/next, adjust brightness).

4. Tap Back button or to return to the My Video screen.

The Operation with Video and Playlist

Add playlist

1. Tap the User Defined Playlists
2. Add New Playlist.
3. Input the playlist name.
4. Tap Add.

Rename or Delete playlist

Tap and hold in the playlist, tap Rename or Delete.

Add video

1. Tap and hold in the video you want to add, tap Add.

2. Click the following item to add video in it (if you don't want to add, tap Cancel).

Delete video

Tap and hold in the video you want to delete, tap Delete.

22 MY PHOTO

Photo file formats support: JPG, JPEG, BMP, and PNG.

1. Tap the My Photo application icon, tap on a group of photos.

2. To view individual photo, tap on the desired photo.

3. Tap Back button to return to the photo gallery screen.

4. Tap to make slideshow. There is Normal play, Reminiscently, Activity, Romantic, Tranquil and Fresh.

5. Tap to make the picture sort by color.

6. Tap to make the picture sort by time.

7. Tap to make the picture sort by name.

After entering a group of photos, tap and hold on a picture to enter multiple selections state. In the multiple selection state you can delete photos, and do dynamical switching wallpaper setting.

1. Multiselect.
2. —Delete.
3. Add a picture to the group

Doodle

In My Photo you can do doodle.

Click the icon to enter doodle interface. You can select different doodle operations, including: word balloons, titles, stickers and brush.

23 CONTACTS

You can create an address book of your personal contacts, including personal notes as desired.

Add New Contacts

1. Tap the Contacts application icon.

2. Tap

New Contact.

1. Tap in the name fields to enter the contact's first & last name.

2. Tap

at the right of options to reveal additional choices.

1. Tap on the option name to reveal choices.
2. Tap in the option entry fields to enter the contact's information.
3. Tap Done.

Add Contact to Favorites

1. In the Contacts screen, tap on the desired contact name.
2. Tap in the upper right corner.
3. Tap to return to the Contacts screen.
4. Tap Favorites to view list of favorite contacts.

Edit Contacts

1. In the Contacts screen, tap on the desired contact name you want to edit.
2. Tap
3. Make desired changes, tap Done.

Delete Contacts

1. In the Contacts screen, touch & hold on the contact, tap Delete contact. OR

In the Contacts screen, tap on the contact you want to delete, tap Delete Contact.

1. Tap OK to confirm the deletion.

24 PICTURE CAPTURE

You can capture a screen image by tapping by time.

Picture Capture application icon to set options for a screen capture.

• Select a delay timer to automatically capture the screen in desired number of seconds.
• Select the default storage device for saving your images.

After the images are saved, they can be viewed though My Photo application.

25 TASK MANAGER

Use PK Manager to manager applications and widgets.

Stopping Applications

Android does not automatically stop applications after they are loaded, so you can manually stop the applications as desired.

1. Tap the PK Manager application icon. The list of applications that are running is displayed.
2. Tap on an application you want to stop, tap Force stop.

Uninstall Applications

1. Tap the PK Manager application icon. The list of applications that are running is displayed.

2. Tap tap Third Party or All to list more applications.

3. Tap on an application you want to uninstall, tap Uninstall.
4. Tap OK to confirm uninstall.

26 YouTube

1. Tap the YouTube application icon to view YouTube.com videos.
2. Tap on a video to launch it.
3. Tap on the screen to display video controls (adjust volume, pause/play, previous/next, adjust brightness).
4. Tap Back button to return to the YouTube screen.

27 Wi-Fi Settings

Wi-Fi Settings application icon.

1. Select the box behind to open Wi-Fi;
2. All the AP in the vicinity will be listed, click to select the name you want to connect to AP:
3. If the AP is connected successful before, the AP information will be saved in the pop-up window, select "Connect" starts to connect, choose "forget" to remove AP information;
4. If the AP is not encrypted, in the pop-up window, select "Connect" Start Connection;
5. If the AP is encrypted, enter the password in the pop-up window, and click "Connect" Start Connection:
6. When internet connections are successful, the wireless connection icon in the status bar appears.

28 3G Settings

We strongly recommend on buy the 3G USB dongle, in order to ensure normal 3G Internet access. Please come to the prepaid card into the purchase of 3G USB dongle, and then insert the adapter cards 3G on the convert cable. At this time, it will be bright lights, which indicated that it could begin to connect the 3G network.

3G Settings application icon.

Tap "Add 3G network":

Name: In the popup dialog box, name field enter the name you want free you can.

Device, Device number and APN, User and Password: Please fill in the information provided by carriers.

Fill then click the link, and you will see the screen above the status bar 3G symbol

Name: In the popup dialog box, name field enter the name you want free you can.

29 SETTINGS

Wireless & networks	Wi-Fi	Turn on Wi-Fi.
	Wi-Fi Settings	Set up & manage wireless access points.
	Airplane mode	Disable all wireless connections.
	3G network settings	Set up 3G network.
USB	Mass storage	Configure USB to mass storage.
	ADB	Configure USB to ADB.
Sound	Silent mode	Silence all sounds except media & alarms.
	Volume	To adjust the Media volume, Alarm volume and Notification volume. Tap & slide and then tap OK.
	Notification ringtone	Select desired ringtone sound.
	Audible selection	Select to enable a sound when making a screen selection.
	Screen lock sounds	Play sounds when locking and unlocking the screen.
Display	Brightness	Tap & slide to adjust the screen brightness as desired, and then tap OK.
	Auto-rotate screen	When selected, the orientation of the screen switches between Portrait and Landscape automatically when you rotate the device.
	Screen timeout	Adjust the delay before the screen automatically turns off.
	Suspend timeout	Adjust the delay before the device automatically suspend after the screen turn off.
Security	Set up screen lock	Lock screen with a pattern, PIN, or password.
	Visible passwords	Show password as you type.
	Select device administrators	Add or remove device administrators.
	Use secure credential	Allow applications to access secure certificates and other credentials.
	Install from SD card	Install encrypted certificates from SD card.
	Set password	Set or change the credential storage password.
	Clear storage	Clear credential storage of all contents and rest its password.
Applications	Unknown sources	Allow installation of non-Market applications.
	Manage applications	Manage and remove installed applications.
	Running services	View and control currently running services.
	Development	Set options for application development.
Privacy Factory data reset		Tap to reset the device to its initial factory state, erasing all data and downloaded applications. Tap Reset Device to proceed with reset, or tap to cancel and return to previous screen.WARNING! The following will be erased during the factory reset:~ Google account~ System and application data and settings~ Downloaded applicationsThe factory reset will NOT erased:~ Current system software and bundled applications~ SD card files, such as music or photos
SD card ,U-disk & device storage	Total space,Available space	It values appears when a SD card/U-disk is inserted in device.
	Unmount SD card/U-disk	When the SD card/U-disk is inserted, tap it to safety remove the SD card/U-disk.
	Format SD card/U-disk	N/A for this device.
Language &keyboard	Select language	Select the language and region according to your location.
	Android keyboard	Onscreen keyboard settings.
	User dictionary	You can add words to a personal dictionary, words that may not be included in the default dictionary.
Date & time	Set date	Set the date.
	Select time zone	Select the time zone.
	Set time	Set the time.
	Use 24-hour format	You can choose to use 24-hour format or 12-hour format.
	Select date format	You can select the date format.
About device		View Status (Battery, Wi-Fi, etc), Battery use, Legal information, Model number, Android version, Kernel version and Build number.
Touchpanel calibration		Calibrate the touch screen.

Frequently Asked Questions

Android

Q: What Android OS version is on my Device?

A: 2.2

Basic Device Functionary

Q: Do I have to charge the battery before use?

A: You should charge the battery for at least 4 hours, but you can use the device while it's charging. Use the include power adapter to charge; this device does not charge via the USB cable.

Email

Q: Can I use any of my personal email addresses to send/receive email?

A: The device supports POP3 and SMTP accounts. Some free email accounts are not supported on mobile devices. Check with your email provider to see if you account is supported.

Media Cards

Q: Which media cards are compatible with my Device?

A: micro SD cards.

Music

Q: What type of music files can I play on my device?

A: MP2, MP3, WAV, AAC, WMA

Q: How do I add music files to my device?

A: Copy the music files from your computer onto a SD card or USB storage device, and then use the File Browser application to copy the files into the device.

Photos

Q: What type of photo files can I view on my device?

A: JPG, JPEG, BMP and PNG.

Q: How do I add photo files to my device?

A: Copy the photo files from your computer onto a SD card or USB storage device, and then use the File Browser application to copy the files into the device.

Video

Q: What type of video files can I play on my device?

A: MPEG1/2/4、MJPEG、H263、H264. In addition to H264 which is supported by (720 × 480) resolution, the other video formats are supported (1280 × 720) resolution.

Q: Can I play YouTube videos on my device?

A: Yes. You can tap the YouTube application icon to quick access videos.

Q: How do I add video files to my device?

A: Copy the video files from your computer onto a SD card or USB storage device, and then use the File Browser application to copy the files into the device.

Wi-Fi

Q: Do I need a Wi-Fi adapter to connect to the Internet?

A: No. The Wi-Fi adapter is built-in to the device.

Inconsistent with the physical specifications, please prevail in kind.

Battery Management

The battery is not fully charged out of the box, so it is recommended that you charge the battery for at least 4 hours before you start to use the device.

The rechargeable battery is designed and manufactured to be used and recharged frequently. As with all batteries, the capacity of the battery reduces each time it is charged/depleted. However, you can still try to prolong the battery's lifetime by following the suggestions below:

• Use your Tablet at least once a week.
• Charge the battery regularly and fully.
• Never leave the battery fully discharged for a long period of time.
  Always keep the device and the battery away from heat.

Charge battery

Plug the power adapter into an electrical wall outlet, and then connect to the device to fully charge the battery before use (approx. 4hour).

☆ You cannot charge the battery using the USB cable.

When fully charged, the battery icon displays as:

A fully discharged battery takes approximately 5 hours to fully charge, but you can use the device while plugged in when desired.

Important Safety Precautions

Read these safety instructions before using your device and store them for possible future reference. Always follow these basic safety precautions when using your Tablet. This reduces the risk of fire, electric shock, and injury.

• Do not expose this product to rain or moisture.
• Keep the device out of direct sunlight and heat sources.
• Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to the point where the cord attaches to the device.
• Only use the AC adapter included with the device. Using any other power adapter voids your warranty.

• Do not remove the cover. There are no user-serviceable parts inside.

• If the charger cord is damaged, have it repaired by the manufacturer, its service or a similarly qualified person in order to avoid any hazard.

• The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision should not use this unit.
  Children should be monitored to ensure that they do not play with the charger.
  The charger should always be readily accessible.
  The device should not be exposed to dripping or splashing water.
  No objects filled with liquids such as vases shall be placed on the device.
• Always leave a minimum distance of 10cm around the unit to ensure sufficient ventilation.
• Naked flame sources, such as candles, should not be placed on top of the device.
  The device is intended for use only in a temperate climate.
• CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent.
• The battery should not be exposed to excessive heat such as sunshine, fire or similar.
• Different types of batteries, new and used batteries should not be mixed.
  The battery must be installed according to the polarity.
• If the battery is worn, it must be removed from the product.
• The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the environment.

Clean your Device

Treat the screen gently. To clean fingerprints or dust from the screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth.

Appendix: The Optional parts and models

Parts name	Parts type
3G Wireless Network Card	TD-CDMA	TD368
	WCDMA	HUAWEI E220
		HUAWEI E230
		HUAWEI E160X
		HUAWEI E169G
		HUAWEI E1750
		Alcatel X060S
		Alcatel X200
	CDMA2000	Bora 9380
		AWIT-U8

POWER: DC 9V, 1.5A

If the charger cord is damaged, have it repaired by the manufacturer, its service or a similarly qualified person in order to avoid any hazard.

The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision should not use this unit.

Children should be monitored to ensure that they do not play with the charger.

The charger should always be readily accessible.

The device should not be exposed to dripping or splashing water.

No objects filled with liquids such as vases shall be placed on the device.

Always leave a minimum distance of 10cm around the unit to ensure sufficient ventilation.

Naked flame sources, such as candles, should not be placed on top of the device.

The device is intended for use only in a temperate climate.

CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent.

The battery should not be exposed to excessive heat such as sunshine, fire or similar.

Different types of batteries, new and used batteries should not be mixed.

The battery must be installed according to the polarity.

If the battery is worn, it must be removed from the product.

The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the environment.

SWITCH OFF IN RESTRICTED AREAS

Turn off the power when the use of the tablet is not authorized or when it may cause interference or danger, for example; on board an aircraft, near medical equipment, fuel, chemicals or blasting sites.

ROAD SAFETY COMES FIRST

Check the current laws and regulations in the area where you drive, regarding the use of mobile devices such as this tablet.

• Do not hold this mobile device while driving
• Concentrate fully on the driving
• Radio Frequency (RF) can affect certain electronic systems in your car, such as the audio-stereo system or security equipment.
• An airbag inflates with great force. Do not store the tablet or any of its accessories in the area above the bag or in its deployment area.

INTERFERENCE

All wireless devices are susceptible to interference which can affect their performance.

AUTHORISED PERSONNEL

Only qualified personnel are authorized to install or repair this product

ACCESSIONS

Only use batteries, chargers and other accessories which are compatible for this device. Do not connect incompatible products.

KEEP YOUR DEVICE DRY

Your device is not water proof. Keep it dry.

CHILDREN

Keep the tablet in a safe place out of the reach of young children. Your tablet contains small pieces which can present a choking hazard.

Precautions for use

This mobile device conforms to guidelines for exposure to radio frequency.

Your mobile device is a radio transmitter and receiver. It was designed to meet the limits recommended by international guidelines on the exposure to radio-waves. These guidelines were developed by an independent scientific organisation, the ICNIRP, and include safety margins designed to assure the protection of all, regardless of their age or state of health. The recommendations on exposure guidelines for mobile devices employ a unit of measure, known as the Specific Absorption Rate or SAR. The SAR limit, as defined in the ICNIRP recommendations is 2.0 watts/kilogram (W/Kg) averaged over 10 grams of cellular tissue. In tests to determine the SAR the device is used in positions of standard operation at its highest certified power level in all tested frequency bands. The actual SAR level of a device in use can be less than the maximum value because the device is designed to only use the power necessary to reach the network. This value changes depending on a number of factors such as the distance from a network base station.

Radio Frequency Interference

Radio frequency emissions from electronic equipment can interfere with other electronic equipment and can cause malfunctions. Although this tablet has been designed, tested and manufactured in accordance with the EU regulations on radio frequency emissions, the tablet's wireless transmitter and electrical circuits can cause interference with other electronic equipment. We recommend that you take the following precautions :

Plane: Wireless equipment can cause interference in aircraft.

• Turn off the tablet before boarding a plane
• Do not use on the runway without the crew's permission.

Vehicles : Telephone radio- frequency emissions can affect a motor vehicle's electronic systems. With regards to your vehicle, check with the manufacturer or dealer.

Medical Implants :

To avoid any interference with the medical device, manufacturers of medical devices recommend a minimum distance of 15cm between wireless equipment and a medical implant such as a pacemaker or defibrillator. The following is recommended to people who have such devices:

• Always keep the wireless device at a distance of over 15cm from the medical device.
• Do not carry the wireless device in a breast pocket.
• Hold the wireless device at the ear opposite the medical device
• Turn off the wireless device if there is any suspicion of interference occurring.
• Follow the instructions provided by the manufacturer of the medical implant.

If you are fitted with a medical implant and have any questions regarding the use of wireless equipment, consult your doctor.

Hearing :

Warning: If you use headphones there is a risk of not being able to hear outside sounds clearly. Do not use headphones if there is a risk of endangering your safety.

Some wireless devices can interfere with the proper functioning of hearing aids.

Other medical devices :

Radio transmitting equipment, including wireless devices such as this tablet, can interfere with the operation of inadequately protected medical equipment. Consult a doctor or the manufacturer of the medical equipment to see if the equipment is adequately protected from external Radio Frequency energy. Turn your device off in places where regulations apply, especially in hospitals.

Health Facilities :

Hospitals and health facilities may be using equipment that is particularly sensitive to external radio-frequency emissions. Turn your tablet off when staff or signs tell you to.

Blasting sites and identified areas :

Switch off your equipment in zones where the atmosphere is potentially explosive. Follow all official instructions. Sparks in such areas could cause an explosion or fire, resulting in serious bodily injury or death. Switch off your device in gas stations, especially near the gas pumps. Carefully observe instructions on use in fuel depots, storage and distribution areas, at chemical plants or in areas where explosives are used.

Areas with a potentially explosive atmosphere are often, but not always clearly marked. These include areas where it is normally advisable to switch off engines, the area below deck on boats, facilities where chemicals are transferred or stored and areas where the air contains chemicals or particles such as grain, dust or metallic powder. Check with the manufacturers of vehicles that use LPG (such as butane or propane) if the device can be used safely in their vicinity.

All our tablets conform to international standards and regulations, and where appropriate national recognition, to limit the exposure of users to electro magnetic fields. These standards and regulations were adopted after extensive scientific research. This research does not link

the use of mobile phones with any adverse effects on health if the equipment is used in accordance to standards and regulations.

However, if you want to reduce the levels of exposure to radio frequency radiation you can limit your time using the tablet in wireless mode because the length of time is a contributing factor to the exposure received by a person. Similarly, keeping the tablet away from the body is another factor, as exposure levels lessen dramatically with distance.

Disposal of old electrical appliances

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

IDCOM-79RN7-69570 DARDILLY-FRANCF

www.mms-support.net

BLUETECH

MID700GBT001

MANUEL D'UTILISATION

CODE:297-50

Table des matieres

Table des matieres 2

Retirer la micro-carte SD:

de I'application Email.

1. Pressez

Tap and hold in the playlist, tap Rename or Delete.

MAINTENEZ VOTRE APPAREIL AU SEC

A: MP2, MP3, WAV, AAC, WMA

Applications Downloaden

1. Tik op het
