Product type	Automatic espresso machine with grinder
Brand	Siemens
Model	EQ.5 TE501505DE
Dimensions (H x W x D)	385 x 280 x 479 mm
Empty weight	9.3 kg
Power supply	220-240 V, 50/60 Hz
Heating power	1600 W
Maximum pump pressure	15 bars
Water tank capacity	1.7 L
Bean container capacity	300 g
Grinder type	Ceramic
Power cord length	100 cm
Main functions	Espresso, coffee crème, hot water, milk froth, 2 cups simultaneously, grind and strength adjustment
Maintenance	Automatic service program (cleaning and descaling), cleaning of brewing unit and milk frother
Safety	Adjustable automatic shut-off, frost protection, child lock not mentioned, but supervision required for children aged 8 and over
Spare parts and accessories	Cleaning tablets TZ60001, descaling tablets TZ80002, water filter TZ70003, maintenance kit TZ80004
Warranty	According to the conditions of the country of purchase
Repairability	Siemens after-sales service, repairs by customer service only for damaged cords

Frequently Asked Questions - EQ.5 TE501505DE SIEMENS

What to do if the machine does not grind coffee beans?

The beans may be too oily and not fall into the grinder. Tap lightly on the bean container or change coffee. Wipe the container with a dry cloth after emptying it.

Why does hot water not flow?

The milk frother is probably clogged. Clean it by disassembling it and using a soft brush with detergent, then rinse thoroughly.

How to get perfect milk froth?

Use cold milk with a fat content of at least 1.5%. Make sure the milk frother is clean and properly assembled. Froth the milk first, then prepare the coffee.

What to do if coffee drips slowly?

The grind is too fine or the machine is scaled. Set a coarser grind or perform descaling with the service program.

Why does the coffee have no crema?

The coffee may not be suitable or too old. Use freshly roasted beans containing more robusta. Set a finer grind if necessary.

How to adjust water hardness?

Use the provided test strip to check hardness. Set the rotary knob to the appropriate symbol, simultaneously press the Steam and Service buttons for 5 seconds, then select the level with the Start button. Confirm by pressing Start for 5 seconds.

How to change the water filter?

Remove the old filter, place the new one in the empty tank using the dosing spoon. Fill with water, then start the rinse by opening the milk frother. Follow the instructions in the settings menu.

What does the blinking of the brewing unit LED mean?

The LED blinks when the brewing unit needs to be removed and cleaned. Turn off the machine, open the cover, remove the unit and clean it under running water without detergent. Replace it after drying.

How to perform a complete descaling?

Remove the water filter, clean the brewing unit, empty the drip tray. Start the service program by holding the Service button for 5 seconds. Follow the instructions: place a cleaning tablet in the coffee drawer, dissolve one descaling tablet (or two for TZ60002) in 0.5 L of warm water, and follow the steps until the end.

The machine no longer turns on, what to do?

Check that the plug is properly connected and that the voltage is 220-240 V. If the LEDs blink abnormally, try to reset: turn off the machine, hold the Service and Steam buttons while turning it back on, then confirm with Start. If the problem persists, contact customer service.

USER MANUAL EQ.5 TE501505DE SIEMENS

Register your product online

Included in delivery (see page 20)

Included in delivery. 20

Overview 20

Safety instructions 21

Controls 23

Before using for the first time. 24

Water filter 25

Settings. 26

Preparation using coffee beans. 28

Preparation using ground coffee 29

Dispensing hot water 29

Preparing milk froth 29

Maintenance and daily cleaning 30

Tips on saving energy 32

Serviceprogramme 33

Frost protection 34

Accessories 34

Disposal 35

Guarantee. 35

Technical specifications 35

Simple troubleshooting 36

Congratulations on purchasing this fully automatic espresso machine from Siemens.

Included in delivery

(see overview image at the start of the instructions)

a TE501 fully automatic espresso machine
Operating instructions
Water hardness testing strips
Measuring spoon

Overview

(see Figs. A, B, C, D and E at the start of the instructions)

1 Bean container
2 Aroma cover
3 Selector for grind setting
4.47.2.1.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.
5 Brewing unit (Figure E)

a) Brewing unit
b) Door
c) Eject lever for brewing unit
d) Lock
e) Cover

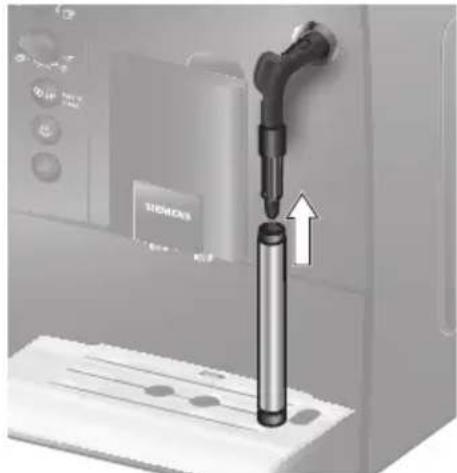

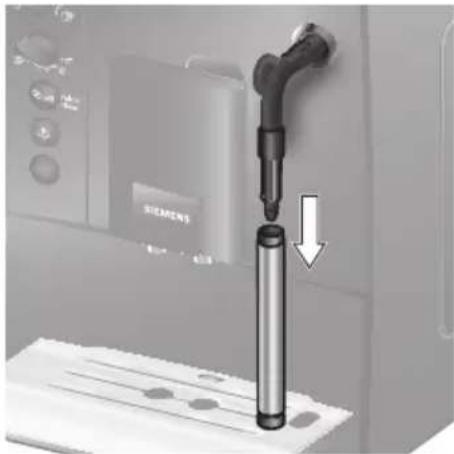

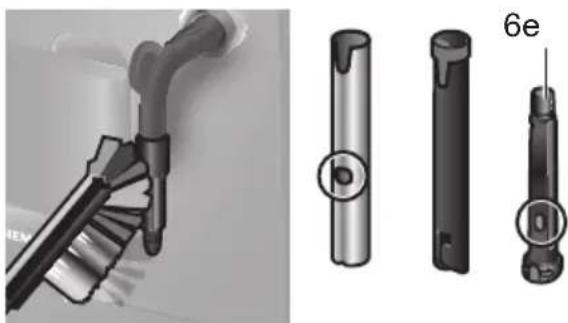

6 Milk frother (Figure C) removable

a) Steam valve
b) Metal sleeve
c) Frothing tube
d) Steam nozzle
e) Air hole

7 Height-adjustable coffee outlet

8 Drip tray (Figure D)

a) Panel
b) Coffee grounds container
c) Drip tray for coffee outlet
d) Grate for coffee outlet
e) Float

9 Power on/off switch O/I

10 Start button start
11 Steam button
12 Service button (off)
13 "Coffee strength" rotary knob
14 "Drink selection" rotary knob
15 LED display
16 Removable water tank
17 Water tank lid
18 Measuring spoon (insertion aid for water filter)
19 Storage compartment for measuring spoon
20 Power cable with storage compartment

Safety instructions

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offi ces, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

Danger of electric shock!

Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Never immerse the appliance or mains cable in water. Use only if power cord and appliance show no signs of damage. Should a fault occur, pull the plug or disconnect from the mains immediately.

en

The appliance contains permanent magnets that may influence electronic implants such as pacemakers or insulin pumps. Persons with electronic implants should keep a minimum of 10 cm away from the front of the appliance.

Risk of suffocation!

Do not allow children to play with packaging material.

Store small parts safely as they can be easily swallowed.

Risk of injury!

Do not reach into the grinding unit. A misuse of the appliance can potentially lead to injury.

Risk of burns!

The milk frother gets very hot. After use, allow to cool down first before touching. After the use the heating element surfaces and warming plate can be subjected to residual heat.

Controls

Power on/off switch O / I

The power on/off switch O/I (9) is used to switch the appliance on or to switch it off completely (power supply off).

Important: To switch off, use the service button (12).

Service button

When the service button (12) is pressed briefly, the appliance rinses and switches off. If the service button (12) flashes, the service programme needs to be run. Press and hold the service button (12) to start the service programme. The service button (12) flashes while the service programme is running and turns off when the programme has ended.

Steam button

Press the steam button (11) to generate steam for frothing milk.

Start button (start)

Press the start button (10) to start preparing a drink. Press again during drink preparation to stop the dispensing process early.

LED display

The various LEDs light up and flash to indicate the following:

lights up The water tank is empty and needs to be refilled.
flashes The water filter is exhausted and needs to be replaced. Important: When you first take the appliance into operation this flashing light does not signify "Change filter" (see "Setting up the appliance", see page 24)
lights up The bean container is empty and needs to be refilled.
lights up The steam valve needs to be opened or closed.
flashes Depending on the setting, steam or hot water is coming out of the milk frother.
lights up When is selected using the "coffee strength" rotary knob, the symbol lights up while ground coffee is being dispensed.
lights up The drip tray is missing or has not been inserted correctly. Insert the drip dray.
flashes The trays are full. Empty the trays and reinsert them.
lights up The brewing unit door is open. Close the door.

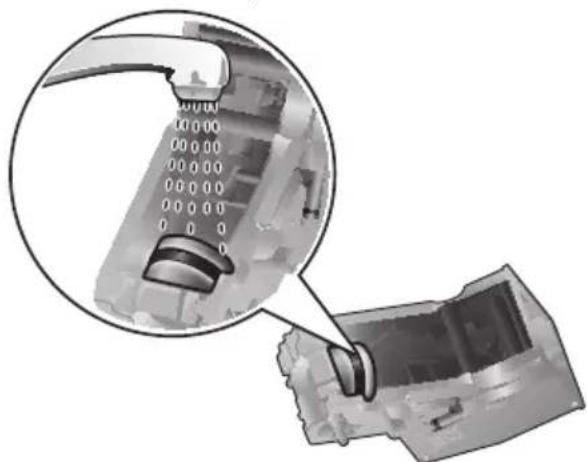

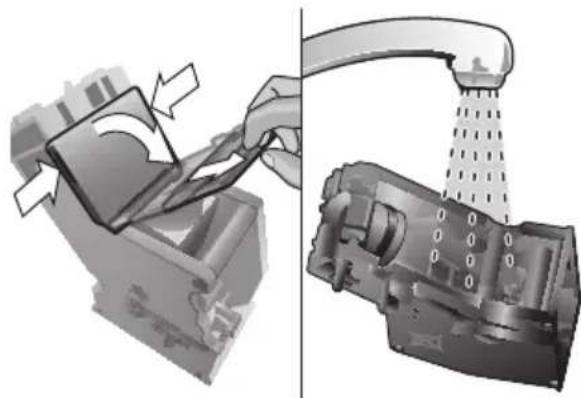

flashes Remove and clean the brewingunit.

"Coffe strength" rotary knob

This rotary knob (13) is used to adjust the coffee strength or select the setting for pre-ground coffee.

Very mild Mild

Medium

Strong

Ground coffee

"Drink selection" rotary knob

This rotary knob (14) is used to select the required beverage and quantity. It is also used to change user settings.

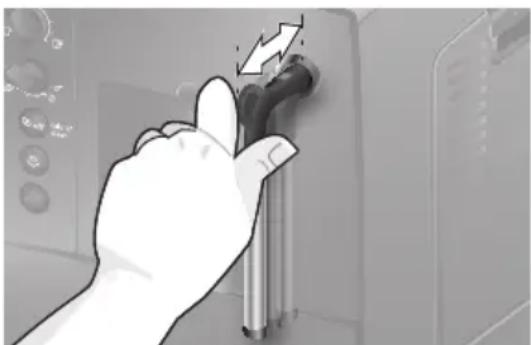

Pull the milk frother (6) out to open it and push it back in to close it.

Before using for the first time

General

Fill the appropriate container using only pure, cold, uncarbonated water and only roasted beans (preferably espresso or coffee bean blends for fully automatic coffee machines). Do not use coffee beans that have been glazed, caramelised or treated with other additives containing sugar, since they will block the brewing unit.

The water hardness setting can be adjusted on this appliance. The factory setting for the water hardness is 4. Check the hardness of the water you use with the enclosed test strip. If the test reveals a value other than 4, change the setting on the appliance accordingly after switching on (see "Settings", "Water hardness").

Setting up the appliance

1. Remove the protective film.
2. Place the fully automatic espresso machine on a flat, water-resistant surface that can take its weight. The ventilation slots on the appliance must not be covered.

Important: Only use the appliance in frost-free rooms. If the appliance has been transported or stored at temperatures below 0^ , wait at least 3 hours before operation.

1. Pull out the mains plug from the cable compartment (20) and plug it in. Adjust the length of the cable by pushing it back in and pulling it out. To do this, place the appliance with its back flush with the edge of the work surface and either pull the cable downwards or push it upwards.

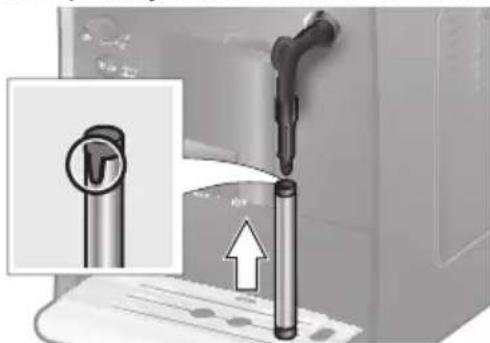

2. Assemble the milk frother. Only use the appliance when the milk frother (6) is completely assembled and fitted.

1. Lift the water tank lid (17).
2. Remove and rinse the water tank (16) and fill it with fresh cold water. Do not fill above the max mark.
3. Replace the water tank (16) and push it firmly downwards into place.
4. Close the water tank lid (17).
5. Fill the bean container (1) with coffee beans (for preparation using ground coffee see "Preparation using ground coffee").
6. Press the power on/off switch O/I (9) to switch on the appliance. LED flashes and LED lights up.
7. Place a container under the milk frother outlet (6).
8. Carefully pull out the milk frother (6) to open it. The appliance rinses out the milk frother (6) with water. LED flashes.
9. When LED lights up constantly, press in the milk frother (6) to close it.

The appliance heats up and rinses. Some water will run out of the coffee outlet. When buttons (12), (11) and (10) light up, the appliance is ready for use.

Switching off the appliance

The factory settings of the fully automatic espresso machine are programmed for optimal performance. The appliance switches off automatically after a specific time (the length of time can be adjusted, see "Settings - Automatic switch-off").

Exception: The appliance switches off without rinsing if only hot water or steam was dispensed.

To switch the appliance off manually before this, press the service button (12). The appliance rinses and switches off.

Note: If the appliance is being used for the first time, the service programme has been run, or the appliance has not been operated for a long period, the first beverage will not have the full aroma and should not be consumed.

When the fully automatic espresso machine is first used, you will achieve a suitably thick and stable "crema" only after the first few cups have been dispensed.

If the appliance is in use for a long period of time, water droplets will form on the ventilation slits. This is normal.

Water filter

Using a water filter can prevent a build-up of limescale deposits.

A new water filter must be rinsed before it can be used. To do this, proceed as follows:

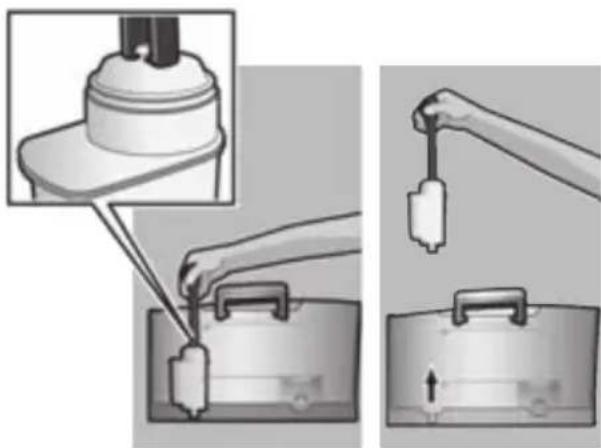

1. Press the water filter firmly into the empty water tank with the aid of the measuring spoon (18).

1. Fill the water tank (16) with water up to the max mark.

en

1. Turn the rotary knob (13) to position
2. Press and hold buttons (11) and (12) simultaneously for at least 5 seconds. Either "off" or "lights up.
3. Press the start button (10) to select "on".
4. Press and hold the start button (10) for at least 5 seconds to confirm. All of the LEDs light up briefly.
5. LED 品 flashes and LED lights up.
6. Place a container with a capacity of 0.5 litres under the milk frother outlet (6).
7. Pull out the milk frother (6) to open it. LED flashes.
8. Water will now flow through the filter and rinse it.
9. When LED lights up constantly, press in the milk frother (6) to close it.
10. Empty the container.
    The appliance is ready to use again.

Information: Rinsing the filter simultaneously activates the setting for the change filter display (= LED flashes).

The filter is no longer effective when the change filter display appears, or at the latest after two months. It needs to be replaced for reasons of hygiene and so that there is no build-up of limescale (this could damage the appliance). Replacement filters can be obtained from retailers or from customer service (see "Accessories"). If no new filter is inserted, change the setting for the filter (see "Water hardness").

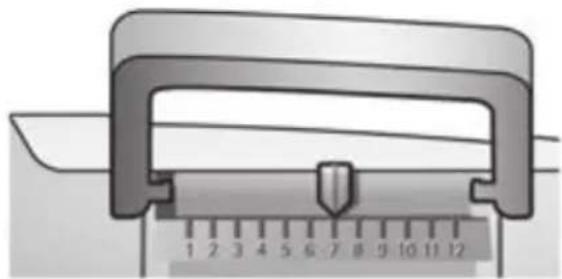

Information: You can use the filter indicator to mark the month in which you inserted the filter. You can also mark the month in which you will need to replace the filter next (at the latest after two months).

Information: If the appliance has not been used for a prolonged period (for example, when you are on vacation), the existing filter should be rinsed before the appliance is used again. To do so, dispense a cup of hot water and pour it away.

Settings

You can customize the settings on the appliance.

You can make the following adjustments:

Water hardness

The water hardness setting can be adjusted on this appliance. It is important to set the water hardness correctly so that the appliance can accurately indicate when it is time to run the descale process. The factory setting for the water hardness is 4. You can establish the water hardness either by using the test strip provided or by asking your local water provider.

Dip the test strip in the water briefly, shake it gently and check the result after one minute.

Level	Water hardness
	German (°dH)	French (°fH)
1	1-7	1-13
2	8-14	14-25
3	15-21	26-38
4	22-30	39-54

If you wish to change the default degree of water hardness, or if you have inserted a water filter, proceed as follows:

1. Turn the rotary knob (13) to position
2. Press and hold buttons (11) and (12) simultaneously for at least 5 seconds. The set water hardness is indicated by the number of LEDs that now light up.
3. Now press the start button (10) repeatedly until the required water hardness is indicated, e. g., for water hardness 3, LEDs l and 山 will light up.
4. Press and hold the start button (10) for at least 5 seconds. The set number of LEDs will light up to indicate that the selected water hardness has been saved successfully.

Important: If a water filter is used (see "Accessories"), proceed as follows, see "Water filter".

Note: If no button is pressed within 90 seconds, the appliance switches to stand-by mode without saving the new settings. In this case, the previously saved water hardness setting is retained.

Automatic switch-off

Here you can set the period of time after which the appliance should switch off automatically following the last drink preparation. A time between 15 minutes and 4 hours can be set. To save power you can specify a shorter period.

1. Turn the rotary knob (13) to position

2. Press and hold buttons (11) and (12) simultaneously for at least 5 seconds. The time after which the appliance should switch off is indicated by the number of LEDs that now light up.

3. Now press the start button (10) repeatedly until the required number of LEDs light up to indicate the switch-off time: = 15 minutes

and = 30 minutes
and 心 = 45 minutes
and = 1 hour
and = 2 hours
山 ，，，，and 4 hours

1. Press and hold the start button (10) for at least 5 seconds. The set number of LEDs will light up to indicate that the selected switch-off time has been saved successfully.

Note: If no button is pressed within 90 seconds, the appliance switches to stand-by mode without saving the new settings. In this case, the previously saved switch-off time is retained.

Setting the brewing temperature

The brewing temperature can also be set.

1. Turn the rotary knob (13) to position

2. Press and hold buttons (11) and (12) for at least 5 seconds. The set brewing temperature is indicated by the number of LEDs that now light up.

3. Now press the start button (10) repeatedly until the required number of LEDs light up to indicate the temperature:

LED = low
LED and = medium
LED, ,and 心 = high

1. Press and hold the start button (10) for at least 5 seconds. The set number of LEDs will light up to indicate that the selected temperature has been saved successfully.

Note: If no button is pressed within 90 seconds, the appliance switches to stand-by mode without saving the new settings. In this case, the previously saved brewing temperature setting is retained.

Adjusting the grind settings

The selector (3) for grind setting adjusts the grind settings from coarse to fine.

Warning!

Adjust the grinding unit only while it is running! Otherwise the appliance may be damaged. Do not reach into the grinding unit.

• With the grinding unit running, adjust the selector (3) from fine (a: turn anticlockwise) to coarse (b: turn clockwise).

Information: The effects of the new grind setting will not become apparent until after the second cup of coffee.

Tip: Choose a finer grind for dark roasted beans and a coarser grind for lighter beans.

Preparation using coffee beans

This fully automatic espresso machine grinds beans freshly for each brew.

Tip: If possible, use only beans for fully automatic coffee and espresso machines. For optimal quality, deep-freeze the beans or store in a cool place in sealed containers. Coffee beans can be ground while frozen.

Important: Fill the water tank (16) with fresh water every day. The water tank (16) should always contain sufficient water for operating the appliance.

Different coffee drinks can be prepared quite simply at the press of a button.

Preparation

The appliance must be ready for use.

1. Place the pre-warmed cup(s) under the coffee outlet (7). Tip: For a small espresso, always preheat the cup, e.g. using hot water.
2. Select the required coffee and the required quantity by turning the upper rotary knob (14).
3. Select the required coffee strength by turning the lower rotary knob (13).
4. Press the start button (10). Coffee is brewed and then poured into the cup(s).

Press the start button (10) again to stop the brewing process early.

Preparation using ground coffee

This fully automatic espresso machine can also be operated using ground coffee (not instant coffee powder).

Important: Fill the water tank (16) with fresh water every day. The water tank (16) should always contain sufficient water for operating the appliance.

Preparation

1. Open the drawer (4).
2. Put ground coffee into the drawer (maximum two level measuring spoons). Caution: Do not use whole beans or instant coffee.
3. Close the drawer (4).
4. Turn the bottom rotary knob (13) to the symbol .
5. Press the start button (10). Coffee is brewed and then poured into the cup.

Dispensing hot water

Risk of burns!

The milk frother (6) gets very hot. Hold the milk frother (6) by the plastic part only.

The milk frother must be cleaned before drawing hot water.

The appliance must be ready for use.

1. Place a pre-heated cup or glass under the milk frother outlet (6).
2. Pull out the milk frother (6) to open it. The appliance heats up. Hot water runs out of the milk frother outlet (6) for about 40 seconds.
3. Stop the process by pushing in the milk frother (6).

Preparing milk froth

Risk of burns!

The milk frother (6) gets very hot. Hold the milk frother (6) by the plastic part only.

Tip: You can froth the milk first and then dispense coffee, or froth the milk separately and pour it onto the coffee.

The appliance must be ready for use.

1. Press button (11).
   Button flashes and the appliance now heats up for approximately 20 seconds.
2. As soon as button and LED lights up, immerse the milk frother so that it reaches the bottom of a cup or glass that is one-third filled with milk.
3. Pull out the milk frother (6) to open it.

Risk of burns!

Escaping steam is very hot and may cause liquids to sputter. Do not touch the metal sleeve or aim it at anyone.

1. Froth the milk.
2. Push the milk frother (6) in to close it.

Tip: For optimal milk froth, if possible use cold milk with a fat content of at least 1.5% .

Important: Dried milk residue is difficult to remove, so the milk frother (6) must be cleaned with lukewarm water immediately after use.

Maintenance and daily cleaning

Risk of electric shock

Unplug the appliance before cleaning it. Never immerse the appliance in water. Do not use a steam cleaner.

• Wipe the housing with a soft, damp cloth.
• Do not use abrasive cloths or cleaning agents.

Always remove any traces of limescale, coffee, milk and descaler immediately. Such residue can cause corrosion.
- New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use.
- Pull the drip tray (8c) with the coffee grounds container (8b) forwards and out. Remove the panel (8a) and grate (8d). Empty and clean the drip tray and coffee grounds container.

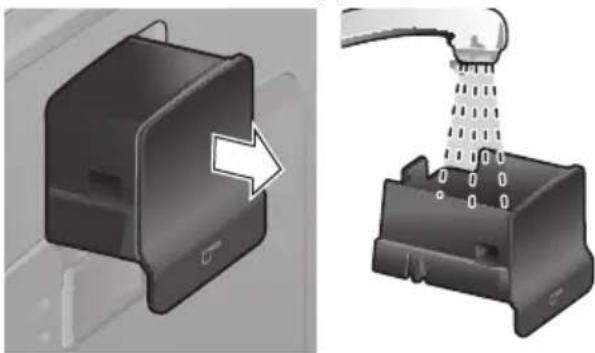

- Remove the drawer (4) and clean.

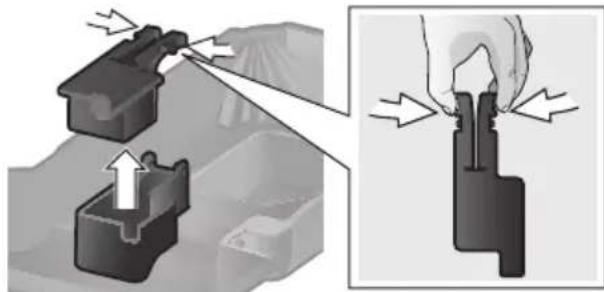

• Remove float (8e) and clean with a damp cloth.

Do not put the following items in the dishwasher: panel (8a), float (8e), drawer (4), brewing unit (5a).

The following items are dishwasher-safe: drip tray (8c), coffee grounds container (8b), grate (8d), aroma cover (2) and measuring spoon (18).

• Wipe out the inside of the appliance (tray holders and drawer).

Important: The drip tray (8c) and coffee grounds container (8b) should be emptied and cleaned daily to prevent mould developing.

Note: If the appliance is cold when switched on with the power on/off switch O/I (9) or if it switches off automatically after coffee has been dispensed, the appliance performs an automatic rinse.

Important: If the appliance is not used for a prolonged period (for example, when you are on vacation), clean the entire appliance thoroughly, including the milk system and brewing unit.

Cleaning the milk frother

The milk frother (6) must be cleaned after each use in order to remove residues.

Important: Let the milk frother cool down before you remove it.

Dismantle the milk frother for cleaning:

1. To remove, take hold of the metal sleeve and pull it downwards and off.

1. Twist the steam nozzle (6d) anticlockwise and remove it.

1. Remove the frothing tube (6c).

1. Clean the individual parts with a detergent solution and a soft brush. If necessary, soak in a warm detergent solution. Clean the air hole (6e) thoroughly.

1. Rinse all parts with clean water and dry.

2. Fit the steam nozzle (6d) and frothing tube (6c) back into the metal sleeve.

1. Twist the steam nozzle clockwise until the marks are aligned.

1. Attach the milk frother to the steam valve. Check that the red mark on the steam valve is covered.

Risk of scalding!

Only use the appliance when the milk frother (6) is completely assembled and fitted.

Cleaning the brewing unit

Clean the brewing unit regularly.

To pre-clean the brewing unit automatically: Press the service button (12) briefly. The appliance will rinse if coffee was dispensed previously. It then switches off. In addition to the automatic cleaning programme, the brewing unit (5a) should be removed regularly for cleaning (Figure E at the beginning of the instructions).

1. Press the power on/off switch O/I (9) to switch off the appliance. All lights go off.
2. Open the door (5b) to the brewing unit.
3. Slide the red lock (5d) on the brewing unit (5a) completely to the left.
4. Press the eject lever (5c) down fully. The brewing unit is released.
5. Grasp the brewing unit (5a) by the recessed grips and remove carefully.
6. Remove the cover (5e) of the brewing unit and rinse the brewing unit (5a) thoroughly under running water.

1. Thoroughly clean the brewing unit sieve under the running water.

Important: Do not clean with detergent or other cleaning agents and do not put it in the dishwasher.

1. Wipe out the inside of the appliance thoroughly with a damp cloth and remove any coffee residues.
2. Allow the brewing unit (5a) and the interior of the appliance to dry.
3. Replace the cover (5e) on the brewing unit and reinsert the brewing unit (5a) fully into the appliance.
4. Press the eject lever (5c) up fully.
5. Slide the red lock (5d) fully to the right and close the door (5b).

Tips on saving energy

• Switch off the fully automatic espresso machine when not in use. To do this, press the service button (12). The appliance rinses and switches off.
• If possible, do not interrupt coffee or milk froth dispensing. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.
• Descale the appliance regularly to avoid a build-up of limescale. Limescale residue results in higher energy consumption.

Service programme

Duration: approx. 35 minutes

Depending on use, the service button (12) flashes at certain intervals.

The appliance should be cleaned and descaled immediately using the service programme. If the service programme is not run as instructed, the appliance may be damaged.

Caution!

Follow the instructions for using the descending and cleaning agents for each service programme. Please observe the safety instructions on the packaging of the cleaning agent.

Never interrupt the service programme.
Do not drink the liquids.

Never use vinegar, vinegar-based products, citric acid or citric acid-based products.

Never put descending tablets or other descending agents in the drawer (4).

Specially developed and suitable. descaling and cleaning tablets are available from retailers or customer service (see "Accessories").

Important: If there is a water filter in the water tank (16), it must be removed before starting the service programme. Clean the brewing unit before starting the service programme, see chapter "Cleaning the brewing unit".

To start the service programme, press and hold the service button (12) for at least 5 seconds.

Information: The service button (12) flashes while the programme is running.

LED lights up.

• Empty the drip tray (8) and reinsert it.

The appliance rinses twice.

LED lights up.

• Open the drawer (4).
• Drop a Siemens cleaning tablet into the drawer (4) and close it.
• Press the start button (10).

LED lights up.

• Pour lukewarm water into the empty water tank (16) up to the 0.51 mark and then dissolve 1 Siemens descaling tablet TZ80002 in it. When using TZ60002, 2 tablets must be dissolved.
• Press the start button (10).

The service programme will now run for approximately 10 minutes.

LED lights up.

• Place a container with a capacity of at least 0.5 litres under the milk frother outlet(6).
• Pull out the milk frother (6) to open it.

The service programme will now run for approximately 12 minutes.

LED lights up.

• Rinse the water tank (16) and refill it with fresh water up to the max mark.
• Press the start button (10).

The service programme will now run for approximately 30 seconds and rinse the appliance.

LED lights up.

• Push the milk frother (6) in to close it.

The service programme will now run for approximately 8 minutes.

LED lights up.

• Empty the drip tray (8) and reinsert it.

If you are using a filter, reinsert it now.

The appliance has been cleaned, descaled and is ready for use again.

Important: Wipe down the appliance using a soft, damp cloth to immediately remove any descaler residue. Such residue can cause corrosion. New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use.

Frost protection

To avoid damage caused by frost during transport and storage, the appliance must be completely emptied first.

Information: The appliance must be ready for use and the water tank (16) filled.

1. Place a large container under the milk frother outlet (6).
2. Press the steam button (11). LED 小 flashes and the appliance now heats up for approximately 20 seconds.
3. If LED lights up, open the milk frother (6) by pulling it out and release steam for about 15 seconds.
4. Press the power on/off switch O/I (9) to switch off the appliance.
5. Empty the water tank (16) and the drip tray (8).

Accessories

The following accessories are available from retailers or from customer service:

Accessories Ordering number

	Retail / Customer service
Cleaning tablets TZ6	0001 / 00310575
Dscaling tablets TZ8	80002 / 00576693
Water filter TZ70003	/ 00575491
Care set TZ80004 / 00576330

Disposal

Dispose of packaging in an environment mentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposalsfacilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Technical specifications

Electrical connection (voltage - frequency) 220-240 V - 50/60 Hz
Heating output 1600 W
Maximum pump pressure, static 15 bar
Maximum water tank capacity (without filter) 1.7 l
Maximum bean container capacity 300 g
Cable length 100 cm
Dimensions (H x B x D) 385 x 280 x 479 mm
Weight, unfilled 9.3 kg
Type of grinding unit Ceramic

Simple troubleshooting

Problem Cause Remedy
Grinding unit does not grind the beans.	Beans are not falling into the grinding unit (beans too oily).	Gently tap the bean container (1). Change the type of coffee if necessary. When the bean container (1) is empty, wipe it with a dry cloth.
No hot water dispensed. The milk frother (6) is soiled.	Clean the milk frother (6), see “Maintenance and daily cleaning”.
Too little or no milk froth. The milk frother (6) is soiled.	Clean the milk frother (6), see “Maintenance and daily cleaning”.
Milk unsuitable for frothing.	Use milk with a fat content of at least 1.5%.
The milk frother (6) is not assembled correctly.	Wet the milk frother parts and press together firmly.
Build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
Coffee dispensing slows to a trickle or stops completely.	The grind setting is too fine or the pre-ground coffee is too fine.	Adjust the grinding unit to a coarser setting or use coarser pre-ground coffee.
	Build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
Coffee has no “crema”. Unsuitable type of coffee. Use a type of coffee with a higher proportion of robusta beans.
The beans are no longer fresh.	Use fresh beans.
The grind setting is not suitable for the beans.	Adjust the grind setting to fine.
Coffee is too “acidic”. The grind setting is too coarse or the pre-ground coffee is too coarse.	Adjust the grinding unit to a finer setting or use finer pre-ground coffee.
Unsuitable type of coffee. Use a darker roast.
Coffee is too “bitter”. The grind setting is too fine or the pre-ground coffee is too fine.	Adjust the grinding unit to a coarser setting or use coarser pre-ground coffee.
Unsuitable type of coffee. Change the type of coffee.
The water filter does not stay in position in the water tank (16).	The water filter is not fitted correctly.	Firmly press the water filter straight down into the tank connection.
If you are unable to solve the problem, please call the hotline. You will find the telephone numbers at the back of these instructions.
LED flashes.	The water tank is not correctly installed or the filter is worn.	Correctly install the water tank. If the LED continues to flash, install a new filter and rinse, see chapter "Filter".
	Carbonated water in the water tank.	Fill the water tank with fresh tap water.
The coffee grounds are not compact and are too wet.	The grind setting is too fine or too coarse, or not enough ground coffee has been used.	Adjust the grinding unit to a coarser or finer setting, or use 2 level measuring spoons of ground coffee.
LED flashes.	Brewing unit (5) is soiled. Clean the brewing unit (5).
	Too much pre-ground coffee in the brewing unit (5).	Clean the brewing unit (5) Put in no more than 2 level measuring spoons of ground coffee.
	The brewing unit mechanism is stiff.	Remove and clean the brewing unit, see "Maintenance and daily cleaning".
	Brewing unit (5) is missing or has not been detected.	Switch off the appliance with the brewing unit (5) in place, wait three seconds and switch on the appliance again.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance.	Descale the appliance as described in the instructions.
Water dripped onto the inner floor of the appliance when the drip tray (8) was removed.	Drip tray (8) removed too soon.	Wait a few seconds after the last drink was dispensed before removing the drip tray (8).
The default settings have been changed and need to be reset.	Some settings have been made that are no longer required.	Press the power on/off button O/I (9) to switch off the appliance. Press and hold the service button (12) and the steam button (11) and press the power on/off button O/I (9) to switch on the appliance. Then press the start button (10) to confirm. The default settings are reset.
LEDs flash.	The appliance has a fault. Please contact the hotline.
LEDs flash.	Incorrect voltage. Operate the appliance at 220 V-240 V only.
LEDs flash.	The ambient temperature is too cold.	Operate the appliance at temperatures > 5°C.
If you are unable to solve the problem, please call the hotline. You will find the telephone numbers at the back of these instructions.

Table des matieres

1. Retirer le tube (6c).

AE United Arab Emirates,

BSH Home Appliances FZE

Round About 13

Plot Nr MO-0532A

Jebel Ali Free Zone - Dubai

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.:[phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

BE Belgique, Belgie, Belgium

BSH Home Appliances S.A.

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.siemens-home.bg

BH Bahrain,

Khalafat Company

Manama

Tel.:[phone]

mailto:[e-mail]

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

Werkskundendienst

für Hausgeräte

Fahrweidstrasse 80

8954 Geroldswil

Old Wolverton Road
Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts or accessories or for product advice please visit

www.siemens-home.co.uk or call

Tel.:[phone]*

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, EAAa

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Pavvllnvo tNLeawo: 181 82

(AOTIKXpewon)

www.siemens-home.gr

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:siemens.hk.service@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kučni urežaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.siemens-home.com/hr

www.siemens-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]*

Fax: [phone]

www.siemens-home.com/ie

*0.03 € per minute at peak.

Off peak 0.0088 € per minute.

IL Israel,

C/S/B Home Appliance Ltd.

Uiel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.co.il

IN India, Bharat,

BSH Customer Service

Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road,

Andheri East

Mumbai 400 093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.com/it

KZ Kazakhstan, Ka3aKCTah

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.:[phone]

mailto:[e-mail]

LB Lebanon,

Tehaco s.a.r.l

Boulevard Dora 4043 Beyrouth

P.O.Box 90449

Jdeideh 1202 2040

Tel.:[phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukso g.23

09132 Vilnius

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

www.siemens-home.com/lu

LV Latvija, Latvia

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.:[phone]

mailto:[e-mail]

MD Moldova

S.R.L. "Rialto-Studio"

yn. LycceBa 98

2012 KIIMHeB

TeJ./paKc:022238180

MK Macedonia, MaKeDoHnja

GORENEC

Jane Sandanski 69 lok.3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederlande, Netherlands

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax:[phone]

mailto:[e-mail]

PL Polska, Poland

www.siemens-home.com/pt

RO Romania, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect.1

13682 Bucuresti

Tel:[phone]

Fax:[phone]

mailto:service.romania@

bshg.com

www.siemens-home.com/ro

RU Russia, Pocsn

OOO"BCX BbITOBaTeXnka"

CepBnC OT pOn3BODnteTn

MaNa KaIyXcka 19/1

119071 MockBa

TeJ.: 495 737 2962

mailto:[e-mail]

www.siemens-home.com

SE Sverige, Sweden

BSH Home Appliances AB

Landsvagen 32

169 29 Solna

Tel.:[phone] local rate

mailto:Siemens-Service-SE@

bshg.com

www.siemens-home.se

SG Singapore, 新加坡

BSH Home Appliances Pte. Ltd.

TECHPLACE I and

Mo Kio Avenue 10

Block 4012 #01-01

569628 Singapore

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.:[phone]

Fax: [phone]

www.siemens-home.com/sk

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Umraniye, Istanbul

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/tr

gama-electronics.com

XS Srbija, Serbia

BSH Kučni aparati d.o.o.

Milutina Milankovica 11^a

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.siemens-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand-Johannesburg

Tel.:[phone]

Fax:[phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

Call rates depend on the network used

CZ 0251095546

DE 091170440044

DK 44898985

EE 06278730

ES 902 11 88 21

FI 0207510700

Lankapuhelimitsa 8,28 snt/puhelu +7 snt/min (alv 24%

Calls charged at local or mobile rate

SE 0771 11 22 77 (local rate)

SK 0244452041

SI 012007017

TR 4446688
