USER MANUAL CR4 Acid Etched CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your CR 4 will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

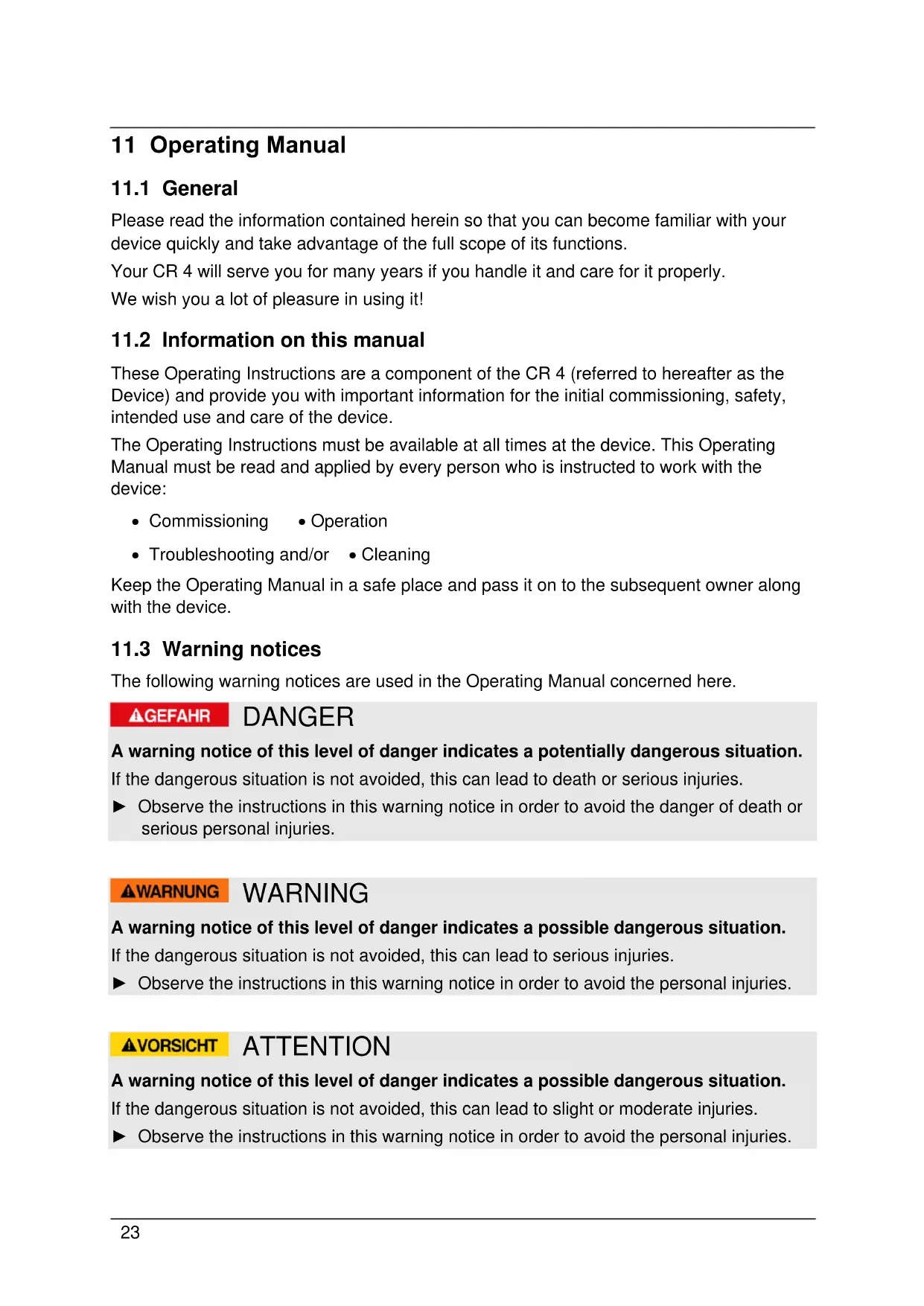

11.2 Information on this manual

These Operating Instructions are a component of the CR 4 (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries.24 PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages or injuries arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations Use of unauthorized spare parts, modifications of the device Use of unauthorized attachments. Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.25

IMPORTANT: This appliance is intended for HOUSEHOLD USE ONLY. It is designed for home use and is not suitable for commercial application. This device is only intended for use in households in enclosed spaces for Cutting grating rasping food. This device is intended for use in the household and for similar applications such as: in kitchens for employees in shops, offices, and other commercial areas; in B&Bs, in agricultural estates; by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Do not chop very hard ingredients such as coffee beans or ice. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not leave the device unsupervised when it is in operation.26 Please note ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. ► Children are not allowed to play with the device. ► The device and its connecting cable must be kept away from children who are less than 8 years old. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Do not operate the appliance with wet hands and do not run at no-load. ► Make sure that the mains connection cable does not come into contact with sharp edges and/or hot surfaces. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. Do not immerse in water or any other liquids. Do not put in the dishwasher. ► Always pull the power plug out of the outlet when the appliance is unattended, or when it is assembled, disassembled or cleaned. ► Device is not intended to be operated by means of an external timer or separate remote-control system.27

12.3 Sources of danger

12.3.1 Danger of injury

Warning Personal and property damages can occur during commissioning of or handling the device! ► Observe the following safety notices to avoid such dangers: ► Drums are sharp. Handle them carefully. ► Never feed food by hand. Always use food pusher. ► Avoid contacting moving parts. ► Keep loose clothing, long hair and power cord away from moving parts. ► Make sure appliance is off and the motor and blades have completely stopped when not in use, before putting on or taking off parts or removing food chamber.

12.3.2 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.28 Danger ► Do not pull on the power cable and do not carry the device by the power cable. ► Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher. 13 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

Warning ► Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the CR 4 is delivered with the following components: CR 4 pusher 4 high-quality graters Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows: Remove the device out of the carton and remove the packaging material. Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► The drums have very sharp edges, be very careful when you touch them.29

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Setup location requirements

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites: Place the device on a firm and even work surface. Do not use the device outdoors. Do not operate the product near hot gas or hot stove. Choose the setup location in such a way that children cannot reach the device. The device is not intended to be installed in a wall or a built-in cupboard. Do not set up the device in a hot, wet or extremely damp environment or near flammable material. The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician. The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this. Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces. The electrical outlet must be protected by a 16A safety cut-out switch. The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.30 14 Design and Function This chapter provides you with important safety notices on the design and function of the device.

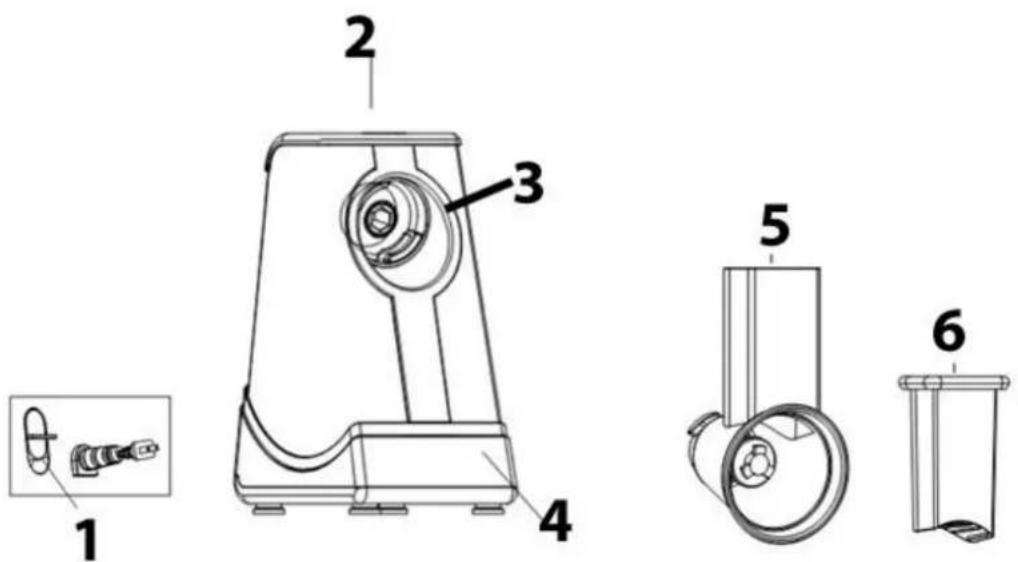

14.1 Complete overview

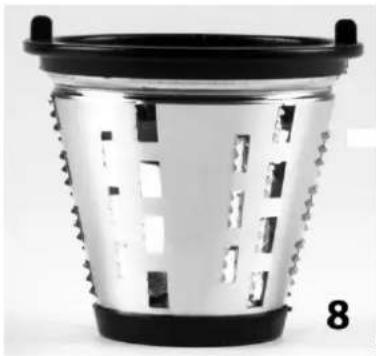

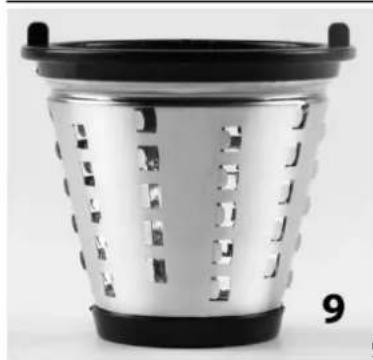

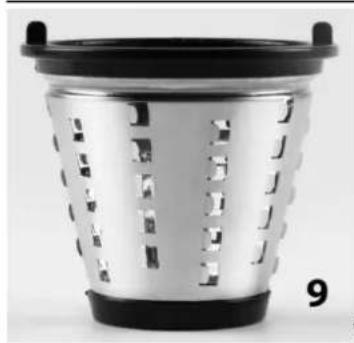

1 switch for the tiltmode of device 2 button ON/OFF and regulator for speed 3 food chamber 4 main device 5 feeding tube 6 pusher 7 drum for slices 8 drum for rasp/potato31 9 drum for julienne wide 10 drum for julienne slim

14.2 Assembly/Usage instructions

Warning Personal and property damages can occur during commissioning of or handling the device! Observe the following safety notices to avoid such dangers: ► Drums are sharp. Handle them carefully. Place the feeding tube at 90° angle on the housing and turn and tighten it anti-clockwise until it latches.

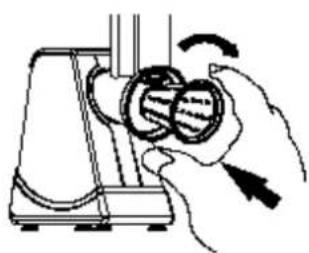

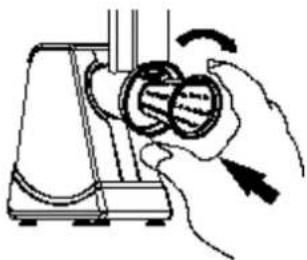

Choose your desired drum and place it into the feeding tube and tighten by turning clockwise. To do this, take the drum carefully at the black frame.

Warning Personal and property damages can occur during commissioning of or handling the device! Observe the following safety notices to avoid such dangers: ► Stop the grating process and pull the plug, before changing the drum. ► Take the drum carefully at black frame.32

14.3 Safety equipment

Safety switches prevent the machine from operating when the feeding tube is not locked into position. The motor stops within seconds when the motor is turned off.

The rating plate with the connection and performance data can be founded on the bottom of the device 15 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages. Plug cord in and load the food chamber. Place a bowl in front of the device. You can adapt the angle of device with switch for tiltmode of the device. Please note ► Cut food so that it will easily fit into the feed tube. ► Stack food upright into the feed tube. Press ON/OFF button for 3 seconds to start the grating process. When you press ON/OFF button longer again you can stop the device. There are five speed levels, preset is level 3. Choose your desired speed level. Push down the food with the pusher. Warning Personal and property damages can occur during commissioning of or handling the device! Observe the following safety notices to avoid such dangers: ► Never feed food by hand. Always use food pusher. ► Avoid contacting moving parts. ► Change the tilt angle of the device only when grating process has stopped and plug is pulled. ► Do not use the grater for frozen food. The processed food will be released from the front of the unit, directly into your bowl. Warning Personal and property damages can occur during commissioning of or handling the device! Observe the following safety notices to avoid such dangers: ► The exterior of the drums are sharp. Store the drums, as you would sharp knives, out of the reach of children. ► The appliance is not intended for permanent use. Do not operate the appliance for more than 5 minutes without interuption.33 16 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. ► Switch the appliance off prior to cleaning it and unplug the plug from the wall power outlet. ► Clean the device directly after use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► If dampness penetrates into the device, this can damage the electronic components. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items.

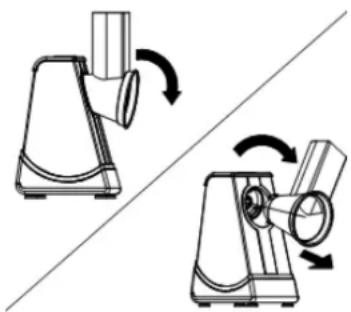

Drums, feed tube, pusher Do not immerse in water or any other liquids. Do not put in the dishwasher. Turn the feeding tube clockwise and remove from food chamber. Remove the drum carefully from the feeding by touching it at the black frame. Clean the feeding tube, pusher and drums with warm soapy water. Warning ► When you wash the parts be carefull, the drums are sharp. ► Avoid leaving them in soapy water where they may disappear from sight. Risk of injury! Dry completely and store, as you would like other sharp knives, keep out of reach for children. Always leave it unplugged.34 Housing base Wipe the housing with a soft cloth and a bit of soapy water. Dry completely and store, as you would like other sharp knives, keep out of reach for children.

Attention ► Pull the plug before cleaning parts of the device. Always leave it unplugged. 17 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Cause and Action

In the event of a fault, an error code will appear in the display; it describes the cause of the fault. Error Possible cause Rectification Device is not working Power plug is not plugged in Plug in mains plug! Defective power cable or plug Send device to Customer Service Defective electrical socket Select another electrical socket Odor during first use The motor will need some time to running in for first use. The odor will disappear after the device works for a while. Let the device run for 2 minutes and let it cool down after this. Device suddenly stops Ingredients were pushed down with pusher too hard Push down the ingredients with the pusher more carefully. The drum is blocked Turn off the device, unplug and disassemble. Remove the blockage. Be carefully with the sharp drums. The device is hot Device was used too long or overloaded Turn off the device pull the plug and let it cool down. The device is not intended for permanent use. Do not use it for more than 5 minutes without a break. Please note ► If above mentioned steps don't solve the problem, please contact your customer service.35

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device. 18 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 19 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).36 20 Technical Data Device Electric food grater Name CR 4 Acid Etched Item No.:
