USER MANUAL EY37C1 PANASONIC

Before operating his unit, please and these instructions completely and save this manual for future use.

Fig.1. Alignment marks

Fi Haged Angle adjustment

Fig 4. Replace the bulb

Bulb creates heat when it is in use. Heat may be trapped and cause an accident.

• Do not cover the flashlight with cloth or paper during use.
• Do not place the head part of the light on the floor.
• Do not touch the lens, reflector, and bulb during use or just after the use as they become hot.
• Do not use any other battery pack besides as shown in the Specifications.

CAUTION

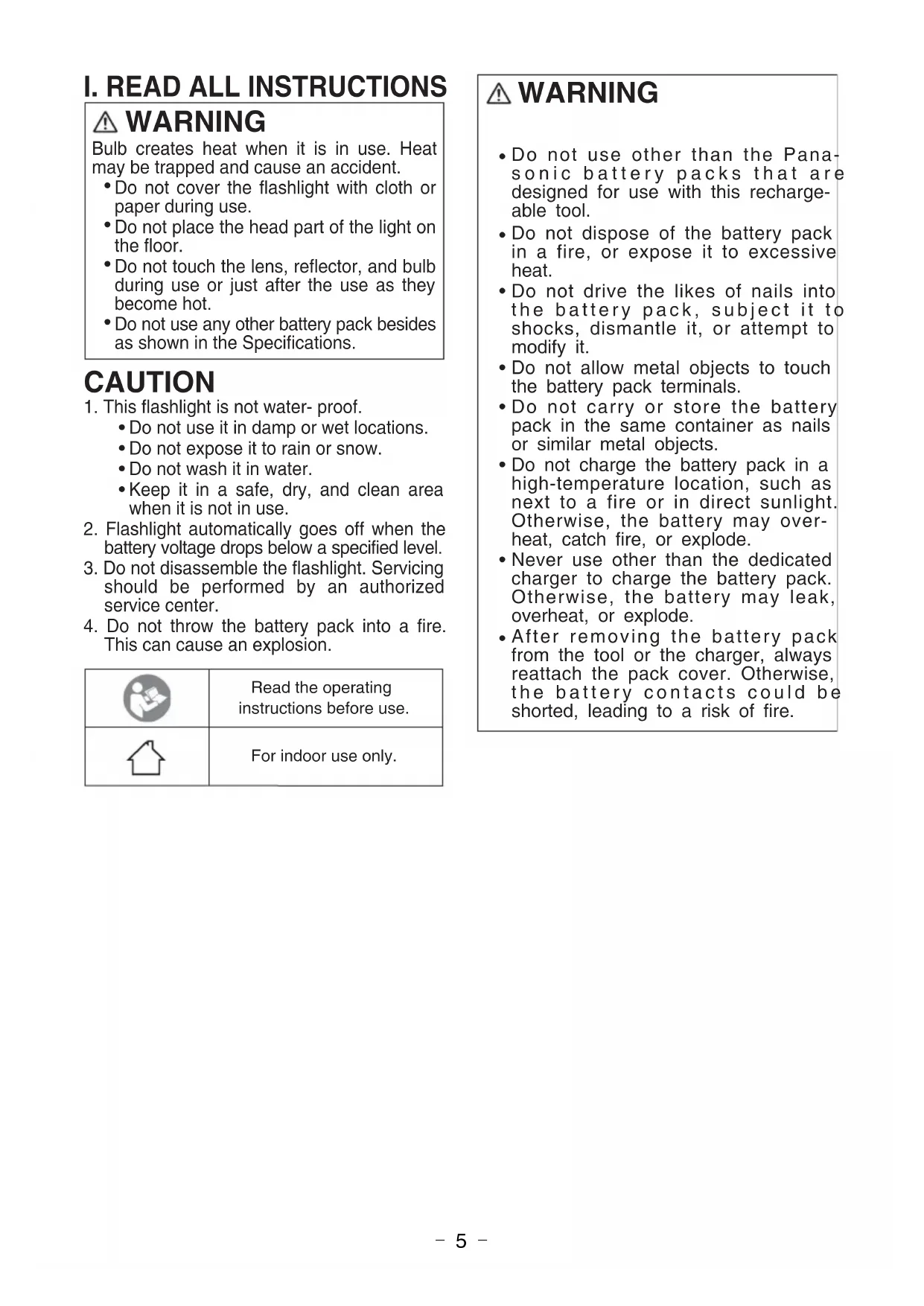

1. This flashlight is not water- proof.

2. Do not use it in damp or wet locations.

3. Do not expose it to rain or snow.
4. Do not wash it in water.

5. Keep it in a safe, dry, and clean area when it is not in use.

6. Flashlight automatically goes off when the battery voltage drops below a specified level.

7. Do not disassemble the flashlight. Servicing should be performed by an authorized service center.
8. Do not throw the battery pack into a fire. This can cause an explosion.

	Read the operating instructions before use.
	For indoor use only.

WARNING

• Do not use other than the Panasonic battery packs that are designed for use with this rechargeable tool.
• Do not dispose of the battery pack in a fire, or expose it to excessive heat.
• Do not drive the likes of nails into the battery pack, subject it to shocks, dismantle it, or attempt to modify it.
• Do not allow metal objects to touch the battery pack terminals.
• Do not carry or store the battery pack in the same container as nails or similar metal objects.
• Do not charge the battery pack in a high-temperature location, such as next to a fire or in direct sunlight. Otherwise, the battery may overheat, catch fire, or explode.
• Never use other than the dedicated charger to charge the battery pack. Otherwise, the battery may leak, overheat, or explode.
  After removing the battery pack from the tool or the charger, always reattach the pack cover. Otherwise, the battery contacts could be shorted, leading to a risk of fire.

II. ASSEMBLY

1. To insert the battery pack; (fig.1)

Line up the alignment marks and attach the battery pack.

• Slide the battery pack until it locks into position.

• To remove the battery pack:

Pull the button from the front to release the battery pack.

1. Shoulder strap (fig.2)

Follow the steps to make the loop at the buckle.

Make sure the strap is firmly fixed on the flashlight.

III. OPERATION

1. Press the switch to light on.
2. Head angle adjustment; (fig.3)
   Head angle can be changed at 4-locking positions for desired angle.
3. When it is placed away from you, make sure it will not be tumble.
4. When the battery capacity level gets low, low voltage indicator will start to blink. Then charge the battery pack.
5. Press the switch to light off after use.

CAUTION:

• Read the instruction manual of the charger to charge the battery pack, and how to handle battery pack.

IV. MAINTENANCE

• To make any adjustments, changing accessory, or storing the flashlight, remove battery pack from the flashlight.
• To clean the flashlight, wipe with a dry, soft cloth.

How to replace the new bulb. (fig.4)

1. Take off the ring (①)
2. Match the joint part A and B, then remove the bulb. (2), (3)

3. Install the new bulb and turn to hold firmly. (4,5)

4. Fit the ring. (1)

Lens, reflector, and bulb are hot immediately after use. Wait a while before replacing the bulb after switch off.

*To purchase a new bulb, please consult your authorized dealer. (Please always use the genuine bulbs.)

V. ACCESSORIES

Battery Pack

See the Specification.

Battery Charger

• For inquiries please contact an authorized dealer.

VI. SPECIFICATIONS

Model no.	EY37C1
Bulb type	12 V Xenon 0.7A
Size	270 x 124 x 90 mm(11 x 4-7/8" x 3-9/16")
Weight	340 g (0.75 lbs)
Battery packs	Li-ion battery pack
	EY9L41	EY9L42	EY9L44	EY9L45	EY9L50 EY9L51 EY9L61
Battery voltage	14.4 V DC 18 V DC					21.6 V DC
	(3.6 V x 4 cells)		(3.6 V x 8 cells)	(3.6 V x 10 cells)		(3.6 V x 6 cells)

NOTE: This chart may include models that are not available in your area.

Please refer to the latest general catalogue.

NOTE: For the dealer name and address, please see the included warranty card.

InformationforUsageCollectionandDisposalofOld EquipmentandusedBatteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

ForbusinessusersintheEuropeanUnion

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[InformationonDisposalinotherCountriesoutsidetheEuropeanUnion]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Noteforthebatterysymbol(bottomtwosymbolexamples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
