USER MANUAL LT470 MEDISANA

Please read carefully!

A fire attentivement s.v.p.!

1 Safety Information. 12
2 Useful Information 17
3 Operating 18
4 Miscellaneous. 19
5 Warranty 22

FR Mode d'emploi

IT ① Interru tture ON/OFF

Light screen
Cord with plug
Mounting hole
Fold-out stand

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

4B Christchurch House, Beaufort

Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

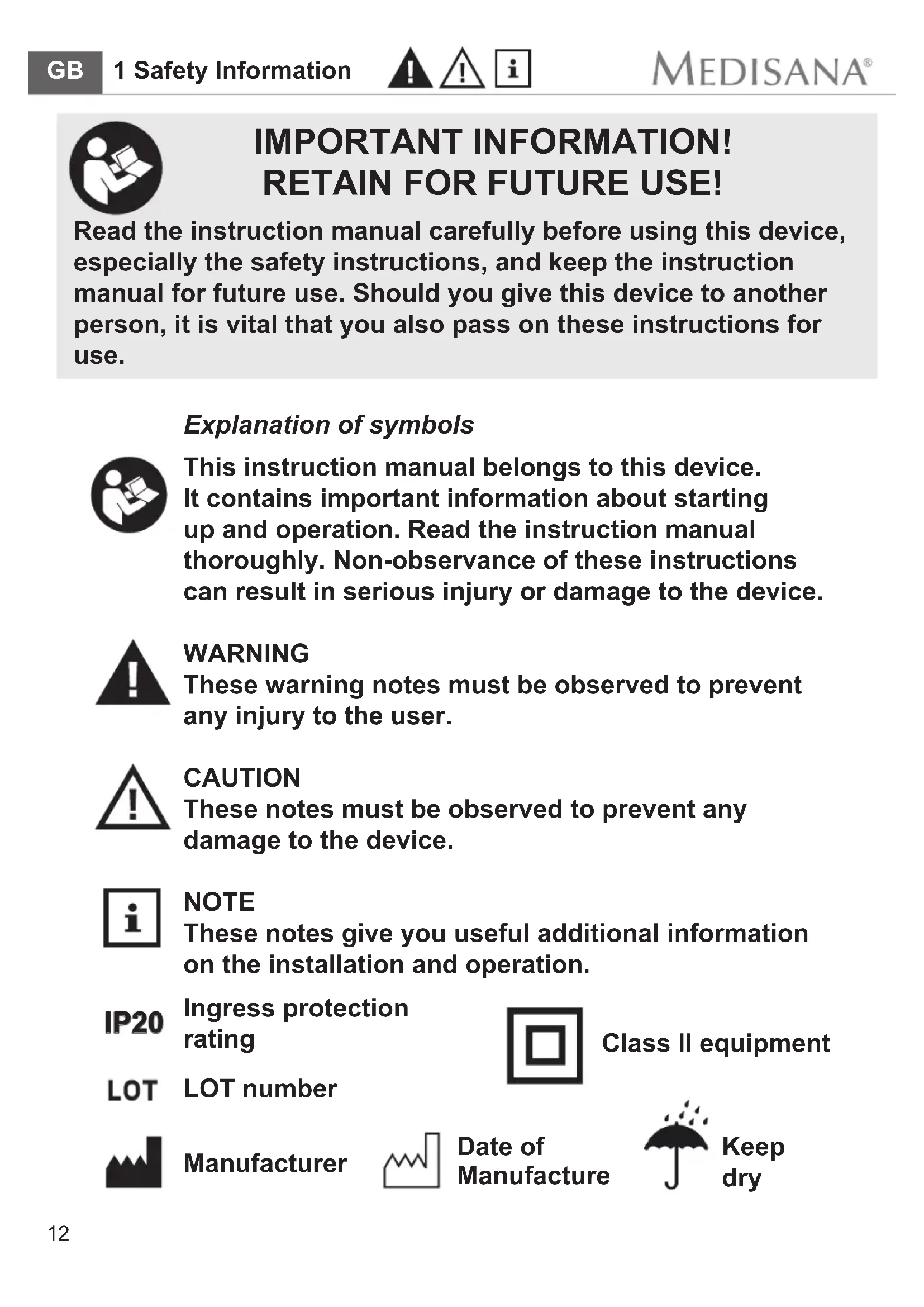

Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols

This instruction manual belongs to this device. It contains important information about starting up and operation. Read the instruction manual thoroughly. Non-observation of these instructions can result in serious injury or damage to the device.

WARNING

These warning notes must be observed to prevent any injury to the user.

CAUTION

These notes must be observed to prevent any damage to the device.

NOTE

These notes give you useful additional information on the installation and operation.

IP20

Ingress protection rating

Class II equipment

LOT

LOT number

Manufacturer

Date of Manufacture

Keep dry

Intended use

The MEDISANA Therapy Light LT 470 is intended for use as a light bath respectively therapy light to treat seasonal affective disorder (SAD), also known as the "winter blues".

The use may support energy boost and stabilization of cardiac frequency as may help to experience a more "awake" feeling.

The device is intended only for the treatment of humans.

Contraindications

Before using the appliance, consult your doctor if you:

• suffer(ed) from severe depression,
• had a recent eye surgery or a diagnosed eye condition, which cause avoidance of bright light
• are on specific medication (i.e. analgesics, antidepressants, psychotropic drugs or malaria tablets);
  have high blood pressure and/or vitreous haemorrhage
• suffer from skin sensitivity to light, such as systemic lupus erythematosus

Possible side effects

You may experience the following side effects:

• headaches
• eyestrain
  sleeping problems
• nausea

Measures to avoid, minimize or alleviate these side effects:

• Increase the treatment distance and do not look into the light directly
- Avoid using the appliance during the late evening or before sleep
- Stop using the appliance for a few days to make the side effects disappear and then try again.

Safety information

• The appliance needs special precaution regarding EMC (electromagnetic compatibility) and needs to be installed and put into service according to the EMC information provided in the chapter "Normative reference" (see appendix).
• Use the device only according to its intended purpose as specified in the instruction manual. The warranty will be invalidated if the device is used for purposes other than those for which it is intended.
• The device is not determined for commercial use, but only for domestic use.
• The device needs no calibration, inspection or maintenance
• Before use make sure, that all packaging material has been removed and that the device or parts of the device are not showing any visible damage. If in doubt, contact the customer service.
• Do not use the device outside or in damp rooms. Do not put the device in water or other fluids.
• Never take hold of the device with wet hands, if it is connected to the mains. Never let any humidity get on the device. Only use it if completely dry.
• Do not cover the appliance during operation or while it is cooling down. Do not block vent holes.
• Only use the device in dry locations, where a solid stand is given and where the unit cannot fall. There is a danger of hurts or fractures to anyone or anything below if it falls.
• Do not operate the device in the vicinity of anaesthetic mixtures that are inflammable in air or oxygen.
• Never touch the appliance and another person simultaneously.
• Protect the appliance from strong impacts.

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.

• The mains cable of the device need to be laid in that way, that the risk of stumbling or strangulation is completely excluded.

• Keep the cord away from hot objects and open flames.
• The mandatory minimum distance between the appliance and flammable objects is 1 meter.
• Always disconnect the mains plug and let the device cool down at least 15 minutes before you touch it.
• Always pull on the plug itself when disconnecting the device from the power supply. Never pull on the power cord.
• To completely disconnect the unit from the power source unplug the adaptor plug from the power source.
• If the mains cable, the adaptor or the device is damaged, contact the customer service centre.
• Do not attempt to repair the device yourself in the event of a malfunction or damages, as this would invalidate the warranty. Ask your specialised dealer. Repairs should only be carried out by authorised service centres to avoid hazards.
• Never use a damaged device.
• This appliance does not contain parts, which can be exchanged or repaired by the user.
• The appliance is protected against unauthorised use. Do not modify this appliance without authorisation of the manufacturer.
• If this appliance is modified, appropriate inspection and testing must be conducted to ensure continued safe use of the equipment.
• This device is not designed to be used by persons (including children) with limited physical, sensory or mental abilities, or by persons with insufficient experience and/or knowledge, unless under observation by a person responsible for their safety, or unless they have been instructed in the use of the device.

• Children must be supervised to ensure that they do not play with the device.

• Do not leave the device unattended when it is in operation.

• Only store the device in locations, which are out of reach of children.
• If you have health concerns of any kind, contact your general practitioner.
• People with eye- or retinal diseases, with optic nerve impairments as well as diabetics or people with similar health problems need to check with their doctor beforehand, if the use of this device is uncritical for them.
• The light tube contains a small amount of mercury sealed within the glass tubing, when a tube breaks in your home, some of this mercury is released as mercury vapor. To minimize exposure to mercury vapor, we recommend that you leave the room and that you airing out the room for at least 5-10 minutes by opening a window or door to the outdoor environment. Shut off the central forced air heating/ air-conditioning system, if you have one.

Thank for your confidence in us and congratulations!

you very With the Therapy Light LT 470 you have purchased a top quality product from MEDISANA. In order to achieve the desired effect with your Therapy Light LT 470 from MEDISANA in the long term, we recommend that you read the following information on its use and maintenance carefully.

2.1 Please check first of all that the device is complete and is not damaged Scope of in any way. In case of doubt, do not use the appliance and contact your delivery supplier or your service centre.

packag- The following parts are included:

1 MEDISANA Therapy Light LT 470
- 1 instruction manual

The packaging can be reused or recycled. Please dispose properly of any packaging material no longer required. If you notice any transport damage during unpacking, please contact your supplier without delay.

WARNING

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

2.2 In autumn and winter - the seasons with less sunshine hours and short How days - the lacking sunlight influences the chemical processes in the does the brain. The hypothalamus function will be constrained and it is presumed, therapy that the production of the hormone melatonin is being influenced. It may light cause unwanted tiredness.

LT 470 The MEDISANA Therapy Light LT 470 provides bright electrical light in order to simulate the missing sunlight in autumn and winter. This is generated without the harmful UV radiation of the sunlight. The light therapy helps to level the production of the hormone melatonin and relieve the symptoms of winter depression (SAD).

3.1 Commis-sioning

• Place the device on a stable, level surface (e.g. on a table). Make sure that the device will not drop or fall down. Use the fold-out stand 5 on the rear side of the device.
• Alternatively: Fastening of the Therapy Light on a wall. There is a mounting hole ④ on the rear side of the appliance. At this mounting hole the appliance can be fixed on the wall with screw. Depending on the type of wall, an appropriate screw must be used, may be with pegs. E.g. for concrete wall, stainless steel self-tapping screw which is screwed into an anchor. The screw and the anchor are not included in the scope of delivery. Important: If the mounting hole or back housing is cracked or damaged, do not fix the appliance on the wall. Please contact customer service or the dealer for assistance.
• Place the device approx. 15 to 35cm away from your eyes. The light should reach your face sideways.
• Connect the power plug ③ to the socket.

NOTE

• Set up the device in a place near a mains socket.

3.2 Application

1. Shift the On-/Off-switch

to position | to switch on the device .

1. Shift the On-/Off-switch

to position 0 to switch off the device.

NOTE

• The tube develops its full luminosity after a couple of minutes. When switched on, the brightness of the tube may be visibly lower at first.

As long as you enjoy the soothing light of the device, you may read a book, phone or do your work. Always keep in mind to keep the correct distance between the device and your eyes (= 15 to 35 cm).

Recommended use regarding the duration of application:

Distance	Application duration
35 cm approx. 2 hours
25 cm approx. 70 minutes
15 cm approx. 30 minutes

• The closer you are to the panel, the shorter you will have to use the device to achieve the desired effect.
• Do not look directly into the light or the light screen for a longer period of time.
• During the first applications of the device, you may experience eye fatigue or headache. This is normal and should soon pass. If the symptoms persist, lower the intensity and/or the duration of the application, until you are feeling well again.
• To ensure the product service life, you can use the device up to 2 hours, but do not use the device more than 4 hours in each use. Let the device cool down for at least 15 minutes before reuse.

Application over longer periods

Repeat the treatment for at least 7 consecutive days during the months with less sunlight. Depending on your individual requirement, you may extend this period.

4 Miscellaneous

4.1 Cleaning and maintenance

• Before cleaning the appliance, switch it off, pull the power plug out of the socket and let the device cool down at least 15 minutes.
• Never touch the device with wet hands.
• Clean the appliance using a soft, lint-free cloth, if necessary dampened with mild, warm soapy water and well wrung out. Do not allow water to penetrate the appliance.
• Never immerse the device in water or other liquids.
• When cleaning the device, never use aggressive cleaning agents, scouring agents or solvents; neither should you use scouring pads, steel wool or tough brushes. This may damage the surfaces.

4.2 Storage

• If you do not use the device, keep it in a dry place out of reach of children.
• Let the device cool down at least 15 minutes before storing it.
• If you do not use the device, disconnect it from the mains supply.
• Pay attention to the storage conditions in the chapter 4.6 Technical specifications.

4.3 Disposal

This product must not be disposed together with the domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

Consult your municipal authority or your dealer for information about disposal.

4.4 Troubleshooting

Problem Possible	le cause Solution
No light Device	is switched off Use On-/Off	ff-switch ➀ to switch it on
	No power connection Check mains adaptor and power cable

4.5 Replacing the lamp tubes

On average, the fluorescent lamps need to be changed after approximately 8000 hours' use. If a lamp fails, it must be replaced. In order to change a fluorescent lamp, the appliance must be disassembled. Have the lamps changed by your specialist dealer, an authorised service centre or a qualified specialist to prevent damage to the appliance.

4.6 Technical specifications

Name and model	: MEDISANA Therapy Light LT 470
Power supply	: 220-240 V~ 50 Hz
Lighting elements	: Daylight (full spectrum), 45 W, 8000 h
Illuminant (provided	: MP45 3U
by light tube supplier)
Power	: 45 W
Illuminance	: > 10,000 lux (at a distance of 15 cm)
Dimensions	: 270 x 207 x 80 mm
Weight	: 800 g
Operating conditions	: 10 °C to 25 °C, 30 to 90 % relative hum
	atmospheric pressure: 700-1060 hPa
Storage and transport	: - 20 °C to + 50 °C, 30 to 90 % relative h
conditions	atmospheric pressure: 700-1060 hPa
Article No.	: 45222
EAN number	: 40 15588 45222 2

C∈0123

In accordance with our policy of continual product improvement, we reserve the right for technical and design changes without notice.

The current version of this instruction manual can be found under www.medisana.com

4.7 Guidelines / Standards

This device is certified in accordance with EC Guidelines and carries the CE symbol (conformity symbol) "CE 0123". The specifications of EU Guideline "93/42/EEC of the Council Directive dated 14 June 1993 concerning medical devices" are met.

Electromagnetic compatibility: See appendix of this manual.

Warranty and repair terms

Please contact your supplier or the service centre in case of a claim under the warranty. If you have to return the unit, please enclose a copy of your receipt and state what the defect is.

The following warranty terms apply:

1. The warranty period for MEDISANA products is three years from date of purchase. In case of a warranty claim, the date of purchase has to be proven by means of the sales receipt or invoice.
2. Defects in material or workmanship will be corrected free of charge within the warranty period.

3. Repairs under warranty do not extend the warranty period either for the unit or for the replacement parts.

4. The following is excluded under the warranty:

a. All damage which has arisen due to improper treatment, e.g. non-observation of the user instructions.
b. All damage which is due to repairs or tampering by the customer or unauthorised third parties.
c. Damage which has arisen during transport from the manufacturer to the consumer or during transport to the service centre.
d. Accessories which are subject to normal wear and tear.

1. Liability for direct or indirect consequential losses caused by the unit are excluded even if the damage to the unit is accepted as a warranty claim.

Zero-Plus International Limited

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

imported & distributed by

MEDISANA AG

Jagenbergstraße 19

41468 NEUSS

Germany

EC REP

I-Plus Company Ltd.

4B Christchurch House, Beaufort

Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

The service centre address is shown on the attached leaflet.

REMARQUE IMPORTANTE! TOUJOURS CONSERVER!

La furniture comprehend:

Change-ment des tubes fluorescents

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

4B Christchurch House, Beafort Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

NOTE IMPORTANT!

CONSERVARE IN MANIERA SCRUPOLOSAI!

Dimensioni :270x207x80mm

Peso :800g

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

4B Christchurch House, Beaufort

Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

4B Christchurch House, Beaufort

Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

NOTAS IMPORTANTES!

GUARDAR SEM FALTA!

Centre, 71-75 Container Port Road, Kwai

Chung, New Territories, Hong Kong

EC REP

4B Christchurch House, Beaufort

Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

I-Plus Company Ltd.
4B Christchurch House, Beaufort
Court, Medway City Estate,
Rochester, Kent. ME2 4FZ, UK

TÄRKEITÄ TIETOJA!

SÄLYTÄ NÄMÄ OHJEET!

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

4B Christchurch House, Beaufort

Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

4B Christchurch House, Beaufort

Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

OUKKEuA- 1 Onyies xpnoans

σia

Oi oukeuaoic eivai enavaxpnoioiouiec n ptoov va avakukw- 0ouv kuklo npwv uow. zac napakaoue va aTOOUPET To Uliko oukeuaiaociou dev xpoioTtai PLeov oupwva e Touc Kavovioouc. ZEPITIWON Toukata Tnv aPapeon TnC oukeunc aTOn Oueuaia diantotwoe TKAIOIaBn opeilóevn OTN eTaopap, Tapaokaoue va ateuovthe taeoos cTov emtopo oac.

ПОНДОПОIHSH

KpatnoTe To uIko ouakeuaaiac paKpia aTio Taiia.

Room 1004, 10/F., Join-In Hang Sing Centre, 71-75 Container Port Road, Kwai Chung, New Territories, Hong Kong

Eioayetai & diavéμεtai aTNO TV MEDISANA AG

Jagenbergstraße 19

41468 NEUSS

TEPMANIA

EC REP

I-Plus Company Ltd.

4B Christchurch House, Beaufort

Court, Medway City Estate,

Rochester, Kent. ME2 4FZ, UK

Tn dieuovon oepic tha tn bpiteo exwpiotouvoedutiko uA.

Guidance and manufacturer's declaration - electromagnetic immunity
The model LT 470 ("Mini Daylight") is intended for use in the electromagnetic environment specified below. The customer or the user of the model LT 470 ("Mini Daylight") should ensure that it is used in such an environment.
Immunity test IEC 60601 test level	Compliance level	Electromagnetic environment - guidance
Electrostatic discharge (ESD) IEC 61000-4-2	±6 kV contact ±8 kV air	±6 kV contact ±8 kV air	Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %.
Electrical fast transient/burst IEC 61000-4-4	±2 kV for power supply lines	±2 kV for power supply lines	Mains power quality should be that of a typical commercial or hospital environment.
Surge IEC 61000-4-5	±1 kV differential mode ±2 kV common mode	±1 kV differential mode ±2 kV common mode	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11	<5 % U(>95 % dip in U(T)) for 0,5 cycle40 % U(60 % dip in U(T)) for 5 cycles70 % U(30 % dip in U(T)) for 25 cycles<5 % U(>95 % dip in U(T)) for 5 sec	<5 % U(>95 % dip in U(T)) for 0,5 cycle40 % U(60 % dip in U(T)) for 5 cycles70 % U(30 % dip in U(T)) for 25 cycles<5 % U(>95 % dip in U(T)) for 5 sec	Mains power quality should be that of a typical commercial or hospital environment. If the user of the model LT 470 ("Mini Daylight") requires continued operation during power mains interruptions, it is recommended that the model LT 470 ("Mini Daylight") be powered from an uninterrupt-ible power supply or a battery.
Power frequency (50/60 Hz) magnetic field IEC 61000-4-8	3 A/m 3 A/m		Power frequency magnetic fields should be at levels characteristic of a typical loca-tion in a typical commercial or hospital environment.
NOTE U(τ) is the a.c. mains voltage prior to application of the test level.
Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment - guidance
Conducted RF IEC 61000-4-6 Radiated RF IEC 61000-4-3	3 Vrms 150 kHz to 80 MHz3 V/m 80 MHz to 2,5 GHz	3 Vrms3 V/m	Portable and mobile RF communications equipment should be used no closer to any part of the model "Mini Daylight", including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distanced=1.167√Pd=1.167√P 80MHz to 800MHzd=2.333√P 800MHz to 2.5 GHzwhere P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range.bInterference may occur in the vicinity of equipment marked with the symbol above.
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
aField strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model LT 470 ("Mini Daylight") is used exceeds the applicable RF compliance level above, the model LT 470 ("Mini Daylight") should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the model LT 470 ("Mini Daylight").bOver the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Emissions test	Compliance Electro	magnetic environment - guidance
RF emissions CISPR 15	complies The model	LT 470 ("Mini Daylight") is not suitable for interconnection with other equipment.
Harmonic emis-sions IEC 61000-3-2	Class C Class C with IEC 61000-3-2
Voltage fuctuations / flicker emissions IEC 61000-3-3	complies Complies	with IEC 61000-3-3 The model LT 470 ("Mini Daylight") is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Recommended separation distances between portable and mobile RF communications equipment and the LT 470 ("Mini Daylight")
The model LT 470 ("Mini Daylight") is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Model LT 470 ("Mini Daylight") can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the model LT 470 ("Mini Daylight") as recommended below, according to the maximum output power of the communications equipment.
Rated maximum out-pot power of transmit- ter W	Separation distance according to frequency of transmitter m
	150 kHz to 80 MHz 80 d = [3,5/V1]√P	MHz to 800 MHz 800 M d = [3,5/E1]√P	Hz to 2,5 GHz d = [7/E1]√P
0.01 0.117 0.117	0.233
0.1 0.369 0.369	0.369
1 1.167 1.167	2.333
10 3.690 3.690	7.377
100	11.67 11.67 23.33
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

MEDISANA AG

Jagenbergstraße 19

41468 NEUSS

Deutschland
