USER MANUAL N14D30N2 NEFF

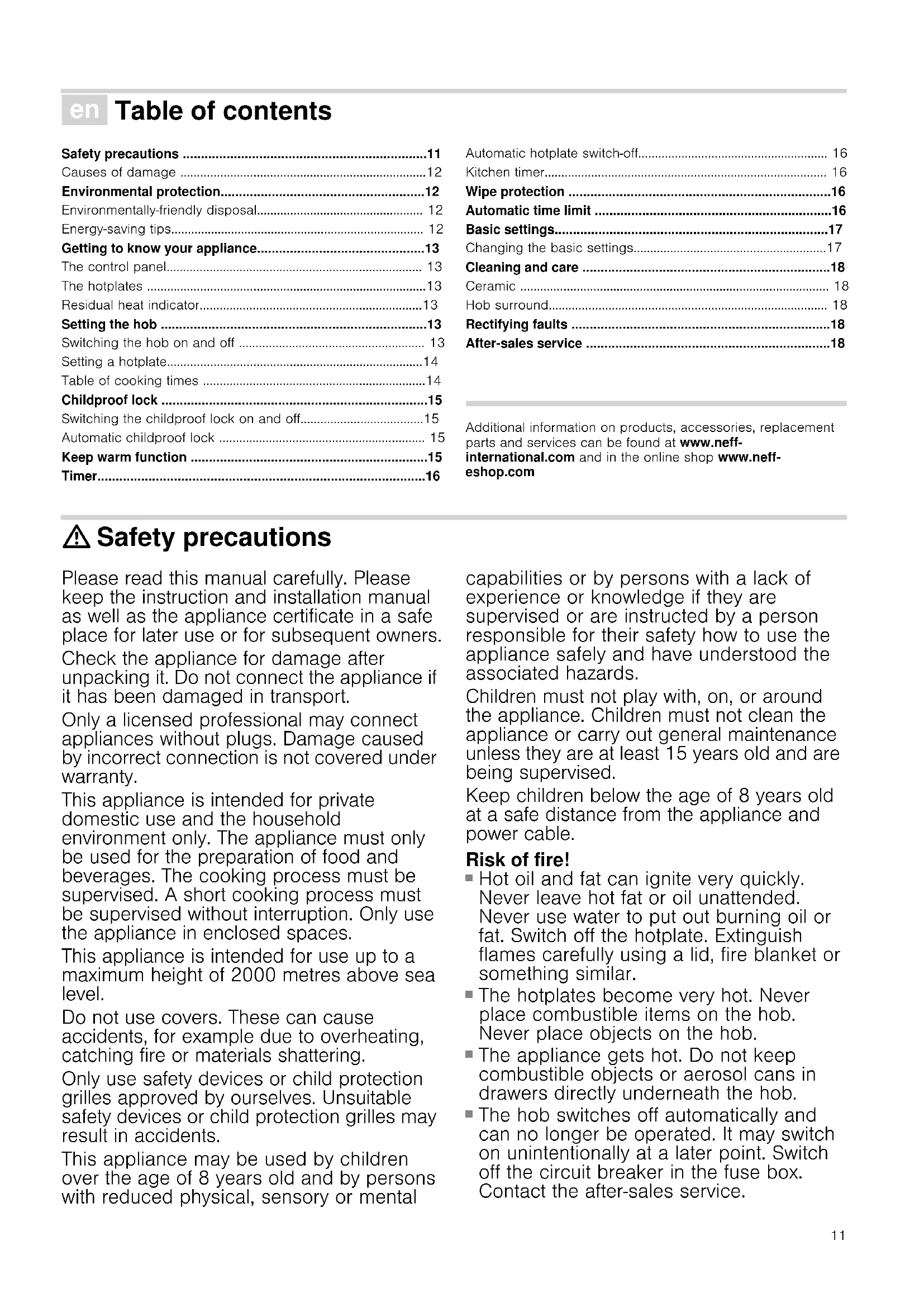

• Ne placez pas de casseroles chaudes près du bandeau de commande ou sur celui-ci B 070 222 143 FR 01 40 10 42 10 CH 0848 840 04011 Ú Table of contents [en]Instruction manual Safety precautions ...................................................................11 Causes of damage ..........................................................................12 Environmental protection........................................................12 Environmentally-friendly disposal.................................................. 12 Energy-saving tips............................................................................ 12 Getting to know your appliance..............................................13 The control panel............................................................................. 13 The hotplates ....................................................................................13 Residual heat indicator...................................................................13 Setting the hob .........................................................................13 Switching the hob on and off ........................................................ 13 Setting a hotplate.............................................................................14 Table of cooking times ...................................................................14 Childproof lock .........................................................................15 Switching the childproof lock on and off.....................................15 Automatic childproof lock .............................................................. 15 Keep warm function .................................................................15 Timer..........................................................................................16 Automatic hotplate switch-off......................................................... 16 Kitchen timer..................................................................................... 16 Wipe protection ........................................................................16 Automatic time limit .................................................................16 Basic settings...........................................................................17 Changing the basic settings..........................................................17 Cleaning and care ....................................................................18 Ceramic ............................................................................................. 18 Hob surround.................................................................................... 18 Rectifying faults .......................................................................18 After-sales service ...................................................................18 Produktinfo Additional information on products, accessories, replacement parts and services can be found at www.neff- international.com and in the online shop www.neff- eshop.com : Safety precautions Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty. This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces. This appliance is intended for use up to a maximum height of 2000 metres above sea level. Do not use covers. These can cause accidents, for example due to overheating, catching fire or materials shattering. Only use safety devices or child protection grilles approved by ourselves. Unsuitable safety devices or child protection grilles may result in accidents. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. Risk of fire!

Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar. Risk of fire!

The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob. Risk of fire!

The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob. Risk of fire!

The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of burns!12

Do not use hob covers here.They can cause accidents, for example due to overheating, catching fire or materials shattering. Risk of burns!

The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance. Risk of burns!

The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of burns!

It is only allowed to use safety devices, e.g. hob guards, which have been approved by ourselves. Unsuitable safety devices or hob guards may result in accidents. Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of electric shock!

Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. Risk of electric shock!

A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of electric shock!

Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of injury! Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry. Causes of damage Caution! ■ Rough pot and pan bases scratch the ceramic.■ Avoid boiling pots dry. This may cause damage.■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage. ■ Damage can occur if hard or pointed objects fall on the hob. ■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob. Overview The following table provides an overview of the most frequent kinds of damage: Environmental protection Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner. Energy-saving tips ■ Always place suitable lids on saucepans. When cooking without a lid, considerably more energy is required. A glass lid means that you can see inside without having to lift the lid. ■ Use pots and pans with even bases. Uneven bases increase energy consumption. ■ The diameter of pot and pan bases should be the same size as the hotplate. In particular, small saucepans on the hotplate cause energy losses. Please note: cookware manufacturers often indicate the upper diameter of the saucepan. This is usually bigger than the diameter of the base of the pan. ■ Use a small saucepan for small quantities. A larger, less full saucepan requires a lot of energy. ■ Cook with only a little water. This will save energy. Vitamins and minerals in vegetables are preserved. ■ Always cover as large an area of the hotplate as possible with your saucepan. ■ Switch to a lower heat setting in good time.■ Select a suitable ongoing cooking setting. You will waste energy by using an ongoing cooking setting which is too high. ■ Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5-10 minutes before the end of the cooking time. Damage Cause Action Stains Food spills Remove spills immediately with a glass scraper. Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space. Rough pot and pan bases scratch the ceramic. Check your cookware. Discolouration Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic Pan abrasion (e.g. aluminium) Lift the pots and pans when moving them. Blisters Sugar, food with a high sugar content Remove spills immediately with a glass scraper. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.13 Getting to know your appliance An overview of the models with their dimensions is given on page 2. The control panel Notes ■ When you touch a symbol, the respective function is activated. ■ Always keep the controls dry. Moisture reduces their effectiveness. ■ Do not pull pans close to the displays and sensors. The electronics could overheat. The hotplates Residual heat indicator The hob has a two-stage residual heat indicator for each hotplate.

• appears in the display the hob is still hot. It may be used, for example, to keep a small meal warm or to melt cooking chocolate. As the hotplate cools down further, the display changes to œ. The display remains lit until the hotplate has cooled sufficiently. Setting the hob This section informs you how to set the hotplates. The table shows heat settings and cooking times for various meals. Switching the hob on and off The main switch is used to switch the hob on and off. To switch on: touch the # symbol. A signal sounds. The indicator above the main switch lights up. The hob is ready for use. To switch off: touch the # symbol until the display above the main switch goes out. All hotplates are switched off. The residual heat indicator remains on until the hotplates have cooled down sufficiently. Notes ■ The hob switches off automatically if all hotplates have been switched off for more than 15 seconds. ■ The settings remain stored for 4 seconds after the hob has been switched off. If you switch it on again during this time, the hob will operate using the previously stored settings. Displays ‚-Š Heat settings

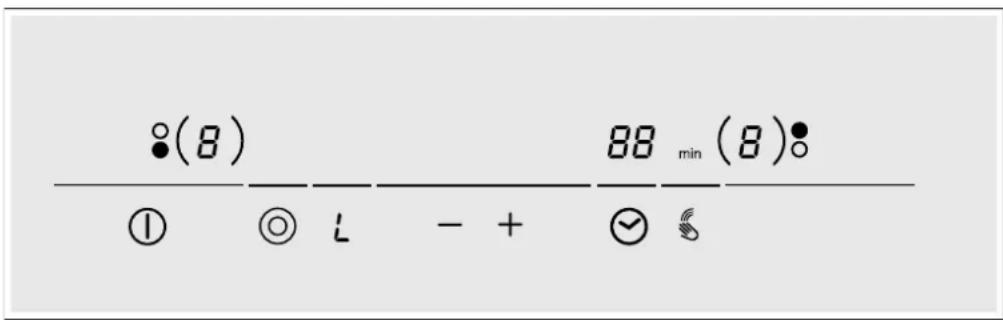

Control panel pause ( ) Hotplate selection A @ Adjustment fields

Timer Controls Hotplate Activating and deactivating

Dual-circuit hotplate Use the ( ) symbol to select the hotplate. Touch the ð activation symbol When the hotplate is activated: the corresponding indicator lights up.14 Setting a hotplate Use the + and - symbols to set the desired heat setting. Heat setting 1 = lowest setting Heat setting 9 = highest setting There is an intermediate setting between each heat setting. This is identified by a dot. Set the heat setting The hob must be switched on.

1. Touch the ( ) symbol for the required hotplate. ‹ lights up in

2. Touch + or - within the next 5 seconds. The basic setting

appears. + symbol: heat setting 9 - symbol: heat setting 4

3. Changing the heat setting: touch the + or - symbol until the

desired heat setting appears. To switch off the hotplate: Use the ( ) symbol to select the hotplate. Touch the + or - symbol until ‹ appears. After about 5 seconds, the residual heat indicator appears. Note: Hotplate temperature is regulated by the heat switching on and off.The heat may also switch on and off at the highest setting. This ensures e.g.: ■ sensitive components are protected from overheating■ the appliance is protected from electrical overload■ better cooking results are achieved Table of cooking times The following table provides some examples. Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible. For bringing liquids to the boil, use heat setting 9. Stir thick liquids occasionally.

Ongoing cooking setting Ongoing cooking time in minutes Melting Chocolate coating Butter, honey, gelatine 1-1. 1-2

Heating and keeping warm Stew (e.g. lentil stew) Milk** Heating sausages in water** 1-2 1.-2. 3-4

• Ongoing cooking without a lid ** Without lid *** Turn frequently15 Childproof lock You can use the childproof lock to prevent children from switching on the hotplates. Switching the childproof lock on and off The hob must be switched off. To switch on: touch the L symbol for approx. 3 seconds. The F symbol lights up for 10 seconds. The hob is locked. To switch off: touch the L symbol for approx. 3 seconds. The hob is unlocked. Automatic childproof lock This function automatically activates the childproof lock every time you switch the hob off. Switching on and off You can find out how to switch the automatic childproof lock on and off in the Basic settings section. Keep warm function The keep warm function is suitable for melting chocolate or butter and for warming food and cookware. Switching on the keep warm function:

1. Use the ( ) symbol to select the hotplate.

2. In the next 5 seconds, touch the L symbol.

– appears in the heat setting display. The keep warm function is switched on. Switching off the keep warm function: Select the hotplate and touch the L symbol. ‹ appears in the heat setting display. After approximately 5 seconds, the hotplate is switched off, and the residual heat indicator appears. Braising Roulades Pot roasts Goulash 4-5 4-5 2.-3. 50-60 min 60-100 min 50-60 min Frying** Escalope, plain or breaded Escalope, frozen Cutlet, plain or breaded*** Steak (3 cm thick) Hamburger, rissoles (3 cm thick)*** Poultry breast (2 cm thick)*** Poultry breast, frozen*** Fish and fish fillet, plain Fish and fish fillet, breaded Fish and fish fillet, breaded and frozen, e.g. fish fingers Scampi and prawns Stir fry, frozen Pancakes Omelette Fried eggs 6-7 6-7 6-7 7-8 4.-5. 5-6 5-6 5-6 6-7 6-7 7-8 6-7 6-7 3.-4. 5-6 6-10 min 8-12 min 8-12 min 8-12 min 30-40 min 10-20 min 10-30 min 8-20 min 8-20 min 8-12 min 4-10 min 6-10 min consecutively consecutively 3-6 min Deep-fat frying (fry 150-200 g per portion continuously in 1-2 litres oil**) Frozen products, e.g. chips, chicken nuggets Croquettes Meat, e.g. chicken portions Fish, breaded or battered Vegetables, mushrooms, breaded or battered Small baked items, e.g. doughnuts, fruit in batter 8-9 7-8 6-7 5-6 5-6 4-5

Ongoing cooking setting Ongoing cooking time in minutes

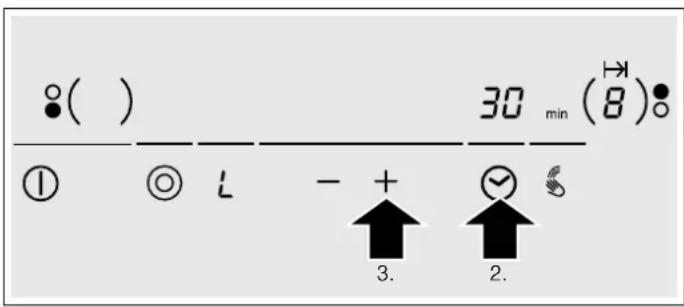

• Ongoing cooking without a lid ** Without lid *** Turn frequently16 Timer The timer can be used in two different ways: ■ To switch a hotplate off automatically■ As a kitchen timer Automatic hotplate switch-off Enter a cooking time for the relevant hotplate. When the cooking time has elapsed, the hotplate switches off automatically. Setting the cooking time:

1. Set the heat setting.

2. Touch the 3 symbol. The x indicator for the desired

hotplate lights up. ‹‹ lights up on the timer display.

4. Touch the + or - symbol until the desired cooking time

appears on the timer display. The cooking time counts down. If you have set a cooking time for several hotplates, the shortest cooking time will be displayed. The x indicator for the hotplate lights up brightly. When the cooking time has elapsed When the cooking time has elapsed, the hotplate switches off. ‹ lights up in the hotplate display. A signal sounds. ‹‹ lights up in the timer display for one minute. The x hotplate indicator flashes. Touch any control. The indicators go out and the audible signal ceases. Changing or cancelling the cooking time Use the ( ) symbol to select the hotplate. Touch the 3 symbol and use the + or - symbol to change the cooking time or set to

Notes ■ If you would like to call up the cooking time for a hotplate, select the hotplate using the ( ) symbol. The cooking time is displayed for 5 seconds. ■ You can set a cooking time of up to 99 minutes. Kitchen timer You can use the kitchen timer to set a time of up to 99 minutes. It runs independently of all the other settings. Setting the kitchen timer No hotplate should have been selected.

1. Touch the 3 symbol, ‹‹ lights up in the timer display. The

V indicator lights up.

3. Use the + or - symbol to set the time.

The timer starts counting down after a few seconds. When the cooking time has elapsed A signal sounds for one minute and ‹‹ lights up in the timer display. The V indicator flashes. Touch any control. The indicators go out and the audible signal ceases. Changing the time Touch the 3 symbol and use the + or - symbol to change the time. Wipe protection If you wipe over the control panel while the hob is switched on, settings may be altered. To prevent this from happening, your hob has a wipe protection function. Touch the " symbol. A signal sounds. The control panel is locked for 30 seconds. You can now wipe over the control panel without altering any settings. Note: The main switch is excluded from the wipe protection function. You can switch off the hob at any time. Automatic time limit If a hotplate has been switched on for a long time without the setting being changed, the automatic time limit is activated. The hotplate stops heating. ” ‰ and the •/œ residual heat indicator flash alternately on the hotplate display. The display goes out when you touch any control. You can make new settings. When the time limit is activated depends on the heat setting selected (1 to 10 hours).

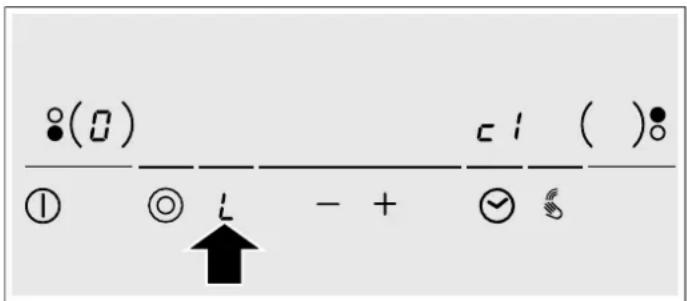

Basic settings Your appliance has various basic settings. You can adapt these settings to your needs. Changing the basic settings The hob must be switched off.

1. Switch on the hob.

2. Within the next 10 seconds, touch the – symbol for

4 seconds. ™‚ appears on the right-hand display and ‹ appears on the left-hand display.

3. Touch the – symbol repeatedly until the desired indicator

appears on the right-hand display.

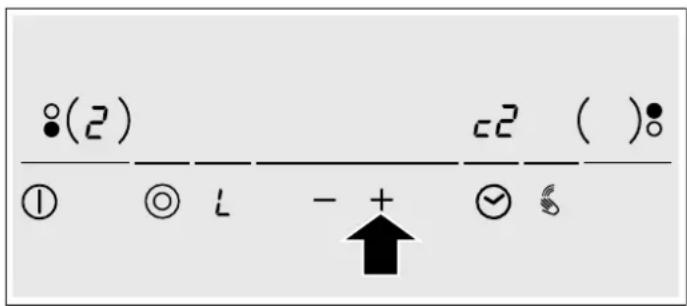

4. Use the + or - symbol to set the desired value.

5. Touch the – symbol for 4 seconds.

The setting is activated. Switching off To exit the basic setting, switch off the hob with the main switch and make new settings. Indicator Function

Automatic childproof lock ‹ Switched off.* ‚ Switched on.

Audible signal ‹ Confirmation signal and operation error signal switched off. ‚ Only operation error signal switched on. ƒ Confirmation signal and operation error signal switched on.*

Automatic timer ‹ Switched off.* ‚-ŠŠ Cooking time, after which the hotplates switch off

Duration of the timer end signal ‚ 10 seconds. ƒ n30 seconds „ 1 minute.*

Activation of the filament circuits ‹ Switched off.* ‚ Switched on. ƒ Last setting before the hotplate was switched off.

Reset to basic setting ‹ Switched off. ‚ Switched on. *Basic setting18 Cleaning and care The information in this section provides help on how best to care for your hob. Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop. Ceramic Clean the hob after each use. This will prevent spills from burning onto the ceramic. Only clean the hob when it has cooled down sufficiently. Use only cleaning agents which are suitable for glass ceramic. Follow the cleaning instructions on the packaging. Never use: ■ Undiluted washing-up liquid ■ Detergent intended for dishwashers ■ Scouring agents ■ Harsh cleaning agents such as oven spray or stain remover ■ Abrasive sponges ■ High-pressure cleaners or steam jet cleaners Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions. You can also obtain a suitable glass scraper from our after- sales service or from the e-Shop. Using special sponges to clean glass ceramic achieves great cleaning results. Hob surround To prevent damage to the hob surround, observe the following instructions: ■ Use only hot soapy water. ■ Wash new sponge cloths thoroughly before use. ■ Do not use any sharp or abrasive agents. ■ Do not use the glass scraper. Rectifying faults Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service. After-sales service Our after-sales service is there for you if your appliance should need to be repaired. We are committed fo find the best solution also in order to avoid an unnecessary call-out. E number and FD number: Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate. Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances. Indicator Fault Action Blank There is no power supply. Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances. “ is flash- ing The controls are damp or an object is resting on them. Dry the controls or remove the object. “§ + num- ber Electronic fault. Switch the appliance off and back on again after about 30 seconds using either the household fuse or the circuit breaker in the fuse box. Contact the after-sales service if this appears in the display again.

The electronics have overheated and have switched off the corresponding hotplate. Wait until the electronics have cooled down sufficiently. Then touch a control for the hotplate.*

The electronics have overheated and have switched off all hotplates. Wait until the electronics have cooled down sufficiently. Then touch any con- trol.*

The hotplate was in operation for too long and has switched itself off. You can switch the hotplate back on again immediately.
