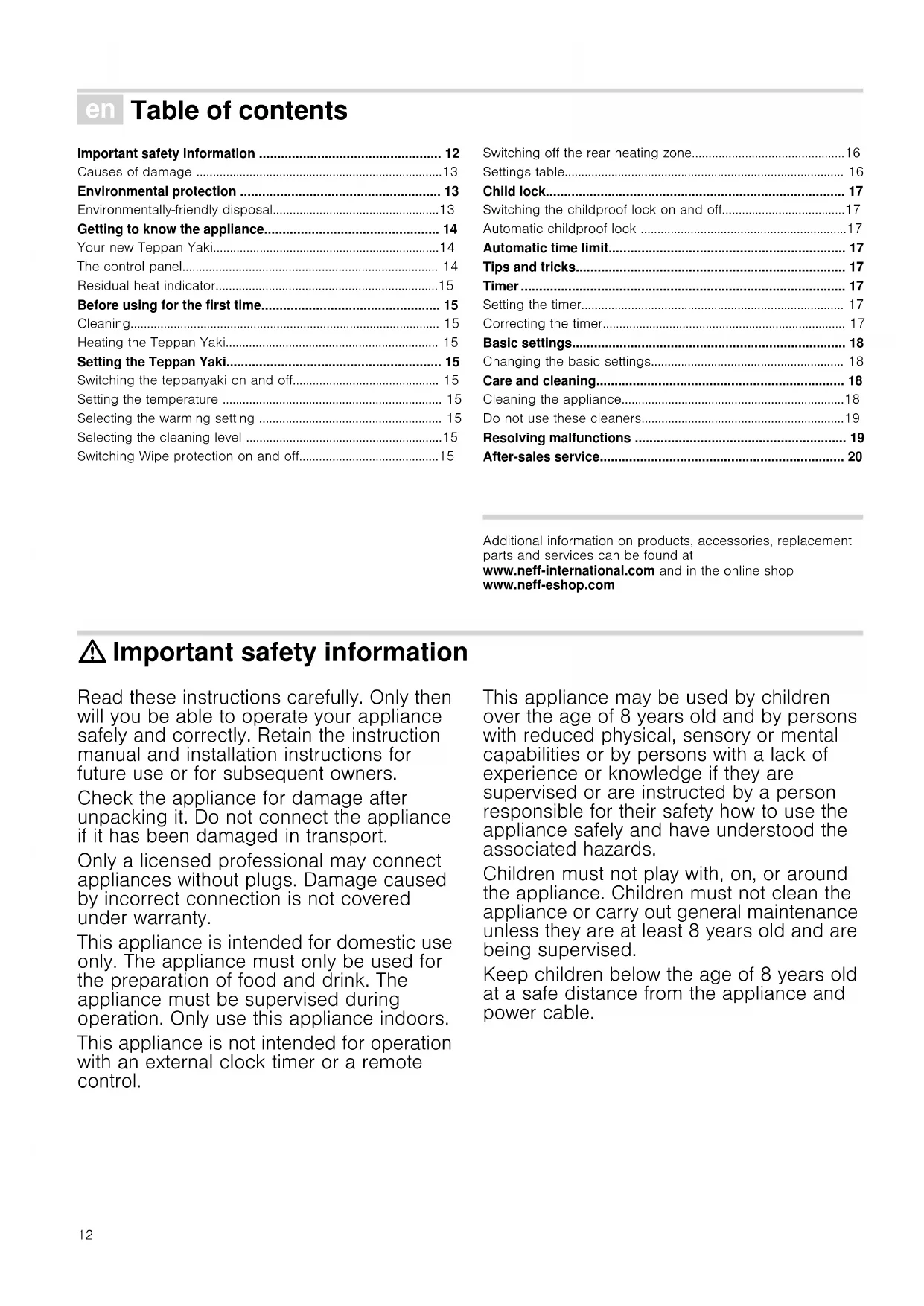

USER MANUAL N54D40N0 NEFF

Important safety information 12

Causes of damage 13

Environmental protection 13

Environmentally-friendly disposal. 13

Getting to know the appliance. 14

Your new Teppan Yaki. 14

The control panel. 14

Residual heat indicator. 15

Before using for the first time. 15

Cleaning. 15

Heating the Teppan Yaki. 15

Setting the Teppan Yaki 15

Switching the teppanyaki on and off. 15

Setting the temperature 15

Selecting the warming setting 15

Selecting the cleaning level 15

Switching Wipe protection on and off. 15

Switching off the rear heating zone. 16

Settings table. 16

Child lock. 17

Switching the childproof lock on and off. 17

Automatic childproof lock 17

Automatic time limit. 17

Tips and tricks. 17

Timer 17

Setting the timer. 17

Correcting the timer. 17

Basic settings. 18

Changing the basic settings. 18

Care and cleaning. 18

Cleaning the appliance. 18

Do not use these cleaners. 19

Resolving malfunctions 19

After-sales service 20

Additional information on products, accessories, replacement parts and services can be found at

www.neff-international.com and in the online shop

www.neff-eshop.com

Important safety information

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is not intended for operation with an external clock timer or a remote control.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Risk of fire!

Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.
The appliance becomes very hot and flammable materials could catch fire. Never store or use flammable objects (e.g. spray cans, cleaning agents) under the appliance or in its immediate vicinity. Never place flammable items on or in the appliance.

Risk of burns!

The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance.
- When the appliance cover is closed, heat will accumulate. Only close the appliance cover when the appliance has cooled down. Never switch the appliance on with the appliance cover closed. Do not rest food on the appliance cover or use it to keep food warm.

Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out by one of our trained after-sales engineers. If the appliance is faulty, unplug the mains plug or switch off the fuse in the fuse box. Contact the after-sales service.
The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
- Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Causes of damage

The stainless steel grilling surface is sturdy and smooth, but, like any good pan, will show signs of use over time. These do not impair the product use. A slight yellowing of the stainless steel grilling surface is normal.

Caution!

Scratches or scores on the grilling surface: Never use a knife to cut on the grilling surface. Turn food using the spatula provided. Do not hit the grilling surface with the spatula.
If hard or sharp objects fall on the glass ceramic panel or the glass ceramic cover, damage could occur.
Glass ceramic cover: Only close the glass ceramic cover after the appliance has cooled down completely. Never switch the appliance on with the cover closed. Do not use the cover as a cooker surface or warming zone.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Getting to know the appliance

Here you can gain an overview of your new appliance's components and control panel.

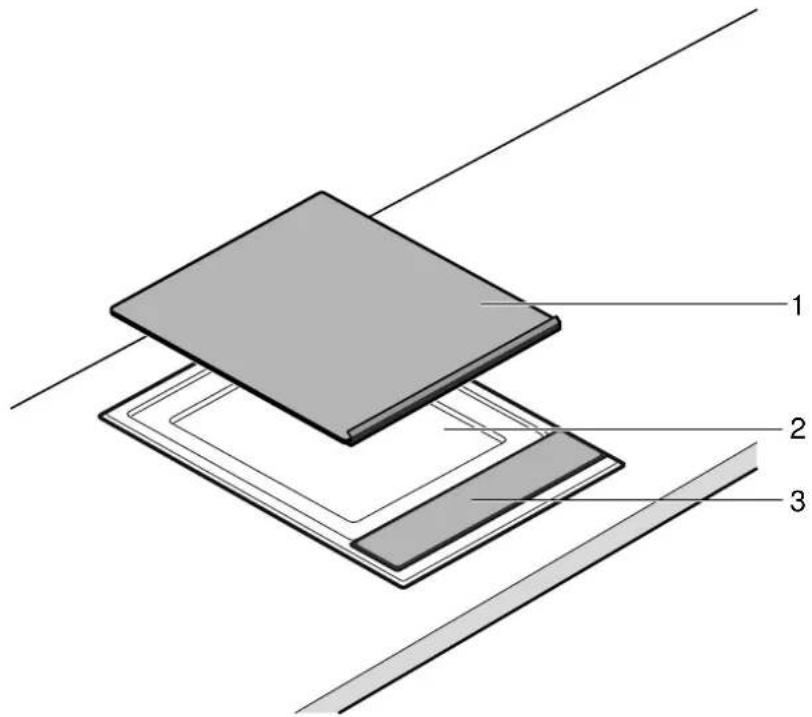

Your new Teppan Yaki

No. Designation

1 Glass ceramic cover
2 Grilling surface

No. Designation

3 Control panel

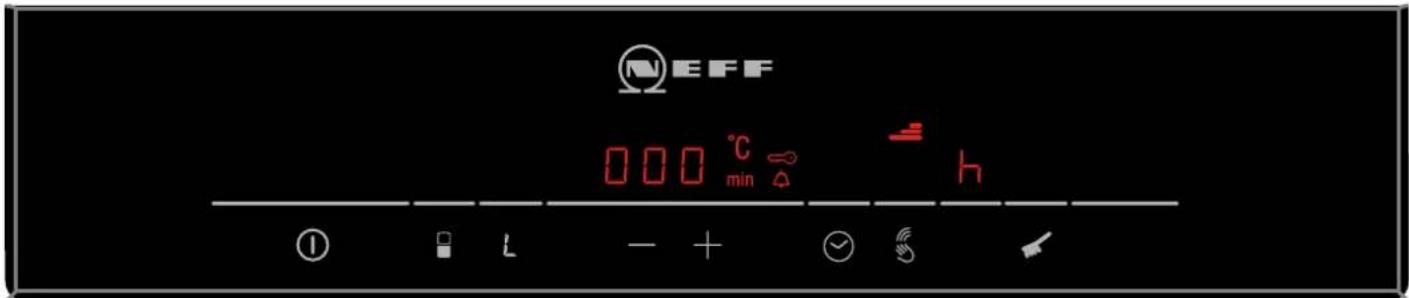

The control panel

Controls

① Main switch
Rear heating zone off
Warming setting
- Settings range
Timer
Wipe protection
Cleaning level

Displays

Temperature/duration

°C Temperature
min. Unit of time
Childproof lock
Timer
Heating symbol
H/h Residual heat

Controls

When you touch a symbol, the respective function is activated.

Notes

The settings will remain unchanged if you touch several symbols at once. This allows you to wipe up spills on the control panel.
Always keep the controls dry. Moisture reduces their effectiveness.

Residual heat indicator

The Teppan Yaki has a two-stage residual heat indicator.

If an ±bH appears in the display, the Teppan Yaki is still hot. When the Teppan Yaki cools down further, the display switches to h. The indicator goes out when the Teppan Yaki has cooled down sufficiently.

Before using for the first time

In this section, you can find out what you must do before using your Teppan Yaki to prepare food for the first time. Read the Safety information section beforehand.

Cleaning

Clean the Teppan Yaki thoroughly with lukewarm soapy water before first use.

Heating the Teppan Yaki

To get rid of the new cooker smell, heat up the empty Teppan Yaki. 30 minutes at 240^ is ideal.

Setting the Teppan Yaki

In this section, you can find out how to set the Teppan Yaki. The table shows temperatures and cooking times for various meals.

Switching the teppanyaki on and off

The main switch is used to switch the teppanyaki on and off.

To switch on: Touch the ① symbol. A signal sounds. The display above the main switch lights up. The teppanyaki is ready to use.

To switch off: Touch the ① symbol until the display above the main switch goes out. The teppanyaki has been switched off. The residual heat display remains lit until the teppanyaki has cooled down sufficiently.

Note: The teppanyaki switches off automatically when the temperature setting remains at 0 for more than approx. 15 seconds.

Setting the temperature

1. Switch on the teppanyaki using the main switch.
   000 and the ^ C symbol light up in the temperature display.
2. Set the required temperature on the settings range using the + and - symbols.
3. Touch the + symbol.

The temperature is set to 240^

Or:

Touch the - symbol.

The temperature is set to 170^

The heating symbol lights up.

Once the set temperature has been reached, a signal sounds and the heating symbol goes out. Now you can place the food onto the teppanyaki.

Note: The teppanyaki temperature is regulated by the heat switching on and off. The heat may be switched on and off even at the highest setting.

Selecting the warming setting

At the L warming setting, the appliance heats to 70^

1. Switch on the teppanyaki.
2. Touch the L symbol.

The L symbol lights up in the temperature display.

Note: Do not attempt to keep excessively large quantities of food warm. All food which is to be kept warm should be in contact with the frying surface, otherwise it will cool down. Do not keep food warm for too long, otherwise it will become dry.

Selecting the cleaning level

At the cleaning level, the appliance heats to 40^ . This enables you to leave the dirt to soak once you have poured a little water and added a drop of washing-up liquid on the frying surface (1 hour maximum). You can begin cleaning once the dirt has begun to soften.

Switching Wipe protection on and off

When the appliance is in use, you can activate the key lock for approx. 30 seconds using the Wipe protection function in order to clean the control panel.

1. Touch the symbol to switch Wipe protection on.

Note: When Wipe protection is switched on, all symbols are locked, except for the Wipe protection symbol and the ① symbol for switching off the appliance.

The displays above the symbol and above the ① symbol light up.

1. Clean the control panel with water and washing-up liquid.
2. Touch the symbol to switch off Wipe protection.

Switching off the rear heating zone

If you are preparing small amounts of food, you can also just use the front zone. You can use the rear zone for keeping food warm.

The teppanyaki must be switched on.

Touch the symbol. The display above the symbol lights up. The rear heating zone is now switched off.

When you next switch on the appliance, both heating zones are switched on. You can change this behaviour in the basic settings; see Basic settings.

Settings table

The details given in the tables are guidelines and apply to a preheated appliance. The values may vary depending on the type and amount of food to be grilled.

Only add the food when the preheating time has elapsed.

Meat/poultry

Food to be grilled Temperature Cooking time Quantity/thickness

Beef steak, medium* Sear at 230 - 240 °C 2 - 3 min. on each side approx. 2 cm Continue grilling at 180 °C 5 - 7 mins
Pork neck steak, boned 210 - 220 °C 15 - 20 mins approx. 2 cm
Pork medallions** 170 - 180 °C 13 - 17 mins max. 2 cm
Escalopes, pork or veal, breaded*** 190 - 200 °C 10 - 13 mins 0.5 - 1 cm
Turkey steak 210 - 220 °C 8 - 15 mins 1 - 1.5 cm
Chicken breast fillet 180 - 190 °C 15 - 20 mins 2.5 - 3 cm
Strips of meat, beef or pork, marinated****	200 - 210 °C 8 - 10 mins 600 - 700 g
Turkey breast strips****	180 - 190 °C 7 - 9 mins	600 - 700 g
Minced meat	230 - 240 °C 9 - 11 mins approx. 600 g
Hamburgers	180 - 190 °C 13 - 16 mins max. 1 cm

• e.g. entrecôte, fillet steak, rump steak. The steak is medium if meat juices escape.
  Press firmly on the plate, turn several times.
  * Use sufficient oil to prevent the breading from drying out and burning.
  *** Distribute the meat/poultry strips well, they should not touch each other.

Fish

Food to be grilled Temperature Cooking time Quantity/thickness

Fish fillet*	190 - 200 °C 7 - 10 mins approx. 2 cm
Salmon steak	170 - 180 °C 18 - 20 mins approx. 3 cm
Tuna steak	190 - 200 °C 18 - 20 mins approx. 3 cm
Prawns	210 - 220 °C 8 - 10 mins 30 g each

• Use suitable fish types for grilling, e.g. salmon, tuna, monkfish, perch, pike-perch. To prevent the fish fillets from sticking, you can toss them in flour before grilling. Start grilling skin side down and turn them only once, if possible.

Vegetables

Food to be grilled Temperature Cooking time Quantity/thickness

Carrots, julienne	190 - 200 °C 6 - 8 mins	approx. 500 g
Strips of pepper	200 - 210 °C 4 - 6 mins	approx. 500 g
Aubergines, sliced*	200 - 210 °C 6 - 8 mins	approx. 500 g
Courgettes, sliced	190 - 200 °C 6 - 8 mins	approx. 500 g
Onion rings	190 - 210 °C 5 - 7 mins	approx. 500 g
Mushrooms, sliced	230 - 240 °C 10 - 12 mins approx. 500 g
Potatoes, cooked, sliced	210 - 220 °C 10 - 12 mins approx. 500 g

• Before grilling, salt aubergines, leave to stand for 30 minutes and pat dry.

Child lock

The appliance has a childproof lock to prevent children operating it accidentally.

Switching the childproof lock on and off

The teppanyaki must be switched off.

To switch on: Touch the L symbol for at least 3 seconds. The symbol lights up for approx. 10 seconds. The control panel is locked.

To switch off: Touch the symbol for at least 3 seconds. The symbol lights up briefly. The lock is released.

Note: When the childproof lock is switched on, the symbol for the timer is not locked.

Automatic childproof lock

This function automatically activates the childproof lock every time you switch the teppanyaki off.

Switching on and off

You can find out how to switch the automatic childproof lock on and off in the Basic settings section.

Automatic time limit

If the appliance is in use for a prolonged period without the setting being changed, the automatic time limit is activated. Depending on the temperature set, the appliance may be operated for between 2 and 4 hours before the automatic time limit is activated.

The heat is interrupted. F and flash alternately in the display. The display goes out when you touch any control. You can reset the temperature.

Tips and tricks

• When the heating up light goes off, place the food on the appliance. This also applies when raising the temperature to fry a second item which requires a higher setting.
  Press the pieces of meat, poultry or fish flat onto the frying surface using the spatula. Only turn the meat, when it comes away from the surface easily, in order to protect the structure of the meat. Damaging the structure can cause juices to escape and results in the meat drying out.

• Keep the pieces of meat, poultry or fish apart so that they do not draw any liquid.

• Avoid pricking or cutting meat before or during frying, in order to retain meat juices.

• Do not salt the food before frying, to prevent liquid and soluble nutrients from escaping.
  Turn fish fillets in flour before frying. The fish will be easier to turn.
  Turn fish fillets only once if possible. Place fish onto the appliance with the skin facing downward.
  Use oil and fat that is suitable for frying, for example plant oil or concentrated butter.

Timer

The timer can be used as a kitchen timer. The timer does not switch the Teppan Yaki on or off.

With the timer, you can set a time up to 99 minutes. You can also use the timer when the Teppan Yaki is switched off.

Setting the timer

1. Touch the symbol until and light up in the timer display.
2. Set the required time on the settings range using the + and - symbols.
3. Touch the + symbol.

30 lights up in the timer display.

Or:

Touch the - symbol.

lights up in the timer display.

1. Touch the ^+ symbol.

The timer display is increased in increments of 1 minute.

1. Touch the - symbol.

The timer display is decreased in increments of 1 minute.

A signal sounds once the time has elapsed. lights up in the timer display and the symbol flashes. The signal and the display switch off after approx. 1 minute.

You can change the duration of the signal in the basic settings; see section Basic settings.

Correcting the timer

1. Touch the symbol.
2. Set the required time on the settings range using the + and - symbols.

Basic settings

Your appliance has various basic settings. You can adapt these settings to suit your own needs.

Display Function
c1	Automatic childproof lock
	Switched off.*
	Switched on.
c2	Audible signal
	The confirmation signal and operating error signal are switched off.
	Only the operating error signal is switched on.
	The confirmation signal and operating error signal are switched on.*
c6	Duration of the timer end signal
	10 seconds
	30 seconds
	3 1 minute*
c7	Switching off the rear heating zones
	When the appliance is switched on, both heating zones are on.*
	When the appliance is switched on, only the front heating zone is on.
	When the appliance is switched on, the previous setting is retained.
c8	Resetting to the basic setting
	All changed settings are saved.
	All settings are reset to the basic settings.
*Basic setting

Changing the basic settings

The teppanyaki must be switched off.

1. Switch on the teppanyaki.
2. Within the next 10 seconds, touch the symbol for 4 seconds. and flash alternately in the right-hand display; lights up in the left-hand display.
3. Touch the symbol repeatedly until the required display flashes on the right-hand display.
4. Set the required value on the settings range using the + and - symbols.
5. Touch the symbol for at least 3 seconds.

The setting has been saved.

Switching off without saving

To exit the basic setting, switch the Teppan Yaki off with the main switch. Changes are not saved.

Care and cleaning

In this chapter you will find tips on how to maintain and clean your appliance correctly.

Risk of electric shock!

Do not use high pressure washers or steam cleaners to clean the appliance.

Risk of burns!

The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

Risk of burns!

When you add water or ice cubes to the hot grilling surface, it will spit and steam will form. Do not bend over the appliance. Keep a safe distance away.

Cleaning the appliance

Clean the appliance after each use once it has cooled down. Burnt-on residues can only be removed with difficulty.

Remove large clumps of residue using a spatula.

Ice cubes are better suited to cleaning the hot appliance than water as they cause less splashing and steam.

Carefully remove cleaner residues before next using the appliance.

Cleaning the hot appliance

1. Switch off the appliance. Leave the appliance to cool down for at least 15 minutes.
2. Pour ice cubes or water onto the frying surface. Add a few drops of washing-up liquid. Leave the dirt to soak.
3. Do not start cleaning until the residual heat display has changed from H to

Cleaning the cooled appliance

1. Pour a little water and add a drop of washing-up liquid on the frying surface so that it is just covered.
2. Switch on the appliance. Set the cleaning level. Leave the dirt to soak (max. 1 hour).
3. Begin cleaning once the dirt has begun to soften.

Cleaning between uses

1. Switch off the appliance.
2. Use a spatula to push 4 - 5 ice cubes over the hot frying surface.
3. Use a spatula to remove dirt which has begun to soften.
4. Switch on the appliance again. Wait until the appliance has reached the set temperature again to place food on the frying surface.

Appliance part/ surface	Recommended cleaning
Frying surface Use	washing-up liquid to remove greasy residues. Depending on what has been cooked, whitish stains may remain on the frying surface. Remove these with lemon juice or vinegar. Then thoroughly wipe the frying surface with a wet cloth. Lemon juice and vinegar must not be allowed to come into contact with the control panel.
Frying surface, burnt-on dirt	Apply our grill cleaner gel (order no. 463582) to stubborn dirt once the appliance has cooled down and let it work for at least 2 hours, or overnight for heavy soiling. Then rinse off thoroughly and dry. Follow the instruc-tions on the cleaner's packaging.
Stainless steel frame	Clean using a soft, damp cloth and some washing-up liquid. For heavy soiling, use our stainless-steel cleaner (order no. 00311499). This gives dull stainless steel its shine back.
Control panel Clean	using a soft, damp cloth and some washing-up liquid; the cloth must not be too wet. Dry with a soft cloth.

Do not use these cleaners

Scouring or chemically aggressive cleaners
- Don't allow acidic cleaners (e.g. vinegar, citric acid, etc.) to get on the frame or panel.
Cleaners containing chlorine or with a high content of alcohol
Oven cleaner
Hard and scratchy sponges, brushes or scouring pads
Thoroughly wash out new sponge cloths before using them.

Resolving malfunctions

Malfunctions often have simple explanations. Please read the following notes and tips before calling the after-sales service.

Display Fault Measure

None The power supply has been discon- nected.		Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances.
E flashes	The controls are damp or an object is resting on them.	Dry the controls or remove the object. Then touch any control.
Er + number F0 / F6 /	Appliance fault Switch off the appliance	for at least 15 seconds. Switch the appliance back on. Contact customer service if this display appears again.
F4	The electronics have overheated and have switched off the appliance.	Wait until the electronics have cooled down sufficiently. Then touch any control.
F8	The appliance was in operation for too long and has switched itself off.	You can switch the appliance back on again immediately.

After-sales service

Our after-sales service is there for you if your appliance should need to be repaired. We are committed to find the best solution also in order to avoid an unnecessary call-out.

E number and FD number:

Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.

Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice

GB08448928989

Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

IE014502655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

Conectary desconectar
