Product type	Wine cellar
Brand	Bosch
Model	KSW30V80GB
Climate class	N/ST/T (from +16 °C to 43 °C)
Supply voltage	220-240 V / 50 Hz
Refrigerant	R600a (isobutane)
Approximate capacity	About 30 bottles (depending on format)
Temperature setting	5 positions (1 to 5), from +8 °C to +12 °C (position 3)
Temperature zones	Coldest zone at bottom, least cold at top
Interior lighting	E14 bulb, 220-240 V (wattage according to defective bulb)
Activated carbon filter	Yes, replacement recommended once a year
Defrosting	Automatic (rear wall)
Adjustable feet	Yes, at the front
Door reversal	Not possible
Dimensions (H x W x D)	Approximately 85 x 60 x 60 cm (estimate)
Weight	Approximately 40 kg (estimate)
Cleaning	Warm water and dish soap, do not use steam cleaner
Safety instructions	Do not use electrical appliances inside, do not damage the refrigeration circuit
Spare parts available	Activated carbon filter, bulb, shelves

Frequently Asked Questions - KSW30V80GB BOSCH

How to adjust the temperature of the Bosch KSW30V80GB wine cellar?

Press the temperature setting button (Fig. 1/6) for 3 seconds until the display flashes. Use positions 1 (reduced cold) to 5 (maximum cold). The factory setting is 3, giving approximately +8 °C to +12 °C.

How to clean the interior of the appliance?

First unplug the appliance. Clean with warm water and a little dish soap. Never use a steam cleaner or abrasive products. Thoroughly dry the door seal.

The interior light is not working, what to do?

Unplug the appliance. Remove the lamp cover from the back and replace the bulb with a new E14 type, 220-240 V, same wattage as the old one (see marking on the defective bulb). Also check that the light switch is not stuck.

What to do if water accumulates at the bottom of the compartment?

This indicates that the defrost water drain hose is clogged. Clean the drain channel (Fig. 4) and the hose with a stick or pipe cleaner. Make sure water can drain freely.

Why is my wine cellar making noise?

Some noises are normal: compressor hum, fluid gurgling, motor clicking. If the noise is excessive, check that the appliance is level (adjust feet) and that it is not touching a neighboring cabinet.

What is the maximum bottle capacity?

The maximum capacity depends on the model and bottle size. In standard configuration, the cellar can hold about 30 bottles of 75 cl, stored neck forward. See storage examples (Fig. 9 and 10) in the manual.

How to change the activated carbon filter?

The activated carbon filter (Fig. 6) is located inside. We recommend replacing it once a year. Replacement filters are available from Bosch customer service.

Can I reverse the door opening direction?

No, door opening direction reversal is not possible on this model.

What is the ideal serving temperature for different wines?

Recommended serving temperatures vary: full-bodied red wines around 18 °C, dry white wines around 11 °C, champagnes around 7-8 °C. Serve wines a few degrees below the desired temperature as they warm up in the glass.

What to do if the cellar is not cooling?

First check that the appliance is turned on (press the On/Off button). Check that the plug is connected and that the fuse/circuit breaker has not tripped. If the problem persists, wait 2-3 days after storing new bottles, then contact customer service.

USER MANUAL KSW30V80GB BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

KTW../KSW..

BOSCH

de Gebrauchs- und Montageanleitung en Operating and installation instructions fr Notices d'utilisation et de montage it Istruzioni per l'uso ed il montaggio nl Gebruiksaanwijzing en installatievoorschrift

Safety and warning information 16

Information concerning disposal 17

Getting to know your appliance . 18

Installing the appliance. 19

Aligning the appliance 19

Note ambient temperature .and.ventilation 19

Connecting the appliance 20

Switching on the appliance 20

Selecting the temperature 20

Placing bottles in the refrigerator 21

Use temperature zones in the refrigerator compartment! 21

Practical tips for storing wine 22

Drinking temperatures 22

Switching off and disconnecting the appliance 23

Cleaning the appliance 23

Activated.charcoal.filter 23

Tips for saving energy 23

Operating noises 24

Eliminating minor faults yourself 24

Customer service 26

fr Table des matieres

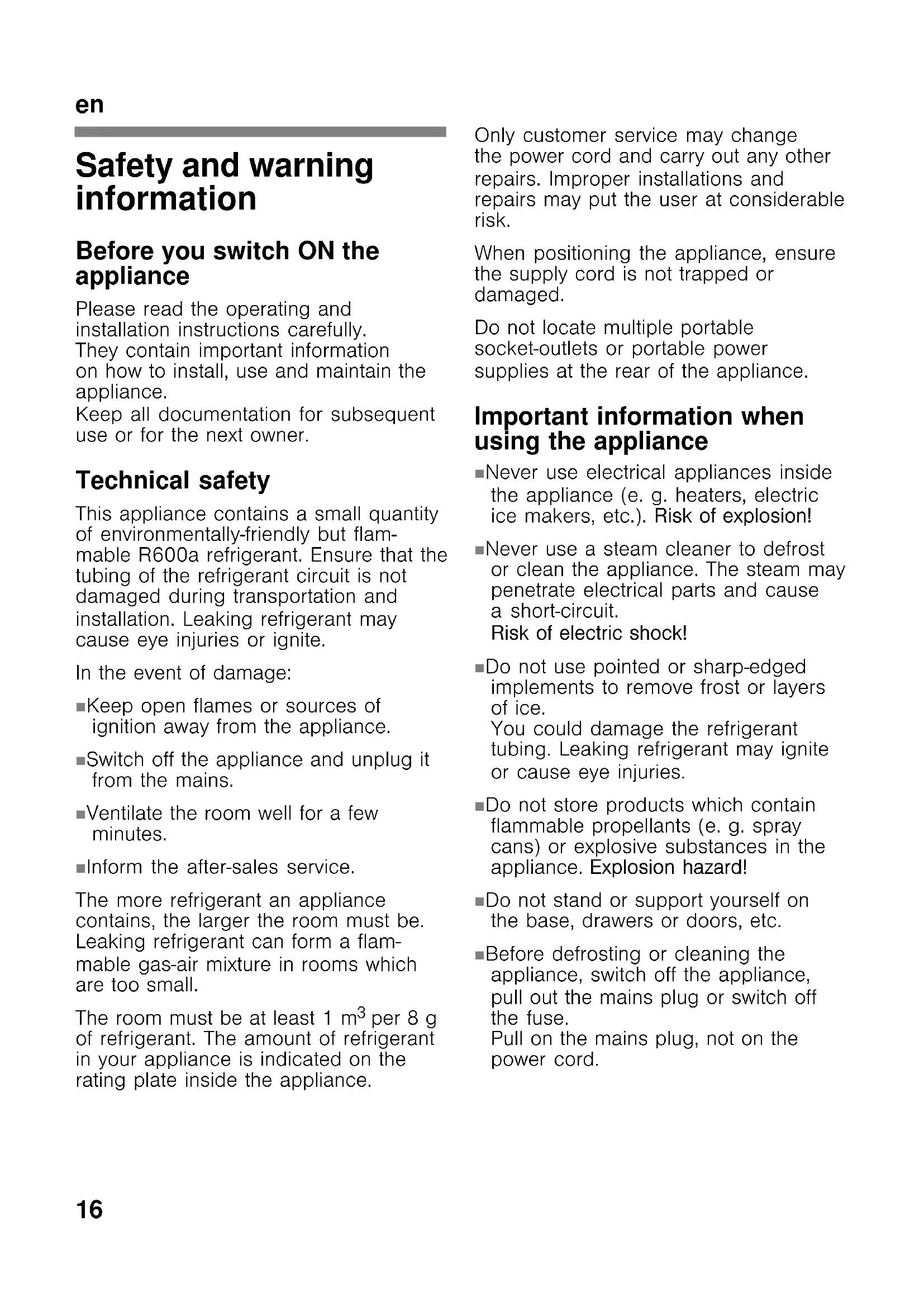

Safety and warning information

Before you switch ON the appliance

Please read the operating and installation instructions carefully.

They contain important information on how to install, use and maintain the appliance.

Keep all documentation for subsequent use or for the next owner.

Technical safety

This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

In the event of damage:

• Keep open flames or sources of ignition away from the appliance.
  Switch off the appliance and unplug it from the mains.
• Ventilate the room well for a few minutes.
  Inform the after-sales service.

The more refrigerant an appliance contains, the larger the room must be. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.

The room must be at least 1m^3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

Only customer service may change the power cord and carry out any other repairs. Improper installations and repairs may put the user at considerable risk.

When positioning the appliance, ensure the supply cord is not trapped or damaged.

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Important information when using the appliance

• Never use electrical appliances inside the appliance (e. g. heaters, electric ice makers, etc.). Risk of explosion!
• Never use a steam cleaner to defrost or clean the appliance. The steam may penetrate electrical parts and cause a short-circuit.

Risk of electric shock!

• Do not use pointed or sharp-edged implements to remove frost or layers of ice.
  You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries.
• Do not store products which contain flammable propellants (e. g. spray cans) or explosive substances in the appliance. Explosion hazard!
• Do not stand or support yourself on the base, drawers or doors, etc.
  Before defrosting or cleaning the appliance, switch off the appliance, pull out the mains plug or switch off the fuse.

Pull on the mains plug, not on the power cord.

Avoiding placing children and vulnerable people at risk:

Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position.
- Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
- Never cover or block the ventilation openings for the appliance.

At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.

Ensure that children and vulnerable people have understood the hazards.

A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.

Only children from 8 years and above may use the appliance.

Supervise children who are cleaning and maintaining the appliance.

Never allow children to play with the appliance.

Children in the household

• Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
• Do not allow children to play with the appliance!
  If the appliance features a lock, keep the key out of the reach of children.

General requirements

This appliance is only intended for the storage of wine.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance is intended for domestic use in private households and for a domestic environment.

The appliance has been interference-suppressed in compliance with EU Directive 2004/108/EC.

The refrigerant circuit has been tested for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335/2/24).

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

en

Disposing of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Warning

Redundant appliances:

1. Pull out the mains plug.
2. Cut off the power cord and discard with the mains plug.
3. Do not take out the trays and receptacles: children are therefore prevented from climbing in!
4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Getting to know your appliance

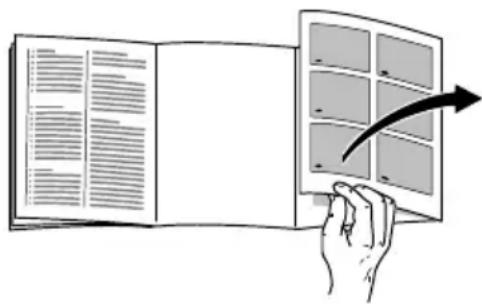

Please fold out the illustrated last page. These operating instructions refer to several models.

The illustrations may differ.

Fig. 1

* not all models

1 On/Off button
2 Interior light
3 Light switch
4 Wooden shelf
5 Condensation outlet
6 Selection button for temperature
7 Temperature setting display
8 Activated charcoal filter

Installing the appliance

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:

3 cm to electric or gas cookers.
30 cm to an oil or solid-fuel cooker.

Changing over the door hinges

The door hinges on this appliance cannot be changed over.

Aligning the appliance

Fig. 2

Place the appliance in the designated location and align. The front screw feet can be adjusted.

Note ambient temperature and ventilation

The climatic class can be found on the rating plate. It specifies the ambient temperatures at which the appliance may be operated.

Climatic category Permitted ambient temperature

N+16 °C to 32 °C

ST+16 °C to 38 °C

T+16 °C to 43 °C

Attention

The room temperature must not drop below +16^ .

Otherwise the refrigerator compartment will become too cold and perishable items may be damaged.

Ventilation

Fig. 3

The heated air on the side panels of the appliance must be able to escape freely. Otherwise, the refrigerating unit must work harder and the power consumption is increased.

For this appliance there must be a 4 cm gap between the wall and adjacent furniture.

This distance is also required so that the door can be opened by at least 90^ .

Connecting the appliance

After installing the appliance, wait at least 1 hour until the appliance starts up. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior of the appliance (see chapter Cleaning).

The socket must be close to the appliance and must be freely accessible even after the appliance has been installed.

Connect the appliance only to 220 - 240 V/50 Hz alternating current via a correctly installed earthed socket. The socket must be fused with a 10 A to 16 A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply. The rating plate is situated in the bottom left-hand side of the appliance. The power cord may be replaced by a technician only.

Warning

Never connect the appliance to electronic energy saver plugs or to power inverters which convert the direct current to 230V alternating current (e.g. solar equipment, power supplies on ships).

Switching on the appliance

Press the On/Off button Fig. 1/1. The appliance starts refrigerating. Interior light is switched on when the door is open.

At the factory the appliance has been set to the middle setting 3.

Operating tips

While the refrigerating unit is running, beads of water or hoarfrost form at the back of the refrigerator compartment. This is quite normal. It is not necessary to scrape off the frost or wipe off the beads of water. The rear panel defrosts automatically. The condensation collects in the drainage channel Fig. 4 and is conveyed to the refrigerating unit where it evaporates.

Selecting the temperature

The temperature can be set from 1 - 5. Press selection button Fig. 1/6 for 3 seconds until display flashes. Then keep pressing the selection button until the required setting is displayed.

The last setting is saved.

Setting 1, low cooling capacity.

Setting 5, maximum cooling capacity

At a setting of 3 a refrigerator compartment temperature of +8^ to +12^ is reached depending on the ambient temperature and load.

Refrigerating capacity

The temperature in the refrigerator compartment may rise temporarily if loaded with fairly large amounts of food.

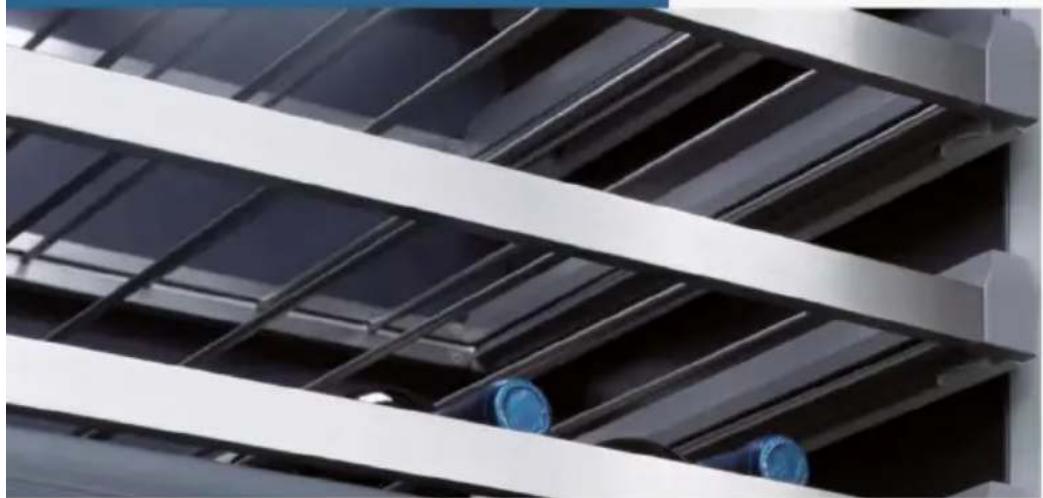

Placing bottles in the refrigerator

Note when loading products:

Depending on the model, a max. number of bottles can be stored on the bottle shelves, see loading example, Figs. 9 and 10. This number of bottles can be stored if the bottles are placed with their necks facing forwards.
To ensure good air circulation in the appliance, the bottles should not be stored opposite each other or touch the rear panel of the refrigerator compartment.
The indicated number of bottles may vary depending on the shape and size of the bottles.
- The area at the bottom is not very deep on account of the motor compartment. Drinks cans or short wine bottles can be stored. For presentation purposes it is also possible to store the wine bottles upright, Fig. 5.

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate.

Use temperature zones in the refrigerator compartment!

The air circulation in the appliance produces different refrigeration zones:

The warmest zone is at the top.

The coldest zone is at the bottom.

Arrange drinks

Store different types of wine from top to bottom according to the following sequence:

Haevy red wines
Rose and light red wines
White wine
Champagne and sparkling wines.

It is recommended to serve the wine a few degrees colder than the required drinking temperature, as the wine warms up quickly when poured into glasses.

Practical tips for storing wine

• Unpack bottles of wine - do not leave in crates or cardboard boxes - before storing in the refrigerator compartment.
• Place old bottles so that the cork is always wet. There should never be an air gap between the wine and the cork.
• The open bottle shelves are especially suitable because they do not interrupt the air circulation. As a result, the atmospheric humidity which condenses on the bottles quickly dries again.
  Before the wine is drunk, it should be "warmed up" (chambre): Place e.g. rosé wine on the table approx. 2 - 5 hours before drinking, red wine 4 - 5 hours before drinking. The wine will then be at the correct drinking temperature. Sparkling wine and Champagne should be cooled in the refrigerator shortly before drinking.
  Remember that wine should always be cooled slightly lower than the ideal serving temperature, as its temperature increases by 1 to 2^ as soon as it is poured into a glass!

Drinking temperatures

The correct serving temperature is crucial for the taste and therefore your enjoyment of the wine.

We recommend serving wine at the following drinking temperatures:

Type of wine	Drinking tempera ture
Bordeaux red 18 °C
Côtes du Rhône red/ Barolo	17 °C
Burgundy red/ Bordeaux red	16 °C
Port 15 °C
Young Burgundy red 14 °C
Young red wine 12 °C
Young Beaujolais/all white wines with little residual sugar	11 °C
Old white wines/ Chardonnay	10 °C
Sherry 9 °C
Young white wines from late vintage	8 °C
White wines Loire/ Entre-deux-Mers	7 °C

Switching off and disconnecting the appliance

Switching off the appliance

Press the On/Off button Fig. 1/1. Refrigerating unit and the light switch off.

Disconnecting the appliance

If the appliance is not used for a prolonged period:

1. Switching off the appliance.
2. Pull out the mains plug or switch off the fuse.
3. Cleaning the appliance.
4. Leave the appliance door open.

Cleaning the appliance

Proceed as follows:

1. Pull out the mains plug or switch off the fuse!
2. Wipe the door seal with clear water only and then wipe dry thoroughly.
3. Clean the appliance with lukewarm water and a little washing-up liquid. The water must not drip onto the controls or light.
4. After cleaning: reconnect and switch on the appliance.

Note

Do not use abrasive or acidic cleaning agents and solvents.

Regularly clean the condensation channel and drainage hole, Fig. 4, so that the condensation can flow out. Clean the condensation channel with cotton buds, etc.

Water used for cleaning must not run through the drainage hole into the evaporation pan.

Activated charcoal filter

Fig. 6

The activated charcoal filter provides air exchange and improved odour in the appliance.

We recommend that you replace the filter once a year.

Replacement filters are available from the after-sales service.

Tips for saving energy

Install the appliance in a dry, well ventilated room, but not in direct sunlight and not near a heat source (e.g. radiator, cooker, etc.). If required, use an insulating plate.
- Open and close the door as briefly as possible.
■Allow drinks to cool down before placing in the appliance!
- Occasionally clean the rear of the appliance with a vacuum cleaner or paint brush to prevent an increased power consumption.

Operating noises

Normal noises

Humming - refrigerating unit is running.

Bubbling, gurgling or whirring noises - refrigerant is flowing through the tubing.

Clicking - motor is switching on or off.

Preventing noises

The appliance is not level

Please align the appliance with a spirit level. Use the height-adjustable feet or place something under the feet.

The appliance is not free-standing

Please move the appliance away from adjacent units or appliances.

Drawers or storage areas wobble or stick

Please check the removable parts and, if required, reinsert them.

Bottles or receptacles are touching each other

Please move bottles or receptacles away from each other.

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following information.

Customer service will charge you for advice, even if the appliance is still under guarantee!

Fault	Possible cause Remedial action
Temperature differs greatly from the set value.	In some cases it is adequate to switch off the appliance for 5 minutes.
	If the temperature is too high wait a few hours and check whether the temperature has approached the set value.
	If the temperature is too low check the temperature again the next day.

Fault		Remedial actionPossible cause
Light does not function.	The light is faulty.	Replace the light; Fig. 7/A
		1. Pull out the mains plug or disconnect the fuse.
		2. Remove the bulb cover from the rear.
		3. Replace the light; 220 - 240 V AC replacement light, E14 socket - see faulty light for wattage.
		The lights used in the appliance are suitable for domestic appliances only. The lights are not suitable for lighting rooms.
	Light switch is sticking. Fig. 7/B.	Check whether you can move the light switch.
Floor of the refrigerator compartment is wet.	The condensation drainage pipe is blocked Fig. 4.	Clean the condensation channel and the outlet (see “Cleaning the appliance”).
The appliance interior is not cold.	Appliance door opened frequently.	Do not open the door unnecessarily.
	A lot of bottles were placed in the appliance.	wait 2 - 3 days.
Refrigerator has no cooling capacity.	Appliance has switched off.	Press the On/Off-button Fig. 1/1.
	Power failure; the fuse has been switched off; the mains plug has not been inserted properly.	Check whether the power is on, check the fuses.

Customer service

Please check your telephone book or the customer-service list for your nearest customer-service facility. When contacting customer service, please ALWAYS quote the product number (E-number) and production number (FD-number) of your appliance.

These numbers can be found on the rating plate. Fig. 8.

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Repair order and consultation if faults occur:

GB 0344 892 8979

Calls charged at local or mobile rate

IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

US 800 944 2904 toll-free

The attached after-sales service directory contains the contact data for all countries.

De warmste zone is bovenin
