USER MANUAL DVP947 LENCO

2English CAUTION: Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

PRECAUTIONS BEFORE USE

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave

5 cm (2”) free space around the whole device.

2. Install in accordance with the supplied user manual.

3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and

other heat-generating products or naked flame. The device can only be used in moderate climates. Extremely cold or warm environments should be avoided. Working temperature between 0° and 35°C.

4. Avoid using the device near strong magnetic fields.

5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and

restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.

6. Warning! Never insert an object into the product through the vents or openings. High

voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming

8. The device shall not be exposed to dripping or splashing and make sure that no objects

filled with liquids, such as vases, are placed on or near the apparatus.

9. Do not use this device when condensation may occur. When the unit is used in a warm wet

room with damp, water droplets or condensation may occur inside the unit and the unit may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning on the power: the unit should be dry before getting any power.

10. Although this device is manufactured with the utmost care and checked several times

before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

11. This device must operate on a power source as specified on the specification label. If you

are not sure of the type of power supply used in your home, consult your dealer or local power company.

12. Keep away from animals. Some animals enjoy biting on power cords.

13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids.

To remove severe stains, you may use a damp cloth with dilute detergent.

14. The supplier is not responsible for damage or lost data caused by malfunction, misuse,

modification of the device or battery replacement.

15. Do not interrupt the connection when the device is formatting or transferring files.

Otherwise, data may be corrupted or lost.

16. If the unit has USB playback function, the USB memory stick should be plugged into the unit

directly. Don’t use an USB extension cable because it can cause interference resulting in failing of data.

17. The rating label has been marked on the bottom or back panel of the device.

18. This device is not intended for use by people (including children) with physical, sensory or

mental disabilities, or a lack of experience and knowledge, unless they’re under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety.

19. This product is intended for non professional use only and not for commercial or industrial

20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in

an unstable position vibrations or shocks or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

21. Never remove the casing of this device.

22. Never place this device on other electrical equipment.

23. Do not allow children access to plastic bags.

24. Only use attachments/accessories specified by the manufacturer.

325. Refer all servicing to qualified service personnel. Servicing is required when the device has

been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

26. Long exposure to loud sounds from personal music players may lead to temporary or

permanent hearing loss.

27. If the product is delivered with power cable or AC power adaptor:

If any trouble occur, disconnect the AC power cord and refer servicing to qualified personnel. Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable’s exit point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children’s reach! When playing with the power cable, they can seriously injure themselves. Unplug this device during lightning storms or when unused for a long period. The socket outlet must be installed near the equipment and must be easily accessible. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock. Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection. Devices with class 2 construction do not require a earthed connection. Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

28. If the product contains or is delivered with a remote control containing coin/cell batteries:

“Do not ingest battery, Chemical Burn Hazard” or equivalent working. [The remote control supplied with] This product contains a coin/button cell battery. If the battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

29. Caution about the use of Batteries:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Battery cannot be subjected to high or low extreme temperatures, low air pressure at high altitude during use, storage or transportation. Replacement of a battery with an incorrect type that can result in an explosion or the leakage of flammable liquid or gas. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion. Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or that leakage of flammable liquid or gas. A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas. Attention should be drawn to the environmental aspects of battery disposal. INSTALLATION

• Unpack all parts and remove protective material.

• Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made. 4WARNING Class 1 Laser Product

Warning : Do noouch the lens.

WARNING: When parcipang in the traffic listening to a personal

music player can make the listener less aware of potenal dangers such as approaching cars.

WARNING: To prevent possible hearing damage, do not listen at high

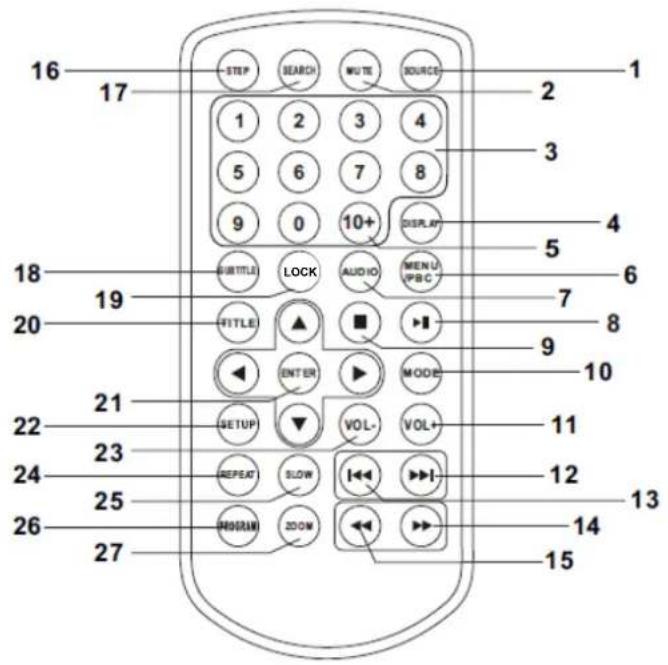

volume levels for long periods. Power supply adaptor Manufacturer: Dongguan Green Power One Co., Ltd. Model number: GA04-0901000EU Only use the power supply listed in the user instructions Information Value and and precision Manufacturers name or trade mark, commercial registration and address Dongguan Green Power One Co., Ltd. No.26, Hongyun Street, Chonghe Village. Qingxi Town, DONGGUAN CITY Guangdong Model Identifier GA04-0901000EU Input voltage 100-240V Input AC frequency 50/60HZ Output voltage 9.0V Output current 1.0A Output Power 9.0W Average active ef ficien cy 83.17% Efficiency at low load (10%) 81.6% No load Power consumption 0.037W 5/STOP long press is STOP 6LOCK 7819. LOCK Press the “LOCK” button on the remote control to lock the player/remote control buttons (except the EJECT button, ON/OFF switch and the “LOCK” button on the remote control). Press the “LOCK” button again to unlock the buttons. When the player is switched off, the keylock function will be switched off automatically. 9Charging the headphone ba ery Remark: not be used then. the headphone and the USB connector to an USB charger (not included) or a PC but you can also use the USB port of the DVD player (ONLY if the DVD player is powered by the supplied AC adaptor or Car adaptor). - To avoid that the DVD player can’t find your Bluetooth headphone, please disable the low power and must be charged. - if you find the max headphone level is too low, please increase the volume level on the DVD player itself. Connect the DVD Player with the included Bluetooth Headphone Please follow the below steps to connect your DVD player with the Bluetooth headphone:

1. Press and hold the Power bu

on of Bluetooth headphone and release it when you hear the “ power on” message from the headphone. The headphones power led will flash red/bl ue.

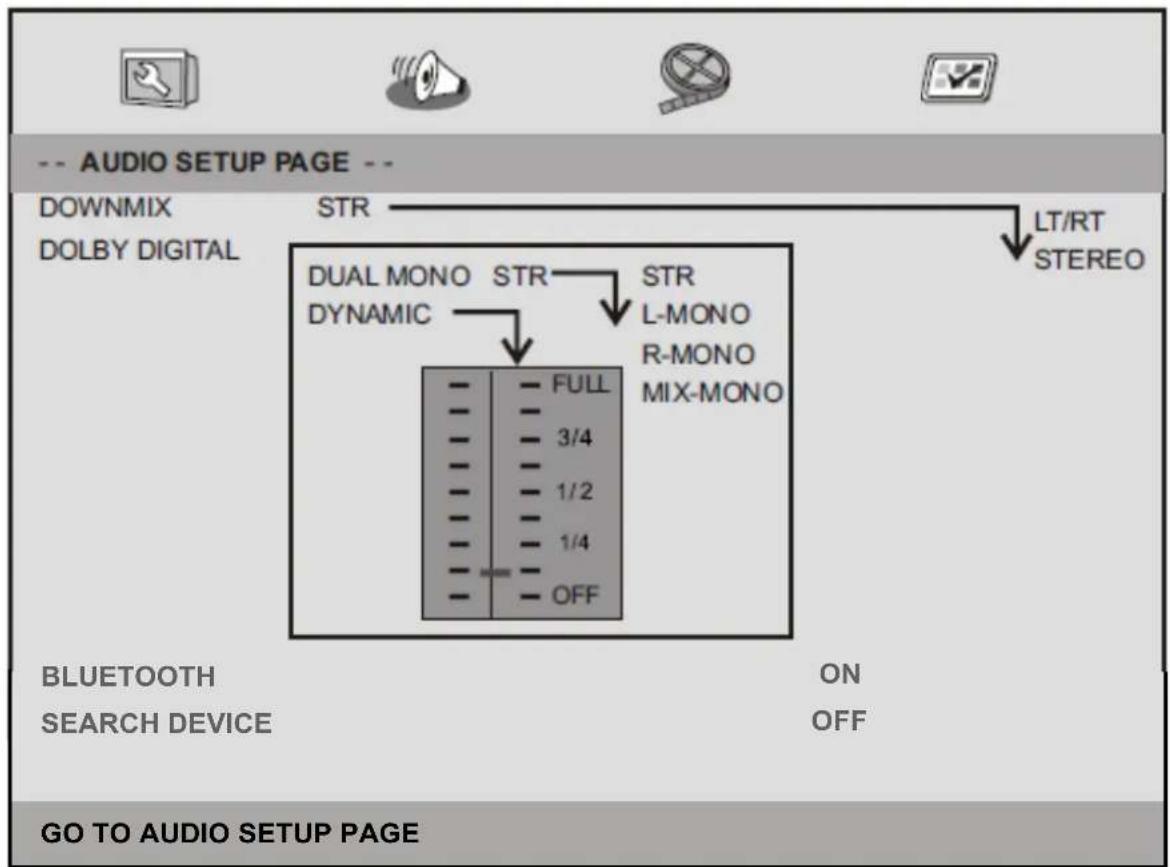

2. Press the SETUP bu

on on the remote control and navigate to the AUDIO SETUP PAGE, Go to the BLUETOOTH op on and switch it o ON. A Blu etooth icon will be displayed on the right corner of

3. Now go to the SEARCH DEVICE op

on, choose SEARCH and then press the ENTER bu on on the remote control to ini te the Bluetooth device search. The player now will show "Searching...".

4. When "Searching..." is disappeared from the screen, the Bluetooth icon is changed to

you’ll hear a short beep from the headphone and the headphone’s power led will stop flashing red/blue. The DVD player is now connected with the Bluetooth headphone. A on:

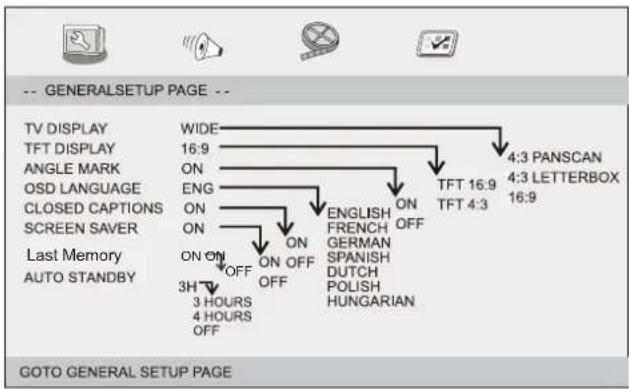

10Last Memory ON ON OFF 11Last Memory stopped, powered down or dvd was reinserted. OFF
