TGA660C(e).fm Page 1 Tuesday, December 14, 2010 11:27 AM

Panasonic

Installation Manual

Additional Digital Cordless Handset

Model No. KX-TGA660C

DECT 6.0

Thank you for purchasing a Panasonic product.

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone:

KX-TG4111/KX-TG4131/KX-TG6591/KX-TG6641/

KX-TG6651/KX-TG7621

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Charge the batteries for about 7 hours before initial use.

Please read this installation manual before using the unit and save it for future reference.

For assistance, please call

1-800-561-5505 or visit us at

www.panasonic.ca

TGA660C

Printed in Malaysia

PNQX3162ZA TT0111MG0

TGA660C(e).fm Page 2 Tuesday, December 14, 2010 11:27 AM

Supplied accessories

Accessory item/Part number Quantity
Charger 1
AC adaptor/PNLV226 1
Rechargeable batteries*1	2
Handset cover*2	1
Belt clip 1

1 Please read the base unit's operating instructions for replacement battery information.
2 The handset cover comes attached to the handset.

Note:

• Please read the base unit's operating instructions for additional/ replacement accessories.
  Optional headsets: RP-TCA94, RP-TCA95, KX-TCA400, KX-TCA430
  The suffix (C) in the following model numbers will be omitted in these instructions: KX-TG4111C/KX-TG4131C/KX-TG6591C/KX-TG6641C/ KX-TG6651C/KX-TG7621C series.

TGA660C(e).fm Page 4 Tuesday, December 14, 2010 11:27 AM

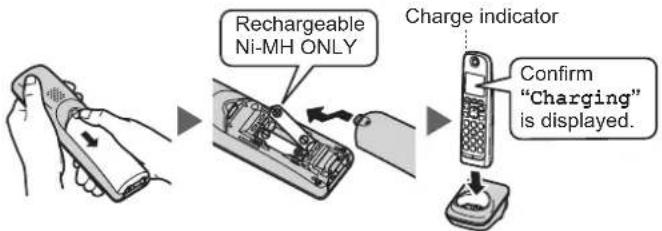

Charge for about 7 hours.

• When the batteries are fully charged, the charge indicator goes off and "Fully charged" is displayed.

Note:

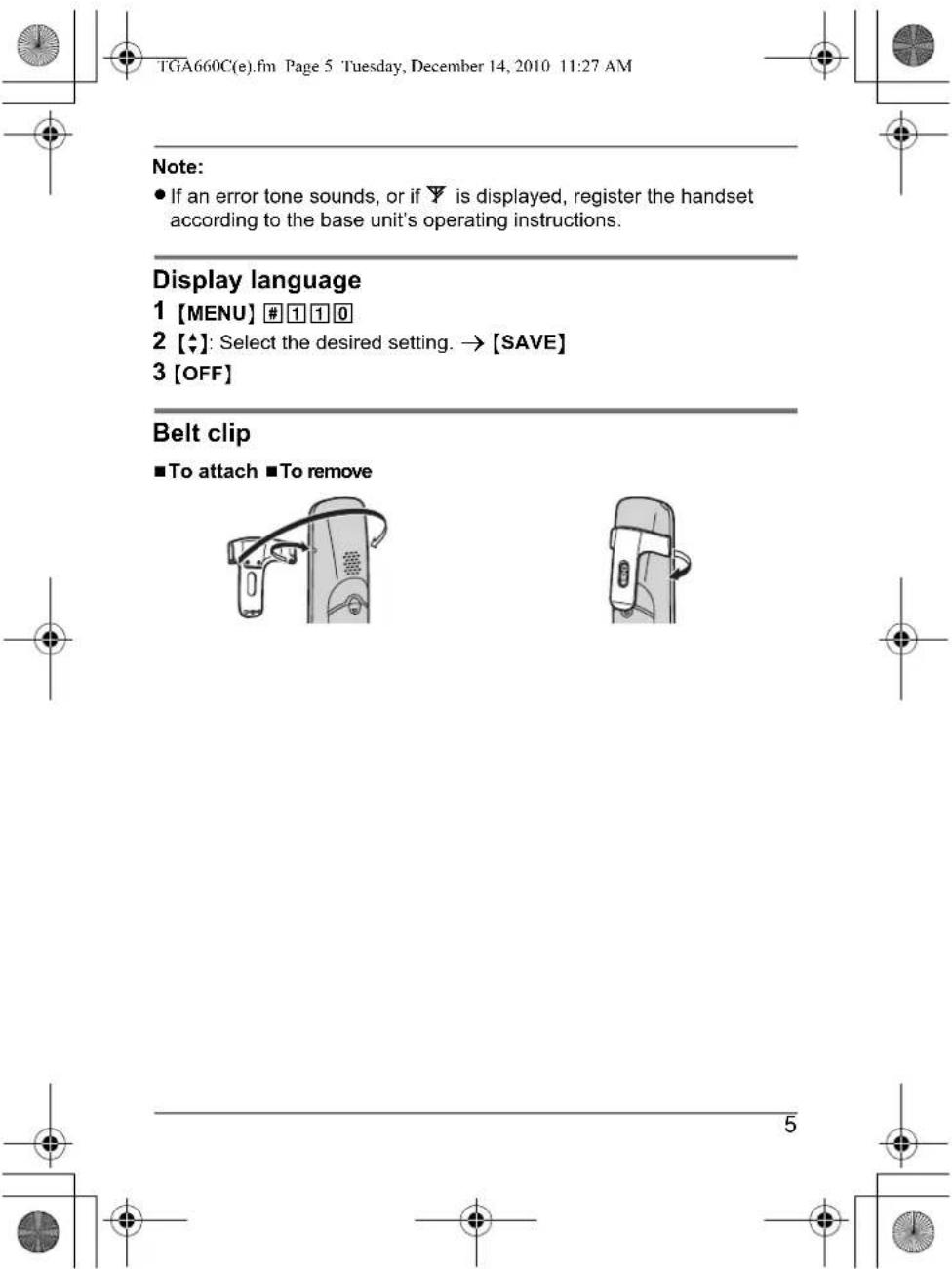

• When the language selection is displayed after installing the batteries for the first time, you can select your desired language.
  [1]: Select the desired setting. [SAVE] [OFF]
  If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends ( ,) and the charge contacts with a dry cloth and charge again.

Registering a handset to a base unit

1 Base unit:

KX-TG4111 series
Press and hold [LOCATOR] for about 5 seconds. (No registration tone)
■KX-TG4131/KX-TG6591/KX-TG6641/KX-TG6651/KX-TG7621

series

Press and hold [LOCATOR] for about 5 seconds until the registration tone sounds.
- If all registered handsets start ringing, press [LOCATOR] again to stop, then repeat this step.

2 Handset:

Place the handset on the base unit or charger, then wait until a long beep sounds and is displayed.

4

TGA660C(e).fm Page 7 Tuesday, December 14, 2010 11:27 AM

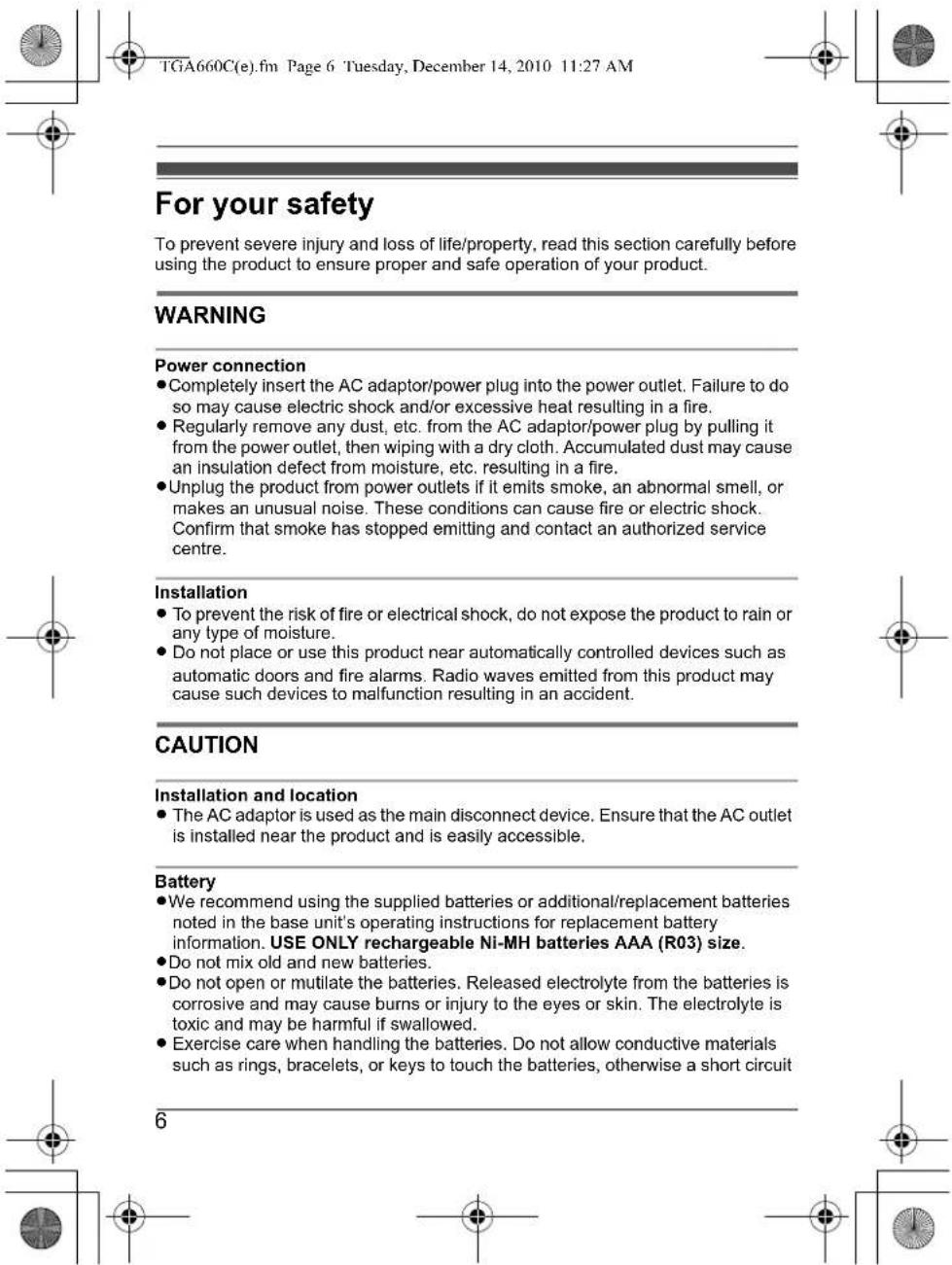

may cause the batteries and/or the conductive material to overheat and cause burns.

• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Attention:

A nickel metal hydride battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY

(1-800-822-8837) for information on how to recycle this battery.

Important safety instructions

When using your product, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Do not use this product near water for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Routine care

Wipe the outer surface of the product with a soft moist cloth.
- Do not use benzine, thinner, or any abrasive powder.

TGA660C(e).fm Page 8 Tuesday, December 14, 2010 11:27 AM

Notice for product disposal, transfer, or return

• This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Compliance with TIA-1083 standard

Telephone handsets identified with this logo have reduced noise and interference when used with T-Coil equipped hearing aids and cochlear implants.

Industry Canada Notices and other information

NOTICE:

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Privacy of communications may not be ensured when using this telephone.

RF Exposure Warning:

This product complies with IC radiation exposure limits set forth for an uncontrolled environment.
- This handset may not be collocated or operated in conjunction with any other antenna or transmitter.
- The handset may be carried and operated with only the specific provided beltclip. Other non-tested belt-clips or similar body-worn accessories may not comply and must be avoided.

8

TGA660C(e).fm Page 9 Tuesday, December 14, 2010 11:27 AM

Warranty

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT - LIMITED WARRANTY

EXCHANGE PROGRAM

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Telephone Accessory/Product

One (1) year

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.

Rechargeable batteries are warranted for ninety (90) days from date of original purchase.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTYES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTYES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.) In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

For product information and operation assistance, please contact:

Our Customer Care Centre:

Telephone#:[phone]

Fax#: [phone]

Email link: "Support contact us email" on

www.panasonic.ca

For defective product exchange within the warranty period, please contact the original dealer or our Customer Care Centre.

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

© Panasonic System Networks Co., Ltd. 2011
