USER MANUAL SRP1001 PHILIPS

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 1

Register your product

Universal and get support at www.philips.com/welcome

DE Bedienungsanleitung

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 2

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 3

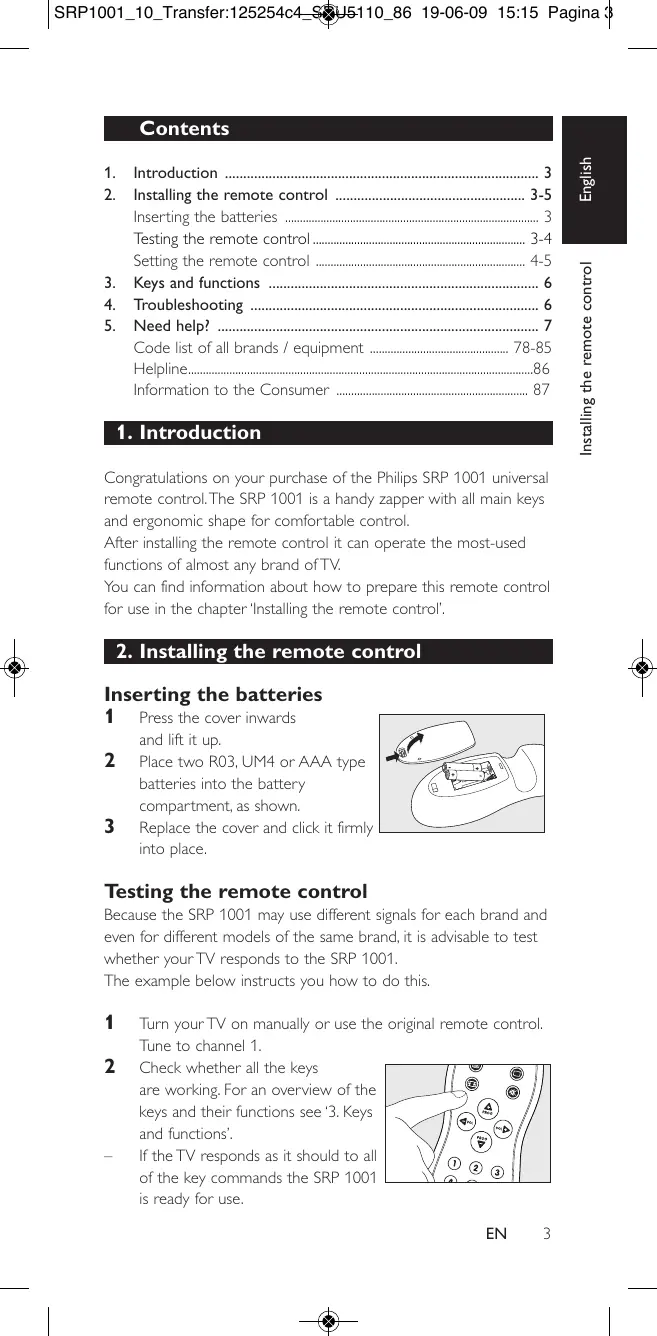

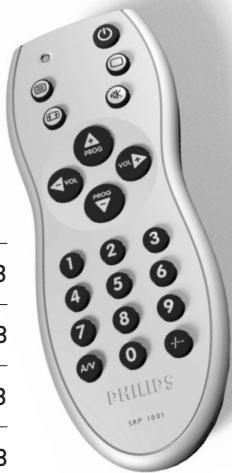

Congratulations on your purchase of the Philips SRP 1001 universal remote control. The SRP 1001 is a handy zapper with all main keys and ergonomic shape for comfortable control. After installing the remote control it can operate the most-used functions of almost any brand of TV. You can find information about how to prepare this remote control for use in the chapter ‘Installing the remote control’.

2. Installing the remote control

Inserting the batteries 1 Press the cover inwards 2 3

Place two R03, UM4 or AAA type batteries into the battery compartment, as shown. Replace the cover and click it firmly into place.

Testing the remote control

Because the SRP 1001 may use different signals for each brand and even for different models of the same brand, it is advisable to test whether your TV responds to the SRP 1001. The example below instructs you how to do this.

Turn your TV on manually or use the original remote control.

Tune to channel 1. Check whether all the keys are working. For an overview of the keys and their functions see ‘3. Keys and functions’. If the TV responds as it should to all of the key commands the SRP 1001 is ready for use. EN

Installing the remote control

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 4

If the device does not respond at all or not to all of the key commands, follow the instructions under ‘Setting the remote control’ or for online setup got to: www.philips.com/urc.

Setting the remote control

This is only necessary if your TV does not respond to the SRP 1001. If that is the case, the SRP 1001 does not recognize the brand and/or model of your TV and you need to program the remote control to do so. The example below instructs you how to do this. You can set the remote control either manually or automatically. Manually setting the remote control 1 Turn on the TV manually or use the original remote control. Tune in to channel 1. 2 Look up the brand of your TV in the code list at the back of this manual. One or more 3-figure key codes are shown for each brand. Note the first code.

Keep keys 1 and 3 on the SRP 1001 5 sec. pressed simultaneously for five seconds until the indicator light remains lit.

Then enter the code noted in step

2x 2 using the code keys. The indicator light will now flash twice. If the indicator light flashes once for an extended period, the code has not been entered properly or the wrong code has been entered. Start again from step 2. Point the SRP 1001 at the TV and check that it responds as it should. If the TV responds to all of the key commands, the SRP 1001 is ready for use. Do not forget to note your code.

If the device does not respond at all, or not to all of the key commands, start again from step 2 and try the next code from the list.

EN Automatically setting the remote control

If you cannot find the right code for your brand device, the remote control can automatically search for the right code.

Make sure the TV is switched on and select a channel using the original remote control or the keys on the TV (for example channel 1).

Keep keys 1 and 3 on the SRP 1001 5 sec. SRP 1001 pressed simultaneously for five seconds, until the indicator light remains lit.

Press the y key of the SRP 1001 . and keep it pressed

The SRP 1001 now starts emitting all known ‘TV off ’ signals, one by one. Each time a code is sent, the indicator light flashes.

When your TV switches off

(stand-by), immediately release the y key of the SRP 1001 to confirm. The SRP 1001 has now found a code that works on your TV. Check if you can operate all functions on your TV with the SRP 1001.

Installing the remote control

If this is not the case, you can redo the automatic setting. The SRP 1001 will then search for a code that perhaps works better.

After the SRP 1001 has run through all the known codes, the search will stop automatically and the indicator light stops flashing.

Automatic programming of a TV takes a maximum of 6 minutes.

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 5

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 6

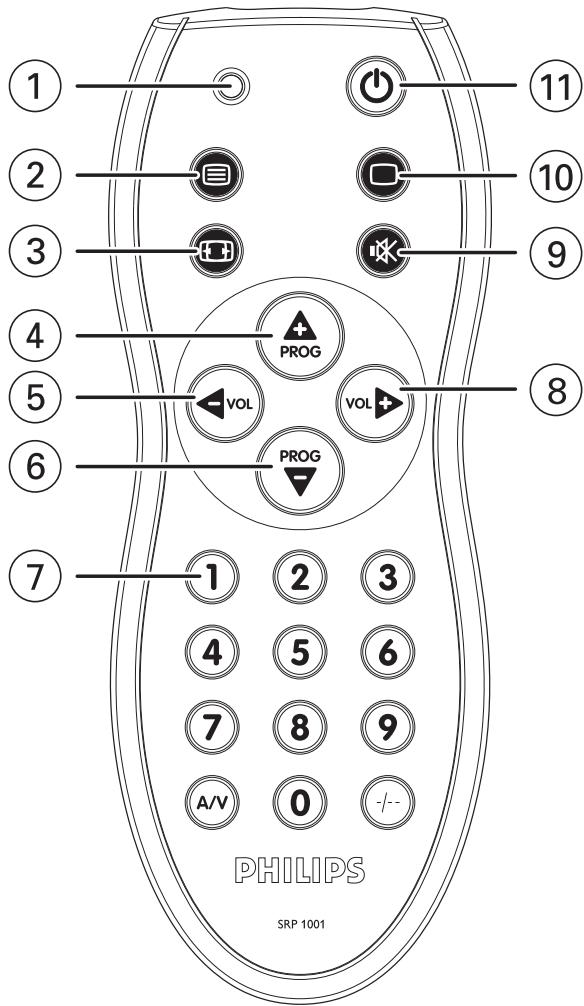

3. Keys and functions

The illustration on page 3 gives an overview of all keys and their functions. 1 Indicator light . . . . flashes / lights up when a key / key combination is pressed. 2 a . . . . . . . . . . . . . . . . switches Teletext on. 3 E . . . . . . . . . . . . . . . . selects between regular (4:3) and wide screen (16:9) TV. 4 PROG + . . . . . . . . . . selects a following channel. 5 VOL – . . . . . . . . . . . . reduces the TV volume. 6 PROG –. . . . . . . . . . . selects a previous channel. 7 Digit keys . . . . . . . . . direct choice of channels and other functions. 8 VOL + . . . . . . . . . . . . increases the TV volume. 9 s (Mute) . . . . . . . . . mutes the sound of the TV. 0 I . . . . . . . . . . . . . . . . switches Teletext off. ! y (Standby) . . . . . . . switches the TV on or off.

The device you want to operate does not respond when you press a key.

Replace the old batteries with two new R03, UM4 or AAA type batteries. Point the SRP 1001 at the device and make sure that there are no obstructions between the SRP 1001 and the device. The SRP 1001 does not respond properly to commands. Maybe you are using the wrong code. Try programming the SRP 1001 again using another code, which is mentioned under the brand of your device, or reset for automatic search to find the right code. Your brand of device is not in the code list. Try to set the SRP 1001 automatically. See ‘Automatically setting the remote control’. None of the codes works during manual setting of the remote control. If that is the case, follow the instructions under ‘Automatically setting the remote control’.

EN SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 7

If, however, you require extra information or have additional questions about setup, usage, spare parts, warranty, etc. of the

SRP 1001 you can always contact us. You will find our contact details at the end of this user manual. The model number of your Philips universal remote control is SRP 1001/10. Date of purchase:

We advise you to first read this user manual carefully. It is provided to help you set up and use the remote control.

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 8

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 9

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 10

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 11

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 12

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 13

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 14

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 15

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 16

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 17

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 18

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 19

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 20

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 21

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 22

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 23

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 24

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 25

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 26

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 27

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 28

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 29

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 30

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 31

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 32

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 33

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 34

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 35

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 36

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 37

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 38

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 39

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 40

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 41

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 42

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 43

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 44

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 45

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 46

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 47

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 48

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 49

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 50

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 51

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 52

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 53

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 54

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 55

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 56

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 57

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 58

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 59

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 60

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 61

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 62

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 63

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 64

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 65

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 66

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 67

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 68

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 69

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 70

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 71

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 72

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 73

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 74

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 75

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 76

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 77

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 78

SETUP CODES FOR TV SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 79

TV D TV SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 80

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 81

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 82

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 83

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 84

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 85

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 86

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 87

EN Information to the Consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health. Battery information Your product operates on batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because the correct disposal will help prevent negative consequences for the environmental and human health.

DE Kundeninformationen

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 88

FR SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 89

ES SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 90

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 91

CZ SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 92

PT SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 93

FI Tiedote kuluttajille

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 94

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 95

SRP1001_10_Transfer:125254c4_SRU5110_86 19-06-09 15:15 Pagina 96

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication there of does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Document order number: 3139 235 5248 1

June 2009 www.philips.com RTP/RR/2509
