Product Type	Remote Control
Brand	Philips
Model	SRP9232D
Dimensions (approx)	200 x 50 x 25 mm
Weight (approx)	150 g
Power Source	2 x AAA batteries (not included)
Main Functions	Universal control for TV, DVD, satellite, streaming devices; programmable with code library; learning function
Cleaning and Maintenance	Wipe with a soft dry cloth; avoid liquids
Safety Instructions	Keep away from water and heat; do not disassemble; replace batteries correctly
Spare Parts and Repairability	Batteries are user-replaceable; no other spare parts available; non-repairable
General Information	User manual available for free download at notice-facile.com

Frequently Asked Questions - SRP9232D PHILIPS

How do I program the SRP9232D remote to control my TV?

Press and hold the Setup key until the LED blinks, then enter the 4-digit code for your TV brand. The LED will turn off if successful. Codes are in the manual or available online.

Which devices are compatible with this remote?

The SRP9232D is a universal remote compatible with most brands of TVs, DVD players, satellite receivers, and streaming devices. Check the code list in the manual for specific models.

How do I replace the batteries?

Slide the battery cover off the back, remove old batteries, and insert two new AAA alkaline batteries with correct polarity. Replace the cover.

What should I do if the remote stops working?

First, check if the batteries are properly inserted and have charge. If not, replace them. If still not working, try resetting by removing batteries and pressing all buttons for 5 seconds, then reinsert.

Is there a learning function on this remote?

Yes, the SRP9232D supports learning mode. Point the original remote at the SRP9232D and follow the manual to teach it individual commands.

How can I find the correct code for my device?

Use the auto-search function: press and hold Setup, then press the device key (TV, DVD, etc.) repeatedly until the device turns off, then press Setup to lock the code.

Can I control volume and mute after programming?

Yes, once programmed, the volume and mute keys will control the selected device. For TV, ensure you programmed the remote for your TV brand.

Does the remote have a backlight?

No, the SRP9232D does not have a backlight feature. Keys are tactile but not illuminated.

I lost my manual. Where can I download it?

You can download the user manual for free from notice-facile.com in PDF format. Search for Philips SRP9232D.

How do I reset the remote to factory settings?

Remove the batteries, press and hold the Power key for 10 seconds while inserting one battery, then release. Reinsert the second battery. This clears all programmed codes.

USER MANUAL SRP9232D PHILIPS

Button Functions....4

Programming Your Remote 6

Direct Code Entry 6

Auto Code Search....7

Controlling Combo Devices....9

Using Your Remote....10

Primary Audio Control 10

Code Identification....11

Reset to Factory Settings....11

Troubleshooting 12

Warranty....13

FCC Statement 14

Congratulations on your purchase of this Philips branded Universal Remote Control. This remote is capable of operating thousands of audio/video devices including TVs, Blu-ray™/DVD players, streaming media players, sound bars, cable receivers and more!

For Remote Help:

byjasco.com/urccodes

Setup

Your universal remote requires two (2) AAA batteries (not included). Alkaline batteries are recommended.

Battery Installation

1. On the back of the remote, pull down on the textured surface and slide battery cover downward to remove.
2. Match the (+) and (-) marks on the batteries to the (+) and (-) marks inside the battery compartment, then insert two (2) AAA batteries. Be sure to use fresh batteries.
3. Position battery cover slightly below opening and push upward to lock into place.

NOTE. If your remote stops operating properly, replace the batteries with new ones.

Battery Precautions

• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
• Always remove old, weak or worn-out batteries promptly and recycle or dispose of them in accordance with local and national regulations.

Battery Saver

Your remote automatically turns off if the buttons are depressed more than 8 seconds. This will save your batteries should your remote get stuck in a place where the buttons remain depressed (e.g., between the sofa cushions).

Code Saver

You have up to 10 minutes to change the batteries in your remote without losing the codes you have programmed.

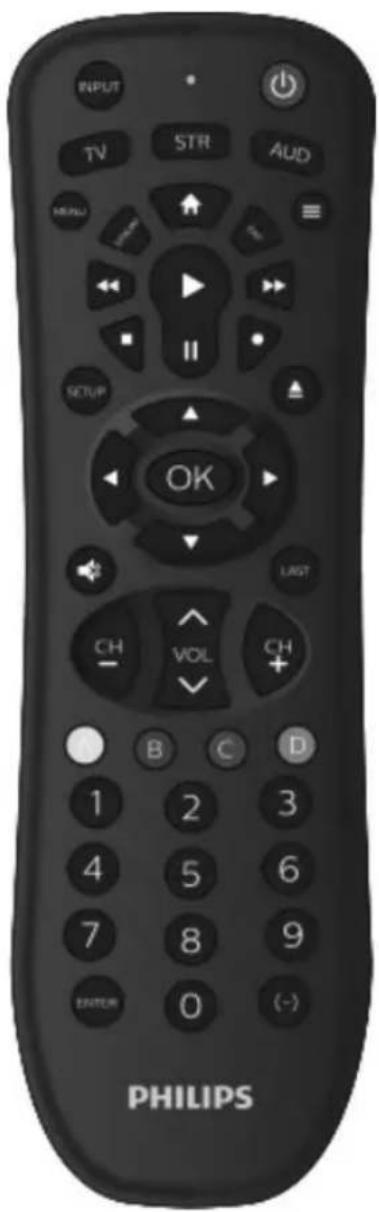

Button Functions

1. Power - Turns devices ON/OFF
2. TV, STR, AUD - Selects the device to control
3. Info/Options-Displays on-screen show/content information
4. Exit - Exit on-screen menus
5. Record, play, stop, rewind, fast forward, pause
6. DVD/Blu-ray™ open/close - open/close a player, or List features on cable/satellite receivers
7. Up/down/left/right menu navigation
8. Last channel - Returns to the previously selected channel
9. Channel up/down
10. ABCD - Access additional features for DVRs, cable and satellite receivers
11. Numbers - Enter numbers for direct channel selection
12. Dash (-) - Use to select digital channels, e.g., 4.1
13. Enter key (Some devices require enter to be pressed after channel selection)
14. Volume up/down
15. Mute - Mutes sound
16. Ok - Selects menu items for the controlled device
17. Setup - Used to program the remote
18. Streaming App Hotkey - Access top apps like Netflix ^® , Amazon ^® Prime, Hulu ^® and more
19. Home/Guide - Easily access features on today's streaming devices, or Guide on cable/satellite receivers
20. Menu - Displays the on-screen menu
21. Input - Selects video inputs

Programming Your Remote

Your remote is designed to control multiple audio/video devices. To use, you will need to program the remote for your devices. There are two different methods you can use to program the remote, Direct Code Entry or Auto Code Search.

• The Direct Code Entry method is the recommended method as it is the simplest and quickest method in most cases.
• The Auto Code Search method searches through all the codes in the remote to find a code for your device.

NOTE· This remote comes preprogrammed for Roku® boxes and Samsung TVs. Press TV for Samsung TVs and STR for Roku boxes.

Direct Code Entry (Recommended)

1. Locate the Code List included with your remote. Find the section for the type of device you wish to control, (for example TV, STR, AUD). Locate the brand of your device and circle all the remote codes for the brand.

2. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

NOTE· The red light will either be a small light at the top of the remote or the power ON/OFF button.

1. Press and release the device button on the remote for the type of device you wish to control, (for example TV, STR, AUD). The red light will blink once and remain on.

NOTE· Any of the device buttons on the remote can be programmed to control any of your devices. For example, you can use the aux device button on the remote to control a Satellite Receiver, Digital

Programming Your Remote

Converter Box, Streaming Media Player or any device category in the Code List.

1. Use the number buttons on the remote to enter the first 4-digit remote code you circled in the Code List in Step 1. The red light will turn off after entering the fourth digit.

2. Point the remote at the device. Test the buttons on the remote to see if the device responds as you would expect. If the buttons do not operate the device, return to Step 2 above and use the next code that you circled for that device.

3. Repeat steps 1 – 5 for each device you wish to control.

Programming Notes

• Some codes may operate only a few functions of your device. There may be another code in the Code List that controls more functions. Test other codes in the Code List for more functionality.
• If you do not find a remote code that works your device or there are no codes in the Code List for your device, use the Auto Code Search method in the next section to program your remote.
• For combination devices such as a TV/DVD combo or TV/VCR combo, you may have to enter a code for each device.
• Write down the remote codes used to program the remote for future reference.

Auto Code Search

The Auto Code Search is a process where you can search through all the codes stored in the remote to find a code for your device. It is recommended that you read through all the steps below to familiarize yourself with the Auto Code Search before starting the process.

Programming Your Remote

1. Manually turn on the device you wish to control.

NOTE· The Auto Code Search process cannot be used for devices without power ON/OFF capability. Use the Direct Code Entry method in these cases.

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

NOTE· The red light will either be a small light at the top of the remote or the power ON/OFF button.

1. Press and release the device button on the remote for the type of device you wish to control, (for example TV, STRM, AUX). The red light will blink once and remain on.

2. With the remote pointed at the device, press and release the POWER button on the remote. The remote will send 10 different codes to the device. The red light will blink once for each code and remain on after sending the 10 codes.

Did the device turn off?

• If YES, go to Step 5.
- If NO, repeat Step 4 to test the next 10 codes.

1. Manually turn the device back on.

2. With the remote pointed at the device, press and release the VOL button. The remote will re-send the first code of the 10 codes from Step 4. The red light will blink once and remain on.

Did the device turn off?

- If YES, you have found a code for the device. Press and release the same device button you pressed in Step 3. This will

Programming Your Remote

store the code in the remote. Go to Step 7.

- If NO, continue to press and release the VOL button until the device turns off to test the other 9 codes from Step 4. Be sure to wait approximately 3 seconds after each VOL button press to allow the device time to respond to the code. When the device turns off, you have found a code for your device. Press and release the same device button pressed in Step 3. This will store the code in the remote. Go to Step 7.

NOTE.

- The VOL button can be used to go backwards through each batch of 10 codes.

- The red indicator light will flash 2 times after testing the first or last code in each batch of 10.

1. Use the remote to turn the device back on. Test the buttons on the remote to see if the device responds as you would expect. If the buttons do not operate the device, return to Step 2 and repeat this process to search for a better code to operate the device.

2. Repeat this process for each device you wish to control.

Controlling Combo Devices

Some combo devices (e.g. TV/VCR, TV/DVD, DVD/VCR, etc.) will require you to set up two different device buttons to control both parts of the combo device. For example, if you have a TV/DVD combo, you may need to set up one code under the TV button to control the TV and a separate code under the DVD button to control the DVD.

Using Your Remote

Primary Audio Control

The Primary Audio Control feature allows you to select a single device that the volume buttons always control. For example, the remote can be in TV mode while the volume buttons control the volume on your audio receiver or sound bar instead of your TV.

Enabling the Primary Audio Control

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

1. Press and release the device button (TV, AUD, etc.) on the remote for the device you wish to control the volume.

1. Press and release the MUTE button.

1. Press and release the VOL ∧ button. The red light will blink twice and turn off.

Disabling the Primary Audio Control

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

1. Press and release the device button (TV, AUD, etc.) programmed to control the Master Volume Feature.

1. Press and release the MUTE button.

2. Press and release the VOL √ button. The red light will blink twice and turn off.

Using Your Remote

Code Identification

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

1. Press and release the desired device button (TV, STRM, AUD) you would like the code for.

1. Press and release the ENTER button.

1. Press and release the #1 button. Count the number of times the remote light flashes. This is the number corresponding to the first digit of the code. Repeat the process by pressing the #2, #3 and #4 buttons for the remaining digits.

1. Press and release the ENTER button to exit this mode.

Reset to Factory Settings

1. Press and hold down the SETUP button on the remote until the red light on the remote control turns on. Release the SETUP button. The red light will remain on.

1. Press and release the MUTE button.

1. Press and release the number #0 button. The red indicator light will flash twice.

Troubleshooting

Remote does not operate your device.

• Make sure the batteries are fresh and installed correctly.
• Aim the remote directly at your device, and make sure that there are no obstructions between the remote and device.
  • Make sure you select the appropriate device on the remote you wish to control; TV for TV and CBL for cable box.
• Try programming the remote with a different code. See Direct Code Entry section.
• Remote may not be compatible with your device.

Remote does not operate some features of your device.

- Sometimes a particular code might operate a few features but not all. Try programming the remote with a different code from the Code list. See Direct Code Entry section.

- Remote may not be able to operate all features of your device or button names may be different than that of your original remotes.

90-Day Limited Warranty

This warrants this product to be free from manufacturing defects for a period of 90 days from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit. This warranty is in lieu of all other warranties express or implied. Some states do not allow limitations on how long an implied warranty lasts or permit the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific rights, and you may also have other rights which vary from state to state.

Warranty replacement procedure

1. Call our Customer Information Center at 1-844-816-0320 to get a Return Authorization Number (RA#), shipping instructions and a prepaid return address label.
2. Return the remote, freight prepaid, to us. Remotes returned to us must have an RA# included in the mailing address to be accepted.
3. The original purchaser will be asked to send the remote, a copy of the sales receipt for the product, your name, address, phone number and a description of the problem.

MADE IN CHINA

The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license. This product has been manufactured by Gibson Innovations Limited. It is distributed and warranted by Jasco Products Company LLC, 10 E. Memorial Rd., Oklahoma City, OK 73114. ©2018 Gibson Innovations, all rights reserved.

This product comes with a limited 90-day warranty. Visit www.philips.com/support for warranty details.

Questions? Contact us at 1-844-816-0320 between 7:00AM—8:00PM CST.

FCC Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC NOTE· The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

NOTE· This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

ICES-3(B)/NMB-3(B).
